Element bb_shield

Namespace

No namespace

Annotations

Breeding blanket and relevant shield. CPO. Time-dependent CPO.

Diagram

Properties

content

complex

Used by

Element

top

Model

datainfo , type , limits , li6_enrich , geom , neut_results , shield , bb , hcll , codeparam , time

Children

bb, codeparam, datainfo, geom, hcll, li6_enrich, limits, neut_results, shield, time, type

Instance

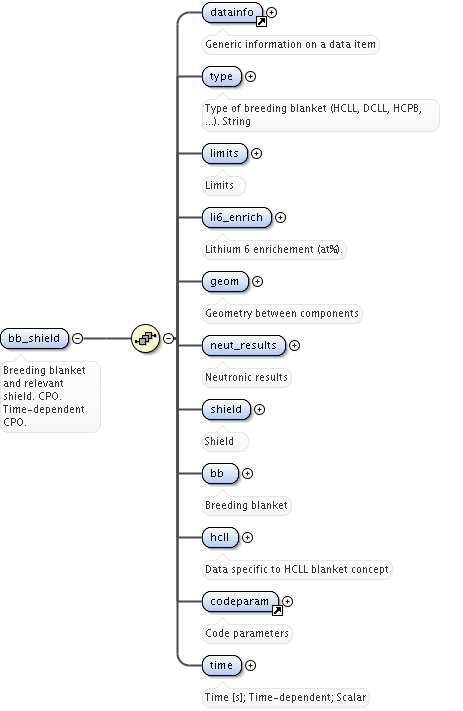

<bb_shield>
  <datainfo>{1,1}</datainfo>
  <type>{1,1}</type>
  <limits>{1,1}</limits>
  <li6_enrich>{1,1}</li6_enrich>
  <geom>{1,1}</geom>

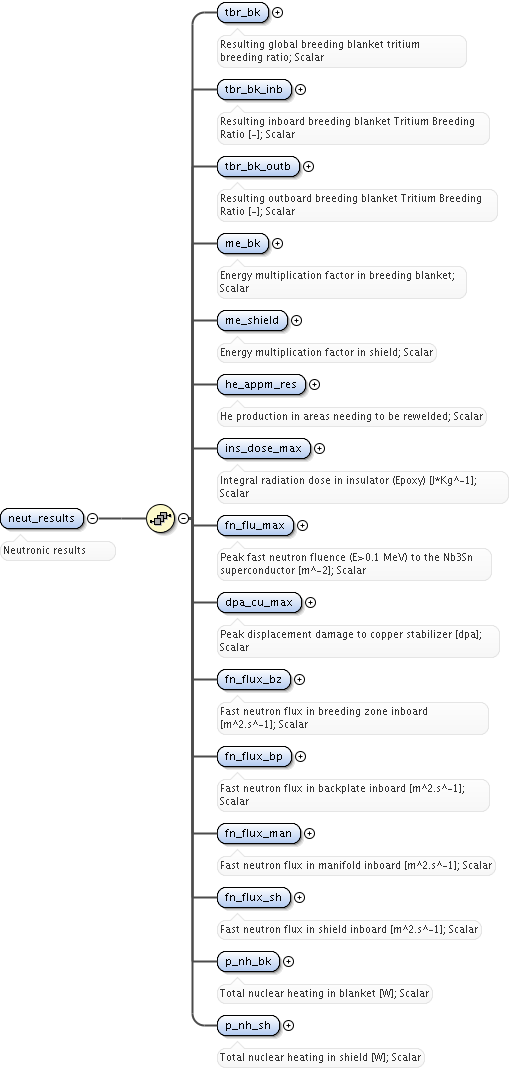

  <neut_results>{1,1}</neut_results>
  <shield>{1,1}</shield>
  <bb>{1,1}</bb>
  <hcll>{1,1}</hcll>
  <codeparam>{1,1}</codeparam>
  <time>{1,1}</time>
</bb_shield>

Source

<xs:element name="bb_shield">
  <xs:annotation>
    <xs:documentation>Breeding blanket and relevant shield. CPO. Time-dependent CPO.</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="datainfo"/>
      <xs:element name="type" type="xs:string">
        <xs:annotation>

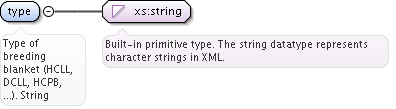

          <xs:documentation>Type of breeding blanket (HCLL, DCLL, HCPB, ...). String</xs:documentation>
        </xs:annotation>
      </xs:element>

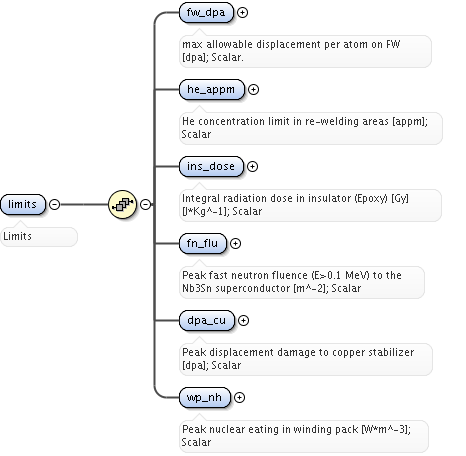

      <xs:element name="limits">
        <xs:annotation>
          <xs:documentation>Limits</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="fw_dpa" type="xs:float">
              <xs:annotation>
                <xs:documentation>max allowable displacement per atom on FW [dpa]; Scalar.</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="he_appm" type="xs:float">
              <xs:annotation>
                <xs:documentation>He concentration limit in re-welding areas [appm]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="ins_dose" type="xs:float">
              <xs:annotation>
                <xs:documentation>Integral radiation dose in insulator (Epoxy) [Gy] [J*Kg^-1]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="fn_flu" type="xs:float">
              <xs:annotation>
                <xs:documentation>Peak fast neutron fluence (E>0.1 MeV) to the Nb3Sn superconductor [m^-2]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="dpa_cu" type="xs:float">
              <xs:annotation>
                <xs:documentation>Peak displacement damage to copper stabilizer [dpa]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="wp_nh" type="xs:float">
              <xs:annotation>
                <xs:documentation>Peak nuclear eating in winding pack [W*m^-3]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="li6_enrich" type="xs:float">
        <xs:annotation>
          <xs:documentation>Lithium 6 enrichement (at%).</xs:documentation>
        </xs:annotation>
      </xs:element>

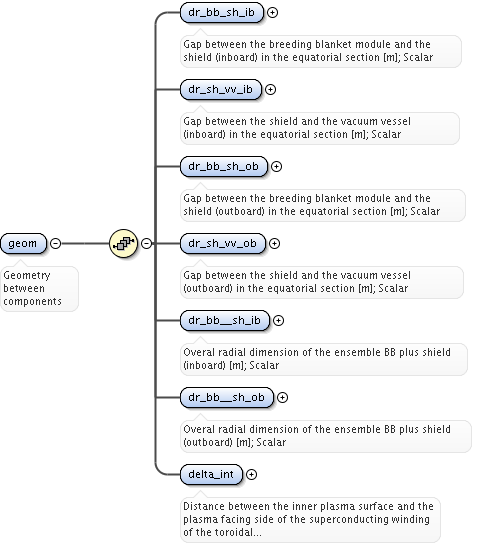

      <xs:element name="geom">
        <xs:annotation>
          <xs:documentation>Geometry between components</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>

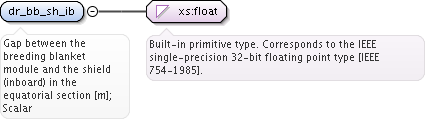

            <xs:element name="dr_bb_sh_ib" type="xs:float">
              <xs:annotation>
                <xs:documentation>Gap between the breeding blanket module and the shield (inboard) in the equatorial section [m]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="dr_sh_vv_ib" type="xs:float">
              <xs:annotation>
                <xs:documentation>Gap between the shield and the vacuum vessel (inboard) in the equatorial section [m]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>

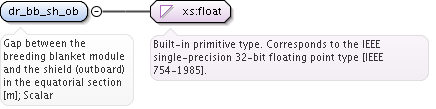

            <xs:element name="dr_bb_sh_ob" type="xs:float">
              <xs:annotation>
                <xs:documentation>Gap between the breeding blanket module and the shield (outboard) in the equatorial section [m]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>

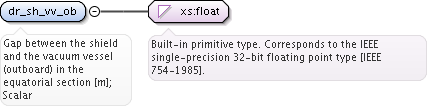

            <xs:element name="dr_sh_vv_ob" type="xs:float">
              <xs:annotation>
                <xs:documentation>Gap between the shield and the vacuum vessel (outboard) in the equatorial section [m]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="dr_bb__sh_ib" type="xs:float">
              <xs:annotation>
                <xs:documentation>Overal radial dimension of the ensemble BB plus shield (inboard) [m]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="dr_bb__sh_ob" type="xs:float">
              <xs:annotation>
                <xs:documentation>Overal radial dimension of the ensemble BB plus shield (outboard) [m]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>

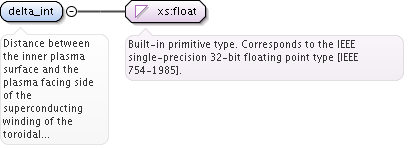

            <xs:element name="delta_int" type="xs:float">
              <xs:annotation>
                <xs:documentation>Distance between the inner plasma surface and the plasma facing side of the superconducting winding of the toroidal field coil [m]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="neut_results">
        <xs:annotation>
          <xs:documentation>Neutronic results</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="tbr_bk" type="xs:float">
              <xs:annotation>
                <xs:documentation>Resulting global breeding blanket tritium breeding ratio; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="tbr_bk_inb" type="xs:float">
              <xs:annotation>
                <xs:documentation>Resulting inboard breeding blanket Tritium Breeding Ratio [-]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="tbr_bk_outb" type="xs:float">
              <xs:annotation>
                <xs:documentation>Resulting outboard breeding blanket Tritium Breeding Ratio [-]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="me_bk" type="xs:float">
              <xs:annotation>
                <xs:documentation>Energy multiplication factor in breeding blanket; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="me_shield" type="xs:float">
              <xs:annotation>
                <xs:documentation>Energy multiplication factor in shield; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="he_appm_res" type="xs:float">
              <xs:annotation>
                <xs:documentation>He production in areas needing to be rewelded; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="ins_dose_max" type="xs:float">
              <xs:annotation>
                <xs:documentation>Integral radiation dose in insulator (Epoxy) [J*Kg^-1]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>

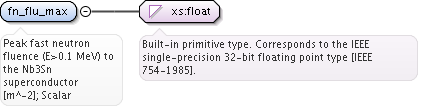

            <xs:element name="fn_flu_max" type="xs:float">
              <xs:annotation>
                <xs:documentation>Peak fast neutron fluence (E>0.1 MeV) to the Nb3Sn superconductor [m^-2]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="dpa_cu_max" type="xs:float">
              <xs:annotation>
                <xs:documentation>Peak displacement damage to copper stabilizer [dpa]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="fn_flux_bz" type="xs:float">
              <xs:annotation>
                <xs:documentation>Fast neutron flux in breeding zone inboard [m^2.s^-1]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="fn_flux_bp" type="xs:float">
              <xs:annotation>
                <xs:documentation>Fast neutron flux in backplate inboard [m^2.s^-1]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="fn_flux_man" type="xs:float">
              <xs:annotation>
                <xs:documentation>Fast neutron flux in manifold inboard [m^2.s^-1]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="fn_flux_sh" type="xs:float">
              <xs:annotation>
                <xs:documentation>Fast neutron flux in shield inboard [m^2.s^-1]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="p_nh_bk" type="xs:float">
              <xs:annotation>
                <xs:documentation>Total nuclear heating in blanket [W]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="p_nh_sh" type="xs:float">
              <xs:annotation>
                <xs:documentation>Total nuclear heating in shield [W]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="shield">
        <xs:annotation>
          <xs:documentation>Shield</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>

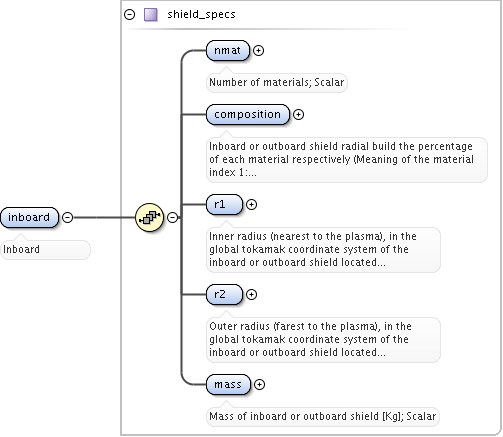

            <xs:element name="inboard" type="shield_specs">
              <xs:annotation>
                <xs:documentation>Inboard</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>

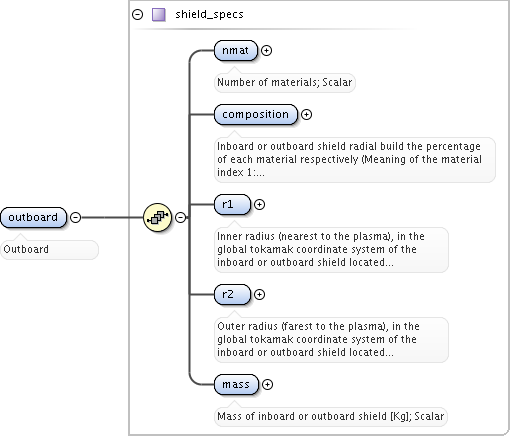

            <xs:element name="outboard" type="shield_specs">
              <xs:annotation>
                <xs:documentation>Outboard</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>

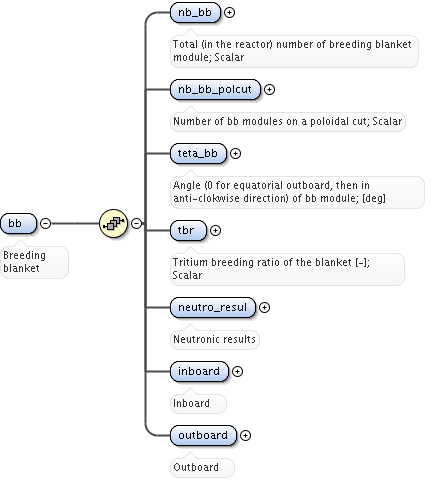

      <xs:element name="bb">
        <xs:annotation>
          <xs:documentation>Breeding blanket</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="nb_bb" type="xs:float">
              <xs:annotation>

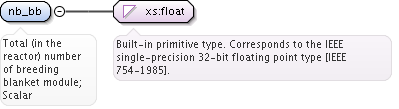

                <xs:documentation>Total (in the reactor) number of breeding blanket module; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="nb_bb_polcut" type="xs:float">
              <xs:annotation>
                <xs:documentation>Number of bb modules on a poloidal cut; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="teta_bb" type="xs:float">
              <xs:annotation>
                <xs:documentation>Angle (0 for equatorial outboard, then in anti-clokwise direction) of bb module; [deg]</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="tbr" type="xs:float">
              <xs:annotation>
                <xs:documentation>Tritium breeding ratio of the blanket [-]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="neutro_resul">
              <xs:annotation>
                <xs:documentation>Neutronic results</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
              <xs:complexType>
                <xs:sequence>

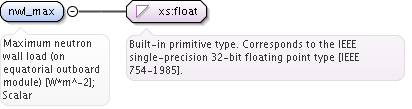

                  <xs:element name="nwl_max" type="xs:float">
                    <xs:annotation>
                      <xs:documentation>Maximum neutron wall load (on equatorial outboard module) [W*m^-2]; Scalar</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="nwl_pol_prof" type="vecflt_type">
                    <xs:annotation>
                      <xs:documentation>NWL scaling factor coefficient for each bb module; Vector(nmodules)</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element name="inboard" type="bb_specs">
              <xs:annotation>
                <xs:documentation>Inboard</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>

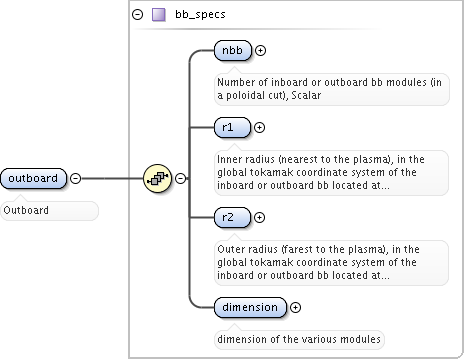

            <xs:element name="outboard" type="bb_specs">
              <xs:annotation>
                <xs:documentation>Outboard</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>

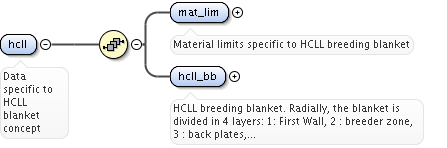

      <xs:element name="hcll">
        <xs:annotation>
          <xs:documentation>Data specific to HCLL blanket concept</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="mat_lim">
              <xs:annotation>
                <xs:documentation>Material limits specific to HCLL breeding blanket</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="cool_t_lim" type="xs:float">
                    <xs:annotation>
                      <xs:documentation>Min, max allowable He temperature [K];</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="steel_t_lim" type="xs:float">
                    <xs:annotation>
                      <xs:documentation>Min, max allowable steel temperature [K];</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="lipb_t_lim" type="xs:float">
                    <xs:annotation>
                      <xs:documentation>Min, max allowable LiPb temperature [K];</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                </xs:sequence>
              </xs:complexType>
            </xs:element>

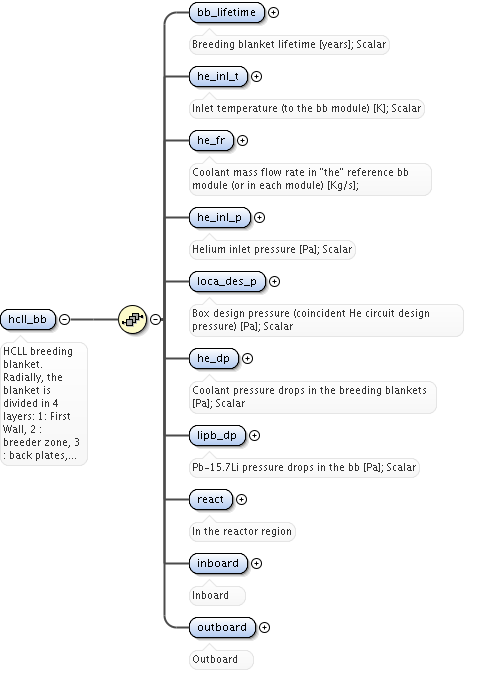

            <xs:element name="hcll_bb">
              <xs:annotation>
                <xs:documentation>HCLL breeding blanket. Radially, the blanket is divided in 4 layers: 1: First Wall, 2 : breeder zone, 3 : back plates, 4 : manifolds</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="bb_lifetime" type="xs:float">
                    <xs:annotation>
                      <xs:documentation>Breeding blanket lifetime [years]; Scalar</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="he_inl_t" type="xs:float">
                    <xs:annotation>
                      <xs:documentation>Inlet temperature (to the bb module) [K]; Scalar</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="he_fr" type="xs:float">
                    <xs:annotation>
                      <xs:documentation>Coolant mass flow rate in "the" reference bb module (or in each module) [Kg/s];</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="he_inl_p" type="xs:float">
                    <xs:annotation>
                      <xs:documentation>Helium inlet pressure [Pa]; Scalar</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="loca_des_p" type="xs:float">
                    <xs:annotation>
                      <xs:documentation>Box design pressure (coincident He circuit design pressure) [Pa]; Scalar</xs:documentation>
                    </xs:annotation>
                  </xs:element>

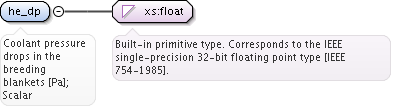

                  <xs:element name="he_dp" type="xs:float">
                    <xs:annotation>
                      <xs:documentation>Coolant pressure drops in the breeding blankets [Pa]; Scalar</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="lipb_dp" type="xs:float">
                    <xs:annotation>
                      <xs:documentation>Pb-15.7Li pressure drops in the bb [Pa]; Scalar</xs:documentation>
                    </xs:annotation>
                  </xs:element>

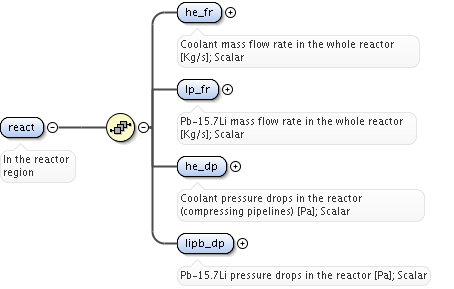

                  <xs:element name="react">
                    <xs:annotation>
                      <xs:documentation>In the reactor region</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                    <xs:complexType>
                      <xs:sequence>
                        <xs:element name="he_fr" type="xs:float">
                          <xs:annotation>
                            <xs:documentation>Coolant mass flow rate in the whole reactor [Kg/s]; Scalar</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="lp_fr" type="xs:float">
                          <xs:annotation>
                            <xs:documentation>Pb-15.7Li mass flow rate in the whole reactor [Kg/s]; Scalar</xs:documentation>
                          </xs:annotation>
                        </xs:element>

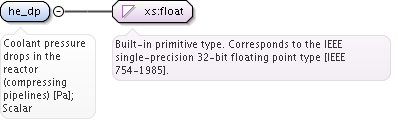

                        <xs:element name="he_dp" type="xs:float">
                          <xs:annotation>
                            <xs:documentation>Coolant pressure drops in the reactor (compressing pipelines) [Pa]; Scalar</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="lipb_dp" type="xs:float">
                          <xs:annotation>
                            <xs:documentation>Pb-15.7Li pressure drops in the reactor [Pa]; Scalar</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                      </xs:sequence>
                    </xs:complexType>
                  </xs:element>

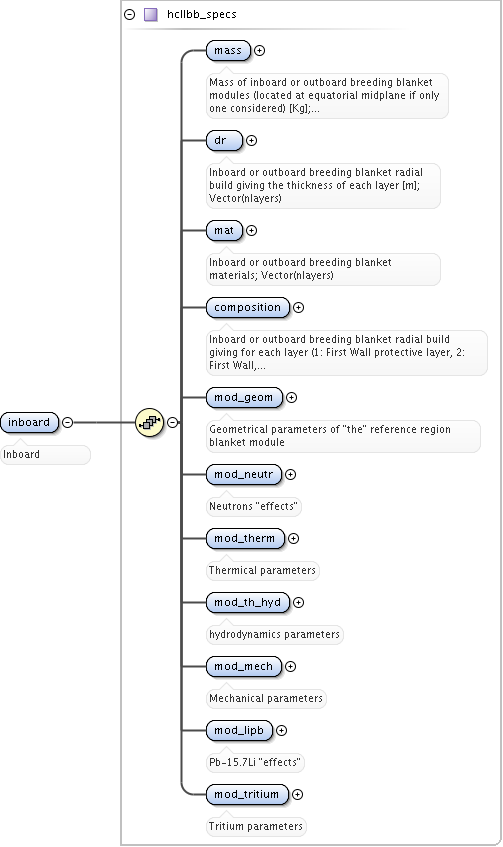

                  <xs:element name="inboard" type="hcllbb_specs">
                    <xs:annotation>
                      <xs:documentation>Inboard</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                  </xs:element>

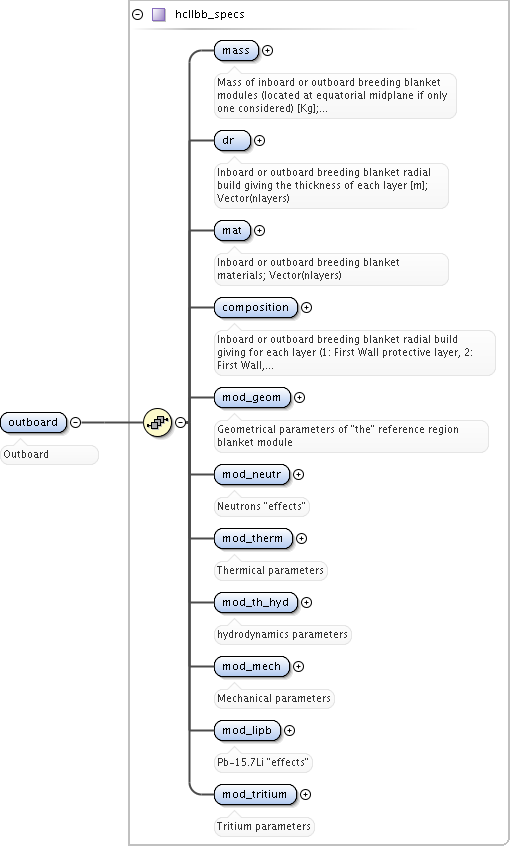

                  <xs:element name="outboard" type="hcllbb_specs">
                    <xs:annotation>
                      <xs:documentation>Outboard</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element ref="codeparam"/>
      <xs:element name="time" type="xs:float" default="0.0">
        <xs:annotation>
          <xs:documentation>Time [s]; Time-dependent; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

Element bb_shield / type

Namespace

No namespace

Annotations

Type of breeding blanket (HCLL, DCLL, HCPB, ...). String

Diagram

Type

xs:string

Properties

content

simple

Source

<xs:element name="type" type="xs:string">
  <xs:annotation>
    <xs:documentation>Type of breeding blanket (HCLL, DCLL, HCPB, ...). String</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / limits

Namespace

No namespace

Annotations

Limits

Diagram

Properties

content

complex

Model

fw_dpa , he_appm , ins_dose , fn_flu , dpa_cu , wp_nh

Children

dpa_cu, fn_flu, fw_dpa, he_appm, ins_dose, wp_nh

Instance

<limits>
  <fw_dpa>{1,1}</fw_dpa>
  <he_appm>{1,1}</he_appm>
  <ins_dose>{1,1}</ins_dose>
  <fn_flu>{1,1}</fn_flu>
  <dpa_cu>{1,1}</dpa_cu>
  <wp_nh>{1,1}</wp_nh>
</limits>

Source

<xs:element name="limits">
  <xs:annotation>
    <xs:documentation>Limits</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="fw_dpa" type="xs:float">
        <xs:annotation>
          <xs:documentation>max allowable displacement per atom on FW [dpa]; Scalar.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="he_appm" type="xs:float">
        <xs:annotation>
          <xs:documentation>He concentration limit in re-welding areas [appm]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="ins_dose" type="xs:float">
        <xs:annotation>
          <xs:documentation>Integral radiation dose in insulator (Epoxy) [Gy] [J*Kg^-1]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="fn_flu" type="xs:float">
        <xs:annotation>
          <xs:documentation>Peak fast neutron fluence (E>0.1 MeV) to the Nb3Sn superconductor [m^-2]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="dpa_cu" type="xs:float">
        <xs:annotation>
          <xs:documentation>Peak displacement damage to copper stabilizer [dpa]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="wp_nh" type="xs:float">
        <xs:annotation>
          <xs:documentation>Peak nuclear eating in winding pack [W*m^-3]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

Element bb_shield / limits / fw_dpa

Namespace

No namespace

Annotations

max allowable displacement per atom on FW [dpa]; Scalar.

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="fw_dpa" type="xs:float">
  <xs:annotation>
    <xs:documentation>max allowable displacement per atom on FW [dpa]; Scalar.</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / limits / he_appm

Namespace

No namespace

Annotations

He concentration limit in re-welding areas [appm]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="he_appm" type="xs:float">
  <xs:annotation>
    <xs:documentation>He concentration limit in re-welding areas [appm]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / limits / ins_dose

Namespace

No namespace

Annotations

Integral radiation dose in insulator (Epoxy) [Gy] [J*Kg^-1]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="ins_dose" type="xs:float">
  <xs:annotation>
    <xs:documentation>Integral radiation dose in insulator (Epoxy) [Gy] [J*Kg^-1]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / limits / fn_flu

Namespace

No namespace

Annotations

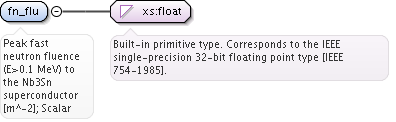

Peak fast neutron fluence (E>0.1 MeV) to the Nb3Sn superconductor  [m^-2]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="fn_flu" type="xs:float">
  <xs:annotation>
    <xs:documentation>Peak fast neutron fluence (E>0.1 MeV) to the Nb3Sn superconductor [m^-2]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / limits / dpa_cu

Namespace

No namespace

Annotations

Peak displacement damage to copper stabilizer [dpa]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="dpa_cu" type="xs:float">
  <xs:annotation>
    <xs:documentation>Peak displacement damage to copper stabilizer [dpa]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / limits / wp_nh

Namespace

No namespace

Annotations

Peak nuclear eating in winding pack [W*m^-3]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="wp_nh" type="xs:float">
  <xs:annotation>
    <xs:documentation>Peak nuclear eating in winding pack [W*m^-3]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / li6_enrich

Namespace

No namespace

Annotations

Lithium 6 enrichement (at%).

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="li6_enrich" type="xs:float">
  <xs:annotation>
    <xs:documentation>Lithium 6 enrichement (at%).</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / geom

Namespace

No namespace

Annotations

Geometry between components

Diagram

Properties

content

complex

Model

dr_bb_sh_ib , dr_sh_vv_ib , dr_bb_sh_ob , dr_sh_vv_ob , dr_bb__sh_ib , dr_bb__sh_ob , delta_int

Children

delta_int, dr_bb__sh_ib, dr_bb__sh_ob, dr_bb_sh_ib, dr_bb_sh_ob, dr_sh_vv_ib, dr_sh_vv_ob

Instance

<geom>
  <dr_bb_sh_ib>{1,1}</dr_bb_sh_ib>
  <dr_sh_vv_ib>{1,1}</dr_sh_vv_ib>
  <dr_bb_sh_ob>{1,1}</dr_bb_sh_ob>
  <dr_sh_vv_ob>{1,1}</dr_sh_vv_ob>
  <dr_bb__sh_ib>{1,1}</dr_bb__sh_ib>
  <dr_bb__sh_ob>{1,1}</dr_bb__sh_ob>
  <delta_int>{1,1}</delta_int>
</geom>

Source

<xs:element name="geom">
  <xs:annotation>
    <xs:documentation>Geometry between components</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="dr_bb_sh_ib" type="xs:float">
        <xs:annotation>
          <xs:documentation>Gap between the breeding blanket module and the shield (inboard) in the equatorial section [m]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="dr_sh_vv_ib" type="xs:float">
        <xs:annotation>
          <xs:documentation>Gap between the shield and the vacuum vessel (inboard) in the equatorial section [m]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="dr_bb_sh_ob" type="xs:float">
        <xs:annotation>
          <xs:documentation>Gap between the breeding blanket module and the shield (outboard) in the equatorial section [m]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="dr_sh_vv_ob" type="xs:float">
        <xs:annotation>
          <xs:documentation>Gap between the shield and the vacuum vessel (outboard) in the equatorial section [m]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="dr_bb__sh_ib" type="xs:float">
        <xs:annotation>
          <xs:documentation>Overal radial dimension of the ensemble BB plus shield (inboard) [m]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="dr_bb__sh_ob" type="xs:float">
        <xs:annotation>
          <xs:documentation>Overal radial dimension of the ensemble BB plus shield (outboard) [m]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="delta_int" type="xs:float">
        <xs:annotation>
          <xs:documentation>Distance between the inner plasma surface and the plasma facing side of the superconducting winding of the toroidal field coil [m]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

Element bb_shield / geom / dr_bb_sh_ib

Namespace

No namespace

Annotations

Gap between the breeding blanket module and the shield (inboard) in the equatorial section [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="dr_bb_sh_ib" type="xs:float">
  <xs:annotation>
    <xs:documentation>Gap between the breeding blanket module and the shield (inboard) in the equatorial section [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / geom / dr_sh_vv_ib

Namespace

No namespace

Annotations

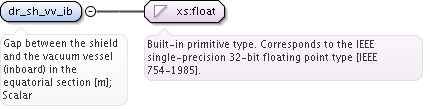

Gap between the shield and the vacuum vessel (inboard) in the equatorial section [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="dr_sh_vv_ib" type="xs:float">
  <xs:annotation>
    <xs:documentation>Gap between the shield and the vacuum vessel (inboard) in the equatorial section [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / geom / dr_bb_sh_ob

Namespace

No namespace

Annotations

Gap between the breeding blanket module and the shield (outboard) in the equatorial section [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="dr_bb_sh_ob" type="xs:float">
  <xs:annotation>
    <xs:documentation>Gap between the breeding blanket module and the shield (outboard) in the equatorial section [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / geom / dr_sh_vv_ob

Namespace

No namespace

Annotations

Gap between the shield and the vacuum vessel (outboard) in the equatorial section [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="dr_sh_vv_ob" type="xs:float">
  <xs:annotation>
    <xs:documentation>Gap between the shield and the vacuum vessel (outboard) in the equatorial section [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / geom / dr_bb__sh_ib

Namespace

No namespace

Annotations

Overal radial dimension of the ensemble BB plus shield (inboard) [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="dr_bb__sh_ib" type="xs:float">
  <xs:annotation>
    <xs:documentation>Overal radial dimension of the ensemble BB plus shield (inboard) [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / geom / dr_bb__sh_ob

Namespace

No namespace

Annotations

Overal radial dimension of the ensemble BB plus shield (outboard) [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="dr_bb__sh_ob" type="xs:float">
  <xs:annotation>
    <xs:documentation>Overal radial dimension of the ensemble BB plus shield (outboard) [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / geom / delta_int

Namespace

No namespace

Annotations

Distance between the inner plasma surface and the plasma facing side of the superconducting winding of the toroidal field coil [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="delta_int" type="xs:float">
  <xs:annotation>
    <xs:documentation>Distance between the inner plasma surface and the plasma facing side of the superconducting winding of the toroidal field coil [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / neut_results

Namespace

No namespace

Annotations

Neutronic results

Diagram

Properties

content

complex

Model

tbr_bk , tbr_bk_inb , tbr_bk_outb , me_bk , me_shield , he_appm_res , ins_dose_max , fn_flu_max , dpa_cu_max , fn_flux_bz , fn_flux_bp , fn_flux_man , fn_flux_sh , p_nh_bk , p_nh_sh

Children

dpa_cu_max, fn_flu_max, fn_flux_bp, fn_flux_bz, fn_flux_man, fn_flux_sh, he_appm_res, ins_dose_max, me_bk, me_shield, p_nh_bk, p_nh_sh, tbr_bk, tbr_bk_inb, tbr_bk_outb

Instance

<neut_results>
  <tbr_bk>{1,1}</tbr_bk>
  <tbr_bk_inb>{1,1}</tbr_bk_inb>
  <tbr_bk_outb>{1,1}</tbr_bk_outb>
  <me_bk>{1,1}</me_bk>
  <me_shield>{1,1}</me_shield>
  <he_appm_res>{1,1}</he_appm_res>
  <ins_dose_max>{1,1}</ins_dose_max>
  <fn_flu_max>{1,1}</fn_flu_max>
  <dpa_cu_max>{1,1}</dpa_cu_max>
  <fn_flux_bz>{1,1}</fn_flux_bz>
  <fn_flux_bp>{1,1}</fn_flux_bp>
  <fn_flux_man>{1,1}</fn_flux_man>
  <fn_flux_sh>{1,1}</fn_flux_sh>
  <p_nh_bk>{1,1}</p_nh_bk>
  <p_nh_sh>{1,1}</p_nh_sh>
</neut_results>

Source

<xs:element name="neut_results">
  <xs:annotation>
    <xs:documentation>Neutronic results</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="tbr_bk" type="xs:float">
        <xs:annotation>
          <xs:documentation>Resulting global breeding blanket tritium breeding ratio; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="tbr_bk_inb" type="xs:float">
        <xs:annotation>
          <xs:documentation>Resulting inboard breeding blanket Tritium Breeding Ratio [-]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="tbr_bk_outb" type="xs:float">
        <xs:annotation>
          <xs:documentation>Resulting outboard breeding blanket Tritium Breeding Ratio [-]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="me_bk" type="xs:float">
        <xs:annotation>
          <xs:documentation>Energy multiplication factor in breeding blanket; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="me_shield" type="xs:float">
        <xs:annotation>
          <xs:documentation>Energy multiplication factor in shield; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="he_appm_res" type="xs:float">
        <xs:annotation>
          <xs:documentation>He production in areas needing to be rewelded; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="ins_dose_max" type="xs:float">
        <xs:annotation>
          <xs:documentation>Integral radiation dose in insulator (Epoxy) [J*Kg^-1]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="fn_flu_max" type="xs:float">
        <xs:annotation>
          <xs:documentation>Peak fast neutron fluence (E>0.1 MeV) to the Nb3Sn superconductor [m^-2]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="dpa_cu_max" type="xs:float">
        <xs:annotation>
          <xs:documentation>Peak displacement damage to copper stabilizer [dpa]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="fn_flux_bz" type="xs:float">
        <xs:annotation>
          <xs:documentation>Fast neutron flux in breeding zone inboard [m^2.s^-1]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="fn_flux_bp" type="xs:float">
        <xs:annotation>
          <xs:documentation>Fast neutron flux in backplate inboard [m^2.s^-1]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="fn_flux_man" type="xs:float">
        <xs:annotation>
          <xs:documentation>Fast neutron flux in manifold inboard [m^2.s^-1]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="fn_flux_sh" type="xs:float">
        <xs:annotation>
          <xs:documentation>Fast neutron flux in shield inboard [m^2.s^-1]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="p_nh_bk" type="xs:float">
        <xs:annotation>
          <xs:documentation>Total nuclear heating in blanket [W]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="p_nh_sh" type="xs:float">
        <xs:annotation>
          <xs:documentation>Total nuclear heating in shield [W]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

Element bb_shield / neut_results / tbr_bk

Namespace

No namespace

Annotations

Resulting global breeding blanket tritium breeding ratio; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="tbr_bk" type="xs:float">
  <xs:annotation>
    <xs:documentation>Resulting global breeding blanket tritium breeding ratio; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / neut_results / tbr_bk_inb

Namespace

No namespace

Annotations

Resulting inboard breeding blanket Tritium Breeding Ratio [-]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="tbr_bk_inb" type="xs:float">
  <xs:annotation>
    <xs:documentation>Resulting inboard breeding blanket Tritium Breeding Ratio [-]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / neut_results / tbr_bk_outb

Namespace

No namespace

Annotations

Resulting outboard breeding blanket Tritium Breeding Ratio [-]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="tbr_bk_outb" type="xs:float">
  <xs:annotation>
    <xs:documentation>Resulting outboard breeding blanket Tritium Breeding Ratio [-]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / neut_results / me_bk

Namespace

No namespace

Annotations

Energy multiplication factor in breeding blanket; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="me_bk" type="xs:float">
  <xs:annotation>
    <xs:documentation>Energy multiplication factor in breeding blanket; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / neut_results / me_shield

Namespace

No namespace

Annotations

Energy multiplication factor in shield; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="me_shield" type="xs:float">
  <xs:annotation>
    <xs:documentation>Energy multiplication factor in shield; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / neut_results / he_appm_res

Namespace

No namespace

Annotations

He production in areas needing to be rewelded; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="he_appm_res" type="xs:float">
  <xs:annotation>
    <xs:documentation>He production in areas needing to be rewelded; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / neut_results / ins_dose_max

Namespace

No namespace

Annotations

Integral radiation dose in insulator (Epoxy) [J*Kg^-1]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="ins_dose_max" type="xs:float">
  <xs:annotation>
    <xs:documentation>Integral radiation dose in insulator (Epoxy) [J*Kg^-1]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / neut_results / fn_flu_max

Namespace

No namespace

Annotations

Peak fast neutron fluence (E>0.1 MeV) to the Nb3Sn superconductor [m^-2]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="fn_flu_max" type="xs:float">
  <xs:annotation>
    <xs:documentation>Peak fast neutron fluence (E>0.1 MeV) to the Nb3Sn superconductor [m^-2]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / neut_results / dpa_cu_max

Namespace

No namespace

Annotations

Peak displacement damage to copper stabilizer [dpa]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="dpa_cu_max" type="xs:float">
  <xs:annotation>
    <xs:documentation>Peak displacement damage to copper stabilizer [dpa]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / neut_results / fn_flux_bz

Namespace

No namespace

Annotations

Fast neutron flux in breeding zone inboard [m^2.s^-1]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="fn_flux_bz" type="xs:float">
  <xs:annotation>
    <xs:documentation>Fast neutron flux in breeding zone inboard [m^2.s^-1]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / neut_results / fn_flux_bp

Namespace

No namespace

Annotations

Fast neutron flux in backplate inboard [m^2.s^-1]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="fn_flux_bp" type="xs:float">
  <xs:annotation>
    <xs:documentation>Fast neutron flux in backplate inboard [m^2.s^-1]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / neut_results / fn_flux_man

Namespace

No namespace

Annotations

Fast neutron flux in manifold inboard [m^2.s^-1]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="fn_flux_man" type="xs:float">
  <xs:annotation>
    <xs:documentation>Fast neutron flux in manifold inboard [m^2.s^-1]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / neut_results / fn_flux_sh

Namespace

No namespace

Annotations

Fast neutron flux in shield inboard [m^2.s^-1]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="fn_flux_sh" type="xs:float">
  <xs:annotation>
    <xs:documentation>Fast neutron flux in shield inboard [m^2.s^-1]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / neut_results / p_nh_bk

Namespace

No namespace

Annotations

Total nuclear heating in blanket [W]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="p_nh_bk" type="xs:float">
  <xs:annotation>
    <xs:documentation>Total nuclear heating in blanket [W]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / neut_results / p_nh_sh

Namespace

No namespace

Annotations

Total nuclear heating in shield [W]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="p_nh_sh" type="xs:float">
  <xs:annotation>
    <xs:documentation>Total nuclear heating in shield [W]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / shield

Namespace

No namespace

Annotations

Shield

Diagram

Properties

content

complex

Model

inboard , outboard

Children

inboard, outboard

Instance

<shield>
  <inboard>{1,1}</inboard>
  <outboard>{1,1}</outboard>
</shield>

Source

<xs:element name="shield">
  <xs:annotation>
    <xs:documentation>Shield</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="inboard" type="shield_specs">
        <xs:annotation>
          <xs:documentation>Inboard</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="outboard" type="shield_specs">
        <xs:annotation>
          <xs:documentation>Outboard</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

Element bb_shield / shield / inboard

Namespace

No namespace

Annotations

Inboard

Diagram

Type

shield_specs

Properties

content

complex

Model

nmat , composition , r1 , r2 , mass

Children

composition, mass, nmat, r1, r2

Instance

<inboard>
  <nmat>{1,1}</nmat>
  <composition>{1,1}</composition>
  <r1>{1,1}</r1>
  <r2>{1,1}</r2>
  <mass>{1,1}</mass>
</inboard>

Source

<xs:element name="inboard" type="shield_specs">
  <xs:annotation>
    <xs:documentation>Inboard</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>

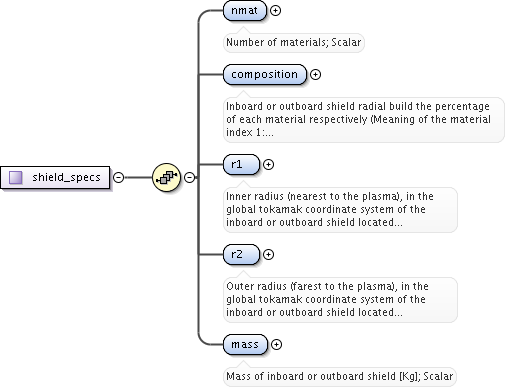

Element shield_specs / nmat

Namespace

No namespace

Annotations

Number of materials; Scalar

Diagram

Type

xs:integer

Properties

content

simple

Source

<xs:element name="nmat" type="xs:integer">
  <xs:annotation>
    <xs:documentation>Number of materials; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element shield_specs / composition

Namespace

No namespace

Annotations

Inboard or outboard shield  radial build the percentage of each material respectively (Meaning of the material index 1: Eurofer, 2: Pb-15.7Li, 3: He, 4: Water, 5: Tungsten Carbide, 6: Boron, 7: Tungsten, 8: Stainless Steel 316) in %vol; Vector(nmat).

Diagram

Type

vecflt_type

Properties

content	simple
final	restriction

Source

<xs:element name="composition" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Inboard or outboard shield radial build the percentage of each material respectively (Meaning of the material index 1: Eurofer, 2: Pb-15.7Li, 3: He, 4: Water, 5: Tungsten Carbide, 6: Boron, 7: Tungsten, 8: Stainless Steel 316) in %vol; Vector(nmat).</xs:documentation>
  </xs:annotation>
</xs:element>

Element shield_specs / r1

Namespace

No namespace

Annotations

Inner radius (nearest to the plasma), in the global tokamak coordinate system of the inboard or outboard shield located at the equatorial plane [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="r1" type="xs:float">
  <xs:annotation>
    <xs:documentation>Inner radius (nearest to the plasma), in the global tokamak coordinate system of the inboard or outboard shield located at the equatorial plane [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element shield_specs / r2

Namespace

No namespace

Annotations

Outer radius (farest to the plasma), in the global tokamak coordinate system of the inboard or outboard shield located at the equatorial plane [m]; Scalar

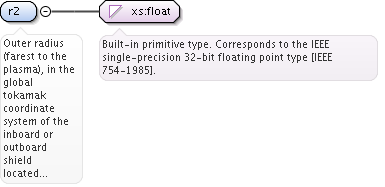

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="r2" type="xs:float">
  <xs:annotation>
    <xs:documentation>Outer radius (farest to the plasma), in the global tokamak coordinate system of the inboard or outboard shield located at the equatorial plane [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element shield_specs / mass

Namespace

No namespace

Annotations

Mass of inboard or outboard shield [Kg]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="mass" type="xs:float">
  <xs:annotation>
    <xs:documentation>Mass of inboard or outboard shield [Kg]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / shield / outboard

Namespace

No namespace

Annotations

Outboard

Diagram

Type

shield_specs

Properties

content

complex

Model

nmat , composition , r1 , r2 , mass

Children

composition, mass, nmat, r1, r2

Instance

<outboard>
  <nmat>{1,1}</nmat>
  <composition>{1,1}</composition>
  <r1>{1,1}</r1>
  <r2>{1,1}</r2>
  <mass>{1,1}</mass>
</outboard>

Source

<xs:element name="outboard" type="shield_specs">
  <xs:annotation>
    <xs:documentation>Outboard</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>

Element bb_shield / bb

Namespace

No namespace

Annotations

Breeding blanket

Diagram

Properties

content

complex

Model

nb_bb , nb_bb_polcut , teta_bb , tbr , neutro_resul , inboard , outboard

Children

inboard, nb_bb, nb_bb_polcut, neutro_resul, outboard, tbr, teta_bb

Instance

<bb>
  <nb_bb>{1,1}</nb_bb>
  <nb_bb_polcut>{1,1}</nb_bb_polcut>
  <teta_bb>{1,1}</teta_bb>
  <tbr>{1,1}</tbr>
  <neutro_resul>{1,1}</neutro_resul>
  <inboard>{1,1}</inboard>
  <outboard>{1,1}</outboard>
</bb>

Source

<xs:element name="bb">
  <xs:annotation>
    <xs:documentation>Breeding blanket</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="nb_bb" type="xs:float">
        <xs:annotation>
          <xs:documentation>Total (in the reactor) number of breeding blanket module; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="nb_bb_polcut" type="xs:float">
        <xs:annotation>
          <xs:documentation>Number of bb modules on a poloidal cut; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="teta_bb" type="xs:float">
        <xs:annotation>
          <xs:documentation>Angle (0 for equatorial outboard, then in anti-clokwise direction) of bb module; [deg]</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="tbr" type="xs:float">
        <xs:annotation>
          <xs:documentation>Tritium breeding ratio of the blanket [-]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="neutro_resul">
        <xs:annotation>
          <xs:documentation>Neutronic results</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="nwl_max" type="xs:float">
              <xs:annotation>
                <xs:documentation>Maximum neutron wall load (on equatorial outboard module) [W*m^-2]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="nwl_pol_prof" type="vecflt_type">
              <xs:annotation>
                <xs:documentation>NWL scaling factor coefficient for each bb module; Vector(nmodules)</xs:documentation>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="inboard" type="bb_specs">
        <xs:annotation>
          <xs:documentation>Inboard</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="outboard" type="bb_specs">
        <xs:annotation>
          <xs:documentation>Outboard</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

Element bb_shield / bb / nb_bb

Namespace

No namespace

Annotations

Total (in the reactor) number of breeding blanket module; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="nb_bb" type="xs:float">
  <xs:annotation>
    <xs:documentation>Total (in the reactor) number of breeding blanket module; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / bb / nb_bb_polcut

Namespace

No namespace

Annotations

Number of bb modules on a poloidal cut; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="nb_bb_polcut" type="xs:float">
  <xs:annotation>
    <xs:documentation>Number of bb modules on a poloidal cut; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

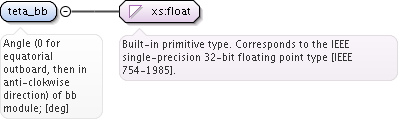

Element bb_shield / bb / teta_bb

Namespace

No namespace

Annotations

Angle (0 for equatorial outboard, then in anti-clokwise direction) of bb module; [deg]

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="teta_bb" type="xs:float">
  <xs:annotation>
    <xs:documentation>Angle (0 for equatorial outboard, then in anti-clokwise direction) of bb module; [deg]</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / bb / tbr

Namespace

No namespace

Annotations

Tritium breeding ratio of the blanket [-]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="tbr" type="xs:float">
  <xs:annotation>
    <xs:documentation>Tritium breeding ratio of the blanket [-]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

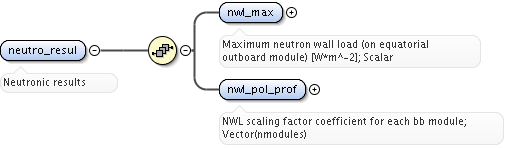

Element bb_shield / bb / neutro_resul

Namespace

No namespace

Annotations

Neutronic results

Diagram

Properties

content

complex

Model

nwl_max , nwl_pol_prof

Children

nwl_max, nwl_pol_prof

Instance

<neutro_resul>
  <nwl_max>{1,1}</nwl_max>
  <nwl_pol_prof>{1,1}</nwl_pol_prof>
</neutro_resul>

Source

<xs:element name="neutro_resul">
  <xs:annotation>
    <xs:documentation>Neutronic results</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="nwl_max" type="xs:float">
        <xs:annotation>
          <xs:documentation>Maximum neutron wall load (on equatorial outboard module) [W*m^-2]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="nwl_pol_prof" type="vecflt_type">
        <xs:annotation>
          <xs:documentation>NWL scaling factor coefficient for each bb module; Vector(nmodules)</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

Element bb_shield / bb / neutro_resul / nwl_max

Namespace

No namespace

Annotations

Maximum neutron wall load (on equatorial outboard module) [W*m^-2]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="nwl_max" type="xs:float">
  <xs:annotation>
    <xs:documentation>Maximum neutron wall load (on equatorial outboard module) [W*m^-2]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / bb / neutro_resul / nwl_pol_prof

Namespace

No namespace

Annotations

NWL scaling factor coefficient for each bb module; Vector(nmodules)

Diagram

Type

vecflt_type

Properties

content	simple
final	restriction

Source

<xs:element name="nwl_pol_prof" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>NWL scaling factor coefficient for each bb module; Vector(nmodules)</xs:documentation>
  </xs:annotation>
</xs:element>

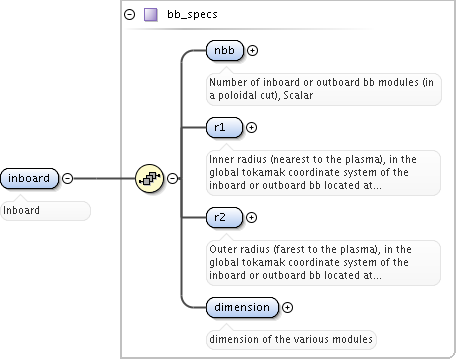

Element bb_shield / bb / inboard

Namespace

No namespace

Annotations

Inboard

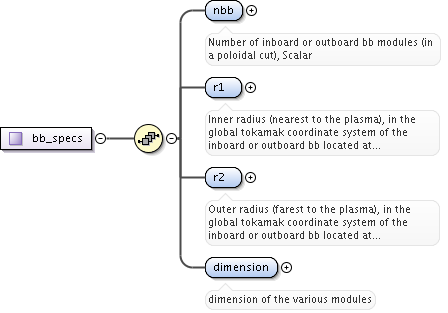

Diagram

Type

bb_specs

Properties

content

complex

Model

nbb , r1 , r2 , dimension

Children

dimension, nbb, r1, r2

Instance

<inboard>
  <nbb>{1,1}</nbb>
  <r1>{1,1}</r1>
  <r2>{1,1}</r2>
  <dimension>{1,1}</dimension>
</inboard>

Source

<xs:element name="inboard" type="bb_specs">
  <xs:annotation>
    <xs:documentation>Inboard</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>

Element bb_specs / nbb

Namespace

No namespace

Annotations

Number of inboard or outboard bb modules (in a poloidal cut), Scalar

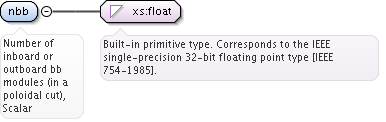

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="nbb" type="xs:float">
  <xs:annotation>
    <xs:documentation>Number of inboard or outboard bb modules (in a poloidal cut), Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_specs / r1

Namespace

No namespace

Annotations

Inner radius (nearest to the plasma), in the global tokamak coordinate system of the inboard or outboard bb located at the equatorial plane [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="r1" type="xs:float">
  <xs:annotation>
    <xs:documentation>Inner radius (nearest to the plasma), in the global tokamak coordinate system of the inboard or outboard bb located at the equatorial plane [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_specs / r2

Namespace

No namespace

Annotations

Outer radius (farest to the plasma), in the global tokamak coordinate system of the inboard or outboard bb located at the equatorial plane [m]; Scalar

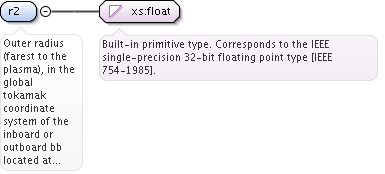

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="r2" type="xs:float">
  <xs:annotation>
    <xs:documentation>Outer radius (farest to the plasma), in the global tokamak coordinate system of the inboard or outboard bb located at the equatorial plane [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

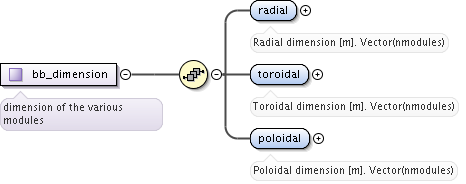

Element bb_specs / dimension

Namespace

No namespace

Annotations

dimension of the various modules

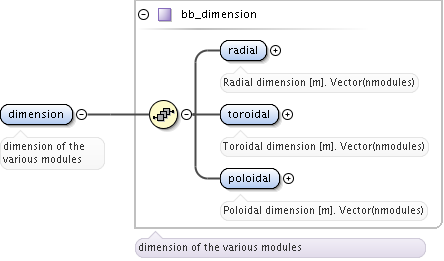

Diagram

Type

bb_dimension

Properties

content

complex

Model

radial , toroidal , poloidal

Children

poloidal, radial, toroidal

Instance

<dimension>
  <radial>{1,1}</radial>
  <toroidal>{1,1}</toroidal>
  <poloidal>{1,1}</poloidal>
</dimension>

Source

<xs:element name="dimension" type="bb_dimension">
  <xs:annotation>
    <xs:documentation>dimension of the various modules</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>

Element bb_dimension / radial

Namespace

No namespace

Annotations

Radial dimension [m]. Vector(nmodules)

Diagram

Type

vecflt_type

Properties

content	simple
final	restriction

Source

<xs:element name="radial" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Radial dimension [m]. Vector(nmodules)</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_dimension / toroidal

Namespace

No namespace

Annotations

Toroidal dimension [m]. Vector(nmodules)

Diagram

Type

vecflt_type

Properties

content	simple
final	restriction

Source

<xs:element name="toroidal" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Toroidal dimension [m]. Vector(nmodules)</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_dimension / poloidal

Namespace

No namespace

Annotations

Poloidal dimension [m]. Vector(nmodules)

Diagram

Type

vecflt_type

Properties

content	simple
final	restriction

Source

<xs:element name="poloidal" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Poloidal dimension [m]. Vector(nmodules)</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / bb / outboard

Namespace

No namespace

Annotations

Outboard

Diagram

Type

bb_specs

Properties

content

complex

Model

nbb , r1 , r2 , dimension

Children

dimension, nbb, r1, r2

Instance

<outboard>
  <nbb>{1,1}</nbb>
  <r1>{1,1}</r1>
  <r2>{1,1}</r2>
  <dimension>{1,1}</dimension>
</outboard>

Source

<xs:element name="outboard" type="bb_specs">
  <xs:annotation>
    <xs:documentation>Outboard</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>

Element bb_shield / hcll

Namespace

No namespace

Annotations

Data specific to HCLL blanket concept

Diagram

Properties

content

complex

Model

mat_lim , hcll_bb

Children

hcll_bb, mat_lim

Instance

<hcll>
  <mat_lim>{1,1}</mat_lim>
  <hcll_bb>{1,1}</hcll_bb>
</hcll>

Source

<xs:element name="hcll">
  <xs:annotation>
    <xs:documentation>Data specific to HCLL blanket concept</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="mat_lim">
        <xs:annotation>
          <xs:documentation>Material limits specific to HCLL breeding blanket</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="cool_t_lim" type="xs:float">
              <xs:annotation>
                <xs:documentation>Min, max allowable He temperature [K];</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="steel_t_lim" type="xs:float">
              <xs:annotation>
                <xs:documentation>Min, max allowable steel temperature [K];</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="lipb_t_lim" type="xs:float">
              <xs:annotation>
                <xs:documentation>Min, max allowable LiPb temperature [K];</xs:documentation>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="hcll_bb">
        <xs:annotation>
          <xs:documentation>HCLL breeding blanket. Radially, the blanket is divided in 4 layers: 1: First Wall, 2 : breeder zone, 3 : back plates, 4 : manifolds</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="bb_lifetime" type="xs:float">
              <xs:annotation>
                <xs:documentation>Breeding blanket lifetime [years]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="he_inl_t" type="xs:float">
              <xs:annotation>
                <xs:documentation>Inlet temperature (to the bb module) [K]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="he_fr" type="xs:float">
              <xs:annotation>
                <xs:documentation>Coolant mass flow rate in "the" reference bb module (or in each module) [Kg/s];</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="he_inl_p" type="xs:float">
              <xs:annotation>
                <xs:documentation>Helium inlet pressure [Pa]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="loca_des_p" type="xs:float">
              <xs:annotation>
                <xs:documentation>Box design pressure (coincident He circuit design pressure) [Pa]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="he_dp" type="xs:float">
              <xs:annotation>
                <xs:documentation>Coolant pressure drops in the breeding blankets [Pa]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="lipb_dp" type="xs:float">
              <xs:annotation>
                <xs:documentation>Pb-15.7Li pressure drops in the bb [Pa]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="react">
              <xs:annotation>
                <xs:documentation>In the reactor region</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="he_fr" type="xs:float">
                    <xs:annotation>
                      <xs:documentation>Coolant mass flow rate in the whole reactor [Kg/s]; Scalar</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="lp_fr" type="xs:float">
                    <xs:annotation>
                      <xs:documentation>Pb-15.7Li mass flow rate in the whole reactor [Kg/s]; Scalar</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="he_dp" type="xs:float">
                    <xs:annotation>
                      <xs:documentation>Coolant pressure drops in the reactor (compressing pipelines) [Pa]; Scalar</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="lipb_dp" type="xs:float">
                    <xs:annotation>
                      <xs:documentation>Pb-15.7Li pressure drops in the reactor [Pa]; Scalar</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element name="inboard" type="hcllbb_specs">
              <xs:annotation>
                <xs:documentation>Inboard</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="outboard" type="hcllbb_specs">
              <xs:annotation>
                <xs:documentation>Outboard</xs:documentation>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

Element bb_shield / hcll / mat_lim

Namespace

No namespace

Annotations

Material limits specific to HCLL breeding blanket

Diagram

Properties

content

complex

Model

cool_t_lim , steel_t_lim , lipb_t_lim

Children

cool_t_lim, lipb_t_lim, steel_t_lim

Instance

<mat_lim>
  <cool_t_lim>{1,1}</cool_t_lim>
  <steel_t_lim>{1,1}</steel_t_lim>
  <lipb_t_lim>{1,1}</lipb_t_lim>
</mat_lim>

Source

<xs:element name="mat_lim">
  <xs:annotation>
    <xs:documentation>Material limits specific to HCLL breeding blanket</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="cool_t_lim" type="xs:float">
        <xs:annotation>
          <xs:documentation>Min, max allowable He temperature [K];</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="steel_t_lim" type="xs:float">
        <xs:annotation>
          <xs:documentation>Min, max allowable steel temperature [K];</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="lipb_t_lim" type="xs:float">
        <xs:annotation>
          <xs:documentation>Min, max allowable LiPb temperature [K];</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

Element bb_shield / hcll / mat_lim / cool_t_lim

Namespace

No namespace

Annotations

Min, max allowable He temperature [K];

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="cool_t_lim" type="xs:float">
  <xs:annotation>
    <xs:documentation>Min, max allowable He temperature [K];</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / hcll / mat_lim / steel_t_lim

Namespace

No namespace

Annotations

Min, max allowable steel temperature [K];

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="steel_t_lim" type="xs:float">
  <xs:annotation>
    <xs:documentation>Min, max allowable steel temperature [K];</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / hcll / mat_lim / lipb_t_lim

Namespace

No namespace

Annotations

Min, max allowable LiPb temperature [K];

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="lipb_t_lim" type="xs:float">
  <xs:annotation>
    <xs:documentation>Min, max allowable LiPb temperature [K];</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / hcll / hcll_bb

Namespace

No namespace

Annotations

HCLL breeding blanket. Radially, the blanket is divided in 4 layers: 1: First Wall, 2 : breeder zone, 3 : back plates, 4 : manifolds

Diagram

Properties

content

complex

Model

bb_lifetime , he_inl_t , he_fr , he_inl_p , loca_des_p , he_dp , lipb_dp , react , inboard , outboard

Children

bb_lifetime, he_dp, he_fr, he_inl_p, he_inl_t, inboard, lipb_dp, loca_des_p, outboard, react

Instance

<hcll_bb>
  <bb_lifetime>{1,1}</bb_lifetime>
  <he_inl_t>{1,1}</he_inl_t>
  <he_fr>{1,1}</he_fr>
  <he_inl_p>{1,1}</he_inl_p>
  <loca_des_p>{1,1}</loca_des_p>
  <he_dp>{1,1}</he_dp>
  <lipb_dp>{1,1}</lipb_dp>
  <react>{1,1}</react>
  <inboard>{1,1}</inboard>
  <outboard>{1,1}</outboard>
</hcll_bb>

Source

<xs:element name="hcll_bb">
  <xs:annotation>
    <xs:documentation>HCLL breeding blanket. Radially, the blanket is divided in 4 layers: 1: First Wall, 2 : breeder zone, 3 : back plates, 4 : manifolds</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="bb_lifetime" type="xs:float">
        <xs:annotation>
          <xs:documentation>Breeding blanket lifetime [years]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="he_inl_t" type="xs:float">
        <xs:annotation>
          <xs:documentation>Inlet temperature (to the bb module) [K]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="he_fr" type="xs:float">
        <xs:annotation>
          <xs:documentation>Coolant mass flow rate in "the" reference bb module (or in each module) [Kg/s];</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="he_inl_p" type="xs:float">
        <xs:annotation>
          <xs:documentation>Helium inlet pressure [Pa]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="loca_des_p" type="xs:float">
        <xs:annotation>
          <xs:documentation>Box design pressure (coincident He circuit design pressure) [Pa]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="he_dp" type="xs:float">
        <xs:annotation>
          <xs:documentation>Coolant pressure drops in the breeding blankets [Pa]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="lipb_dp" type="xs:float">
        <xs:annotation>
          <xs:documentation>Pb-15.7Li pressure drops in the bb [Pa]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="react">
        <xs:annotation>
          <xs:documentation>In the reactor region</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="he_fr" type="xs:float">
              <xs:annotation>
                <xs:documentation>Coolant mass flow rate in the whole reactor [Kg/s]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="lp_fr" type="xs:float">
              <xs:annotation>
                <xs:documentation>Pb-15.7Li mass flow rate in the whole reactor [Kg/s]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="he_dp" type="xs:float">
              <xs:annotation>
                <xs:documentation>Coolant pressure drops in the reactor (compressing pipelines) [Pa]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="lipb_dp" type="xs:float">
              <xs:annotation>
                <xs:documentation>Pb-15.7Li pressure drops in the reactor [Pa]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="inboard" type="hcllbb_specs">
        <xs:annotation>
          <xs:documentation>Inboard</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="outboard" type="hcllbb_specs">
        <xs:annotation>
          <xs:documentation>Outboard</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

Element bb_shield / hcll / hcll_bb / bb_lifetime

Namespace

No namespace

Annotations

Breeding blanket lifetime [years]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="bb_lifetime" type="xs:float">
  <xs:annotation>
    <xs:documentation>Breeding blanket lifetime [years]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / hcll / hcll_bb / he_inl_t

Namespace

No namespace

Annotations

Inlet temperature (to the bb module) [K]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="he_inl_t" type="xs:float">
  <xs:annotation>
    <xs:documentation>Inlet temperature (to the bb module) [K]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / hcll / hcll_bb / he_fr

Namespace

No namespace

Annotations

Coolant mass flow rate in "the" reference bb module (or in each module) [Kg/s];

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="he_fr" type="xs:float">
  <xs:annotation>
    <xs:documentation>Coolant mass flow rate in "the" reference bb module (or in each module) [Kg/s];</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / hcll / hcll_bb / he_inl_p

Namespace

No namespace

Annotations

Helium inlet pressure [Pa]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="he_inl_p" type="xs:float">
  <xs:annotation>
    <xs:documentation>Helium inlet pressure [Pa]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / hcll / hcll_bb / loca_des_p

Namespace

No namespace

Annotations

Box design pressure (coincident He circuit design pressure) [Pa]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="loca_des_p" type="xs:float">
  <xs:annotation>
    <xs:documentation>Box design pressure (coincident He circuit design pressure) [Pa]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / hcll / hcll_bb / he_dp

Namespace

No namespace

Annotations

Coolant pressure drops in the breeding blankets [Pa]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="he_dp" type="xs:float">
  <xs:annotation>
    <xs:documentation>Coolant pressure drops in the breeding blankets [Pa]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / hcll / hcll_bb / lipb_dp

Namespace

No namespace

Annotations

Pb-15.7Li pressure drops in the bb [Pa]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="lipb_dp" type="xs:float">
  <xs:annotation>
    <xs:documentation>Pb-15.7Li pressure drops in the bb [Pa]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / hcll / hcll_bb / react

Namespace

No namespace

Annotations

In the reactor region

Diagram

Properties

content

complex

Model

he_fr , lp_fr , he_dp , lipb_dp

Children

he_dp, he_fr, lipb_dp, lp_fr

Instance

<react>
  <he_fr>{1,1}</he_fr>
  <lp_fr>{1,1}</lp_fr>
  <he_dp>{1,1}</he_dp>
  <lipb_dp>{1,1}</lipb_dp>
</react>

Source

<xs:element name="react">
  <xs:annotation>
    <xs:documentation>In the reactor region</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="he_fr" type="xs:float">
        <xs:annotation>
          <xs:documentation>Coolant mass flow rate in the whole reactor [Kg/s]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="lp_fr" type="xs:float">
        <xs:annotation>
          <xs:documentation>Pb-15.7Li mass flow rate in the whole reactor [Kg/s]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="he_dp" type="xs:float">
        <xs:annotation>
          <xs:documentation>Coolant pressure drops in the reactor (compressing pipelines) [Pa]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="lipb_dp" type="xs:float">
        <xs:annotation>
          <xs:documentation>Pb-15.7Li pressure drops in the reactor [Pa]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

Element bb_shield / hcll / hcll_bb / react / he_fr

Namespace

No namespace

Annotations

Coolant mass flow rate in the whole reactor [Kg/s]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="he_fr" type="xs:float">
  <xs:annotation>
    <xs:documentation>Coolant mass flow rate in the whole reactor [Kg/s]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / hcll / hcll_bb / react / lp_fr

Namespace

No namespace

Annotations

Pb-15.7Li mass flow rate in  the whole reactor [Kg/s]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="lp_fr" type="xs:float">
  <xs:annotation>
    <xs:documentation>Pb-15.7Li mass flow rate in the whole reactor [Kg/s]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / hcll / hcll_bb / react / he_dp

Namespace

No namespace

Annotations

Coolant pressure drops in the reactor (compressing pipelines) [Pa]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="he_dp" type="xs:float">
  <xs:annotation>
    <xs:documentation>Coolant pressure drops in the reactor (compressing pipelines) [Pa]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / hcll / hcll_bb / react / lipb_dp

Namespace

No namespace

Annotations

Pb-15.7Li pressure drops in the reactor [Pa]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="lipb_dp" type="xs:float">
  <xs:annotation>
    <xs:documentation>Pb-15.7Li pressure drops in the reactor [Pa]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / hcll / hcll_bb / inboard

Namespace

No namespace

Annotations

Inboard

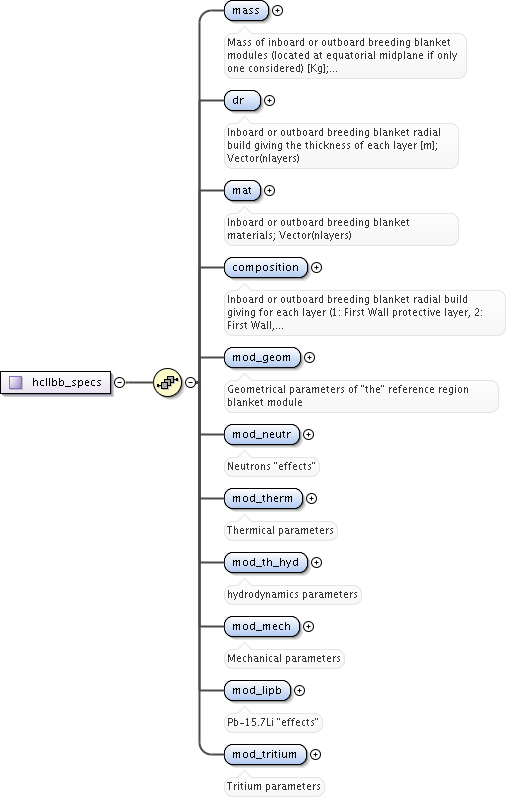

Diagram

Type

hcllbb_specs

Properties

content

complex

Model

mass , dr , mat , composition , mod_geom , mod_neutr , mod_therm , mod_th_hyd , mod_mech , mod_lipb , mod_tritium

Children

composition, dr, mass, mat, mod_geom, mod_lipb, mod_mech, mod_neutr, mod_th_hyd, mod_therm, mod_tritium

Instance

<inboard>
  <mass>{1,1}</mass>
  <dr>{1,1}</dr>
  <mat>{1,1}</mat>
  <composition>{1,1}</composition>
  <mod_geom>{1,1}</mod_geom>
  <mod_neutr>{1,1}</mod_neutr>
  <mod_therm>{1,1}</mod_therm>
  <mod_th_hyd>{1,1}</mod_th_hyd>
  <mod_mech>{1,1}</mod_mech>
  <mod_lipb>{1,1}</mod_lipb>
  <mod_tritium>{1,1}</mod_tritium>
</inboard>

Source

<xs:element name="inboard" type="hcllbb_specs">
  <xs:annotation>
    <xs:documentation>Inboard</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>

Element hcllbb_specs / mass

Namespace

No namespace

Annotations

Mass of inboard or outboard breeding blanket modules (located at equatorial midplane if only one considered) [Kg]; Vector(nmodules)

Diagram

Type

vecflt_type

Properties

content	simple
final	restriction

Source

<xs:element name="mass" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Mass of inboard or outboard breeding blanket modules (located at equatorial midplane if only one considered) [Kg]; Vector(nmodules)</xs:documentation>
  </xs:annotation>
</xs:element>

Element hcllbb_specs / dr

Namespace

No namespace

Annotations

Inboard or outboard breeding blanket radial build giving the thickness of each layer [m]; Vector(nlayers)

Diagram

Type

vecflt_type

Properties

content	simple
final	restriction

Source

<xs:element name="dr" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Inboard or outboard breeding blanket radial build giving the thickness of each layer [m]; Vector(nlayers)</xs:documentation>
  </xs:annotation>
</xs:element>

Element hcllbb_specs / mat

Namespace

No namespace

Annotations

Inboard or outboard breeding blanket materials; Vector(nlayers)

Diagram

Type

vecflt_type

Properties

content	simple
final	restriction

Source

<xs:element name="mat" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Inboard or outboard breeding blanket materials; Vector(nlayers)</xs:documentation>
  </xs:annotation>
</xs:element>

Element hcllbb_specs / composition

Namespace

No namespace

Annotations

Inboard or outboard breeding blanket radial build giving for each layer (1: First Wall protective layer, 2: First Wall, 3 : breeder zone, 4 : back plates, 5 : manifolds), the percentage of each material respectively (Meaning of the material index 1: Eurofer, 2: Pb-15.7Li, 3: He, 4: Water, 5: Tungsten Carbide, 6: Boron, 7: Tungsten, 8: Stainless Steel 316) in %vol; Matrix(nlayers(=5), max_nmaterials)

Diagram

Type

matflt_type

Properties

content

simple

Source

<xs:element name="composition" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Inboard or outboard breeding blanket radial build giving for each layer (1: First Wall protective layer, 2: First Wall, 3 : breeder zone, 4 : back plates, 5 : manifolds), the percentage of each material respectively (Meaning of the material index 1: Eurofer, 2: Pb-15.7Li, 3: He, 4: Water, 5: Tungsten Carbide, 6: Boron, 7: Tungsten, 8: Stainless Steel 316) in %vol; Matrix(nlayers(=5), max_nmaterials)</xs:documentation>
  </xs:annotation>
</xs:element>

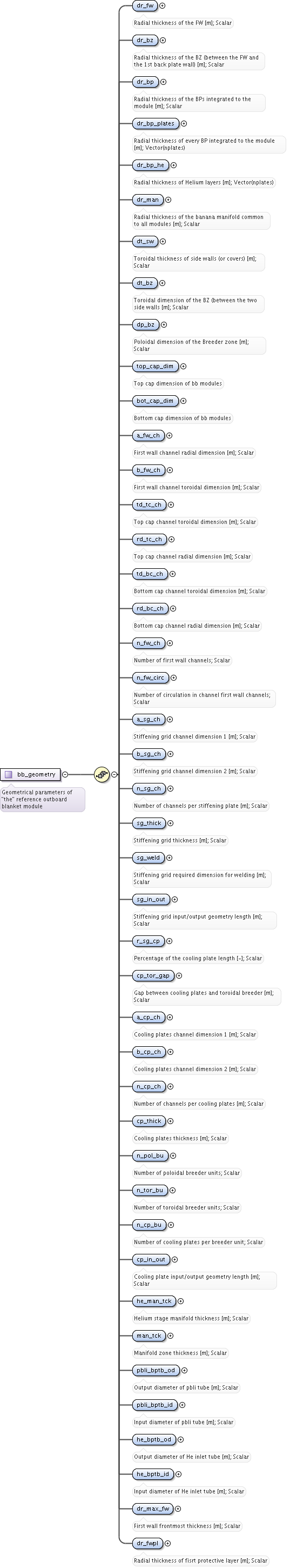

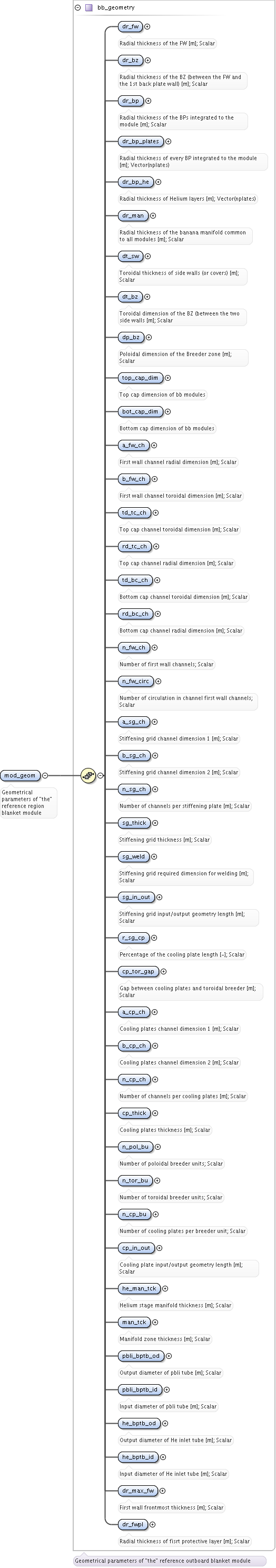

Element hcllbb_specs / mod_geom

Namespace

No namespace

Annotations

Geometrical parameters of "the" reference region blanket module

Diagram

Type

bb_geometry

Properties

content

complex

Model

dr_fw , dr_bz , dr_bp , dr_bp_plates , dr_bp_he , dr_man , dt_sw , dt_bz , dp_bz , top_cap_dim , bot_cap_dim , a_fw_ch , b_fw_ch , td_tc_ch , rd_tc_ch , td_bc_ch , rd_bc_ch , n_fw_ch , n_fw_circ , a_sg_ch , b_sg_ch , n_sg_ch , sg_thick , sg_weld , sg_in_out , r_sg_cp , cp_tor_gap , a_cp_ch , b_cp_ch , n_cp_ch , cp_thick , n_pol_bu , n_tor_bu , n_cp_bu , cp_in_out , he_man_tck , man_tck , pbli_bptb_od , pbli_bptb_id , he_bptb_od , he_bptb_id , dr_max_fw , dr_fwpl

Children

a_cp_ch, a_fw_ch, a_sg_ch, b_cp_ch, b_fw_ch, b_sg_ch, bot_cap_dim, cp_in_out, cp_thick, cp_tor_gap, dp_bz, dr_bp, dr_bp_he, dr_bp_plates, dr_bz, dr_fw, dr_fwpl, dr_man, dr_max_fw, dt_bz, dt_sw, he_bptb_id, he_bptb_od, he_man_tck, man_tck, n_cp_bu, n_cp_ch, n_fw_ch, n_fw_circ, n_pol_bu, n_sg_ch, n_tor_bu, pbli_bptb_id, pbli_bptb_od, r_sg_cp, rd_bc_ch, rd_tc_ch, sg_in_out, sg_thick, sg_weld, td_bc_ch, td_tc_ch, top_cap_dim

Instance

<mod_geom>
  <dr_fw>{1,1}</dr_fw>
  <dr_bz>{1,1}</dr_bz>
  <dr_bp>{1,1}</dr_bp>
  <dr_bp_plates>{1,1}</dr_bp_plates>
  <dr_bp_he>{1,1}</dr_bp_he>
  <dr_man>{1,1}</dr_man>
  <dt_sw>{1,1}</dt_sw>
  <dt_bz>{1,1}</dt_bz>
  <dp_bz>{1,1}</dp_bz>
  <top_cap_dim>{1,1}</top_cap_dim>
  <bot_cap_dim>{1,1}</bot_cap_dim>
  <a_fw_ch>{1,1}</a_fw_ch>
  <b_fw_ch>{1,1}</b_fw_ch>
  <td_tc_ch>{1,1}</td_tc_ch>
  <rd_tc_ch>{1,1}</rd_tc_ch>
  <td_bc_ch>{1,1}</td_bc_ch>
  <rd_bc_ch>{1,1}</rd_bc_ch>
  <n_fw_ch>{1,1}</n_fw_ch>
  <n_fw_circ>{1,1}</n_fw_circ>
  <a_sg_ch>{1,1}</a_sg_ch>
  <b_sg_ch>{1,1}</b_sg_ch>
  <n_sg_ch>{1,1}</n_sg_ch>
  <sg_thick>{1,1}</sg_thick>
  <sg_weld>{1,1}</sg_weld>
  <sg_in_out>{1,1}</sg_in_out>
  <r_sg_cp>{1,1}</r_sg_cp>
  <cp_tor_gap>{1,1}</cp_tor_gap>
  <a_cp_ch>{1,1}</a_cp_ch>
  <b_cp_ch>{1,1}</b_cp_ch>
  <n_cp_ch>{1,1}</n_cp_ch>
  <cp_thick>{1,1}</cp_thick>
  <n_pol_bu>{1,1}</n_pol_bu>
  <n_tor_bu>{1,1}</n_tor_bu>
  <n_cp_bu>{1,1}</n_cp_bu>
  <cp_in_out>{1,1}</cp_in_out>
  <he_man_tck>{1,1}</he_man_tck>
  <man_tck>{1,1}</man_tck>
  <pbli_bptb_od>{1,1}</pbli_bptb_od>
  <pbli_bptb_id>{1,1}</pbli_bptb_id>
  <he_bptb_od>{1,1}</he_bptb_od>
  <he_bptb_id>{1,1}</he_bptb_id>
  <dr_max_fw>{1,1}</dr_max_fw>
  <dr_fwpl>{1,1}</dr_fwpl>
</mod_geom>

Source

<xs:element name="mod_geom" type="bb_geometry">
  <xs:annotation>
    <xs:documentation>Geometrical parameters of "the" reference region blanket module</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>

Element bb_geometry / dr_fw

Namespace

No namespace

Annotations

Radial thickness of the FW [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="dr_fw" type="xs:float">
  <xs:annotation>
    <xs:documentation>Radial thickness of the FW [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_geometry / dr_bz

Namespace

No namespace

Annotations

Radial thickness of the BZ (between the FW and the 1st back plate wall) [m]; Scalar

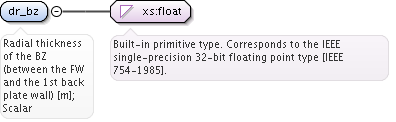

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="dr_bz" type="xs:float">
  <xs:annotation>
    <xs:documentation>Radial thickness of the BZ (between the FW and the 1st back plate wall) [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

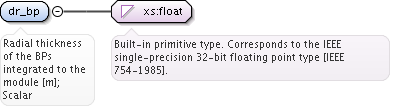

Element bb_geometry / dr_bp

Namespace

No namespace

Annotations

Radial thickness of the BPs integrated to the module [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="dr_bp" type="xs:float">
  <xs:annotation>
    <xs:documentation>Radial thickness of the BPs integrated to the module [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_geometry / dr_bp_plates

Namespace

No namespace

Annotations

Radial thickness of every BP integrated to the module [m]; Vector(nplates)

Diagram

Type

vecflt_type

Properties

content	simple
final	restriction

Source

<xs:element name="dr_bp_plates" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Radial thickness of every BP integrated to the module [m]; Vector(nplates)</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_geometry / dr_bp_he

Namespace

No namespace

Annotations

Radial thickness of Helium layers [m]; Vector(nplates)

Diagram

Type

vecflt_type

Properties

content	simple
final	restriction

Source

<xs:element name="dr_bp_he" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Radial thickness of Helium layers [m]; Vector(nplates)</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_geometry / dr_man

Namespace

No namespace

Annotations

Radial thickness of the banana manifold common to all modules [m]; Scalar

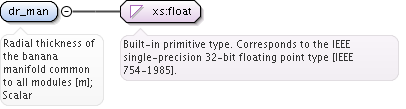

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="dr_man" type="xs:float">
  <xs:annotation>
    <xs:documentation>Radial thickness of the banana manifold common to all modules [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_geometry / dt_sw

Namespace

No namespace

Annotations

Toroidal thickness of side walls (or covers) [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="dt_sw" type="xs:float">
  <xs:annotation>
    <xs:documentation>Toroidal thickness of side walls (or covers) [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

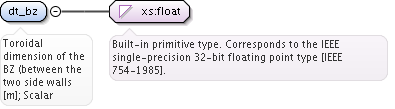

Element bb_geometry / dt_bz

Namespace

No namespace

Annotations

Toroidal dimension of the BZ (between the two side walls [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="dt_bz" type="xs:float">
  <xs:annotation>
    <xs:documentation>Toroidal dimension of the BZ (between the two side walls [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_geometry / dp_bz

Namespace

No namespace

Annotations

Poloidal dimension of the Breeder zone [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="dp_bz" type="xs:float">
  <xs:annotation>
    <xs:documentation>Poloidal dimension of the Breeder zone [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_geometry / top_cap_dim

Namespace

No namespace

Annotations

Top cap dimension of bb modules

Diagram

Type

bb_dimension

Properties

content

complex

Model

radial , toroidal , poloidal

Children

poloidal, radial, toroidal

Instance

<top_cap_dim>
  <radial>{1,1}</radial>
  <toroidal>{1,1}</toroidal>
  <poloidal>{1,1}</poloidal>
</top_cap_dim>

Source

<xs:element name="top_cap_dim" type="bb_dimension">
  <xs:annotation>
    <xs:documentation>Top cap dimension of bb modules</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>

Element bb_geometry / bot_cap_dim

Namespace

No namespace

Annotations

Bottom cap dimension of bb modules

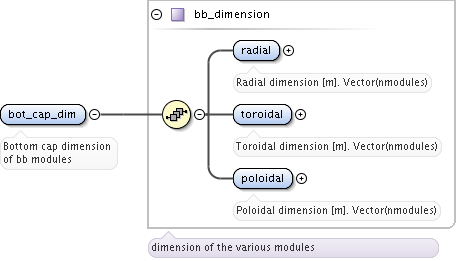

Diagram

Type

bb_dimension

Properties

content

complex

Model

radial , toroidal , poloidal

Children

poloidal, radial, toroidal

Instance

<bot_cap_dim>
  <radial>{1,1}</radial>
  <toroidal>{1,1}</toroidal>
  <poloidal>{1,1}</poloidal>
</bot_cap_dim>

Source

<xs:element name="bot_cap_dim" type="bb_dimension">
  <xs:annotation>
    <xs:documentation>Bottom cap dimension of bb modules</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>

Element bb_geometry / a_fw_ch

Namespace

No namespace

Annotations

First wall channel radial dimension [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="a_fw_ch" type="xs:float">
  <xs:annotation>
    <xs:documentation>First wall channel radial dimension [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_geometry / b_fw_ch

Namespace

No namespace

Annotations

First wall channel toroidal dimension [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="b_fw_ch" type="xs:float">
  <xs:annotation>
    <xs:documentation>First wall channel toroidal dimension [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_geometry / td_tc_ch

Namespace

No namespace

Annotations

Top cap channel toroidal dimension [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="td_tc_ch" type="xs:float">
  <xs:annotation>
    <xs:documentation>Top cap channel toroidal dimension [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_geometry / rd_tc_ch

Namespace

No namespace

Annotations

Top cap channel radial dimension [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="rd_tc_ch" type="xs:float">
  <xs:annotation>
    <xs:documentation>Top cap channel radial dimension [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_geometry / td_bc_ch

Namespace

No namespace

Annotations

Bottom cap channel toroidal dimension [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="td_bc_ch" type="xs:float">
  <xs:annotation>
    <xs:documentation>Bottom cap channel toroidal dimension [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_geometry / rd_bc_ch

Namespace

No namespace

Annotations

Bottom cap channel radial dimension [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="rd_bc_ch" type="xs:float">
  <xs:annotation>
    <xs:documentation>Bottom cap channel radial dimension [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_geometry / n_fw_ch

Namespace

No namespace

Annotations

Number of first wall channels; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="n_fw_ch" type="xs:float">
  <xs:annotation>
    <xs:documentation>Number of first wall channels; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_geometry / n_fw_circ

Namespace

No namespace

Annotations

Number of circulation in channel first wall channels; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="n_fw_circ" type="xs:float">
  <xs:annotation>
    <xs:documentation>Number of circulation in channel first wall channels; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_geometry / a_sg_ch

Namespace

No namespace

Annotations

Stiffening grid channel dimension 1 [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="a_sg_ch" type="xs:float">
  <xs:annotation>
    <xs:documentation>Stiffening grid channel dimension 1 [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_geometry / b_sg_ch

Namespace

No namespace

Annotations

Stiffening grid channel dimension 2 [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="b_sg_ch" type="xs:float">
  <xs:annotation>
    <xs:documentation>Stiffening grid channel dimension 2 [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_geometry / n_sg_ch

Namespace

No namespace

Annotations

Number of channels per stiffening plate [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="n_sg_ch" type="xs:float">
  <xs:annotation>
    <xs:documentation>Number of channels per stiffening plate [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_geometry / sg_thick

Namespace

No namespace

Annotations

Stiffening grid thickness [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="sg_thick" type="xs:float">
  <xs:annotation>
    <xs:documentation>Stiffening grid thickness [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_geometry / sg_weld

Namespace

No namespace

Annotations

Stiffening grid required dimension for welding [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="sg_weld" type="xs:float">
  <xs:annotation>
    <xs:documentation>Stiffening grid required dimension for welding [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_geometry / sg_in_out

Namespace

No namespace

Annotations

Stiffening grid input/output geometry length [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="sg_in_out" type="xs:float">
  <xs:annotation>
    <xs:documentation>Stiffening grid input/output geometry length [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_geometry / r_sg_cp

Namespace

No namespace

Annotations

Percentage of the cooling plate length [-]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="r_sg_cp" type="xs:float">
  <xs:annotation>
    <xs:documentation>Percentage of the cooling plate length [-]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_geometry / cp_tor_gap

Namespace

No namespace

Annotations

Gap between cooling plates and toroidal breeder [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="cp_tor_gap" type="xs:float">
  <xs:annotation>
    <xs:documentation>Gap between cooling plates and toroidal breeder [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_geometry / a_cp_ch

Namespace

No namespace

Annotations

Cooling plates channel dimension 1 [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="a_cp_ch" type="xs:float">
  <xs:annotation>
    <xs:documentation>Cooling plates channel dimension 1 [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_geometry / b_cp_ch

Namespace

No namespace

Annotations

Cooling plates channel dimension 2 [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="b_cp_ch" type="xs:float">
  <xs:annotation>
    <xs:documentation>Cooling plates channel dimension 2 [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_geometry / n_cp_ch

Namespace

No namespace

Annotations

Number of channels per cooling plates [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="n_cp_ch" type="xs:float">
  <xs:annotation>
    <xs:documentation>Number of channels per cooling plates [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_geometry / cp_thick

Namespace

No namespace

Annotations

Cooling plates thickness [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="cp_thick" type="xs:float">
  <xs:annotation>
    <xs:documentation>Cooling plates thickness [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_geometry / n_pol_bu

Namespace

No namespace

Annotations

Number of poloidal breeder units; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="n_pol_bu" type="xs:float">
  <xs:annotation>
    <xs:documentation>Number of poloidal breeder units; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_geometry / n_tor_bu

Namespace

No namespace

Annotations

Number of toroidal breeder units; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="n_tor_bu" type="xs:float">
  <xs:annotation>
    <xs:documentation>Number of toroidal breeder units; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_geometry / n_cp_bu

Namespace

No namespace

Annotations

Number of cooling plates per breeder unit; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="n_cp_bu" type="xs:float">
  <xs:annotation>
    <xs:documentation>Number of cooling plates per breeder unit; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_geometry / cp_in_out

Namespace

No namespace

Annotations

Cooling plate input/output geometry length [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="cp_in_out" type="xs:float">
  <xs:annotation>
    <xs:documentation>Cooling plate input/output geometry length [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_geometry / he_man_tck

Namespace

No namespace

Annotations

Helium stage manifold thickness [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="he_man_tck" type="xs:float">
  <xs:annotation>
    <xs:documentation>Helium stage manifold thickness [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_geometry / man_tck

Namespace

No namespace

Annotations

Manifold zone thickness [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="man_tck" type="xs:float">
  <xs:annotation>
    <xs:documentation>Manifold zone thickness [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_geometry / pbli_bptb_od

Namespace

No namespace

Annotations

Output diameter of pbli tube [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="pbli_bptb_od" type="xs:float">
  <xs:annotation>
    <xs:documentation>Output diameter of pbli tube [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_geometry / pbli_bptb_id

Namespace

No namespace

Annotations

Input diameter of pbli tube [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="pbli_bptb_id" type="xs:float">
  <xs:annotation>
    <xs:documentation>Input diameter of pbli tube [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_geometry / he_bptb_od

Namespace

No namespace

Annotations

Output diameter of He inlet tube [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="he_bptb_od" type="xs:float">
  <xs:annotation>
    <xs:documentation>Output diameter of He inlet tube [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_geometry / he_bptb_id

Namespace

No namespace

Annotations

Input diameter of He inlet tube [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="he_bptb_id" type="xs:float">
  <xs:annotation>
    <xs:documentation>Input diameter of He inlet tube [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_geometry / dr_max_fw

Namespace

No namespace

Annotations

First wall frontmost thickness [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="dr_max_fw" type="xs:float">
  <xs:annotation>
    <xs:documentation>First wall frontmost thickness [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_geometry / dr_fwpl

Namespace

No namespace

Annotations

Radial thickness of fisrt protective layer [m]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="dr_fwpl" type="xs:float">
  <xs:annotation>
    <xs:documentation>Radial thickness of fisrt protective layer [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

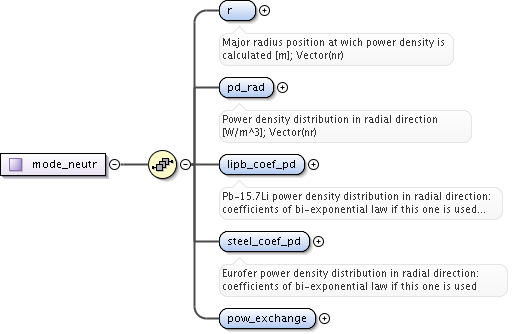

Element hcllbb_specs / mod_neutr

Namespace

No namespace

Annotations

Neutrons "effects"

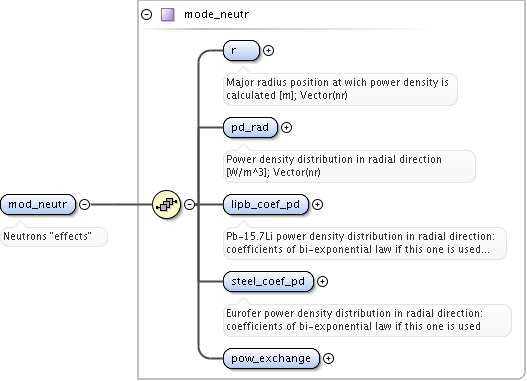

Diagram

Type

mode_neutr

Properties

content

complex

Model

r , pd_rad , lipb_coef_pd , steel_coef_pd , pow_exchange

Children

lipb_coef_pd, pd_rad, pow_exchange, r, steel_coef_pd

Instance

<mod_neutr>
  <r>{1,1}</r>
  <pd_rad>{1,1}</pd_rad>
  <lipb_coef_pd>{1,1}</lipb_coef_pd>
  <steel_coef_pd>{1,1}</steel_coef_pd>
  <pow_exchange>{1,1}</pow_exchange>
</mod_neutr>

Source

<xs:element name="mod_neutr" type="mode_neutr">
  <xs:annotation>
    <xs:documentation>Neutrons "effects"</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>

Element mode_neutr / r

Namespace

No namespace

Annotations

Major radius position at wich power density is calculated [m]; Vector(nr)

Diagram

Type

vecflt_type

Properties

content	simple
final	restriction

Source

<xs:element name="r" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Major radius position at wich power density is calculated [m]; Vector(nr)</xs:documentation>
  </xs:annotation>
</xs:element>

Element mode_neutr / pd_rad

Namespace

No namespace

Annotations

Power density distribution in radial direction [W/m^3]; Vector(nr)

Diagram

Type

vecflt_type

Properties

content	simple
final	restriction

Source

<xs:element name="pd_rad" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Power density distribution in radial direction [W/m^3]; Vector(nr)</xs:documentation>
  </xs:annotation>
</xs:element>

Element mode_neutr / lipb_coef_pd

Namespace

No namespace

Annotations

Pb-15.7Li power density distribution in radial direction: coefficients of bi-exponential law if this one is used [W/m^-3,W/m^-3,m^-1,m^-1]; Matrix

Diagram

Type

vecflt_type

Properties

content	simple
final	restriction

Source

<xs:element name="lipb_coef_pd" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Pb-15.7Li power density distribution in radial direction: coefficients of bi-exponential law if this one is used [W/m^-3,W/m^-3,m^-1,m^-1]; Matrix</xs:documentation>
  </xs:annotation>
</xs:element>

Element mode_neutr / steel_coef_pd

Namespace

No namespace

Annotations

Eurofer power density distribution in radial direction: coefficients of bi-exponential law if this one is used

Diagram

Type

vecflt_type

Properties

content	simple
final	restriction

Source

<xs:element name="steel_coef_pd" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Eurofer power density distribution in radial direction: coefficients of bi-exponential law if this one is used</xs:documentation>
  </xs:annotation>
</xs:element>

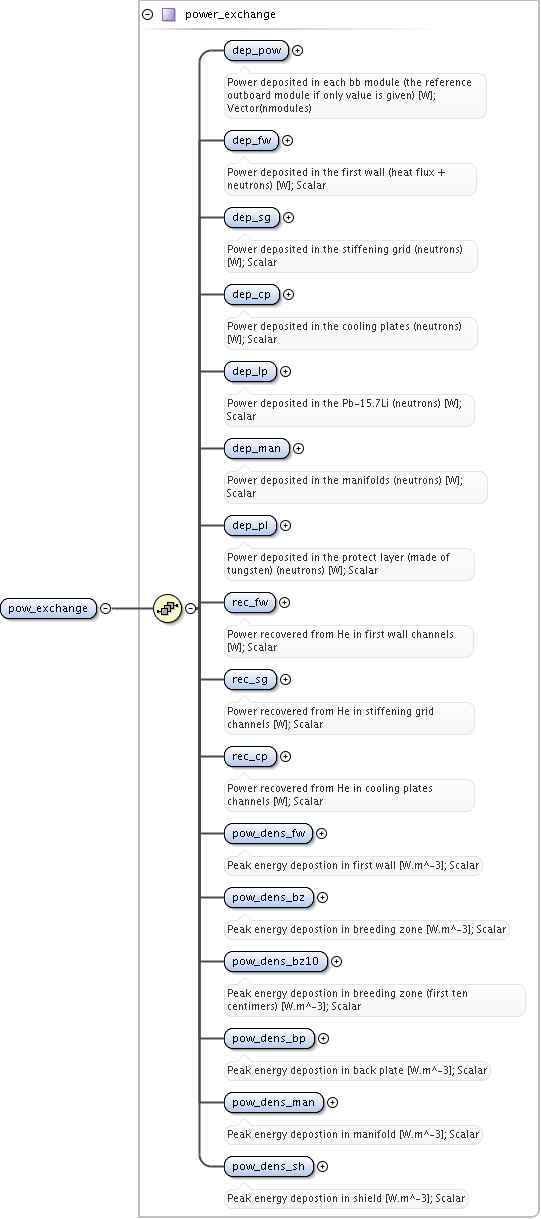

Element mode_neutr / pow_exchange

Namespace

No namespace

Diagram

Type

power_exchange

Properties

content

complex

Model

dep_pow , dep_fw , dep_sg , dep_cp , dep_lp , dep_man , dep_pl , rec_fw , rec_sg , rec_cp , pow_dens_fw , pow_dens_bz , pow_dens_bz10 , pow_dens_bp , pow_dens_man , pow_dens_sh

Children

dep_cp, dep_fw, dep_lp, dep_man, dep_pl, dep_pow, dep_sg, pow_dens_bp, pow_dens_bz, pow_dens_bz10, pow_dens_fw, pow_dens_man, pow_dens_sh, rec_cp, rec_fw, rec_sg

Instance

<pow_exchange>
  <dep_pow>{1,1}</dep_pow>
  <dep_fw>{1,1}</dep_fw>
  <dep_sg>{1,1}</dep_sg>
  <dep_cp>{1,1}</dep_cp>
  <dep_lp>{1,1}</dep_lp>
  <dep_man>{1,1}</dep_man>
  <dep_pl>{1,1}</dep_pl>
  <rec_fw>{1,1}</rec_fw>
  <rec_sg>{1,1}</rec_sg>
  <rec_cp>{1,1}</rec_cp>
  <pow_dens_fw>{1,1}</pow_dens_fw>
  <pow_dens_bz>{1,1}</pow_dens_bz>
  <pow_dens_bz10>{1,1}</pow_dens_bz10>
  <pow_dens_bp>{1,1}</pow_dens_bp>
  <pow_dens_man>{1,1}</pow_dens_man>
  <pow_dens_sh>{1,1}</pow_dens_sh>
</pow_exchange>

Source

<xs:element name="pow_exchange" type="power_exchange"/>

Element power_exchange / dep_pow

Namespace

No namespace

Annotations

Power deposited in each bb module (the reference outboard module if only value is given) [W]; Vector(nmodules)

Diagram

Type

vecflt_type

Properties

content	simple
final	restriction

Source

<xs:element name="dep_pow" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Power deposited in each bb module (the reference outboard module if only value is given) [W]; Vector(nmodules)</xs:documentation>
  </xs:annotation>
</xs:element>

Element power_exchange / dep_fw

Namespace

No namespace

Annotations

Power deposited in the first wall (heat flux + neutrons) [W]; Scalar

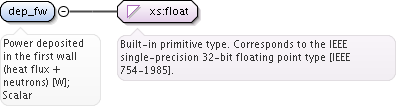

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="dep_fw" type="xs:float">
  <xs:annotation>
    <xs:documentation>Power deposited in the first wall (heat flux + neutrons) [W]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element power_exchange / dep_sg

Namespace

No namespace

Annotations

Power deposited in the stiffening grid (neutrons) [W]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="dep_sg" type="xs:float">
  <xs:annotation>
    <xs:documentation>Power deposited in the stiffening grid (neutrons) [W]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element power_exchange / dep_cp

Namespace

No namespace

Annotations

Power deposited in the cooling plates (neutrons) [W]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="dep_cp" type="xs:float">
  <xs:annotation>
    <xs:documentation>Power deposited in the cooling plates (neutrons) [W]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element power_exchange / dep_lp

Namespace

No namespace

Annotations

Power deposited in the Pb-15.7Li (neutrons) [W]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="dep_lp" type="xs:float">
  <xs:annotation>
    <xs:documentation>Power deposited in the Pb-15.7Li (neutrons) [W]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element power_exchange / dep_man

Namespace

No namespace

Annotations

Power deposited in the manifolds (neutrons) [W]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="dep_man" type="xs:float">
  <xs:annotation>
    <xs:documentation>Power deposited in the manifolds (neutrons) [W]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element power_exchange / dep_pl

Namespace

No namespace

Annotations

Power deposited in the protect layer (made of tungsten) (neutrons) [W]; Scalar

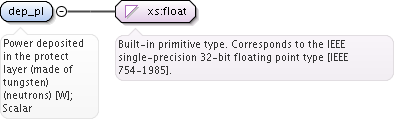

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="dep_pl" type="xs:float">
  <xs:annotation>
    <xs:documentation>Power deposited in the protect layer (made of tungsten) (neutrons) [W]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element power_exchange / rec_fw

Namespace

No namespace

Annotations

Power recovered from He in first wall channels [W]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="rec_fw" type="xs:float">
  <xs:annotation>
    <xs:documentation>Power recovered from He in first wall channels [W]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element power_exchange / rec_sg

Namespace

No namespace

Annotations

Power recovered from He in stiffening grid channels [W]; Scalar

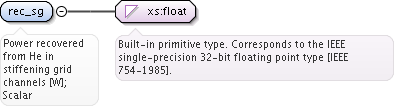

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="rec_sg" type="xs:float">
  <xs:annotation>
    <xs:documentation>Power recovered from He in stiffening grid channels [W]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element power_exchange / rec_cp

Namespace

No namespace

Annotations

Power recovered from He in cooling plates channels [W]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="rec_cp" type="xs:float">
  <xs:annotation>
    <xs:documentation>Power recovered from He in cooling plates channels [W]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element power_exchange / pow_dens_fw

Namespace

No namespace

Annotations

Peak energy depostion in first wall [W.m^-3]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="pow_dens_fw" type="xs:float">
  <xs:annotation>
    <xs:documentation>Peak energy depostion in first wall [W.m^-3]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element power_exchange / pow_dens_bz

Namespace

No namespace

Annotations

Peak energy depostion in breeding zone [W.m^-3]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="pow_dens_bz" type="xs:float">
  <xs:annotation>
    <xs:documentation>Peak energy depostion in breeding zone [W.m^-3]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element power_exchange / pow_dens_bz10

Namespace

No namespace

Annotations

Peak energy depostion in breeding zone (first ten centimers) [W.m^-3]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="pow_dens_bz10" type="xs:float">
  <xs:annotation>
    <xs:documentation>Peak energy depostion in breeding zone (first ten centimers) [W.m^-3]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element power_exchange / pow_dens_bp

Namespace

No namespace

Annotations

Peak energy depostion in back plate [W.m^-3]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="pow_dens_bp" type="xs:float">
  <xs:annotation>
    <xs:documentation>Peak energy depostion in back plate [W.m^-3]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element power_exchange / pow_dens_man

Namespace

No namespace

Annotations

Peak energy depostion in manifold [W.m^-3]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="pow_dens_man" type="xs:float">
  <xs:annotation>
    <xs:documentation>Peak energy depostion in manifold [W.m^-3]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element power_exchange / pow_dens_sh

Namespace

No namespace

Annotations

Peak energy depostion in shield [W.m^-3]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="pow_dens_sh" type="xs:float">
  <xs:annotation>
    <xs:documentation>Peak energy depostion in shield [W.m^-3]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

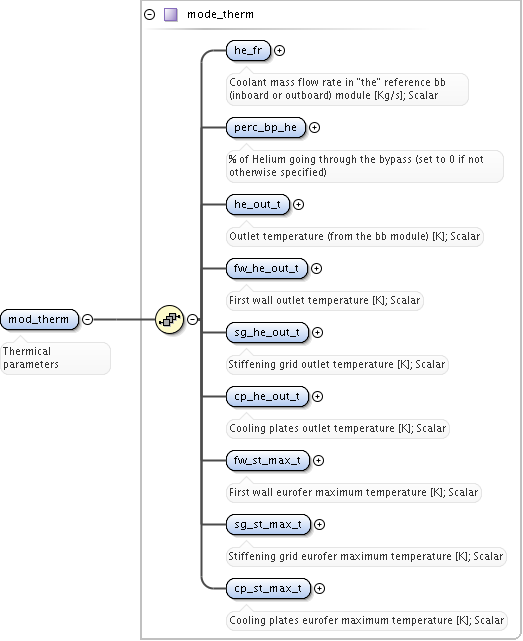

Element hcllbb_specs / mod_therm

Namespace

No namespace

Annotations

Thermical parameters

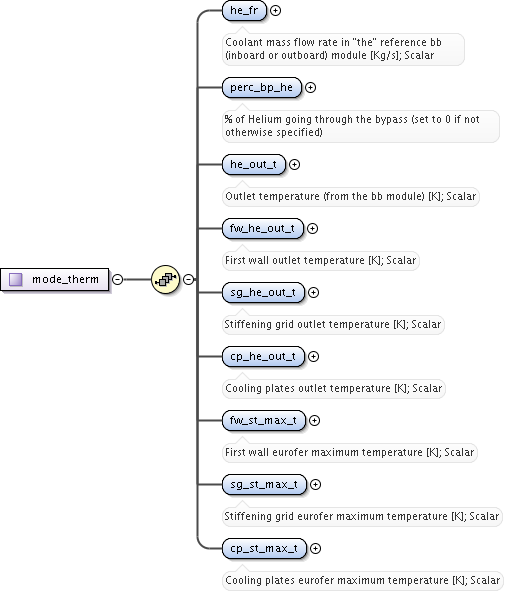

Diagram

Type

mode_therm

Properties

content

complex

Model

he_fr , perc_bp_he , he_out_t , fw_he_out_t , sg_he_out_t , cp_he_out_t , fw_st_max_t , sg_st_max_t , cp_st_max_t

Children

cp_he_out_t, cp_st_max_t, fw_he_out_t, fw_st_max_t, he_fr, he_out_t, perc_bp_he, sg_he_out_t, sg_st_max_t

Instance

<mod_therm>
  <he_fr>{1,1}</he_fr>
  <perc_bp_he>{1,1}</perc_bp_he>
  <he_out_t>{1,1}</he_out_t>
  <fw_he_out_t>{1,1}</fw_he_out_t>
  <sg_he_out_t>{1,1}</sg_he_out_t>
  <cp_he_out_t>{1,1}</cp_he_out_t>
  <fw_st_max_t>{1,1}</fw_st_max_t>
  <sg_st_max_t>{1,1}</sg_st_max_t>
  <cp_st_max_t>{1,1}</cp_st_max_t>
</mod_therm>

Source

<xs:element name="mod_therm" type="mode_therm">
  <xs:annotation>
    <xs:documentation>Thermical parameters</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>

Element mode_therm / he_fr

Namespace

No namespace

Annotations

Coolant mass flow rate in "the" reference bb (inboard or outboard) module [Kg/s]; Scalar

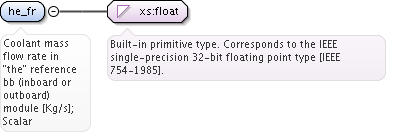

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="he_fr" type="xs:float">
  <xs:annotation>
    <xs:documentation>Coolant mass flow rate in "the" reference bb (inboard or outboard) module [Kg/s]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element mode_therm / perc_bp_he

Namespace

No namespace

Annotations

% of Helium going through the bypass (set to 0 if not otherwise specified)

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="perc_bp_he" type="xs:float">
  <xs:annotation>
    <xs:documentation>% of Helium going through the bypass (set to 0 if not otherwise specified)</xs:documentation>
  </xs:annotation>
</xs:element>

Element mode_therm / he_out_t

Namespace

No namespace

Annotations

Outlet temperature (from the bb module) [K]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="he_out_t" type="xs:float">
  <xs:annotation>
    <xs:documentation>Outlet temperature (from the bb module) [K]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element mode_therm / fw_he_out_t

Namespace

No namespace

Annotations

First wall outlet temperature [K]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="fw_he_out_t" type="xs:float">
  <xs:annotation>
    <xs:documentation>First wall outlet temperature [K]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element mode_therm / sg_he_out_t

Namespace

No namespace

Annotations

Stiffening grid outlet temperature [K]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="sg_he_out_t" type="xs:float">
  <xs:annotation>
    <xs:documentation>Stiffening grid outlet temperature [K]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element mode_therm / cp_he_out_t

Namespace

No namespace

Annotations

Cooling plates outlet temperature [K]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="cp_he_out_t" type="xs:float">
  <xs:annotation>
    <xs:documentation>Cooling plates outlet temperature [K]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element mode_therm / fw_st_max_t

Namespace

No namespace

Annotations

First wall eurofer maximum temperature [K]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="fw_st_max_t" type="xs:float">
  <xs:annotation>
    <xs:documentation>First wall eurofer maximum temperature [K]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element mode_therm / sg_st_max_t

Namespace

No namespace

Annotations

Stiffening grid eurofer maximum temperature [K]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="sg_st_max_t" type="xs:float">
  <xs:annotation>
    <xs:documentation>Stiffening grid eurofer maximum temperature [K]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element mode_therm / cp_st_max_t

Namespace

No namespace

Annotations

Cooling plates eurofer maximum temperature [K]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="cp_st_max_t" type="xs:float">
  <xs:annotation>
    <xs:documentation>Cooling plates eurofer maximum temperature [K]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element hcllbb_specs / mod_th_hyd

Namespace

No namespace

Annotations

hydrodynamics parameters

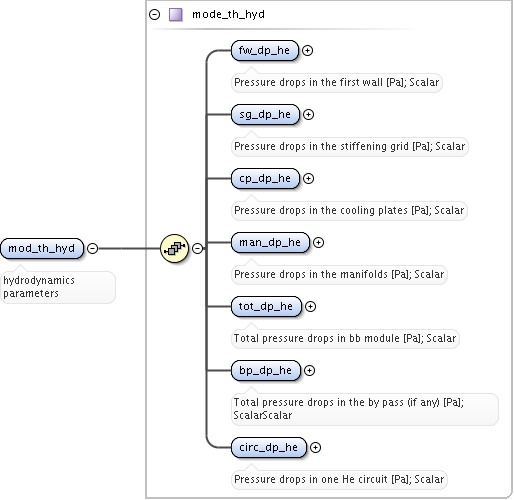

Diagram

Type

mode_th_hyd

Properties

content

complex

Model

fw_dp_he , sg_dp_he , cp_dp_he , man_dp_he , tot_dp_he , bp_dp_he , circ_dp_he

Children

bp_dp_he, circ_dp_he, cp_dp_he, fw_dp_he, man_dp_he, sg_dp_he, tot_dp_he

Instance

<mod_th_hyd>
  <fw_dp_he>{1,1}</fw_dp_he>
  <sg_dp_he>{1,1}</sg_dp_he>
  <cp_dp_he>{1,1}</cp_dp_he>
  <man_dp_he>{1,1}</man_dp_he>
  <tot_dp_he>{1,1}</tot_dp_he>
  <bp_dp_he>{1,1}</bp_dp_he>
  <circ_dp_he>{1,1}</circ_dp_he>
</mod_th_hyd>

Source

<xs:element name="mod_th_hyd" type="mode_th_hyd">
  <xs:annotation>
    <xs:documentation>hydrodynamics parameters</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>

Element mode_th_hyd / fw_dp_he

Namespace

No namespace

Annotations

Pressure drops in the first wall [Pa]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="fw_dp_he" type="xs:float">
  <xs:annotation>
    <xs:documentation>Pressure drops in the first wall [Pa]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element mode_th_hyd / sg_dp_he

Namespace

No namespace

Annotations

Pressure drops in the stiffening grid [Pa]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="sg_dp_he" type="xs:float">
  <xs:annotation>
    <xs:documentation>Pressure drops in the stiffening grid [Pa]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element mode_th_hyd / cp_dp_he

Namespace

No namespace

Annotations

Pressure drops in the cooling plates [Pa]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="cp_dp_he" type="xs:float">
  <xs:annotation>
    <xs:documentation>Pressure drops in the cooling plates [Pa]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element mode_th_hyd / man_dp_he

Namespace

No namespace

Annotations

Pressure drops in the manifolds [Pa]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="man_dp_he" type="xs:float">
  <xs:annotation>
    <xs:documentation>Pressure drops in the manifolds [Pa]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element mode_th_hyd / tot_dp_he

Namespace

No namespace

Annotations

Total pressure drops in bb module [Pa]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="tot_dp_he" type="xs:float">
  <xs:annotation>
    <xs:documentation>Total pressure drops in bb module [Pa]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element mode_th_hyd / bp_dp_he

Namespace

No namespace

Annotations

Total pressure drops in the by pass (if any) [Pa]; ScalarScalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="bp_dp_he" type="xs:float">
  <xs:annotation>
    <xs:documentation>Total pressure drops in the by pass (if any) [Pa]; ScalarScalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element mode_th_hyd / circ_dp_he

Namespace

No namespace

Annotations

Pressure drops in one He circuit [Pa]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="circ_dp_he" type="xs:float">
  <xs:annotation>
    <xs:documentation>Pressure drops in one He circuit [Pa]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element hcllbb_specs / mod_mech

Namespace

No namespace

Annotations

Mechanical parameters

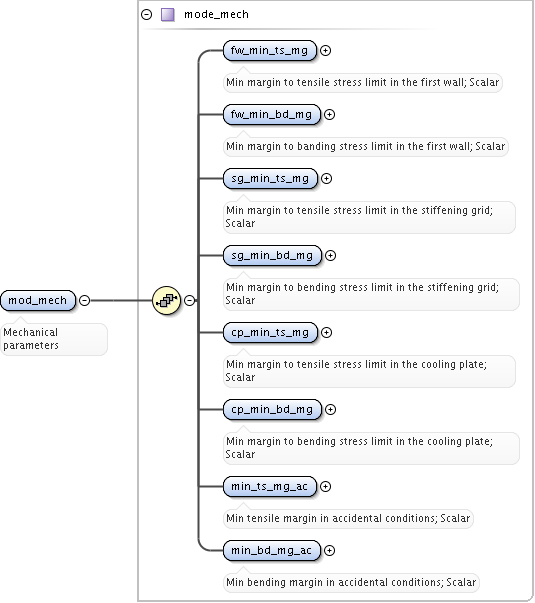

Diagram

Type

mode_mech

Properties

content

complex

Model

fw_min_ts_mg , fw_min_bd_mg , sg_min_ts_mg , sg_min_bd_mg , cp_min_ts_mg , cp_min_bd_mg , min_ts_mg_ac , min_bd_mg_ac

Children

cp_min_bd_mg, cp_min_ts_mg, fw_min_bd_mg, fw_min_ts_mg, min_bd_mg_ac, min_ts_mg_ac, sg_min_bd_mg, sg_min_ts_mg

Instance

<mod_mech>
  <fw_min_ts_mg>{1,1}</fw_min_ts_mg>
  <fw_min_bd_mg>{1,1}</fw_min_bd_mg>
  <sg_min_ts_mg>{1,1}</sg_min_ts_mg>
  <sg_min_bd_mg>{1,1}</sg_min_bd_mg>
  <cp_min_ts_mg>{1,1}</cp_min_ts_mg>
  <cp_min_bd_mg>{1,1}</cp_min_bd_mg>
  <min_ts_mg_ac>{1,1}</min_ts_mg_ac>
  <min_bd_mg_ac>{1,1}</min_bd_mg_ac>
</mod_mech>

Source

<xs:element name="mod_mech" type="mode_mech">
  <xs:annotation>
    <xs:documentation>Mechanical parameters</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>

Element mode_mech / fw_min_ts_mg

Namespace

No namespace

Annotations

Min margin to tensile stress limit in the first wall; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="fw_min_ts_mg" type="xs:float">
  <xs:annotation>
    <xs:documentation>Min margin to tensile stress limit in the first wall; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element mode_mech / fw_min_bd_mg

Namespace

No namespace

Annotations

Min margin to banding stress limit in the first wall; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="fw_min_bd_mg" type="xs:float">
  <xs:annotation>
    <xs:documentation>Min margin to banding stress limit in the first wall; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element mode_mech / sg_min_ts_mg

Namespace

No namespace

Annotations

Min margin to tensile stress limit in the stiffening grid; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="sg_min_ts_mg" type="xs:float">
  <xs:annotation>
    <xs:documentation>Min margin to tensile stress limit in the stiffening grid; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element mode_mech / sg_min_bd_mg

Namespace

No namespace

Annotations

Min margin to bending stress limit in the stiffening grid; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="sg_min_bd_mg" type="xs:float">
  <xs:annotation>
    <xs:documentation>Min margin to bending stress limit in the stiffening grid; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element mode_mech / cp_min_ts_mg

Namespace

No namespace

Annotations

Min margin to tensile stress limit in the cooling plate; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="cp_min_ts_mg" type="xs:float">
  <xs:annotation>
    <xs:documentation>Min margin to tensile stress limit in the cooling plate; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element mode_mech / cp_min_bd_mg

Namespace

No namespace

Annotations

Min margin to bending stress limit in the cooling plate; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="cp_min_bd_mg" type="xs:float">
  <xs:annotation>
    <xs:documentation>Min margin to bending stress limit in the cooling plate; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element mode_mech / min_ts_mg_ac

Namespace

No namespace

Annotations

Min tensile margin in accidental conditions; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="min_ts_mg_ac" type="xs:float">
  <xs:annotation>
    <xs:documentation>Min tensile margin in accidental conditions; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element mode_mech / min_bd_mg_ac

Namespace

No namespace

Annotations

Min bending margin in accidental conditions; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="min_bd_mg_ac" type="xs:float">
  <xs:annotation>
    <xs:documentation>Min bending margin in accidental conditions; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element hcllbb_specs / mod_lipb

Namespace

No namespace

Annotations

Pb-15.7Li "effects"

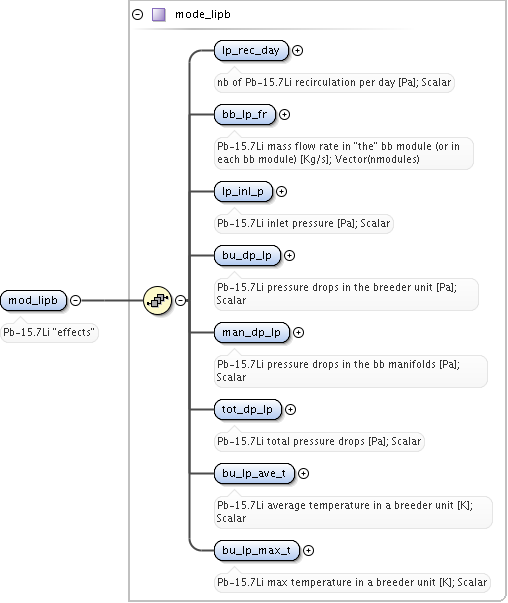

Diagram

Type

mode_lipb

Properties

content

complex

Model

lp_rec_day , bb_lp_fr , lp_inl_p , bu_dp_lp , man_dp_lp , tot_dp_lp , bu_lp_ave_t , bu_lp_max_t

Children

bb_lp_fr, bu_dp_lp, bu_lp_ave_t, bu_lp_max_t, lp_inl_p, lp_rec_day, man_dp_lp, tot_dp_lp

Instance

<mod_lipb>
  <lp_rec_day>{1,1}</lp_rec_day>
  <bb_lp_fr>{1,1}</bb_lp_fr>
  <lp_inl_p>{1,1}</lp_inl_p>
  <bu_dp_lp>{1,1}</bu_dp_lp>
  <man_dp_lp>{1,1}</man_dp_lp>
  <tot_dp_lp>{1,1}</tot_dp_lp>
  <bu_lp_ave_t>{1,1}</bu_lp_ave_t>
  <bu_lp_max_t>{1,1}</bu_lp_max_t>
</mod_lipb>

Source

<xs:element name="mod_lipb" type="mode_lipb">
  <xs:annotation>
    <xs:documentation>Pb-15.7Li "effects"</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>

Element mode_lipb / lp_rec_day

Namespace

No namespace

Annotations

nb of Pb-15.7Li recirculation per day [Pa]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="lp_rec_day" type="xs:float">
  <xs:annotation>
    <xs:documentation>nb of Pb-15.7Li recirculation per day [Pa]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element mode_lipb / bb_lp_fr

Namespace

No namespace

Annotations

Pb-15.7Li mass flow rate in "the" bb module (or in each bb module) [Kg/s]; Vector(nmodules)

Diagram

Type

vecflt_type

Properties

content	simple
final	restriction

Source

<xs:element name="bb_lp_fr" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Pb-15.7Li mass flow rate in "the" bb module (or in each bb module) [Kg/s]; Vector(nmodules)</xs:documentation>
  </xs:annotation>
</xs:element>

Element mode_lipb / lp_inl_p

Namespace

No namespace

Annotations

Pb-15.7Li inlet pressure [Pa]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="lp_inl_p" type="xs:float">
  <xs:annotation>
    <xs:documentation>Pb-15.7Li inlet pressure [Pa]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element mode_lipb / bu_dp_lp

Namespace

No namespace

Annotations

Pb-15.7Li pressure drops in the breeder unit [Pa]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="bu_dp_lp" type="xs:float">
  <xs:annotation>
    <xs:documentation>Pb-15.7Li pressure drops in the breeder unit [Pa]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element mode_lipb / man_dp_lp

Namespace

No namespace

Annotations

Pb-15.7Li pressure drops in the bb manifolds [Pa]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="man_dp_lp" type="xs:float">
  <xs:annotation>
    <xs:documentation>Pb-15.7Li pressure drops in the bb manifolds [Pa]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element mode_lipb / tot_dp_lp

Namespace

No namespace

Annotations

Pb-15.7Li total pressure drops [Pa]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="tot_dp_lp" type="xs:float">
  <xs:annotation>
    <xs:documentation>Pb-15.7Li total pressure drops [Pa]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element mode_lipb / bu_lp_ave_t

Namespace

No namespace

Annotations

Pb-15.7Li average temperature in a breeder unit [K]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="bu_lp_ave_t" type="xs:float">
  <xs:annotation>
    <xs:documentation>Pb-15.7Li average temperature in a breeder unit [K]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element mode_lipb / bu_lp_max_t

Namespace

No namespace

Annotations

Pb-15.7Li max temperature in a breeder unit [K]; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="bu_lp_max_t" type="xs:float">
  <xs:annotation>
    <xs:documentation>Pb-15.7Li max temperature in a breeder unit [K]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element hcllbb_specs / mod_tritium

Namespace

No namespace

Annotations

Tritium parameters

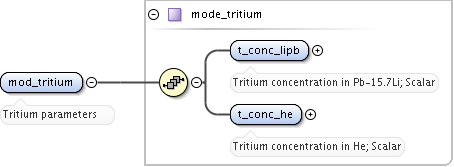

Diagram

Type

mode_tritium

Properties

content

complex

Model

t_conc_lipb , t_conc_he

Children

t_conc_he, t_conc_lipb

Instance

<mod_tritium>
  <t_conc_lipb>{1,1}</t_conc_lipb>
  <t_conc_he>{1,1}</t_conc_he>
</mod_tritium>

Source

<xs:element name="mod_tritium" type="mode_tritium">
  <xs:annotation>
    <xs:documentation>Tritium parameters</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>

Element mode_tritium / t_conc_lipb

Namespace

No namespace

Annotations

Tritium concentration in Pb-15.7Li; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="t_conc_lipb" type="xs:float">
  <xs:annotation>
    <xs:documentation>Tritium concentration in Pb-15.7Li; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element mode_tritium / t_conc_he

Namespace

No namespace

Annotations

Tritium concentration in He; Scalar

Diagram

Type

xs:float

Properties

content

simple

Source

<xs:element name="t_conc_he" type="xs:float">
  <xs:annotation>
    <xs:documentation>Tritium concentration in He; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / hcll / hcll_bb / outboard

Namespace

No namespace

Annotations

Outboard

Diagram

Type

hcllbb_specs

Properties

content

complex

Model

mass , dr , mat , composition , mod_geom , mod_neutr , mod_therm , mod_th_hyd , mod_mech , mod_lipb , mod_tritium

Children

composition, dr, mass, mat, mod_geom, mod_lipb, mod_mech, mod_neutr, mod_th_hyd, mod_therm, mod_tritium

Instance

<outboard>
  <mass>{1,1}</mass>
  <dr>{1,1}</dr>
  <mat>{1,1}</mat>
  <composition>{1,1}</composition>
  <mod_geom>{1,1}</mod_geom>
  <mod_neutr>{1,1}</mod_neutr>
  <mod_therm>{1,1}</mod_therm>
  <mod_th_hyd>{1,1}</mod_th_hyd>
  <mod_mech>{1,1}</mod_mech>
  <mod_lipb>{1,1}</mod_lipb>
  <mod_tritium>{1,1}</mod_tritium>
</outboard>

Source

<xs:element name="outboard" type="hcllbb_specs">
  <xs:annotation>
    <xs:documentation>Outboard</xs:documentation>
  </xs:annotation>
</xs:element>

Element bb_shield / time

Namespace

No namespace

Annotations

Time [s]; Time-dependent; Scalar

Diagram

Type

xs:float

Properties

content	simple
default	0.0

Source

<xs:element name="time" type="xs:float" default="0.0">
  <xs:annotation>
    <xs:documentation>Time [s]; Time-dependent; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

Complex Type shield_specs

Namespace

No namespace

Diagram

Used by

Elements

bb_shield/shield/inboard, bb_shield/shield/outboard

Model

nmat , composition , r1 , r2 , mass

Children

composition, mass, nmat, r1, r2

Source

<xs:complexType name="shield_specs">
  <xs:sequence>
    <xs:element name="nmat" type="xs:integer">
      <xs:annotation>
        <xs:documentation>Number of materials; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="composition" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Inboard or outboard shield radial build the percentage of each material respectively (Meaning of the material index 1: Eurofer, 2: Pb-15.7Li, 3: He, 4: Water, 5: Tungsten Carbide, 6: Boron, 7: Tungsten, 8: Stainless Steel 316) in %vol; Vector(nmat).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="r1" type="xs:float">
      <xs:annotation>
        <xs:documentation>Inner radius (nearest to the plasma), in the global tokamak coordinate system of the inboard or outboard shield located at the equatorial plane [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="r2" type="xs:float">
      <xs:annotation>
        <xs:documentation>Outer radius (farest to the plasma), in the global tokamak coordinate system of the inboard or outboard shield located at the equatorial plane [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="mass" type="xs:float">
      <xs:annotation>
        <xs:documentation>Mass of inboard or outboard shield [Kg]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

Complex Type bb_specs

Namespace

No namespace

Diagram

Used by

Elements

bb_shield/bb/inboard, bb_shield/bb/outboard

Model

nbb , r1 , r2 , dimension

Children

dimension, nbb, r1, r2

Source

<xs:complexType name="bb_specs">
  <xs:sequence>
    <xs:element name="nbb" type="xs:float">
      <xs:annotation>
        <xs:documentation>Number of inboard or outboard bb modules (in a poloidal cut), Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="r1" type="xs:float">
      <xs:annotation>
        <xs:documentation>Inner radius (nearest to the plasma), in the global tokamak coordinate system of the inboard or outboard bb located at the equatorial plane [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="r2" type="xs:float">
      <xs:annotation>
        <xs:documentation>Outer radius (farest to the plasma), in the global tokamak coordinate system of the inboard or outboard bb located at the equatorial plane [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="dimension" type="bb_dimension">
      <xs:annotation>
        <xs:documentation>dimension of the various modules</xs:documentation>
        <xs:appinfo>machine description</xs:appinfo>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

Complex Type bb_dimension

Namespace

No namespace

Annotations

dimension of the various modules

Diagram

Used by

Elements

bb_geometry/bot_cap_dim, bb_geometry/top_cap_dim, bb_specs/dimension

Model

radial , toroidal , poloidal

Children

poloidal, radial, toroidal

Source

<xs:complexType name="bb_dimension">
  <xs:annotation>
    <xs:documentation>dimension of the various modules</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="radial" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Radial dimension [m]. Vector(nmodules)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="toroidal" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Toroidal dimension [m]. Vector(nmodules)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="poloidal" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Poloidal dimension [m]. Vector(nmodules)</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

Complex Type hcllbb_specs

Namespace

No namespace

Diagram

Used by

Elements

bb_shield/hcll/hcll_bb/inboard, bb_shield/hcll/hcll_bb/outboard

Model

mass , dr , mat , composition , mod_geom , mod_neutr , mod_therm , mod_th_hyd , mod_mech , mod_lipb , mod_tritium

Children

composition, dr, mass, mat, mod_geom, mod_lipb, mod_mech, mod_neutr, mod_th_hyd, mod_therm, mod_tritium

Source

<xs:complexType name="hcllbb_specs">
  <xs:sequence>
    <xs:element name="mass" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Mass of inboard or outboard breeding blanket modules (located at equatorial midplane if only one considered) [Kg]; Vector(nmodules)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="dr" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Inboard or outboard breeding blanket radial build giving the thickness of each layer [m]; Vector(nlayers)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="mat" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Inboard or outboard breeding blanket materials; Vector(nlayers)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="composition" type="matflt_type">
      <xs:annotation>
        <xs:documentation>Inboard or outboard breeding blanket radial build giving for each layer (1: First Wall protective layer, 2: First Wall, 3 : breeder zone, 4 : back plates, 5 : manifolds), the percentage of each material respectively (Meaning of the material index 1: Eurofer, 2: Pb-15.7Li, 3: He, 4: Water, 5: Tungsten Carbide, 6: Boron, 7: Tungsten, 8: Stainless Steel 316) in %vol; Matrix(nlayers(=5), max_nmaterials)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="mod_geom" type="bb_geometry">
      <xs:annotation>
        <xs:documentation>Geometrical parameters of "the" reference region blanket module</xs:documentation>
        <xs:appinfo>machine description</xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element name="mod_neutr" type="mode_neutr">
      <xs:annotation>
        <xs:documentation>Neutrons "effects"</xs:documentation>
        <xs:appinfo>machine description</xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element name="mod_therm" type="mode_therm">
      <xs:annotation>
        <xs:documentation>Thermical parameters</xs:documentation>
        <xs:appinfo>machine description</xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element name="mod_th_hyd" type="mode_th_hyd">
      <xs:annotation>
        <xs:documentation>hydrodynamics parameters</xs:documentation>
        <xs:appinfo>machine description</xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element name="mod_mech" type="mode_mech">
      <xs:annotation>
        <xs:documentation>Mechanical parameters</xs:documentation>
        <xs:appinfo>machine description</xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element name="mod_lipb" type="mode_lipb">
      <xs:annotation>
        <xs:documentation>Pb-15.7Li "effects"</xs:documentation>
        <xs:appinfo>machine description</xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element name="mod_tritium" type="mode_tritium">
      <xs:annotation>
        <xs:documentation>Tritium parameters</xs:documentation>
        <xs:appinfo>machine description</xs:appinfo>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

Complex Type bb_geometry

Namespace

No namespace

Annotations

Geometrical parameters of "the" reference outboard blanket module

Diagram

Used by

Element

hcllbb_specs/mod_geom

Model

Children

Source

<xs:complexType name="bb_geometry">
  <xs:annotation>
    <xs:documentation>Geometrical parameters of "the" reference outboard blanket module</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="dr_fw" type="xs:float">
      <xs:annotation>
        <xs:documentation>Radial thickness of the FW [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="dr_bz" type="xs:float">
      <xs:annotation>
        <xs:documentation>Radial thickness of the BZ (between the FW and the 1st back plate wall) [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="dr_bp" type="xs:float">
      <xs:annotation>
        <xs:documentation>Radial thickness of the BPs integrated to the module [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="dr_bp_plates" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Radial thickness of every BP integrated to the module [m]; Vector(nplates)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="dr_bp_he" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Radial thickness of Helium layers [m]; Vector(nplates)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="dr_man" type="xs:float">
      <xs:annotation>
        <xs:documentation>Radial thickness of the banana manifold common to all modules [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="dt_sw" type="xs:float">
      <xs:annotation>
        <xs:documentation>Toroidal thickness of side walls (or covers) [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="dt_bz" type="xs:float">
      <xs:annotation>
        <xs:documentation>Toroidal dimension of the BZ (between the two side walls [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="dp_bz" type="xs:float">
      <xs:annotation>
        <xs:documentation>Poloidal dimension of the Breeder zone [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="top_cap_dim" type="bb_dimension">
      <xs:annotation>
        <xs:documentation>Top cap dimension of bb modules</xs:documentation>
        <xs:appinfo>machine description</xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element name="bot_cap_dim" type="bb_dimension">
      <xs:annotation>
        <xs:documentation>Bottom cap dimension of bb modules</xs:documentation>
        <xs:appinfo>machine description</xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element name="a_fw_ch" type="xs:float">
      <xs:annotation>
        <xs:documentation>First wall channel radial dimension [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="b_fw_ch" type="xs:float">
      <xs:annotation>
        <xs:documentation>First wall channel toroidal dimension [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="td_tc_ch" type="xs:float">
      <xs:annotation>
        <xs:documentation>Top cap channel toroidal dimension [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="rd_tc_ch" type="xs:float">
      <xs:annotation>
        <xs:documentation>Top cap channel radial dimension [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="td_bc_ch" type="xs:float">
      <xs:annotation>
        <xs:documentation>Bottom cap channel toroidal dimension [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="rd_bc_ch" type="xs:float">
      <xs:annotation>
        <xs:documentation>Bottom cap channel radial dimension [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="n_fw_ch" type="xs:float">
      <xs:annotation>
        <xs:documentation>Number of first wall channels; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="n_fw_circ" type="xs:float">
      <xs:annotation>
        <xs:documentation>Number of circulation in channel first wall channels; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="a_sg_ch" type="xs:float">
      <xs:annotation>
        <xs:documentation>Stiffening grid channel dimension 1 [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="b_sg_ch" type="xs:float">
      <xs:annotation>
        <xs:documentation>Stiffening grid channel dimension 2 [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="n_sg_ch" type="xs:float">
      <xs:annotation>
        <xs:documentation>Number of channels per stiffening plate [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="sg_thick" type="xs:float">
      <xs:annotation>
        <xs:documentation>Stiffening grid thickness [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="sg_weld" type="xs:float">
      <xs:annotation>
        <xs:documentation>Stiffening grid required dimension for welding [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="sg_in_out" type="xs:float">
      <xs:annotation>
        <xs:documentation>Stiffening grid input/output geometry length [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="r_sg_cp" type="xs:float">
      <xs:annotation>
        <xs:documentation>Percentage of the cooling plate length [-]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="cp_tor_gap" type="xs:float">
      <xs:annotation>
        <xs:documentation>Gap between cooling plates and toroidal breeder [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="a_cp_ch" type="xs:float">
      <xs:annotation>
        <xs:documentation>Cooling plates channel dimension 1 [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="b_cp_ch" type="xs:float">
      <xs:annotation>
        <xs:documentation>Cooling plates channel dimension 2 [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="n_cp_ch" type="xs:float">
      <xs:annotation>
        <xs:documentation>Number of channels per cooling plates [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="cp_thick" type="xs:float">
      <xs:annotation>
        <xs:documentation>Cooling plates thickness [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="n_pol_bu" type="xs:float">
      <xs:annotation>
        <xs:documentation>Number of poloidal breeder units; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="n_tor_bu" type="xs:float">
      <xs:annotation>
        <xs:documentation>Number of toroidal breeder units; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="n_cp_bu" type="xs:float">
      <xs:annotation>
        <xs:documentation>Number of cooling plates per breeder unit; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="cp_in_out" type="xs:float">
      <xs:annotation>
        <xs:documentation>Cooling plate input/output geometry length [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="he_man_tck" type="xs:float">
      <xs:annotation>
        <xs:documentation>Helium stage manifold thickness [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="man_tck" type="xs:float">
      <xs:annotation>
        <xs:documentation>Manifold zone thickness [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="pbli_bptb_od" type="xs:float">
      <xs:annotation>
        <xs:documentation>Output diameter of pbli tube [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="pbli_bptb_id" type="xs:float">
      <xs:annotation>
        <xs:documentation>Input diameter of pbli tube [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="he_bptb_od" type="xs:float">
      <xs:annotation>
        <xs:documentation>Output diameter of He inlet tube [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="he_bptb_id" type="xs:float">
      <xs:annotation>
        <xs:documentation>Input diameter of He inlet tube [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="dr_max_fw" type="xs:float">
      <xs:annotation>
        <xs:documentation>First wall frontmost thickness [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="dr_fwpl" type="xs:float">
      <xs:annotation>
        <xs:documentation>Radial thickness of fisrt protective layer [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

Complex Type mode_neutr

Namespace

No namespace

Diagram

Used by

Element

hcllbb_specs/mod_neutr

Model

r , pd_rad , lipb_coef_pd , steel_coef_pd , pow_exchange

Children

lipb_coef_pd, pd_rad, pow_exchange, r, steel_coef_pd

Source

<xs:complexType name="mode_neutr">
  <xs:sequence>
    <xs:element name="r" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Major radius position at wich power density is calculated [m]; Vector(nr)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="pd_rad" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Power density distribution in radial direction [W/m^3]; Vector(nr)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="lipb_coef_pd" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Pb-15.7Li power density distribution in radial direction: coefficients of bi-exponential law if this one is used [W/m^-3,W/m^-3,m^-1,m^-1]; Matrix</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="steel_coef_pd" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Eurofer power density distribution in radial direction: coefficients of bi-exponential law if this one is used</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="pow_exchange" type="power_exchange"/>
  </xs:sequence>
</xs:complexType>

Complex Type power_exchange

Namespace

No namespace

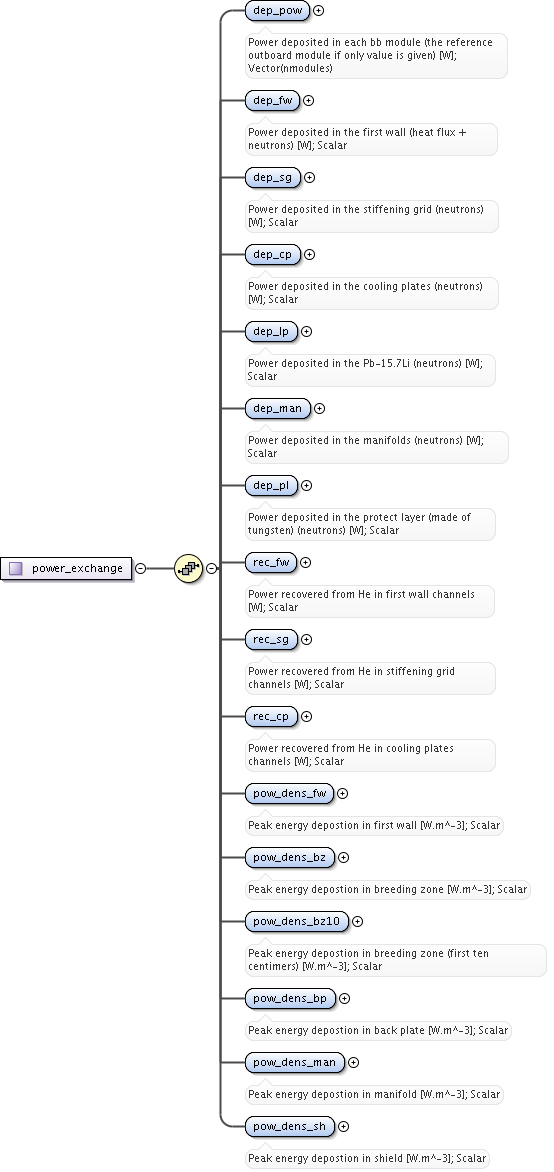

Diagram

Used by

Element

mode_neutr/pow_exchange

Model

Children

Source

<xs:complexType name="power_exchange">
  <xs:sequence>
    <xs:element name="dep_pow" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Power deposited in each bb module (the reference outboard module if only value is given) [W]; Vector(nmodules)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="dep_fw" type="xs:float">
      <xs:annotation>
        <xs:documentation>Power deposited in the first wall (heat flux + neutrons) [W]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="dep_sg" type="xs:float">
      <xs:annotation>
        <xs:documentation>Power deposited in the stiffening grid (neutrons) [W]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="dep_cp" type="xs:float">
      <xs:annotation>
        <xs:documentation>Power deposited in the cooling plates (neutrons) [W]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="dep_lp" type="xs:float">
      <xs:annotation>
        <xs:documentation>Power deposited in the Pb-15.7Li (neutrons) [W]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="dep_man" type="xs:float">
      <xs:annotation>
        <xs:documentation>Power deposited in the manifolds (neutrons) [W]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="dep_pl" type="xs:float">
      <xs:annotation>
        <xs:documentation>Power deposited in the protect layer (made of tungsten) (neutrons) [W]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="rec_fw" type="xs:float">
      <xs:annotation>
        <xs:documentation>Power recovered from He in first wall channels [W]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="rec_sg" type="xs:float">
      <xs:annotation>
        <xs:documentation>Power recovered from He in stiffening grid channels [W]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="rec_cp" type="xs:float">
      <xs:annotation>
        <xs:documentation>Power recovered from He in cooling plates channels [W]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="pow_dens_fw" type="xs:float">
      <xs:annotation>
        <xs:documentation>Peak energy depostion in first wall [W.m^-3]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="pow_dens_bz" type="xs:float">
      <xs:annotation>
        <xs:documentation>Peak energy depostion in breeding zone [W.m^-3]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="pow_dens_bz10" type="xs:float">
      <xs:annotation>
        <xs:documentation>Peak energy depostion in breeding zone (first ten centimers) [W.m^-3]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="pow_dens_bp" type="xs:float">
      <xs:annotation>
        <xs:documentation>Peak energy depostion in back plate [W.m^-3]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="pow_dens_man" type="xs:float">
      <xs:annotation>
        <xs:documentation>Peak energy depostion in manifold [W.m^-3]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="pow_dens_sh" type="xs:float">
      <xs:annotation>
        <xs:documentation>Peak energy depostion in shield [W.m^-3]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

Complex Type mode_therm

Namespace

No namespace

Diagram

Used by

Element

hcllbb_specs/mod_therm

Model

he_fr , perc_bp_he , he_out_t , fw_he_out_t , sg_he_out_t , cp_he_out_t , fw_st_max_t , sg_st_max_t , cp_st_max_t

Children

cp_he_out_t, cp_st_max_t, fw_he_out_t, fw_st_max_t, he_fr, he_out_t, perc_bp_he, sg_he_out_t, sg_st_max_t

Source

<xs:complexType name="mode_therm">
  <xs:sequence>
    <xs:element name="he_fr" type="xs:float">
      <xs:annotation>
        <xs:documentation>Coolant mass flow rate in "the" reference bb (inboard or outboard) module [Kg/s]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="perc_bp_he" type="xs:float">
      <xs:annotation>
        <xs:documentation>% of Helium going through the bypass (set to 0 if not otherwise specified)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="he_out_t" type="xs:float">
      <xs:annotation>
        <xs:documentation>Outlet temperature (from the bb module) [K]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="fw_he_out_t" type="xs:float">
      <xs:annotation>
        <xs:documentation>First wall outlet temperature [K]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="sg_he_out_t" type="xs:float">
      <xs:annotation>
        <xs:documentation>Stiffening grid outlet temperature [K]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="cp_he_out_t" type="xs:float">
      <xs:annotation>
        <xs:documentation>Cooling plates outlet temperature [K]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="fw_st_max_t" type="xs:float">
      <xs:annotation>
        <xs:documentation>First wall eurofer maximum temperature [K]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="sg_st_max_t" type="xs:float">
      <xs:annotation>
        <xs:documentation>Stiffening grid eurofer maximum temperature [K]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="cp_st_max_t" type="xs:float">
      <xs:annotation>
        <xs:documentation>Cooling plates eurofer maximum temperature [K]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

Complex Type mode_th_hyd

Namespace

No namespace

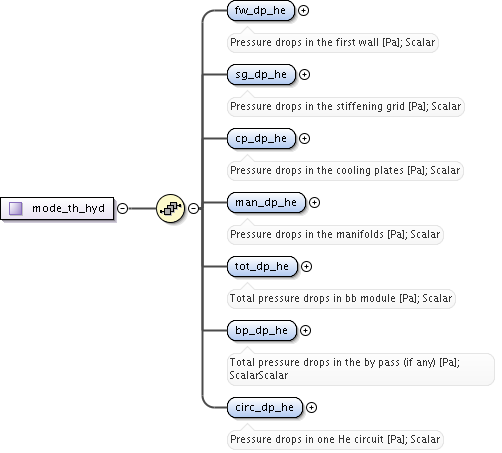

Diagram

Used by

Element

hcllbb_specs/mod_th_hyd

Model

fw_dp_he , sg_dp_he , cp_dp_he , man_dp_he , tot_dp_he , bp_dp_he , circ_dp_he

Children

bp_dp_he, circ_dp_he, cp_dp_he, fw_dp_he, man_dp_he, sg_dp_he, tot_dp_he

Source

<xs:complexType name="mode_th_hyd">
  <xs:sequence>
    <xs:element name="fw_dp_he" type="xs:float">
      <xs:annotation>
        <xs:documentation>Pressure drops in the first wall [Pa]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="sg_dp_he" type="xs:float">
      <xs:annotation>
        <xs:documentation>Pressure drops in the stiffening grid [Pa]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="cp_dp_he" type="xs:float">
      <xs:annotation>
        <xs:documentation>Pressure drops in the cooling plates [Pa]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="man_dp_he" type="xs:float">
      <xs:annotation>
        <xs:documentation>Pressure drops in the manifolds [Pa]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="tot_dp_he" type="xs:float">
      <xs:annotation>
        <xs:documentation>Total pressure drops in bb module [Pa]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="bp_dp_he" type="xs:float">
      <xs:annotation>
        <xs:documentation>Total pressure drops in the by pass (if any) [Pa]; ScalarScalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="circ_dp_he" type="xs:float">
      <xs:annotation>
        <xs:documentation>Pressure drops in one He circuit [Pa]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

Complex Type mode_mech

Namespace

No namespace

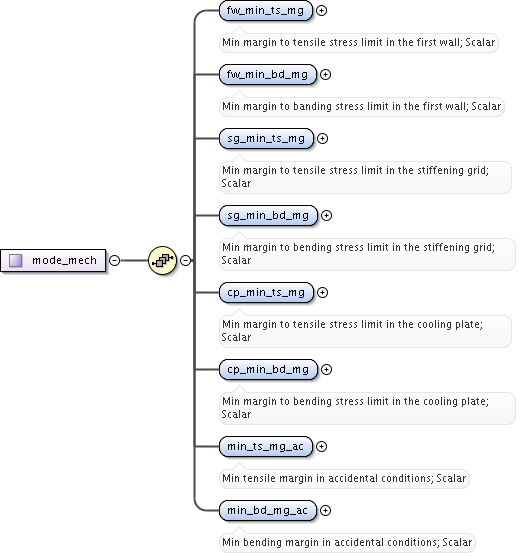

Diagram

Used by

Element

hcllbb_specs/mod_mech

Model

fw_min_ts_mg , fw_min_bd_mg , sg_min_ts_mg , sg_min_bd_mg , cp_min_ts_mg , cp_min_bd_mg , min_ts_mg_ac , min_bd_mg_ac

Children

cp_min_bd_mg, cp_min_ts_mg, fw_min_bd_mg, fw_min_ts_mg, min_bd_mg_ac, min_ts_mg_ac, sg_min_bd_mg, sg_min_ts_mg

Source

<xs:complexType name="mode_mech">
  <xs:sequence>
    <xs:element name="fw_min_ts_mg" type="xs:float">
      <xs:annotation>
        <xs:documentation>Min margin to tensile stress limit in the first wall; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="fw_min_bd_mg" type="xs:float">
      <xs:annotation>
        <xs:documentation>Min margin to banding stress limit in the first wall; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="sg_min_ts_mg" type="xs:float">
      <xs:annotation>
        <xs:documentation>Min margin to tensile stress limit in the stiffening grid; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="sg_min_bd_mg" type="xs:float">
      <xs:annotation>
        <xs:documentation>Min margin to bending stress limit in the stiffening grid; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="cp_min_ts_mg" type="xs:float">
      <xs:annotation>
        <xs:documentation>Min margin to tensile stress limit in the cooling plate; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="cp_min_bd_mg" type="xs:float">
      <xs:annotation>
        <xs:documentation>Min margin to bending stress limit in the cooling plate; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="min_ts_mg_ac" type="xs:float">
      <xs:annotation>
        <xs:documentation>Min tensile margin in accidental conditions; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="min_bd_mg_ac" type="xs:float">
      <xs:annotation>
        <xs:documentation>Min bending margin in accidental conditions; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

Complex Type mode_lipb

Namespace

No namespace

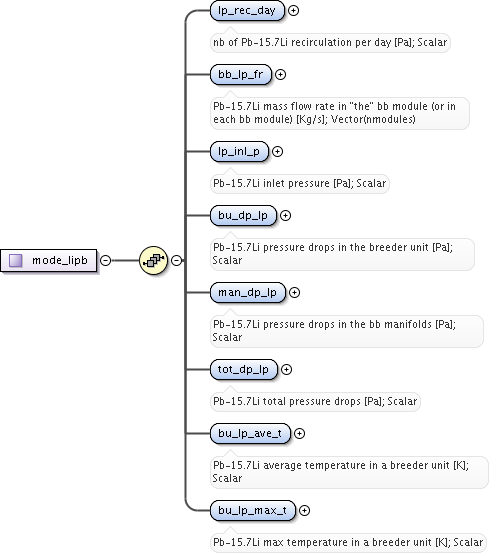

Diagram

Used by

Element

hcllbb_specs/mod_lipb

Model

lp_rec_day , bb_lp_fr , lp_inl_p , bu_dp_lp , man_dp_lp , tot_dp_lp , bu_lp_ave_t , bu_lp_max_t

Children

bb_lp_fr, bu_dp_lp, bu_lp_ave_t, bu_lp_max_t, lp_inl_p, lp_rec_day, man_dp_lp, tot_dp_lp

Source

<xs:complexType name="mode_lipb">
  <xs:sequence>
    <xs:element name="lp_rec_day" type="xs:float">
      <xs:annotation>
        <xs:documentation>nb of Pb-15.7Li recirculation per day [Pa]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="bb_lp_fr" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Pb-15.7Li mass flow rate in "the" bb module (or in each bb module) [Kg/s]; Vector(nmodules)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="lp_inl_p" type="xs:float">
      <xs:annotation>
        <xs:documentation>Pb-15.7Li inlet pressure [Pa]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="bu_dp_lp" type="xs:float">
      <xs:annotation>
        <xs:documentation>Pb-15.7Li pressure drops in the breeder unit [Pa]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="man_dp_lp" type="xs:float">
      <xs:annotation>
        <xs:documentation>Pb-15.7Li pressure drops in the bb manifolds [Pa]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="tot_dp_lp" type="xs:float">
      <xs:annotation>
        <xs:documentation>Pb-15.7Li total pressure drops [Pa]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="bu_lp_ave_t" type="xs:float">
      <xs:annotation>
        <xs:documentation>Pb-15.7Li average temperature in a breeder unit [K]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="bu_lp_max_t" type="xs:float">
      <xs:annotation>
        <xs:documentation>Pb-15.7Li max temperature in a breeder unit [K]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

Complex Type mode_tritium

Namespace

No namespace

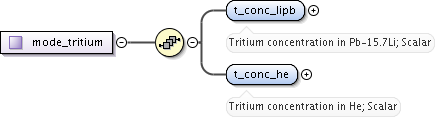

Diagram

Used by

Element

hcllbb_specs/mod_tritium

Model

t_conc_lipb , t_conc_he

Children

t_conc_he, t_conc_lipb

Source

<xs:complexType name="mode_tritium">
  <xs:sequence>
    <xs:element name="t_conc_lipb" type="xs:float">
      <xs:annotation>
        <xs:documentation>Tritium concentration in Pb-15.7Li; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="t_conc_he" type="xs:float">
      <xs:annotation>
        <xs:documentation>Tritium concentration in He; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
