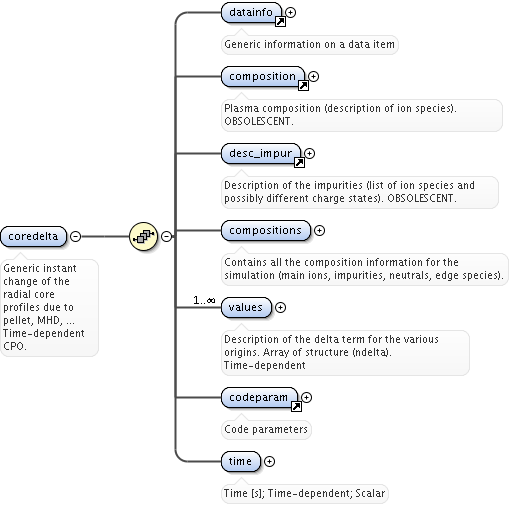

Element coredelta
Namespace No namespace
Annotations
Generic instant change of the radial core profiles due to pellet, MHD, ... Time-dependent CPO.
Diagram
Diagram utilities_xsd.tmp#datainfo utilities_xsd.tmp#composition utilities_xsd.tmp#desc_impur coredelta_xsd.tmp#coredelta_compositions coredelta_xsd.tmp#coredelta_values utilities_xsd.tmp#codeparam coredelta_xsd.tmp#coredelta_time
Properties
content complex
Used by
Element top
Model
Children codeparam, composition, compositions, datainfo, desc_impur, time, values
Instance
<coredelta>
  <datainfo>{1,1}</datainfo>
  <composition>{1,1}</composition>
  <desc_impur>{1,1}</desc_impur>
  <compositions>{1,1}</compositions>
  <values>{1,unbounded}</values>
  <codeparam>{1,1}</codeparam>
  <time>{1,1}</time>
</coredelta>
Source
<xs:element name="coredelta">
  <xs:annotation>
    <xs:documentation>Generic instant change of the radial core profiles due to pellet, MHD, ... Time-dependent CPO.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="datainfo"/>
      <xs:element ref="composition"/>
      <xs:element ref="desc_impur"/>
      <xs:element name="compositions" type="compositions_type">
        <xs:annotation>
          <xs:documentation>Contains all the composition information for the simulation (main ions, impurities, neutrals, edge species).</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="values" type="coredelta_values" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>Description of the delta term for the various origins. Array of structure (ndelta). Time-dependent</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element ref="codeparam"/>
      <xs:element name="time" type="xs:float" default="0.0">
        <xs:annotation>
          <xs:documentation>Time [s]; Time-dependent; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

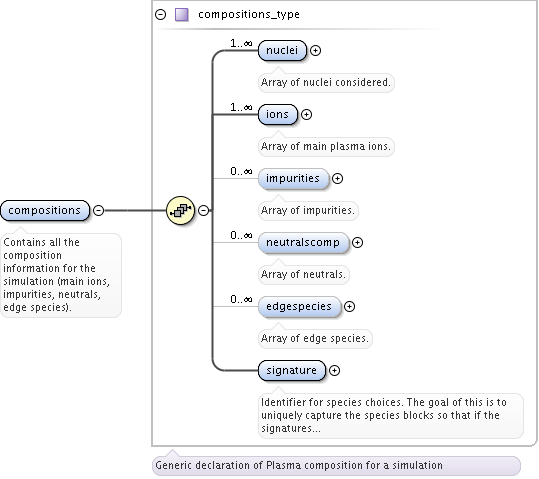

Element coredelta / compositions
Namespace No namespace
Annotations
Contains all the composition information for the simulation (main ions, impurities, neutrals, edge species).
Diagram
Diagram utilities_xsd.tmp#compositions_type_nuclei utilities_xsd.tmp#compositions_type_ions utilities_xsd.tmp#compositions_type_impurities utilities_xsd.tmp#compositions_type_neutralscomp utilities_xsd.tmp#compositions_type_edgespecies utilities_xsd.tmp#compositions_type_signature utilities_xsd.tmp#compositions_type
Type compositions_type
Properties
content complex
Model
Children edgespecies, impurities, ions, neutralscomp, nuclei, signature
Instance
<compositions>
  <nuclei>{1,unbounded}</nuclei>
  <ions>{1,unbounded}</ions>
  <impurities>{0,unbounded}</impurities>
  <neutralscomp>{0,unbounded}</neutralscomp>
  <edgespecies>{0,unbounded}</edgespecies>
  <signature>{1,1}</signature>
</compositions>
Source
<xs:element name="compositions" type="compositions_type">
  <xs:annotation>
    <xs:documentation>Contains all the composition information for the simulation (main ions, impurities, neutrals, edge species).</xs:documentation>
  </xs:annotation>
</xs:element>

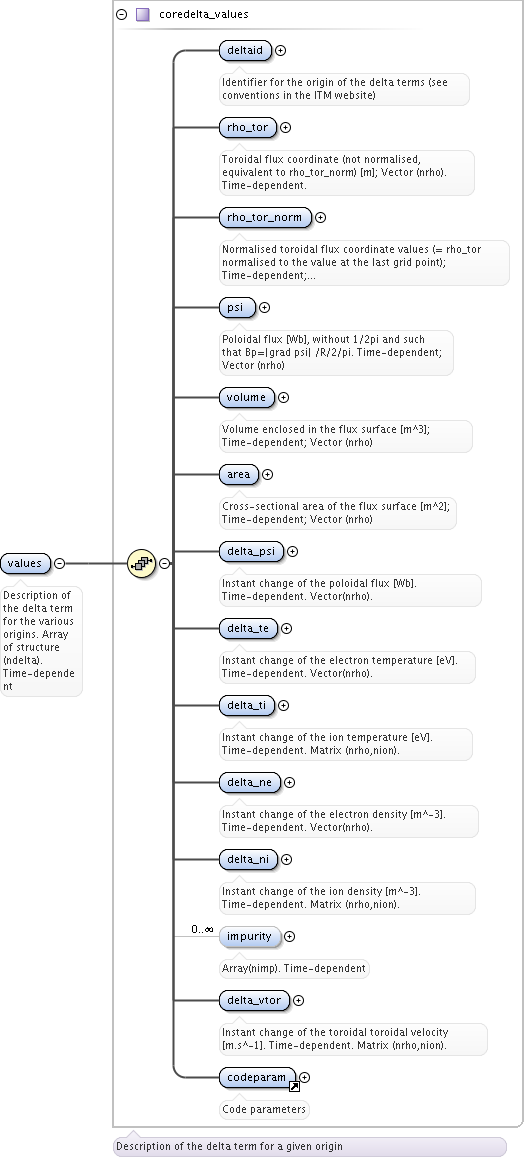

Element coredelta / values
Namespace No namespace
Annotations
Description of the delta term for the various origins. Array of structure (ndelta). Time-dependent
Diagram
Diagram coredelta_xsd.tmp#NO_NAMESPACE_coredelta_values_deltaid coredelta_xsd.tmp#NO_NAMESPACE_coredelta_values_rho_tor coredelta_xsd.tmp#NO_NAMESPACE_coredelta_values_rho_tor_norm coredelta_xsd.tmp#NO_NAMESPACE_coredelta_values_psi coredelta_xsd.tmp#NO_NAMESPACE_coredelta_values_volume coredelta_xsd.tmp#NO_NAMESPACE_coredelta_values_area coredelta_xsd.tmp#NO_NAMESPACE_coredelta_values_delta_psi coredelta_xsd.tmp#NO_NAMESPACE_coredelta_values_delta_te coredelta_xsd.tmp#NO_NAMESPACE_coredelta_values_delta_ti coredelta_xsd.tmp#NO_NAMESPACE_coredelta_values_delta_ne coredelta_xsd.tmp#NO_NAMESPACE_coredelta_values_delta_ni coredelta_xsd.tmp#NO_NAMESPACE_coredelta_values_impurity coredelta_xsd.tmp#NO_NAMESPACE_coredelta_values_delta_vtor utilities_xsd.tmp#codeparam coredelta_xsd.tmp#NO_NAMESPACE_coredelta_values
Type coredelta_values
Properties
content complex
maxOccurs unbounded
Model
Children area, codeparam, delta_ne, delta_ni, delta_psi, delta_te, delta_ti, delta_vtor, deltaid, impurity, psi, rho_tor, rho_tor_norm, volume
Instance
<values>
  <deltaid>{1,1}</deltaid>
  <rho_tor>{1,1}</rho_tor>
  <rho_tor_norm>{1,1}</rho_tor_norm>
  <psi>{1,1}</psi>
  <volume>{1,1}</volume>
  <area>{1,1}</area>
  <delta_psi>{1,1}</delta_psi>
  <delta_te>{1,1}</delta_te>
  <delta_ti>{1,1}</delta_ti>
  <delta_ne>{1,1}</delta_ne>
  <delta_ni>{1,1}</delta_ni>
  <impurity>{0,unbounded}</impurity>
  <delta_vtor>{1,1}</delta_vtor>
  <codeparam>{1,1}</codeparam>
</values>
Source
<xs:element name="values" type="coredelta_values" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Description of the delta term for the various origins. Array of structure (ndelta). Time-dependent</xs:documentation>
  </xs:annotation>
</xs:element>

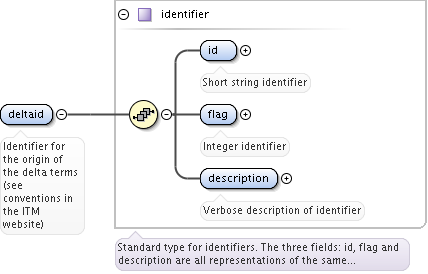

Element coredelta_values / deltaid
Namespace No namespace
Annotations
Identifier for the origin of the delta terms (see conventions in the ITM website)
Diagram
Diagram utilities_xsd.tmp#identifier_id utilities_xsd.tmp#identifier_flag utilities_xsd.tmp#identifier_description utilities_xsd.tmp#identifier
Type identifier
Properties
content complex
Model
Children description, flag, id
Instance
<deltaid>
  <id>{1,1}</id>
  <flag>{1,1}</flag>
  <description>{1,1}</description>
</deltaid>
Source
<xs:element name="deltaid" type="identifier">
  <xs:annotation>
    <xs:documentation>Identifier for the origin of the delta terms (see conventions in the ITM website)</xs:documentation>
  </xs:annotation>
</xs:element>
Element coredelta_values / rho_tor
Namespace No namespace
Annotations
Toroidal flux coordinate (not normalised, equivalent to rho_tor_norm) [m]; Vector (nrho). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source
<xs:element name="rho_tor" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Toroidal flux coordinate (not normalised, equivalent to rho_tor_norm) [m]; Vector (nrho). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element coredelta_values / rho_tor_norm
Namespace No namespace
Annotations
Normalised toroidal flux coordinate values (= rho_tor normalised to the value at the last grid point); Time-dependent; Vector (nrho)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
default [0.0,0.0]
final restriction
Source
<xs:element name="rho_tor_norm" type="vecflt_type" default="[0.0,0.0]">
  <xs:annotation>
    <xs:documentation>Normalised toroidal flux coordinate values (= rho_tor normalised to the value at the last grid point); Time-dependent; Vector (nrho)</xs:documentation>
  </xs:annotation>
</xs:element>
Element coredelta_values / psi
Namespace No namespace
Annotations
Poloidal flux [Wb], without 1/2pi and such that Bp=|grad psi| /R/2/pi. Time-dependent; Vector (nrho)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source
<xs:element name="psi" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Poloidal flux [Wb], without 1/2pi and such that Bp=|grad psi| /R/2/pi. Time-dependent; Vector (nrho)</xs:documentation>
  </xs:annotation>
</xs:element>
Element coredelta_values / volume
Namespace No namespace
Annotations
Volume enclosed in the flux surface [m^3]; Time-dependent; Vector (nrho)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source
<xs:element name="volume" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Volume enclosed in the flux surface [m^3]; Time-dependent; Vector (nrho)</xs:documentation>
  </xs:annotation>
</xs:element>
Element coredelta_values / area
Namespace No namespace
Annotations
Cross-sectional area of the flux surface [m^2]; Time-dependent; Vector (nrho)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source
<xs:element name="area" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Cross-sectional area of the flux surface [m^2]; Time-dependent; Vector (nrho)</xs:documentation>
  </xs:annotation>
</xs:element>
Element coredelta_values / delta_psi
Namespace No namespace
Annotations
Instant change of the poloidal flux [Wb]. Time-dependent. Vector(nrho).
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source
<xs:element name="delta_psi" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Instant change of the poloidal flux [Wb]. Time-dependent. Vector(nrho).</xs:documentation>
  </xs:annotation>
</xs:element>
Element coredelta_values / delta_te
Namespace No namespace
Annotations
Instant change of the electron temperature [eV]. Time-dependent. Vector(nrho).
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source
<xs:element name="delta_te" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Instant change of the electron temperature [eV]. Time-dependent. Vector(nrho).</xs:documentation>
  </xs:annotation>
</xs:element>
Element coredelta_values / delta_ti
Namespace No namespace
Annotations
Instant change of the ion temperature [eV]. Time-dependent. Matrix (nrho,nion).
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source
<xs:element name="delta_ti" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Instant change of the ion temperature [eV]. Time-dependent. Matrix (nrho,nion).</xs:documentation>
  </xs:annotation>
</xs:element>
Element coredelta_values / delta_ne
Namespace No namespace
Annotations
Instant change of the electron density [m^-3]. Time-dependent. Vector(nrho).
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source
<xs:element name="delta_ne" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Instant change of the electron density [m^-3]. Time-dependent. Vector(nrho).</xs:documentation>
  </xs:annotation>
</xs:element>
Element coredelta_values / delta_ni
Namespace No namespace
Annotations
Instant change of the ion density [m^-3]. Time-dependent. Matrix (nrho,nion).
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source
<xs:element name="delta_ni" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Instant change of the ion density [m^-3]. Time-dependent. Matrix (nrho,nion).</xs:documentation>
  </xs:annotation>
</xs:element>

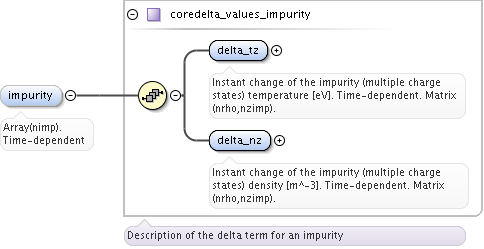

Element coredelta_values / impurity
Namespace No namespace
Annotations
Array(nimp). Time-dependent
Diagram
Diagram coredelta_xsd.tmp#coredelta_values_impurity_delta_tz coredelta_xsd.tmp#coredelta_values_impurity_delta_nz coredelta_xsd.tmp#coredelta_values_impurity
Type coredelta_values_impurity
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children delta_nz, delta_tz
Instance
<impurity>
  <delta_tz>{1,1}</delta_tz>
  <delta_nz>{1,1}</delta_nz>
</impurity>
Source
<xs:element name="impurity" type="coredelta_values_impurity" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Array(nimp). Time-dependent</xs:documentation>
  </xs:annotation>
</xs:element>

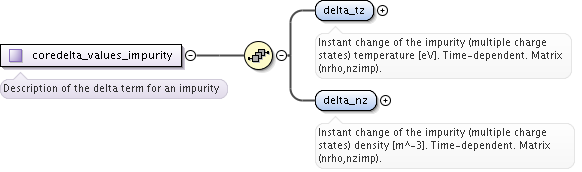

Element coredelta_values_impurity / delta_tz
Namespace No namespace
Annotations
Instant change of the impurity (multiple charge states) temperature [eV]. Time-dependent. Matrix (nrho,nzimp).
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source
<xs:element name="delta_tz" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Instant change of the impurity (multiple charge states) temperature [eV]. Time-dependent. Matrix (nrho,nzimp).</xs:documentation>
  </xs:annotation>
</xs:element>
Element coredelta_values_impurity / delta_nz
Namespace No namespace
Annotations
Instant change of the impurity (multiple charge states) density [m^-3]. Time-dependent. Matrix (nrho,nzimp).
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source
<xs:element name="delta_nz" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Instant change of the impurity (multiple charge states) density [m^-3]. Time-dependent. Matrix (nrho,nzimp).</xs:documentation>
  </xs:annotation>
</xs:element>
Element coredelta_values / delta_vtor
Namespace No namespace
Annotations
Instant change of the toroidal toroidal velocity [m.s^-1]. Time-dependent. Matrix (nrho,nion).
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source
<xs:element name="delta_vtor" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Instant change of the toroidal toroidal velocity [m.s^-1]. Time-dependent. Matrix (nrho,nion).</xs:documentation>
  </xs:annotation>
</xs:element>
Element coredelta / time
Namespace No namespace
Annotations
Time [s]; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
default 0.0
Source
<xs:element name="time" type="xs:float" default="0.0">
  <xs:annotation>
    <xs:documentation>Time [s]; Time-dependent; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

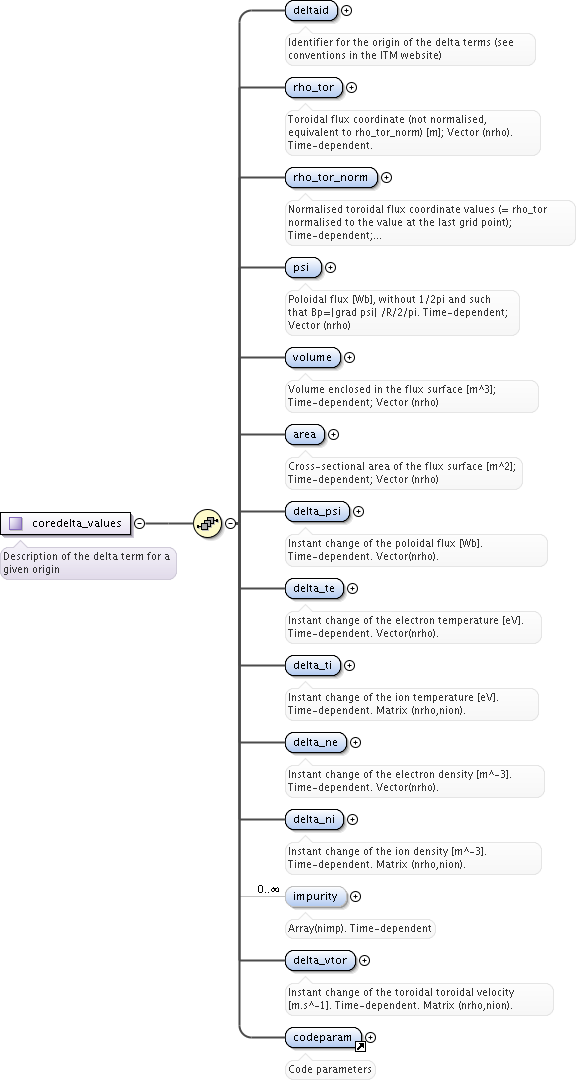

Complex Type coredelta_values
Namespace No namespace
Annotations
Description of the delta term for a given origin
Diagram
Diagram coredelta_xsd.tmp#NO_NAMESPACE_coredelta_values_deltaid coredelta_xsd.tmp#NO_NAMESPACE_coredelta_values_rho_tor coredelta_xsd.tmp#NO_NAMESPACE_coredelta_values_rho_tor_norm coredelta_xsd.tmp#NO_NAMESPACE_coredelta_values_psi coredelta_xsd.tmp#NO_NAMESPACE_coredelta_values_volume coredelta_xsd.tmp#NO_NAMESPACE_coredelta_values_area coredelta_xsd.tmp#NO_NAMESPACE_coredelta_values_delta_psi coredelta_xsd.tmp#NO_NAMESPACE_coredelta_values_delta_te coredelta_xsd.tmp#NO_NAMESPACE_coredelta_values_delta_ti coredelta_xsd.tmp#NO_NAMESPACE_coredelta_values_delta_ne coredelta_xsd.tmp#NO_NAMESPACE_coredelta_values_delta_ni coredelta_xsd.tmp#NO_NAMESPACE_coredelta_values_impurity coredelta_xsd.tmp#NO_NAMESPACE_coredelta_values_delta_vtor utilities_xsd.tmp#codeparam
Used by
Model
Children area, codeparam, delta_ne, delta_ni, delta_psi, delta_te, delta_ti, delta_vtor, deltaid, impurity, psi, rho_tor, rho_tor_norm, volume
Source
<xs:complexType name="coredelta_values">
  <xs:annotation>
    <xs:documentation>Description of the delta term for a given origin</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="deltaid" type="identifier">
      <xs:annotation>
        <xs:documentation>Identifier for the origin of the delta terms (see conventions in the ITM website)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="rho_tor" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Toroidal flux coordinate (not normalised, equivalent to rho_tor_norm) [m]; Vector (nrho). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="rho_tor_norm" type="vecflt_type" default="[0.0,0.0]">
      <xs:annotation>
        <xs:documentation>Normalised toroidal flux coordinate values (= rho_tor normalised to the value at the last grid point); Time-dependent; Vector (nrho)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="psi" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Poloidal flux [Wb], without 1/2pi and such that Bp=|grad psi| /R/2/pi. Time-dependent; Vector (nrho)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="volume" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Volume enclosed in the flux surface [m^3]; Time-dependent; Vector (nrho)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="area" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Cross-sectional area of the flux surface [m^2]; Time-dependent; Vector (nrho)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="delta_psi" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Instant change of the poloidal flux [Wb]. Time-dependent. Vector(nrho).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="delta_te" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Instant change of the electron temperature [eV]. Time-dependent. Vector(nrho).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="delta_ti" type="matflt_type">
      <xs:annotation>
        <xs:documentation>Instant change of the ion temperature [eV]. Time-dependent. Matrix (nrho,nion).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="delta_ne" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Instant change of the electron density [m^-3]. Time-dependent. Vector(nrho).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="delta_ni" type="matflt_type">
      <xs:annotation>
        <xs:documentation>Instant change of the ion density [m^-3]. Time-dependent. Matrix (nrho,nion).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="impurity" type="coredelta_values_impurity" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Array(nimp). Time-dependent</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="delta_vtor" type="matflt_type">
      <xs:annotation>
        <xs:documentation>Instant change of the toroidal toroidal velocity [m.s^-1]. Time-dependent. Matrix (nrho,nion).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element ref="codeparam"/>
  </xs:sequence>
</xs:complexType>
Complex Type coredelta_values_impurity
Namespace No namespace
Annotations
Description of the delta term for an impurity
Diagram
Diagram coredelta_xsd.tmp#coredelta_values_impurity_delta_tz coredelta_xsd.tmp#coredelta_values_impurity_delta_nz
Used by
Model
Children delta_nz, delta_tz
Source
<xs:complexType name="coredelta_values_impurity">
  <xs:annotation>
    <xs:documentation>Description of the delta term for an impurity</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="delta_tz" type="matflt_type">
      <xs:annotation>
        <xs:documentation>Instant change of the impurity (multiple charge states) temperature [eV]. Time-dependent. Matrix (nrho,nzimp).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="delta_nz" type="matflt_type">
      <xs:annotation>
        <xs:documentation>Instant change of the impurity (multiple charge states) density [m^-3]. Time-dependent. Matrix (nrho,nzimp).</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
