Included schema corefast.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default qualified

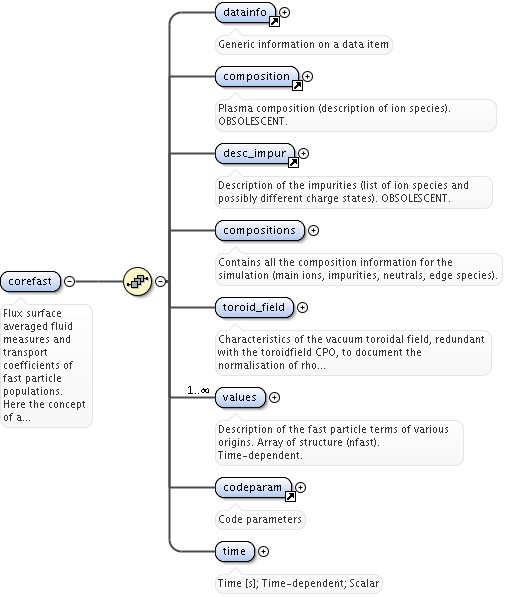

Element corefast
Namespace No namespace
Annotations

Flux surface averaged fluid measures and transport coefficients of fast particle populations. Here the concept of a fast particle population refer to the difference between the total population and the thermal population. This separation of populations may in practise be achieved differently depending on the physics model. A description of how the separation is achieved should therefore be provided in corefast/values/filter/. Time-dependent CPO.
Diagram
Diagram utilities_xsd.tmp#datainfo utilities_xsd.tmp#composition utilities_xsd.tmp#desc_impur corefast_xsd.tmp#corefast_compositions corefast_xsd.tmp#corefast_toroid_field corefast_xsd.tmp#corefast_values utilities_xsd.tmp#codeparam corefast_xsd.tmp#corefast_time
Properties
content complex
Used by
Element top
Model
Children codeparam, composition, compositions, datainfo, desc_impur, time, toroid_field, values
Instance

<corefast>
  <datainfo>{1,1}</datainfo>
  <composition>{1,1}</composition>
  <desc_impur>{1,1}</desc_impur>
  <compositions>{1,1}</compositions>
  <toroid_field>{1,1}</toroid_field>
  <values>{1,unbounded}</values>
  <codeparam>{1,1}</codeparam>
  <time>{1,1}</time>
</corefast>
Source

<xs:element name="corefast">
  <xs:annotation>
    <xs:documentation>Flux surface averaged fluid measures and transport coefficients of fast particle populations. Here the concept of a fast particle population refer to the difference between the total population and the thermal population. This separation of populations may in practise be achieved differently depending on the physics model. A description of how the separation is achieved should therefore be provided in corefast/values/filter/. Time-dependent CPO.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="datainfo"/>
      <xs:element ref="composition"/>
      <xs:element ref="desc_impur"/>
      <xs:element name="compositions" type="compositions_type">
        <xs:annotation>
          <xs:documentation>Contains all the composition information for the simulation (main ions, impurities, neutrals, edge species).</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="toroid_field" type="b0r0">
        <xs:annotation>
          <xs:documentation>Characteristics of the vacuum toroidal field, redundant with the toroidfield CPO, to document the normalisation of rho and j in this CPO.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="values" type="corefast_values" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>Description of the fast particle terms of various origins. Array of structure (nfast). Time-dependent.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element ref="codeparam"/>
      <xs:element name="time" type="xs:float" default="0.0">
        <xs:annotation>
          <xs:documentation>Time [s]; Time-dependent; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

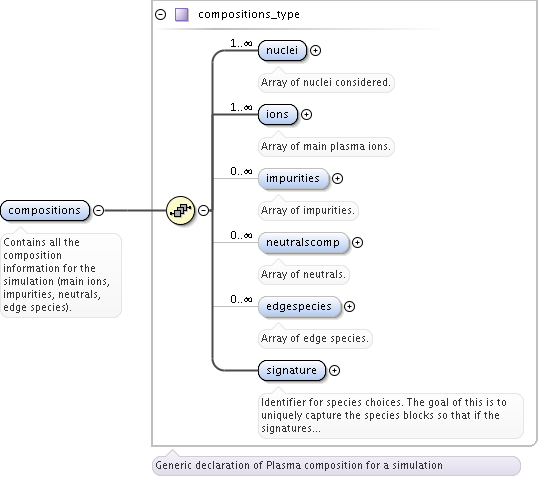

Element corefast / compositions
Namespace No namespace
Annotations

Contains all the composition information for the simulation (main ions, impurities, neutrals, edge species).
Diagram
Diagram utilities_xsd.tmp#compositions_type_nuclei utilities_xsd.tmp#compositions_type_ions utilities_xsd.tmp#compositions_type_impurities utilities_xsd.tmp#compositions_type_neutralscomp utilities_xsd.tmp#compositions_type_edgespecies utilities_xsd.tmp#compositions_type_signature utilities_xsd.tmp#compositions_type
Type compositions_type
Properties
content complex
Model
Children edgespecies, impurities, ions, neutralscomp, nuclei, signature
Instance

<compositions>
  <nuclei>{1,unbounded}</nuclei>
  <ions>{1,unbounded}</ions>
  <impurities>{0,unbounded}</impurities>
  <neutralscomp>{0,unbounded}</neutralscomp>
  <edgespecies>{0,unbounded}</edgespecies>
  <signature>{1,1}</signature>
</compositions>
Source

<xs:element name="compositions" type="compositions_type">
  <xs:annotation>
    <xs:documentation>Contains all the composition information for the simulation (main ions, impurities, neutrals, edge species).</xs:documentation>
  </xs:annotation>
</xs:element>

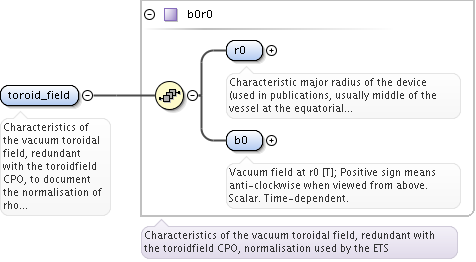

Element corefast / toroid_field
Namespace No namespace
Annotations

Characteristics of the vacuum toroidal field, redundant with the toroidfield CPO, to document the normalisation of rho and j in this CPO.
Diagram
Diagram utilities_xsd.tmp#b0r0_r0 utilities_xsd.tmp#b0r0_b0 utilities_xsd.tmp#b0r0
Type b0r0
Properties
content complex
Model
r0 , b0
Children b0, r0
Instance

<toroid_field>
  <r0>{1,1}</r0>
  <b0>{1,1}</b0>
</toroid_field>
Source

<xs:element name="toroid_field" type="b0r0">
  <xs:annotation>
    <xs:documentation>Characteristics of the vacuum toroidal field, redundant with the toroidfield CPO, to document the normalisation of rho and j in this CPO.</xs:documentation>
  </xs:annotation>
</xs:element>

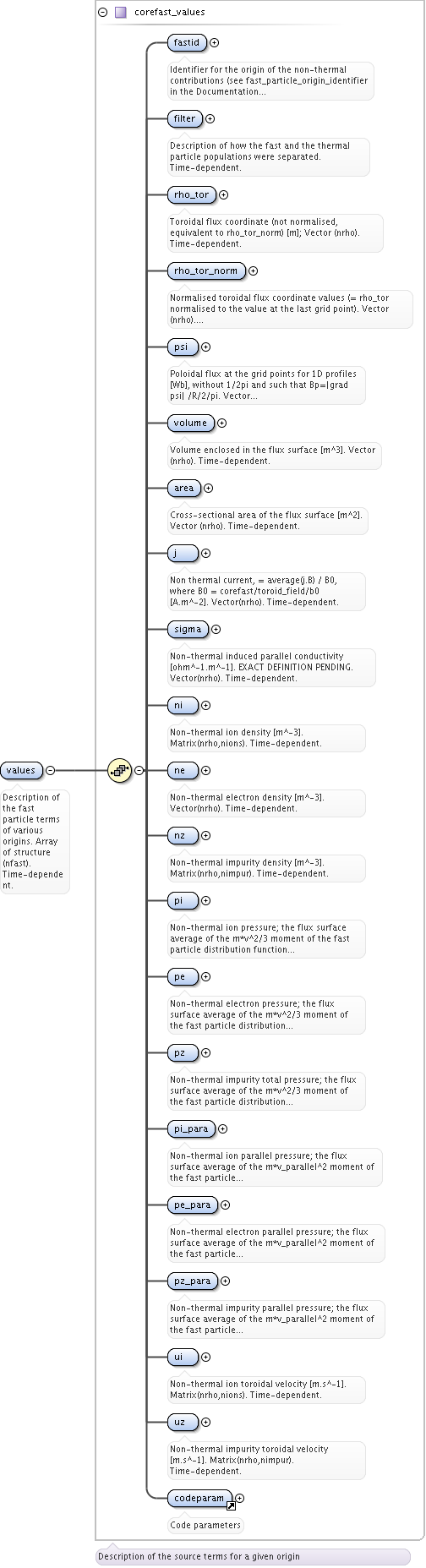

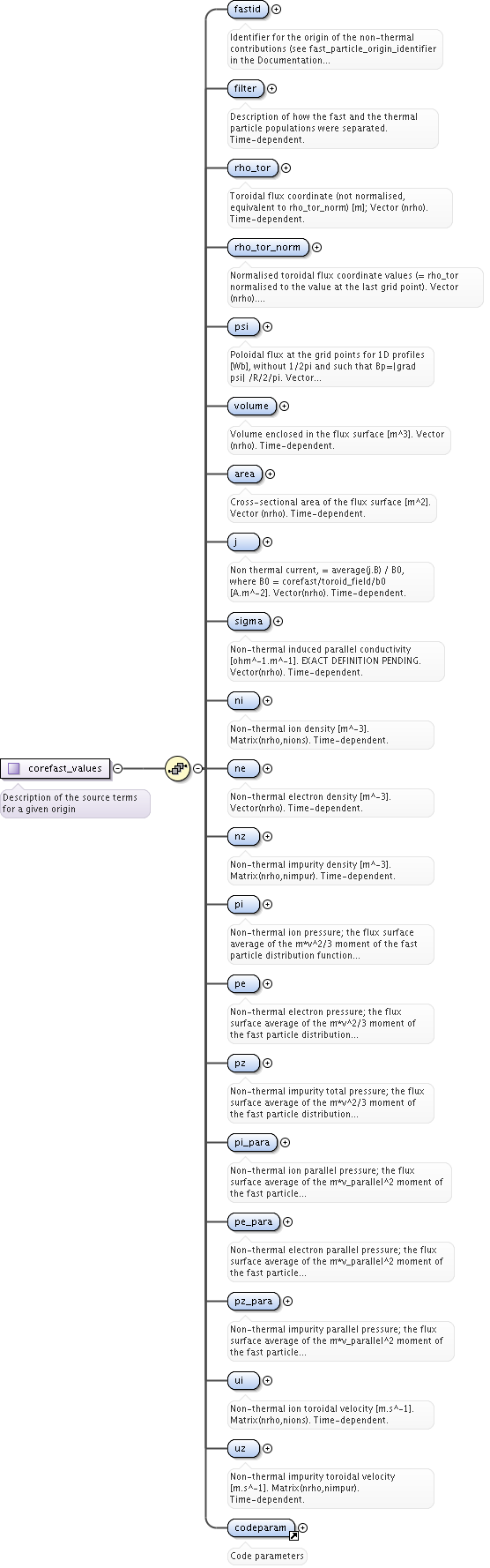

Element corefast / values
Namespace No namespace
Annotations

Description of the fast particle terms of various origins. Array of structure (nfast). Time-dependent.
Diagram
Diagram corefast_xsd.tmp#NO_NAMESPACE_corefast_values_fastid corefast_xsd.tmp#NO_NAMESPACE_corefast_values_filter corefast_xsd.tmp#NO_NAMESPACE_corefast_values_rho_tor corefast_xsd.tmp#NO_NAMESPACE_corefast_values_rho_tor_norm corefast_xsd.tmp#NO_NAMESPACE_corefast_values_psi corefast_xsd.tmp#NO_NAMESPACE_corefast_values_volume corefast_xsd.tmp#NO_NAMESPACE_corefast_values_area corefast_xsd.tmp#NO_NAMESPACE_corefast_values_j corefast_xsd.tmp#NO_NAMESPACE_corefast_values_sigma corefast_xsd.tmp#NO_NAMESPACE_corefast_values_ni corefast_xsd.tmp#NO_NAMESPACE_corefast_values_ne corefast_xsd.tmp#NO_NAMESPACE_corefast_values_nz corefast_xsd.tmp#NO_NAMESPACE_corefast_values_pi corefast_xsd.tmp#NO_NAMESPACE_corefast_values_pe corefast_xsd.tmp#NO_NAMESPACE_corefast_values_pz corefast_xsd.tmp#NO_NAMESPACE_corefast_values_pi_para corefast_xsd.tmp#NO_NAMESPACE_corefast_values_pe_para corefast_xsd.tmp#NO_NAMESPACE_corefast_values_pz_para corefast_xsd.tmp#NO_NAMESPACE_corefast_values_ui corefast_xsd.tmp#NO_NAMESPACE_corefast_values_uz utilities_xsd.tmp#codeparam corefast_xsd.tmp#NO_NAMESPACE_corefast_values
Type corefast_values
Properties
content complex
maxOccurs unbounded
Model
Children area, codeparam, fastid, filter, j, ne, ni, nz, pe, pe_para, pi, pi_para, psi, pz, pz_para, rho_tor, rho_tor_norm, sigma, ui, uz, volume
Instance

<values>
  <fastid>{1,1}</fastid>
  <filter>{1,1}</filter>
  <rho_tor>{1,1}</rho_tor>
  <rho_tor_norm>{1,1}</rho_tor_norm>
  <psi>{1,1}</psi>
  <volume>{1,1}</volume>
  <area>{1,1}</area>
  <j>{1,1}</j>
  <sigma>{1,1}</sigma>
  <ni>{1,1}</ni>
  <ne>{1,1}</ne>
  <nz>{1,1}</nz>
  <pi>{1,1}</pi>
  <pe>{1,1}</pe>
  <pz>{1,1}</pz>
  <pi_para>{1,1}</pi_para>
  <pe_para>{1,1}</pe_para>
  <pz_para>{1,1}</pz_para>
  <ui>{1,1}</ui>
  <uz>{1,1}</uz>
  <codeparam>{1,1}</codeparam>
</values>
Source

<xs:element name="values" type="corefast_values" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Description of the fast particle terms of various origins. Array of structure (nfast). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>

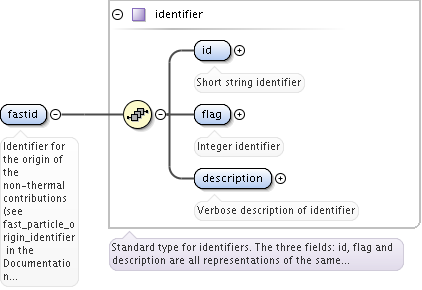

Element corefast_values / fastid
Namespace No namespace
Annotations

Identifier for the origin of the non-thermal contributions (see fast_particle_origin_identifier in the Documentation website under Conventions/Enumerated_datatypes).  Time-dependent.
Diagram
Diagram utilities_xsd.tmp#identifier_id utilities_xsd.tmp#identifier_flag utilities_xsd.tmp#identifier_description utilities_xsd.tmp#identifier
Type identifier
Properties
content complex
Model
Children description, flag, id
Instance

<fastid>
  <id>{1,1}</id>
  <flag>{1,1}</flag>
  <description>{1,1}</description>
</fastid>
Source

<xs:element name="fastid" type="identifier">
  <xs:annotation>
    <xs:documentation>Identifier for the origin of the non-thermal contributions (see fast_particle_origin_identifier in the Documentation website under Conventions/Enumerated_datatypes). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>

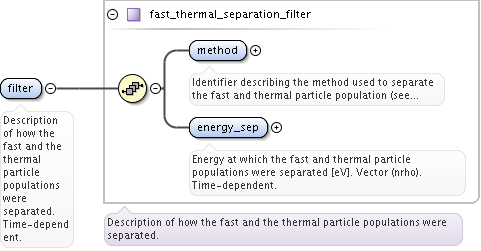

Element corefast_values / filter
Namespace No namespace
Annotations

Description of how the fast and the thermal particle populations were separated. Time-dependent.
Diagram
Diagram utilities_xsd.tmp#fast_thermal_separation_filter_method utilities_xsd.tmp#fast_thermal_separation_filter_energy_sep utilities_xsd.tmp#fast_thermal_separation_filter
Type fast_thermal_separation_filter
Properties
content complex
Model
Children energy_sep, method
Instance

<filter>
  <method>{1,1}</method>
  <energy_sep>{1,1}</energy_sep>
</filter>
Source

<xs:element name="filter" type="fast_thermal_separation_filter">
  <xs:annotation>
    <xs:documentation>Description of how the fast and the thermal particle populations were separated. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element corefast_values / rho_tor
Namespace No namespace
Annotations

Toroidal flux coordinate (not normalised, equivalent to rho_tor_norm) [m]; Vector (nrho). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="rho_tor" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Toroidal flux coordinate (not normalised, equivalent to rho_tor_norm) [m]; Vector (nrho). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element corefast_values / rho_tor_norm
Namespace No namespace
Annotations

Normalised toroidal flux coordinate values (= rho_tor normalised to the value at the last grid point). Vector (nrho). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="rho_tor_norm" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Normalised toroidal flux coordinate values (= rho_tor normalised to the value at the last grid point). Vector (nrho). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element corefast_values / psi
Namespace No namespace
Annotations

Poloidal flux at the grid points for 1D profiles [Wb], without 1/2pi and such that Bp=|grad psi| /R/2/pi. Vector (nrho). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="psi" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Poloidal flux at the grid points for 1D profiles [Wb], without 1/2pi and such that Bp=|grad psi| /R/2/pi. Vector (nrho). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element corefast_values / volume
Namespace No namespace
Annotations

Volume enclosed in the flux surface [m^3]. Vector (nrho). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="volume" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Volume enclosed in the flux surface [m^3]. Vector (nrho). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element corefast_values / area
Namespace No namespace
Annotations

Cross-sectional area of the flux surface [m^2]. Vector (nrho). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="area" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Cross-sectional area of the flux surface [m^2]. Vector (nrho). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element corefast_values / j
Namespace No namespace
Annotations

Non thermal current, = average(j.B) / B0, where B0 = corefast/toroid_field/b0 [A.m^-2]. Vector(nrho). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="j" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Non thermal current, = average(j.B) / B0, where B0 = corefast/toroid_field/b0 [A.m^-2]. Vector(nrho). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element corefast_values / sigma
Namespace No namespace
Annotations

Non-thermal induced parallel conductivity [ohm^-1.m^-1]. EXACT DEFINITION PENDING. Vector(nrho). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="sigma" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Non-thermal induced parallel conductivity [ohm^-1.m^-1]. EXACT DEFINITION PENDING. Vector(nrho). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element corefast_values / ni
Namespace No namespace
Annotations

Non-thermal ion density [m^-3]. Matrix(nrho,nions). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="ni" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Non-thermal ion density [m^-3]. Matrix(nrho,nions). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element corefast_values / ne
Namespace No namespace
Annotations

Non-thermal electron density [m^-3]. Vector(nrho). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="ne" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Non-thermal electron density [m^-3]. Vector(nrho). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element corefast_values / nz
Namespace No namespace
Annotations

Non-thermal impurity density [m^-3]. Matrix(nrho,nimpur). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="nz" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Non-thermal impurity density [m^-3]. Matrix(nrho,nimpur). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element corefast_values / pi
Namespace No namespace
Annotations

Non-thermal ion pressure; the flux surface average of the m*v^2/3 moment of the fast particle distribution function [Pa]. Matrix(nrho,nions). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="pi" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Non-thermal ion pressure; the flux surface average of the m*v^2/3 moment of the fast particle distribution function [Pa]. Matrix(nrho,nions). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element corefast_values / pe
Namespace No namespace
Annotations

Non-thermal electron pressure; the flux surface average of the m*v^2/3 moment of the fast particle distribution function [Pa]. Vector(nrho). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="pe" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Non-thermal electron pressure; the flux surface average of the m*v^2/3 moment of the fast particle distribution function [Pa]. Vector(nrho). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element corefast_values / pz
Namespace No namespace
Annotations

Non-thermal impurity total pressure; the flux surface average of the m*v^2/3 moment of the fast particle distribution function [Pa]. Matrix(nrho,nimpur). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="pz" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Non-thermal impurity total pressure; the flux surface average of the m*v^2/3 moment of the fast particle distribution function [Pa]. Matrix(nrho,nimpur). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element corefast_values / pi_para
Namespace No namespace
Annotations

Non-thermal ion parallel pressure; the flux surface average of the m*v_parallel^2 moment of the fast particle distribution function [Pa]. Matrix(nrho,nions). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="pi_para" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Non-thermal ion parallel pressure; the flux surface average of the m*v_parallel^2 moment of the fast particle distribution function [Pa]. Matrix(nrho,nions). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element corefast_values / pe_para
Namespace No namespace
Annotations

Non-thermal electron parallel pressure; the flux surface average of the m*v_parallel^2 moment of the fast particle distribution function [Pa]. Vector(nrho). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="pe_para" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Non-thermal electron parallel pressure; the flux surface average of the m*v_parallel^2 moment of the fast particle distribution function [Pa]. Vector(nrho). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element corefast_values / pz_para
Namespace No namespace
Annotations

Non-thermal impurity parallel pressure; the flux surface average of the m*v_parallel^2 moment of the fast particle distribution function [Pa]. Matrix(nrho,nimpur). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="pz_para" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Non-thermal impurity parallel pressure; the flux surface average of the m*v_parallel^2 moment of the fast particle distribution function [Pa]. Matrix(nrho,nimpur). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element corefast_values / ui
Namespace No namespace
Annotations

Non-thermal ion toroidal velocity [m.s^-1]. Matrix(nrho,nions). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="ui" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Non-thermal ion toroidal velocity [m.s^-1]. Matrix(nrho,nions). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element corefast_values / uz
Namespace No namespace
Annotations

Non-thermal impurity toroidal velocity [m.s^-1]. Matrix(nrho,nimpur). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="uz" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Non-thermal impurity toroidal velocity [m.s^-1]. Matrix(nrho,nimpur). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element corefast / time
Namespace No namespace
Annotations

Time [s]; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
default 0.0
Source

<xs:element name="time" type="xs:float" default="0.0">
  <xs:annotation>
    <xs:documentation>Time [s]; Time-dependent; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Complex Type corefast_values
Namespace No namespace
Annotations

Description of the source terms for a given origin
Diagram
Diagram corefast_xsd.tmp#NO_NAMESPACE_corefast_values_fastid corefast_xsd.tmp#NO_NAMESPACE_corefast_values_filter corefast_xsd.tmp#NO_NAMESPACE_corefast_values_rho_tor corefast_xsd.tmp#NO_NAMESPACE_corefast_values_rho_tor_norm corefast_xsd.tmp#NO_NAMESPACE_corefast_values_psi corefast_xsd.tmp#NO_NAMESPACE_corefast_values_volume corefast_xsd.tmp#NO_NAMESPACE_corefast_values_area corefast_xsd.tmp#NO_NAMESPACE_corefast_values_j corefast_xsd.tmp#NO_NAMESPACE_corefast_values_sigma corefast_xsd.tmp#NO_NAMESPACE_corefast_values_ni corefast_xsd.tmp#NO_NAMESPACE_corefast_values_ne corefast_xsd.tmp#NO_NAMESPACE_corefast_values_nz corefast_xsd.tmp#NO_NAMESPACE_corefast_values_pi corefast_xsd.tmp#NO_NAMESPACE_corefast_values_pe corefast_xsd.tmp#NO_NAMESPACE_corefast_values_pz corefast_xsd.tmp#NO_NAMESPACE_corefast_values_pi_para corefast_xsd.tmp#NO_NAMESPACE_corefast_values_pe_para corefast_xsd.tmp#NO_NAMESPACE_corefast_values_pz_para corefast_xsd.tmp#NO_NAMESPACE_corefast_values_ui corefast_xsd.tmp#NO_NAMESPACE_corefast_values_uz utilities_xsd.tmp#codeparam
Used by
Element corefast/values
Model
Children area, codeparam, fastid, filter, j, ne, ni, nz, pe, pe_para, pi, pi_para, psi, pz, pz_para, rho_tor, rho_tor_norm, sigma, ui, uz, volume
Source

<xs:complexType name="corefast_values">
  <xs:annotation>
    <xs:documentation>Description of the source terms for a given origin</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="fastid" type="identifier">
      <xs:annotation>
        <xs:documentation>Identifier for the origin of the non-thermal contributions (see fast_particle_origin_identifier in the Documentation website under Conventions/Enumerated_datatypes). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="filter" type="fast_thermal_separation_filter">
      <xs:annotation>
        <xs:documentation>Description of how the fast and the thermal particle populations were separated. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="rho_tor" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Toroidal flux coordinate (not normalised, equivalent to rho_tor_norm) [m]; Vector (nrho). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="rho_tor_norm" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Normalised toroidal flux coordinate values (= rho_tor normalised to the value at the last grid point). Vector (nrho). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="psi" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Poloidal flux at the grid points for 1D profiles [Wb], without 1/2pi and such that Bp=|grad psi| /R/2/pi. Vector (nrho). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="volume" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Volume enclosed in the flux surface [m^3]. Vector (nrho). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="area" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Cross-sectional area of the flux surface [m^2]. Vector (nrho). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="j" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Non thermal current, = average(j.B) / B0, where B0 = corefast/toroid_field/b0 [A.m^-2]. Vector(nrho). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="sigma" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Non-thermal induced parallel conductivity [ohm^-1.m^-1]. EXACT DEFINITION PENDING. Vector(nrho). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ni" type="matflt_type">
      <xs:annotation>
        <xs:documentation>Non-thermal ion density [m^-3]. Matrix(nrho,nions). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ne" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Non-thermal electron density [m^-3]. Vector(nrho). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="nz" type="matflt_type">
      <xs:annotation>
        <xs:documentation>Non-thermal impurity density [m^-3]. Matrix(nrho,nimpur). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="pi" type="matflt_type">
      <xs:annotation>
        <xs:documentation>Non-thermal ion pressure; the flux surface average of the m*v^2/3 moment of the fast particle distribution function [Pa]. Matrix(nrho,nions). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="pe" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Non-thermal electron pressure; the flux surface average of the m*v^2/3 moment of the fast particle distribution function [Pa]. Vector(nrho). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="pz" type="matflt_type">
      <xs:annotation>
        <xs:documentation>Non-thermal impurity total pressure; the flux surface average of the m*v^2/3 moment of the fast particle distribution function [Pa]. Matrix(nrho,nimpur). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="pi_para" type="matflt_type">
      <xs:annotation>
        <xs:documentation>Non-thermal ion parallel pressure; the flux surface average of the m*v_parallel^2 moment of the fast particle distribution function [Pa]. Matrix(nrho,nions). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="pe_para" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Non-thermal electron parallel pressure; the flux surface average of the m*v_parallel^2 moment of the fast particle distribution function [Pa]. Vector(nrho). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="pz_para" type="matflt_type">
      <xs:annotation>
        <xs:documentation>Non-thermal impurity parallel pressure; the flux surface average of the m*v_parallel^2 moment of the fast particle distribution function [Pa]. Matrix(nrho,nimpur). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ui" type="matflt_type">
      <xs:annotation>
        <xs:documentation>Non-thermal ion toroidal velocity [m.s^-1]. Matrix(nrho,nions). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="uz" type="matflt_type">
      <xs:annotation>
        <xs:documentation>Non-thermal impurity toroidal velocity [m.s^-1]. Matrix(nrho,nimpur). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element ref="codeparam"/>
  </xs:sequence>
</xs:complexType>
XML Schema documentation generated by ® XML Editor.
