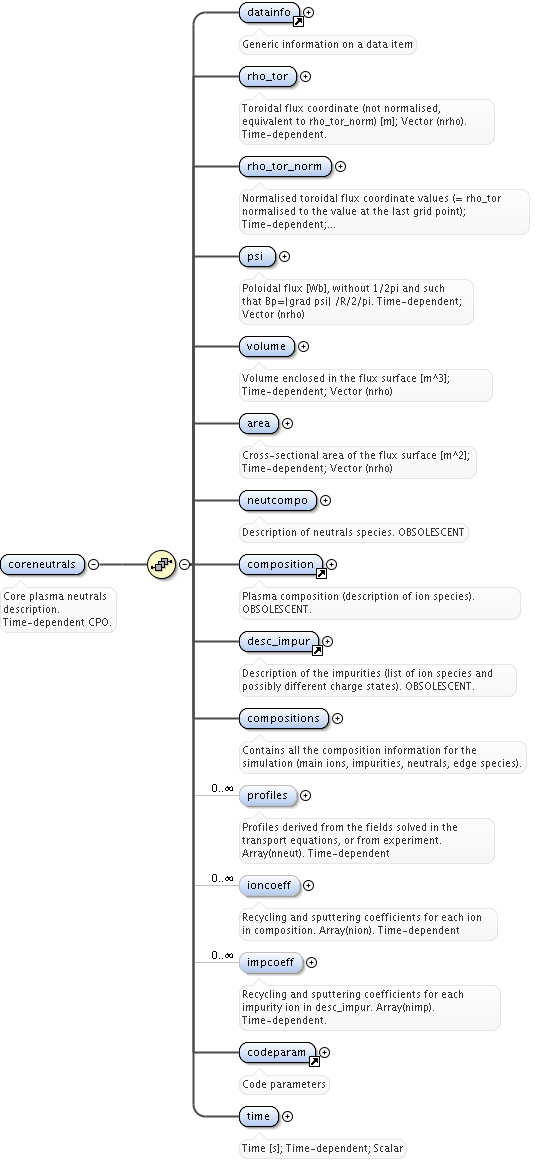

Element coreneutrals
Namespace No namespace
Annotations

Core plasma neutrals description. Time-dependent CPO.
Diagram
Diagram utilities_xsd.tmp#datainfo coreneutrals_xsd.tmp#coreneutrals_rho_tor coreneutrals_xsd.tmp#coreneutrals_rho_tor_norm coreneutrals_xsd.tmp#coreneutrals_psi coreneutrals_xsd.tmp#coreneutrals_volume coreneutrals_xsd.tmp#coreneutrals_area coreneutrals_xsd.tmp#coreneutrals_neutcompo utilities_xsd.tmp#composition utilities_xsd.tmp#desc_impur coreneutrals_xsd.tmp#coreneutrals_compositions coreneutrals_xsd.tmp#coreneutrals_profiles coreneutrals_xsd.tmp#coreneutrals_ioncoeff coreneutrals_xsd.tmp#coreneutrals_impcoeff utilities_xsd.tmp#codeparam coreneutrals_xsd.tmp#coreneutrals_time
Properties
content complex
Used by
Element top
Model
Children area, codeparam, composition, compositions, datainfo, desc_impur, impcoeff, ioncoeff, neutcompo, profiles, psi, rho_tor, rho_tor_norm, time, volume
Instance

<coreneutrals>
  <datainfo>{1,1}</datainfo>
  <rho_tor>{1,1}</rho_tor>
  <rho_tor_norm>{1,1}</rho_tor_norm>
  <psi>{1,1}</psi>
  <volume>{1,1}</volume>
  <area>{1,1}</area>
  <neutcompo>{1,1}</neutcompo>
  <composition>{1,1}</composition>
  <desc_impur>{1,1}</desc_impur>
  <compositions>{1,1}</compositions>
  <profiles>{0,unbounded}</profiles>
  <ioncoeff>{0,unbounded}</ioncoeff>
  <impcoeff>{0,unbounded}</impcoeff>
  <codeparam>{1,1}</codeparam>
  <time>{1,1}</time>
</coreneutrals>
Source

<xs:element name="coreneutrals">
  <xs:annotation>
    <xs:documentation>Core plasma neutrals description. Time-dependent CPO.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="datainfo"/>
      <xs:element name="rho_tor" type="vecflt_type">
        <xs:annotation>
          <xs:documentation>Toroidal flux coordinate (not normalised, equivalent to rho_tor_norm) [m]; Vector (nrho). Time-dependent.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="rho_tor_norm" type="vecflt_type" default="[0.0,0.0]">
        <xs:annotation>
          <xs:documentation>Normalised toroidal flux coordinate values (= rho_tor normalised to the value at the last grid point); Time-dependent; Vector (nrho)</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="psi" type="vecflt_type">
        <xs:annotation>
          <xs:documentation>Poloidal flux [Wb], without 1/2pi and such that Bp=|grad psi| /R/2/pi. Time-dependent; Vector (nrho)</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="volume" type="vecflt_type">
        <xs:annotation>
          <xs:documentation>Volume enclosed in the flux surface [m^3]; Time-dependent; Vector (nrho)</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="area" type="vecflt_type">
        <xs:annotation>
          <xs:documentation>Cross-sectional area of the flux surface [m^2]; Time-dependent; Vector (nrho)</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="neutcompo" type="composition_neutrals">
        <xs:annotation>
          <xs:documentation>Description of neutrals species. OBSOLESCENT</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element ref="composition"/>
      <xs:element ref="desc_impur"/>
      <xs:element name="compositions" type="compositions_type">
        <xs:annotation>
          <xs:documentation>Contains all the composition information for the simulation (main ions, impurities, neutrals, edge species).</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="profiles" type="neutral_complex_type" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>Profiles derived from the fields solved in the transport equations, or from experiment. Array(nneut). Time-dependent</xs:documentation>
        </xs:annotation>
      </xs:element>

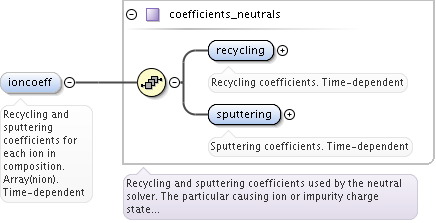

      <xs:element name="ioncoeff" type="coefficients_neutrals" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>Recycling and sputtering coefficients for each ion in composition. Array(nion). Time-dependent</xs:documentation>
        </xs:annotation>
      </xs:element>

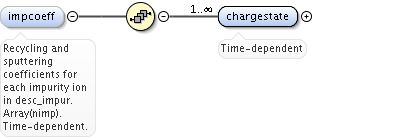

      <xs:element name="impcoeff" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>Recycling and sputtering coefficients for each impurity ion in desc_impur. Array(nimp). Time-dependent.</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:annotation>
            <xs:documentation>Array over charge states for this particular impurity.</xs:documentation>
          </xs:annotation>
          <xs:sequence>
            <xs:element name="chargestate" type="coefficients_neutrals" maxOccurs="unbounded">
              <xs:annotation>
                <xs:documentation>Time-dependent</xs:documentation>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element ref="codeparam"/>
      <xs:element name="time" type="xs:float" default="0.0">
        <xs:annotation>
          <xs:documentation>Time [s]; Time-dependent; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element coreneutrals / rho_tor
Namespace No namespace
Annotations

Toroidal flux coordinate (not normalised, equivalent to rho_tor_norm) [m]; Vector (nrho). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="rho_tor" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Toroidal flux coordinate (not normalised, equivalent to rho_tor_norm) [m]; Vector (nrho). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element coreneutrals / rho_tor_norm
Namespace No namespace
Annotations

Normalised toroidal flux coordinate values (= rho_tor normalised to the value at the last grid point); Time-dependent; Vector (nrho)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
default [0.0,0.0]
final restriction
Source

<xs:element name="rho_tor_norm" type="vecflt_type" default="[0.0,0.0]">
  <xs:annotation>
    <xs:documentation>Normalised toroidal flux coordinate values (= rho_tor normalised to the value at the last grid point); Time-dependent; Vector (nrho)</xs:documentation>
  </xs:annotation>
</xs:element>
Element coreneutrals / psi
Namespace No namespace
Annotations

Poloidal flux [Wb], without 1/2pi and such that Bp=|grad psi| /R/2/pi. Time-dependent; Vector (nrho)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="psi" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Poloidal flux [Wb], without 1/2pi and such that Bp=|grad psi| /R/2/pi. Time-dependent; Vector (nrho)</xs:documentation>
  </xs:annotation>
</xs:element>
Element coreneutrals / volume
Namespace No namespace
Annotations

Volume enclosed in the flux surface [m^3]; Time-dependent; Vector (nrho)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="volume" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Volume enclosed in the flux surface [m^3]; Time-dependent; Vector (nrho)</xs:documentation>
  </xs:annotation>
</xs:element>
Element coreneutrals / area
Namespace No namespace
Annotations

Cross-sectional area of the flux surface [m^2]; Time-dependent; Vector (nrho)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="area" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Cross-sectional area of the flux surface [m^2]; Time-dependent; Vector (nrho)</xs:documentation>
  </xs:annotation>
</xs:element>
Element coreneutrals / neutcompo
Namespace No namespace
Annotations

Description of neutrals species. OBSOLESCENT
Diagram

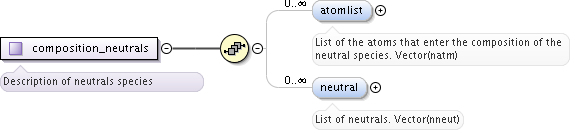

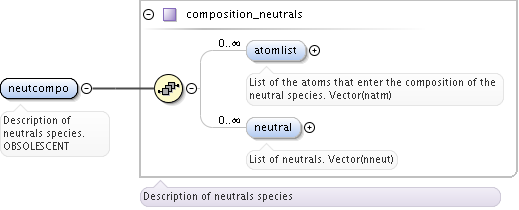

Diagram coreneutrals_xsd.tmp#composition_neutrals_atomlist coreneutrals_xsd.tmp#composition_neutrals_neutral coreneutrals_xsd.tmp#composition_neutrals
Type composition_neutrals
Properties
content complex
Model
Children atomlist, neutral
Instance

<neutcompo>
  <atomlist>{0,unbounded}</atomlist>
  <neutral>{0,unbounded}</neutral>
</neutcompo>
Source

<xs:element name="neutcompo" type="composition_neutrals">
  <xs:annotation>
    <xs:documentation>Description of neutrals species. OBSOLESCENT</xs:documentation>
  </xs:annotation>
</xs:element>

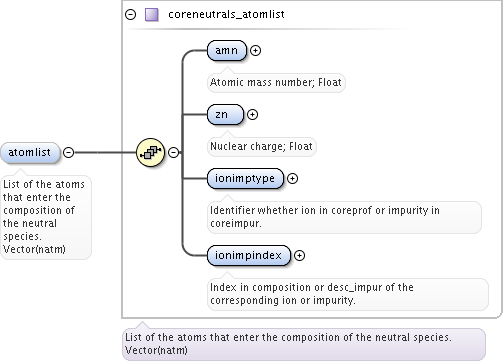

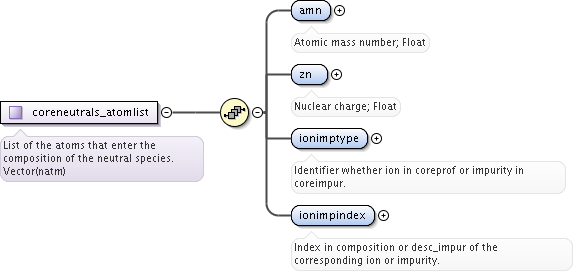

Element composition_neutrals / atomlist
Namespace No namespace
Annotations

List of the atoms that enter the composition of the neutral species. Vector(natm)
Diagram
Diagram coreneutrals_xsd.tmp#coreneutrals_atomlist_amn coreneutrals_xsd.tmp#coreneutrals_atomlist_zn coreneutrals_xsd.tmp#coreneutrals_atomlist_ionimptype coreneutrals_xsd.tmp#coreneutrals_atomlist_ionimpindex coreneutrals_xsd.tmp#coreneutrals_atomlist
Type coreneutrals_atomlist
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children amn, ionimpindex, ionimptype, zn
Instance

<atomlist>
  <amn>{1,1}</amn>
  <zn>{1,1}</zn>
  <ionimptype>{1,1}</ionimptype>
  <ionimpindex>{1,1}</ionimpindex>
</atomlist>
Source

<xs:element name="atomlist" type="coreneutrals_atomlist" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>List of the atoms that enter the composition of the neutral species. Vector(natm)</xs:documentation>
  </xs:annotation>
</xs:element>
Element coreneutrals_atomlist / amn
Namespace No namespace
Annotations

Atomic mass number; Float
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="amn" type="xs:float">
  <xs:annotation>
    <xs:documentation>Atomic mass number; Float</xs:documentation>
  </xs:annotation>
</xs:element>
Element coreneutrals_atomlist / zn
Namespace No namespace
Annotations

Nuclear charge; Float
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="zn" type="xs:float">
  <xs:annotation>
    <xs:documentation>Nuclear charge; Float</xs:documentation>
  </xs:annotation>
</xs:element>
Element coreneutrals_atomlist / ionimptype
Namespace No namespace
Annotations

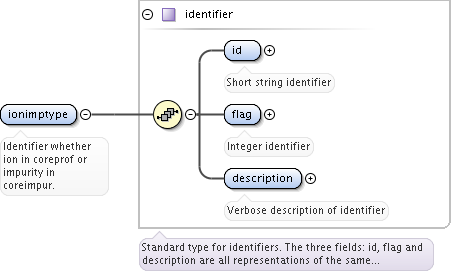

Identifier whether ion in coreprof or impurity in coreimpur.
Diagram
Diagram utilities_xsd.tmp#identifier_id utilities_xsd.tmp#identifier_flag utilities_xsd.tmp#identifier_description utilities_xsd.tmp#identifier
Type identifier
Properties
content complex
Model
Children description, flag, id
Instance

<ionimptype>
  <id>{1,1}</id>
  <flag>{1,1}</flag>
  <description>{1,1}</description>
</ionimptype>
Source

<xs:element name="ionimptype" type="identifier">
  <xs:annotation>
    <xs:documentation>Identifier whether ion in coreprof or impurity in coreimpur.</xs:documentation>
  </xs:annotation>
</xs:element>
Element coreneutrals_atomlist / ionimpindex
Namespace No namespace
Annotations

Index in composition or desc_impur of the corresponding ion or impurity.
Diagram
Diagram
Type xs:integer
Properties
content simple
Source

<xs:element name="ionimpindex" type="xs:integer">
  <xs:annotation>
    <xs:documentation>Index in composition or desc_impur of the corresponding ion or impurity.</xs:documentation>
  </xs:annotation>
</xs:element>

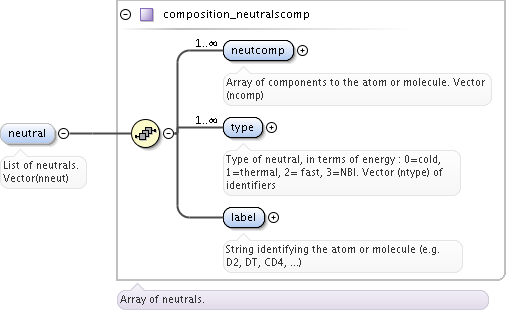

Element composition_neutrals / neutral
Namespace No namespace
Annotations

List of neutrals.  Vector(nneut)
Diagram
Diagram utilities_xsd.tmp#composition_neutralscomp_neutcomp utilities_xsd.tmp#composition_neutralscomp_type utilities_xsd.tmp#composition_neutralscomp_label utilities_xsd.tmp#composition_neutralscomp
Type composition_neutralscomp
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children label, neutcomp, type
Instance

<neutral>
  <neutcomp>{1,unbounded}</neutcomp>
  <type>{1,unbounded}</type>
  <label>{1,1}</label>
</neutral>
Source

<xs:element name="neutral" type="composition_neutralscomp" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>List of neutrals. Vector(nneut)</xs:documentation>
  </xs:annotation>
</xs:element>

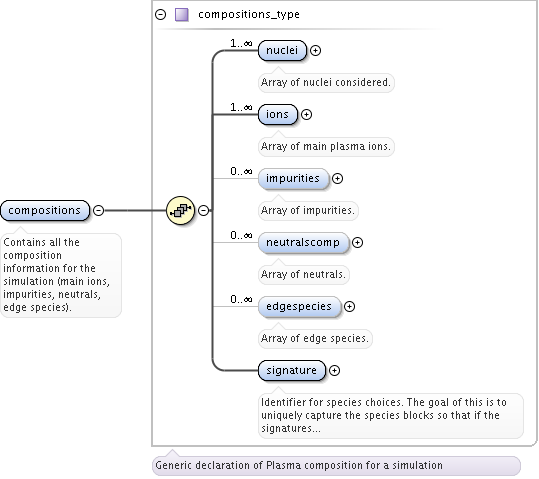

Element coreneutrals / compositions
Namespace No namespace
Annotations

Contains all the composition information for the simulation (main ions, impurities, neutrals, edge species).
Diagram
Diagram utilities_xsd.tmp#compositions_type_nuclei utilities_xsd.tmp#compositions_type_ions utilities_xsd.tmp#compositions_type_impurities utilities_xsd.tmp#compositions_type_neutralscomp utilities_xsd.tmp#compositions_type_edgespecies utilities_xsd.tmp#compositions_type_signature utilities_xsd.tmp#compositions_type
Type compositions_type
Properties
content complex
Model
Children edgespecies, impurities, ions, neutralscomp, nuclei, signature
Instance

<compositions>
  <nuclei>{1,unbounded}</nuclei>
  <ions>{1,unbounded}</ions>
  <impurities>{0,unbounded}</impurities>
  <neutralscomp>{0,unbounded}</neutralscomp>
  <edgespecies>{0,unbounded}</edgespecies>
  <signature>{1,1}</signature>
</compositions>
Source

<xs:element name="compositions" type="compositions_type">
  <xs:annotation>
    <xs:documentation>Contains all the composition information for the simulation (main ions, impurities, neutrals, edge species).</xs:documentation>
  </xs:annotation>
</xs:element>

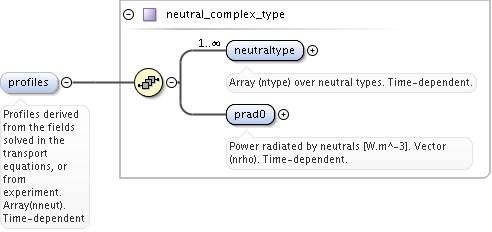

Element coreneutrals / profiles
Namespace No namespace
Annotations

Profiles derived from the fields solved in the transport equations, or from experiment. Array(nneut). Time-dependent
Diagram
Diagram coreneutrals_xsd.tmp#neutral_complex_type_neutraltype coreneutrals_xsd.tmp#neutral_complex_type_prad0 coreneutrals_xsd.tmp#neutral_complex_type
Type neutral_complex_type
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children neutraltype, prad0
Instance

<profiles>
  <neutraltype>{1,unbounded}</neutraltype>
  <prad0>{1,1}</prad0>
</profiles>
Source

<xs:element name="profiles" type="neutral_complex_type" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Profiles derived from the fields solved in the transport equations, or from experiment. Array(nneut). Time-dependent</xs:documentation>
  </xs:annotation>
</xs:element>

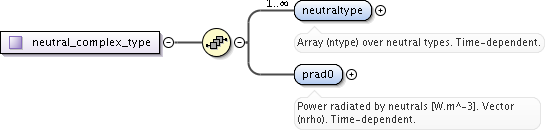

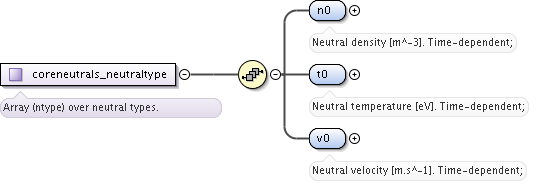

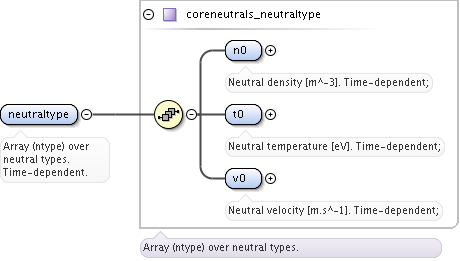

Element neutral_complex_type / neutraltype
Namespace No namespace
Annotations

Array (ntype) over neutral types. Time-dependent.
Diagram
Diagram coreneutrals_xsd.tmp#coreneutrals_neutraltype_n0 coreneutrals_xsd.tmp#coreneutrals_neutraltype_t0 coreneutrals_xsd.tmp#coreneutrals_neutraltype_v0 coreneutrals_xsd.tmp#coreneutrals_neutraltype
Type coreneutrals_neutraltype
Properties
content complex
maxOccurs unbounded
Model
n0 , t0 , v0
Children n0, t0, v0
Instance

<neutraltype>
  <n0>{1,1}</n0>
  <t0>{1,1}</t0>
  <v0>{1,1}</v0>
</neutraltype>
Source

<xs:element name="neutraltype" type="coreneutrals_neutraltype" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Array (ntype) over neutral types. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>

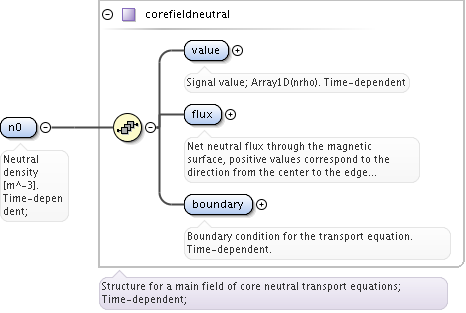

Element coreneutrals_neutraltype / n0
Namespace No namespace
Annotations

Neutral density [m^-3].  Time-dependent;
Diagram
Diagram coreneutrals_xsd.tmp#corefieldneutral_value coreneutrals_xsd.tmp#corefieldneutral_flux coreneutrals_xsd.tmp#corefieldneutral_boundary coreneutrals_xsd.tmp#corefieldneutral
Type corefieldneutral
Properties
content complex
Model
Children boundary, flux, value
Instance

<n0>
  <value>{1,1}</value>
  <flux>{1,1}</flux>
  <boundary>{1,1}</boundary>
</n0>
Source

<xs:element name="n0" type="corefieldneutral">
  <xs:annotation>
    <xs:documentation>Neutral density [m^-3]. Time-dependent;</xs:documentation>
  </xs:annotation>
</xs:element>

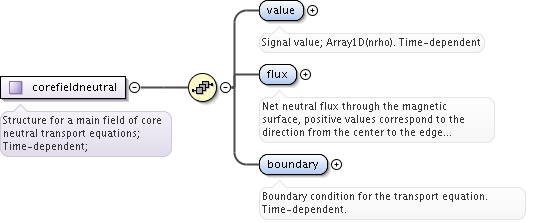

Element corefieldneutral / value
Namespace No namespace
Annotations

Signal value; Array1D(nrho). Time-dependent
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="value" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Signal value; Array1D(nrho). Time-dependent</xs:documentation>
  </xs:annotation>
</xs:element>
Element corefieldneutral / flux
Namespace No namespace
Annotations

Net neutral flux through the magnetic surface, positive values correspond to the direction from the center to the edge [s^-1]. Array1D(nrho). Time-dependent;
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="flux" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Net neutral flux through the magnetic surface, positive values correspond to the direction from the center to the edge [s^-1]. Array1D(nrho). Time-dependent;</xs:documentation>
  </xs:annotation>
</xs:element>

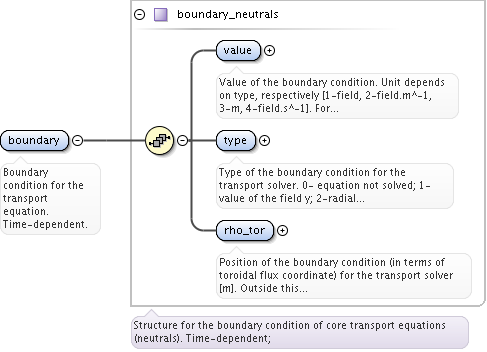

Element corefieldneutral / boundary
Namespace No namespace
Annotations

Boundary condition for the transport equation. Time-dependent.
Diagram
Diagram coreneutrals_xsd.tmp#boundary_neutrals_value coreneutrals_xsd.tmp#boundary_neutrals_type coreneutrals_xsd.tmp#boundary_neutrals_rho_tor coreneutrals_xsd.tmp#boundary_neutrals
Type boundary_neutrals
Properties
content complex
Model
Children rho_tor, type, value
Instance

<boundary>
  <value>{1,1}</value>
  <type>{1,1}</type>
  <rho_tor>{1,1}</rho_tor>
</boundary>
Source

<xs:element name="boundary" type="boundary_neutrals">
  <xs:annotation>
    <xs:documentation>Boundary condition for the transport equation. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>

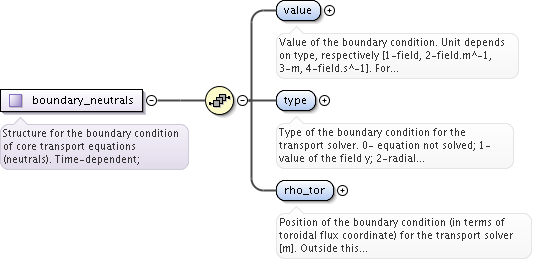

Element boundary_neutrals / value
Namespace No namespace
Annotations

Value of the boundary condition. Unit depends on type, respectively [1-field, 2-field.m^-1, 3-m, 4-field.s^-1]. For type 1 to 4, only the first position in the vector is used. For type 5, all three positions are used, meaning respectively a1, a2, a3. Time-dependent. Array1D(3)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="value" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Value of the boundary condition. Unit depends on type, respectively [1-field, 2-field.m^-1, 3-m, 4-field.s^-1]. For type 1 to 4, only the first position in the vector is used. For type 5, all three positions are used, meaning respectively a1, a2, a3. Time-dependent. Array1D(3)</xs:documentation>
  </xs:annotation>
</xs:element>

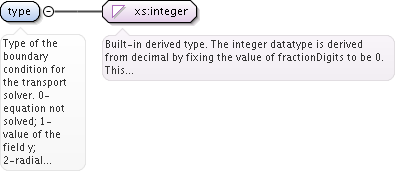

Element boundary_neutrals / type
Namespace No namespace
Annotations

Type of the boundary condition for the transport solver. 0- equation not solved; 1- value of the field y; 2-radial derivative of the field (-dy/drho_tor); 3-scale length of the field y/(-dy/drho_tor); 4- flux; 5- generic boundary condition y expressed as a1y'+a2y=a3. Time-dependent. Int
Diagram
Diagram
Type xs:integer
Properties
content simple
Source

<xs:element name="type" type="xs:integer">
  <xs:annotation>
    <xs:documentation>Type of the boundary condition for the transport solver. 0- equation not solved; 1- value of the field y; 2-radial derivative of the field (-dy/drho_tor); 3-scale length of the field y/(-dy/drho_tor); 4- flux; 5- generic boundary condition y expressed as a1y'+a2y=a3. Time-dependent. Int</xs:documentation>
  </xs:annotation>
</xs:element>
Element boundary_neutrals / rho_tor
Namespace No namespace
Annotations

Position of the boundary condition (in terms of toroidal flux coordinate) for the transport solver [m]. Outside this boundary, the value of the data are considered to be prescribed. Time-dependent. Float.
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="rho_tor" type="xs:float">
  <xs:annotation>
    <xs:documentation>Position of the boundary condition (in terms of toroidal flux coordinate) for the transport solver [m]. Outside this boundary, the value of the data are considered to be prescribed. Time-dependent. Float.</xs:documentation>
  </xs:annotation>
</xs:element>

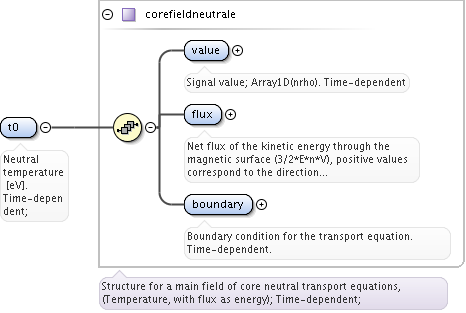

Element coreneutrals_neutraltype / t0
Namespace No namespace
Annotations

Neutral temperature [eV]. Time-dependent;
Diagram
Diagram coreneutrals_xsd.tmp#corefieldneutrale_value coreneutrals_xsd.tmp#corefieldneutrale_flux coreneutrals_xsd.tmp#corefieldneutrale_boundary coreneutrals_xsd.tmp#corefieldneutrale
Type corefieldneutrale
Properties
content complex
Model
Children boundary, flux, value
Instance

<t0>
  <value>{1,1}</value>
  <flux>{1,1}</flux>
  <boundary>{1,1}</boundary>
</t0>
Source

<xs:element name="t0" type="corefieldneutrale">
  <xs:annotation>
    <xs:documentation>Neutral temperature [eV]. Time-dependent;</xs:documentation>
  </xs:annotation>
</xs:element>
Element corefieldneutrale / value
Namespace No namespace
Annotations

Signal value; Array1D(nrho). Time-dependent
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="value" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Signal value; Array1D(nrho). Time-dependent</xs:documentation>
  </xs:annotation>
</xs:element>

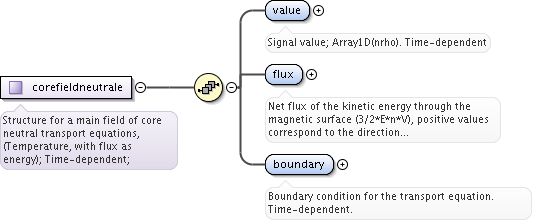

Element corefieldneutrale / flux
Namespace No namespace
Annotations

Net flux of the kinetic energy through the magnetic surface (3/2*E*n*V), positive values correspond to the direction from the center to the edge [W]. Array1D(nrho). Time-dependent;
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="flux" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Net flux of the kinetic energy through the magnetic surface (3/2*E*n*V), positive values correspond to the direction from the center to the edge [W]. Array1D(nrho). Time-dependent;</xs:documentation>
  </xs:annotation>
</xs:element>
Element corefieldneutrale / boundary
Namespace No namespace
Annotations

Boundary condition for the transport equation. Time-dependent.
Diagram
Diagram coreneutrals_xsd.tmp#boundary_neutrals_value coreneutrals_xsd.tmp#boundary_neutrals_type coreneutrals_xsd.tmp#boundary_neutrals_rho_tor coreneutrals_xsd.tmp#boundary_neutrals
Type boundary_neutrals
Properties
content complex
Model
Children rho_tor, type, value
Instance

<boundary>
  <value>{1,1}</value>
  <type>{1,1}</type>
  <rho_tor>{1,1}</rho_tor>
</boundary>
Source

<xs:element name="boundary" type="boundary_neutrals">
  <xs:annotation>
    <xs:documentation>Boundary condition for the transport equation. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>

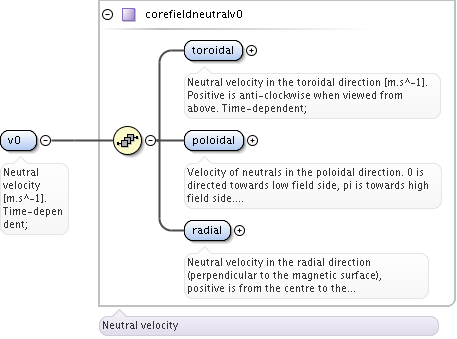

Element coreneutrals_neutraltype / v0
Namespace No namespace
Annotations

Neutral velocity [m.s^-1]. Time-dependent;
Diagram
Diagram coreneutrals_xsd.tmp#corefieldneutralv0_toroidal coreneutrals_xsd.tmp#corefieldneutralv0_poloidal coreneutrals_xsd.tmp#corefieldneutralv0_radial coreneutrals_xsd.tmp#corefieldneutralv0
Type corefieldneutralv0
Properties
content complex
Model
Children poloidal, radial, toroidal
Instance

<v0>
  <toroidal>{1,1}</toroidal>
  <poloidal>{1,1}</poloidal>
  <radial>{1,1}</radial>
</v0>
Source

<xs:element name="v0" type="corefieldneutralv0">
  <xs:annotation>
    <xs:documentation>Neutral velocity [m.s^-1]. Time-dependent;</xs:documentation>
  </xs:annotation>
</xs:element>

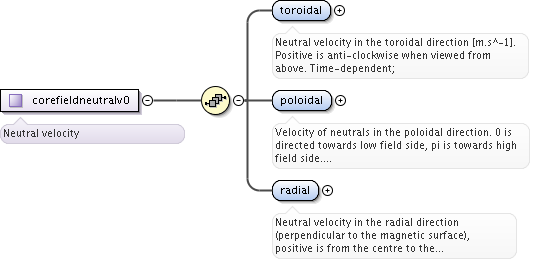

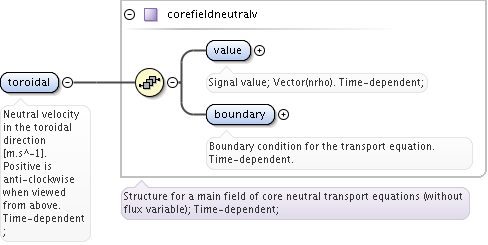

Element corefieldneutralv0 / toroidal
Namespace No namespace
Annotations

Neutral velocity in the toroidal direction [m.s^-1]. Positive is anti-clockwise when viewed from above. Time-dependent;
Diagram
Diagram coreneutrals_xsd.tmp#corefieldneutralv_value coreneutrals_xsd.tmp#corefieldneutralv_boundary coreneutrals_xsd.tmp#corefieldneutralv
Type corefieldneutralv
Properties
content complex
Model
Children boundary, value
Instance

<toroidal>
  <value>{1,1}</value>
  <boundary>{1,1}</boundary>
</toroidal>
Source

<xs:element name="toroidal" type="corefieldneutralv">
  <xs:annotation>
    <xs:documentation>Neutral velocity in the toroidal direction [m.s^-1]. Positive is anti-clockwise when viewed from above. Time-dependent;</xs:documentation>
  </xs:annotation>
</xs:element>
Element corefieldneutralv / value
Namespace No namespace
Annotations

Signal value; Vector(nrho). Time-dependent;
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="value" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Signal value; Vector(nrho). Time-dependent;</xs:documentation>
  </xs:annotation>
</xs:element>
Element corefieldneutralv / boundary
Namespace No namespace
Annotations

Boundary condition for the transport equation. Time-dependent.
Diagram
Diagram coreneutrals_xsd.tmp#boundary_neutrals_value coreneutrals_xsd.tmp#boundary_neutrals_type coreneutrals_xsd.tmp#boundary_neutrals_rho_tor coreneutrals_xsd.tmp#boundary_neutrals
Type boundary_neutrals
Properties
content complex
Model
Children rho_tor, type, value
Instance

<boundary>
  <value>{1,1}</value>
  <type>{1,1}</type>
  <rho_tor>{1,1}</rho_tor>
</boundary>
Source

<xs:element name="boundary" type="boundary_neutrals">
  <xs:annotation>
    <xs:documentation>Boundary condition for the transport equation. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>

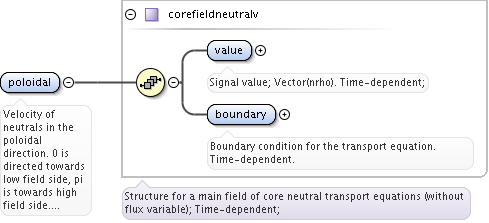

Element corefieldneutralv0 / poloidal
Namespace No namespace
Annotations

Velocity of neutrals in the poloidal direction. 0 is directed towards low field side, pi is towards high field side. Positive is anti-clockwise when viewed with low field side at the right. [m.s^-1]. Array3D(nrho,nneut,max_ntype). Time-dependent;
Diagram
Diagram coreneutrals_xsd.tmp#corefieldneutralv_value coreneutrals_xsd.tmp#corefieldneutralv_boundary coreneutrals_xsd.tmp#corefieldneutralv
Type corefieldneutralv
Properties
content complex
Model
Children boundary, value
Instance

<poloidal>
  <value>{1,1}</value>
  <boundary>{1,1}</boundary>
</poloidal>
Source

<xs:element name="poloidal" type="corefieldneutralv">
  <xs:annotation>
    <xs:documentation>Velocity of neutrals in the poloidal direction. 0 is directed towards low field side, pi is towards high field side. Positive is anti-clockwise when viewed with low field side at the right. [m.s^-1]. Array3D(nrho,nneut,max_ntype). Time-dependent;</xs:documentation>
  </xs:annotation>
</xs:element>

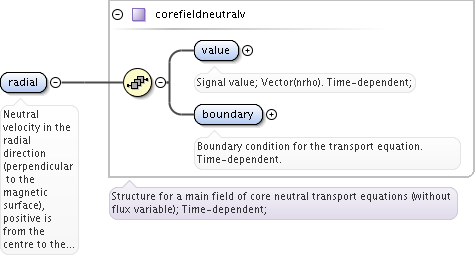

Element corefieldneutralv0 / radial
Namespace No namespace
Annotations

Neutral velocity in the radial direction (perpendicular to the magnetic surface), positive is from the centre to the edge [m.s^-1]. Array3D(nrho,nneut,max_ntype). Time-dependent;
Diagram
Diagram coreneutrals_xsd.tmp#corefieldneutralv_value coreneutrals_xsd.tmp#corefieldneutralv_boundary coreneutrals_xsd.tmp#corefieldneutralv
Type corefieldneutralv
Properties
content complex
Model
Children boundary, value
Instance

<radial>
  <value>{1,1}</value>
  <boundary>{1,1}</boundary>
</radial>
Source

<xs:element name="radial" type="corefieldneutralv">
  <xs:annotation>
    <xs:documentation>Neutral velocity in the radial direction (perpendicular to the magnetic surface), positive is from the centre to the edge [m.s^-1]. Array3D(nrho,nneut,max_ntype). Time-dependent;</xs:documentation>
  </xs:annotation>
</xs:element>
Element neutral_complex_type / prad0
Namespace No namespace
Annotations

Power radiated by neutrals [W.m^-3]. Vector (nrho). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="prad0" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Power radiated by neutrals [W.m^-3]. Vector (nrho). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element coreneutrals / ioncoeff
Namespace No namespace
Annotations

Recycling and sputtering coefficients for each ion in composition. Array(nion). Time-dependent
Diagram
Diagram coreneutrals_xsd.tmp#coefficients_neutrals_recycling coreneutrals_xsd.tmp#coefficients_neutrals_sputtering coreneutrals_xsd.tmp#coefficients_neutrals
Type coefficients_neutrals
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children recycling, sputtering
Instance

<ioncoeff>
  <recycling>{1,1}</recycling>
  <sputtering>{1,1}</sputtering>
</ioncoeff>
Source

<xs:element name="ioncoeff" type="coefficients_neutrals" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Recycling and sputtering coefficients for each ion in composition. Array(nion). Time-dependent</xs:documentation>
  </xs:annotation>
</xs:element>

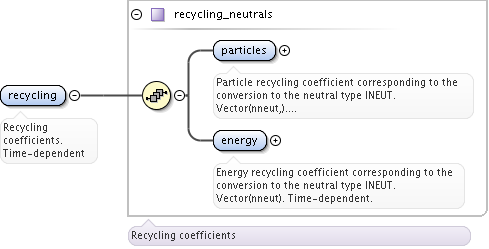

Element coefficients_neutrals / recycling
Namespace No namespace
Annotations

Recycling coefficients. Time-dependent
Diagram
Diagram coreneutrals_xsd.tmp#recycling_neutrals_particles coreneutrals_xsd.tmp#recycling_neutrals_energy coreneutrals_xsd.tmp#recycling_neutrals
Type recycling_neutrals
Properties
content complex
Model
Children energy, particles
Instance

<recycling>
  <particles>{1,1}</particles>
  <energy>{1,1}</energy>
</recycling>
Source

<xs:element name="recycling" type="recycling_neutrals">
  <xs:annotation>
    <xs:documentation>Recycling coefficients. Time-dependent</xs:documentation>
  </xs:annotation>
</xs:element>
Element recycling_neutrals / particles
Namespace No namespace
Annotations

Particle recycling coefficient corresponding to the conversion to the neutral type INEUT. Vector(nneut,). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="particles" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Particle recycling coefficient corresponding to the conversion to the neutral type INEUT. Vector(nneut,). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element recycling_neutrals / energy
Namespace No namespace
Annotations

Energy recycling coefficient corresponding to the conversion to the neutral type INEUT. Vector(nneut). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="energy" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Energy recycling coefficient corresponding to the conversion to the neutral type INEUT. Vector(nneut). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>

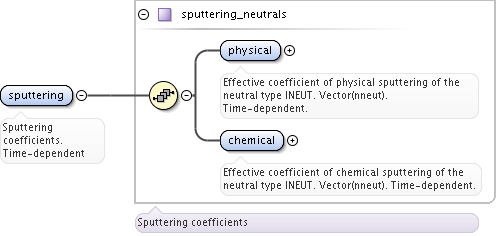

Element coefficients_neutrals / sputtering
Namespace No namespace
Annotations

Sputtering coefficients. Time-dependent
Diagram
Diagram coreneutrals_xsd.tmp#sputtering_neutrals_physical coreneutrals_xsd.tmp#sputtering_neutrals_chemical coreneutrals_xsd.tmp#sputtering_neutrals
Type sputtering_neutrals
Properties
content complex
Model
Children chemical, physical
Instance

<sputtering>
  <physical>{1,1}</physical>
  <chemical>{1,1}</chemical>
</sputtering>
Source

<xs:element name="sputtering" type="sputtering_neutrals">
  <xs:annotation>
    <xs:documentation>Sputtering coefficients. Time-dependent</xs:documentation>
  </xs:annotation>
</xs:element>
Element sputtering_neutrals / physical
Namespace No namespace
Annotations

Effective coefficient of physical sputtering of the neutral type INEUT. Vector(nneut). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="physical" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Effective coefficient of physical sputtering of the neutral type INEUT. Vector(nneut). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element sputtering_neutrals / chemical
Namespace No namespace
Annotations

Effective coefficient of chemical sputtering of the neutral type INEUT. Vector(nneut). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="chemical" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Effective coefficient of chemical sputtering of the neutral type INEUT. Vector(nneut). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element coreneutrals / impcoeff
Namespace No namespace
Annotations

Recycling and sputtering coefficients for each impurity ion in desc_impur. Array(nimp). Time-dependent.
Diagram
Diagram coreneutrals_xsd.tmp#coreneutrals_coreneutrals_impcoeff_chargestate
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children chargestate
Instance

<impcoeff>
  <chargestate>{1,unbounded}</chargestate>
</impcoeff>
Source

<xs:element name="impcoeff" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Recycling and sputtering coefficients for each impurity ion in desc_impur. Array(nimp). Time-dependent.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:annotation>
      <xs:documentation>Array over charge states for this particular impurity.</xs:documentation>
    </xs:annotation>
    <xs:sequence>
      <xs:element name="chargestate" type="coefficients_neutrals" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>Time-dependent</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

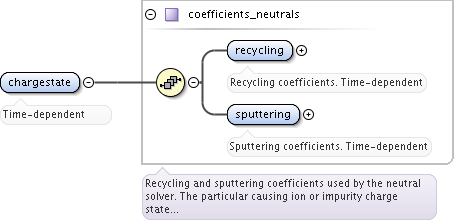

Element coreneutrals / impcoeff / chargestate
Namespace No namespace
Annotations

Time-dependent
Diagram
Diagram coreneutrals_xsd.tmp#coefficients_neutrals_recycling coreneutrals_xsd.tmp#coefficients_neutrals_sputtering coreneutrals_xsd.tmp#coefficients_neutrals
Type coefficients_neutrals
Properties
content complex
maxOccurs unbounded
Model
Children recycling, sputtering
Instance

<chargestate>
  <recycling>{1,1}</recycling>
  <sputtering>{1,1}</sputtering>
</chargestate>
Source

<xs:element name="chargestate" type="coefficients_neutrals" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Time-dependent</xs:documentation>
  </xs:annotation>
</xs:element>
Element coreneutrals / time
Namespace No namespace
Annotations

Time [s]; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
default 0.0
Source

<xs:element name="time" type="xs:float" default="0.0">
  <xs:annotation>
    <xs:documentation>Time [s]; Time-dependent; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Complex Type composition_neutrals
Namespace No namespace
Annotations

Description of neutrals species
Diagram
Diagram coreneutrals_xsd.tmp#composition_neutrals_atomlist coreneutrals_xsd.tmp#composition_neutrals_neutral
Used by
Model
Children atomlist, neutral
Source

<xs:complexType name="composition_neutrals">
  <xs:annotation>
    <xs:documentation>Description of neutrals species</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="atomlist" type="coreneutrals_atomlist" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>List of the atoms that enter the composition of the neutral species. Vector(natm)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="neutral" type="composition_neutralscomp" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>List of neutrals. Vector(nneut)</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type coreneutrals_atomlist
Namespace No namespace
Annotations

List of the atoms that enter the composition of the neutral species. Vector(natm)
Diagram
Diagram coreneutrals_xsd.tmp#coreneutrals_atomlist_amn coreneutrals_xsd.tmp#coreneutrals_atomlist_zn coreneutrals_xsd.tmp#coreneutrals_atomlist_ionimptype coreneutrals_xsd.tmp#coreneutrals_atomlist_ionimpindex
Used by
Model
Children amn, ionimpindex, ionimptype, zn
Source

<xs:complexType name="coreneutrals_atomlist">
  <xs:annotation>
    <xs:documentation>List of the atoms that enter the composition of the neutral species. Vector(natm)</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="amn" type="xs:float">
      <xs:annotation>
        <xs:documentation>Atomic mass number; Float</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="zn" type="xs:float">
      <xs:annotation>
        <xs:documentation>Nuclear charge; Float</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ionimptype" type="identifier">
      <xs:annotation>
        <xs:documentation>Identifier whether ion in coreprof or impurity in coreimpur.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ionimpindex" type="xs:integer">
      <xs:annotation>
        <xs:documentation>Index in composition or desc_impur of the corresponding ion or impurity.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type neutral_complex_type
Namespace No namespace
Diagram
Diagram coreneutrals_xsd.tmp#neutral_complex_type_neutraltype coreneutrals_xsd.tmp#neutral_complex_type_prad0
Used by
Model
Children neutraltype, prad0
Source

<xs:complexType name="neutral_complex_type">
  <xs:sequence>
    <xs:element name="neutraltype" type="coreneutrals_neutraltype" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Array (ntype) over neutral types. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="prad0" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Power radiated by neutrals [W.m^-3]. Vector (nrho). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type coreneutrals_neutraltype
Namespace No namespace
Annotations

Array (ntype) over neutral types.
Diagram
Diagram coreneutrals_xsd.tmp#coreneutrals_neutraltype_n0 coreneutrals_xsd.tmp#coreneutrals_neutraltype_t0 coreneutrals_xsd.tmp#coreneutrals_neutraltype_v0
Used by
Model
n0 , t0 , v0
Children n0, t0, v0
Source

<xs:complexType name="coreneutrals_neutraltype">
  <xs:annotation>
    <xs:documentation>Array (ntype) over neutral types.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="n0" type="corefieldneutral">
      <xs:annotation>
        <xs:documentation>Neutral density [m^-3]. Time-dependent;</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="t0" type="corefieldneutrale">
      <xs:annotation>
        <xs:documentation>Neutral temperature [eV]. Time-dependent;</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="v0" type="corefieldneutralv0">
      <xs:annotation>
        <xs:documentation>Neutral velocity [m.s^-1]. Time-dependent;</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type corefieldneutral
Namespace No namespace
Annotations

Structure for a main field of core neutral transport equations; Time-dependent;
Diagram
Diagram coreneutrals_xsd.tmp#corefieldneutral_value coreneutrals_xsd.tmp#corefieldneutral_flux coreneutrals_xsd.tmp#corefieldneutral_boundary
Used by
Model
Children boundary, flux, value
Source

<xs:complexType name="corefieldneutral">
  <xs:annotation>
    <xs:documentation>Structure for a main field of core neutral transport equations; Time-dependent;</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="value" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Signal value; Array1D(nrho). Time-dependent</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="flux" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Net neutral flux through the magnetic surface, positive values correspond to the direction from the center to the edge [s^-1]. Array1D(nrho). Time-dependent;</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="boundary" type="boundary_neutrals">
      <xs:annotation>
        <xs:documentation>Boundary condition for the transport equation. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type boundary_neutrals
Namespace No namespace
Annotations

Structure for the boundary condition of core transport equations (neutrals). Time-dependent;
Diagram
Diagram coreneutrals_xsd.tmp#boundary_neutrals_value coreneutrals_xsd.tmp#boundary_neutrals_type coreneutrals_xsd.tmp#boundary_neutrals_rho_tor
Used by
Model
Children rho_tor, type, value
Source

<xs:complexType name="boundary_neutrals">
  <xs:annotation>
    <xs:documentation>Structure for the boundary condition of core transport equations (neutrals). Time-dependent;</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="value" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Value of the boundary condition. Unit depends on type, respectively [1-field, 2-field.m^-1, 3-m, 4-field.s^-1]. For type 1 to 4, only the first position in the vector is used. For type 5, all three positions are used, meaning respectively a1, a2, a3. Time-dependent. Array1D(3)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="type" type="xs:integer">
      <xs:annotation>
        <xs:documentation>Type of the boundary condition for the transport solver. 0- equation not solved; 1- value of the field y; 2-radial derivative of the field (-dy/drho_tor); 3-scale length of the field y/(-dy/drho_tor); 4- flux; 5- generic boundary condition y expressed as a1y'+a2y=a3. Time-dependent. Int</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="rho_tor" type="xs:float">
      <xs:annotation>
        <xs:documentation>Position of the boundary condition (in terms of toroidal flux coordinate) for the transport solver [m]. Outside this boundary, the value of the data are considered to be prescribed. Time-dependent. Float.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type corefieldneutrale
Namespace No namespace
Annotations

Structure for a main field of core neutral transport equations, (Temperature, with flux as energy); Time-dependent;
Diagram
Diagram coreneutrals_xsd.tmp#corefieldneutrale_value coreneutrals_xsd.tmp#corefieldneutrale_flux coreneutrals_xsd.tmp#corefieldneutrale_boundary
Used by
Model
Children boundary, flux, value
Source

<xs:complexType name="corefieldneutrale">
  <xs:annotation>
    <xs:documentation>Structure for a main field of core neutral transport equations, (Temperature, with flux as energy); Time-dependent;</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="value" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Signal value; Array1D(nrho). Time-dependent</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="flux" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Net flux of the kinetic energy through the magnetic surface (3/2*E*n*V), positive values correspond to the direction from the center to the edge [W]. Array1D(nrho). Time-dependent;</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="boundary" type="boundary_neutrals">
      <xs:annotation>
        <xs:documentation>Boundary condition for the transport equation. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type corefieldneutralv0
Namespace No namespace
Annotations

Neutral velocity
Diagram
Diagram coreneutrals_xsd.tmp#corefieldneutralv0_toroidal coreneutrals_xsd.tmp#corefieldneutralv0_poloidal coreneutrals_xsd.tmp#corefieldneutralv0_radial
Used by
Model
Children poloidal, radial, toroidal
Source

<xs:complexType name="corefieldneutralv0">
  <xs:annotation>
    <xs:documentation>Neutral velocity</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="toroidal" type="corefieldneutralv">
      <xs:annotation>
        <xs:documentation>Neutral velocity in the toroidal direction [m.s^-1]. Positive is anti-clockwise when viewed from above. Time-dependent;</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="poloidal" type="corefieldneutralv">
      <xs:annotation>
        <xs:documentation>Velocity of neutrals in the poloidal direction. 0 is directed towards low field side, pi is towards high field side. Positive is anti-clockwise when viewed with low field side at the right. [m.s^-1]. Array3D(nrho,nneut,max_ntype). Time-dependent;</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="radial" type="corefieldneutralv">
      <xs:annotation>
        <xs:documentation>Neutral velocity in the radial direction (perpendicular to the magnetic surface), positive is from the centre to the edge [m.s^-1]. Array3D(nrho,nneut,max_ntype). Time-dependent;</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

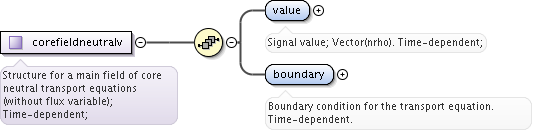

Complex Type corefieldneutralv
Namespace No namespace
Annotations

Structure for a main field of core neutral transport equations (without flux variable); Time-dependent;
Diagram
Diagram coreneutrals_xsd.tmp#corefieldneutralv_value coreneutrals_xsd.tmp#corefieldneutralv_boundary
Used by
Model
Children boundary, value
Source

<xs:complexType name="corefieldneutralv">
  <xs:annotation>
    <xs:documentation>Structure for a main field of core neutral transport equations (without flux variable); Time-dependent;</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="value" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Signal value; Vector(nrho). Time-dependent;</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="boundary" type="boundary_neutrals">
      <xs:annotation>
        <xs:documentation>Boundary condition for the transport equation. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

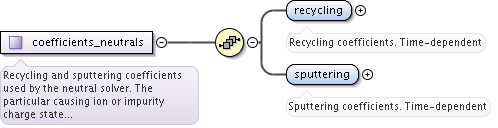

Complex Type coefficients_neutrals
Namespace No namespace
Annotations

Recycling and sputtering coefficients used by the neutral solver. The particular causing ion or impurity charge state is determined by the path.
Diagram
Diagram coreneutrals_xsd.tmp#coefficients_neutrals_recycling coreneutrals_xsd.tmp#coefficients_neutrals_sputtering
Used by
Model
Children recycling, sputtering
Source

<xs:complexType name="coefficients_neutrals">
  <xs:annotation>
    <xs:documentation>Recycling and sputtering coefficients used by the neutral solver. The particular causing ion or impurity charge state is determined by the path.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="recycling" type="recycling_neutrals">
      <xs:annotation>
        <xs:documentation>Recycling coefficients. Time-dependent</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="sputtering" type="sputtering_neutrals">
      <xs:annotation>
        <xs:documentation>Sputtering coefficients. Time-dependent</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type recycling_neutrals
Namespace No namespace
Annotations

Recycling coefficients
Diagram
Diagram coreneutrals_xsd.tmp#recycling_neutrals_particles coreneutrals_xsd.tmp#recycling_neutrals_energy
Used by
Model
Children energy, particles
Source

<xs:complexType name="recycling_neutrals">
  <xs:annotation>
    <xs:documentation>Recycling coefficients</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="particles" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Particle recycling coefficient corresponding to the conversion to the neutral type INEUT. Vector(nneut,). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="energy" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Energy recycling coefficient corresponding to the conversion to the neutral type INEUT. Vector(nneut). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

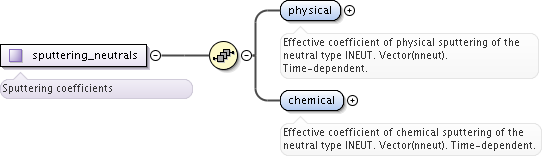

Complex Type sputtering_neutrals
Namespace No namespace
Annotations

Sputtering coefficients
Diagram
Diagram coreneutrals_xsd.tmp#sputtering_neutrals_physical coreneutrals_xsd.tmp#sputtering_neutrals_chemical
Used by
Model
Children chemical, physical
Source

<xs:complexType name="sputtering_neutrals">
  <xs:annotation>
    <xs:documentation>Sputtering coefficients</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="physical" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Effective coefficient of physical sputtering of the neutral type INEUT. Vector(nneut). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="chemical" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Effective coefficient of chemical sputtering of the neutral type INEUT. Vector(nneut). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
XML Schema documentation generated by ® XML Editor.
