Included schema cxdiag.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default qualified

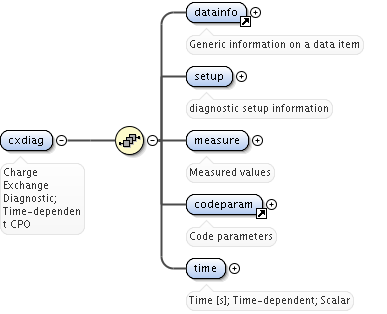

Element cxdiag
Namespace No namespace
Annotations

Charge Exchange Diagnostic; Time-dependent CPO
Diagram
Diagram utilities_xsd.tmp#datainfo cxdiag_xsd.tmp#cxdiag_setup cxdiag_xsd.tmp#cxdiag_measure utilities_xsd.tmp#codeparam cxdiag_xsd.tmp#cxdiag_time
Properties
content complex
Used by
Element top
Model
Children codeparam, datainfo, measure, setup, time
Instance

<cxdiag>
  <datainfo>{1,1}</datainfo>
  <setup>{1,1}</setup>
  <measure>{1,1}</measure>
  <codeparam>{1,1}</codeparam>
  <time>{1,1}</time>
</cxdiag>
Source

<xs:element name="cxdiag">
  <xs:annotation>
    <xs:appinfo>machine description</xs:appinfo>
    <xs:documentation>Charge Exchange Diagnostic; Time-dependent CPO</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="datainfo"/>
      <xs:element name="setup" type="cxsetup">
        <xs:annotation>
          <xs:appinfo>machine description</xs:appinfo>
          <xs:documentation>diagnostic setup information</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="measure" type="cxmeasure">
        <xs:annotation>
          <xs:documentation>Measured values</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element ref="codeparam"/>
      <xs:element name="time" type="xs:float">
        <xs:annotation>
          <xs:documentation>Time [s]; Time-dependent; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element cxdiag / setup
Namespace No namespace
Annotations

diagnostic setup information
Diagram
Diagram cxdiag_xsd.tmp#cxsetup_amn cxdiag_xsd.tmp#cxsetup_zn cxdiag_xsd.tmp#cxsetup_position cxdiag_xsd.tmp#cxsetup
Type cxsetup
Properties
content complex
Model
Children amn, position, zn
Instance

<setup>
  <amn>{1,1}</amn>
  <zn>{1,1}</zn>
  <position>{1,1}</position>
</setup>
Source

<xs:element name="setup" type="cxsetup">
  <xs:annotation>
    <xs:appinfo>machine description</xs:appinfo>
    <xs:documentation>diagnostic setup information</xs:documentation>
  </xs:annotation>
</xs:element>
Element cxsetup / amn
Namespace No namespace
Annotations

Mass of the emmitting impurity. Varies according to channels since they are spanning different lines of sight; Vector (nchannels)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="amn" type="vecflt_type">
  <xs:annotation>
    <xs:appinfo>experimental</xs:appinfo>
    <xs:documentation>Mass of the emmitting impurity. Varies according to channels since they are spanning different lines of sight; Vector (nchannels)</xs:documentation>
  </xs:annotation>
</xs:element>
Element cxsetup / zn
Namespace No namespace
Annotations

Nuclear charge of the emmitting impurity. Varies according to channels since they are spanning different lines of sight; Vector (nchannels)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="zn" type="vecflt_type">
  <xs:annotation>
    <xs:appinfo>experimental</xs:appinfo>
    <xs:documentation>Nuclear charge of the emmitting impurity. Varies according to channels since they are spanning different lines of sight; Vector (nchannels)</xs:documentation>
  </xs:annotation>
</xs:element>

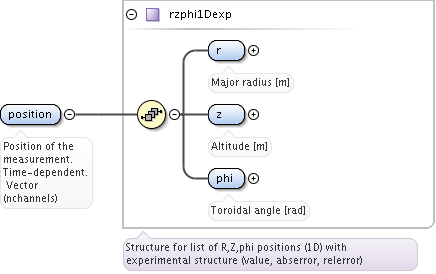

Element cxsetup / position
Namespace No namespace
Annotations

Position of the measurement. Time-dependent. Vector (nchannels)
Diagram
Diagram utilities_xsd.tmp#rzphi1Dexp_r utilities_xsd.tmp#rzphi1Dexp_z utilities_xsd.tmp#rzphi1Dexp_phi utilities_xsd.tmp#rzphi1Dexp
Type rzphi1Dexp
Properties
content complex
Model
r , z , phi
Children phi, r, z
Instance

<position>
  <r>{1,1}</r>
  <z>{1,1}</z>
  <phi>{1,1}</phi>
</position>
Source

<xs:element name="position" type="rzphi1Dexp">
  <xs:annotation>
    <xs:documentation>Position of the measurement. Time-dependent. Vector (nchannels)</xs:documentation>
  </xs:annotation>
</xs:element>
Element cxdiag / measure
Namespace No namespace
Annotations

Measured values
Diagram
Diagram cxdiag_xsd.tmp#cxmeasure_ti cxdiag_xsd.tmp#cxmeasure_vtor cxdiag_xsd.tmp#cxmeasure_vpol cxdiag_xsd.tmp#cxmeasure
Type cxmeasure
Properties
content complex
Model
Children ti, vpol, vtor
Instance

<measure>
  <ti>{1,1}</ti>
  <vtor>{1,1}</vtor>
  <vpol>{1,1}</vpol>
</measure>
Source

<xs:element name="measure" type="cxmeasure">
  <xs:annotation>
    <xs:documentation>Measured values</xs:documentation>
  </xs:annotation>
</xs:element>

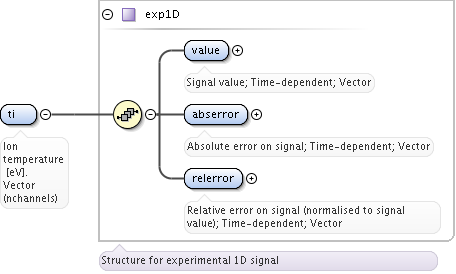

Element cxmeasure / ti
Namespace No namespace
Annotations

Ion temperature [eV]. Vector (nchannels)
Diagram
Diagram utilities_xsd.tmp#exp1D_value utilities_xsd.tmp#exp1D_abserror utilities_xsd.tmp#exp1D_relerror utilities_xsd.tmp#exp1D
Type exp1D
Properties
content complex
Model
Children abserror, relerror, value
Instance

<ti>
  <value>{1,1}</value>
  <abserror>{1,1}</abserror>
  <relerror>{1,1}</relerror>
</ti>
Source

<xs:element name="ti" type="exp1D">
  <xs:annotation>
    <xs:documentation>Ion temperature [eV]. Vector (nchannels)</xs:documentation>
  </xs:annotation>
</xs:element>

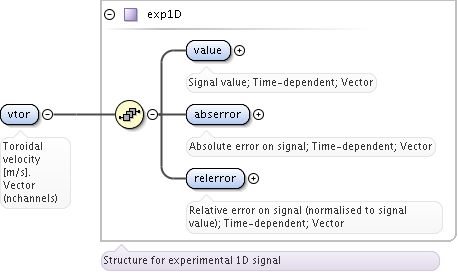

Element cxmeasure / vtor
Namespace No namespace
Annotations

Toroidal velocity [m/s]. Vector (nchannels)
Diagram
Diagram utilities_xsd.tmp#exp1D_value utilities_xsd.tmp#exp1D_abserror utilities_xsd.tmp#exp1D_relerror utilities_xsd.tmp#exp1D
Type exp1D
Properties
content complex
Model
Children abserror, relerror, value
Instance

<vtor>
  <value>{1,1}</value>
  <abserror>{1,1}</abserror>
  <relerror>{1,1}</relerror>
</vtor>
Source

<xs:element name="vtor" type="exp1D">
  <xs:annotation>
    <xs:documentation>Toroidal velocity [m/s]. Vector (nchannels)</xs:documentation>
  </xs:annotation>
</xs:element>

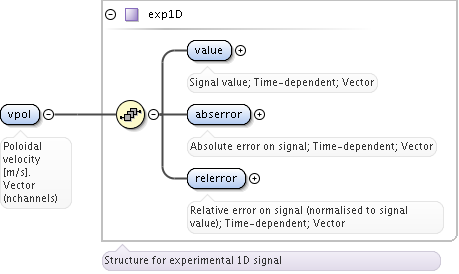

Element cxmeasure / vpol
Namespace No namespace
Annotations

Poloidal velocity [m/s]. Vector (nchannels)
Diagram
Diagram utilities_xsd.tmp#exp1D_value utilities_xsd.tmp#exp1D_abserror utilities_xsd.tmp#exp1D_relerror utilities_xsd.tmp#exp1D
Type exp1D
Properties
content complex
Model
Children abserror, relerror, value
Instance

<vpol>
  <value>{1,1}</value>
  <abserror>{1,1}</abserror>
  <relerror>{1,1}</relerror>
</vpol>
Source

<xs:element name="vpol" type="exp1D">
  <xs:annotation>
    <xs:documentation>Poloidal velocity [m/s]. Vector (nchannels)</xs:documentation>
  </xs:annotation>
</xs:element>
Element cxdiag / time
Namespace No namespace
Annotations

Time [s]; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="time" type="xs:float">
  <xs:annotation>
    <xs:documentation>Time [s]; Time-dependent; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Complex Type cxsetup
Namespace No namespace
Annotations

diagnostic setup information
Diagram
Diagram cxdiag_xsd.tmp#cxsetup_amn cxdiag_xsd.tmp#cxsetup_zn cxdiag_xsd.tmp#cxsetup_position
Used by
Element cxdiag/setup
Model
Children amn, position, zn
Source

<xs:complexType name="cxsetup">
  <xs:annotation>
    <xs:appinfo>parent-dependent</xs:appinfo>
    <xs:documentation>diagnostic setup information</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="amn" type="vecflt_type">
      <xs:annotation>
        <xs:appinfo>experimental</xs:appinfo>
        <xs:documentation>Mass of the emmitting impurity. Varies according to channels since they are spanning different lines of sight; Vector (nchannels)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="zn" type="vecflt_type">
      <xs:annotation>
        <xs:appinfo>experimental</xs:appinfo>
        <xs:documentation>Nuclear charge of the emmitting impurity. Varies according to channels since they are spanning different lines of sight; Vector (nchannels)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="position" type="rzphi1Dexp">
      <xs:annotation>
        <xs:documentation>Position of the measurement. Time-dependent. Vector (nchannels)</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

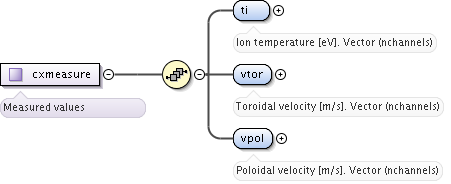

Complex Type cxmeasure
Namespace No namespace
Annotations

Measured values
Diagram
Diagram cxdiag_xsd.tmp#cxmeasure_ti cxdiag_xsd.tmp#cxmeasure_vtor cxdiag_xsd.tmp#cxmeasure_vpol
Used by
Element cxdiag/measure
Model
Children ti, vpol, vtor
Source

<xs:complexType name="cxmeasure">
  <xs:annotation>
    <xs:documentation>Measured values</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="ti" type="exp1D">
      <xs:annotation>
        <xs:documentation>Ion temperature [eV]. Vector (nchannels)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="vtor" type="exp1D">
      <xs:annotation>
        <xs:documentation>Toroidal velocity [m/s]. Vector (nchannels)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="vpol" type="exp1D">
      <xs:annotation>
        <xs:documentation>Poloidal velocity [m/s]. Vector (nchannels)</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
