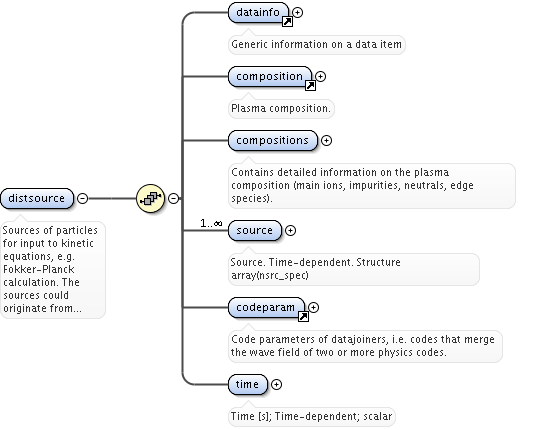

<distsource>
  <datainfo>{1,1}</datainfo>
  <composition>{1,1}</composition>
  <compositions>{1,1}</compositions>
  <source>{1,unbounded}</source>
  <codeparam>{1,1}</codeparam>
  <time>{1,1}</time>
</distsource>

<xs:element name="distsource">
  <xs:annotation>
    <xs:documentation>Sources of particles for input to kinetic equations, e.g. Fokker-Planck calculation. The sources could originate from e.g. NBI or fusion reactions. Time-dependent CPO</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="datainfo"/>
      <xs:element ref="composition">
        <xs:annotation>
          <xs:documentation>Plasma composition.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="compositions" type="compositions_type">
        <xs:annotation>
          <xs:documentation>Contains detailed information on the plasma composition (main ions, impurities, neutrals, edge species).</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="source" type="distsource_source" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>Source. Time-dependent. Structure array(nsrc_spec)</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element ref="codeparam">
        <xs:annotation>
          <xs:documentation>Code parameters of datajoiners, i.e. codes that merge the wave field of two or more physics codes.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="time" type="xs:float">
        <xs:annotation>
          <xs:documentation>Time [s]; Time-dependent; scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

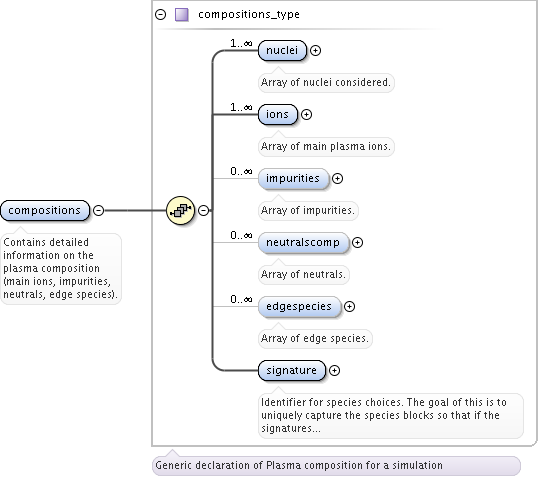

<compositions>
  <nuclei>{1,unbounded}</nuclei>
  <ions>{1,unbounded}</ions>
  <impurities>{0,unbounded}</impurities>
  <neutralscomp>{0,unbounded}</neutralscomp>
  <edgespecies>{0,unbounded}</edgespecies>
  <signature>{1,1}</signature>
</compositions>

<xs:element name="compositions" type="compositions_type">
  <xs:annotation>
    <xs:documentation>Contains detailed information on the plasma composition (main ions, impurities, neutrals, edge species).</xs:documentation>
  </xs:annotation>
</xs:element>

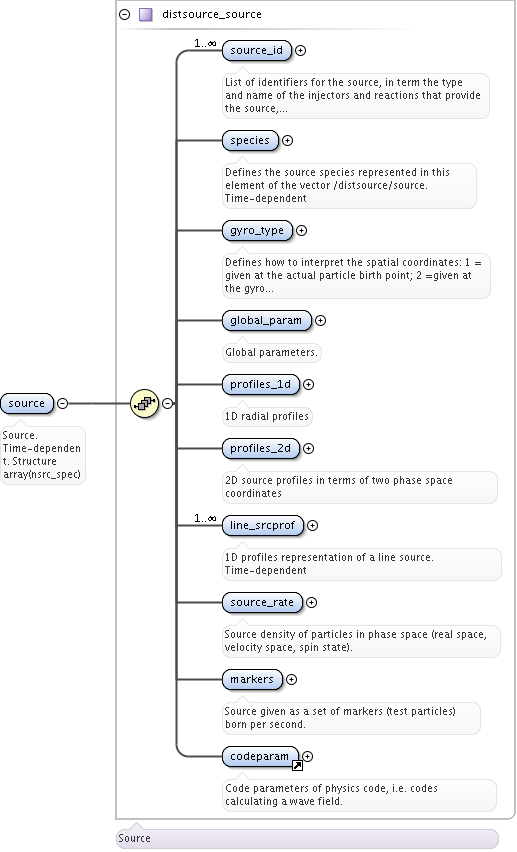

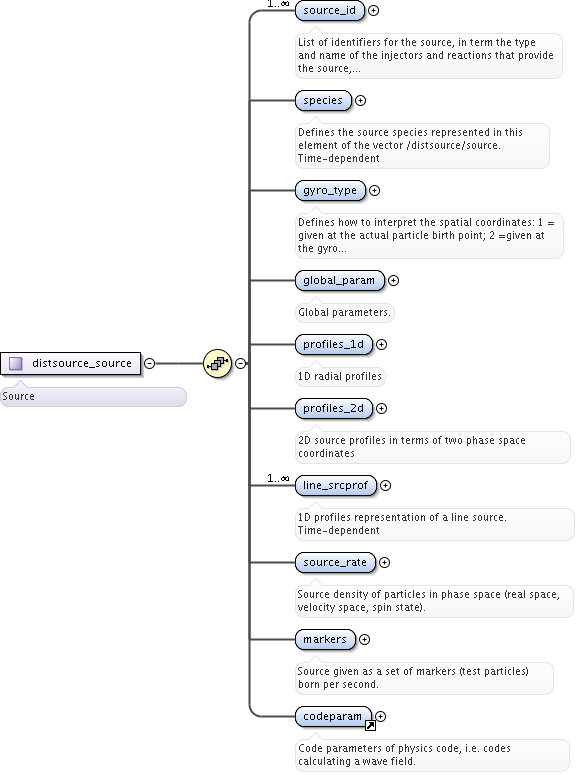

<source>
  <source_id>{1,unbounded}</source_id>
  <species>{1,1}</species>
  <gyro_type>{1,1}</gyro_type>
  <global_param>{1,1}</global_param>
  <profiles_1d>{1,1}</profiles_1d>
  <profiles_2d>{1,1}</profiles_2d>
  <line_srcprof>{1,unbounded}</line_srcprof>
  <source_rate>{1,1}</source_rate>

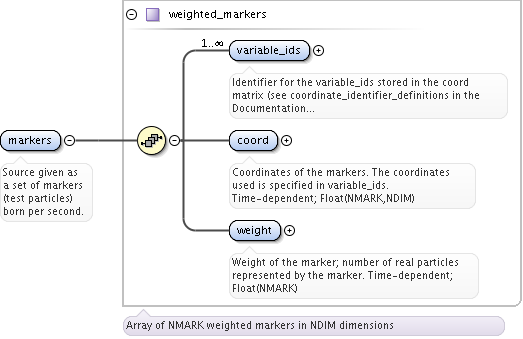

  <markers>{1,1}</markers>
  <codeparam>{1,1}</codeparam>
</source>

<xs:element name="source" type="distsource_source" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Source. Time-dependent. Structure array(nsrc_spec)</xs:documentation>
  </xs:annotation>
</xs:element>

<source_id>
  <type>{1,1}</type>
  <name>{1,1}</name>
  <index>{1,1}</index>
</source_id>

<xs:element name="source_id" type="enum_instance" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>List of identifiers for the source, in term the type and name of the injectors and reactions that provide the source, along with an index separating sources with the same name and type. Possible content for type: NBI or reaction names (see distsource_types in the Documentation website under Conventions/Enumerated_datatypes); the field name should either be taken from nbi(*)%nbi_unit(*)%name, or describe the populations involved in the reaction, e.g. fast-thermal; the field index should separate different sources generated from a single injector or reaction. Vector(n_injectors_and_reactions)</xs:documentation>
  </xs:annotation>
</xs:element>

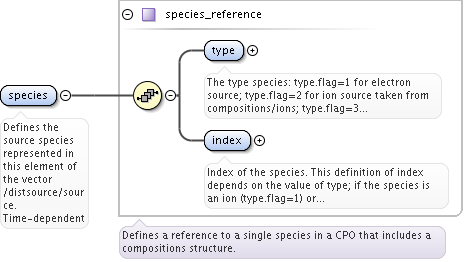

<species>
  <type>{1,1}</type>
  <index>{1,1}</index>
</species>

<xs:element name="species" type="species_reference">
  <xs:annotation>
    <xs:documentation>Defines the source species represented in this element of the vector /distsource/source. Time-dependent</xs:documentation>
  </xs:annotation>
</xs:element>

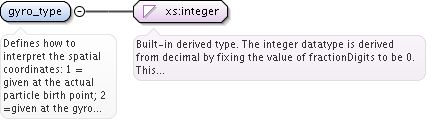

<xs:element name="gyro_type" type="xs:integer">
  <xs:annotation>
    <xs:documentation>Defines how to interpret the spatial coordinates: 1 = given at the actual particle birth point; 2 =given at the gyro centre of the birth point.</xs:documentation>
  </xs:annotation>
</xs:element>

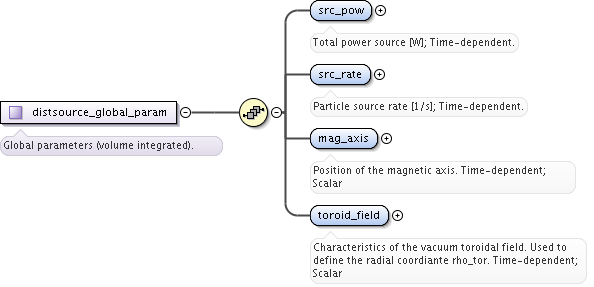

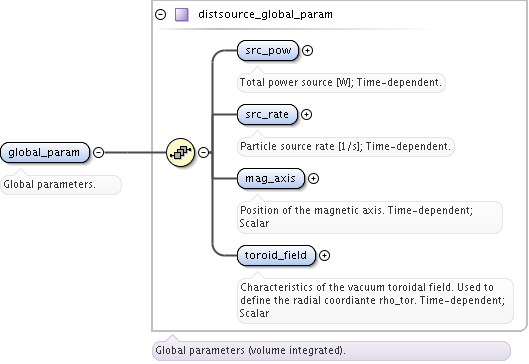

<global_param>
  <src_pow>{1,1}</src_pow>
  <src_rate>{1,1}</src_rate>
  <mag_axis>{1,1}</mag_axis>
  <toroid_field>{1,1}</toroid_field>
</global_param>

<xs:element name="global_param" type="distsource_global_param">
  <xs:annotation>
    <xs:documentation>Global parameters.</xs:documentation>
  </xs:annotation>
</xs:element>

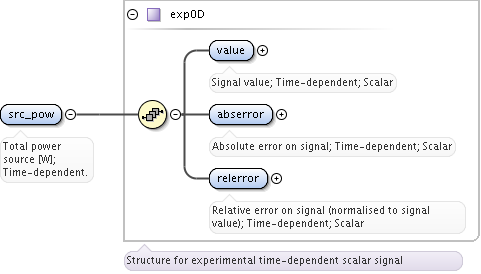

<src_pow>
  <value>{1,1}</value>
  <abserror>{1,1}</abserror>
  <relerror>{1,1}</relerror>
</src_pow>

<xs:element name="src_pow" type="exp0D">
  <xs:annotation>
    <xs:documentation>Total power source [W]; Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>

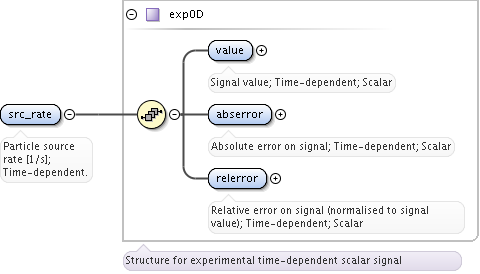

<src_rate>
  <value>{1,1}</value>
  <abserror>{1,1}</abserror>
  <relerror>{1,1}</relerror>
</src_rate>

<xs:element name="src_rate" type="exp0D">
  <xs:annotation>
    <xs:documentation>Particle source rate [1/s]; Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>

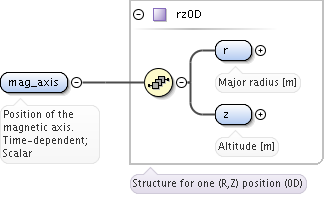

<mag_axis>
  <r>{1,1}</r>
  <z>{1,1}</z>
</mag_axis>

<xs:element name="mag_axis" type="rz0D">
  <xs:annotation>
    <xs:documentation>Position of the magnetic axis. Time-dependent; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

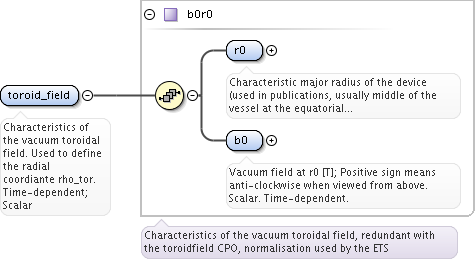

<toroid_field>
  <r0>{1,1}</r0>
  <b0>{1,1}</b0>
</toroid_field>

<xs:element name="toroid_field" type="b0r0">
  <xs:annotation>
    <xs:documentation>Characteristics of the vacuum toroidal field. Used to define the radial coordiante rho_tor. Time-dependent; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

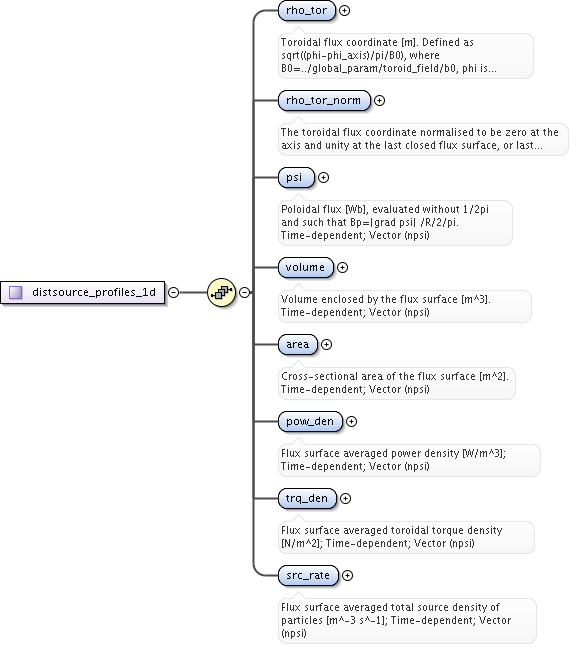

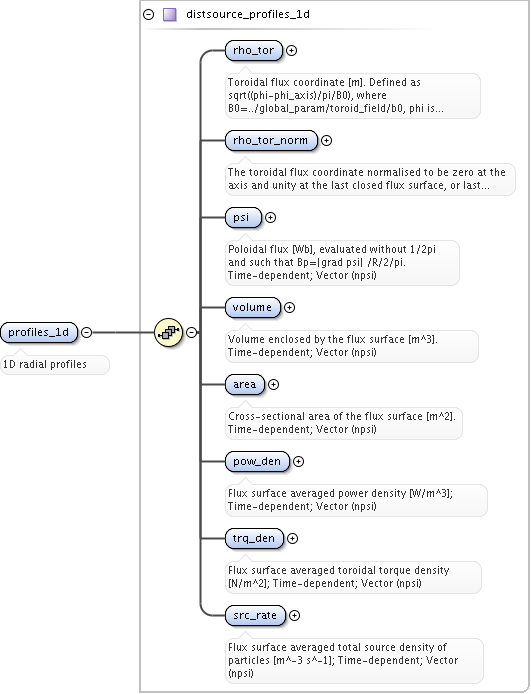

<profiles_1d>
  <rho_tor>{1,1}</rho_tor>
  <rho_tor_norm>{1,1}</rho_tor_norm>
  <psi>{1,1}</psi>
  <volume>{1,1}</volume>
  <area>{1,1}</area>
  <pow_den>{1,1}</pow_den>
  <trq_den>{1,1}</trq_den>
  <src_rate>{1,1}</src_rate>
</profiles_1d>

<xs:element name="profiles_1d" type="distsource_profiles_1d">
  <xs:annotation>
    <xs:documentation>1D radial profiles</xs:documentation>
  </xs:annotation>
</xs:element>

<xs:element name="rho_tor" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Toroidal flux coordinate [m]. Defined as sqrt((phi-phi_axis)/pi/B0), where B0=../global_param/toroid_field/b0, phi is the toroidal flux and phi_axis is the toroidal flux at the magnetic axis. Time-dependent; Vector (npsi)</xs:documentation>
  </xs:annotation>
</xs:element>

<xs:element name="rho_tor_norm" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>The toroidal flux coordinate normalised to be zero at the axis and unity at the last closed flux surface, or last available fluxsurface if the last closed flux surface is not defined. Time-dependent; Vector (npsi)</xs:documentation>
  </xs:annotation>
</xs:element>

<xs:element name="psi" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Poloidal flux [Wb], evaluated without 1/2pi and such that Bp=|grad psi| /R/2/pi. Time-dependent; Vector (npsi)</xs:documentation>
  </xs:annotation>
</xs:element>

<xs:element name="volume" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Volume enclosed by the flux surface [m^3]. Time-dependent; Vector (npsi)</xs:documentation>
  </xs:annotation>
</xs:element>

<xs:element name="area" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Cross-sectional area of the flux surface [m^2]. Time-dependent; Vector (npsi)</xs:documentation>
  </xs:annotation>
</xs:element>

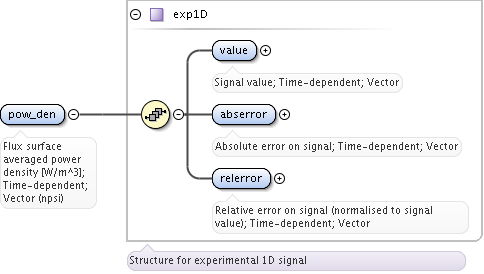

<pow_den>
  <value>{1,1}</value>
  <abserror>{1,1}</abserror>
  <relerror>{1,1}</relerror>
</pow_den>

<xs:element name="pow_den" type="exp1D">
  <xs:annotation>
    <xs:documentation>Flux surface averaged power density [W/m^3]; Time-dependent; Vector (npsi)</xs:documentation>
  </xs:annotation>
</xs:element>

<trq_den>
  <value>{1,1}</value>
  <abserror>{1,1}</abserror>
  <relerror>{1,1}</relerror>
</trq_den>

<xs:element name="trq_den" type="exp1D">
  <xs:annotation>
    <xs:documentation>Flux surface averaged toroidal torque density [N/m^2]; Time-dependent; Vector (npsi)</xs:documentation>
  </xs:annotation>
</xs:element>

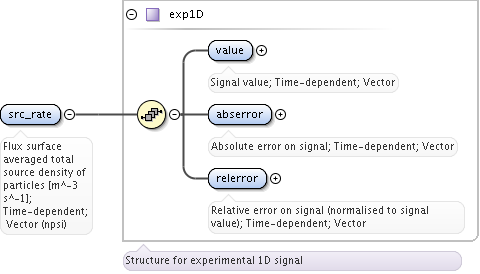

<src_rate>
  <value>{1,1}</value>
  <abserror>{1,1}</abserror>
  <relerror>{1,1}</relerror>
</src_rate>

<xs:element name="src_rate" type="exp1D">
  <xs:annotation>
    <xs:documentation>Flux surface averaged total source density of particles [m^-3 s^-1]; Time-dependent; Vector (npsi)</xs:documentation>
  </xs:annotation>
</xs:element>

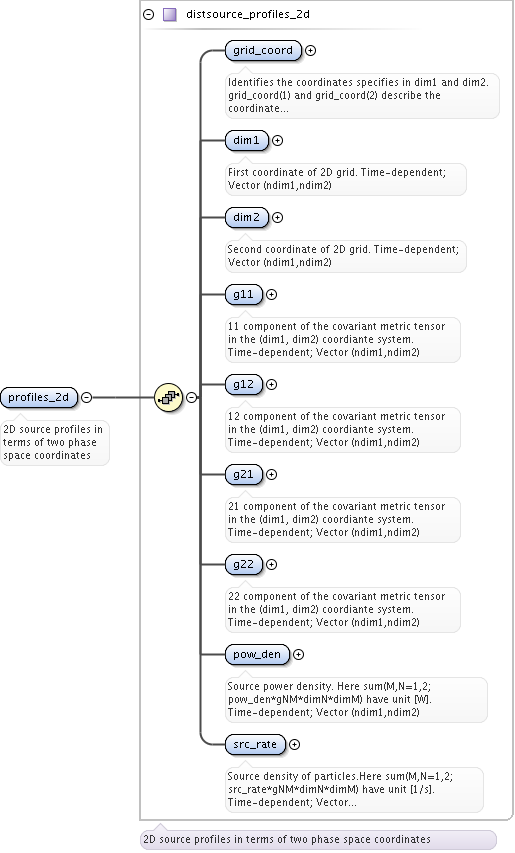

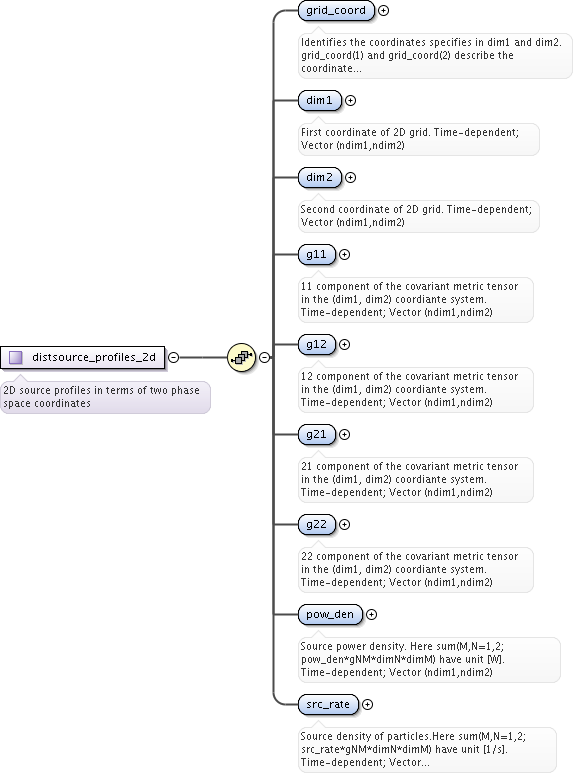

<profiles_2d>
  <grid_coord>{1,1}</grid_coord>
  <dim1>{1,1}</dim1>
  <dim2>{1,1}</dim2>
  <g11>{1,1}</g11>
  <g12>{1,1}</g12>
  <g21>{1,1}</g21>
  <g22>{1,1}</g22>
  <pow_den>{1,1}</pow_den>
  <src_rate>{1,1}</src_rate>
</profiles_2d>

<xs:element name="profiles_2d" type="distsource_profiles_2d">
  <xs:annotation>
    <xs:documentation>2D source profiles in terms of two phase space coordinates</xs:documentation>
  </xs:annotation>
</xs:element>

<xs:element name="grid_coord" type="vecint_type">
  <xs:annotation>
    <xs:documentation>Identifies the coordinates specifies in dim1 and dim2. grid_coord(1) and grid_coord(2) describe the coordinate represented in dim1 and dim2. The possible coordinates are: 1=R, Major radius [m]; 2=Z, Vertical position [m]; 3=X, first cartesian coordinate in the horizontal plane [m]; 4=Y, second cartesian coordinate in the horizontal plane (grad(X) x grad(Y) = grad(Z)) [m]; 5=phi, toroidal angle [rad]; 6=psi, poloidal magnetic flux [T*m^2]; 7=rhotor, the square root of the toroidal flux; 8=theta, geometrical poloidal angle [rad]; 9=theta_b, Boozer poloidal angle [rad]; 10=vx, velocity in the x-direction [m/s]; 11=vy, velocity in the y-direction [m/s]; 12=vz, velocity in the z-direction [m/s]; 13=vel, total velocity [m/s]; 14=vphi, velocity in the phi-direction [m/s]; 15=vpar, velocity in the parallel direction [m/s]; 16=vperp, velocity in the perpendicular direction [m/s]; 17=E, Hamiltonian energy [J]; 18=Pphi, canonical toroidal angular momentum [kg m^2/s]; 19=mu, magnetic moment [J/T]; 20=Lambda=mu/E [1/T]. Vector (2)</xs:documentation>
  </xs:annotation>
</xs:element>

<xs:element name="dim1" type="matflt_type">
  <xs:annotation>
    <xs:documentation>First coordinate of 2D grid. Time-dependent; Vector (ndim1,ndim2)</xs:documentation>
  </xs:annotation>
</xs:element>

<xs:element name="dim2" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Second coordinate of 2D grid. Time-dependent; Vector (ndim1,ndim2)</xs:documentation>
  </xs:annotation>
</xs:element>

<xs:element name="g11" type="matflt_type">
  <xs:annotation>
    <xs:documentation>11 component of the covariant metric tensor in the (dim1, dim2) coordiante system. Time-dependent; Vector (ndim1,ndim2)</xs:documentation>
  </xs:annotation>
</xs:element>

<xs:element name="g12" type="matflt_type">
  <xs:annotation>
    <xs:documentation>12 component of the covariant metric tensor in the (dim1, dim2) coordiante system. Time-dependent; Vector (ndim1,ndim2)</xs:documentation>
  </xs:annotation>
</xs:element>

<xs:element name="g21" type="matflt_type">
  <xs:annotation>
    <xs:documentation>21 component of the covariant metric tensor in the (dim1, dim2) coordiante system. Time-dependent; Vector (ndim1,ndim2)</xs:documentation>
  </xs:annotation>
</xs:element>

<xs:element name="g22" type="matflt_type">
  <xs:annotation>
    <xs:documentation>22 component of the covariant metric tensor in the (dim1, dim2) coordiante system. Time-dependent; Vector (ndim1,ndim2)</xs:documentation>
  </xs:annotation>
</xs:element>

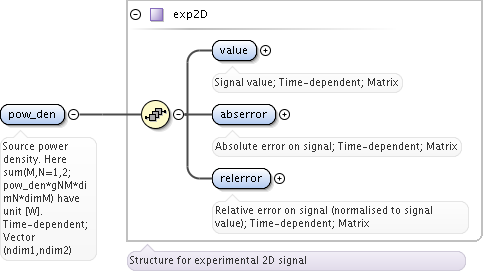

<pow_den>
  <value>{1,1}</value>
  <abserror>{1,1}</abserror>
  <relerror>{1,1}</relerror>
</pow_den>

<xs:element name="pow_den" type="exp2D">
  <xs:annotation>
    <xs:documentation>Source power density. Here sum(M,N=1,2; pow_den*gNM*dimN*dimM) have unit [W]. Time-dependent; Vector (ndim1,ndim2)</xs:documentation>
  </xs:annotation>
</xs:element>

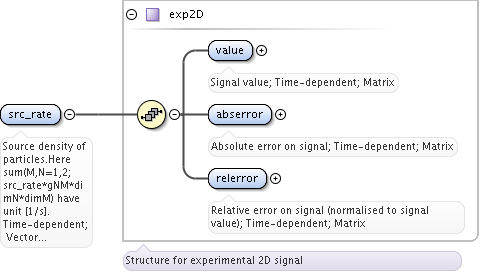

<src_rate>
  <value>{1,1}</value>
  <abserror>{1,1}</abserror>
  <relerror>{1,1}</relerror>
</src_rate>

<xs:element name="src_rate" type="exp2D">
  <xs:annotation>
    <xs:documentation>Source density of particles.Here sum(M,N=1,2; src_rate*gNM*dimN*dimM) have unit [1/s]. Time-dependent; Vector (ndim1,ndim2)</xs:documentation>
  </xs:annotation>
</xs:element>

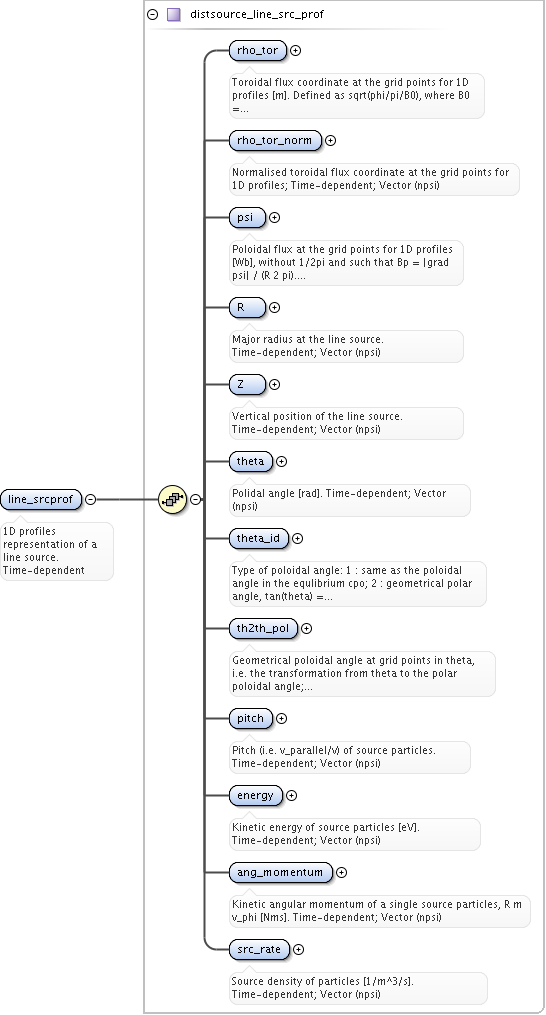

<line_srcprof>
  <rho_tor>{1,1}</rho_tor>
  <rho_tor_norm>{1,1}</rho_tor_norm>
  <psi>{1,1}</psi>
  <R>{1,1}</R>
  <Z>{1,1}</Z>
  <theta>{1,1}</theta>
  <theta_id>{1,1}</theta_id>
  <th2th_pol>{1,1}</th2th_pol>
  <pitch>{1,1}</pitch>
  <energy>{1,1}</energy>
  <ang_momentum>{1,1}</ang_momentum>
  <src_rate>{1,1}</src_rate>
</line_srcprof>

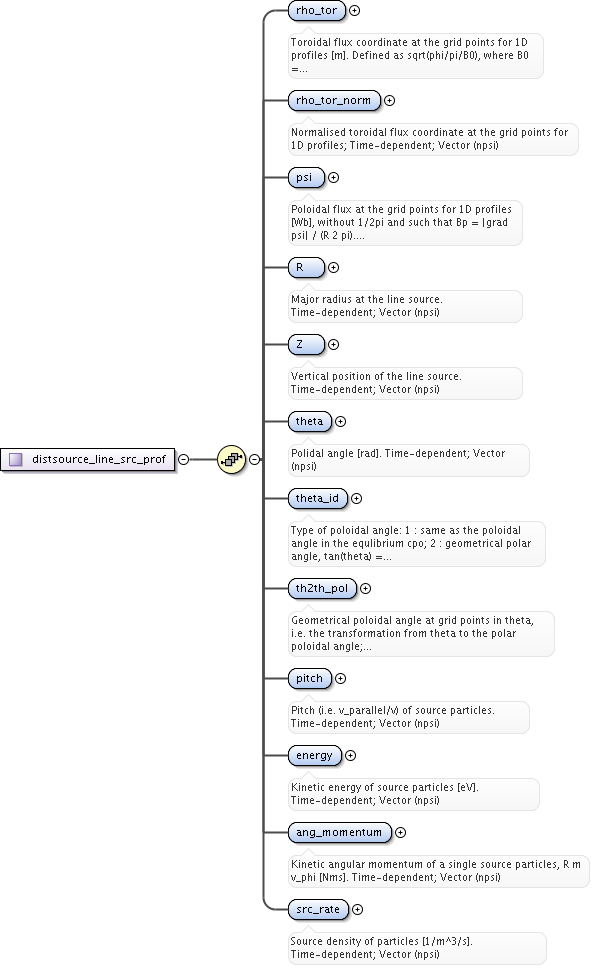

<xs:element name="line_srcprof" type="distsource_line_src_prof" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>1D profiles representation of a line source. Time-dependent</xs:documentation>
  </xs:annotation>
</xs:element>

<xs:element name="rho_tor" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Toroidal flux coordinate at the grid points for 1D profiles [m]. Defined as sqrt(phi/pi/B0), where B0 = equilibrium/global_param/toroid_field/b0. Time-dependent; Vector (npsi)</xs:documentation>
  </xs:annotation>
</xs:element>

<xs:element name="rho_tor_norm" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Normalised toroidal flux coordinate at the grid points for 1D profiles; Time-dependent; Vector (npsi)</xs:documentation>
  </xs:annotation>
</xs:element>

<xs:element name="psi" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Poloidal flux at the grid points for 1D profiles [Wb], without 1/2pi and such that Bp = |grad psi| / (R 2 pi). Time-dependent; Vector (npsi)</xs:documentation>
  </xs:annotation>
</xs:element>

<xs:element name="R" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Major radius at the line source. Time-dependent; Vector (npsi)</xs:documentation>
  </xs:annotation>
</xs:element>

<xs:element name="Z" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Vertical position of the line source. Time-dependent; Vector (npsi)</xs:documentation>
  </xs:annotation>
</xs:element>

<xs:element name="theta" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Polidal angle [rad]. Time-dependent; Vector (npsi)</xs:documentation>
  </xs:annotation>
</xs:element>

<xs:element name="theta_id" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Type of poloidal angle: 1 : same as the poloidal angle in the equlibrium cpo; 2 : geometrical polar angle, tan(theta) = Z/(R-R_0); 3 : other. If option 3, a transformation to the geometrical poloidal angle is provided in th2th_pol.</xs:documentation>
  </xs:annotation>
</xs:element>

<xs:element name="th2th_pol" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Geometrical poloidal angle at grid points in theta, i.e. the transformation from theta to the polar poloidal angle; used only if angl_type=3; Time-dependent; Matrix (ndim1, ndim2)</xs:documentation>
  </xs:annotation>
</xs:element>

<xs:element name="pitch" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Pitch (i.e. v_parallel/v) of source particles. Time-dependent; Vector (npsi)</xs:documentation>
  </xs:annotation>
</xs:element>

<xs:element name="energy" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Kinetic energy of source particles [eV]. Time-dependent; Vector (npsi)</xs:documentation>
  </xs:annotation>
</xs:element>

<xs:element name="ang_momentum" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Kinetic angular momentum of a single source particles, R m v_phi [Nms]. Time-dependent; Vector (npsi)</xs:documentation>
  </xs:annotation>
</xs:element>

<xs:element name="src_rate" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Source density of particles [1/m^3/s]. Time-dependent; Vector (npsi)</xs:documentation>
  </xs:annotation>
</xs:element>

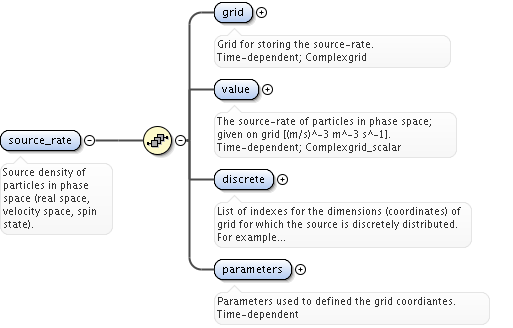

<source_rate>
  <grid>{1,1}</grid>
  <value>{1,1}</value>
  <discrete>{1,1}</discrete>
  <parameters>{1,1}</parameters>
</source_rate>

<xs:element name="source_rate">
  <xs:annotation>
    <xs:documentation>Source density of particles in phase space (real space, velocity space, spin state).</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="grid" type="complexgrid">
        <xs:annotation>
          <xs:documentation>Grid for storing the source-rate. Time-dependent; Complexgrid</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="value" type="complexgrid_scalar">
        <xs:annotation>
          <xs:documentation>The source-rate of particles in phase space; given on grid [(m/s)^-3 m^-3 s^-1]. Time-dependent; Complexgrid_scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="discrete" type="vecint_type">
        <xs:annotation>
          <xs:documentation>List of indexes for the dimensions (coordinates) of grid for which the source is discretely distributed. For example consider a source of 3.5 MeV alpha particles provided on a grid with two coordinates; rho_tor and energy. To specify that the source is given at energies exactly equal to 3.5 MeV, let discret have length 1 and set discrete=(1)=2 since energy is dimension number 2. The source is then proportional to delta( 1 - energy / 3.5MeV ), where delta is the Direct delta distribution. Discrete dimensions can only be used when the grid is rectangular. Time-dependent; Vector(n_discrete_dimensions)</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="parameters">
        <xs:annotation>
          <xs:documentation>Parameters used to defined the grid coordiantes. Time-dependent</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="equatorial" type="equatorial_plane">
              <xs:annotation>
                <xs:documentation>Description of the equatorial plane or any other omnigeuous surfaces. Time-dependent</xs:documentation>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

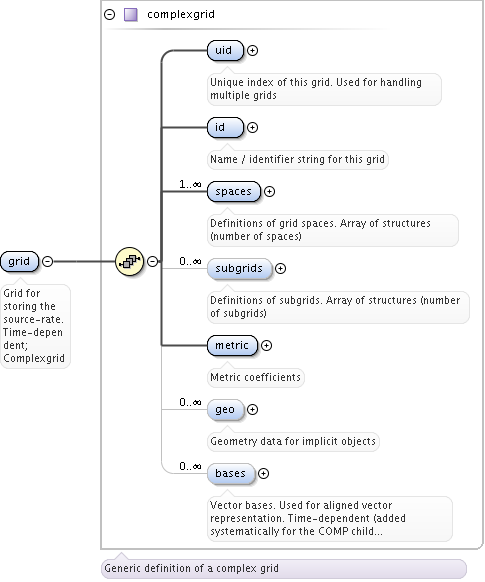

<grid>
  <uid>{1,1}</uid>
  <id>{1,1}</id>
  <spaces>{1,unbounded}</spaces>
  <subgrids>{0,unbounded}</subgrids>
  <metric>{1,1}</metric>
  <geo>{0,unbounded}</geo>
  <bases>{0,unbounded}</bases>
</grid>

<xs:element name="grid" type="complexgrid">
  <xs:annotation>
    <xs:documentation>Grid for storing the source-rate. Time-dependent; Complexgrid</xs:documentation>
  </xs:annotation>
</xs:element>

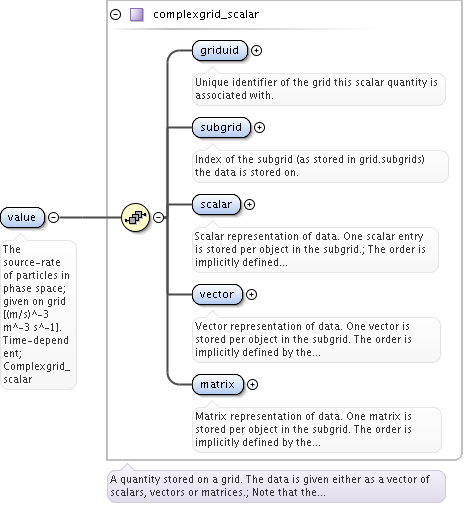

<value>
  <griduid>{1,1}</griduid>
  <subgrid>{1,1}</subgrid>
  <scalar>{1,1}</scalar>
  <vector>{1,1}</vector>
  <matrix>{1,1}</matrix>
</value>

<xs:element name="value" type="complexgrid_scalar">
  <xs:annotation>
    <xs:documentation>The source-rate of particles in phase space; given on grid [(m/s)^-3 m^-3 s^-1]. Time-dependent; Complexgrid_scalar</xs:documentation>
  </xs:annotation>
</xs:element>

<xs:element name="discrete" type="vecint_type">
  <xs:annotation>
    <xs:documentation>List of indexes for the dimensions (coordinates) of grid for which the source is discretely distributed. For example consider a source of 3.5 MeV alpha particles provided on a grid with two coordinates; rho_tor and energy. To specify that the source is given at energies exactly equal to 3.5 MeV, let discret have length 1 and set discrete=(1)=2 since energy is dimension number 2. The source is then proportional to delta( 1 - energy / 3.5MeV ), where delta is the Direct delta distribution. Discrete dimensions can only be used when the grid is rectangular. Time-dependent; Vector(n_discrete_dimensions)</xs:documentation>
  </xs:annotation>
</xs:element>

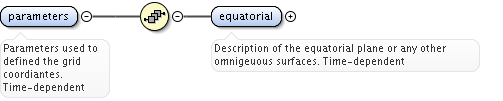

<parameters>
  <equatorial>{1,1}</equatorial>
</parameters>

<xs:element name="parameters">
  <xs:annotation>
    <xs:documentation>Parameters used to defined the grid coordiantes. Time-dependent</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="equatorial" type="equatorial_plane">
        <xs:annotation>
          <xs:documentation>Description of the equatorial plane or any other omnigeuous surfaces. Time-dependent</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

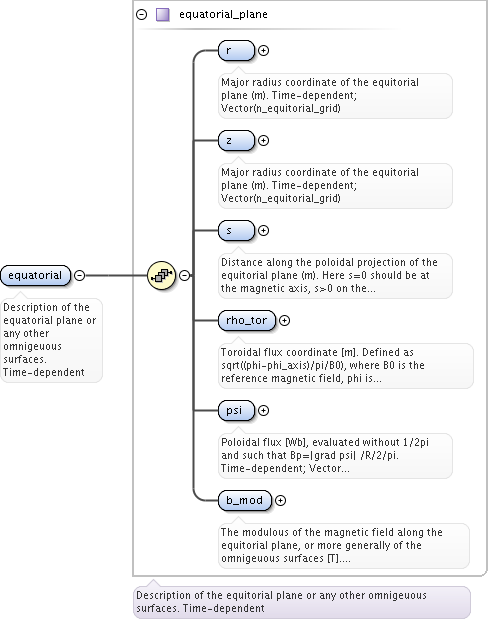

<equatorial>
  <r>{1,1}</r>
  <z>{1,1}</z>
  <s>{1,1}</s>
  <rho_tor>{1,1}</rho_tor>
  <psi>{1,1}</psi>
  <b_mod>{1,1}</b_mod>
</equatorial>

<xs:element name="equatorial" type="equatorial_plane">
  <xs:annotation>
    <xs:documentation>Description of the equatorial plane or any other omnigeuous surfaces. Time-dependent</xs:documentation>
  </xs:annotation>
</xs:element>

<markers>
  <variable_ids>{1,unbounded}</variable_ids>
  <coord>{1,1}</coord>
  <weight>{1,1}</weight>
</markers>

<xs:element name="markers" type="weighted_markers">
  <xs:annotation>
    <xs:documentation>Source given as a set of markers (test particles) born per second.</xs:documentation>
  </xs:annotation>
</xs:element>

<xs:element name="time" type="xs:float">
  <xs:annotation>
    <xs:documentation>Time [s]; Time-dependent; scalar</xs:documentation>
  </xs:annotation>
</xs:element>

<xs:complexType name="distsource_source">
  <xs:annotation>
    <xs:documentation>Source</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="source_id" type="enum_instance" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>List of identifiers for the source, in term the type and name of the injectors and reactions that provide the source, along with an index separating sources with the same name and type. Possible content for type: NBI or reaction names (see distsource_types in the Documentation website under Conventions/Enumerated_datatypes); the field name should either be taken from nbi(*)%nbi_unit(*)%name, or describe the populations involved in the reaction, e.g. fast-thermal; the field index should separate different sources generated from a single injector or reaction. Vector(n_injectors_and_reactions)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="species" type="species_reference">
      <xs:annotation>
        <xs:documentation>Defines the source species represented in this element of the vector /distsource/source. Time-dependent</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="gyro_type" type="xs:integer">
      <xs:annotation>
        <xs:documentation>Defines how to interpret the spatial coordinates: 1 = given at the actual particle birth point; 2 =given at the gyro centre of the birth point.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="global_param" type="distsource_global_param">
      <xs:annotation>
        <xs:documentation>Global parameters.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="profiles_1d" type="distsource_profiles_1d">
      <xs:annotation>
        <xs:documentation>1D radial profiles</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="profiles_2d" type="distsource_profiles_2d">
      <xs:annotation>
        <xs:documentation>2D source profiles in terms of two phase space coordinates</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="line_srcprof" type="distsource_line_src_prof" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>1D profiles representation of a line source. Time-dependent</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="source_rate">
      <xs:annotation>
        <xs:documentation>Source density of particles in phase space (real space, velocity space, spin state).</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="grid" type="complexgrid">
            <xs:annotation>
              <xs:documentation>Grid for storing the source-rate. Time-dependent; Complexgrid</xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="value" type="complexgrid_scalar">
            <xs:annotation>
              <xs:documentation>The source-rate of particles in phase space; given on grid [(m/s)^-3 m^-3 s^-1]. Time-dependent; Complexgrid_scalar</xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="discrete" type="vecint_type">
            <xs:annotation>
              <xs:documentation>List of indexes for the dimensions (coordinates) of grid for which the source is discretely distributed. For example consider a source of 3.5 MeV alpha particles provided on a grid with two coordinates; rho_tor and energy. To specify that the source is given at energies exactly equal to 3.5 MeV, let discret have length 1 and set discrete=(1)=2 since energy is dimension number 2. The source is then proportional to delta( 1 - energy / 3.5MeV ), where delta is the Direct delta distribution. Discrete dimensions can only be used when the grid is rectangular. Time-dependent; Vector(n_discrete_dimensions)</xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="parameters">
            <xs:annotation>
              <xs:documentation>Parameters used to defined the grid coordiantes. Time-dependent</xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:sequence>
                <xs:element name="equatorial" type="equatorial_plane">
                  <xs:annotation>
                    <xs:documentation>Description of the equatorial plane or any other omnigeuous surfaces. Time-dependent</xs:documentation>
                  </xs:annotation>
                </xs:element>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="markers" type="weighted_markers">
      <xs:annotation>
        <xs:documentation>Source given as a set of markers (test particles) born per second.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element ref="codeparam">
      <xs:annotation>
        <xs:documentation>Code parameters of physics code, i.e. codes calculating a wave field.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

<xs:complexType name="distsource_global_param">
  <xs:annotation>
    <xs:documentation>Global parameters (volume integrated).</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="src_pow" type="exp0D">
      <xs:annotation>
        <xs:documentation>Total power source [W]; Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="src_rate" type="exp0D">
      <xs:annotation>
        <xs:documentation>Particle source rate [1/s]; Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="mag_axis" type="rz0D">
      <xs:annotation>
        <xs:documentation>Position of the magnetic axis. Time-dependent; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="toroid_field" type="b0r0">
      <xs:annotation>
        <xs:documentation>Characteristics of the vacuum toroidal field. Used to define the radial coordiante rho_tor. Time-dependent; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
