Included schema ecediag.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default qualified

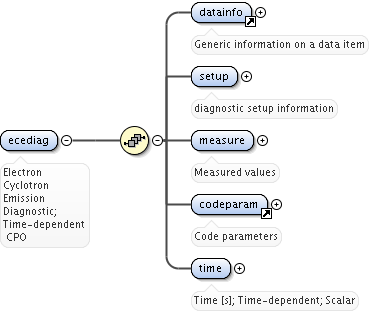

Element ecediag
Namespace No namespace
Annotations

Electron Cyclotron Emission Diagnostic; Time-dependent CPO
Diagram
Diagram utilities_xsd.tmp#datainfo ecediag_xsd.tmp#ecediag_setup ecediag_xsd.tmp#ecediag_measure utilities_xsd.tmp#codeparam ecediag_xsd.tmp#ecediag_time
Properties
content complex
Used by
Element top
Model
Children codeparam, datainfo, measure, setup, time
Instance

<ecediag>
  <datainfo>{1,1}</datainfo>
  <setup>{1,1}</setup>
  <measure>{1,1}</measure>
  <codeparam>{1,1}</codeparam>
  <time>{1,1}</time>
</ecediag>
Source

<xs:element name="ecediag">
  <xs:annotation>
    <xs:documentation>Electron Cyclotron Emission Diagnostic; Time-dependent CPO</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="datainfo"/>
      <xs:element name="setup" type="ecesetup">
        <xs:annotation>
          <xs:appinfo>machine description</xs:appinfo>
          <xs:documentation>diagnostic setup information</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="measure" type="ecemeasure">
        <xs:annotation>
          <xs:documentation>Measured values</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element ref="codeparam"/>
      <xs:element name="time" type="xs:float">
        <xs:annotation>
          <xs:documentation>Time [s]; Time-dependent; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

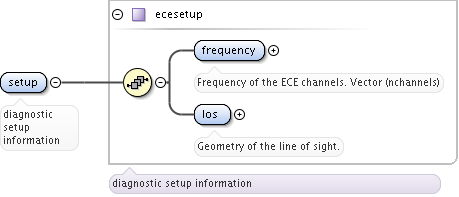

Element ecediag / setup
Namespace No namespace
Annotations

diagnostic setup information
Diagram
Diagram ecediag_xsd.tmp#ecesetup_frequency ecediag_xsd.tmp#ecesetup_los ecediag_xsd.tmp#ecesetup
Type ecesetup
Properties
content complex
Model
Children frequency, los
Instance

<setup>
  <frequency>{1,1}</frequency>
  <los>{1,1}</los>
</setup>
Source

<xs:element name="setup" type="ecesetup">
  <xs:annotation>
    <xs:appinfo>machine description</xs:appinfo>
    <xs:documentation>diagnostic setup information</xs:documentation>
  </xs:annotation>
</xs:element>
Element ecesetup / frequency
Namespace No namespace
Annotations

Frequency of the ECE channels. Vector (nchannels)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="frequency" type="vecflt_type">
  <xs:annotation>
    <xs:appinfo>experimental</xs:appinfo>
    <xs:documentation>Frequency of the ECE channels. Vector (nchannels)</xs:documentation>
  </xs:annotation>
</xs:element>

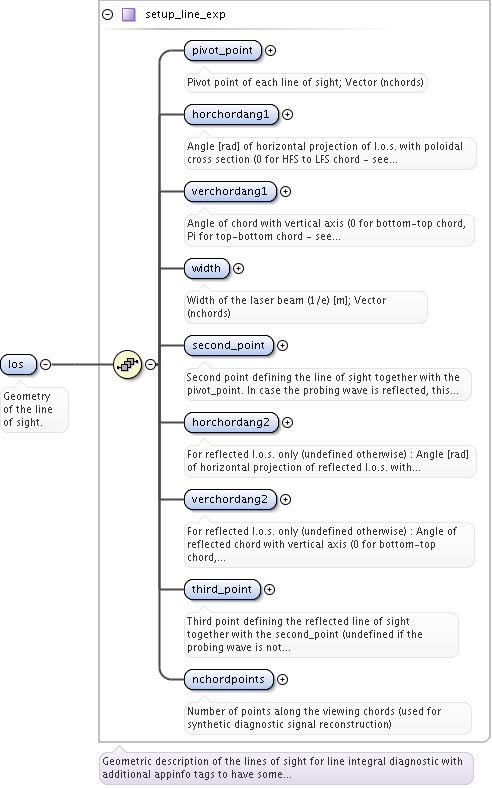

Element ecesetup / los
Namespace No namespace
Annotations

Geometry of the line of sight.
Diagram
Diagram utilities_xsd.tmp#setup_line_exp_pivot_point utilities_xsd.tmp#setup_line_exp_horchordang1 utilities_xsd.tmp#setup_line_exp_verchordang1 utilities_xsd.tmp#setup_line_exp_width utilities_xsd.tmp#setup_line_exp_second_point utilities_xsd.tmp#setup_line_exp_horchordang2 utilities_xsd.tmp#setup_line_exp_verchordang2 utilities_xsd.tmp#setup_line_exp_third_point utilities_xsd.tmp#setup_line_exp_nchordpoints utilities_xsd.tmp#setup_line_exp
Type setup_line_exp
Properties
content complex
Model
Children horchordang1, horchordang2, nchordpoints, pivot_point, second_point, third_point, verchordang1, verchordang2, width
Instance

<los>
  <pivot_point>{1,1}</pivot_point>
  <horchordang1>{1,1}</horchordang1>
  <verchordang1>{1,1}</verchordang1>
  <width>{1,1}</width>
  <second_point>{1,1}</second_point>
  <horchordang2>{1,1}</horchordang2>
  <verchordang2>{1,1}</verchordang2>
  <third_point>{1,1}</third_point>
  <nchordpoints>{1,1}</nchordpoints>
</los>
Source

<xs:element name="los" type="setup_line_exp">
  <xs:annotation>
    <xs:appinfo>machine description</xs:appinfo>
    <xs:documentation>Geometry of the line of sight.</xs:documentation>
  </xs:annotation>
</xs:element>

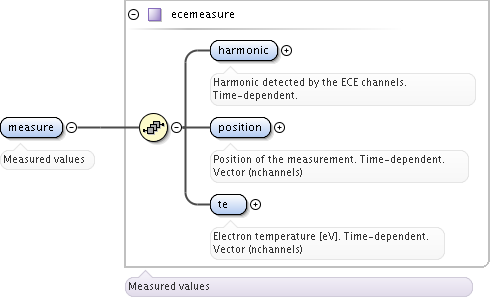

Element ecediag / measure
Namespace No namespace
Annotations

Measured values
Diagram
Diagram ecediag_xsd.tmp#ecemeasure_harmonic ecediag_xsd.tmp#ecemeasure_position ecediag_xsd.tmp#ecemeasure_te ecediag_xsd.tmp#ecemeasure
Type ecemeasure
Properties
content complex
Model
Children harmonic, position, te
Instance

<measure>
  <harmonic>{1,1}</harmonic>
  <position>{1,1}</position>
  <te>{1,1}</te>
</measure>
Source

<xs:element name="measure" type="ecemeasure">
  <xs:annotation>
    <xs:documentation>Measured values</xs:documentation>
  </xs:annotation>
</xs:element>
Element ecemeasure / harmonic
Namespace No namespace
Annotations

Harmonic detected by the  ECE channels. Time-dependent.
Diagram
Diagram
Type xs:integer
Properties
content simple
Source

<xs:element name="harmonic" type="xs:integer">
  <xs:annotation>
    <xs:documentation>Harmonic detected by the ECE channels. Time-dependent.</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>

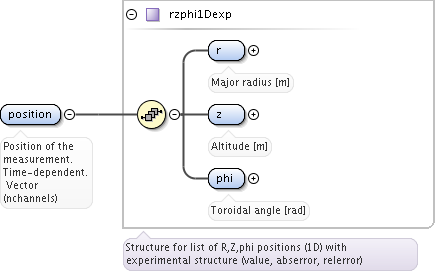

Element ecemeasure / position
Namespace No namespace
Annotations

Position of the measurement. Time-dependent. Vector (nchannels)
Diagram
Diagram utilities_xsd.tmp#rzphi1Dexp_r utilities_xsd.tmp#rzphi1Dexp_z utilities_xsd.tmp#rzphi1Dexp_phi utilities_xsd.tmp#rzphi1Dexp
Type rzphi1Dexp
Properties
content complex
Model
r , z , phi
Children phi, r, z
Instance

<position>
  <r>{1,1}</r>
  <z>{1,1}</z>
  <phi>{1,1}</phi>
</position>
Source

<xs:element name="position" type="rzphi1Dexp">
  <xs:annotation>
    <xs:documentation>Position of the measurement. Time-dependent. Vector (nchannels)</xs:documentation>
  </xs:annotation>
</xs:element>

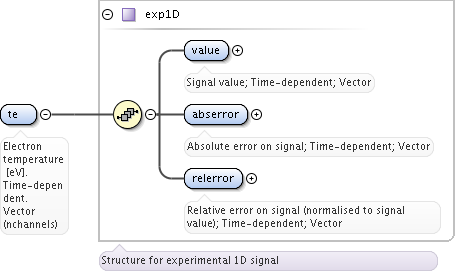

Element ecemeasure / te
Namespace No namespace
Annotations

Electron temperature [eV]. Time-dependent. Vector (nchannels)
Diagram
Diagram utilities_xsd.tmp#exp1D_value utilities_xsd.tmp#exp1D_abserror utilities_xsd.tmp#exp1D_relerror utilities_xsd.tmp#exp1D
Type exp1D
Properties
content complex
Model
Children abserror, relerror, value
Instance

<te>
  <value>{1,1}</value>
  <abserror>{1,1}</abserror>
  <relerror>{1,1}</relerror>
</te>
Source

<xs:element name="te" type="exp1D">
  <xs:annotation>
    <xs:documentation>Electron temperature [eV]. Time-dependent. Vector (nchannels)</xs:documentation>
  </xs:annotation>
</xs:element>
Element ecediag / time
Namespace No namespace
Annotations

Time [s]; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="time" type="xs:float">
  <xs:annotation>
    <xs:documentation>Time [s]; Time-dependent; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

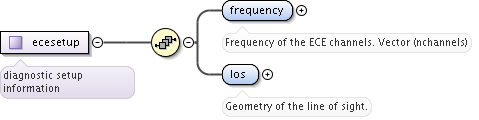

Complex Type ecesetup
Namespace No namespace
Annotations

diagnostic setup information
Diagram
Diagram ecediag_xsd.tmp#ecesetup_frequency ecediag_xsd.tmp#ecesetup_los
Used by
Element ecediag/setup
Model
Children frequency, los
Source

<xs:complexType name="ecesetup">
  <xs:annotation>
    <xs:appinfo>parent-dependent</xs:appinfo>
    <xs:documentation>diagnostic setup information</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="frequency" type="vecflt_type">
      <xs:annotation>
        <xs:appinfo>experimental</xs:appinfo>
        <xs:documentation>Frequency of the ECE channels. Vector (nchannels)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="los" type="setup_line_exp">
      <xs:annotation>
        <xs:appinfo>machine description</xs:appinfo>
        <xs:documentation>Geometry of the line of sight.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

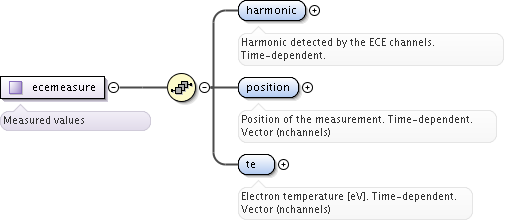

Complex Type ecemeasure
Namespace No namespace
Annotations

Measured values
Diagram
Diagram ecediag_xsd.tmp#ecemeasure_harmonic ecediag_xsd.tmp#ecemeasure_position ecediag_xsd.tmp#ecemeasure_te
Used by
Element ecediag/measure
Model
Children harmonic, position, te
Source

<xs:complexType name="ecemeasure">
  <xs:annotation>
    <xs:documentation>Measured values</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="harmonic" type="xs:integer">
      <xs:annotation>
        <xs:documentation>Harmonic detected by the ECE channels. Time-dependent.</xs:documentation>
        <xs:appinfo>experimental</xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element name="position" type="rzphi1Dexp">
      <xs:annotation>
        <xs:documentation>Position of the measurement. Time-dependent. Vector (nchannels)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="te" type="exp1D">
      <xs:annotation>
        <xs:documentation>Electron temperature [eV]. Time-dependent. Vector (nchannels)</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
