Included schema edge.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default qualified
Element edge
Namespace No namespace
Annotations

CPO for edge/SOL plasma  description. Time-dependent CPO
Diagram
Diagram utilities_xsd.tmp#datainfo edge_xsd.tmp#edge_grid edge_xsd.tmp#edge_species edge_xsd.tmp#edge_compositions edge_xsd.tmp#edge_fluid edge_xsd.tmp#edge_kinetic utilities_xsd.tmp#codeparam edge_xsd.tmp#edge_time
Properties
content complex
Used by
Element top
Model
Children codeparam, compositions, datainfo, fluid, grid, kinetic, species, time
Instance

<edge>
  <datainfo>{1,1}</datainfo>
  <grid>{1,1}</grid>
  <species>{1,unbounded}</species>
  <compositions>{1,1}</compositions>
  <fluid>{1,1}</fluid>
  <kinetic>{1,1}</kinetic>
  <codeparam>{1,1}</codeparam>
  <time>{1,1}</time>
</edge>
Source

<xs:element name="edge">
  <xs:annotation>
    <xs:documentation>CPO for edge/SOL plasma description. Time-dependent CPO</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="datainfo"/>
      <xs:element name="grid" type="complexgrid">
        <xs:annotation>
          <xs:documentation>Grid description</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="species" type="species_desc" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>Description of ion species. Array of structures(nspecies)</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="compositions" type="compositions_type">
        <xs:annotation>
          <xs:documentation>Contains all the composition information for the simulation (main ions, impurities, neutrals, edge species).</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="fluid" type="edge_fluid">
        <xs:annotation>
          <xs:documentation>Fluid description of edge plasma. Time-dependent.</xs:documentation>
        </xs:annotation>
      </xs:element>

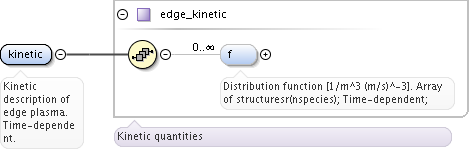

      <xs:element name="kinetic" type="edge_kinetic">
        <xs:annotation>
          <xs:documentation>Kinetic description of edge plasma. Time-dependent.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element ref="codeparam"/>
      <xs:element name="time" type="xs:float" default="0.0">
        <xs:annotation>
          <xs:documentation>Time [s]; Time-dependent; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

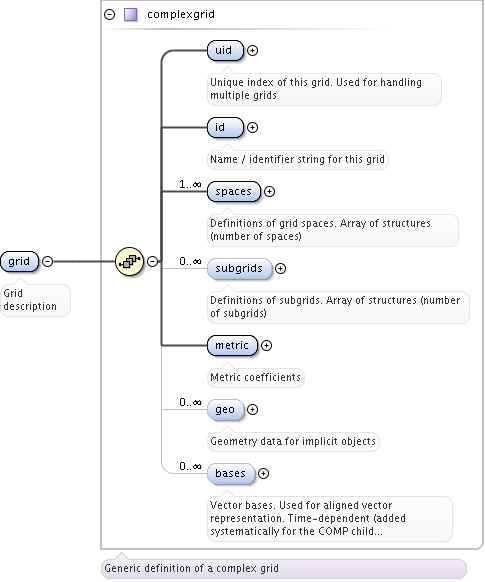

Element edge / grid
Namespace No namespace
Annotations

Grid description
Diagram
Diagram utilities_xsd.tmp#complexgrid_uid utilities_xsd.tmp#complexgrid_id utilities_xsd.tmp#complexgrid_spaces utilities_xsd.tmp#complexgrid_subgrids utilities_xsd.tmp#complexgrid_metric utilities_xsd.tmp#complexgrid_geo utilities_xsd.tmp#complexgrid_bases utilities_xsd.tmp#complexgrid
Type complexgrid
Properties
content complex
Model
Children bases, geo, id, metric, spaces, subgrids, uid
Instance

<grid>
  <uid>{1,1}</uid>
  <id>{1,1}</id>
  <spaces>{1,unbounded}</spaces>
  <subgrids>{0,unbounded}</subgrids>
  <metric>{1,1}</metric>
  <geo>{0,unbounded}</geo>
  <bases>{0,unbounded}</bases>
</grid>
Source

<xs:element name="grid" type="complexgrid">
  <xs:annotation>
    <xs:documentation>Grid description</xs:documentation>
  </xs:annotation>
</xs:element>

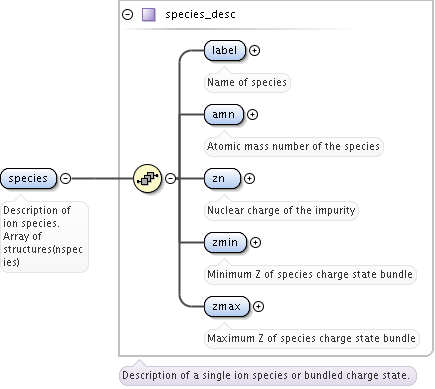

Element edge / species
Namespace No namespace
Annotations

Description of ion species. Array of structures(nspecies)
Diagram
Diagram utilities_xsd.tmp#species_desc_label utilities_xsd.tmp#species_desc_amn utilities_xsd.tmp#species_desc_zn utilities_xsd.tmp#species_desc_zmin utilities_xsd.tmp#species_desc_zmax utilities_xsd.tmp#species_desc
Type species_desc
Properties
content complex
maxOccurs unbounded
Model
label , amn , zn , zmin , zmax
Children amn, label, zmax, zmin, zn
Instance

<species>
  <label>{1,1}</label>
  <amn>{1,1}</amn>
  <zn>{1,1}</zn>
  <zmin>{1,1}</zmin>
  <zmax>{1,1}</zmax>
</species>
Source

<xs:element name="species" type="species_desc" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Description of ion species. Array of structures(nspecies)</xs:documentation>
  </xs:annotation>
</xs:element>

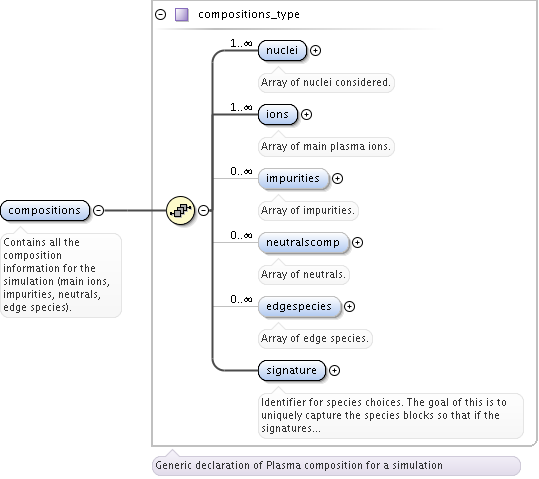

Element edge / compositions
Namespace No namespace
Annotations

Contains all the composition information for the simulation (main ions, impurities, neutrals, edge species).
Diagram
Diagram utilities_xsd.tmp#compositions_type_nuclei utilities_xsd.tmp#compositions_type_ions utilities_xsd.tmp#compositions_type_impurities utilities_xsd.tmp#compositions_type_neutralscomp utilities_xsd.tmp#compositions_type_edgespecies utilities_xsd.tmp#compositions_type_signature utilities_xsd.tmp#compositions_type
Type compositions_type
Properties
content complex
Model
Children edgespecies, impurities, ions, neutralscomp, nuclei, signature
Instance

<compositions>
  <nuclei>{1,unbounded}</nuclei>
  <ions>{1,unbounded}</ions>
  <impurities>{0,unbounded}</impurities>
  <neutralscomp>{0,unbounded}</neutralscomp>
  <edgespecies>{0,unbounded}</edgespecies>
  <signature>{1,1}</signature>
</compositions>
Source

<xs:element name="compositions" type="compositions_type">
  <xs:annotation>
    <xs:documentation>Contains all the composition information for the simulation (main ions, impurities, neutrals, edge species).</xs:documentation>
  </xs:annotation>
</xs:element>

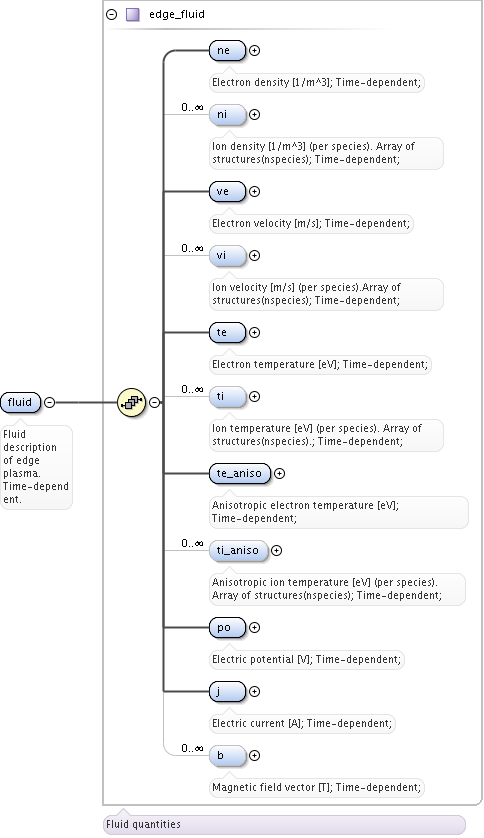

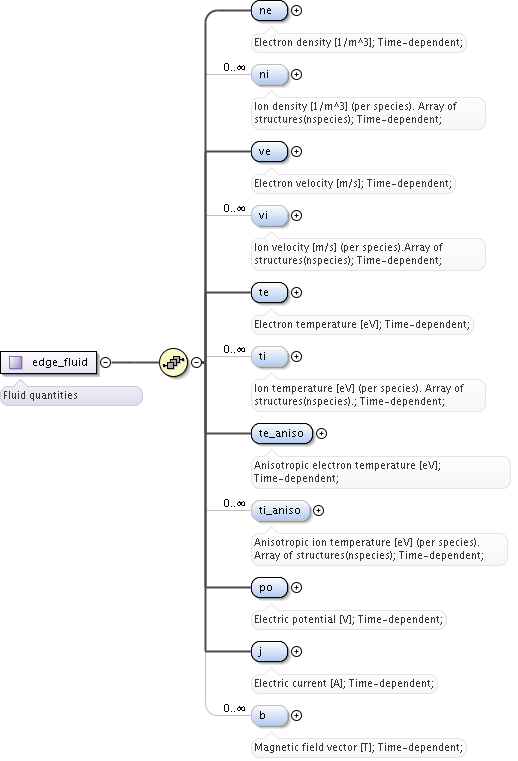

Element edge / fluid
Namespace No namespace
Annotations

Fluid description of edge plasma. Time-dependent.
Diagram
Diagram edge_xsd.tmp#NO_NAMESPACE_edge_fluid_ne edge_xsd.tmp#NO_NAMESPACE_edge_fluid_ni edge_xsd.tmp#NO_NAMESPACE_edge_fluid_ve edge_xsd.tmp#NO_NAMESPACE_edge_fluid_vi edge_xsd.tmp#NO_NAMESPACE_edge_fluid_te edge_xsd.tmp#NO_NAMESPACE_edge_fluid_ti edge_xsd.tmp#NO_NAMESPACE_edge_fluid_te_aniso edge_xsd.tmp#NO_NAMESPACE_edge_fluid_ti_aniso edge_xsd.tmp#NO_NAMESPACE_edge_fluid_po edge_xsd.tmp#NO_NAMESPACE_edge_fluid_j edge_xsd.tmp#NO_NAMESPACE_edge_fluid_b edge_xsd.tmp#NO_NAMESPACE_edge_fluid
Type edge_fluid
Properties
content complex
Model
ne , ni* , ve , vi* , te , ti* , te_aniso , ti_aniso* , po , j , b*
Children b, j, ne, ni, po, te, te_aniso, ti, ti_aniso, ve, vi
Instance

<fluid>
  <ne>{1,1}</ne>
  <ni>{0,unbounded}</ni>
  <ve>{1,1}</ve>
  <vi>{0,unbounded}</vi>
  <te>{1,1}</te>
  <ti>{0,unbounded}</ti>
  <te_aniso>{1,1}</te_aniso>
  <ti_aniso>{0,unbounded}</ti_aniso>
  <po>{1,1}</po>
  <j>{1,1}</j>
  <b>{0,unbounded}</b>
</fluid>
Source

<xs:element name="fluid" type="edge_fluid">
  <xs:annotation>
    <xs:documentation>Fluid description of edge plasma. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>

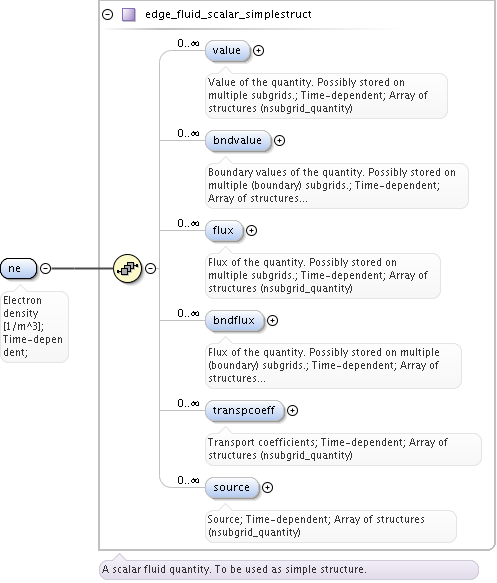

Element edge_fluid / ne
Namespace No namespace
Annotations

Electron density [1/m^3]; Time-dependent;
Diagram

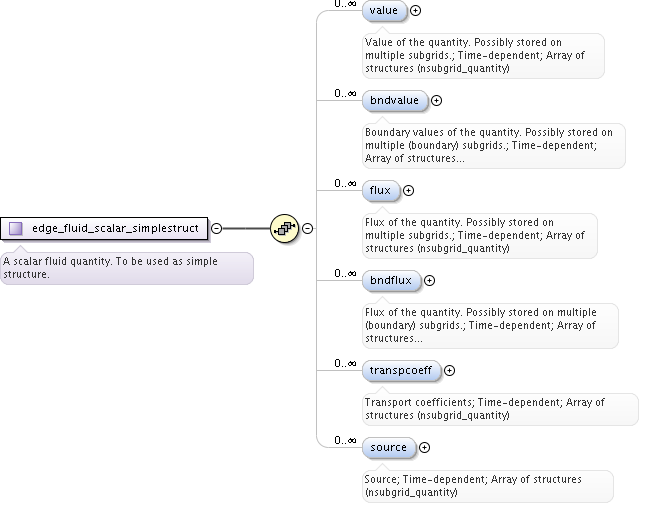

Diagram edge_xsd.tmp#edge_fluid_scalar_simplestruct_value edge_xsd.tmp#edge_fluid_scalar_simplestruct_bndvalue edge_xsd.tmp#edge_fluid_scalar_simplestruct_flux edge_xsd.tmp#edge_fluid_scalar_simplestruct_bndflux edge_xsd.tmp#edge_fluid_scalar_simplestruct_transpcoeff edge_xsd.tmp#edge_fluid_scalar_simplestruct_source edge_xsd.tmp#edge_fluid_scalar_simplestruct
Type edge_fluid_scalar_simplestruct
Properties
content complex
Model
Children bndflux, bndvalue, flux, source, transpcoeff, value
Instance

<ne>
  <value>{0,unbounded}</value>
  <bndvalue>{0,unbounded}</bndvalue>
  <flux>{0,unbounded}</flux>
  <bndflux>{0,unbounded}</bndflux>
  <transpcoeff>{0,unbounded}</transpcoeff>
  <source>{0,unbounded}</source>
</ne>
Source

<xs:element name="ne" type="edge_fluid_scalar_simplestruct">
  <xs:annotation>
    <xs:documentation>Electron density [1/m^3]; Time-dependent;</xs:documentation>
  </xs:annotation>
</xs:element>

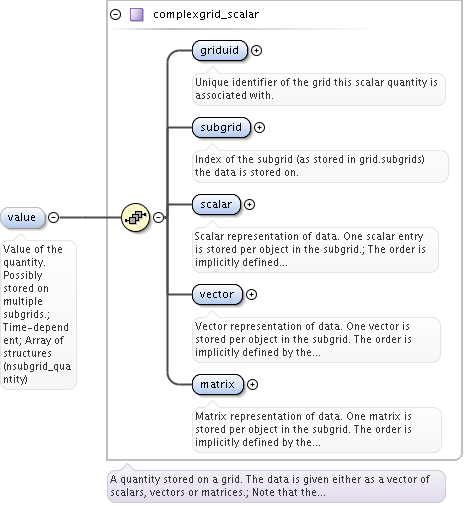

Element edge_fluid_scalar_simplestruct / value
Namespace No namespace
Annotations

Value of the quantity. Possibly stored on multiple subgrids.; Time-dependent; Array of structures (nsubgrid_quantity)
Diagram
Diagram utilities_xsd.tmp#complexgrid_scalar_griduid utilities_xsd.tmp#complexgrid_scalar_subgrid utilities_xsd.tmp#complexgrid_scalar_scalar utilities_xsd.tmp#complexgrid_scalar_vector utilities_xsd.tmp#complexgrid_scalar_matrix utilities_xsd.tmp#complexgrid_scalar
Type complexgrid_scalar
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children griduid, matrix, scalar, subgrid, vector
Instance

<value>
  <griduid>{1,1}</griduid>
  <subgrid>{1,1}</subgrid>
  <scalar>{1,1}</scalar>
  <vector>{1,1}</vector>
  <matrix>{1,1}</matrix>
</value>
Source

<xs:element name="value" type="complexgrid_scalar" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Value of the quantity. Possibly stored on multiple subgrids.; Time-dependent; Array of structures (nsubgrid_quantity)</xs:documentation>
  </xs:annotation>
</xs:element>

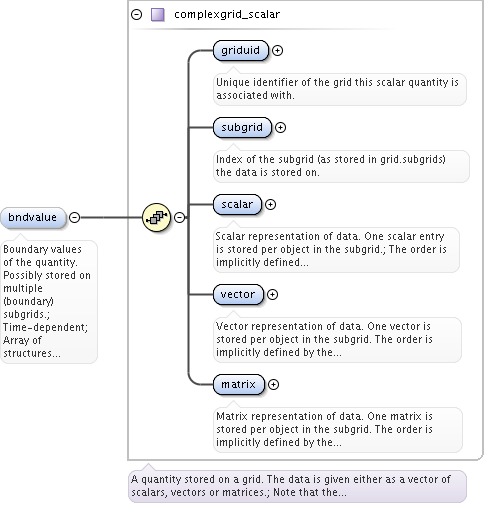

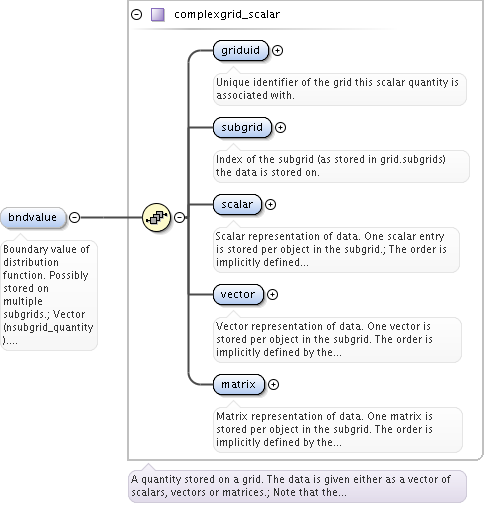

Element edge_fluid_scalar_simplestruct / bndvalue
Namespace No namespace
Annotations

Boundary values of the quantity. Possibly stored on multiple (boundary) subgrids.; Time-dependent; Array of structures (nsubgrid_quantity)
Diagram
Diagram utilities_xsd.tmp#complexgrid_scalar_griduid utilities_xsd.tmp#complexgrid_scalar_subgrid utilities_xsd.tmp#complexgrid_scalar_scalar utilities_xsd.tmp#complexgrid_scalar_vector utilities_xsd.tmp#complexgrid_scalar_matrix utilities_xsd.tmp#complexgrid_scalar
Type complexgrid_scalar
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children griduid, matrix, scalar, subgrid, vector
Instance

<bndvalue>
  <griduid>{1,1}</griduid>
  <subgrid>{1,1}</subgrid>
  <scalar>{1,1}</scalar>
  <vector>{1,1}</vector>
  <matrix>{1,1}</matrix>
</bndvalue>
Source

<xs:element name="bndvalue" type="complexgrid_scalar" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Boundary values of the quantity. Possibly stored on multiple (boundary) subgrids.; Time-dependent; Array of structures (nsubgrid_quantity)</xs:documentation>
  </xs:annotation>
</xs:element>

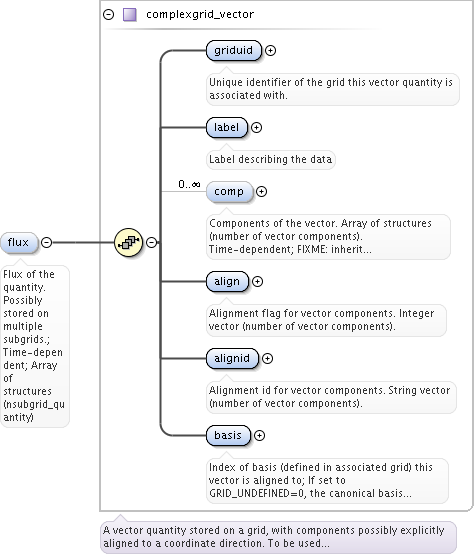

Element edge_fluid_scalar_simplestruct / flux
Namespace No namespace
Annotations

Flux of the quantity. Possibly stored on multiple subgrids.; Time-dependent; Array of structures (nsubgrid_quantity)
Diagram
Diagram utilities_xsd.tmp#complexgrid_vector_griduid utilities_xsd.tmp#complexgrid_vector_label utilities_xsd.tmp#complexgrid_vector_comp utilities_xsd.tmp#complexgrid_vector_align utilities_xsd.tmp#complexgrid_vector_alignid utilities_xsd.tmp#complexgrid_vector_basis utilities_xsd.tmp#complexgrid_vector
Type complexgrid_vector
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children align, alignid, basis, comp, griduid, label
Instance

<flux>
  <griduid>{1,1}</griduid>
  <label>{1,1}</label>
  <comp>{0,unbounded}</comp>
  <align>{1,1}</align>
  <alignid>{1,1}</alignid>
  <basis>{1,1}</basis>
</flux>
Source

<xs:element name="flux" type="complexgrid_vector" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Flux of the quantity. Possibly stored on multiple subgrids.; Time-dependent; Array of structures (nsubgrid_quantity)</xs:documentation>
  </xs:annotation>
</xs:element>

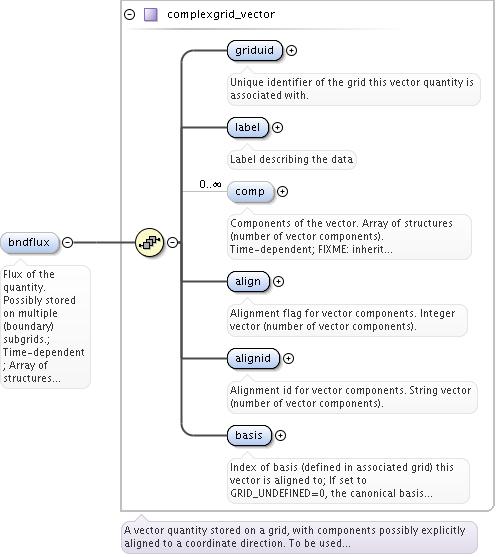

Element edge_fluid_scalar_simplestruct / bndflux
Namespace No namespace
Annotations

Flux of the quantity. Possibly stored on multiple (boundary) subgrids.; Time-dependent; Array of structures (nsubgrid_quantity)
Diagram
Diagram utilities_xsd.tmp#complexgrid_vector_griduid utilities_xsd.tmp#complexgrid_vector_label utilities_xsd.tmp#complexgrid_vector_comp utilities_xsd.tmp#complexgrid_vector_align utilities_xsd.tmp#complexgrid_vector_alignid utilities_xsd.tmp#complexgrid_vector_basis utilities_xsd.tmp#complexgrid_vector
Type complexgrid_vector
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children align, alignid, basis, comp, griduid, label
Instance

<bndflux>
  <griduid>{1,1}</griduid>
  <label>{1,1}</label>
  <comp>{0,unbounded}</comp>
  <align>{1,1}</align>
  <alignid>{1,1}</alignid>
  <basis>{1,1}</basis>
</bndflux>
Source

<xs:element name="bndflux" type="complexgrid_vector" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Flux of the quantity. Possibly stored on multiple (boundary) subgrids.; Time-dependent; Array of structures (nsubgrid_quantity)</xs:documentation>
  </xs:annotation>
</xs:element>

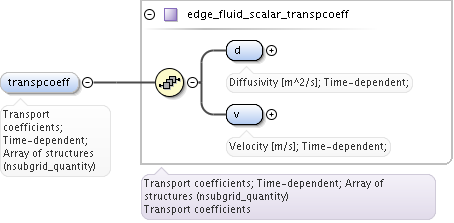

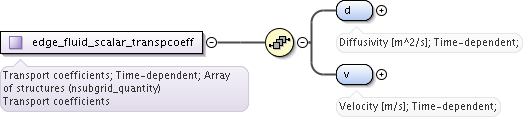

Element edge_fluid_scalar_simplestruct / transpcoeff
Namespace No namespace
Annotations

Transport coefficients; Time-dependent; Array of structures (nsubgrid_quantity)
Diagram
Diagram edge_xsd.tmp#edge_fluid_scalar_transpcoeff_d edge_xsd.tmp#edge_fluid_scalar_transpcoeff_v edge_xsd.tmp#edge_fluid_scalar_transpcoeff
Type edge_fluid_scalar_transpcoeff
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
d , v
Children d, v
Instance

<transpcoeff>
  <d>{1,1}</d>
  <v>{1,1}</v>
</transpcoeff>
Source

<xs:element name="transpcoeff" type="edge_fluid_scalar_transpcoeff" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Transport coefficients; Time-dependent; Array of structures (nsubgrid_quantity)</xs:documentation>
  </xs:annotation>
</xs:element>
Element edge_fluid_scalar_transpcoeff / d
Namespace No namespace
Annotations

Diffusivity [m^2/s]; Time-dependent;
Diagram
Diagram utilities_xsd.tmp#complexgrid_vector_simplestruct_label utilities_xsd.tmp#complexgrid_vector_simplestruct_comp utilities_xsd.tmp#complexgrid_vector_simplestruct_align utilities_xsd.tmp#complexgrid_vector_simplestruct_alignid utilities_xsd.tmp#complexgrid_vector_simplestruct
Type complexgrid_vector_simplestruct
Properties
content complex
Model
Children align, alignid, comp, label
Instance

<d>
  <label>{1,1}</label>
  <comp>{0,unbounded}</comp>
  <align>{1,1}</align>
  <alignid>{1,1}</alignid>
</d>
Source

<xs:element name="d" type="complexgrid_vector_simplestruct">
  <xs:annotation>
    <xs:documentation>Diffusivity [m^2/s]; Time-dependent;</xs:documentation>
  </xs:annotation>
</xs:element>

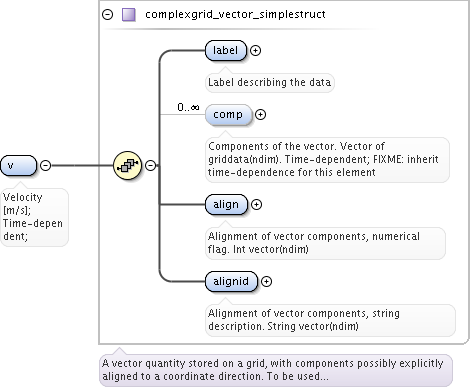

Element edge_fluid_scalar_transpcoeff / v
Namespace No namespace
Annotations

Velocity [m/s]; Time-dependent;
Diagram
Diagram utilities_xsd.tmp#complexgrid_vector_simplestruct_label utilities_xsd.tmp#complexgrid_vector_simplestruct_comp utilities_xsd.tmp#complexgrid_vector_simplestruct_align utilities_xsd.tmp#complexgrid_vector_simplestruct_alignid utilities_xsd.tmp#complexgrid_vector_simplestruct
Type complexgrid_vector_simplestruct
Properties
content complex
Model
Children align, alignid, comp, label
Instance

<v>
  <label>{1,1}</label>
  <comp>{0,unbounded}</comp>
  <align>{1,1}</align>
  <alignid>{1,1}</alignid>
</v>
Source

<xs:element name="v" type="complexgrid_vector_simplestruct">
  <xs:annotation>
    <xs:documentation>Velocity [m/s]; Time-dependent;</xs:documentation>
  </xs:annotation>
</xs:element>

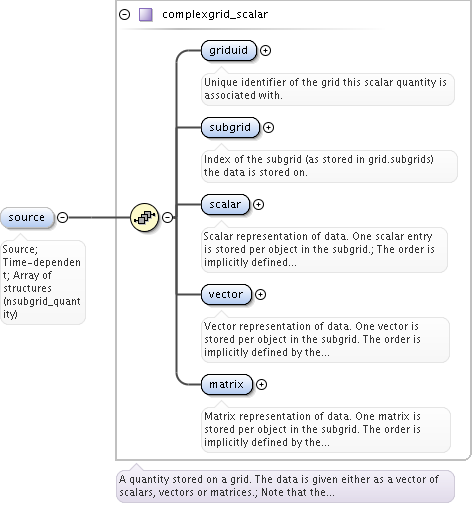

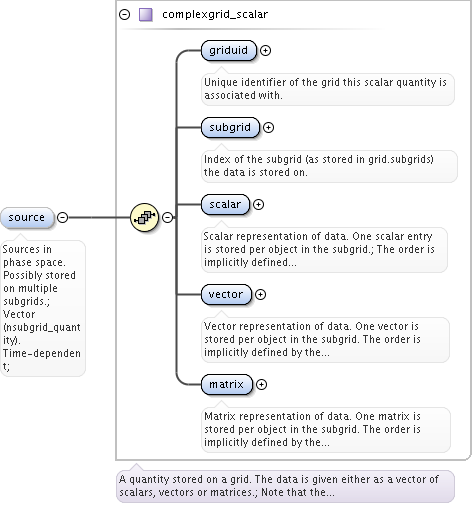

Element edge_fluid_scalar_simplestruct / source
Namespace No namespace
Annotations

Source; Time-dependent; Array of structures (nsubgrid_quantity)
Diagram
Diagram utilities_xsd.tmp#complexgrid_scalar_griduid utilities_xsd.tmp#complexgrid_scalar_subgrid utilities_xsd.tmp#complexgrid_scalar_scalar utilities_xsd.tmp#complexgrid_scalar_vector utilities_xsd.tmp#complexgrid_scalar_matrix utilities_xsd.tmp#complexgrid_scalar
Type complexgrid_scalar
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children griduid, matrix, scalar, subgrid, vector
Instance

<source>
  <griduid>{1,1}</griduid>
  <subgrid>{1,1}</subgrid>
  <scalar>{1,1}</scalar>
  <vector>{1,1}</vector>
  <matrix>{1,1}</matrix>
</source>
Source

<xs:element name="source" type="complexgrid_scalar" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Source; Time-dependent; Array of structures (nsubgrid_quantity)</xs:documentation>
  </xs:annotation>
</xs:element>

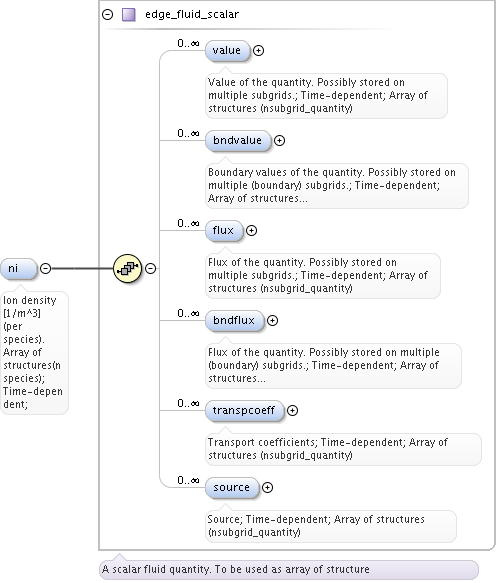

Element edge_fluid / ni
Namespace No namespace
Annotations

Ion density [1/m^3] (per species). Array of structures(nspecies); Time-dependent;
Diagram
Diagram edge_xsd.tmp#edge_fluid_scalar_value edge_xsd.tmp#edge_fluid_scalar_bndvalue edge_xsd.tmp#edge_fluid_scalar_flux edge_xsd.tmp#edge_fluid_scalar_bndflux edge_xsd.tmp#NO_NAMESPACE_edge_fluid_scalar_transpcoeff edge_xsd.tmp#edge_fluid_scalar_source edge_xsd.tmp#edge_fluid_scalar
Type edge_fluid_scalar
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children bndflux, bndvalue, flux, source, transpcoeff, value
Instance

<ni>
  <value>{0,unbounded}</value>
  <bndvalue>{0,unbounded}</bndvalue>
  <flux>{0,unbounded}</flux>
  <bndflux>{0,unbounded}</bndflux>
  <transpcoeff>{0,unbounded}</transpcoeff>
  <source>{0,unbounded}</source>
</ni>
Source

<xs:element name="ni" type="edge_fluid_scalar" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Ion density [1/m^3] (per species). Array of structures(nspecies); Time-dependent;</xs:documentation>
  </xs:annotation>
</xs:element>

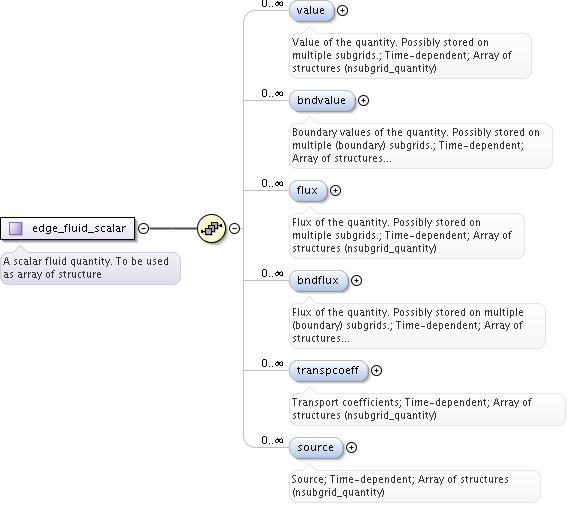

Element edge_fluid_scalar / value
Namespace No namespace
Annotations

Value of the quantity. Possibly stored on multiple subgrids.; Time-dependent; Array of structures (nsubgrid_quantity)
Diagram
Diagram utilities_xsd.tmp#complexgrid_scalar_griduid utilities_xsd.tmp#complexgrid_scalar_subgrid utilities_xsd.tmp#complexgrid_scalar_scalar utilities_xsd.tmp#complexgrid_scalar_vector utilities_xsd.tmp#complexgrid_scalar_matrix utilities_xsd.tmp#complexgrid_scalar
Type complexgrid_scalar
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children griduid, matrix, scalar, subgrid, vector
Instance

<value>
  <griduid>{1,1}</griduid>
  <subgrid>{1,1}</subgrid>
  <scalar>{1,1}</scalar>
  <vector>{1,1}</vector>
  <matrix>{1,1}</matrix>
</value>
Source

<xs:element name="value" type="complexgrid_scalar" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Value of the quantity. Possibly stored on multiple subgrids.; Time-dependent; Array of structures (nsubgrid_quantity)</xs:documentation>
  </xs:annotation>
</xs:element>
Element edge_fluid_scalar / bndvalue
Namespace No namespace
Annotations

Boundary values of the quantity. Possibly stored on multiple (boundary) subgrids.; Time-dependent; Array of structures (nsubgrid_quantity)
Diagram
Diagram utilities_xsd.tmp#complexgrid_scalar_griduid utilities_xsd.tmp#complexgrid_scalar_subgrid utilities_xsd.tmp#complexgrid_scalar_scalar utilities_xsd.tmp#complexgrid_scalar_vector utilities_xsd.tmp#complexgrid_scalar_matrix utilities_xsd.tmp#complexgrid_scalar
Type complexgrid_scalar
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children griduid, matrix, scalar, subgrid, vector
Instance

<bndvalue>
  <griduid>{1,1}</griduid>
  <subgrid>{1,1}</subgrid>
  <scalar>{1,1}</scalar>
  <vector>{1,1}</vector>
  <matrix>{1,1}</matrix>
</bndvalue>
Source

<xs:element name="bndvalue" type="complexgrid_scalar" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Boundary values of the quantity. Possibly stored on multiple (boundary) subgrids.; Time-dependent; Array of structures (nsubgrid_quantity)</xs:documentation>
  </xs:annotation>
</xs:element>
Element edge_fluid_scalar / flux
Namespace No namespace
Annotations

Flux of the quantity. Possibly stored on multiple subgrids.; Time-dependent; Array of structures (nsubgrid_quantity)
Diagram
Diagram utilities_xsd.tmp#complexgrid_vector_griduid utilities_xsd.tmp#complexgrid_vector_label utilities_xsd.tmp#complexgrid_vector_comp utilities_xsd.tmp#complexgrid_vector_align utilities_xsd.tmp#complexgrid_vector_alignid utilities_xsd.tmp#complexgrid_vector_basis utilities_xsd.tmp#complexgrid_vector
Type complexgrid_vector
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children align, alignid, basis, comp, griduid, label
Instance

<flux>
  <griduid>{1,1}</griduid>
  <label>{1,1}</label>
  <comp>{0,unbounded}</comp>
  <align>{1,1}</align>
  <alignid>{1,1}</alignid>
  <basis>{1,1}</basis>
</flux>
Source

<xs:element name="flux" type="complexgrid_vector" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Flux of the quantity. Possibly stored on multiple subgrids.; Time-dependent; Array of structures (nsubgrid_quantity)</xs:documentation>
  </xs:annotation>
</xs:element>
Element edge_fluid_scalar / bndflux
Namespace No namespace
Annotations

Flux of the quantity. Possibly stored on multiple (boundary) subgrids.; Time-dependent; Array of structures (nsubgrid_quantity)
Diagram
Diagram utilities_xsd.tmp#complexgrid_vector_griduid utilities_xsd.tmp#complexgrid_vector_label utilities_xsd.tmp#complexgrid_vector_comp utilities_xsd.tmp#complexgrid_vector_align utilities_xsd.tmp#complexgrid_vector_alignid utilities_xsd.tmp#complexgrid_vector_basis utilities_xsd.tmp#complexgrid_vector
Type complexgrid_vector
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children align, alignid, basis, comp, griduid, label
Instance

<bndflux>
  <griduid>{1,1}</griduid>
  <label>{1,1}</label>
  <comp>{0,unbounded}</comp>
  <align>{1,1}</align>
  <alignid>{1,1}</alignid>
  <basis>{1,1}</basis>
</bndflux>
Source

<xs:element name="bndflux" type="complexgrid_vector" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Flux of the quantity. Possibly stored on multiple (boundary) subgrids.; Time-dependent; Array of structures (nsubgrid_quantity)</xs:documentation>
  </xs:annotation>
</xs:element>
Element edge_fluid_scalar / transpcoeff
Namespace No namespace
Annotations

Transport coefficients; Time-dependent; Array of structures (nsubgrid_quantity)
Diagram
Diagram edge_xsd.tmp#edge_fluid_scalar_transpcoeff_d edge_xsd.tmp#edge_fluid_scalar_transpcoeff_v edge_xsd.tmp#edge_fluid_scalar_transpcoeff
Type edge_fluid_scalar_transpcoeff
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
d , v
Children d, v
Instance

<transpcoeff>
  <d>{1,1}</d>
  <v>{1,1}</v>
</transpcoeff>
Source

<xs:element name="transpcoeff" type="edge_fluid_scalar_transpcoeff" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Transport coefficients; Time-dependent; Array of structures (nsubgrid_quantity)</xs:documentation>
  </xs:annotation>
</xs:element>
Element edge_fluid_scalar / source
Namespace No namespace
Annotations

Source; Time-dependent; Array of structures (nsubgrid_quantity)
Diagram
Diagram utilities_xsd.tmp#complexgrid_scalar_griduid utilities_xsd.tmp#complexgrid_scalar_subgrid utilities_xsd.tmp#complexgrid_scalar_scalar utilities_xsd.tmp#complexgrid_scalar_vector utilities_xsd.tmp#complexgrid_scalar_matrix utilities_xsd.tmp#complexgrid_scalar
Type complexgrid_scalar
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children griduid, matrix, scalar, subgrid, vector
Instance

<source>
  <griduid>{1,1}</griduid>
  <subgrid>{1,1}</subgrid>
  <scalar>{1,1}</scalar>
  <vector>{1,1}</vector>
  <matrix>{1,1}</matrix>
</source>
Source

<xs:element name="source" type="complexgrid_scalar" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Source; Time-dependent; Array of structures (nsubgrid_quantity)</xs:documentation>
  </xs:annotation>
</xs:element>

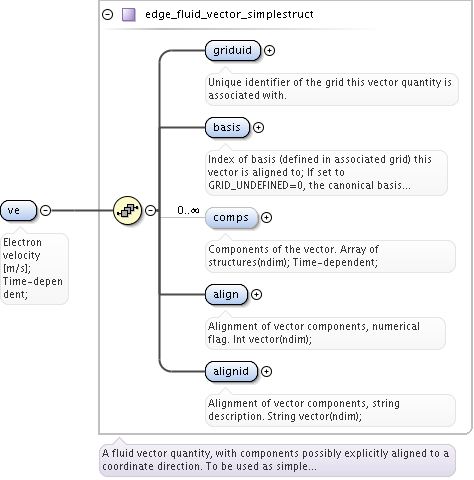

Element edge_fluid / ve
Namespace No namespace
Annotations

Electron velocity [m/s]; Time-dependent;
Diagram
Diagram edge_xsd.tmp#edge_fluid_vector_simplestruct_griduid edge_xsd.tmp#edge_fluid_vector_simplestruct_basis edge_xsd.tmp#edge_fluid_vector_simplestruct_comps edge_xsd.tmp#edge_fluid_vector_simplestruct_align edge_xsd.tmp#edge_fluid_vector_simplestruct_alignid edge_xsd.tmp#edge_fluid_vector_simplestruct
Type edge_fluid_vector_simplestruct
Properties
content complex
Model
Children align, alignid, basis, comps, griduid
Instance

<ve>
  <griduid>{1,1}</griduid>
  <basis>{1,1}</basis>
  <comps>{0,unbounded}</comps>
  <align>{1,1}</align>
  <alignid>{1,1}</alignid>
</ve>
Source

<xs:element name="ve" type="edge_fluid_vector_simplestruct">
  <xs:annotation>
    <xs:documentation>Electron velocity [m/s]; Time-dependent;</xs:documentation>
  </xs:annotation>
</xs:element>

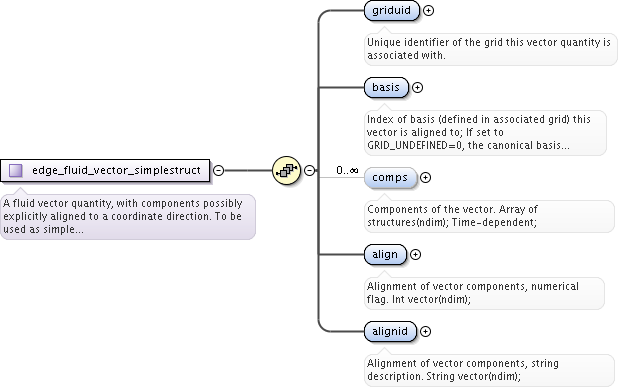

Element edge_fluid_vector_simplestruct / griduid
Namespace No namespace
Annotations

Unique identifier of the grid this vector quantity is associated with.
Diagram
Diagram
Type xs:integer
Properties
content simple
Source

<xs:element name="griduid" type="xs:integer">
  <xs:annotation>
    <xs:documentation>Unique identifier of the grid this vector quantity is associated with.</xs:documentation>
  </xs:annotation>
</xs:element>

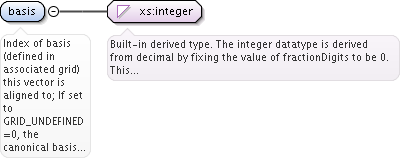

Element edge_fluid_vector_simplestruct / basis
Namespace No namespace
Annotations

Index of basis (defined in associated grid) this vector is aligned to; If set to GRID_UNDEFINED=0, the canonical basis of the default coordinates of the grid assumed.
Diagram
Diagram
Type xs:integer
Properties
content simple
Source

<xs:element name="basis" type="xs:integer">
  <xs:annotation>
    <xs:documentation>Index of basis (defined in associated grid) this vector is aligned to; If set to GRID_UNDEFINED=0, the canonical basis of the default coordinates of the grid assumed.</xs:documentation>
  </xs:annotation>
</xs:element>

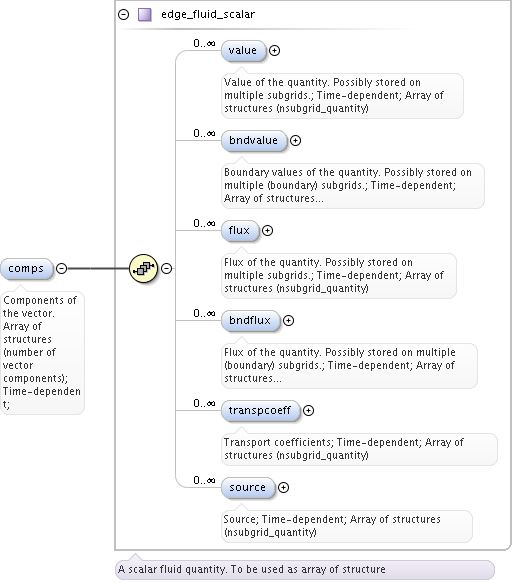

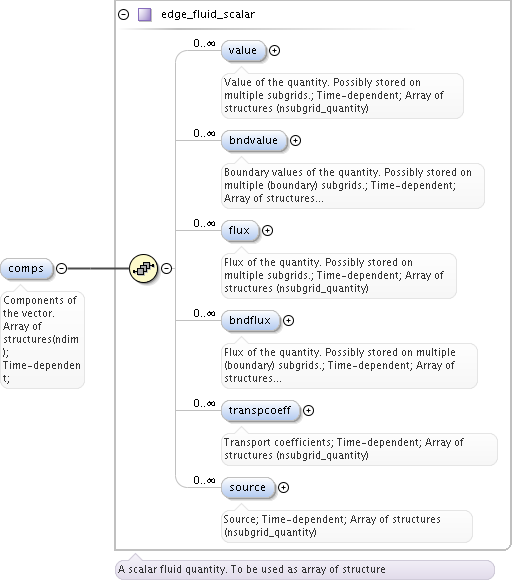

Element edge_fluid_vector_simplestruct / comps
Namespace No namespace
Annotations

Components of the vector. Array of structures(ndim); Time-dependent;
Diagram
Diagram edge_xsd.tmp#edge_fluid_scalar_value edge_xsd.tmp#edge_fluid_scalar_bndvalue edge_xsd.tmp#edge_fluid_scalar_flux edge_xsd.tmp#edge_fluid_scalar_bndflux edge_xsd.tmp#NO_NAMESPACE_edge_fluid_scalar_transpcoeff edge_xsd.tmp#edge_fluid_scalar_source edge_xsd.tmp#edge_fluid_scalar
Type edge_fluid_scalar
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children bndflux, bndvalue, flux, source, transpcoeff, value
Instance

<comps>
  <value>{0,unbounded}</value>
  <bndvalue>{0,unbounded}</bndvalue>
  <flux>{0,unbounded}</flux>
  <bndflux>{0,unbounded}</bndflux>
  <transpcoeff>{0,unbounded}</transpcoeff>
  <source>{0,unbounded}</source>
</comps>
Source

<xs:element name="comps" type="edge_fluid_scalar" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Components of the vector. Array of structures(ndim); Time-dependent;</xs:documentation>
  </xs:annotation>
</xs:element>
Element edge_fluid_vector_simplestruct / align
Namespace No namespace
Annotations

Alignment of vector components, numerical flag. Int vector(ndim);
Diagram
Diagram utilities_xsd.tmp#vecint_type
Type vecint_type
Properties
content simple
Source

<xs:element name="align" type="vecint_type">
  <xs:annotation>
    <xs:documentation>Alignment of vector components, numerical flag. Int vector(ndim);</xs:documentation>
  </xs:annotation>
</xs:element>
Element edge_fluid_vector_simplestruct / alignid
Namespace No namespace
Annotations

Alignment of vector components, string description. String vector(ndim);
Diagram
Diagram utilities_xsd.tmp#vecstring_type
Type vecstring_type
Properties
content simple
Source

<xs:element name="alignid" type="vecstring_type">
  <xs:annotation>
    <xs:documentation>Alignment of vector components, string description. String vector(ndim);</xs:documentation>
  </xs:annotation>
</xs:element>

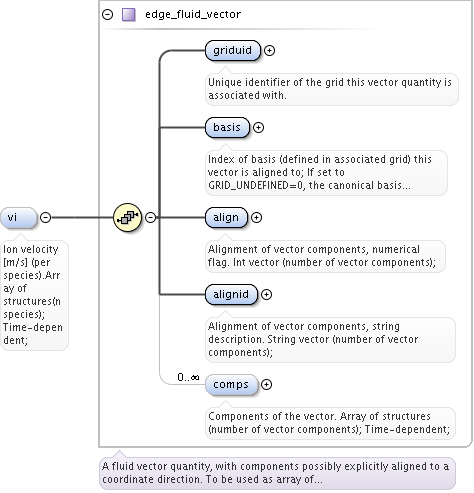

Element edge_fluid / vi
Namespace No namespace
Annotations

Ion velocity [m/s] (per species).Array of structures(nspecies); Time-dependent;
Diagram
Diagram edge_xsd.tmp#edge_fluid_vector_griduid edge_xsd.tmp#edge_fluid_vector_basis edge_xsd.tmp#edge_fluid_vector_align edge_xsd.tmp#edge_fluid_vector_alignid edge_xsd.tmp#edge_fluid_vector_comps edge_xsd.tmp#edge_fluid_vector
Type edge_fluid_vector
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children align, alignid, basis, comps, griduid
Instance

<vi>
  <griduid>{1,1}</griduid>
  <basis>{1,1}</basis>
  <align>{1,1}</align>
  <alignid>{1,1}</alignid>
  <comps>{0,unbounded}</comps>
</vi>
Source

<xs:element name="vi" type="edge_fluid_vector" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Ion velocity [m/s] (per species).Array of structures(nspecies); Time-dependent;</xs:documentation>
  </xs:annotation>
</xs:element>

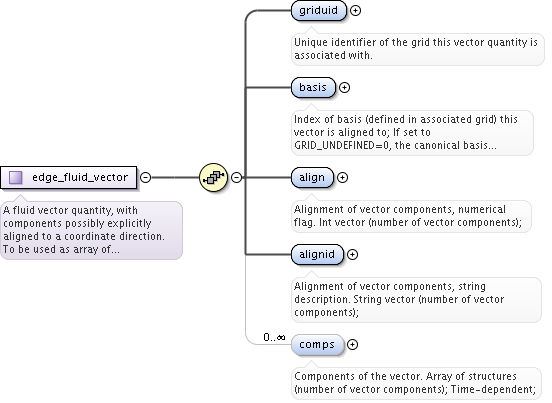

Element edge_fluid_vector / griduid
Namespace No namespace
Annotations

Unique identifier of the grid this vector quantity is associated with.
Diagram
Diagram
Type xs:integer
Properties
content simple
Source

<xs:element name="griduid" type="xs:integer">
  <xs:annotation>
    <xs:documentation>Unique identifier of the grid this vector quantity is associated with.</xs:documentation>
  </xs:annotation>
</xs:element>
Element edge_fluid_vector / basis
Namespace No namespace
Annotations

Index of basis (defined in associated grid) this vector is aligned to; If set to GRID_UNDEFINED=0, the canonical basis of the default coordinates of the grid assumed.
Diagram
Diagram
Type xs:integer
Properties
content simple
Source

<xs:element name="basis" type="xs:integer">
  <xs:annotation>
    <xs:documentation>Index of basis (defined in associated grid) this vector is aligned to; If set to GRID_UNDEFINED=0, the canonical basis of the default coordinates of the grid assumed.</xs:documentation>
  </xs:annotation>
</xs:element>
Element edge_fluid_vector / align
Namespace No namespace
Annotations

Alignment of vector components, numerical flag. Int vector (number of vector components);
Diagram
Diagram utilities_xsd.tmp#vecint_type
Type vecint_type
Properties
content simple
Source

<xs:element name="align" type="vecint_type">
  <xs:annotation>
    <xs:documentation>Alignment of vector components, numerical flag. Int vector (number of vector components);</xs:documentation>
  </xs:annotation>
</xs:element>
Element edge_fluid_vector / alignid
Namespace No namespace
Annotations

Alignment of vector components, string description. String vector (number of vector components);
Diagram
Diagram utilities_xsd.tmp#vecstring_type
Type vecstring_type
Properties
content simple
Source

<xs:element name="alignid" type="vecstring_type">
  <xs:annotation>
    <xs:documentation>Alignment of vector components, string description. String vector (number of vector components);</xs:documentation>
  </xs:annotation>
</xs:element>
Element edge_fluid_vector / comps
Namespace No namespace
Annotations

Components of the vector. Array of structures (number of vector components); Time-dependent;
Diagram
Diagram edge_xsd.tmp#edge_fluid_scalar_value edge_xsd.tmp#edge_fluid_scalar_bndvalue edge_xsd.tmp#edge_fluid_scalar_flux edge_xsd.tmp#edge_fluid_scalar_bndflux edge_xsd.tmp#NO_NAMESPACE_edge_fluid_scalar_transpcoeff edge_xsd.tmp#edge_fluid_scalar_source edge_xsd.tmp#edge_fluid_scalar
Type edge_fluid_scalar
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children bndflux, bndvalue, flux, source, transpcoeff, value
Instance

<comps>
  <value>{0,unbounded}</value>
  <bndvalue>{0,unbounded}</bndvalue>
  <flux>{0,unbounded}</flux>
  <bndflux>{0,unbounded}</bndflux>
  <transpcoeff>{0,unbounded}</transpcoeff>
  <source>{0,unbounded}</source>
</comps>
Source

<xs:element name="comps" type="edge_fluid_scalar" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Components of the vector. Array of structures (number of vector components); Time-dependent;</xs:documentation>
  </xs:annotation>
</xs:element>
Element edge_fluid / te
Namespace No namespace
Annotations

Electron temperature [eV]; Time-dependent;
Diagram
Diagram edge_xsd.tmp#edge_fluid_scalar_simplestruct_value edge_xsd.tmp#edge_fluid_scalar_simplestruct_bndvalue edge_xsd.tmp#edge_fluid_scalar_simplestruct_flux edge_xsd.tmp#edge_fluid_scalar_simplestruct_bndflux edge_xsd.tmp#edge_fluid_scalar_simplestruct_transpcoeff edge_xsd.tmp#edge_fluid_scalar_simplestruct_source edge_xsd.tmp#edge_fluid_scalar_simplestruct
Type edge_fluid_scalar_simplestruct
Properties
content complex
Model
Children bndflux, bndvalue, flux, source, transpcoeff, value
Instance

<te>
  <value>{0,unbounded}</value>
  <bndvalue>{0,unbounded}</bndvalue>
  <flux>{0,unbounded}</flux>
  <bndflux>{0,unbounded}</bndflux>
  <transpcoeff>{0,unbounded}</transpcoeff>
  <source>{0,unbounded}</source>
</te>
Source

<xs:element name="te" type="edge_fluid_scalar_simplestruct">
  <xs:annotation>
    <xs:documentation>Electron temperature [eV]; Time-dependent;</xs:documentation>
  </xs:annotation>
</xs:element>
Element edge_fluid / ti
Namespace No namespace
Annotations

Ion temperature [eV] (per species). Array of structures(nspecies).; Time-dependent;
Diagram
Diagram edge_xsd.tmp#edge_fluid_scalar_value edge_xsd.tmp#edge_fluid_scalar_bndvalue edge_xsd.tmp#edge_fluid_scalar_flux edge_xsd.tmp#edge_fluid_scalar_bndflux edge_xsd.tmp#NO_NAMESPACE_edge_fluid_scalar_transpcoeff edge_xsd.tmp#edge_fluid_scalar_source edge_xsd.tmp#edge_fluid_scalar
Type edge_fluid_scalar
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children bndflux, bndvalue, flux, source, transpcoeff, value
Instance

<ti>
  <value>{0,unbounded}</value>
  <bndvalue>{0,unbounded}</bndvalue>
  <flux>{0,unbounded}</flux>
  <bndflux>{0,unbounded}</bndflux>
  <transpcoeff>{0,unbounded}</transpcoeff>
  <source>{0,unbounded}</source>
</ti>
Source

<xs:element name="ti" type="edge_fluid_scalar" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Ion temperature [eV] (per species). Array of structures(nspecies).; Time-dependent;</xs:documentation>
  </xs:annotation>
</xs:element>

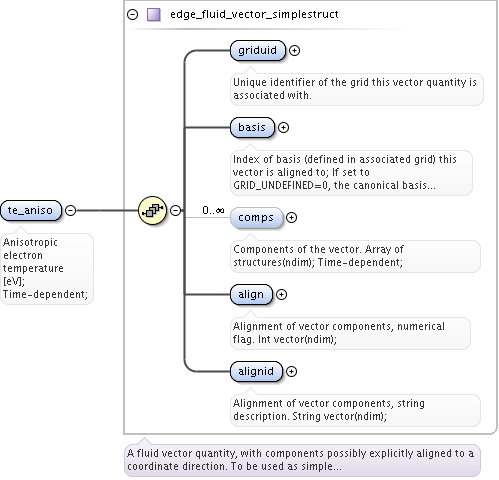

Element edge_fluid / te_aniso
Namespace No namespace
Annotations

Anisotropic electron temperature [eV]; Time-dependent;
Diagram
Diagram edge_xsd.tmp#edge_fluid_vector_simplestruct_griduid edge_xsd.tmp#edge_fluid_vector_simplestruct_basis edge_xsd.tmp#edge_fluid_vector_simplestruct_comps edge_xsd.tmp#edge_fluid_vector_simplestruct_align edge_xsd.tmp#edge_fluid_vector_simplestruct_alignid edge_xsd.tmp#edge_fluid_vector_simplestruct
Type edge_fluid_vector_simplestruct
Properties
content complex
Model
Children align, alignid, basis, comps, griduid
Instance

<te_aniso>
  <griduid>{1,1}</griduid>
  <basis>{1,1}</basis>
  <comps>{0,unbounded}</comps>
  <align>{1,1}</align>
  <alignid>{1,1}</alignid>
</te_aniso>
Source

<xs:element name="te_aniso" type="edge_fluid_vector_simplestruct">
  <xs:annotation>
    <xs:documentation>Anisotropic electron temperature [eV]; Time-dependent;</xs:documentation>
  </xs:annotation>
</xs:element>

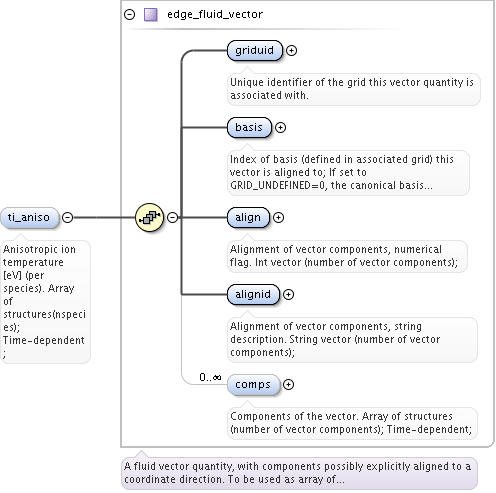

Element edge_fluid / ti_aniso
Namespace No namespace
Annotations

Anisotropic ion temperature [eV] (per species). Array of structures(nspecies); Time-dependent;
Diagram
Diagram edge_xsd.tmp#edge_fluid_vector_griduid edge_xsd.tmp#edge_fluid_vector_basis edge_xsd.tmp#edge_fluid_vector_align edge_xsd.tmp#edge_fluid_vector_alignid edge_xsd.tmp#edge_fluid_vector_comps edge_xsd.tmp#edge_fluid_vector
Type edge_fluid_vector
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children align, alignid, basis, comps, griduid
Instance

<ti_aniso>
  <griduid>{1,1}</griduid>
  <basis>{1,1}</basis>
  <align>{1,1}</align>
  <alignid>{1,1}</alignid>
  <comps>{0,unbounded}</comps>
</ti_aniso>
Source

<xs:element name="ti_aniso" type="edge_fluid_vector" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Anisotropic ion temperature [eV] (per species). Array of structures(nspecies); Time-dependent;</xs:documentation>
  </xs:annotation>
</xs:element>

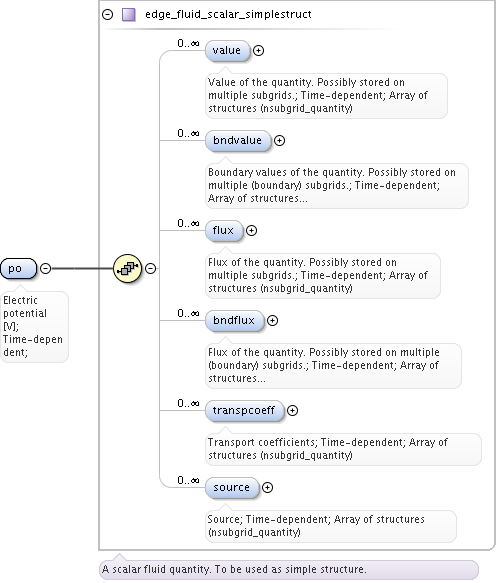

Element edge_fluid / po
Namespace No namespace
Annotations

Electric potential [V]; Time-dependent;
Diagram
Diagram edge_xsd.tmp#edge_fluid_scalar_simplestruct_value edge_xsd.tmp#edge_fluid_scalar_simplestruct_bndvalue edge_xsd.tmp#edge_fluid_scalar_simplestruct_flux edge_xsd.tmp#edge_fluid_scalar_simplestruct_bndflux edge_xsd.tmp#edge_fluid_scalar_simplestruct_transpcoeff edge_xsd.tmp#edge_fluid_scalar_simplestruct_source edge_xsd.tmp#edge_fluid_scalar_simplestruct
Type edge_fluid_scalar_simplestruct
Properties
content complex
Model
Children bndflux, bndvalue, flux, source, transpcoeff, value
Instance

<po>
  <value>{0,unbounded}</value>
  <bndvalue>{0,unbounded}</bndvalue>
  <flux>{0,unbounded}</flux>
  <bndflux>{0,unbounded}</bndflux>
  <transpcoeff>{0,unbounded}</transpcoeff>
  <source>{0,unbounded}</source>
</po>
Source

<xs:element name="po" type="edge_fluid_scalar_simplestruct">
  <xs:annotation>
    <xs:documentation>Electric potential [V]; Time-dependent;</xs:documentation>
  </xs:annotation>
</xs:element>

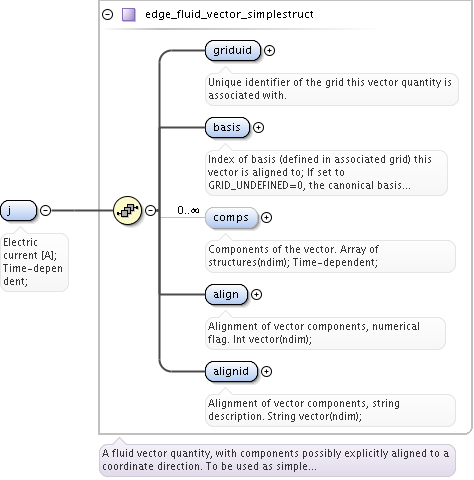

Element edge_fluid / j
Namespace No namespace
Annotations

Electric current [A]; Time-dependent;
Diagram
Diagram edge_xsd.tmp#edge_fluid_vector_simplestruct_griduid edge_xsd.tmp#edge_fluid_vector_simplestruct_basis edge_xsd.tmp#edge_fluid_vector_simplestruct_comps edge_xsd.tmp#edge_fluid_vector_simplestruct_align edge_xsd.tmp#edge_fluid_vector_simplestruct_alignid edge_xsd.tmp#edge_fluid_vector_simplestruct
Type edge_fluid_vector_simplestruct
Properties
content complex
Model
Children align, alignid, basis, comps, griduid
Instance

<j>
  <griduid>{1,1}</griduid>
  <basis>{1,1}</basis>
  <comps>{0,unbounded}</comps>
  <align>{1,1}</align>
  <alignid>{1,1}</alignid>
</j>
Source

<xs:element name="j" type="edge_fluid_vector_simplestruct">
  <xs:annotation>
    <xs:documentation>Electric current [A]; Time-dependent;</xs:documentation>
  </xs:annotation>
</xs:element>

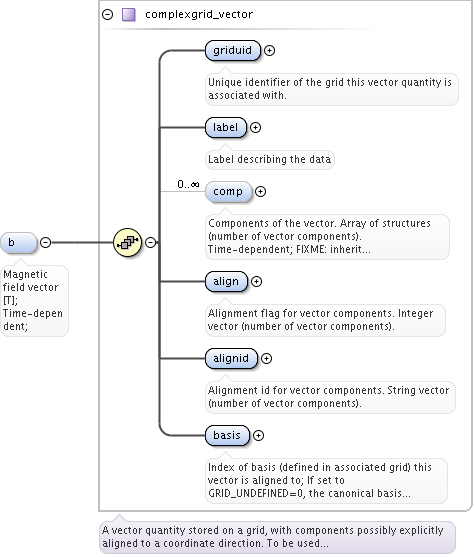

Element edge_fluid / b
Namespace No namespace
Annotations

Magnetic field vector [T]; Time-dependent;
Diagram
Diagram utilities_xsd.tmp#complexgrid_vector_griduid utilities_xsd.tmp#complexgrid_vector_label utilities_xsd.tmp#complexgrid_vector_comp utilities_xsd.tmp#complexgrid_vector_align utilities_xsd.tmp#complexgrid_vector_alignid utilities_xsd.tmp#complexgrid_vector_basis utilities_xsd.tmp#complexgrid_vector
Type complexgrid_vector
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children align, alignid, basis, comp, griduid, label
Instance

<b>
  <griduid>{1,1}</griduid>
  <label>{1,1}</label>
  <comp>{0,unbounded}</comp>
  <align>{1,1}</align>
  <alignid>{1,1}</alignid>
  <basis>{1,1}</basis>
</b>
Source

<xs:element name="b" type="complexgrid_vector" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Magnetic field vector [T]; Time-dependent;</xs:documentation>
  </xs:annotation>
</xs:element>
Element edge / kinetic
Namespace No namespace
Annotations

Kinetic description of edge plasma. Time-dependent.
Diagram
Diagram edge_xsd.tmp#NO_NAMESPACE_edge_kinetic_f edge_xsd.tmp#NO_NAMESPACE_edge_kinetic
Type edge_kinetic
Properties
content complex
Model
Children f
Instance

<kinetic>
  <f>{0,unbounded}</f>
</kinetic>
Source

<xs:element name="kinetic" type="edge_kinetic">
  <xs:annotation>
    <xs:documentation>Kinetic description of edge plasma. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>

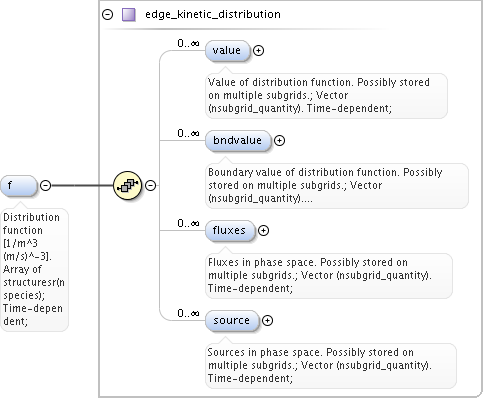

Element edge_kinetic / f
Namespace No namespace
Annotations

Distribution function [1/m^3 (m/s)^-3]. Array of structuresr(nspecies); Time-dependent;
Diagram
Diagram edge_xsd.tmp#edge_kinetic_distribution_value edge_xsd.tmp#edge_kinetic_distribution_bndvalue edge_xsd.tmp#edge_kinetic_distribution_fluxes edge_xsd.tmp#edge_kinetic_distribution_source edge_xsd.tmp#edge_kinetic_distribution
Type edge_kinetic_distribution
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children bndvalue, fluxes, source, value
Instance

<f>
  <value>{0,unbounded}</value>
  <bndvalue>{0,unbounded}</bndvalue>
  <fluxes>{0,unbounded}</fluxes>
  <source>{0,unbounded}</source>
</f>
Source

<xs:element name="f" type="edge_kinetic_distribution" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Distribution function [1/m^3 (m/s)^-3]. Array of structuresr(nspecies); Time-dependent;</xs:documentation>
  </xs:annotation>
</xs:element>
Element edge_kinetic_distribution / value
Namespace No namespace
Annotations

Value of distribution function. Possibly stored on multiple subgrids.; Vector (nsubgrid_quantity). Time-dependent;
Diagram
Diagram utilities_xsd.tmp#complexgrid_scalar_griduid utilities_xsd.tmp#complexgrid_scalar_subgrid utilities_xsd.tmp#complexgrid_scalar_scalar utilities_xsd.tmp#complexgrid_scalar_vector utilities_xsd.tmp#complexgrid_scalar_matrix utilities_xsd.tmp#complexgrid_scalar
Type complexgrid_scalar
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children griduid, matrix, scalar, subgrid, vector
Instance

<value>
  <griduid>{1,1}</griduid>
  <subgrid>{1,1}</subgrid>
  <scalar>{1,1}</scalar>
  <vector>{1,1}</vector>
  <matrix>{1,1}</matrix>
</value>
Source

<xs:element name="value" type="complexgrid_scalar" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Value of distribution function. Possibly stored on multiple subgrids.; Vector (nsubgrid_quantity). Time-dependent;</xs:documentation>
  </xs:annotation>
</xs:element>
Element edge_kinetic_distribution / bndvalue
Namespace No namespace
Annotations

Boundary value of distribution function. Possibly stored on multiple subgrids.; Vector (nsubgrid_quantity). Time-dependent;
Diagram
Diagram utilities_xsd.tmp#complexgrid_scalar_griduid utilities_xsd.tmp#complexgrid_scalar_subgrid utilities_xsd.tmp#complexgrid_scalar_scalar utilities_xsd.tmp#complexgrid_scalar_vector utilities_xsd.tmp#complexgrid_scalar_matrix utilities_xsd.tmp#complexgrid_scalar
Type complexgrid_scalar
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children griduid, matrix, scalar, subgrid, vector
Instance

<bndvalue>
  <griduid>{1,1}</griduid>
  <subgrid>{1,1}</subgrid>
  <scalar>{1,1}</scalar>
  <vector>{1,1}</vector>
  <matrix>{1,1}</matrix>
</bndvalue>
Source

<xs:element name="bndvalue" type="complexgrid_scalar" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Boundary value of distribution function. Possibly stored on multiple subgrids.; Vector (nsubgrid_quantity). Time-dependent;</xs:documentation>
  </xs:annotation>
</xs:element>

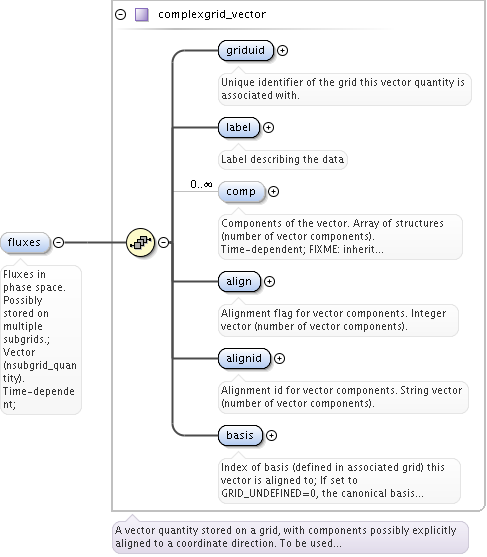

Element edge_kinetic_distribution / fluxes
Namespace No namespace
Annotations

Fluxes in phase space. Possibly stored on multiple subgrids.; Vector (nsubgrid_quantity). Time-dependent;
Diagram
Diagram utilities_xsd.tmp#complexgrid_vector_griduid utilities_xsd.tmp#complexgrid_vector_label utilities_xsd.tmp#complexgrid_vector_comp utilities_xsd.tmp#complexgrid_vector_align utilities_xsd.tmp#complexgrid_vector_alignid utilities_xsd.tmp#complexgrid_vector_basis utilities_xsd.tmp#complexgrid_vector
Type complexgrid_vector
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children align, alignid, basis, comp, griduid, label
Instance

<fluxes>
  <griduid>{1,1}</griduid>
  <label>{1,1}</label>
  <comp>{0,unbounded}</comp>
  <align>{1,1}</align>
  <alignid>{1,1}</alignid>
  <basis>{1,1}</basis>
</fluxes>
Source

<xs:element name="fluxes" type="complexgrid_vector" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Fluxes in phase space. Possibly stored on multiple subgrids.; Vector (nsubgrid_quantity). Time-dependent;</xs:documentation>
  </xs:annotation>
</xs:element>
Element edge_kinetic_distribution / source
Namespace No namespace
Annotations

Sources in phase space. Possibly stored on multiple subgrids.; Vector (nsubgrid_quantity). Time-dependent;
Diagram
Diagram utilities_xsd.tmp#complexgrid_scalar_griduid utilities_xsd.tmp#complexgrid_scalar_subgrid utilities_xsd.tmp#complexgrid_scalar_scalar utilities_xsd.tmp#complexgrid_scalar_vector utilities_xsd.tmp#complexgrid_scalar_matrix utilities_xsd.tmp#complexgrid_scalar
Type complexgrid_scalar
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children griduid, matrix, scalar, subgrid, vector
Instance

<source>
  <griduid>{1,1}</griduid>
  <subgrid>{1,1}</subgrid>
  <scalar>{1,1}</scalar>
  <vector>{1,1}</vector>
  <matrix>{1,1}</matrix>
</source>
Source

<xs:element name="source" type="complexgrid_scalar" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Sources in phase space. Possibly stored on multiple subgrids.; Vector (nsubgrid_quantity). Time-dependent;</xs:documentation>
  </xs:annotation>
</xs:element>
Element edge / time
Namespace No namespace
Annotations

Time [s]; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
default 0.0
Source

<xs:element name="time" type="xs:float" default="0.0">
  <xs:annotation>
    <xs:documentation>Time [s]; Time-dependent; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Complex Type edge_fluid
Namespace No namespace
Annotations

Fluid quantities
Diagram
Diagram edge_xsd.tmp#NO_NAMESPACE_edge_fluid_ne edge_xsd.tmp#NO_NAMESPACE_edge_fluid_ni edge_xsd.tmp#NO_NAMESPACE_edge_fluid_ve edge_xsd.tmp#NO_NAMESPACE_edge_fluid_vi edge_xsd.tmp#NO_NAMESPACE_edge_fluid_te edge_xsd.tmp#NO_NAMESPACE_edge_fluid_ti edge_xsd.tmp#NO_NAMESPACE_edge_fluid_te_aniso edge_xsd.tmp#NO_NAMESPACE_edge_fluid_ti_aniso edge_xsd.tmp#NO_NAMESPACE_edge_fluid_po edge_xsd.tmp#NO_NAMESPACE_edge_fluid_j edge_xsd.tmp#NO_NAMESPACE_edge_fluid_b
Used by
Element edge/fluid
Model
ne , ni* , ve , vi* , te , ti* , te_aniso , ti_aniso* , po , j , b*
Children b, j, ne, ni, po, te, te_aniso, ti, ti_aniso, ve, vi
Source

<xs:complexType name="edge_fluid">
  <xs:annotation>
    <xs:documentation>Fluid quantities</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="ne" type="edge_fluid_scalar_simplestruct">
      <xs:annotation>
        <xs:documentation>Electron density [1/m^3]; Time-dependent;</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ni" type="edge_fluid_scalar" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Ion density [1/m^3] (per species). Array of structures(nspecies); Time-dependent;</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ve" type="edge_fluid_vector_simplestruct">
      <xs:annotation>
        <xs:documentation>Electron velocity [m/s]; Time-dependent;</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="vi" type="edge_fluid_vector" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Ion velocity [m/s] (per species).Array of structures(nspecies); Time-dependent;</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="te" type="edge_fluid_scalar_simplestruct">
      <xs:annotation>
        <xs:documentation>Electron temperature [eV]; Time-dependent;</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ti" type="edge_fluid_scalar" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Ion temperature [eV] (per species). Array of structures(nspecies).; Time-dependent;</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="te_aniso" type="edge_fluid_vector_simplestruct">
      <xs:annotation>
        <xs:documentation>Anisotropic electron temperature [eV]; Time-dependent;</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ti_aniso" type="edge_fluid_vector" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Anisotropic ion temperature [eV] (per species). Array of structures(nspecies); Time-dependent;</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="po" type="edge_fluid_scalar_simplestruct">
      <xs:annotation>
        <xs:documentation>Electric potential [V]; Time-dependent;</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="j" type="edge_fluid_vector_simplestruct">
      <xs:annotation>
        <xs:documentation>Electric current [A]; Time-dependent;</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="b" type="complexgrid_vector" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Magnetic field vector [T]; Time-dependent;</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type edge_fluid_scalar_simplestruct
Namespace No namespace
Annotations

A scalar fluid quantity. To be used as simple structure.
Diagram
Diagram edge_xsd.tmp#edge_fluid_scalar_simplestruct_value edge_xsd.tmp#edge_fluid_scalar_simplestruct_bndvalue edge_xsd.tmp#edge_fluid_scalar_simplestruct_flux edge_xsd.tmp#edge_fluid_scalar_simplestruct_bndflux edge_xsd.tmp#edge_fluid_scalar_simplestruct_transpcoeff edge_xsd.tmp#edge_fluid_scalar_simplestruct_source
Used by
Model
Children bndflux, bndvalue, flux, source, transpcoeff, value
Source

<xs:complexType name="edge_fluid_scalar_simplestruct">
  <xs:annotation>
    <xs:documentation>A scalar fluid quantity. To be used as simple structure.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="value" type="complexgrid_scalar" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Value of the quantity. Possibly stored on multiple subgrids.; Time-dependent; Array of structures (nsubgrid_quantity)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="bndvalue" type="complexgrid_scalar" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Boundary values of the quantity. Possibly stored on multiple (boundary) subgrids.; Time-dependent; Array of structures (nsubgrid_quantity)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="flux" type="complexgrid_vector" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Flux of the quantity. Possibly stored on multiple subgrids.; Time-dependent; Array of structures (nsubgrid_quantity)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="bndflux" type="complexgrid_vector" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Flux of the quantity. Possibly stored on multiple (boundary) subgrids.; Time-dependent; Array of structures (nsubgrid_quantity)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="transpcoeff" type="edge_fluid_scalar_transpcoeff" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Transport coefficients; Time-dependent; Array of structures (nsubgrid_quantity)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="source" type="complexgrid_scalar" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Source; Time-dependent; Array of structures (nsubgrid_quantity)</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type edge_fluid_scalar_transpcoeff
Namespace No namespace
Annotations

Transport coefficients; Time-dependent; Array of structures (nsubgrid_quantity)

Transport coefficients
Diagram
Diagram edge_xsd.tmp#edge_fluid_scalar_transpcoeff_d edge_xsd.tmp#edge_fluid_scalar_transpcoeff_v
Used by
Model
d , v
Children d, v
Source

<xs:complexType name="edge_fluid_scalar_transpcoeff">
  <xs:annotation>
    <xs:documentation>Transport coefficients; Time-dependent; Array of structures (nsubgrid_quantity)</xs:documentation>
    <xs:documentation>Transport coefficients</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="d" type="complexgrid_vector_simplestruct">
      <xs:annotation>
        <xs:documentation>Diffusivity [m^2/s]; Time-dependent;</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="v" type="complexgrid_vector_simplestruct">
      <xs:annotation>
        <xs:documentation>Velocity [m/s]; Time-dependent;</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type edge_fluid_scalar
Namespace No namespace
Annotations

A scalar fluid quantity. To be used as array of structure
Diagram
Diagram edge_xsd.tmp#edge_fluid_scalar_value edge_xsd.tmp#edge_fluid_scalar_bndvalue edge_xsd.tmp#edge_fluid_scalar_flux edge_xsd.tmp#edge_fluid_scalar_bndflux edge_xsd.tmp#NO_NAMESPACE_edge_fluid_scalar_transpcoeff edge_xsd.tmp#edge_fluid_scalar_source
Used by
Model
Children bndflux, bndvalue, flux, source, transpcoeff, value
Source

<xs:complexType name="edge_fluid_scalar">
  <xs:annotation>
    <xs:documentation>A scalar fluid quantity. To be used as array of structure</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="value" type="complexgrid_scalar" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Value of the quantity. Possibly stored on multiple subgrids.; Time-dependent; Array of structures (nsubgrid_quantity)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="bndvalue" type="complexgrid_scalar" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Boundary values of the quantity. Possibly stored on multiple (boundary) subgrids.; Time-dependent; Array of structures (nsubgrid_quantity)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="flux" type="complexgrid_vector" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Flux of the quantity. Possibly stored on multiple subgrids.; Time-dependent; Array of structures (nsubgrid_quantity)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="bndflux" type="complexgrid_vector" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Flux of the quantity. Possibly stored on multiple (boundary) subgrids.; Time-dependent; Array of structures (nsubgrid_quantity)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="transpcoeff" type="edge_fluid_scalar_transpcoeff" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Transport coefficients; Time-dependent; Array of structures (nsubgrid_quantity)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="source" type="complexgrid_scalar" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Source; Time-dependent; Array of structures (nsubgrid_quantity)</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type edge_fluid_vector_simplestruct
Namespace No namespace
Annotations

A fluid vector quantity, with components possibly explicitly aligned to a coordinate direction.  To be used as simple structure.
Diagram
Diagram edge_xsd.tmp#edge_fluid_vector_simplestruct_griduid edge_xsd.tmp#edge_fluid_vector_simplestruct_basis edge_xsd.tmp#edge_fluid_vector_simplestruct_comps edge_xsd.tmp#edge_fluid_vector_simplestruct_align edge_xsd.tmp#edge_fluid_vector_simplestruct_alignid
Used by
Model
Children align, alignid, basis, comps, griduid
Source

<xs:complexType name="edge_fluid_vector_simplestruct">
  <xs:annotation>
    <xs:documentation>A fluid vector quantity, with components possibly explicitly aligned to a coordinate direction. To be used as simple structure.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="griduid" type="xs:integer">
      <xs:annotation>
        <xs:documentation>Unique identifier of the grid this vector quantity is associated with.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="basis" type="xs:integer">
      <xs:annotation>
        <xs:documentation>Index of basis (defined in associated grid) this vector is aligned to; If set to GRID_UNDEFINED=0, the canonical basis of the default coordinates of the grid assumed.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="comps" type="edge_fluid_scalar" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Components of the vector. Array of structures(ndim); Time-dependent;</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="align" type="vecint_type">
      <xs:annotation>
        <xs:documentation>Alignment of vector components, numerical flag. Int vector(ndim);</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="alignid" type="vecstring_type">
      <xs:annotation>
        <xs:documentation>Alignment of vector components, string description. String vector(ndim);</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type edge_fluid_vector
Namespace No namespace
Annotations

A fluid vector quantity, with components possibly explicitly aligned to a coordinate direction. To be used as array of structure
Diagram
Diagram edge_xsd.tmp#edge_fluid_vector_griduid edge_xsd.tmp#edge_fluid_vector_basis edge_xsd.tmp#edge_fluid_vector_align edge_xsd.tmp#edge_fluid_vector_alignid edge_xsd.tmp#edge_fluid_vector_comps
Used by
Model
Children align, alignid, basis, comps, griduid
Source

<xs:complexType name="edge_fluid_vector">
  <xs:annotation>
    <xs:documentation>A fluid vector quantity, with components possibly explicitly aligned to a coordinate direction. To be used as array of structure</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="griduid" type="xs:integer">
      <xs:annotation>
        <xs:documentation>Unique identifier of the grid this vector quantity is associated with.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="basis" type="xs:integer">
      <xs:annotation>
        <xs:documentation>Index of basis (defined in associated grid) this vector is aligned to; If set to GRID_UNDEFINED=0, the canonical basis of the default coordinates of the grid assumed.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="align" type="vecint_type">
      <xs:annotation>
        <xs:documentation>Alignment of vector components, numerical flag. Int vector (number of vector components);</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="alignid" type="vecstring_type">
      <xs:annotation>
        <xs:documentation>Alignment of vector components, string description. String vector (number of vector components);</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="comps" type="edge_fluid_scalar" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Components of the vector. Array of structures (number of vector components); Time-dependent;</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type edge_kinetic
Namespace No namespace
Annotations

Kinetic quantities
Diagram
Diagram edge_xsd.tmp#NO_NAMESPACE_edge_kinetic_f
Used by
Element edge/kinetic
Model
Children f
Source

<xs:complexType name="edge_kinetic">
  <xs:annotation>
    <xs:documentation>Kinetic quantities</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="f" type="edge_kinetic_distribution" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Distribution function [1/m^3 (m/s)^-3]. Array of structuresr(nspecies); Time-dependent;</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

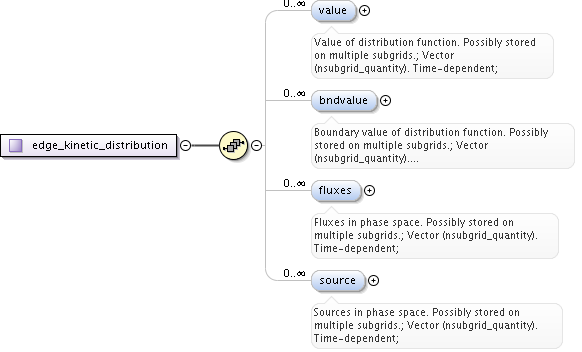

Complex Type edge_kinetic_distribution
Namespace No namespace
Diagram
Diagram edge_xsd.tmp#edge_kinetic_distribution_value edge_xsd.tmp#edge_kinetic_distribution_bndvalue edge_xsd.tmp#edge_kinetic_distribution_fluxes edge_xsd.tmp#edge_kinetic_distribution_source
Used by
Element edge_kinetic/f
Model
Children bndvalue, fluxes, source, value
Source

<xs:complexType name="edge_kinetic_distribution">
  <xs:sequence>
    <xs:element name="value" type="complexgrid_scalar" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Value of distribution function. Possibly stored on multiple subgrids.; Vector (nsubgrid_quantity). Time-dependent;</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="bndvalue" type="complexgrid_scalar" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Boundary value of distribution function. Possibly stored on multiple subgrids.; Vector (nsubgrid_quantity). Time-dependent;</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="fluxes" type="complexgrid_vector" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Fluxes in phase space. Possibly stored on multiple subgrids.; Vector (nsubgrid_quantity). Time-dependent;</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="source" type="complexgrid_scalar" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Sources in phase space. Possibly stored on multiple subgrids.; Vector (nsubgrid_quantity). Time-dependent;</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
XML Schema documentation generated by ® XML Editor.
