Element ironmodel
Namespace No namespace
Annotations

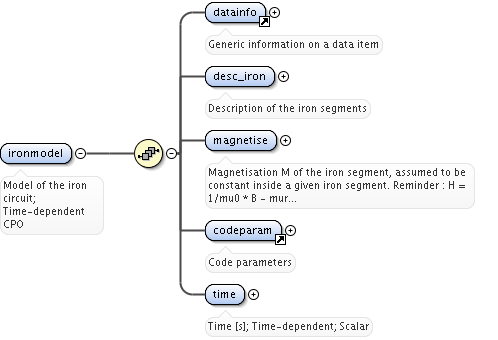

Model of the iron circuit; Time-dependent CPO
Diagram
Diagram utilities_xsd.tmp#datainfo ironmodel_xsd.tmp#ironmodel_desc_iron ironmodel_xsd.tmp#ironmodel_magnetise utilities_xsd.tmp#codeparam ironmodel_xsd.tmp#ironmodel_time
Properties
content complex
Used by
Element top
Model
Children codeparam, datainfo, desc_iron, magnetise, time
Instance

<ironmodel>
  <datainfo>{1,1}</datainfo>
  <desc_iron>{1,1}</desc_iron>
  <magnetise>{1,1}</magnetise>
  <codeparam>{1,1}</codeparam>
  <time>{1,1}</time>
</ironmodel>
Source

<xs:element name="ironmodel">
  <xs:annotation>
    <xs:documentation>Model of the iron circuit; Time-dependent CPO</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="datainfo"/>
      <xs:element name="desc_iron">
        <xs:annotation>
          <xs:documentation>Description of the iron segments</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="name" type="vecstring_type">
              <xs:annotation>
                <xs:documentation>Name of circuit. Array of strings (ncircuit).</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="id" type="vecstring_type">
              <xs:annotation>
                <xs:documentation>ID of circuit. Array of strings (ncircuit).</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="permeability">
              <xs:annotation>
                <xs:documentation>Permeability model (can be different for each iron segment)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="b" type="matflt_type">
                    <xs:annotation>
                      <xs:documentation>List of B values for description of the mur(B) dependence [T]; Matrix (nsegment,nB)</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="mur" type="matflt_type">
                    <xs:annotation>
                      <xs:documentation>Relative permeability mur(B) [dimensionless]; Matrix (nsegment,nB)</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                  </xs:element>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element name="geom_iron">
              <xs:annotation>
                <xs:documentation>Geometry of the iron segments</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="npoints" type="vecint_type">
                    <xs:annotation>
                      <xs:documentation>Number of points describing an element (irregular outline rzcoordinate); Vector (nsegment)</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="rzcoordinate" type="rz2D">
                    <xs:annotation>
                      <xs:documentation>Irregular outline [m]; 2D arrays (nsegment,max_npoints)</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                  </xs:element>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="magnetise">
        <xs:annotation>

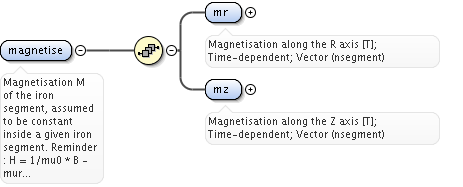

          <xs:documentation>Magnetisation M of the iron segment, assumed to be constant inside a given iron segment. Reminder : H = 1/mu0 * B - mur * M; [A/m].</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="mr" type="exp1D">
              <xs:annotation>
                <xs:documentation>Magnetisation along the R axis [T]; Time-dependent; Vector (nsegment)</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="mz" type="exp1D">
              <xs:annotation>
                <xs:documentation>Magnetisation along the Z axis [T]; Time-dependent; Vector (nsegment)</xs:documentation>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element ref="codeparam"/>
      <xs:element name="time" type="xs:float">
        <xs:annotation>
          <xs:documentation>Time [s]; Time-dependent; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element ironmodel / desc_iron
Namespace No namespace
Annotations

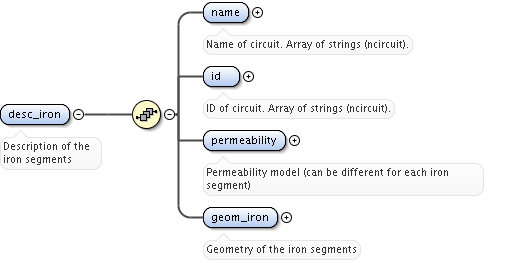

Description of the iron segments
Diagram
Diagram ironmodel_xsd.tmp#ironmodel_ironmodel_desc_iron_name ironmodel_xsd.tmp#ironmodel_ironmodel_desc_iron_id ironmodel_xsd.tmp#ironmodel_ironmodel_desc_iron_permeability ironmodel_xsd.tmp#ironmodel_ironmodel_desc_iron_geom_iron
Properties
content complex
Model
Children geom_iron, id, name, permeability
Instance

<desc_iron>
  <name>{1,1}</name>
  <id>{1,1}</id>
  <permeability>{1,1}</permeability>
  <geom_iron>{1,1}</geom_iron>
</desc_iron>
Source

<xs:element name="desc_iron">
  <xs:annotation>
    <xs:documentation>Description of the iron segments</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="name" type="vecstring_type">
        <xs:annotation>
          <xs:documentation>Name of circuit. Array of strings (ncircuit).</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="id" type="vecstring_type">
        <xs:annotation>
          <xs:documentation>ID of circuit. Array of strings (ncircuit).</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="permeability">
        <xs:annotation>
          <xs:documentation>Permeability model (can be different for each iron segment)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="b" type="matflt_type">
              <xs:annotation>
                <xs:documentation>List of B values for description of the mur(B) dependence [T]; Matrix (nsegment,nB)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="mur" type="matflt_type">
              <xs:annotation>
                <xs:documentation>Relative permeability mur(B) [dimensionless]; Matrix (nsegment,nB)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="geom_iron">
        <xs:annotation>
          <xs:documentation>Geometry of the iron segments</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="npoints" type="vecint_type">
              <xs:annotation>
                <xs:documentation>Number of points describing an element (irregular outline rzcoordinate); Vector (nsegment)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="rzcoordinate" type="rz2D">
              <xs:annotation>
                <xs:documentation>Irregular outline [m]; 2D arrays (nsegment,max_npoints)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element ironmodel / desc_iron / name
Namespace No namespace
Annotations

Name of circuit. Array of strings (ncircuit).
Diagram
Diagram utilities_xsd.tmp#vecstring_type
Type vecstring_type
Properties
content simple
Source

<xs:element name="name" type="vecstring_type">
  <xs:annotation>
    <xs:documentation>Name of circuit. Array of strings (ncircuit).</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element ironmodel / desc_iron / id
Namespace No namespace
Annotations

ID of circuit.  Array of strings (ncircuit).
Diagram
Diagram utilities_xsd.tmp#vecstring_type
Type vecstring_type
Properties
content simple
Source

<xs:element name="id" type="vecstring_type">
  <xs:annotation>
    <xs:documentation>ID of circuit. Array of strings (ncircuit).</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element ironmodel / desc_iron / permeability
Namespace No namespace
Annotations

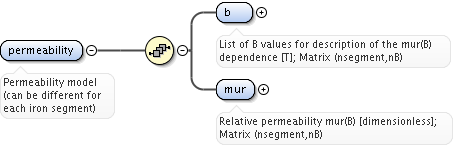

Permeability model (can be different for each iron segment)
Diagram
Diagram ironmodel_xsd.tmp#ironmodel_ironmodel_desc_iron_ironmodel_ironmodel_desc_iron_permeability_b ironmodel_xsd.tmp#ironmodel_ironmodel_desc_iron_ironmodel_ironmodel_desc_iron_permeability_mur
Properties
content complex
Model
b , mur
Children b, mur
Instance

<permeability>
  <b>{1,1}</b>
  <mur>{1,1}</mur>
</permeability>
Source

<xs:element name="permeability">
  <xs:annotation>
    <xs:documentation>Permeability model (can be different for each iron segment)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="b" type="matflt_type">
        <xs:annotation>
          <xs:documentation>List of B values for description of the mur(B) dependence [T]; Matrix (nsegment,nB)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="mur" type="matflt_type">
        <xs:annotation>
          <xs:documentation>Relative permeability mur(B) [dimensionless]; Matrix (nsegment,nB)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element ironmodel / desc_iron / permeability / b
Namespace No namespace
Annotations

List of B values for description of the mur(B) dependence [T]; Matrix (nsegment,nB)
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="b" type="matflt_type">
  <xs:annotation>
    <xs:documentation>List of B values for description of the mur(B) dependence [T]; Matrix (nsegment,nB)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element ironmodel / desc_iron / permeability / mur
Namespace No namespace
Annotations

Relative permeability mur(B) [dimensionless]; Matrix (nsegment,nB)
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="mur" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Relative permeability mur(B) [dimensionless]; Matrix (nsegment,nB)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element ironmodel / desc_iron / geom_iron
Namespace No namespace
Annotations

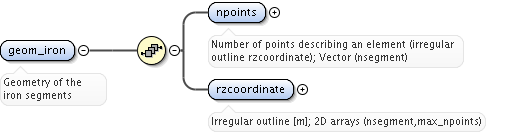

Geometry of the iron segments
Diagram
Diagram ironmodel_xsd.tmp#ironmodel_ironmodel_desc_iron_ironmodel_ironmodel_desc_iron_geom_iron_npoints ironmodel_xsd.tmp#ironmodel_ironmodel_desc_iron_ironmodel_ironmodel_desc_iron_geom_iron_rzcoordinate
Properties
content complex
Model
Children npoints, rzcoordinate
Instance

<geom_iron>
  <npoints>{1,1}</npoints>
  <rzcoordinate>{1,1}</rzcoordinate>
</geom_iron>
Source

<xs:element name="geom_iron">
  <xs:annotation>
    <xs:documentation>Geometry of the iron segments</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="npoints" type="vecint_type">
        <xs:annotation>
          <xs:documentation>Number of points describing an element (irregular outline rzcoordinate); Vector (nsegment)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="rzcoordinate" type="rz2D">
        <xs:annotation>
          <xs:documentation>Irregular outline [m]; 2D arrays (nsegment,max_npoints)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element ironmodel / desc_iron / geom_iron / npoints
Namespace No namespace
Annotations

Number of points describing an element (irregular outline rzcoordinate); Vector (nsegment)
Diagram
Diagram utilities_xsd.tmp#vecint_type
Type vecint_type
Properties
content simple
Source

<xs:element name="npoints" type="vecint_type">
  <xs:annotation>
    <xs:documentation>Number of points describing an element (irregular outline rzcoordinate); Vector (nsegment)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element ironmodel / desc_iron / geom_iron / rzcoordinate
Namespace No namespace
Annotations

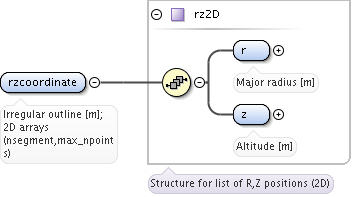

Irregular outline [m]; 2D arrays (nsegment,max_npoints)
Diagram
Diagram utilities_xsd.tmp#rz2D_r utilities_xsd.tmp#rz2D_z utilities_xsd.tmp#rz2D
Type rz2D
Properties
content complex
Model
r , z
Children r, z
Instance

<rzcoordinate>
  <r>{1,1}</r>
  <z>{1,1}</z>
</rzcoordinate>
Source

<xs:element name="rzcoordinate" type="rz2D">
  <xs:annotation>
    <xs:documentation>Irregular outline [m]; 2D arrays (nsegment,max_npoints)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element ironmodel / magnetise
Namespace No namespace
Annotations

Magnetisation M of the iron segment, assumed to be constant inside a given iron segment. Reminder : H = 1/mu0 * B - mur * M; [A/m].
Diagram
Diagram ironmodel_xsd.tmp#ironmodel_ironmodel_magnetise_mr ironmodel_xsd.tmp#ironmodel_ironmodel_magnetise_mz
Properties
content complex
Model
mr , mz
Children mr, mz
Instance

<magnetise>
  <mr>{1,1}</mr>
  <mz>{1,1}</mz>
</magnetise>
Source

<xs:element name="magnetise">
  <xs:annotation>
    <xs:documentation>Magnetisation M of the iron segment, assumed to be constant inside a given iron segment. Reminder : H = 1/mu0 * B - mur * M; [A/m].</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="mr" type="exp1D">
        <xs:annotation>
          <xs:documentation>Magnetisation along the R axis [T]; Time-dependent; Vector (nsegment)</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="mz" type="exp1D">
        <xs:annotation>
          <xs:documentation>Magnetisation along the Z axis [T]; Time-dependent; Vector (nsegment)</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element ironmodel / magnetise / mr
Namespace No namespace
Annotations

Magnetisation along the R axis [T]; Time-dependent; Vector (nsegment)
Diagram

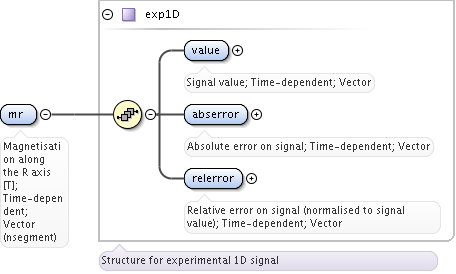

Diagram utilities_xsd.tmp#exp1D_value utilities_xsd.tmp#exp1D_abserror utilities_xsd.tmp#exp1D_relerror utilities_xsd.tmp#exp1D
Type exp1D
Properties
content complex
Model
Children abserror, relerror, value
Instance

<mr>
  <value>{1,1}</value>
  <abserror>{1,1}</abserror>
  <relerror>{1,1}</relerror>
</mr>
Source

<xs:element name="mr" type="exp1D">
  <xs:annotation>
    <xs:documentation>Magnetisation along the R axis [T]; Time-dependent; Vector (nsegment)</xs:documentation>
  </xs:annotation>
</xs:element>
Element ironmodel / magnetise / mz
Namespace No namespace
Annotations

Magnetisation along the Z axis [T]; Time-dependent; Vector (nsegment)
Diagram
Diagram utilities_xsd.tmp#exp1D_value utilities_xsd.tmp#exp1D_abserror utilities_xsd.tmp#exp1D_relerror utilities_xsd.tmp#exp1D
Type exp1D
Properties
content complex
Model
Children abserror, relerror, value
Instance

<mz>
  <value>{1,1}</value>
  <abserror>{1,1}</abserror>
  <relerror>{1,1}</relerror>
</mz>
Source

<xs:element name="mz" type="exp1D">
  <xs:annotation>
    <xs:documentation>Magnetisation along the Z axis [T]; Time-dependent; Vector (nsegment)</xs:documentation>
  </xs:annotation>
</xs:element>
Element ironmodel / time
Namespace No namespace
Annotations

Time [s]; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="time" type="xs:float">
  <xs:annotation>
    <xs:documentation>Time [s]; Time-dependent; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
XML Schema documentation generated by ® XML Editor.
