Showing:

Annotations
Diagrams
Instances
Model
Properties
Source
Used by
Included schema langmuirdiag.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default qualified

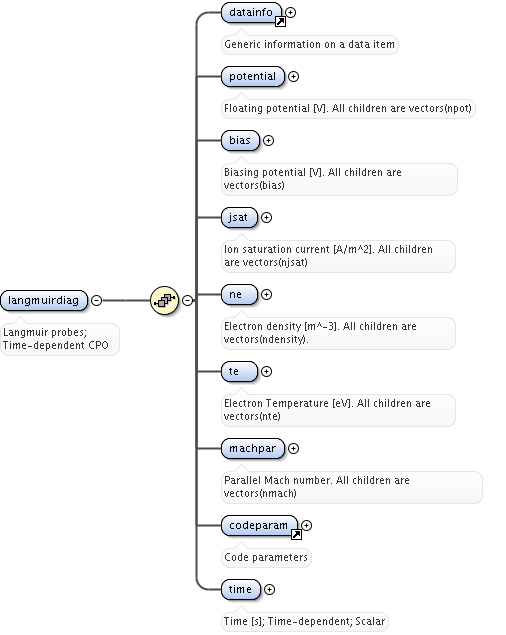

Element langmuirdiag
Namespace No namespace
Annotations

Langmuir probes; Time-dependent CPO
Diagram
Diagram utilities_xsd.tmp#datainfo langmuirdiag_xsd.tmp#langmuirdiag_potential langmuirdiag_xsd.tmp#langmuirdiag_bias langmuirdiag_xsd.tmp#langmuirdiag_jsat langmuirdiag_xsd.tmp#langmuirdiag_ne langmuirdiag_xsd.tmp#langmuirdiag_te langmuirdiag_xsd.tmp#langmuirdiag_machpar utilities_xsd.tmp#codeparam langmuirdiag_xsd.tmp#langmuirdiag_time
Properties
content complex
Used by
Element top
Model
Children bias, codeparam, datainfo, jsat, machpar, ne, potential, te, time
Instance

<langmuirdiag>
  <datainfo>{1,1}</datainfo>
  <potential>{1,1}</potential>
  <bias>{1,1}</bias>
  <jsat>{1,1}</jsat>
  <ne>{1,1}</ne>
  <te>{1,1}</te>
  <machpar>{1,1}</machpar>
  <codeparam>{1,1}</codeparam>
  <time>{1,1}</time>
</langmuirdiag>
Source

<xs:element name="langmuirdiag">
  <xs:annotation>
    <xs:appinfo>machine description</xs:appinfo>
    <xs:documentation>Langmuir probes; Time-dependent CPO</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="datainfo"/>
      <xs:element name="potential" type="lang_measure">
        <xs:annotation>
          <xs:appinfo>machine description</xs:appinfo>
          <xs:documentation>Floating potential [V]. All children are vectors(npot)</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="bias" type="lang_measure">
        <xs:annotation>
          <xs:appinfo>machine description</xs:appinfo>
          <xs:documentation>Biasing potential [V]. All children are vectors(bias)</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="jsat" type="lang_measure">
        <xs:annotation>
          <xs:appinfo>machine description</xs:appinfo>
          <xs:documentation>Ion saturation current [A/m^2]. All children are vectors(njsat)</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="ne" type="lang_derived">
        <xs:annotation>
          <xs:appinfo>machine description</xs:appinfo>
          <xs:documentation>Electron density [m^-3]. All children are vectors(ndensity).</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="te" type="lang_derived">
        <xs:annotation>
          <xs:appinfo>machine description</xs:appinfo>
          <xs:documentation>Electron Temperature [eV]. All children are vectors(nte)</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="machpar" type="lang_derived">
        <xs:annotation>
          <xs:appinfo>machine description</xs:appinfo>
          <xs:documentation>Parallel Mach number. All children are vectors(nmach)</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element ref="codeparam"/>
      <xs:element name="time" type="xs:float">
        <xs:annotation>
          <xs:documentation>Time [s]; Time-dependent; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

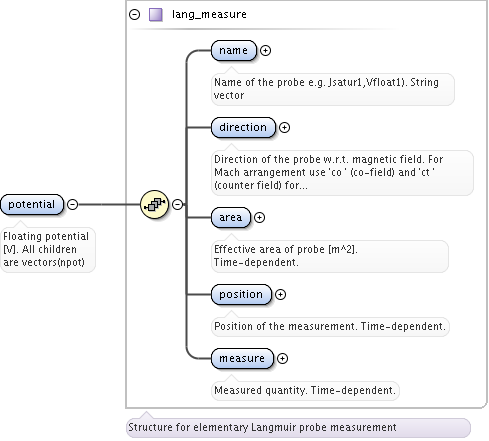

Element langmuirdiag / potential
Namespace No namespace
Annotations

Floating potential [V]. All children are vectors(npot)
Diagram
Diagram langmuirdiag_xsd.tmp#lang_measure_name langmuirdiag_xsd.tmp#lang_measure_direction langmuirdiag_xsd.tmp#lang_measure_area langmuirdiag_xsd.tmp#lang_measure_position langmuirdiag_xsd.tmp#lang_measure_measure langmuirdiag_xsd.tmp#lang_measure

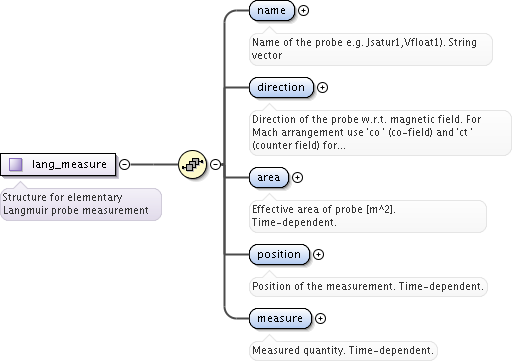

Type lang_measure
Properties
content complex
Model
Children area, direction, measure, name, position
Instance

<potential>
  <name>{1,1}</name>
  <direction>{1,1}</direction>
  <area>{1,1}</area>
  <position>{1,1}</position>
  <measure>{1,1}</measure>
</potential>
Source

<xs:element name="potential" type="lang_measure">
  <xs:annotation>
    <xs:appinfo>machine description</xs:appinfo>
    <xs:documentation>Floating potential [V]. All children are vectors(npot)</xs:documentation>
  </xs:annotation>
</xs:element>
Element lang_measure / name
Namespace No namespace
Annotations

Name of the probe e.g. Jsatur1,Vfloat1). String vector
Diagram
Diagram utilities_xsd.tmp#vecstring_type
Type vecstring_type
Properties
content simple
Source

<xs:element name="name" type="vecstring_type">
  <xs:annotation>
    <xs:appinfo>machine description</xs:appinfo>
    <xs:documentation>Name of the probe e.g. Jsatur1,Vfloat1). String vector</xs:documentation>
  </xs:annotation>
</xs:element>
Element lang_measure / direction
Namespace No namespace
Annotations

Direction of the probe w.r.t. magnetic field. For Mach arrangement use 'co  ' (co-field) and 'ct  ' (counter field) for the pair, otherwise use 'both'. String vector
Diagram
Diagram utilities_xsd.tmp#vecstring_type
Type vecstring_type
Properties
content simple
Source

<xs:element name="direction" type="vecstring_type">
  <xs:annotation>
    <xs:appinfo>machine description</xs:appinfo>
    <xs:documentation>Direction of the probe w.r.t. magnetic field. For Mach arrangement use 'co ' (co-field) and 'ct ' (counter field) for the pair, otherwise use 'both'. String vector</xs:documentation>
  </xs:annotation>
</xs:element>

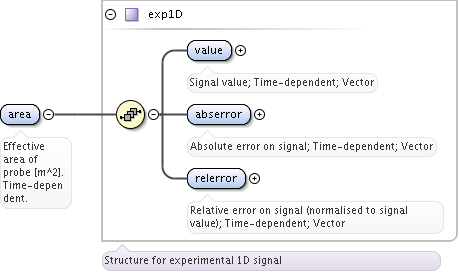

Element lang_measure / area
Namespace No namespace
Annotations

Effective area of probe [m^2].  Time-dependent.
Diagram
Diagram utilities_xsd.tmp#exp1D_value utilities_xsd.tmp#exp1D_abserror utilities_xsd.tmp#exp1D_relerror utilities_xsd.tmp#exp1D
Type exp1D
Properties
content complex
Model
Children abserror, relerror, value
Instance

<area>
  <value>{1,1}</value>
  <abserror>{1,1}</abserror>
  <relerror>{1,1}</relerror>
</area>
Source

<xs:element name="area" type="exp1D">
  <xs:annotation>
    <xs:documentation>Effective area of probe [m^2]. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>

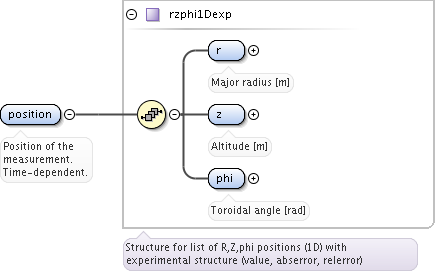

Element lang_measure / position
Namespace No namespace
Annotations

Position of the measurement. Time-dependent.
Diagram
Diagram utilities_xsd.tmp#rzphi1Dexp_r utilities_xsd.tmp#rzphi1Dexp_z utilities_xsd.tmp#rzphi1Dexp_phi utilities_xsd.tmp#rzphi1Dexp
Type rzphi1Dexp
Properties
content complex
Model
r , z , phi
Children phi, r, z
Instance

<position>
  <r>{1,1}</r>
  <z>{1,1}</z>
  <phi>{1,1}</phi>
</position>
Source

<xs:element name="position" type="rzphi1Dexp">
  <xs:annotation>
    <xs:documentation>Position of the measurement. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>

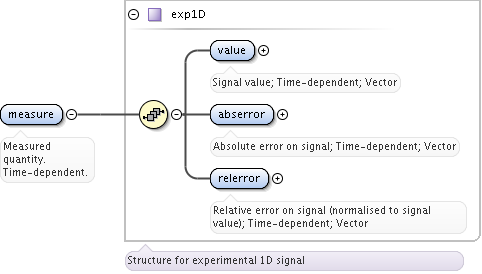

Element lang_measure / measure
Namespace No namespace
Annotations

Measured quantity. Time-dependent.
Diagram
Diagram utilities_xsd.tmp#exp1D_value utilities_xsd.tmp#exp1D_abserror utilities_xsd.tmp#exp1D_relerror utilities_xsd.tmp#exp1D
Type exp1D
Properties
content complex
Model
Children abserror, relerror, value
Instance

<measure>
  <value>{1,1}</value>
  <abserror>{1,1}</abserror>
  <relerror>{1,1}</relerror>
</measure>
Source

<xs:element name="measure" type="exp1D">
  <xs:annotation>
    <xs:documentation>Measured quantity. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>

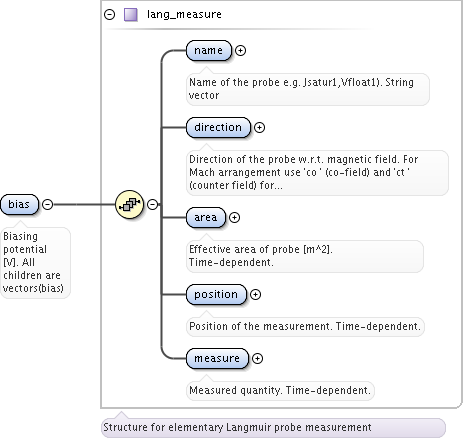

Element langmuirdiag / bias
Namespace No namespace
Annotations

Biasing potential [V]. All children are vectors(bias)
Diagram
Diagram langmuirdiag_xsd.tmp#lang_measure_name langmuirdiag_xsd.tmp#lang_measure_direction langmuirdiag_xsd.tmp#lang_measure_area langmuirdiag_xsd.tmp#lang_measure_position langmuirdiag_xsd.tmp#lang_measure_measure langmuirdiag_xsd.tmp#lang_measure
Type lang_measure
Properties
content complex
Model
Children area, direction, measure, name, position
Instance

<bias>
  <name>{1,1}</name>
  <direction>{1,1}</direction>
  <area>{1,1}</area>
  <position>{1,1}</position>
  <measure>{1,1}</measure>
</bias>
Source

<xs:element name="bias" type="lang_measure">
  <xs:annotation>
    <xs:appinfo>machine description</xs:appinfo>
    <xs:documentation>Biasing potential [V]. All children are vectors(bias)</xs:documentation>
  </xs:annotation>
</xs:element>

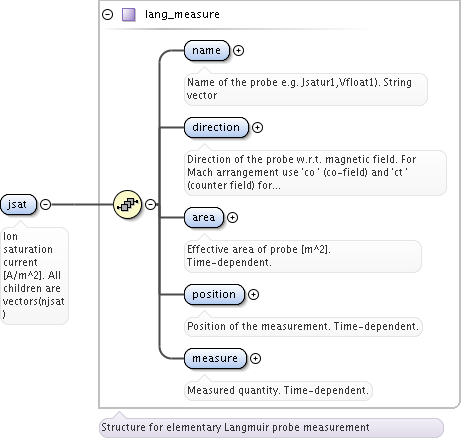

Element langmuirdiag / jsat
Namespace No namespace
Annotations

Ion saturation current [A/m^2]. All children are vectors(njsat)
Diagram
Diagram langmuirdiag_xsd.tmp#lang_measure_name langmuirdiag_xsd.tmp#lang_measure_direction langmuirdiag_xsd.tmp#lang_measure_area langmuirdiag_xsd.tmp#lang_measure_position langmuirdiag_xsd.tmp#lang_measure_measure langmuirdiag_xsd.tmp#lang_measure
Type lang_measure
Properties
content complex
Model
Children area, direction, measure, name, position
Instance

<jsat>
  <name>{1,1}</name>
  <direction>{1,1}</direction>
  <area>{1,1}</area>
  <position>{1,1}</position>
  <measure>{1,1}</measure>
</jsat>
Source

<xs:element name="jsat" type="lang_measure">
  <xs:annotation>
    <xs:appinfo>machine description</xs:appinfo>
    <xs:documentation>Ion saturation current [A/m^2]. All children are vectors(njsat)</xs:documentation>
  </xs:annotation>
</xs:element>

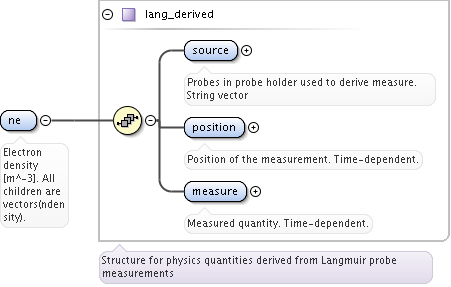

Element langmuirdiag / ne
Namespace No namespace
Annotations

Electron density [m^-3]. All children are vectors(ndensity).
Diagram
Diagram langmuirdiag_xsd.tmp#lang_derived_source langmuirdiag_xsd.tmp#lang_derived_position langmuirdiag_xsd.tmp#lang_derived_measure langmuirdiag_xsd.tmp#lang_derived
Type lang_derived
Properties
content complex
Model
Children measure, position, source
Instance

<ne>
  <source>{1,1}</source>
  <position>{1,1}</position>
  <measure>{1,1}</measure>
</ne>
Source

<xs:element name="ne" type="lang_derived">
  <xs:annotation>
    <xs:appinfo>machine description</xs:appinfo>
    <xs:documentation>Electron density [m^-3]. All children are vectors(ndensity).</xs:documentation>
  </xs:annotation>
</xs:element>

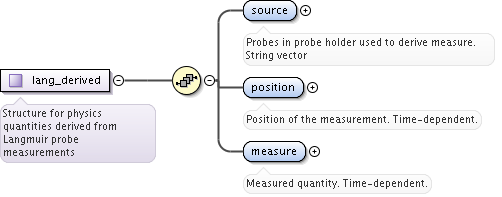

Element lang_derived / source
Namespace No namespace
Annotations

Probes in probe holder used to derive measure. String vector
Diagram
Diagram utilities_xsd.tmp#vecstring_type
Type vecstring_type
Properties
content simple
Source

<xs:element name="source" type="vecstring_type">
  <xs:annotation>
    <xs:appinfo>machine description</xs:appinfo>
    <xs:documentation>Probes in probe holder used to derive measure. String vector</xs:documentation>
  </xs:annotation>
</xs:element>
Element lang_derived / position
Namespace No namespace
Annotations

Position of the measurement. Time-dependent.
Diagram
Diagram utilities_xsd.tmp#rzphi1Dexp_r utilities_xsd.tmp#rzphi1Dexp_z utilities_xsd.tmp#rzphi1Dexp_phi utilities_xsd.tmp#rzphi1Dexp
Type rzphi1Dexp
Properties
content complex
Model
r , z , phi
Children phi, r, z
Instance

<position>
  <r>{1,1}</r>
  <z>{1,1}</z>
  <phi>{1,1}</phi>
</position>
Source

<xs:element name="position" type="rzphi1Dexp">
  <xs:annotation>
    <xs:documentation>Position of the measurement. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element lang_derived / measure
Namespace No namespace
Annotations

Measured quantity.  Time-dependent.
Diagram
Diagram utilities_xsd.tmp#exp1D_value utilities_xsd.tmp#exp1D_abserror utilities_xsd.tmp#exp1D_relerror utilities_xsd.tmp#exp1D
Type exp1D
Properties
content complex
Model
Children abserror, relerror, value
Instance

<measure>
  <value>{1,1}</value>
  <abserror>{1,1}</abserror>
  <relerror>{1,1}</relerror>
</measure>
Source

<xs:element name="measure" type="exp1D">
  <xs:annotation>
    <xs:documentation>Measured quantity. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element langmuirdiag / te
Namespace No namespace
Annotations

Electron Temperature [eV]. All children are vectors(nte)
Diagram
Diagram langmuirdiag_xsd.tmp#lang_derived_source langmuirdiag_xsd.tmp#lang_derived_position langmuirdiag_xsd.tmp#lang_derived_measure langmuirdiag_xsd.tmp#lang_derived
Type lang_derived
Properties
content complex
Model
Children measure, position, source
Instance

<te>
  <source>{1,1}</source>
  <position>{1,1}</position>
  <measure>{1,1}</measure>
</te>
Source

<xs:element name="te" type="lang_derived">
  <xs:annotation>
    <xs:appinfo>machine description</xs:appinfo>
    <xs:documentation>Electron Temperature [eV]. All children are vectors(nte)</xs:documentation>
  </xs:annotation>
</xs:element>

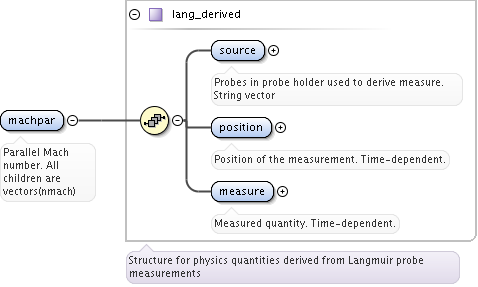

Element langmuirdiag / machpar
Namespace No namespace
Annotations

Parallel Mach number. All children are vectors(nmach)
Diagram
Diagram langmuirdiag_xsd.tmp#lang_derived_source langmuirdiag_xsd.tmp#lang_derived_position langmuirdiag_xsd.tmp#lang_derived_measure langmuirdiag_xsd.tmp#lang_derived
Type lang_derived
Properties
content complex
Model
Children measure, position, source
Instance

<machpar>
  <source>{1,1}</source>
  <position>{1,1}</position>
  <measure>{1,1}</measure>
</machpar>
Source

<xs:element name="machpar" type="lang_derived">
  <xs:annotation>
    <xs:appinfo>machine description</xs:appinfo>
    <xs:documentation>Parallel Mach number. All children are vectors(nmach)</xs:documentation>
  </xs:annotation>
</xs:element>
Element langmuirdiag / time
Namespace No namespace
Annotations

Time [s]; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="time" type="xs:float">
  <xs:annotation>
    <xs:documentation>Time [s]; Time-dependent; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Complex Type lang_measure
Namespace No namespace
Annotations

Structure for elementary Langmuir probe measurement
Diagram
Diagram langmuirdiag_xsd.tmp#lang_measure_name langmuirdiag_xsd.tmp#lang_measure_direction langmuirdiag_xsd.tmp#lang_measure_area langmuirdiag_xsd.tmp#lang_measure_position langmuirdiag_xsd.tmp#lang_measure_measure
Used by
Model
Children area, direction, measure, name, position
Source

<xs:complexType name="lang_measure">
  <xs:annotation>
    <xs:appinfo>machine description</xs:appinfo>
    <xs:documentation>Structure for elementary Langmuir probe measurement</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="name" type="vecstring_type">
      <xs:annotation>
        <xs:appinfo>machine description</xs:appinfo>
        <xs:documentation>Name of the probe e.g. Jsatur1,Vfloat1). String vector</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="direction" type="vecstring_type">
      <xs:annotation>
        <xs:appinfo>machine description</xs:appinfo>
        <xs:documentation>Direction of the probe w.r.t. magnetic field. For Mach arrangement use 'co ' (co-field) and 'ct ' (counter field) for the pair, otherwise use 'both'. String vector</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="area" type="exp1D">
      <xs:annotation>
        <xs:documentation>Effective area of probe [m^2]. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="position" type="rzphi1Dexp">
      <xs:annotation>
        <xs:documentation>Position of the measurement. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="measure" type="exp1D">
      <xs:annotation>
        <xs:documentation>Measured quantity. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type lang_derived
Namespace No namespace
Annotations

Structure for physics quantities derived from Langmuir probe measurements
Diagram
Diagram langmuirdiag_xsd.tmp#lang_derived_source langmuirdiag_xsd.tmp#lang_derived_position langmuirdiag_xsd.tmp#lang_derived_measure
Used by
Model
Children measure, position, source
Source

<xs:complexType name="lang_derived">
  <xs:annotation>
    <xs:appinfo>machine description</xs:appinfo>
    <xs:documentation>Structure for physics quantities derived from Langmuir probe measurements</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="source" type="vecstring_type">
      <xs:annotation>
        <xs:appinfo>machine description</xs:appinfo>
        <xs:documentation>Probes in probe holder used to derive measure. String vector</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="position" type="rzphi1Dexp">
      <xs:annotation>
        <xs:documentation>Position of the measurement. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="measure" type="exp1D">
      <xs:annotation>
        <xs:documentation>Measured quantity. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
XML Schema documentation generated by ® XML Editor.
