Element launchs
Namespace No namespace
Annotations

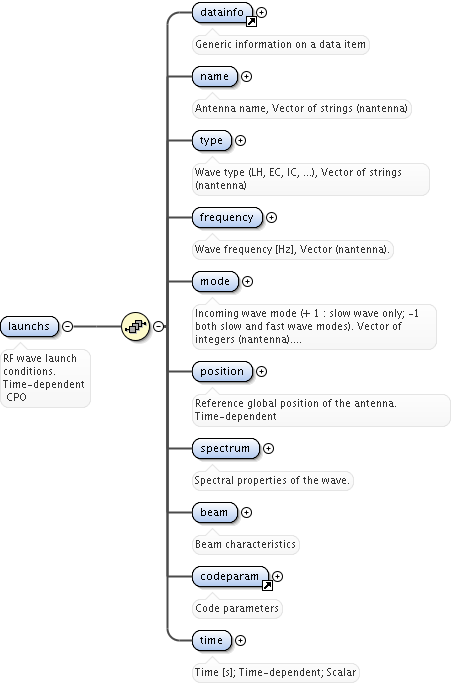

RF wave launch conditions. Time-dependent CPO
Diagram
Diagram utilities_xsd.tmp#datainfo launchs_xsd.tmp#launchs_name launchs_xsd.tmp#launchs_type launchs_xsd.tmp#launchs_frequency launchs_xsd.tmp#launchs_mode launchs_xsd.tmp#launchs_position launchs_xsd.tmp#launchs_spectrum launchs_xsd.tmp#launchs_beam utilities_xsd.tmp#codeparam launchs_xsd.tmp#launchs_time
Properties
content complex
Used by
Element top
Model
Children beam, codeparam, datainfo, frequency, mode, name, position, spectrum, time, type
Instance

<launchs>
  <datainfo>{1,1}</datainfo>
  <name>{1,1}</name>
  <type>{1,1}</type>
  <frequency>{1,1}</frequency>
  <mode>{1,1}</mode>
  <position>{1,1}</position>
  <spectrum>{1,1}</spectrum>
  <beam>{1,1}</beam>
  <codeparam>{1,1}</codeparam>
  <time>{1,1}</time>
</launchs>
Source

<xs:element name="launchs">
  <xs:annotation>
    <xs:documentation>RF wave launch conditions. Time-dependent CPO</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="datainfo"/>
      <xs:element name="name" type="vecstring_type">
        <xs:annotation>
          <xs:documentation>Antenna name, Vector of strings (nantenna)</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="type" type="vecstring_type">
        <xs:annotation>
          <xs:documentation>Wave type (LH, EC, IC, ...), Vector of strings (nantenna)</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="frequency" type="vecflt_type">
        <xs:annotation>
          <xs:documentation>Wave frequency [Hz], Vector (nantenna).</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="mode" type="vecint_type">
        <xs:annotation>
          <xs:documentation>Incoming wave mode (+ 1 : slow wave only; -1 both slow and fast wave modes). Vector of integers (nantenna). Time-dependent</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="position" type="rzphi1D">
        <xs:annotation>
          <xs:documentation>Reference global position of the antenna. Time-dependent</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="spectrum">
        <xs:annotation>
          <xs:documentation>Spectral properties of the wave.</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="phi_theta" type="launchs_phi_theta">
              <xs:annotation>
                <xs:documentation>Power spectrum as a function of the refractive index in the toroidal and poloidal directions.</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="parallel" type="launchs_parallel">
              <xs:annotation>
                <xs:documentation>Power spectrum as a function of the parallel refractive index.</xs:documentation>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="beam" type="launchs_rfbeam">
        <xs:annotation>
          <xs:documentation>Beam characteristics</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element ref="codeparam"/>
      <xs:element name="time" type="xs:float" default="0.0">
        <xs:annotation>
          <xs:documentation>Time [s]; Time-dependent; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element launchs / name
Namespace No namespace
Annotations

Antenna name, Vector of strings (nantenna)
Diagram
Diagram utilities_xsd.tmp#vecstring_type
Type vecstring_type
Properties
content simple
Source

<xs:element name="name" type="vecstring_type">
  <xs:annotation>
    <xs:documentation>Antenna name, Vector of strings (nantenna)</xs:documentation>
  </xs:annotation>
</xs:element>
Element launchs / type
Namespace No namespace
Annotations

Wave type (LH, EC, IC, ...), Vector of strings (nantenna)
Diagram
Diagram utilities_xsd.tmp#vecstring_type
Type vecstring_type
Properties
content simple
Source

<xs:element name="type" type="vecstring_type">
  <xs:annotation>
    <xs:documentation>Wave type (LH, EC, IC, ...), Vector of strings (nantenna)</xs:documentation>
  </xs:annotation>
</xs:element>
Element launchs / frequency
Namespace No namespace
Annotations

Wave frequency [Hz], Vector (nantenna).
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="frequency" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Wave frequency [Hz], Vector (nantenna).</xs:documentation>
  </xs:annotation>
</xs:element>
Element launchs / mode
Namespace No namespace
Annotations

Incoming wave mode (+ 1 : slow wave only; -1 both slow and fast wave modes). Vector of integers (nantenna). Time-dependent
Diagram
Diagram utilities_xsd.tmp#vecint_type
Type vecint_type
Properties
content simple
Source

<xs:element name="mode" type="vecint_type">
  <xs:annotation>
    <xs:documentation>Incoming wave mode (+ 1 : slow wave only; -1 both slow and fast wave modes). Vector of integers (nantenna). Time-dependent</xs:documentation>
  </xs:annotation>
</xs:element>
Element launchs / position
Namespace No namespace
Annotations

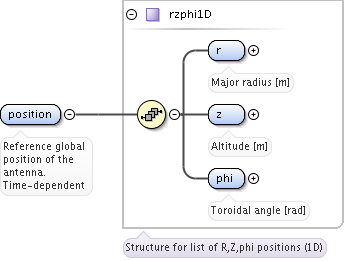

Reference global position of the antenna. Time-dependent
Diagram
Diagram utilities_xsd.tmp#rzphi1D_r utilities_xsd.tmp#rzphi1D_z utilities_xsd.tmp#rzphi1D_phi utilities_xsd.tmp#rzphi1D
Type rzphi1D
Properties
content complex
Model
r , z , phi
Children phi, r, z
Instance

<position>
  <r>{1,1}</r>
  <z>{1,1}</z>
  <phi>{1,1}</phi>
</position>
Source

<xs:element name="position" type="rzphi1D">
  <xs:annotation>
    <xs:documentation>Reference global position of the antenna. Time-dependent</xs:documentation>
  </xs:annotation>
</xs:element>
Element launchs / spectrum
Namespace No namespace
Annotations

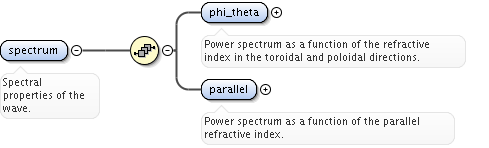

Spectral properties of the wave.
Diagram
Diagram launchs_xsd.tmp#launchs_launchs_spectrum_phi_theta launchs_xsd.tmp#launchs_launchs_spectrum_parallel
Properties
content complex
Model
Children parallel, phi_theta
Instance

<spectrum>
  <phi_theta>{1,1}</phi_theta>
  <parallel>{1,1}</parallel>
</spectrum>
Source

<xs:element name="spectrum">
  <xs:annotation>
    <xs:documentation>Spectral properties of the wave.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="phi_theta" type="launchs_phi_theta">
        <xs:annotation>
          <xs:documentation>Power spectrum as a function of the refractive index in the toroidal and poloidal directions.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="parallel" type="launchs_parallel">
        <xs:annotation>
          <xs:documentation>Power spectrum as a function of the parallel refractive index.</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element launchs / spectrum / phi_theta
Namespace No namespace
Annotations

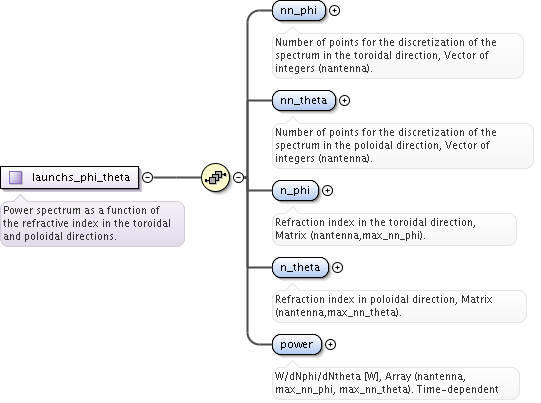

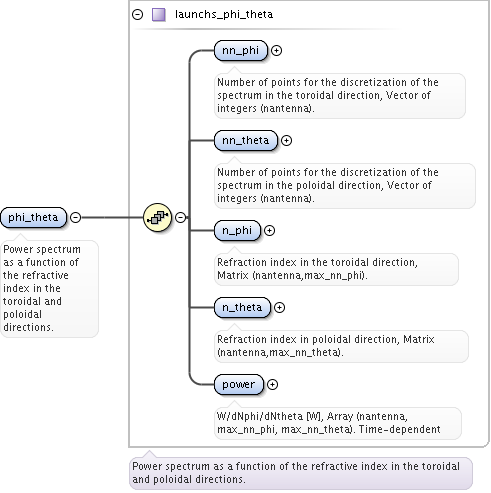

Power spectrum as a function of the refractive index in the toroidal and poloidal directions.
Diagram
Diagram launchs_xsd.tmp#launchs_phi_theta_nn_phi launchs_xsd.tmp#launchs_phi_theta_nn_theta launchs_xsd.tmp#launchs_phi_theta_n_phi launchs_xsd.tmp#launchs_phi_theta_n_theta launchs_xsd.tmp#launchs_phi_theta_power launchs_xsd.tmp#launchs_phi_theta
Type launchs_phi_theta
Properties
content complex
Model
Children n_phi, n_theta, nn_phi, nn_theta, power
Instance

<phi_theta>
  <nn_phi>{1,1}</nn_phi>
  <nn_theta>{1,1}</nn_theta>
  <n_phi>{1,1}</n_phi>
  <n_theta>{1,1}</n_theta>
  <power>{1,1}</power>
</phi_theta>
Source

<xs:element name="phi_theta" type="launchs_phi_theta">
  <xs:annotation>
    <xs:documentation>Power spectrum as a function of the refractive index in the toroidal and poloidal directions.</xs:documentation>
  </xs:annotation>
</xs:element>
Element launchs_phi_theta / nn_phi
Namespace No namespace
Annotations

Number of points for the discretization of the spectrum in the toroidal direction, Vector of integers (nantenna).
Diagram
Diagram utilities_xsd.tmp#vecint_type
Type vecint_type
Properties
content simple
Source

<xs:element name="nn_phi" type="vecint_type">
  <xs:annotation>
    <xs:documentation>Number of points for the discretization of the spectrum in the toroidal direction, Vector of integers (nantenna).</xs:documentation>
  </xs:annotation>
</xs:element>
Element launchs_phi_theta / nn_theta
Namespace No namespace
Annotations

Number of points for the discretization of the spectrum in the poloidal direction, Vector of integers (nantenna).
Diagram
Diagram utilities_xsd.tmp#vecint_type
Type vecint_type
Properties
content simple
Source

<xs:element name="nn_theta" type="vecint_type">
  <xs:annotation>
    <xs:documentation>Number of points for the discretization of the spectrum in the poloidal direction, Vector of integers (nantenna).</xs:documentation>
  </xs:annotation>
</xs:element>
Element launchs_phi_theta / n_phi
Namespace No namespace
Annotations

Refraction index in the toroidal direction, Matrix (nantenna,max_nn_phi).
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="n_phi" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Refraction index in the toroidal direction, Matrix (nantenna,max_nn_phi).</xs:documentation>
  </xs:annotation>
</xs:element>
Element launchs_phi_theta / n_theta
Namespace No namespace
Annotations

Refraction index in poloidal direction, Matrix (nantenna,max_nn_theta).
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="n_theta" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Refraction index in poloidal direction, Matrix (nantenna,max_nn_theta).</xs:documentation>
  </xs:annotation>
</xs:element>
Element launchs_phi_theta / power
Namespace No namespace
Annotations

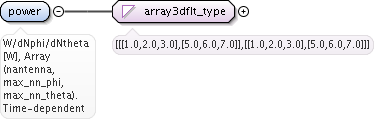

W/dNphi/dNtheta [W], Array (nantenna, max_nn_phi, max_nn_theta). Time-dependent
Diagram
Diagram utilities_xsd.tmp#array3dflt_type
Type array3dflt_type
Properties
content simple
Source

<xs:element name="power" type="array3dflt_type">
  <xs:annotation>
    <xs:documentation>W/dNphi/dNtheta [W], Array (nantenna, max_nn_phi, max_nn_theta). Time-dependent</xs:documentation>
  </xs:annotation>
</xs:element>
Element launchs / spectrum / parallel
Namespace No namespace
Annotations

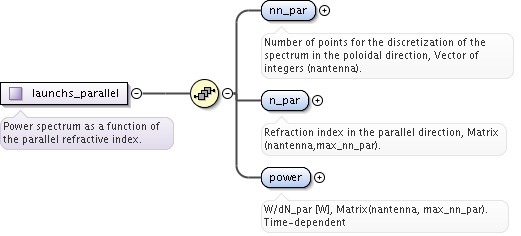

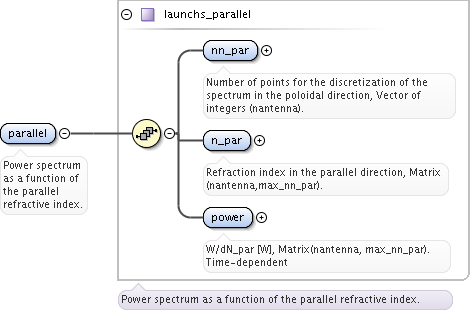

Power spectrum as a function of the parallel refractive index.
Diagram
Diagram launchs_xsd.tmp#launchs_parallel_nn_par launchs_xsd.tmp#launchs_parallel_n_par launchs_xsd.tmp#launchs_parallel_power launchs_xsd.tmp#launchs_parallel
Type launchs_parallel
Properties
content complex
Model
Children n_par, nn_par, power
Instance

<parallel>
  <nn_par>{1,1}</nn_par>
  <n_par>{1,1}</n_par>
  <power>{1,1}</power>
</parallel>
Source

<xs:element name="parallel" type="launchs_parallel">
  <xs:annotation>
    <xs:documentation>Power spectrum as a function of the parallel refractive index.</xs:documentation>
  </xs:annotation>
</xs:element>
Element launchs_parallel / nn_par
Namespace No namespace
Annotations

Number of points for the discretization of the spectrum in the poloidal direction, Vector of integers (nantenna).
Diagram
Diagram utilities_xsd.tmp#vecint_type
Type vecint_type
Properties
content simple
Source

<xs:element name="nn_par" type="vecint_type">
  <xs:annotation>
    <xs:documentation>Number of points for the discretization of the spectrum in the poloidal direction, Vector of integers (nantenna).</xs:documentation>
  </xs:annotation>
</xs:element>
Element launchs_parallel / n_par
Namespace No namespace
Annotations

Refraction index in the parallel direction, Matrix (nantenna,max_nn_par).
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="n_par" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Refraction index in the parallel direction, Matrix (nantenna,max_nn_par).</xs:documentation>
  </xs:annotation>
</xs:element>
Element launchs_parallel / power
Namespace No namespace
Annotations

W/dN_par [W], Matrix(nantenna, max_nn_par). Time-dependent
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="power" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>W/dN_par [W], Matrix(nantenna, max_nn_par). Time-dependent</xs:documentation>
  </xs:annotation>
</xs:element>
Element launchs / beam
Namespace No namespace
Annotations

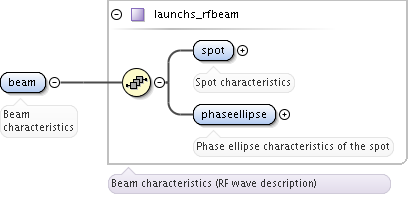

Beam characteristics
Diagram
Diagram launchs_xsd.tmp#launchs_rfbeam_spot launchs_xsd.tmp#launchs_rfbeam_phaseellipse launchs_xsd.tmp#launchs_rfbeam
Type launchs_rfbeam
Properties
content complex
Model
Children phaseellipse, spot
Instance

<beam>
  <spot>{1,1}</spot>
  <phaseellipse>{1,1}</phaseellipse>
</beam>
Source

<xs:element name="beam" type="launchs_rfbeam">
  <xs:annotation>
    <xs:documentation>Beam characteristics</xs:documentation>
  </xs:annotation>
</xs:element>
Element launchs_rfbeam / spot
Namespace No namespace
Annotations

Spot characteristics
Diagram
Diagram launchs_xsd.tmp#NO_NAMESPACE_launchs_rfbeam_spot_waist launchs_xsd.tmp#NO_NAMESPACE_launchs_rfbeam_spot_angle launchs_xsd.tmp#NO_NAMESPACE_launchs_rfbeam_spot
Type launchs_rfbeam_spot
Properties
content complex
Model
Children angle, waist
Instance

<spot>
  <waist>{1,1}</waist>
  <angle>{1,1}</angle>
</spot>
Source

<xs:element name="spot" type="launchs_rfbeam_spot">
  <xs:annotation>
    <xs:documentation>Spot characteristics</xs:documentation>
  </xs:annotation>
</xs:element>
Element launchs_rfbeam_spot / waist
Namespace No namespace
Annotations

Waist for the spot ellipse [m], Matrix (nantenna,2). Time-dependent
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="waist" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Waist for the spot ellipse [m], Matrix (nantenna,2). Time-dependent</xs:documentation>
  </xs:annotation>
</xs:element>
Element launchs_rfbeam_spot / angle
Namespace No namespace
Annotations

Rotation angle for the spot ellipse [rd], Vector(nantenna). Time-dependent
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="angle" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Rotation angle for the spot ellipse [rd], Vector(nantenna). Time-dependent</xs:documentation>
  </xs:annotation>
</xs:element>

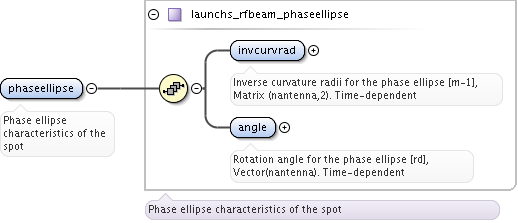

Element launchs_rfbeam / phaseellipse
Namespace No namespace
Annotations

Phase ellipse characteristics of the spot
Diagram
Diagram launchs_xsd.tmp#NO_NAMESPACE_launchs_rfbeam_phaseellipse_invcurvrad launchs_xsd.tmp#NO_NAMESPACE_launchs_rfbeam_phaseellipse_angle launchs_xsd.tmp#NO_NAMESPACE_launchs_rfbeam_phaseellipse
Type launchs_rfbeam_phaseellipse
Properties
content complex
Model
Children angle, invcurvrad
Instance

<phaseellipse>
  <invcurvrad>{1,1}</invcurvrad>
  <angle>{1,1}</angle>
</phaseellipse>
Source

<xs:element name="phaseellipse" type="launchs_rfbeam_phaseellipse">
  <xs:annotation>
    <xs:documentation>Phase ellipse characteristics of the spot</xs:documentation>
  </xs:annotation>
</xs:element>
Element launchs_rfbeam_phaseellipse / invcurvrad
Namespace No namespace
Annotations

Inverse curvature radii for the phase ellipse [m-1], Matrix (nantenna,2). Time-dependent
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="invcurvrad" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Inverse curvature radii for the phase ellipse [m-1], Matrix (nantenna,2). Time-dependent</xs:documentation>
  </xs:annotation>
</xs:element>
Element launchs_rfbeam_phaseellipse / angle
Namespace No namespace
Annotations

Rotation angle for the phase ellipse [rd], Vector(nantenna). Time-dependent
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="angle" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Rotation angle for the phase ellipse [rd], Vector(nantenna). Time-dependent</xs:documentation>
  </xs:annotation>
</xs:element>
Element launchs / time
Namespace No namespace
Annotations

Time [s]; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
default 0.0
Source

<xs:element name="time" type="xs:float" default="0.0">
  <xs:annotation>
    <xs:documentation>Time [s]; Time-dependent; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Complex Type launchs_phi_theta
Namespace No namespace
Annotations

Power spectrum as a function of the refractive index in the toroidal and poloidal directions.
Diagram
Diagram launchs_xsd.tmp#launchs_phi_theta_nn_phi launchs_xsd.tmp#launchs_phi_theta_nn_theta launchs_xsd.tmp#launchs_phi_theta_n_phi launchs_xsd.tmp#launchs_phi_theta_n_theta launchs_xsd.tmp#launchs_phi_theta_power
Used by
Model
Children n_phi, n_theta, nn_phi, nn_theta, power
Source

<xs:complexType name="launchs_phi_theta">
  <xs:annotation>
    <xs:documentation>Power spectrum as a function of the refractive index in the toroidal and poloidal directions.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="nn_phi" type="vecint_type">
      <xs:annotation>
        <xs:documentation>Number of points for the discretization of the spectrum in the toroidal direction, Vector of integers (nantenna).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="nn_theta" type="vecint_type">
      <xs:annotation>
        <xs:documentation>Number of points for the discretization of the spectrum in the poloidal direction, Vector of integers (nantenna).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="n_phi" type="matflt_type">
      <xs:annotation>
        <xs:documentation>Refraction index in the toroidal direction, Matrix (nantenna,max_nn_phi).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="n_theta" type="matflt_type">
      <xs:annotation>
        <xs:documentation>Refraction index in poloidal direction, Matrix (nantenna,max_nn_theta).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="power" type="array3dflt_type">
      <xs:annotation>
        <xs:documentation>W/dNphi/dNtheta [W], Array (nantenna, max_nn_phi, max_nn_theta). Time-dependent</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type launchs_parallel
Namespace No namespace
Annotations

Power spectrum as a function of the parallel refractive index.
Diagram
Diagram launchs_xsd.tmp#launchs_parallel_nn_par launchs_xsd.tmp#launchs_parallel_n_par launchs_xsd.tmp#launchs_parallel_power
Used by
Model
Children n_par, nn_par, power
Source

<xs:complexType name="launchs_parallel">
  <xs:annotation>
    <xs:documentation>Power spectrum as a function of the parallel refractive index.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="nn_par" type="vecint_type">
      <xs:annotation>
        <xs:documentation>Number of points for the discretization of the spectrum in the poloidal direction, Vector of integers (nantenna).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="n_par" type="matflt_type">
      <xs:annotation>
        <xs:documentation>Refraction index in the parallel direction, Matrix (nantenna,max_nn_par).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="power" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>W/dN_par [W], Matrix(nantenna, max_nn_par). Time-dependent</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

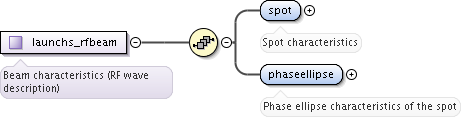

Complex Type launchs_rfbeam
Namespace No namespace
Annotations

Beam characteristics (RF wave description)
Diagram
Diagram launchs_xsd.tmp#launchs_rfbeam_spot launchs_xsd.tmp#launchs_rfbeam_phaseellipse
Used by
Element launchs/beam
Model
Children phaseellipse, spot
Source

<xs:complexType name="launchs_rfbeam">
  <xs:annotation>
    <xs:documentation>Beam characteristics (RF wave description)</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="spot" type="launchs_rfbeam_spot">
      <xs:annotation>
        <xs:documentation>Spot characteristics</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="phaseellipse" type="launchs_rfbeam_phaseellipse">
      <xs:annotation>
        <xs:documentation>Phase ellipse characteristics of the spot</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

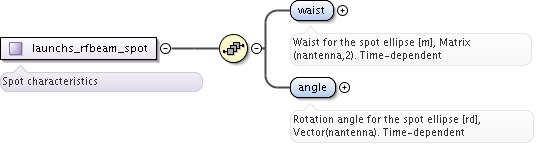

Complex Type launchs_rfbeam_spot
Namespace No namespace
Annotations

Spot characteristics
Diagram
Diagram launchs_xsd.tmp#NO_NAMESPACE_launchs_rfbeam_spot_waist launchs_xsd.tmp#NO_NAMESPACE_launchs_rfbeam_spot_angle
Used by
Model
Children angle, waist
Source

<xs:complexType name="launchs_rfbeam_spot">
  <xs:annotation>
    <xs:documentation>Spot characteristics</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="waist" type="matflt_type">
      <xs:annotation>
        <xs:documentation>Waist for the spot ellipse [m], Matrix (nantenna,2). Time-dependent</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="angle" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Rotation angle for the spot ellipse [rd], Vector(nantenna). Time-dependent</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

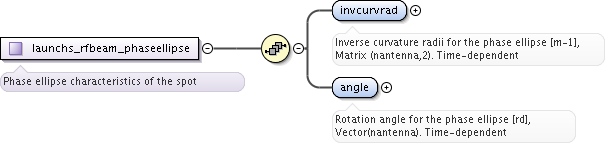

Complex Type launchs_rfbeam_phaseellipse
Namespace No namespace
Annotations

Phase ellipse characteristics of the spot
Diagram
Diagram launchs_xsd.tmp#NO_NAMESPACE_launchs_rfbeam_phaseellipse_invcurvrad launchs_xsd.tmp#NO_NAMESPACE_launchs_rfbeam_phaseellipse_angle
Used by
Model
Children angle, invcurvrad
Source

<xs:complexType name="launchs_rfbeam_phaseellipse">
  <xs:annotation>
    <xs:documentation>Phase ellipse characteristics of the spot</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="invcurvrad" type="matflt_type">
      <xs:annotation>
        <xs:documentation>Inverse curvature radii for the phase ellipse [m-1], Matrix (nantenna,2). Time-dependent</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="angle" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Rotation angle for the phase ellipse [rd], Vector(nantenna). Time-dependent</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
XML Schema documentation generated by ® XML Editor.
