Element lithiumdiag
Namespace No namespace
Annotations

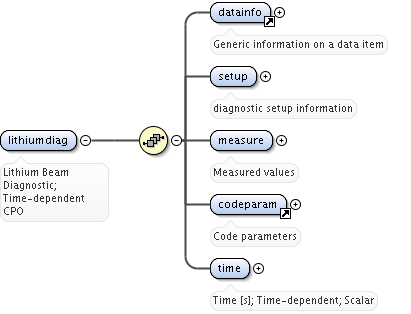

Lithium Beam Diagnostic; Time-dependent CPO
Diagram
Diagram utilities_xsd.tmp#datainfo lithiumdiag_xsd.tmp#lithiumdiag_setup lithiumdiag_xsd.tmp#lithiumdiag_measure utilities_xsd.tmp#codeparam lithiumdiag_xsd.tmp#lithiumdiag_time
Properties
content complex
Used by
Element top
Model
Children codeparam, datainfo, measure, setup, time
Instance

<lithiumdiag>
  <datainfo>{1,1}</datainfo>
  <setup>{1,1}</setup>
  <measure>{1,1}</measure>
  <codeparam>{1,1}</codeparam>
  <time>{1,1}</time>
</lithiumdiag>
Source

<xs:element name="lithiumdiag">
  <xs:annotation>
    <xs:documentation>Lithium Beam Diagnostic; Time-dependent CPO</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="datainfo"/>
      <xs:element name="setup" type="lithsetup">
        <xs:annotation>
          <xs:documentation>diagnostic setup information</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="measure" type="lithmeasure">
        <xs:annotation>
          <xs:documentation>Measured values</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element ref="codeparam"/>
      <xs:element name="time" type="xs:float">
        <xs:annotation>
          <xs:documentation>Time [s]; Time-dependent; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element lithiumdiag / setup
Namespace No namespace
Annotations

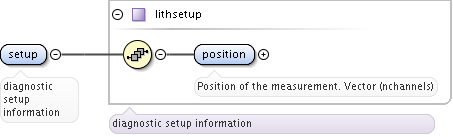

diagnostic setup information
Diagram
Diagram lithiumdiag_xsd.tmp#lithsetup_position lithiumdiag_xsd.tmp#lithsetup
Type lithsetup
Properties
content complex
Model
Children position
Instance

<setup>
  <position>{1,1}</position>
</setup>
Source

<xs:element name="setup" type="lithsetup">
  <xs:annotation>
    <xs:documentation>diagnostic setup information</xs:documentation>
  </xs:annotation>
</xs:element>
Element lithsetup / position
Namespace No namespace
Annotations

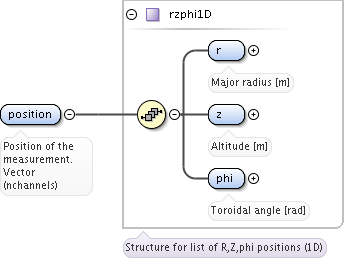

Position of the measurement. Vector (nchannels)
Diagram
Diagram utilities_xsd.tmp#rzphi1D_r utilities_xsd.tmp#rzphi1D_z utilities_xsd.tmp#rzphi1D_phi utilities_xsd.tmp#rzphi1D
Type rzphi1D
Properties
content complex
Model
r , z , phi
Children phi, r, z
Instance

<position>
  <r>{1,1}</r>
  <z>{1,1}</z>
  <phi>{1,1}</phi>
</position>
Source

<xs:element name="position" type="rzphi1D">
  <xs:annotation>
    <xs:documentation>Position of the measurement. Vector (nchannels)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element lithiumdiag / measure
Namespace No namespace
Annotations

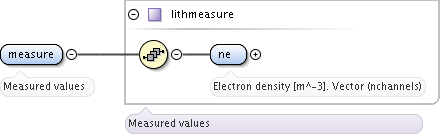

Measured values
Diagram
Diagram lithiumdiag_xsd.tmp#lithmeasure_ne lithiumdiag_xsd.tmp#lithmeasure
Type lithmeasure
Properties
content complex
Model
Children ne
Instance

<measure>
  <ne>{1,1}</ne>
</measure>
Source

<xs:element name="measure" type="lithmeasure">
  <xs:annotation>
    <xs:documentation>Measured values</xs:documentation>
  </xs:annotation>
</xs:element>
Element lithmeasure / ne
Namespace No namespace
Annotations

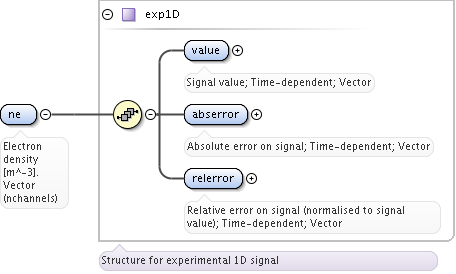

Electron density [m^-3]. Vector (nchannels)
Diagram
Diagram utilities_xsd.tmp#exp1D_value utilities_xsd.tmp#exp1D_abserror utilities_xsd.tmp#exp1D_relerror utilities_xsd.tmp#exp1D
Type exp1D
Properties
content complex
Model
Children abserror, relerror, value
Instance

<ne>
  <value>{1,1}</value>
  <abserror>{1,1}</abserror>
  <relerror>{1,1}</relerror>
</ne>
Source

<xs:element name="ne" type="exp1D">
  <xs:annotation>
    <xs:documentation>Electron density [m^-3]. Vector (nchannels)</xs:documentation>
  </xs:annotation>
</xs:element>
Element lithiumdiag / time
Namespace No namespace
Annotations

Time [s]; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="time" type="xs:float">
  <xs:annotation>
    <xs:documentation>Time [s]; Time-dependent; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Complex Type lithsetup
Namespace No namespace
Annotations

diagnostic setup information
Diagram
Diagram lithiumdiag_xsd.tmp#lithsetup_position
Used by
Model
Children position
Source

<xs:complexType name="lithsetup">
  <xs:annotation>
    <xs:documentation>diagnostic setup information</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="position" type="rzphi1D">
      <xs:annotation>
        <xs:documentation>Position of the measurement. Vector (nchannels)</xs:documentation>
        <xs:appinfo>machine description</xs:appinfo>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type lithmeasure
Namespace No namespace
Annotations

Measured values
Diagram
Diagram lithiumdiag_xsd.tmp#lithmeasure_ne
Used by
Model
Children ne
Source

<xs:complexType name="lithmeasure">
  <xs:annotation>
    <xs:documentation>Measured values</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="ne" type="exp1D">
      <xs:annotation>
        <xs:documentation>Electron density [m^-3]. Vector (nchannels)</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
