Included schema magdiag.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default qualified

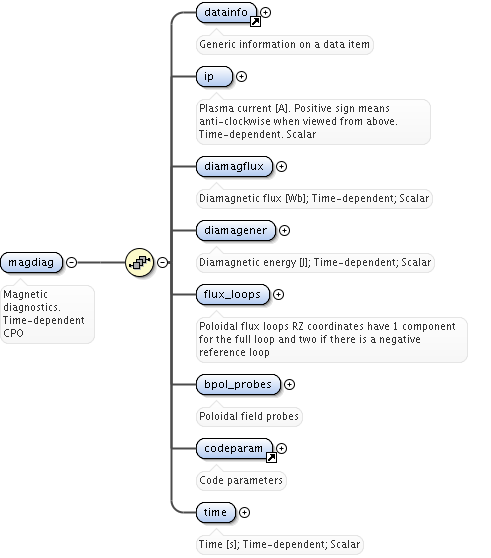

Element magdiag
Namespace No namespace
Annotations

Magnetic diagnostics. Time-dependent CPO
Diagram
Diagram utilities_xsd.tmp#datainfo magdiag_xsd.tmp#magdiag_ip magdiag_xsd.tmp#magdiag_diamagflux magdiag_xsd.tmp#magdiag_diamagener magdiag_xsd.tmp#magdiag_flux_loops magdiag_xsd.tmp#magdiag_bpol_probes utilities_xsd.tmp#codeparam magdiag_xsd.tmp#magdiag_time
Properties
content complex
Used by
Element top
Model
Children bpol_probes, codeparam, datainfo, diamagener, diamagflux, flux_loops, ip, time
Instance

<magdiag>
  <datainfo>{1,1}</datainfo>
  <ip>{1,1}</ip>
  <diamagflux>{1,1}</diamagflux>
  <diamagener>{1,1}</diamagener>
  <flux_loops>{1,1}</flux_loops>
  <bpol_probes>{1,1}</bpol_probes>
  <codeparam>{1,1}</codeparam>
  <time>{1,1}</time>
</magdiag>
Source

<xs:element name="magdiag">
  <xs:annotation>
    <xs:documentation>Magnetic diagnostics. Time-dependent CPO</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="datainfo"/>
      <xs:element name="ip" type="exp0D">
        <xs:annotation>
          <xs:documentation>Plasma current [A]. Positive sign means anti-clockwise when viewed from above. Time-dependent. Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="diamagflux" type="exp0D">
        <xs:annotation>
          <xs:documentation>Diamagnetic flux [Wb]; Time-dependent; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="diamagener" type="exp0D">
        <xs:annotation>
          <xs:documentation>Diamagnetic energy [J]; Time-dependent; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="flux_loops">
        <xs:annotation>
          <xs:documentation>Poloidal flux loops RZ coordinates have 1 component for the full loop and two if there is a negative reference loop</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="setup_floops">
              <xs:annotation>
                <xs:documentation>diagnostic setup information</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="name" type="vecstring_type">
                    <xs:annotation>
                      <xs:documentation>Name of loop. Array of strings (nloops).</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="id" type="vecstring_type">
                    <xs:annotation>
                      <xs:documentation>ID of loop. Array of strings (nloops).</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="position" type="rzphi2D">
                    <xs:annotation>
                      <xs:documentation>List of (R,Z,phi) points defining the position of the loop (see data structure documentation FLUXLOOPposition.pdf); Matrices (nloops, max_npoints)</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="npoints" type="vecint_type">
                    <xs:annotation>
                      <xs:documentation>Number of points describing each loop in the "position" matrices. Vector (nloops)</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                  </xs:element>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element name="measure" type="exp1D">
              <xs:annotation>
                <xs:documentation>Measured flux [Wb]; Time-dependent; Vector (nloops)</xs:documentation>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>

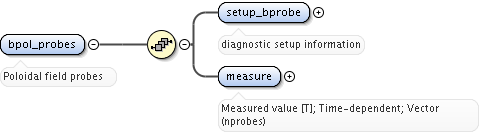

      <xs:element name="bpol_probes">
        <xs:annotation>
          <xs:documentation>Poloidal field probes</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>

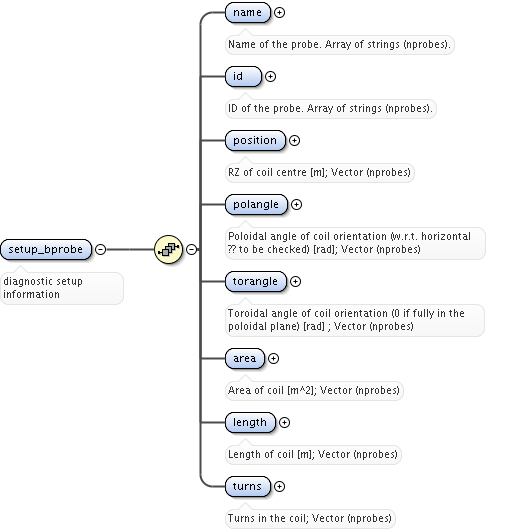

            <xs:element name="setup_bprobe">
              <xs:annotation>
                <xs:documentation>diagnostic setup information</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="name" type="vecstring_type">
                    <xs:annotation>
                      <xs:documentation>Name of the probe. Array of strings (nprobes).</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="id" type="vecstring_type">
                    <xs:annotation>
                      <xs:documentation>ID of the probe. Array of strings (nprobes).</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                  </xs:element>

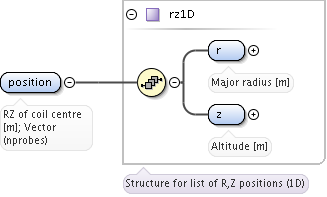

                  <xs:element name="position" type="rz1D">
                    <xs:annotation>
                      <xs:documentation>RZ of coil centre [m]; Vector (nprobes)</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="polangle" type="vecflt_type">
                    <xs:annotation>
                      <xs:documentation>Poloidal angle of coil orientation (w.r.t. horizontal ?? to be checked) [rad]; Vector (nprobes)</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="torangle" type="vecflt_type" default="[0.0,0.0]">
                    <xs:annotation>
                      <xs:documentation>Toroidal angle of coil orientation (0 if fully in the poloidal plane) [rad] ; Vector (nprobes)</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="area" type="vecflt_type" default="[0.0,0.0]">
                    <xs:annotation>
                      <xs:documentation>Area of coil [m^2]; Vector (nprobes)</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="length" type="vecflt_type" default="[0.0,0.0]">
                    <xs:annotation>
                      <xs:documentation>Length of coil [m]; Vector (nprobes)</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="turns" type="vecint_type">
                    <xs:annotation>
                      <xs:documentation>Turns in the coil; Vector (nprobes)</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                  </xs:element>
                </xs:sequence>
              </xs:complexType>
            </xs:element>

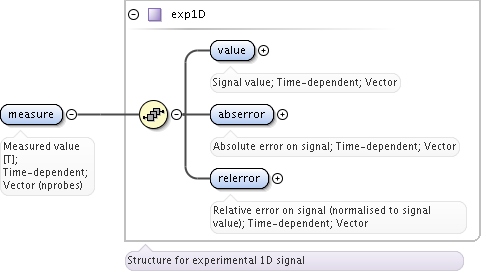

            <xs:element name="measure" type="exp1D">
              <xs:annotation>
                <xs:documentation>Measured value [T]; Time-dependent; Vector (nprobes)</xs:documentation>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element ref="codeparam"/>
      <xs:element name="time" type="xs:float" default="0.0">
        <xs:annotation>
          <xs:documentation>Time [s]; Time-dependent; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

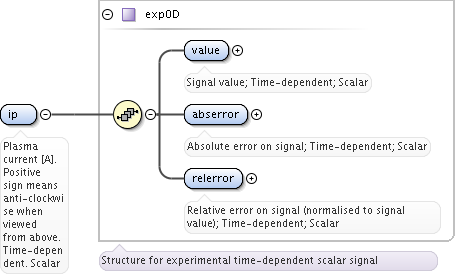

Element magdiag / ip
Namespace No namespace
Annotations

Plasma current [A]. Positive sign means anti-clockwise when viewed from above.  Time-dependent. Scalar
Diagram
Diagram utilities_xsd.tmp#exp0D_value utilities_xsd.tmp#exp0D_abserror utilities_xsd.tmp#exp0D_relerror utilities_xsd.tmp#exp0D
Type exp0D
Properties
content complex
Model
Children abserror, relerror, value
Instance

<ip>
  <value>{1,1}</value>
  <abserror>{1,1}</abserror>
  <relerror>{1,1}</relerror>
</ip>
Source

<xs:element name="ip" type="exp0D">
  <xs:annotation>
    <xs:documentation>Plasma current [A]. Positive sign means anti-clockwise when viewed from above. Time-dependent. Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

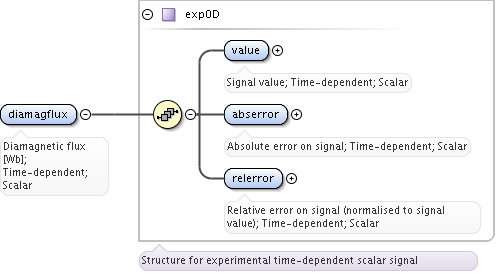

Element magdiag / diamagflux
Namespace No namespace
Annotations

Diamagnetic flux [Wb]; Time-dependent; Scalar
Diagram
Diagram utilities_xsd.tmp#exp0D_value utilities_xsd.tmp#exp0D_abserror utilities_xsd.tmp#exp0D_relerror utilities_xsd.tmp#exp0D
Type exp0D
Properties
content complex
Model
Children abserror, relerror, value
Instance

<diamagflux>
  <value>{1,1}</value>
  <abserror>{1,1}</abserror>
  <relerror>{1,1}</relerror>
</diamagflux>
Source

<xs:element name="diamagflux" type="exp0D">
  <xs:annotation>
    <xs:documentation>Diamagnetic flux [Wb]; Time-dependent; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Element magdiag / diamagener
Namespace No namespace
Annotations

Diamagnetic energy [J]; Time-dependent; Scalar
Diagram
Diagram utilities_xsd.tmp#exp0D_value utilities_xsd.tmp#exp0D_abserror utilities_xsd.tmp#exp0D_relerror utilities_xsd.tmp#exp0D
Type exp0D
Properties
content complex
Model
Children abserror, relerror, value
Instance

<diamagener>
  <value>{1,1}</value>
  <abserror>{1,1}</abserror>
  <relerror>{1,1}</relerror>
</diamagener>
Source

<xs:element name="diamagener" type="exp0D">
  <xs:annotation>
    <xs:documentation>Diamagnetic energy [J]; Time-dependent; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

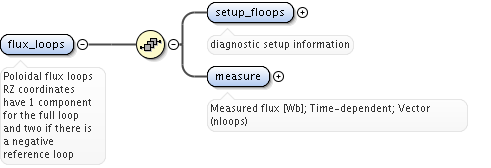

Element magdiag / flux_loops
Namespace No namespace
Annotations

Poloidal flux loops RZ coordinates have 1 component for the full loop and two if there is a negative reference loop
Diagram
Diagram magdiag_xsd.tmp#magdiag_magdiag_flux_loops_setup_floops magdiag_xsd.tmp#magdiag_magdiag_flux_loops_measure
Properties
content complex
Model
Children measure, setup_floops
Instance

<flux_loops>
  <setup_floops>{1,1}</setup_floops>
  <measure>{1,1}</measure>
</flux_loops>
Source

<xs:element name="flux_loops">
  <xs:annotation>
    <xs:documentation>Poloidal flux loops RZ coordinates have 1 component for the full loop and two if there is a negative reference loop</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="setup_floops">
        <xs:annotation>
          <xs:documentation>diagnostic setup information</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="name" type="vecstring_type">
              <xs:annotation>
                <xs:documentation>Name of loop. Array of strings (nloops).</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="id" type="vecstring_type">
              <xs:annotation>
                <xs:documentation>ID of loop. Array of strings (nloops).</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="position" type="rzphi2D">
              <xs:annotation>
                <xs:documentation>List of (R,Z,phi) points defining the position of the loop (see data structure documentation FLUXLOOPposition.pdf); Matrices (nloops, max_npoints)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="npoints" type="vecint_type">
              <xs:annotation>
                <xs:documentation>Number of points describing each loop in the "position" matrices. Vector (nloops)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>

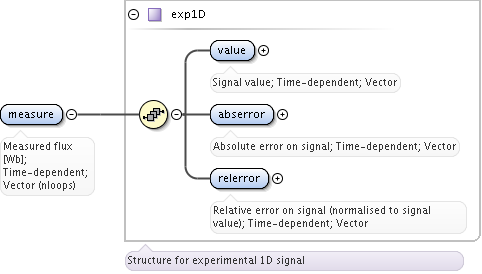

      <xs:element name="measure" type="exp1D">
        <xs:annotation>
          <xs:documentation>Measured flux [Wb]; Time-dependent; Vector (nloops)</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

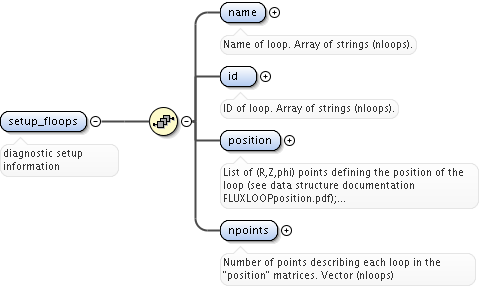

Element magdiag / flux_loops / setup_floops
Namespace No namespace
Annotations

diagnostic setup information
Diagram
Diagram magdiag_xsd.tmp#magdiag_magdiag_flux_loops_magdiag_magdiag_flux_loops_setup_floops_name magdiag_xsd.tmp#magdiag_magdiag_flux_loops_magdiag_magdiag_flux_loops_setup_floops_id magdiag_xsd.tmp#magdiag_magdiag_flux_loops_magdiag_magdiag_flux_loops_setup_floops_position magdiag_xsd.tmp#magdiag_magdiag_flux_loops_magdiag_magdiag_flux_loops_setup_floops_npoints
Properties
content complex
Model
Children id, name, npoints, position
Instance

<setup_floops>
  <name>{1,1}</name>
  <id>{1,1}</id>
  <position>{1,1}</position>
  <npoints>{1,1}</npoints>
</setup_floops>
Source

<xs:element name="setup_floops">
  <xs:annotation>
    <xs:documentation>diagnostic setup information</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="name" type="vecstring_type">
        <xs:annotation>
          <xs:documentation>Name of loop. Array of strings (nloops).</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="id" type="vecstring_type">
        <xs:annotation>
          <xs:documentation>ID of loop. Array of strings (nloops).</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>

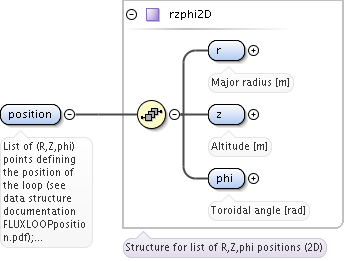

      <xs:element name="position" type="rzphi2D">
        <xs:annotation>
          <xs:documentation>List of (R,Z,phi) points defining the position of the loop (see data structure documentation FLUXLOOPposition.pdf); Matrices (nloops, max_npoints)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="npoints" type="vecint_type">
        <xs:annotation>
          <xs:documentation>Number of points describing each loop in the "position" matrices. Vector (nloops)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element magdiag / flux_loops / setup_floops / name
Namespace No namespace
Annotations

Name of loop. Array of strings (nloops).
Diagram
Diagram utilities_xsd.tmp#vecstring_type
Type vecstring_type
Properties
content simple
Source

<xs:element name="name" type="vecstring_type">
  <xs:annotation>
    <xs:documentation>Name of loop. Array of strings (nloops).</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element magdiag / flux_loops / setup_floops / id
Namespace No namespace
Annotations

ID of loop. Array of strings (nloops).
Diagram
Diagram utilities_xsd.tmp#vecstring_type
Type vecstring_type
Properties
content simple
Source

<xs:element name="id" type="vecstring_type">
  <xs:annotation>
    <xs:documentation>ID of loop. Array of strings (nloops).</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element magdiag / flux_loops / setup_floops / position
Namespace No namespace
Annotations

List of (R,Z,phi) points defining the position of the loop (see data structure documentation FLUXLOOPposition.pdf); Matrices (nloops, max_npoints)
Diagram
Diagram utilities_xsd.tmp#rzphi2D_r utilities_xsd.tmp#rzphi2D_z utilities_xsd.tmp#rzphi2D_phi utilities_xsd.tmp#rzphi2D
Type rzphi2D
Properties
content complex
Model
r , z , phi
Children phi, r, z
Instance

<position>
  <r>{1,1}</r>
  <z>{1,1}</z>
  <phi>{1,1}</phi>
</position>
Source

<xs:element name="position" type="rzphi2D">
  <xs:annotation>
    <xs:documentation>List of (R,Z,phi) points defining the position of the loop (see data structure documentation FLUXLOOPposition.pdf); Matrices (nloops, max_npoints)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element magdiag / flux_loops / setup_floops / npoints
Namespace No namespace
Annotations

Number of points describing each loop in the "position" matrices. Vector (nloops)
Diagram
Diagram utilities_xsd.tmp#vecint_type
Type vecint_type
Properties
content simple
Source

<xs:element name="npoints" type="vecint_type">
  <xs:annotation>
    <xs:documentation>Number of points describing each loop in the "position" matrices. Vector (nloops)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element magdiag / flux_loops / measure
Namespace No namespace
Annotations

Measured flux [Wb]; Time-dependent; Vector (nloops)
Diagram
Diagram utilities_xsd.tmp#exp1D_value utilities_xsd.tmp#exp1D_abserror utilities_xsd.tmp#exp1D_relerror utilities_xsd.tmp#exp1D
Type exp1D
Properties
content complex
Model
Children abserror, relerror, value
Instance

<measure>
  <value>{1,1}</value>
  <abserror>{1,1}</abserror>
  <relerror>{1,1}</relerror>
</measure>
Source

<xs:element name="measure" type="exp1D">
  <xs:annotation>
    <xs:documentation>Measured flux [Wb]; Time-dependent; Vector (nloops)</xs:documentation>
  </xs:annotation>
</xs:element>
Element magdiag / bpol_probes
Namespace No namespace
Annotations

Poloidal field probes
Diagram
Diagram magdiag_xsd.tmp#magdiag_magdiag_bpol_probes_setup_bprobe magdiag_xsd.tmp#magdiag_magdiag_bpol_probes_measure
Properties
content complex
Model
Children measure, setup_bprobe
Instance

<bpol_probes>
  <setup_bprobe>{1,1}</setup_bprobe>
  <measure>{1,1}</measure>
</bpol_probes>
Source

<xs:element name="bpol_probes">
  <xs:annotation>
    <xs:documentation>Poloidal field probes</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="setup_bprobe">
        <xs:annotation>
          <xs:documentation>diagnostic setup information</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="name" type="vecstring_type">
              <xs:annotation>
                <xs:documentation>Name of the probe. Array of strings (nprobes).</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="id" type="vecstring_type">
              <xs:annotation>
                <xs:documentation>ID of the probe. Array of strings (nprobes).</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="position" type="rz1D">
              <xs:annotation>
                <xs:documentation>RZ of coil centre [m]; Vector (nprobes)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="polangle" type="vecflt_type">
              <xs:annotation>
                <xs:documentation>Poloidal angle of coil orientation (w.r.t. horizontal ?? to be checked) [rad]; Vector (nprobes)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="torangle" type="vecflt_type" default="[0.0,0.0]">
              <xs:annotation>
                <xs:documentation>Toroidal angle of coil orientation (0 if fully in the poloidal plane) [rad] ; Vector (nprobes)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="area" type="vecflt_type" default="[0.0,0.0]">
              <xs:annotation>
                <xs:documentation>Area of coil [m^2]; Vector (nprobes)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="length" type="vecflt_type" default="[0.0,0.0]">
              <xs:annotation>
                <xs:documentation>Length of coil [m]; Vector (nprobes)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="turns" type="vecint_type">
              <xs:annotation>
                <xs:documentation>Turns in the coil; Vector (nprobes)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="measure" type="exp1D">
        <xs:annotation>
          <xs:documentation>Measured value [T]; Time-dependent; Vector (nprobes)</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element magdiag / bpol_probes / setup_bprobe
Namespace No namespace
Annotations

diagnostic setup information
Diagram
Diagram magdiag_xsd.tmp#magdiag_magdiag_bpol_probes_magdiag_magdiag_bpol_probes_setup_bprobe_name magdiag_xsd.tmp#magdiag_magdiag_bpol_probes_magdiag_magdiag_bpol_probes_setup_bprobe_id magdiag_xsd.tmp#magdiag_magdiag_bpol_probes_magdiag_magdiag_bpol_probes_setup_bprobe_position magdiag_xsd.tmp#magdiag_magdiag_bpol_probes_magdiag_magdiag_bpol_probes_setup_bprobe_polangle magdiag_xsd.tmp#magdiag_magdiag_bpol_probes_magdiag_magdiag_bpol_probes_setup_bprobe_torangle magdiag_xsd.tmp#magdiag_magdiag_bpol_probes_magdiag_magdiag_bpol_probes_setup_bprobe_area magdiag_xsd.tmp#magdiag_magdiag_bpol_probes_magdiag_magdiag_bpol_probes_setup_bprobe_length magdiag_xsd.tmp#magdiag_magdiag_bpol_probes_magdiag_magdiag_bpol_probes_setup_bprobe_turns
Properties
content complex
Model
Children area, id, length, name, polangle, position, torangle, turns
Instance

<setup_bprobe>
  <name>{1,1}</name>
  <id>{1,1}</id>
  <position>{1,1}</position>
  <polangle>{1,1}</polangle>
  <torangle>{1,1}</torangle>
  <area>{1,1}</area>
  <length>{1,1}</length>
  <turns>{1,1}</turns>
</setup_bprobe>
Source

<xs:element name="setup_bprobe">
  <xs:annotation>
    <xs:documentation>diagnostic setup information</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="name" type="vecstring_type">
        <xs:annotation>
          <xs:documentation>Name of the probe. Array of strings (nprobes).</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="id" type="vecstring_type">
        <xs:annotation>
          <xs:documentation>ID of the probe. Array of strings (nprobes).</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="position" type="rz1D">
        <xs:annotation>
          <xs:documentation>RZ of coil centre [m]; Vector (nprobes)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="polangle" type="vecflt_type">
        <xs:annotation>
          <xs:documentation>Poloidal angle of coil orientation (w.r.t. horizontal ?? to be checked) [rad]; Vector (nprobes)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="torangle" type="vecflt_type" default="[0.0,0.0]">
        <xs:annotation>
          <xs:documentation>Toroidal angle of coil orientation (0 if fully in the poloidal plane) [rad] ; Vector (nprobes)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="area" type="vecflt_type" default="[0.0,0.0]">
        <xs:annotation>
          <xs:documentation>Area of coil [m^2]; Vector (nprobes)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="length" type="vecflt_type" default="[0.0,0.0]">
        <xs:annotation>
          <xs:documentation>Length of coil [m]; Vector (nprobes)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="turns" type="vecint_type">
        <xs:annotation>
          <xs:documentation>Turns in the coil; Vector (nprobes)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element magdiag / bpol_probes / setup_bprobe / name
Namespace No namespace
Annotations

Name of the probe.  Array of strings (nprobes).
Diagram
Diagram utilities_xsd.tmp#vecstring_type
Type vecstring_type
Properties
content simple
Source

<xs:element name="name" type="vecstring_type">
  <xs:annotation>
    <xs:documentation>Name of the probe. Array of strings (nprobes).</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element magdiag / bpol_probes / setup_bprobe / id
Namespace No namespace
Annotations

ID of the probe.  Array of strings (nprobes).
Diagram
Diagram utilities_xsd.tmp#vecstring_type
Type vecstring_type
Properties
content simple
Source

<xs:element name="id" type="vecstring_type">
  <xs:annotation>
    <xs:documentation>ID of the probe. Array of strings (nprobes).</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element magdiag / bpol_probes / setup_bprobe / position
Namespace No namespace
Annotations

RZ of coil centre [m]; Vector (nprobes)
Diagram
Diagram utilities_xsd.tmp#rz1D_r utilities_xsd.tmp#rz1D_z utilities_xsd.tmp#rz1D
Type rz1D
Properties
content complex
Model
r , z
Children r, z
Instance

<position>
  <r>{1,1}</r>
  <z>{1,1}</z>
</position>
Source

<xs:element name="position" type="rz1D">
  <xs:annotation>
    <xs:documentation>RZ of coil centre [m]; Vector (nprobes)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element magdiag / bpol_probes / setup_bprobe / polangle
Namespace No namespace
Annotations

Poloidal angle of coil orientation (w.r.t. horizontal ?? to be checked) [rad]; Vector (nprobes)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="polangle" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Poloidal angle of coil orientation (w.r.t. horizontal ?? to be checked) [rad]; Vector (nprobes)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element magdiag / bpol_probes / setup_bprobe / torangle
Namespace No namespace
Annotations

Toroidal angle of coil orientation (0 if fully in the poloidal plane) [rad] ; Vector (nprobes)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
default [0.0,0.0]
final restriction
Source

<xs:element name="torangle" type="vecflt_type" default="[0.0,0.0]">
  <xs:annotation>
    <xs:documentation>Toroidal angle of coil orientation (0 if fully in the poloidal plane) [rad] ; Vector (nprobes)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element magdiag / bpol_probes / setup_bprobe / area
Namespace No namespace
Annotations

Area of coil [m^2]; Vector (nprobes)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
default [0.0,0.0]
final restriction
Source

<xs:element name="area" type="vecflt_type" default="[0.0,0.0]">
  <xs:annotation>
    <xs:documentation>Area of coil [m^2]; Vector (nprobes)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element magdiag / bpol_probes / setup_bprobe / length
Namespace No namespace
Annotations

Length of coil [m]; Vector (nprobes)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
default [0.0,0.0]
final restriction
Source

<xs:element name="length" type="vecflt_type" default="[0.0,0.0]">
  <xs:annotation>
    <xs:documentation>Length of coil [m]; Vector (nprobes)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element magdiag / bpol_probes / setup_bprobe / turns
Namespace No namespace
Annotations

Turns in the coil; Vector (nprobes)
Diagram
Diagram utilities_xsd.tmp#vecint_type
Type vecint_type
Properties
content simple
Source

<xs:element name="turns" type="vecint_type">
  <xs:annotation>
    <xs:documentation>Turns in the coil; Vector (nprobes)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element magdiag / bpol_probes / measure
Namespace No namespace
Annotations

Measured value [T]; Time-dependent; Vector (nprobes)
Diagram
Diagram utilities_xsd.tmp#exp1D_value utilities_xsd.tmp#exp1D_abserror utilities_xsd.tmp#exp1D_relerror utilities_xsd.tmp#exp1D
Type exp1D
Properties
content complex
Model
Children abserror, relerror, value
Instance

<measure>
  <value>{1,1}</value>
  <abserror>{1,1}</abserror>
  <relerror>{1,1}</relerror>
</measure>
Source

<xs:element name="measure" type="exp1D">
  <xs:annotation>
    <xs:documentation>Measured value [T]; Time-dependent; Vector (nprobes)</xs:documentation>
  </xs:annotation>
</xs:element>
Element magdiag / time
Namespace No namespace
Annotations

Time [s]; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
default 0.0
Source

<xs:element name="time" type="xs:float" default="0.0">
  <xs:annotation>
    <xs:documentation>Time [s]; Time-dependent; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
XML Schema documentation generated by ® XML Editor.
