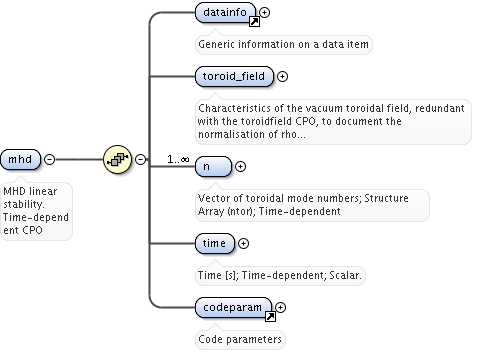

Element mhd
Namespace No namespace
Annotations

MHD linear stability. Time-dependent CPO
Diagram
Diagram utilities_xsd.tmp#datainfo mhd_xsd.tmp#mhd_toroid_field mhd_xsd.tmp#mhd_n mhd_xsd.tmp#mhd_time utilities_xsd.tmp#codeparam
Properties
content complex
Used by
Element top
Model
Children codeparam, datainfo, n, time, toroid_field
Instance

<mhd>
  <datainfo>{1,1}</datainfo>
  <toroid_field>{1,1}</toroid_field>
  <n>{1,unbounded}</n>
  <time>{1,1}</time>
  <codeparam>{1,1}</codeparam>
</mhd>
Source

<xs:element name="mhd">
  <xs:annotation>
    <xs:documentation>MHD linear stability. Time-dependent CPO</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="datainfo"/>
      <xs:element name="toroid_field" type="b0r0">
        <xs:annotation>
          <xs:documentation>Characteristics of the vacuum toroidal field, redundant with the toroidfield CPO, to document the normalisation of rho and j in this CPO.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="n" type="mhd_mode" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>Vector of toroidal mode numbers; Structure Array (ntor); Time-dependent</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="time" type="xs:float" default="0.0">
        <xs:annotation>
          <xs:documentation>Time [s]; Time-dependent; Scalar.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element ref="codeparam"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

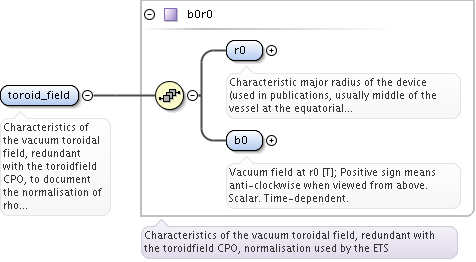

Element mhd / toroid_field
Namespace No namespace
Annotations

Characteristics of the vacuum toroidal field, redundant with the toroidfield CPO, to document the normalisation of rho and j in this CPO.
Diagram
Diagram utilities_xsd.tmp#b0r0_r0 utilities_xsd.tmp#b0r0_b0 utilities_xsd.tmp#b0r0
Type b0r0
Properties
content complex
Model
r0 , b0
Children b0, r0
Instance

<toroid_field>
  <r0>{1,1}</r0>
  <b0>{1,1}</b0>
</toroid_field>
Source

<xs:element name="toroid_field" type="b0r0">
  <xs:annotation>
    <xs:documentation>Characteristics of the vacuum toroidal field, redundant with the toroidfield CPO, to document the normalisation of rho and j in this CPO.</xs:documentation>
  </xs:annotation>
</xs:element>

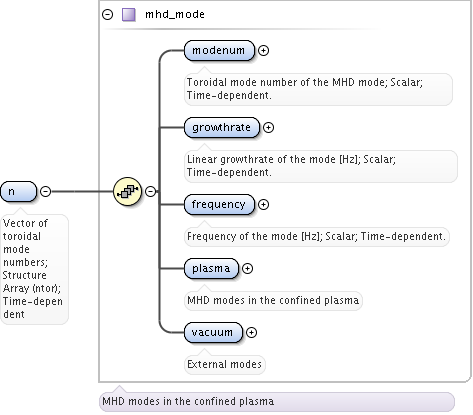

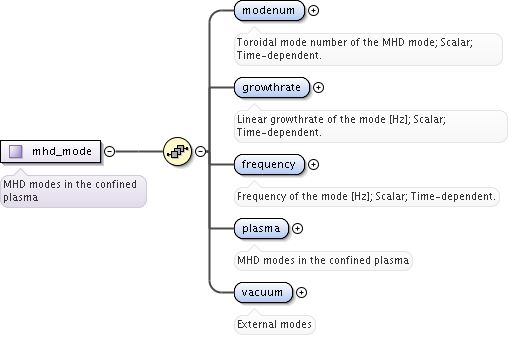

Element mhd / n
Namespace No namespace
Annotations

Vector of toroidal mode numbers; Structure Array (ntor); Time-dependent
Diagram
Diagram mhd_xsd.tmp#mhd_mode_modenum mhd_xsd.tmp#mhd_mode_growthrate mhd_xsd.tmp#mhd_mode_frequency mhd_xsd.tmp#mhd_mode_plasma mhd_xsd.tmp#mhd_mode_vacuum mhd_xsd.tmp#mhd_mode
Type mhd_mode
Properties
content complex
maxOccurs unbounded
Model
Children frequency, growthrate, modenum, plasma, vacuum
Instance

<n>
  <modenum>{1,1}</modenum>
  <growthrate>{1,1}</growthrate>
  <frequency>{1,1}</frequency>
  <plasma>{1,1}</plasma>
  <vacuum>{1,1}</vacuum>
</n>
Source

<xs:element name="n" type="mhd_mode" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Vector of toroidal mode numbers; Structure Array (ntor); Time-dependent</xs:documentation>
  </xs:annotation>
</xs:element>
Element mhd_mode / modenum
Namespace No namespace
Annotations

Toroidal mode number of the MHD mode; Scalar; Time-dependent.
Diagram
Diagram
Type xs:integer
Properties
content simple
Source

<xs:element name="modenum" type="xs:integer">
  <xs:annotation>
    <xs:documentation>Toroidal mode number of the MHD mode; Scalar; Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element mhd_mode / growthrate
Namespace No namespace
Annotations

Linear growthrate of the mode [Hz]; Scalar; Time-dependent.
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="growthrate" type="xs:float">
  <xs:annotation>
    <xs:documentation>Linear growthrate of the mode [Hz]; Scalar; Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element mhd_mode / frequency
Namespace No namespace
Annotations

Frequency of the mode [Hz]; Scalar; Time-dependent.
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="frequency" type="xs:float">
  <xs:annotation>
    <xs:documentation>Frequency of the mode [Hz]; Scalar; Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>

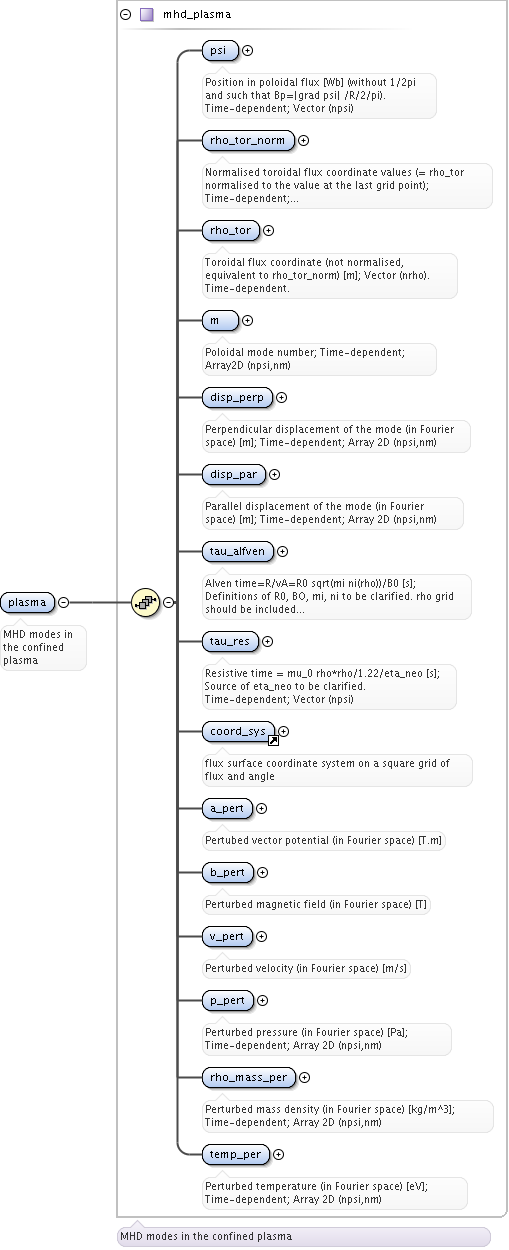

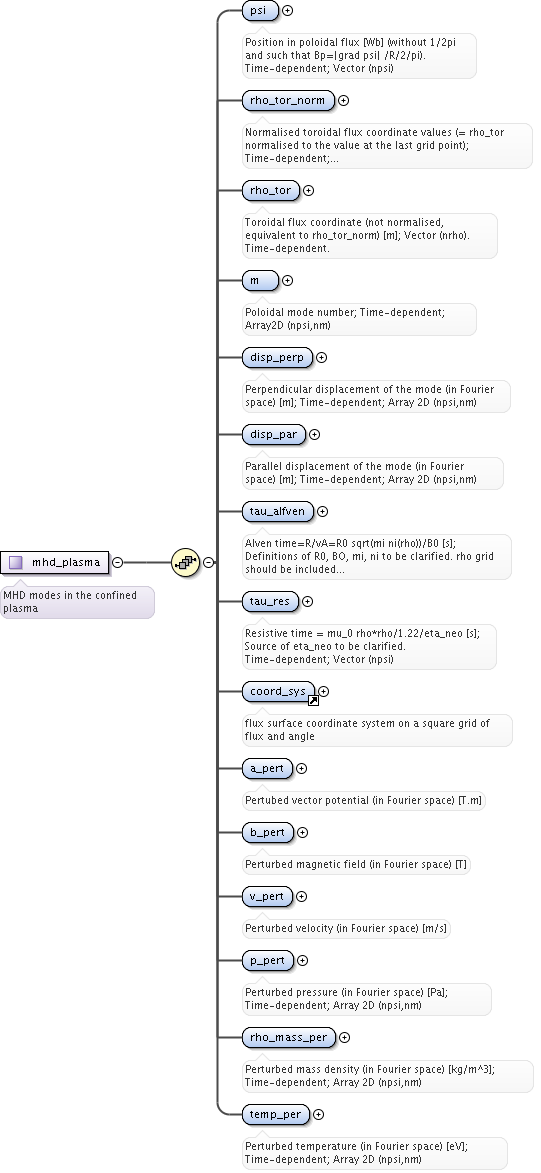

Element mhd_mode / plasma
Namespace No namespace
Annotations

MHD modes in the confined plasma
Diagram
Diagram mhd_xsd.tmp#mhd_plasma_psi mhd_xsd.tmp#mhd_plasma_rho_tor_norm mhd_xsd.tmp#mhd_plasma_rho_tor mhd_xsd.tmp#mhd_plasma_m mhd_xsd.tmp#mhd_plasma_disp_perp mhd_xsd.tmp#mhd_plasma_disp_par mhd_xsd.tmp#mhd_plasma_tau_alfven mhd_xsd.tmp#mhd_plasma_tau_res eqcoord_sys_xsd.tmp#coord_sys mhd_xsd.tmp#mhd_plasma_a_pert mhd_xsd.tmp#mhd_plasma_b_pert mhd_xsd.tmp#mhd_plasma_v_pert mhd_xsd.tmp#mhd_plasma_p_pert mhd_xsd.tmp#mhd_plasma_rho_mass_per mhd_xsd.tmp#mhd_plasma_temp_per mhd_xsd.tmp#mhd_plasma
Type mhd_plasma
Properties
content complex
Model
Children a_pert, b_pert, coord_sys, disp_par, disp_perp, m, p_pert, psi, rho_mass_per, rho_tor, rho_tor_norm, tau_alfven, tau_res, temp_per, v_pert
Instance

<plasma>
  <psi>{1,1}</psi>
  <rho_tor_norm>{1,1}</rho_tor_norm>
  <rho_tor>{1,1}</rho_tor>
  <m>{1,1}</m>
  <disp_perp>{1,1}</disp_perp>
  <disp_par>{1,1}</disp_par>
  <tau_alfven>{1,1}</tau_alfven>
  <tau_res>{1,1}</tau_res>
  <coord_sys>{1,1}</coord_sys>
  <a_pert>{1,1}</a_pert>
  <b_pert>{1,1}</b_pert>
  <v_pert>{1,1}</v_pert>
  <p_pert>{1,1}</p_pert>
  <rho_mass_per>{1,1}</rho_mass_per>
  <temp_per>{1,1}</temp_per>
</plasma>
Source

<xs:element name="plasma" type="mhd_plasma">
  <xs:annotation>
    <xs:documentation>MHD modes in the confined plasma</xs:documentation>
  </xs:annotation>
</xs:element>
Element mhd_plasma / psi
Namespace No namespace
Annotations

Position in poloidal flux [Wb] (without 1/2pi and such that Bp=|grad psi| /R/2/pi). Time-dependent; Vector (npsi)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="psi" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Position in poloidal flux [Wb] (without 1/2pi and such that Bp=|grad psi| /R/2/pi). Time-dependent; Vector (npsi)</xs:documentation>
  </xs:annotation>
</xs:element>
Element mhd_plasma / rho_tor_norm
Namespace No namespace
Annotations

Normalised toroidal flux coordinate values (= rho_tor normalised to the value at the last grid point);  Time-dependent; Vector (nrho)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
default [0.0,0.0]
final restriction
Source

<xs:element name="rho_tor_norm" type="vecflt_type" default="[0.0,0.0]">
  <xs:annotation>
    <xs:documentation>Normalised toroidal flux coordinate values (= rho_tor normalised to the value at the last grid point); Time-dependent; Vector (nrho)</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element mhd_plasma / rho_tor
Namespace No namespace
Annotations

Toroidal flux coordinate (not normalised, equivalent to rho_tor_norm) [m]; Vector (nrho). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="rho_tor" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Toroidal flux coordinate (not normalised, equivalent to rho_tor_norm) [m]; Vector (nrho). Time-dependent.</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>

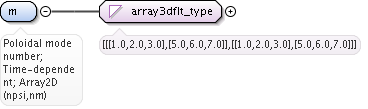

Element mhd_plasma / m
Namespace No namespace
Annotations

Poloidal mode number; Time-dependent; Array2D (npsi,nm)
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="m" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Poloidal mode number; Time-dependent; Array2D (npsi,nm)</xs:documentation>
  </xs:annotation>
</xs:element>

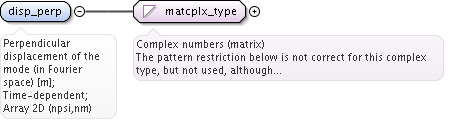

Element mhd_plasma / disp_perp
Namespace No namespace
Annotations

Perpendicular displacement of the mode (in Fourier space) [m]; Time-dependent; Array 2D (npsi,nm)
Diagram
Diagram utilities_xsd.tmp#matcplx_type
Type matcplx_type
Properties
content simple
Source

<xs:element name="disp_perp" type="matcplx_type">
  <xs:annotation>
    <xs:documentation>Perpendicular displacement of the mode (in Fourier space) [m]; Time-dependent; Array 2D (npsi,nm)</xs:documentation>
  </xs:annotation>
</xs:element>

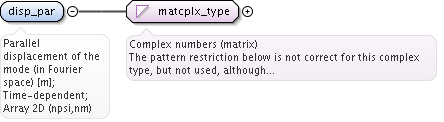

Element mhd_plasma / disp_par
Namespace No namespace
Annotations

Parallel displacement of the mode (in Fourier space) [m]; Time-dependent; Array 2D (npsi,nm)
Diagram
Diagram utilities_xsd.tmp#matcplx_type
Type matcplx_type
Properties
content simple
Source

<xs:element name="disp_par" type="matcplx_type">
  <xs:annotation>
    <xs:documentation>Parallel displacement of the mode (in Fourier space) [m]; Time-dependent; Array 2D (npsi,nm)</xs:documentation>
  </xs:annotation>
</xs:element>
Element mhd_plasma / tau_alfven
Namespace No namespace
Annotations

Alven time=R/vA=R0 sqrt(mi ni(rho))/B0 [s]; Definitions of R0, BO, mi, ni to be clarified. rho grid should be included in the MHD CPO ? Time-dependent; Vector (npsi)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="tau_alfven" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Alven time=R/vA=R0 sqrt(mi ni(rho))/B0 [s]; Definitions of R0, BO, mi, ni to be clarified. rho grid should be included in the MHD CPO ? Time-dependent; Vector (npsi)</xs:documentation>
  </xs:annotation>
</xs:element>
Element mhd_plasma / tau_res
Namespace No namespace
Annotations

Resistive time = mu_0 rho*rho/1.22/eta_neo [s]; Source of eta_neo to be clarified. Time-dependent; Vector (npsi)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="tau_res" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Resistive time = mu_0 rho*rho/1.22/eta_neo [s]; Source of eta_neo to be clarified. Time-dependent; Vector (npsi)</xs:documentation>
  </xs:annotation>
</xs:element>

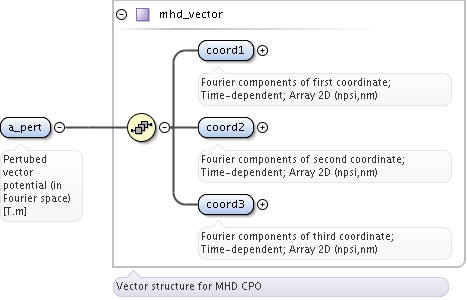

Element mhd_plasma / a_pert
Namespace No namespace
Annotations

Pertubed vector potential (in Fourier space) [T.m]
Diagram
Diagram mhd_xsd.tmp#mhd_vector_coord1 mhd_xsd.tmp#mhd_vector_coord2 mhd_xsd.tmp#mhd_vector_coord3 mhd_xsd.tmp#mhd_vector
Type mhd_vector
Properties
content complex
Model
Children coord1, coord2, coord3
Instance

<a_pert>
  <coord1>{1,1}</coord1>
  <coord2>{1,1}</coord2>
  <coord3>{1,1}</coord3>
</a_pert>
Source

<xs:element name="a_pert" type="mhd_vector">
  <xs:annotation>
    <xs:documentation>Pertubed vector potential (in Fourier space) [T.m]</xs:documentation>
  </xs:annotation>
</xs:element>

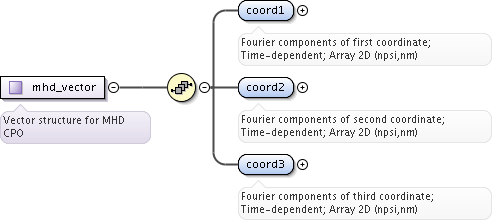

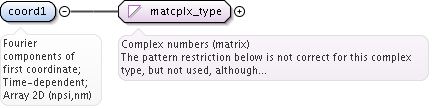

Element mhd_vector / coord1
Namespace No namespace
Annotations

Fourier components of first coordinate; Time-dependent; Array 2D (npsi,nm)
Diagram
Diagram utilities_xsd.tmp#matcplx_type
Type matcplx_type
Properties
content simple
Source

<xs:element name="coord1" type="matcplx_type">
  <xs:annotation>
    <xs:documentation>Fourier components of first coordinate; Time-dependent; Array 2D (npsi,nm)</xs:documentation>
  </xs:annotation>
</xs:element>
Element mhd_vector / coord2
Namespace No namespace
Annotations

Fourier components of second coordinate; Time-dependent; Array 2D (npsi,nm)
Diagram
Diagram utilities_xsd.tmp#matcplx_type
Type matcplx_type
Properties
content simple
Source

<xs:element name="coord2" type="matcplx_type">
  <xs:annotation>
    <xs:documentation>Fourier components of second coordinate; Time-dependent; Array 2D (npsi,nm)</xs:documentation>
  </xs:annotation>
</xs:element>
Element mhd_vector / coord3
Namespace No namespace
Annotations

Fourier components of third coordinate; Time-dependent; Array 2D (npsi,nm)
Diagram
Diagram utilities_xsd.tmp#matcplx_type
Type matcplx_type
Properties
content simple
Source

<xs:element name="coord3" type="matcplx_type">
  <xs:annotation>
    <xs:documentation>Fourier components of third coordinate; Time-dependent; Array 2D (npsi,nm)</xs:documentation>
  </xs:annotation>
</xs:element>

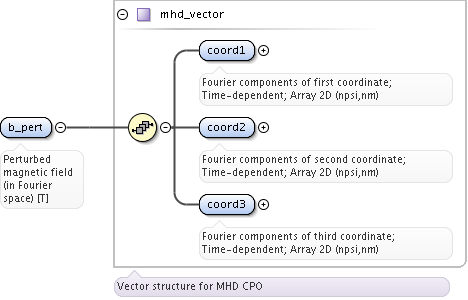

Element mhd_plasma / b_pert
Namespace No namespace
Annotations

Perturbed magnetic field (in Fourier space) [T]
Diagram
Diagram mhd_xsd.tmp#mhd_vector_coord1 mhd_xsd.tmp#mhd_vector_coord2 mhd_xsd.tmp#mhd_vector_coord3 mhd_xsd.tmp#mhd_vector
Type mhd_vector
Properties
content complex
Model
Children coord1, coord2, coord3
Instance

<b_pert>
  <coord1>{1,1}</coord1>
  <coord2>{1,1}</coord2>
  <coord3>{1,1}</coord3>
</b_pert>
Source

<xs:element name="b_pert" type="mhd_vector">
  <xs:annotation>
    <xs:documentation>Perturbed magnetic field (in Fourier space) [T]</xs:documentation>
  </xs:annotation>
</xs:element>
Element mhd_plasma / v_pert
Namespace No namespace
Annotations

Perturbed velocity (in Fourier space) [m/s]
Diagram
Diagram mhd_xsd.tmp#mhd_vector_coord1 mhd_xsd.tmp#mhd_vector_coord2 mhd_xsd.tmp#mhd_vector_coord3 mhd_xsd.tmp#mhd_vector
Type mhd_vector
Properties
content complex
Model
Children coord1, coord2, coord3
Instance

<v_pert>
  <coord1>{1,1}</coord1>
  <coord2>{1,1}</coord2>
  <coord3>{1,1}</coord3>
</v_pert>
Source

<xs:element name="v_pert" type="mhd_vector">
  <xs:annotation>
    <xs:documentation>Perturbed velocity (in Fourier space) [m/s]</xs:documentation>
  </xs:annotation>
</xs:element>

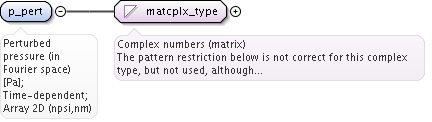

Element mhd_plasma / p_pert
Namespace No namespace
Annotations

Perturbed pressure (in Fourier space) [Pa]; Time-dependent; Array 2D (npsi,nm)
Diagram
Diagram utilities_xsd.tmp#matcplx_type
Type matcplx_type
Properties
content simple
Source

<xs:element name="p_pert" type="matcplx_type">
  <xs:annotation>
    <xs:documentation>Perturbed pressure (in Fourier space) [Pa]; Time-dependent; Array 2D (npsi,nm)</xs:documentation>
  </xs:annotation>
</xs:element>
Element mhd_plasma / rho_mass_per
Namespace No namespace
Annotations

Perturbed mass density (in Fourier space) [kg/m^3]; Time-dependent; Array 2D (npsi,nm)
Diagram
Diagram utilities_xsd.tmp#matcplx_type
Type matcplx_type
Properties
content simple
Source

<xs:element name="rho_mass_per" type="matcplx_type">
  <xs:annotation>
    <xs:documentation>Perturbed mass density (in Fourier space) [kg/m^3]; Time-dependent; Array 2D (npsi,nm)</xs:documentation>
  </xs:annotation>
</xs:element>

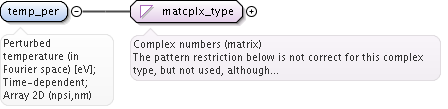

Element mhd_plasma / temp_per
Namespace No namespace
Annotations

Perturbed temperature (in Fourier space) [eV]; Time-dependent; Array 2D (npsi,nm)
Diagram
Diagram utilities_xsd.tmp#matcplx_type
Type matcplx_type
Properties
content simple
Source

<xs:element name="temp_per" type="matcplx_type">
  <xs:annotation>
    <xs:documentation>Perturbed temperature (in Fourier space) [eV]; Time-dependent; Array 2D (npsi,nm)</xs:documentation>
  </xs:annotation>
</xs:element>
Element mhd_mode / vacuum
Namespace No namespace
Annotations

External modes
Diagram
Diagram mhd_xsd.tmp#mhd_vacuum_m eqcoord_sys_xsd.tmp#coord_sys mhd_xsd.tmp#mhd_vacuum_a_pert mhd_xsd.tmp#mhd_vacuum_b_pert mhd_xsd.tmp#mhd_vacuum
Type mhd_vacuum
Properties
content complex
Model
Children a_pert, b_pert, coord_sys, m
Instance

<vacuum>
  <m>{1,1}</m>
  <coord_sys>{1,1}</coord_sys>
  <a_pert>{1,1}</a_pert>
  <b_pert>{1,1}</b_pert>
</vacuum>
Source

<xs:element name="vacuum" type="mhd_vacuum">
  <xs:annotation>
    <xs:documentation>External modes</xs:documentation>
  </xs:annotation>
</xs:element>
Element mhd_vacuum / m
Namespace No namespace
Annotations

Poloidal mode number; Time-dependent; Array2D (npsi,nm)
Diagram
Diagram utilities_xsd.tmp#array3dflt_type
Type array3dflt_type
Properties
content simple
Source

<xs:element name="m" type="array3dflt_type">
  <xs:annotation>
    <xs:documentation>Poloidal mode number; Time-dependent; Array2D (npsi,nm)</xs:documentation>
  </xs:annotation>
</xs:element>
Element mhd_vacuum / a_pert
Namespace No namespace
Annotations

Pertubed vector potential (in Fourier space) [T.m]
Diagram
Diagram mhd_xsd.tmp#mhd_vector_coord1 mhd_xsd.tmp#mhd_vector_coord2 mhd_xsd.tmp#mhd_vector_coord3 mhd_xsd.tmp#mhd_vector
Type mhd_vector
Properties
content complex
Model
Children coord1, coord2, coord3
Instance

<a_pert>
  <coord1>{1,1}</coord1>
  <coord2>{1,1}</coord2>
  <coord3>{1,1}</coord3>
</a_pert>
Source

<xs:element name="a_pert" type="mhd_vector">
  <xs:annotation>
    <xs:documentation>Pertubed vector potential (in Fourier space) [T.m]</xs:documentation>
  </xs:annotation>
</xs:element>
Element mhd_vacuum / b_pert
Namespace No namespace
Annotations

Perturbed magnetic field (in Fourier space) [T]
Diagram
Diagram mhd_xsd.tmp#mhd_vector_coord1 mhd_xsd.tmp#mhd_vector_coord2 mhd_xsd.tmp#mhd_vector_coord3 mhd_xsd.tmp#mhd_vector
Type mhd_vector
Properties
content complex
Model
Children coord1, coord2, coord3
Instance

<b_pert>
  <coord1>{1,1}</coord1>
  <coord2>{1,1}</coord2>
  <coord3>{1,1}</coord3>
</b_pert>
Source

<xs:element name="b_pert" type="mhd_vector">
  <xs:annotation>
    <xs:documentation>Perturbed magnetic field (in Fourier space) [T]</xs:documentation>
  </xs:annotation>
</xs:element>
Element mhd / time
Namespace No namespace
Annotations

Time [s]; Time-dependent; Scalar.
Diagram
Diagram
Type xs:float
Properties
content simple
default 0.0
Source

<xs:element name="time" type="xs:float" default="0.0">
  <xs:annotation>
    <xs:documentation>Time [s]; Time-dependent; Scalar.</xs:documentation>
  </xs:annotation>
</xs:element>
Complex Type mhd_mode
Namespace No namespace
Annotations

MHD modes in the confined plasma
Diagram
Diagram mhd_xsd.tmp#mhd_mode_modenum mhd_xsd.tmp#mhd_mode_growthrate mhd_xsd.tmp#mhd_mode_frequency mhd_xsd.tmp#mhd_mode_plasma mhd_xsd.tmp#mhd_mode_vacuum
Used by
Element mhd/n
Model
Children frequency, growthrate, modenum, plasma, vacuum
Source

<xs:complexType name="mhd_mode">
  <xs:annotation>
    <xs:documentation>MHD modes in the confined plasma</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="modenum" type="xs:integer">
      <xs:annotation>
        <xs:documentation>Toroidal mode number of the MHD mode; Scalar; Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="growthrate" type="xs:float">
      <xs:annotation>
        <xs:documentation>Linear growthrate of the mode [Hz]; Scalar; Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="frequency" type="xs:float">
      <xs:annotation>
        <xs:documentation>Frequency of the mode [Hz]; Scalar; Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="plasma" type="mhd_plasma">
      <xs:annotation>
        <xs:documentation>MHD modes in the confined plasma</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="vacuum" type="mhd_vacuum">
      <xs:annotation>
        <xs:documentation>External modes</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type mhd_plasma
Namespace No namespace
Annotations

MHD modes in the confined plasma
Diagram
Diagram mhd_xsd.tmp#mhd_plasma_psi mhd_xsd.tmp#mhd_plasma_rho_tor_norm mhd_xsd.tmp#mhd_plasma_rho_tor mhd_xsd.tmp#mhd_plasma_m mhd_xsd.tmp#mhd_plasma_disp_perp mhd_xsd.tmp#mhd_plasma_disp_par mhd_xsd.tmp#mhd_plasma_tau_alfven mhd_xsd.tmp#mhd_plasma_tau_res eqcoord_sys_xsd.tmp#coord_sys mhd_xsd.tmp#mhd_plasma_a_pert mhd_xsd.tmp#mhd_plasma_b_pert mhd_xsd.tmp#mhd_plasma_v_pert mhd_xsd.tmp#mhd_plasma_p_pert mhd_xsd.tmp#mhd_plasma_rho_mass_per mhd_xsd.tmp#mhd_plasma_temp_per
Used by
Element mhd_mode/plasma
Model
Children a_pert, b_pert, coord_sys, disp_par, disp_perp, m, p_pert, psi, rho_mass_per, rho_tor, rho_tor_norm, tau_alfven, tau_res, temp_per, v_pert
Source

<xs:complexType name="mhd_plasma">
  <xs:annotation>
    <xs:documentation>MHD modes in the confined plasma</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="psi" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Position in poloidal flux [Wb] (without 1/2pi and such that Bp=|grad psi| /R/2/pi). Time-dependent; Vector (npsi)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="rho_tor_norm" type="vecflt_type" default="[0.0,0.0]">
      <xs:annotation>
        <xs:documentation>Normalised toroidal flux coordinate values (= rho_tor normalised to the value at the last grid point); Time-dependent; Vector (nrho)</xs:documentation>
        <xs:appinfo>experimental</xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element name="rho_tor" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Toroidal flux coordinate (not normalised, equivalent to rho_tor_norm) [m]; Vector (nrho). Time-dependent.</xs:documentation>
        <xs:appinfo>experimental</xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element name="m" type="matflt_type">
      <xs:annotation>
        <xs:documentation>Poloidal mode number; Time-dependent; Array2D (npsi,nm)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="disp_perp" type="matcplx_type">
      <xs:annotation>
        <xs:documentation>Perpendicular displacement of the mode (in Fourier space) [m]; Time-dependent; Array 2D (npsi,nm)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="disp_par" type="matcplx_type">
      <xs:annotation>
        <xs:documentation>Parallel displacement of the mode (in Fourier space) [m]; Time-dependent; Array 2D (npsi,nm)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="tau_alfven" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Alven time=R/vA=R0 sqrt(mi ni(rho))/B0 [s]; Definitions of R0, BO, mi, ni to be clarified. rho grid should be included in the MHD CPO ? Time-dependent; Vector (npsi)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="tau_res" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Resistive time = mu_0 rho*rho/1.22/eta_neo [s]; Source of eta_neo to be clarified. Time-dependent; Vector (npsi)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element ref="coord_sys"/>
    <xs:element name="a_pert" type="mhd_vector">
      <xs:annotation>
        <xs:documentation>Pertubed vector potential (in Fourier space) [T.m]</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="b_pert" type="mhd_vector">
      <xs:annotation>
        <xs:documentation>Perturbed magnetic field (in Fourier space) [T]</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="v_pert" type="mhd_vector">
      <xs:annotation>
        <xs:documentation>Perturbed velocity (in Fourier space) [m/s]</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="p_pert" type="matcplx_type">
      <xs:annotation>
        <xs:documentation>Perturbed pressure (in Fourier space) [Pa]; Time-dependent; Array 2D (npsi,nm)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="rho_mass_per" type="matcplx_type">
      <xs:annotation>
        <xs:documentation>Perturbed mass density (in Fourier space) [kg/m^3]; Time-dependent; Array 2D (npsi,nm)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="temp_per" type="matcplx_type">
      <xs:annotation>
        <xs:documentation>Perturbed temperature (in Fourier space) [eV]; Time-dependent; Array 2D (npsi,nm)</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type mhd_vector
Namespace No namespace
Annotations

Vector structure for MHD CPO
Diagram
Diagram mhd_xsd.tmp#mhd_vector_coord1 mhd_xsd.tmp#mhd_vector_coord2 mhd_xsd.tmp#mhd_vector_coord3
Used by
Model
Children coord1, coord2, coord3
Source

<xs:complexType name="mhd_vector">
  <xs:annotation>
    <xs:documentation>Vector structure for MHD CPO</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="coord1" type="matcplx_type">
      <xs:annotation>
        <xs:documentation>Fourier components of first coordinate; Time-dependent; Array 2D (npsi,nm)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="coord2" type="matcplx_type">
      <xs:annotation>
        <xs:documentation>Fourier components of second coordinate; Time-dependent; Array 2D (npsi,nm)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="coord3" type="matcplx_type">
      <xs:annotation>
        <xs:documentation>Fourier components of third coordinate; Time-dependent; Array 2D (npsi,nm)</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

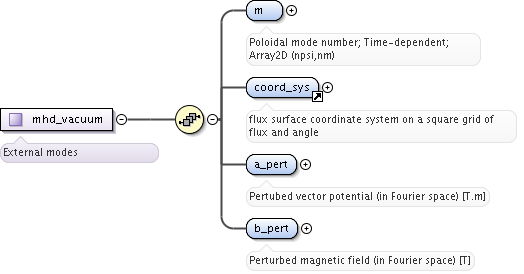

Complex Type mhd_vacuum
Namespace No namespace
Annotations

External modes
Diagram
Diagram mhd_xsd.tmp#mhd_vacuum_m eqcoord_sys_xsd.tmp#coord_sys mhd_xsd.tmp#mhd_vacuum_a_pert mhd_xsd.tmp#mhd_vacuum_b_pert
Used by
Element mhd_mode/vacuum
Model
Children a_pert, b_pert, coord_sys, m
Source

<xs:complexType name="mhd_vacuum">
  <xs:annotation>
    <xs:documentation>External modes</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="m" type="array3dflt_type">
      <xs:annotation>
        <xs:documentation>Poloidal mode number; Time-dependent; Array2D (npsi,nm)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element ref="coord_sys"/>
    <xs:element name="a_pert" type="mhd_vector">
      <xs:annotation>
        <xs:documentation>Pertubed vector potential (in Fourier space) [T.m]</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="b_pert" type="mhd_vector">
      <xs:annotation>
        <xs:documentation>Perturbed magnetic field (in Fourier space) [T]</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
XML Schema documentation generated by ® XML Editor.
