Included schema nbi.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default qualified
Element nbi
Namespace No namespace
Annotations

Neutral Beam Injection. Input to NBI source codes; describes the neutrals that are about to be launched into the torus; Time-dependent CPO

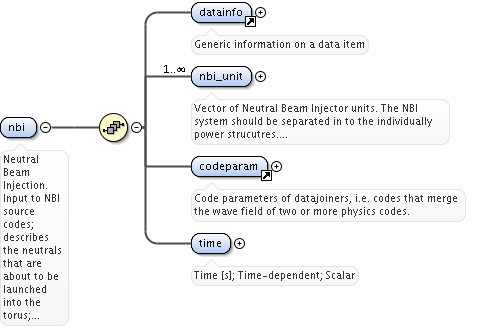

Diagram
Diagram utilities_xsd.tmp#datainfo nbi_xsd.tmp#nbi_nbi_unit utilities_xsd.tmp#codeparam nbi_xsd.tmp#nbi_time
Properties
content complex
Used by
Element top
Model
Children codeparam, datainfo, nbi_unit, time
Instance

<nbi>
  <datainfo>{1,1}</datainfo>
  <nbi_unit>{1,unbounded}</nbi_unit>
  <codeparam>{1,1}</codeparam>
  <time>{1,1}</time>
</nbi>
Source

<xs:element name="nbi">
  <xs:annotation>
    <xs:documentation>Neutral Beam Injection. Input to NBI source codes; describes the neutrals that are about to be launched into the torus; Time-dependent CPO</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="datainfo"/>
      <xs:element name="nbi_unit" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>Vector of Neutral Beam Injector units. The NBI system should be separated in to the individually power strucutres. Structure array(nunits). Time-dependent</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="name" type="xs:string">
              <xs:annotation>
                <xs:documentation>Name of the neutral beam injector</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="inj_spec">
              <xs:annotation>
                <xs:documentation>Injected species</xs:documentation>
              </xs:annotation>
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="amn" type="xs:float">
                    <xs:annotation>
                      <xs:documentation>Atomic mass number</xs:documentation>
                      <xs:appinfo>experimental</xs:appinfo>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="zn" type="xs:float">
                    <xs:annotation>
                      <xs:documentation>Nuclear charge</xs:documentation>
                      <xs:appinfo>experimental</xs:appinfo>
                    </xs:annotation>
                  </xs:element>
                </xs:sequence>
              </xs:complexType>
            </xs:element>

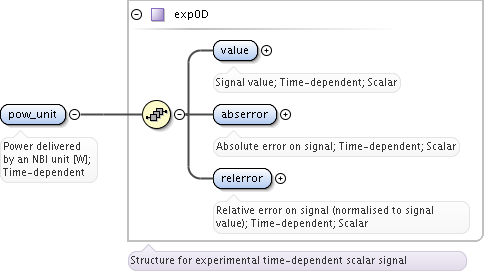

            <xs:element name="pow_unit" type="exp0D">
              <xs:annotation>
                <xs:documentation>Power delivered by an NBI unit [W]; Time-dependent</xs:documentation>
              </xs:annotation>
            </xs:element>

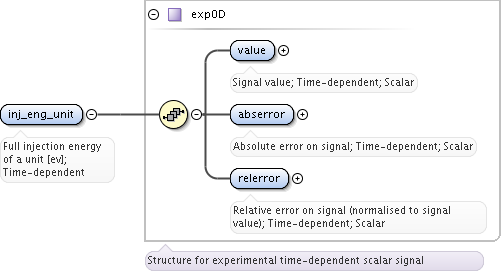

            <xs:element name="inj_eng_unit" type="exp0D">
              <xs:annotation>
                <xs:documentation>Full injection energy of a unit [ev]; Time-dependent</xs:documentation>
              </xs:annotation>
            </xs:element>

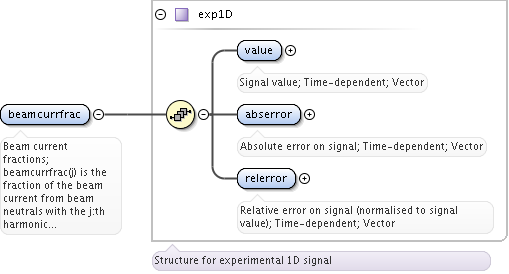

            <xs:element name="beamcurrfrac" type="exp1D">
              <xs:annotation>
                <xs:documentation>Beam current fractions; beamcurrfrac(j) is the fraction of the beam current from beam neutrals with the j:th harmonic energy, inj_eng_unit. Vector(3); Time-dependent</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="beampowrfrac" type="exp1D">
              <xs:annotation>
                <xs:documentation>Beam power fractions; beampowrfrac(j) is the fraction of the beam power from beam neutrals with the j:th harmonic energy, inj_eng_unit;. Vector(3); Time-dependent</xs:documentation>
              </xs:annotation>
            </xs:element>

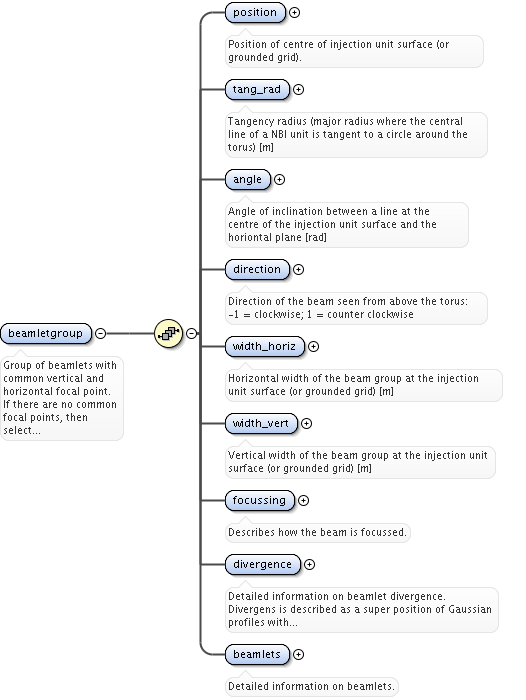

            <xs:element name="beamletgroup" maxOccurs="unbounded">
              <xs:annotation>
                <xs:documentation>Group of beamlets with common vertical and horizontal focal point. If there are no common focal points, then select small groups of beamlets such that a focal point description of the beamlet-group provides a fair description.</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
              <xs:complexType>
                <xs:sequence>

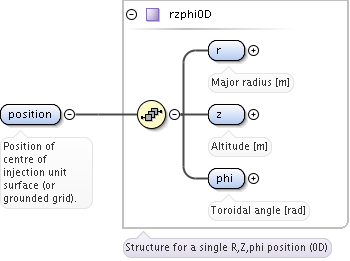

                  <xs:element name="position" type="rzphi0D">
                    <xs:annotation>
                      <xs:documentation>Position of centre of injection unit surface (or grounded grid).</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="tang_rad" type="xs:float">
                    <xs:annotation>
                      <xs:documentation>Tangency radius (major radius where the central line of a NBI unit is tangent to a circle around the torus) [m]</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                  </xs:element>

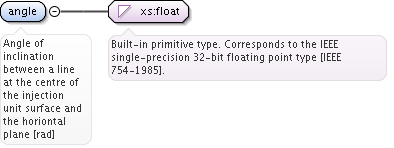

                  <xs:element name="angle" type="xs:float">
                    <xs:annotation>
                      <xs:documentation>Angle of inclination between a line at the centre of the injection unit surface and the horiontal plane [rad]</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                  </xs:element>

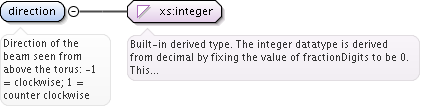

                  <xs:element name="direction" type="xs:integer">
                    <xs:annotation>
                      <xs:documentation>Direction of the beam seen from above the torus: -1 = clockwise; 1 = counter clockwise</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="width_horiz" type="xs:float">
                    <xs:annotation>
                      <xs:documentation>Horizontal width of the beam group at the injection unit surface (or grounded grid) [m]</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="width_vert" type="xs:float">
                    <xs:annotation>
                      <xs:documentation>Vertical width of the beam group at the injection unit surface (or grounded grid) [m]</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                  </xs:element>

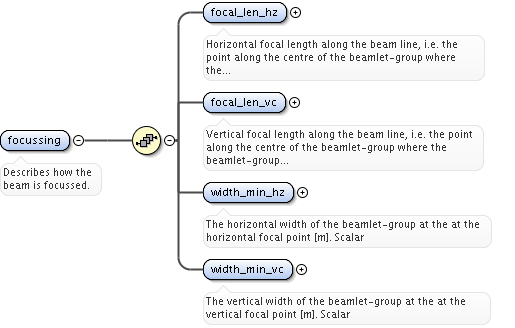

                  <xs:element name="focussing">
                    <xs:annotation>
                      <xs:documentation>Describes how the beam is focussed.</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                    <xs:complexType>
                      <xs:sequence>
                        <xs:element name="focal_len_hz" type="xs:float">
                          <xs:annotation>
                            <xs:documentation>Horizontal focal length along the beam line, i.e. the point along the centre of the beamlet-group where the beamlet-group has its minimum horizontal width [m]. Scalar</xs:documentation>
                            <xs:appinfo>machine description</xs:appinfo>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="focal_len_vc" type="xs:float">
                          <xs:annotation>
                            <xs:documentation>Vertical focal length along the beam line, i.e. the point along the centre of the beamlet-group where the beamlet-group has its minimum vertical width [m]. Scalar</xs:documentation>
                            <xs:appinfo>machine description</xs:appinfo>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="width_min_hz" type="xs:float">
                          <xs:annotation>
                            <xs:documentation>The horizontal width of the beamlet-group at the at the horizontal focal point [m]. Scalar</xs:documentation>
                            <xs:appinfo>machine description</xs:appinfo>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="width_min_vc" type="xs:float">
                          <xs:annotation>
                            <xs:documentation>The vertical width of the beamlet-group at the at the vertical focal point [m]. Scalar</xs:documentation>
                            <xs:appinfo>machine description</xs:appinfo>
                          </xs:annotation>
                        </xs:element>
                      </xs:sequence>
                    </xs:complexType>
                  </xs:element>

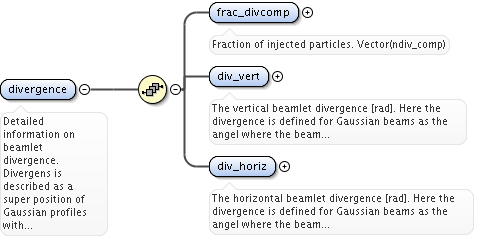

                  <xs:element name="divergence">
                    <xs:annotation>
                      <xs:documentation>Detailed information on beamlet divergence. Divergens is described as a super position of Gaussian profiles with amplitide "frac_divcomp" and vertical/horizontal divergence "div_vert"/"div_horiz". Note that for positive ion NBI the divergence is well described by a single Gaussian.</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                    <xs:complexType>
                      <xs:sequence>
                        <xs:element name="frac_divcomp" type="vecflt_type">
                          <xs:annotation>
                            <xs:documentation>Fraction of injected particles. Vector(ndiv_comp)</xs:documentation>
                            <xs:appinfo>machine description</xs:appinfo>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="div_vert" type="vecflt_type">
                          <xs:annotation>
                            <xs:documentation>The vertical beamlet divergence [rad]. Here the divergence is defined for Gaussian beams as the angel where the beam density is reduced by a factor 1/e compared to the maximum density. For non-Gaussian beams the divergence is sqrt(2)*mean((x-mean(x))**2), where x is the angle and the mean should be performed over the beam density, P(x): mean(y)=int(y*P(x)*dx). Vector(ndiv_comp)</xs:documentation>
                            <xs:appinfo>machine description</xs:appinfo>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="div_horiz" type="vecflt_type">
                          <xs:annotation>
                            <xs:documentation>The horizontal beamlet divergence [rad]. Here the divergence is defined for Gaussian beams as the angel where the beam density is reduced by a factor 1/e compared to the maximum density. For non-Gaussian beams the divergence is sqrt(2)*mean((x-mean(x))**2), where x is the angle and the mean should be performed over the beam density, P(x): mean(y)=int(y*P(x)*dx). Vector(ndiv_comp)</xs:documentation>
                            <xs:appinfo>machine description</xs:appinfo>
                          </xs:annotation>
                        </xs:element>
                      </xs:sequence>
                    </xs:complexType>
                  </xs:element>

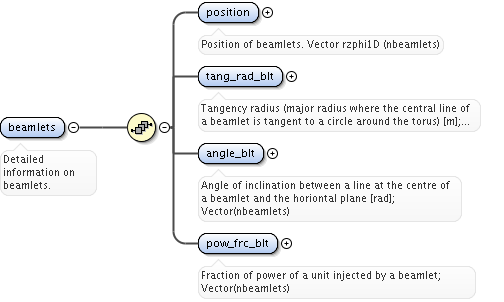

                  <xs:element name="beamlets">
                    <xs:annotation>
                      <xs:documentation>Detailed information on beamlets.</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                    <xs:complexType>
                      <xs:sequence>
                        <xs:element name="position" type="rzphi1D">
                          <xs:annotation>
                            <xs:documentation>Position of beamlets. Vector rzphi1D (nbeamlets)</xs:documentation>
                            <xs:appinfo>machine description</xs:appinfo>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="tang_rad_blt" type="vecflt_type">
                          <xs:annotation>
                            <xs:documentation>Tangency radius (major radius where the central line of a beamlet is tangent to a circle around the torus) [m]; Vector(nbeamlets)</xs:documentation>
                            <xs:appinfo>machine description</xs:appinfo>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="angle_blt" type="vecflt_type">
                          <xs:annotation>
                            <xs:documentation>Angle of inclination between a line at the centre of a beamlet and the horiontal plane [rad]; Vector(nbeamlets)</xs:documentation>
                            <xs:appinfo>machine description</xs:appinfo>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="pow_frc_blt" type="vecflt_type">
                          <xs:annotation>
                            <xs:documentation>Fraction of power of a unit injected by a beamlet; Vector(nbeamlets)</xs:documentation>
                            <xs:appinfo>machine description</xs:appinfo>
                          </xs:annotation>
                        </xs:element>
                      </xs:sequence>
                    </xs:complexType>
                  </xs:element>
                </xs:sequence>
              </xs:complexType>
            </xs:element>

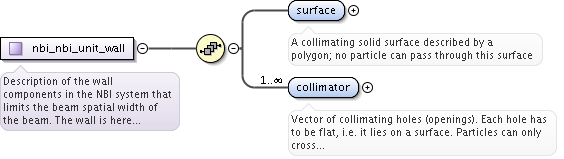

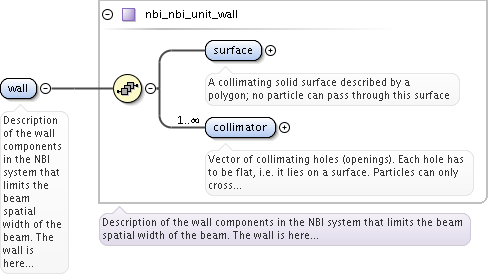

            <xs:element name="wall" type="nbi_nbi_unit_wall">
              <xs:annotation>
                <xs:documentation>Description of the wall components in the NBI system that limits the beam spatial width of the beam. The wall is here described a superposition of surface segments and collimating holes.</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element ref="codeparam">
              <xs:annotation>
                <xs:documentation>Code parameters of physics code, i.e. codes calculating a wave field.</xs:documentation>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element ref="codeparam">
        <xs:annotation>
          <xs:documentation>Code parameters of datajoiners, i.e. codes that merge the wave field of two or more physics codes.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="time" type="xs:float">
        <xs:annotation>
          <xs:documentation>Time [s]; Time-dependent; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

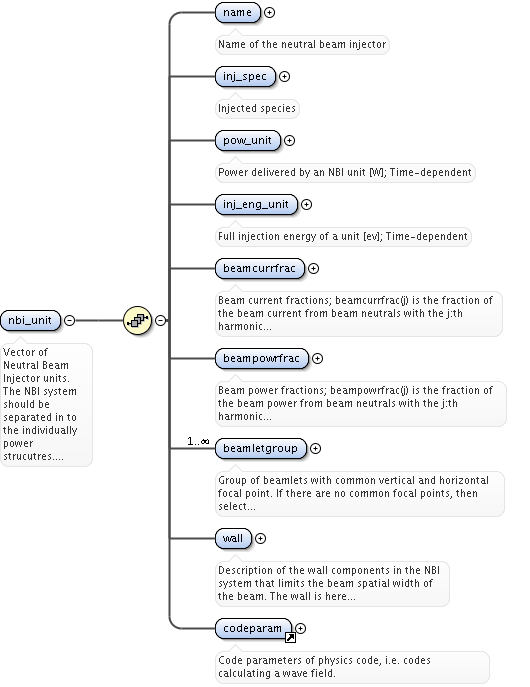

Element nbi / nbi_unit
Namespace No namespace
Annotations

Vector of Neutral Beam Injector units. The NBI system should be separated in to the individually power strucutres. Structure array(nunits). Time-dependent
Diagram
Diagram nbi_xsd.tmp#nbi_nbi_nbi_unit_name nbi_xsd.tmp#nbi_nbi_nbi_unit_inj_spec nbi_xsd.tmp#nbi_nbi_nbi_unit_pow_unit nbi_xsd.tmp#nbi_nbi_nbi_unit_inj_eng_unit nbi_xsd.tmp#nbi_nbi_nbi_unit_beamcurrfrac nbi_xsd.tmp#nbi_nbi_nbi_unit_beampowrfrac nbi_xsd.tmp#nbi_nbi_nbi_unit_beamletgroup nbi_xsd.tmp#nbi_nbi_nbi_unit_wall utilities_xsd.tmp#codeparam
Properties
content complex
maxOccurs unbounded
Model
Children beamcurrfrac, beamletgroup, beampowrfrac, codeparam, inj_eng_unit, inj_spec, name, pow_unit, wall
Instance

<nbi_unit>
  <name>{1,1}</name>
  <inj_spec>{1,1}</inj_spec>
  <pow_unit>{1,1}</pow_unit>
  <inj_eng_unit>{1,1}</inj_eng_unit>
  <beamcurrfrac>{1,1}</beamcurrfrac>
  <beampowrfrac>{1,1}</beampowrfrac>
  <beamletgroup>{1,unbounded}</beamletgroup>
  <wall>{1,1}</wall>
  <codeparam>{1,1}</codeparam>
</nbi_unit>
Source

<xs:element name="nbi_unit" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Vector of Neutral Beam Injector units. The NBI system should be separated in to the individually power strucutres. Structure array(nunits). Time-dependent</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="name" type="xs:string">
        <xs:annotation>
          <xs:documentation>Name of the neutral beam injector</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>

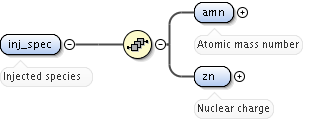

      <xs:element name="inj_spec">
        <xs:annotation>
          <xs:documentation>Injected species</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="amn" type="xs:float">
              <xs:annotation>
                <xs:documentation>Atomic mass number</xs:documentation>
                <xs:appinfo>experimental</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="zn" type="xs:float">
              <xs:annotation>
                <xs:documentation>Nuclear charge</xs:documentation>
                <xs:appinfo>experimental</xs:appinfo>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="pow_unit" type="exp0D">
        <xs:annotation>
          <xs:documentation>Power delivered by an NBI unit [W]; Time-dependent</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="inj_eng_unit" type="exp0D">
        <xs:annotation>
          <xs:documentation>Full injection energy of a unit [ev]; Time-dependent</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="beamcurrfrac" type="exp1D">
        <xs:annotation>
          <xs:documentation>Beam current fractions; beamcurrfrac(j) is the fraction of the beam current from beam neutrals with the j:th harmonic energy, inj_eng_unit. Vector(3); Time-dependent</xs:documentation>
        </xs:annotation>
      </xs:element>

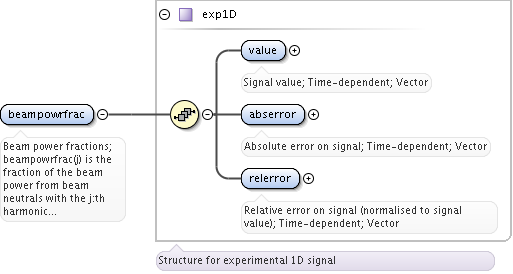

      <xs:element name="beampowrfrac" type="exp1D">
        <xs:annotation>
          <xs:documentation>Beam power fractions; beampowrfrac(j) is the fraction of the beam power from beam neutrals with the j:th harmonic energy, inj_eng_unit;. Vector(3); Time-dependent</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="beamletgroup" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>Group of beamlets with common vertical and horizontal focal point. If there are no common focal points, then select small groups of beamlets such that a focal point description of the beamlet-group provides a fair description.</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="position" type="rzphi0D">
              <xs:annotation>
                <xs:documentation>Position of centre of injection unit surface (or grounded grid).</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>

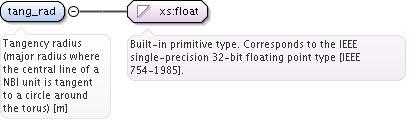

            <xs:element name="tang_rad" type="xs:float">
              <xs:annotation>
                <xs:documentation>Tangency radius (major radius where the central line of a NBI unit is tangent to a circle around the torus) [m]</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="angle" type="xs:float">
              <xs:annotation>
                <xs:documentation>Angle of inclination between a line at the centre of the injection unit surface and the horiontal plane [rad]</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="direction" type="xs:integer">
              <xs:annotation>
                <xs:documentation>Direction of the beam seen from above the torus: -1 = clockwise; 1 = counter clockwise</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="width_horiz" type="xs:float">
              <xs:annotation>
                <xs:documentation>Horizontal width of the beam group at the injection unit surface (or grounded grid) [m]</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="width_vert" type="xs:float">
              <xs:annotation>
                <xs:documentation>Vertical width of the beam group at the injection unit surface (or grounded grid) [m]</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="focussing">
              <xs:annotation>
                <xs:documentation>Describes how the beam is focussed.</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="focal_len_hz" type="xs:float">
                    <xs:annotation>
                      <xs:documentation>Horizontal focal length along the beam line, i.e. the point along the centre of the beamlet-group where the beamlet-group has its minimum horizontal width [m]. Scalar</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="focal_len_vc" type="xs:float">
                    <xs:annotation>
                      <xs:documentation>Vertical focal length along the beam line, i.e. the point along the centre of the beamlet-group where the beamlet-group has its minimum vertical width [m]. Scalar</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="width_min_hz" type="xs:float">
                    <xs:annotation>
                      <xs:documentation>The horizontal width of the beamlet-group at the at the horizontal focal point [m]. Scalar</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="width_min_vc" type="xs:float">
                    <xs:annotation>
                      <xs:documentation>The vertical width of the beamlet-group at the at the vertical focal point [m]. Scalar</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                  </xs:element>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element name="divergence">
              <xs:annotation>
                <xs:documentation>Detailed information on beamlet divergence. Divergens is described as a super position of Gaussian profiles with amplitide "frac_divcomp" and vertical/horizontal divergence "div_vert"/"div_horiz". Note that for positive ion NBI the divergence is well described by a single Gaussian.</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="frac_divcomp" type="vecflt_type">
                    <xs:annotation>
                      <xs:documentation>Fraction of injected particles. Vector(ndiv_comp)</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="div_vert" type="vecflt_type">
                    <xs:annotation>
                      <xs:documentation>The vertical beamlet divergence [rad]. Here the divergence is defined for Gaussian beams as the angel where the beam density is reduced by a factor 1/e compared to the maximum density. For non-Gaussian beams the divergence is sqrt(2)*mean((x-mean(x))**2), where x is the angle and the mean should be performed over the beam density, P(x): mean(y)=int(y*P(x)*dx). Vector(ndiv_comp)</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="div_horiz" type="vecflt_type">
                    <xs:annotation>
                      <xs:documentation>The horizontal beamlet divergence [rad]. Here the divergence is defined for Gaussian beams as the angel where the beam density is reduced by a factor 1/e compared to the maximum density. For non-Gaussian beams the divergence is sqrt(2)*mean((x-mean(x))**2), where x is the angle and the mean should be performed over the beam density, P(x): mean(y)=int(y*P(x)*dx). Vector(ndiv_comp)</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                  </xs:element>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element name="beamlets">
              <xs:annotation>
                <xs:documentation>Detailed information on beamlets.</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="position" type="rzphi1D">
                    <xs:annotation>
                      <xs:documentation>Position of beamlets. Vector rzphi1D (nbeamlets)</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="tang_rad_blt" type="vecflt_type">
                    <xs:annotation>
                      <xs:documentation>Tangency radius (major radius where the central line of a beamlet is tangent to a circle around the torus) [m]; Vector(nbeamlets)</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="angle_blt" type="vecflt_type">
                    <xs:annotation>
                      <xs:documentation>Angle of inclination between a line at the centre of a beamlet and the horiontal plane [rad]; Vector(nbeamlets)</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="pow_frc_blt" type="vecflt_type">
                    <xs:annotation>
                      <xs:documentation>Fraction of power of a unit injected by a beamlet; Vector(nbeamlets)</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                  </xs:element>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="wall" type="nbi_nbi_unit_wall">
        <xs:annotation>
          <xs:documentation>Description of the wall components in the NBI system that limits the beam spatial width of the beam. The wall is here described a superposition of surface segments and collimating holes.</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element ref="codeparam">
        <xs:annotation>
          <xs:documentation>Code parameters of physics code, i.e. codes calculating a wave field.</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element nbi / nbi_unit / name
Namespace No namespace
Annotations

Name of the neutral beam injector
Diagram
Diagram
Type xs:string
Properties
content simple
Source

<xs:element name="name" type="xs:string">
  <xs:annotation>
    <xs:documentation>Name of the neutral beam injector</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element nbi / nbi_unit / inj_spec
Namespace No namespace
Annotations

Injected species
Diagram
Diagram nbi_xsd.tmp#nbi_nbi_nbi_unit_nbi_nbi_nbi_unit_inj_spec_amn nbi_xsd.tmp#nbi_nbi_nbi_unit_nbi_nbi_nbi_unit_inj_spec_zn
Properties
content complex
Model
Children amn, zn
Instance

<inj_spec>
  <amn>{1,1}</amn>
  <zn>{1,1}</zn>
</inj_spec>
Source

<xs:element name="inj_spec">
  <xs:annotation>
    <xs:documentation>Injected species</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="amn" type="xs:float">
        <xs:annotation>
          <xs:documentation>Atomic mass number</xs:documentation>
          <xs:appinfo>experimental</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="zn" type="xs:float">
        <xs:annotation>
          <xs:documentation>Nuclear charge</xs:documentation>
          <xs:appinfo>experimental</xs:appinfo>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element nbi / nbi_unit / inj_spec / amn
Namespace No namespace
Annotations

Atomic mass number
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="amn" type="xs:float">
  <xs:annotation>
    <xs:documentation>Atomic mass number</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element nbi / nbi_unit / inj_spec / zn
Namespace No namespace
Annotations

Nuclear charge
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="zn" type="xs:float">
  <xs:annotation>
    <xs:documentation>Nuclear charge</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element nbi / nbi_unit / pow_unit
Namespace No namespace
Annotations

Power delivered by an NBI unit [W]; Time-dependent
Diagram
Diagram utilities_xsd.tmp#exp0D_value utilities_xsd.tmp#exp0D_abserror utilities_xsd.tmp#exp0D_relerror utilities_xsd.tmp#exp0D
Type exp0D
Properties
content complex
Model
Children abserror, relerror, value
Instance

<pow_unit>
  <value>{1,1}</value>
  <abserror>{1,1}</abserror>
  <relerror>{1,1}</relerror>
</pow_unit>
Source

<xs:element name="pow_unit" type="exp0D">
  <xs:annotation>
    <xs:documentation>Power delivered by an NBI unit [W]; Time-dependent</xs:documentation>
  </xs:annotation>
</xs:element>
Element nbi / nbi_unit / inj_eng_unit
Namespace No namespace
Annotations

Full injection energy of a unit [ev]; Time-dependent
Diagram
Diagram utilities_xsd.tmp#exp0D_value utilities_xsd.tmp#exp0D_abserror utilities_xsd.tmp#exp0D_relerror utilities_xsd.tmp#exp0D
Type exp0D
Properties
content complex
Model
Children abserror, relerror, value
Instance

<inj_eng_unit>
  <value>{1,1}</value>
  <abserror>{1,1}</abserror>
  <relerror>{1,1}</relerror>
</inj_eng_unit>
Source

<xs:element name="inj_eng_unit" type="exp0D">
  <xs:annotation>
    <xs:documentation>Full injection energy of a unit [ev]; Time-dependent</xs:documentation>
  </xs:annotation>
</xs:element>
Element nbi / nbi_unit / beamcurrfrac
Namespace No namespace
Annotations

Beam current fractions; beamcurrfrac(j) is the fraction of the beam current from beam neutrals with the j:th harmonic energy, inj_eng_unit. Vector(3); Time-dependent
Diagram
Diagram utilities_xsd.tmp#exp1D_value utilities_xsd.tmp#exp1D_abserror utilities_xsd.tmp#exp1D_relerror utilities_xsd.tmp#exp1D
Type exp1D
Properties
content complex
Model
Children abserror, relerror, value
Instance

<beamcurrfrac>
  <value>{1,1}</value>
  <abserror>{1,1}</abserror>
  <relerror>{1,1}</relerror>
</beamcurrfrac>
Source

<xs:element name="beamcurrfrac" type="exp1D">
  <xs:annotation>
    <xs:documentation>Beam current fractions; beamcurrfrac(j) is the fraction of the beam current from beam neutrals with the j:th harmonic energy, inj_eng_unit. Vector(3); Time-dependent</xs:documentation>
  </xs:annotation>
</xs:element>
Element nbi / nbi_unit / beampowrfrac
Namespace No namespace
Annotations

Beam power fractions; beampowrfrac(j) is the fraction of the beam power from beam neutrals with the j:th harmonic energy, inj_eng_unit;. Vector(3); Time-dependent
Diagram
Diagram utilities_xsd.tmp#exp1D_value utilities_xsd.tmp#exp1D_abserror utilities_xsd.tmp#exp1D_relerror utilities_xsd.tmp#exp1D
Type exp1D
Properties
content complex
Model
Children abserror, relerror, value
Instance

<beampowrfrac>
  <value>{1,1}</value>
  <abserror>{1,1}</abserror>
  <relerror>{1,1}</relerror>
</beampowrfrac>
Source

<xs:element name="beampowrfrac" type="exp1D">
  <xs:annotation>
    <xs:documentation>Beam power fractions; beampowrfrac(j) is the fraction of the beam power from beam neutrals with the j:th harmonic energy, inj_eng_unit;. Vector(3); Time-dependent</xs:documentation>
  </xs:annotation>
</xs:element>
Element nbi / nbi_unit / beamletgroup
Namespace No namespace
Annotations

Group of beamlets with common vertical and horizontal focal point. If there are no common focal points, then select small groups of beamlets such that a focal point description of the beamlet-group provides a fair description.
Diagram
Diagram nbi_xsd.tmp#nbi_nbi_nbi_unit_nbi_nbi_nbi_unit_beamletgroup_position nbi_xsd.tmp#nbi_nbi_nbi_unit_nbi_nbi_nbi_unit_beamletgroup_tang_rad nbi_xsd.tmp#nbi_nbi_nbi_unit_nbi_nbi_nbi_unit_beamletgroup_angle nbi_xsd.tmp#nbi_nbi_nbi_unit_nbi_nbi_nbi_unit_beamletgroup_direction nbi_xsd.tmp#nbi_nbi_nbi_unit_nbi_nbi_nbi_unit_beamletgroup_width_horiz nbi_xsd.tmp#nbi_nbi_nbi_unit_nbi_nbi_nbi_unit_beamletgroup_width_vert nbi_xsd.tmp#nbi_nbi_nbi_unit_nbi_nbi_nbi_unit_beamletgroup_focussing nbi_xsd.tmp#nbi_nbi_nbi_unit_nbi_nbi_nbi_unit_beamletgroup_divergence nbi_xsd.tmp#nbi_nbi_nbi_unit_nbi_nbi_nbi_unit_beamletgroup_beamlets
Properties
content complex
maxOccurs unbounded
Model
Children angle, beamlets, direction, divergence, focussing, position, tang_rad, width_horiz, width_vert
Instance

<beamletgroup>
  <position>{1,1}</position>
  <tang_rad>{1,1}</tang_rad>
  <angle>{1,1}</angle>
  <direction>{1,1}</direction>
  <width_horiz>{1,1}</width_horiz>
  <width_vert>{1,1}</width_vert>
  <focussing>{1,1}</focussing>
  <divergence>{1,1}</divergence>
  <beamlets>{1,1}</beamlets>
</beamletgroup>
Source

<xs:element name="beamletgroup" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Group of beamlets with common vertical and horizontal focal point. If there are no common focal points, then select small groups of beamlets such that a focal point description of the beamlet-group provides a fair description.</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="position" type="rzphi0D">
        <xs:annotation>
          <xs:documentation>Position of centre of injection unit surface (or grounded grid).</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="tang_rad" type="xs:float">
        <xs:annotation>
          <xs:documentation>Tangency radius (major radius where the central line of a NBI unit is tangent to a circle around the torus) [m]</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="angle" type="xs:float">
        <xs:annotation>
          <xs:documentation>Angle of inclination between a line at the centre of the injection unit surface and the horiontal plane [rad]</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="direction" type="xs:integer">
        <xs:annotation>
          <xs:documentation>Direction of the beam seen from above the torus: -1 = clockwise; 1 = counter clockwise</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="width_horiz" type="xs:float">
        <xs:annotation>
          <xs:documentation>Horizontal width of the beam group at the injection unit surface (or grounded grid) [m]</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="width_vert" type="xs:float">
        <xs:annotation>
          <xs:documentation>Vertical width of the beam group at the injection unit surface (or grounded grid) [m]</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="focussing">
        <xs:annotation>
          <xs:documentation>Describes how the beam is focussed.</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="focal_len_hz" type="xs:float">
              <xs:annotation>
                <xs:documentation>Horizontal focal length along the beam line, i.e. the point along the centre of the beamlet-group where the beamlet-group has its minimum horizontal width [m]. Scalar</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="focal_len_vc" type="xs:float">
              <xs:annotation>
                <xs:documentation>Vertical focal length along the beam line, i.e. the point along the centre of the beamlet-group where the beamlet-group has its minimum vertical width [m]. Scalar</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="width_min_hz" type="xs:float">
              <xs:annotation>
                <xs:documentation>The horizontal width of the beamlet-group at the at the horizontal focal point [m]. Scalar</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="width_min_vc" type="xs:float">
              <xs:annotation>
                <xs:documentation>The vertical width of the beamlet-group at the at the vertical focal point [m]. Scalar</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="divergence">
        <xs:annotation>
          <xs:documentation>Detailed information on beamlet divergence. Divergens is described as a super position of Gaussian profiles with amplitide "frac_divcomp" and vertical/horizontal divergence "div_vert"/"div_horiz". Note that for positive ion NBI the divergence is well described by a single Gaussian.</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="frac_divcomp" type="vecflt_type">
              <xs:annotation>
                <xs:documentation>Fraction of injected particles. Vector(ndiv_comp)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="div_vert" type="vecflt_type">
              <xs:annotation>
                <xs:documentation>The vertical beamlet divergence [rad]. Here the divergence is defined for Gaussian beams as the angel where the beam density is reduced by a factor 1/e compared to the maximum density. For non-Gaussian beams the divergence is sqrt(2)*mean((x-mean(x))**2), where x is the angle and the mean should be performed over the beam density, P(x): mean(y)=int(y*P(x)*dx). Vector(ndiv_comp)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="div_horiz" type="vecflt_type">
              <xs:annotation>
                <xs:documentation>The horizontal beamlet divergence [rad]. Here the divergence is defined for Gaussian beams as the angel where the beam density is reduced by a factor 1/e compared to the maximum density. For non-Gaussian beams the divergence is sqrt(2)*mean((x-mean(x))**2), where x is the angle and the mean should be performed over the beam density, P(x): mean(y)=int(y*P(x)*dx). Vector(ndiv_comp)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="beamlets">
        <xs:annotation>
          <xs:documentation>Detailed information on beamlets.</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="position" type="rzphi1D">
              <xs:annotation>
                <xs:documentation>Position of beamlets. Vector rzphi1D (nbeamlets)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="tang_rad_blt" type="vecflt_type">
              <xs:annotation>
                <xs:documentation>Tangency radius (major radius where the central line of a beamlet is tangent to a circle around the torus) [m]; Vector(nbeamlets)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="angle_blt" type="vecflt_type">
              <xs:annotation>
                <xs:documentation>Angle of inclination between a line at the centre of a beamlet and the horiontal plane [rad]; Vector(nbeamlets)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="pow_frc_blt" type="vecflt_type">
              <xs:annotation>
                <xs:documentation>Fraction of power of a unit injected by a beamlet; Vector(nbeamlets)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element nbi / nbi_unit / beamletgroup / position
Namespace No namespace
Annotations

Position of centre of injection unit surface (or grounded grid).
Diagram
Diagram utilities_xsd.tmp#rzphi0D_r utilities_xsd.tmp#rzphi0D_z utilities_xsd.tmp#rzphi0D_phi utilities_xsd.tmp#rzphi0D
Type rzphi0D
Properties
content complex
Model
r , z , phi
Children phi, r, z
Instance

<position>
  <r>{1,1}</r>
  <z>{1,1}</z>
  <phi>{1,1}</phi>
</position>
Source

<xs:element name="position" type="rzphi0D">
  <xs:annotation>
    <xs:documentation>Position of centre of injection unit surface (or grounded grid).</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element nbi / nbi_unit / beamletgroup / tang_rad
Namespace No namespace
Annotations

Tangency radius (major radius where the central line of a NBI unit is tangent to a circle around the torus) [m]
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="tang_rad" type="xs:float">
  <xs:annotation>
    <xs:documentation>Tangency radius (major radius where the central line of a NBI unit is tangent to a circle around the torus) [m]</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element nbi / nbi_unit / beamletgroup / angle
Namespace No namespace
Annotations

Angle of inclination between a line at the centre of the injection unit surface and the horiontal plane [rad]
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="angle" type="xs:float">
  <xs:annotation>
    <xs:documentation>Angle of inclination between a line at the centre of the injection unit surface and the horiontal plane [rad]</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element nbi / nbi_unit / beamletgroup / direction
Namespace No namespace
Annotations

Direction of the beam seen from above the torus: -1 = clockwise; 1 = counter clockwise
Diagram
Diagram
Type xs:integer
Properties
content simple
Source

<xs:element name="direction" type="xs:integer">
  <xs:annotation>
    <xs:documentation>Direction of the beam seen from above the torus: -1 = clockwise; 1 = counter clockwise</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element nbi / nbi_unit / beamletgroup / width_horiz
Namespace No namespace
Annotations

Horizontal width of the beam group at the injection unit surface (or grounded grid) [m]
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="width_horiz" type="xs:float">
  <xs:annotation>
    <xs:documentation>Horizontal width of the beam group at the injection unit surface (or grounded grid) [m]</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element nbi / nbi_unit / beamletgroup / width_vert
Namespace No namespace
Annotations

Vertical width of the beam group at the injection unit surface (or grounded grid) [m]
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="width_vert" type="xs:float">
  <xs:annotation>
    <xs:documentation>Vertical width of the beam group at the injection unit surface (or grounded grid) [m]</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element nbi / nbi_unit / beamletgroup / focussing
Namespace No namespace
Annotations

Describes how the beam is focussed.
Diagram
Diagram nbi_xsd.tmp#nbi_nbi_nbi_unit_nbi_nbi_nbi_unit_beamletgroup_nbi_nbi_nbi_unit_nbi_nbi_nbi_unit_beamletgroup_focussing_focal_len_hz nbi_xsd.tmp#nbi_nbi_nbi_unit_nbi_nbi_nbi_unit_beamletgroup_nbi_nbi_nbi_unit_nbi_nbi_nbi_unit_beamletgroup_focussing_focal_len_vc nbi_xsd.tmp#nbi_nbi_nbi_unit_nbi_nbi_nbi_unit_beamletgroup_nbi_nbi_nbi_unit_nbi_nbi_nbi_unit_beamletgroup_focussing_width_min_hz nbi_xsd.tmp#nbi_nbi_nbi_unit_nbi_nbi_nbi_unit_beamletgroup_nbi_nbi_nbi_unit_nbi_nbi_nbi_unit_beamletgroup_focussing_width_min_vc
Properties
content complex
Model
Children focal_len_hz, focal_len_vc, width_min_hz, width_min_vc
Instance

<focussing>
  <focal_len_hz>{1,1}</focal_len_hz>
  <focal_len_vc>{1,1}</focal_len_vc>
  <width_min_hz>{1,1}</width_min_hz>
  <width_min_vc>{1,1}</width_min_vc>
</focussing>
Source

<xs:element name="focussing">
  <xs:annotation>
    <xs:documentation>Describes how the beam is focussed.</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="focal_len_hz" type="xs:float">
        <xs:annotation>
          <xs:documentation>Horizontal focal length along the beam line, i.e. the point along the centre of the beamlet-group where the beamlet-group has its minimum horizontal width [m]. Scalar</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="focal_len_vc" type="xs:float">
        <xs:annotation>
          <xs:documentation>Vertical focal length along the beam line, i.e. the point along the centre of the beamlet-group where the beamlet-group has its minimum vertical width [m]. Scalar</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="width_min_hz" type="xs:float">
        <xs:annotation>
          <xs:documentation>The horizontal width of the beamlet-group at the at the horizontal focal point [m]. Scalar</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="width_min_vc" type="xs:float">
        <xs:annotation>
          <xs:documentation>The vertical width of the beamlet-group at the at the vertical focal point [m]. Scalar</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element nbi / nbi_unit / beamletgroup / focussing / focal_len_hz
Namespace No namespace
Annotations

Horizontal focal length along the beam line, i.e. the point along the centre of the beamlet-group where the beamlet-group has its minimum horizontal width [m]. Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="focal_len_hz" type="xs:float">
  <xs:annotation>
    <xs:documentation>Horizontal focal length along the beam line, i.e. the point along the centre of the beamlet-group where the beamlet-group has its minimum horizontal width [m]. Scalar</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element nbi / nbi_unit / beamletgroup / focussing / focal_len_vc
Namespace No namespace
Annotations

Vertical focal length along the beam line, i.e. the point along the centre of the beamlet-group where the beamlet-group has its minimum vertical width [m]. Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="focal_len_vc" type="xs:float">
  <xs:annotation>
    <xs:documentation>Vertical focal length along the beam line, i.e. the point along the centre of the beamlet-group where the beamlet-group has its minimum vertical width [m]. Scalar</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element nbi / nbi_unit / beamletgroup / focussing / width_min_hz
Namespace No namespace
Annotations

The horizontal width of the beamlet-group at the at the horizontal focal point [m]. Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="width_min_hz" type="xs:float">
  <xs:annotation>
    <xs:documentation>The horizontal width of the beamlet-group at the at the horizontal focal point [m]. Scalar</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element nbi / nbi_unit / beamletgroup / focussing / width_min_vc
Namespace No namespace
Annotations

The vertical width of the beamlet-group at the at the vertical focal point [m]. Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="width_min_vc" type="xs:float">
  <xs:annotation>
    <xs:documentation>The vertical width of the beamlet-group at the at the vertical focal point [m]. Scalar</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element nbi / nbi_unit / beamletgroup / divergence
Namespace No namespace
Annotations

Detailed information on beamlet divergence. Divergens is described as a super position of Gaussian profiles with amplitide "frac_divcomp" and vertical/horizontal divergence "div_vert"/"div_horiz". Note that for positive ion NBI the divergence is well described by a single Gaussian.
Diagram
Diagram nbi_xsd.tmp#nbi_nbi_nbi_unit_nbi_nbi_nbi_unit_beamletgroup_nbi_nbi_nbi_unit_nbi_nbi_nbi_unit_beamletgroup_divergence_frac_divcomp nbi_xsd.tmp#nbi_nbi_nbi_unit_nbi_nbi_nbi_unit_beamletgroup_nbi_nbi_nbi_unit_nbi_nbi_nbi_unit_beamletgroup_divergence_div_vert nbi_xsd.tmp#nbi_nbi_nbi_unit_nbi_nbi_nbi_unit_beamletgroup_nbi_nbi_nbi_unit_nbi_nbi_nbi_unit_beamletgroup_divergence_div_horiz
Properties
content complex
Model
Children div_horiz, div_vert, frac_divcomp
Instance

<divergence>
  <frac_divcomp>{1,1}</frac_divcomp>
  <div_vert>{1,1}</div_vert>
  <div_horiz>{1,1}</div_horiz>
</divergence>
Source

<xs:element name="divergence">
  <xs:annotation>
    <xs:documentation>Detailed information on beamlet divergence. Divergens is described as a super position of Gaussian profiles with amplitide "frac_divcomp" and vertical/horizontal divergence "div_vert"/"div_horiz". Note that for positive ion NBI the divergence is well described by a single Gaussian.</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="frac_divcomp" type="vecflt_type">
        <xs:annotation>
          <xs:documentation>Fraction of injected particles. Vector(ndiv_comp)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="div_vert" type="vecflt_type">
        <xs:annotation>
          <xs:documentation>The vertical beamlet divergence [rad]. Here the divergence is defined for Gaussian beams as the angel where the beam density is reduced by a factor 1/e compared to the maximum density. For non-Gaussian beams the divergence is sqrt(2)*mean((x-mean(x))**2), where x is the angle and the mean should be performed over the beam density, P(x): mean(y)=int(y*P(x)*dx). Vector(ndiv_comp)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="div_horiz" type="vecflt_type">
        <xs:annotation>
          <xs:documentation>The horizontal beamlet divergence [rad]. Here the divergence is defined for Gaussian beams as the angel where the beam density is reduced by a factor 1/e compared to the maximum density. For non-Gaussian beams the divergence is sqrt(2)*mean((x-mean(x))**2), where x is the angle and the mean should be performed over the beam density, P(x): mean(y)=int(y*P(x)*dx). Vector(ndiv_comp)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element nbi / nbi_unit / beamletgroup / divergence / frac_divcomp
Namespace No namespace
Annotations

Fraction of injected particles. Vector(ndiv_comp)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="frac_divcomp" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Fraction of injected particles. Vector(ndiv_comp)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element nbi / nbi_unit / beamletgroup / divergence / div_vert
Namespace No namespace
Annotations

The vertical beamlet divergence [rad]. Here the divergence is defined for Gaussian beams as the angel where the beam density is reduced by a factor 1/e compared to the maximum density. For non-Gaussian beams the divergence is sqrt(2)*mean((x-mean(x))**2), where x is the angle and the mean should be performed over the beam density, P(x): mean(y)=int(y*P(x)*dx). Vector(ndiv_comp)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="div_vert" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>The vertical beamlet divergence [rad]. Here the divergence is defined for Gaussian beams as the angel where the beam density is reduced by a factor 1/e compared to the maximum density. For non-Gaussian beams the divergence is sqrt(2)*mean((x-mean(x))**2), where x is the angle and the mean should be performed over the beam density, P(x): mean(y)=int(y*P(x)*dx). Vector(ndiv_comp)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element nbi / nbi_unit / beamletgroup / divergence / div_horiz
Namespace No namespace
Annotations

The horizontal beamlet divergence [rad]. Here the divergence is defined for Gaussian beams as the angel where the beam density is reduced by a factor 1/e compared to the maximum density. For non-Gaussian beams the divergence is sqrt(2)*mean((x-mean(x))**2), where x is the angle and the mean should be performed over the beam density, P(x): mean(y)=int(y*P(x)*dx). Vector(ndiv_comp)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="div_horiz" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>The horizontal beamlet divergence [rad]. Here the divergence is defined for Gaussian beams as the angel where the beam density is reduced by a factor 1/e compared to the maximum density. For non-Gaussian beams the divergence is sqrt(2)*mean((x-mean(x))**2), where x is the angle and the mean should be performed over the beam density, P(x): mean(y)=int(y*P(x)*dx). Vector(ndiv_comp)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element nbi / nbi_unit / beamletgroup / beamlets
Namespace No namespace
Annotations

Detailed information on beamlets.
Diagram
Diagram nbi_xsd.tmp#nbi_nbi_nbi_unit_nbi_nbi_nbi_unit_beamletgroup_nbi_nbi_nbi_unit_nbi_nbi_nbi_unit_beamletgroup_beamlets_position nbi_xsd.tmp#nbi_nbi_nbi_unit_nbi_nbi_nbi_unit_beamletgroup_nbi_nbi_nbi_unit_nbi_nbi_nbi_unit_beamletgroup_beamlets_tang_rad_blt nbi_xsd.tmp#nbi_nbi_nbi_unit_nbi_nbi_nbi_unit_beamletgroup_nbi_nbi_nbi_unit_nbi_nbi_nbi_unit_beamletgroup_beamlets_angle_blt nbi_xsd.tmp#nbi_nbi_nbi_unit_nbi_nbi_nbi_unit_beamletgroup_nbi_nbi_nbi_unit_nbi_nbi_nbi_unit_beamletgroup_beamlets_pow_frc_blt
Properties
content complex
Model
Children angle_blt, position, pow_frc_blt, tang_rad_blt
Instance

<beamlets>
  <position>{1,1}</position>
  <tang_rad_blt>{1,1}</tang_rad_blt>
  <angle_blt>{1,1}</angle_blt>
  <pow_frc_blt>{1,1}</pow_frc_blt>
</beamlets>
Source

<xs:element name="beamlets">
  <xs:annotation>
    <xs:documentation>Detailed information on beamlets.</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="position" type="rzphi1D">
        <xs:annotation>
          <xs:documentation>Position of beamlets. Vector rzphi1D (nbeamlets)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="tang_rad_blt" type="vecflt_type">
        <xs:annotation>
          <xs:documentation>Tangency radius (major radius where the central line of a beamlet is tangent to a circle around the torus) [m]; Vector(nbeamlets)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="angle_blt" type="vecflt_type">
        <xs:annotation>
          <xs:documentation>Angle of inclination between a line at the centre of a beamlet and the horiontal plane [rad]; Vector(nbeamlets)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="pow_frc_blt" type="vecflt_type">
        <xs:annotation>
          <xs:documentation>Fraction of power of a unit injected by a beamlet; Vector(nbeamlets)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element nbi / nbi_unit / beamletgroup / beamlets / position
Namespace No namespace
Annotations

Position of beamlets. Vector rzphi1D (nbeamlets)
Diagram
Diagram utilities_xsd.tmp#rzphi1D_r utilities_xsd.tmp#rzphi1D_z utilities_xsd.tmp#rzphi1D_phi utilities_xsd.tmp#rzphi1D
Type rzphi1D
Properties
content complex
Model
r , z , phi
Children phi, r, z
Instance

<position>
  <r>{1,1}</r>
  <z>{1,1}</z>
  <phi>{1,1}</phi>
</position>
Source

<xs:element name="position" type="rzphi1D">
  <xs:annotation>
    <xs:documentation>Position of beamlets. Vector rzphi1D (nbeamlets)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element nbi / nbi_unit / beamletgroup / beamlets / tang_rad_blt
Namespace No namespace
Annotations

Tangency radius (major radius where the central line of a beamlet is tangent to a circle around the torus) [m]; Vector(nbeamlets)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="tang_rad_blt" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Tangency radius (major radius where the central line of a beamlet is tangent to a circle around the torus) [m]; Vector(nbeamlets)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element nbi / nbi_unit / beamletgroup / beamlets / angle_blt
Namespace No namespace
Annotations

Angle of inclination between a line at the centre of a beamlet and the horiontal plane [rad]; Vector(nbeamlets)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="angle_blt" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Angle of inclination between a line at the centre of a beamlet and the horiontal plane [rad]; Vector(nbeamlets)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element nbi / nbi_unit / beamletgroup / beamlets / pow_frc_blt
Namespace No namespace
Annotations

Fraction of power of a unit injected by a beamlet; Vector(nbeamlets)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="pow_frc_blt" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Fraction of power of a unit injected by a beamlet; Vector(nbeamlets)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element nbi / nbi_unit / wall
Namespace No namespace
Annotations

Description of the wall components in the NBI system that limits the beam spatial width of the beam. The wall is here described a superposition of surface segments and collimating holes.
Diagram
Diagram nbi_xsd.tmp#nbi_nbi_unit_wall_surface nbi_xsd.tmp#nbi_nbi_unit_wall_collimator nbi_xsd.tmp#nbi_nbi_unit_wall
Type nbi_nbi_unit_wall
Properties
content complex
Model
Children collimator, surface
Instance

<wall>
  <surface>{1,1}</surface>
  <collimator>{1,unbounded}</collimator>
</wall>
Source

<xs:element name="wall" type="nbi_nbi_unit_wall">
  <xs:annotation>
    <xs:documentation>Description of the wall components in the NBI system that limits the beam spatial width of the beam. The wall is here described a superposition of surface segments and collimating holes.</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>

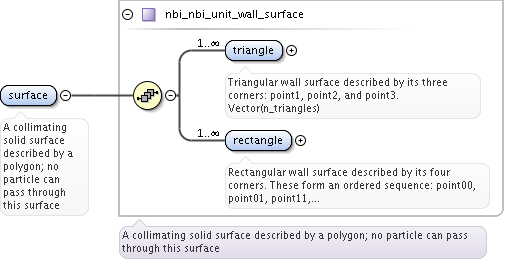

Element nbi_nbi_unit_wall / surface
Namespace No namespace
Annotations

A collimating solid surface described by a polygon; no particle can pass through this surface
Diagram
Diagram nbi_xsd.tmp#NO_NAMESPACE_nbi_nbi_unit_wall_surface_triangle nbi_xsd.tmp#NO_NAMESPACE_nbi_nbi_unit_wall_surface_rectangle nbi_xsd.tmp#NO_NAMESPACE_nbi_nbi_unit_wall_surface
Type nbi_nbi_unit_wall_surface
Properties
content complex
Model
Children rectangle, triangle
Instance

<surface>
  <triangle>{1,unbounded}</triangle>
  <rectangle>{1,unbounded}</rectangle>
</surface>
Source

<xs:element name="surface" type="nbi_nbi_unit_wall_surface">
  <xs:annotation>
    <xs:documentation>A collimating solid surface described by a polygon; no particle can pass through this surface</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element nbi_nbi_unit_wall_surface / triangle
Namespace No namespace
Annotations

Triangular wall surface described by its three corners: point1, point2, and point3. Vector(n_triangles)
Diagram
Diagram utilities_xsd.tmp#trianglexyz_point1 utilities_xsd.tmp#trianglexyz_point2 utilities_xsd.tmp#trianglexyz_point3 utilities_xsd.tmp#trianglexyz
Type trianglexyz
Properties
content complex
maxOccurs unbounded
Model
Children point1, point2, point3
Instance

<triangle>
  <point1>{1,1}</point1>
  <point2>{1,1}</point2>
  <point3>{1,1}</point3>
</triangle>
Source

<xs:element name="triangle" type="trianglexyz" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Triangular wall surface described by its three corners: point1, point2, and point3. Vector(n_triangles)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>

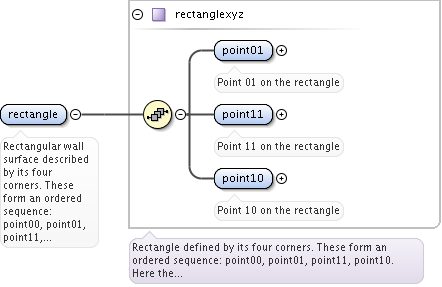

Element nbi_nbi_unit_wall_surface / rectangle
Namespace No namespace
Annotations

Rectangular wall surface described by its four corners. These form an ordered sequence: point00, point01, point11, point10. Here the first point should be calculated from the other three as point00=point01+poin10-point11. Vector(n_rectangles)
Diagram
Diagram utilities_xsd.tmp#rectanglexyz_point01 utilities_xsd.tmp#rectanglexyz_point11 utilities_xsd.tmp#rectanglexyz_point10 utilities_xsd.tmp#rectanglexyz
Type rectanglexyz
Properties
content complex
maxOccurs unbounded
Model
Children point01, point10, point11
Instance

<rectangle>
  <point01>{1,1}</point01>
  <point11>{1,1}</point11>
  <point10>{1,1}</point10>
</rectangle>
Source

<xs:element name="rectangle" type="rectanglexyz" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Rectangular wall surface described by its four corners. These form an ordered sequence: point00, point01, point11, point10. Here the first point should be calculated from the other three as point00=point01+poin10-point11. Vector(n_rectangles)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>

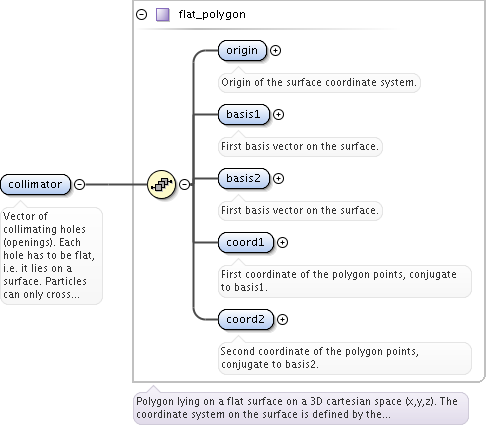

Element nbi_nbi_unit_wall / collimator
Namespace No namespace
Annotations

Vector of collimating holes (openings). Each hole has to be flat, i.e. it lies on a surface. Particles can only cross this surface by passing through the hole. To describe the hole we first construct a coordinate system on the surface by defining the original and two basis vectors in (x,y,z) space. The polyon is then represented as the origin, plus a linear combination of the two basis vectors using coord1 and coord2. As an example, a rectangle with two of the corners given by "origin+basis1" and "origin+basis2" can be described using coord1=[1,0,-1,0] and coord2=[0,1,0,-1].
Diagram
Diagram utilities_xsd.tmp#flat_polygon_origin utilities_xsd.tmp#flat_polygon_basis1 utilities_xsd.tmp#flat_polygon_basis2 utilities_xsd.tmp#flat_polygon_coord1 utilities_xsd.tmp#flat_polygon_coord2 utilities_xsd.tmp#flat_polygon
Type flat_polygon
Properties
content complex
maxOccurs unbounded
Model
Children basis1, basis2, coord1, coord2, origin
Instance

<collimator>
  <origin>{1,1}</origin>
  <basis1>{1,1}</basis1>
  <basis2>{1,1}</basis2>
  <coord1>{1,1}</coord1>
  <coord2>{1,1}</coord2>
</collimator>
Source

<xs:element name="collimator" type="flat_polygon" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Vector of collimating holes (openings). Each hole has to be flat, i.e. it lies on a surface. Particles can only cross this surface by passing through the hole. To describe the hole we first construct a coordinate system on the surface by defining the original and two basis vectors in (x,y,z) space. The polyon is then represented as the origin, plus a linear combination of the two basis vectors using coord1 and coord2. As an example, a rectangle with two of the corners given by "origin+basis1" and "origin+basis2" can be described using coord1=[1,0,-1,0] and coord2=[0,1,0,-1].</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element nbi / time
Namespace No namespace
Annotations

Time [s]; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="time" type="xs:float">
  <xs:annotation>
    <xs:documentation>Time [s]; Time-dependent; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Complex Type nbi_nbi_unit_wall
Namespace No namespace
Annotations

Description of the wall components in the NBI system that limits the beam spatial width of the beam. The wall is here described a superposition of surface segments and collimating holes.
Diagram
Diagram nbi_xsd.tmp#nbi_nbi_unit_wall_surface nbi_xsd.tmp#nbi_nbi_unit_wall_collimator
Used by
Model
Children collimator, surface
Source

<xs:complexType name="nbi_nbi_unit_wall">
  <xs:annotation>
    <xs:documentation>Description of the wall components in the NBI system that limits the beam spatial width of the beam. The wall is here described a superposition of surface segments and collimating holes.</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="surface" type="nbi_nbi_unit_wall_surface">
      <xs:annotation>
        <xs:documentation>A collimating solid surface described by a polygon; no particle can pass through this surface</xs:documentation>
        <xs:appinfo>machine description</xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element name="collimator" type="flat_polygon" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Vector of collimating holes (openings). Each hole has to be flat, i.e. it lies on a surface. Particles can only cross this surface by passing through the hole. To describe the hole we first construct a coordinate system on the surface by defining the original and two basis vectors in (x,y,z) space. The polyon is then represented as the origin, plus a linear combination of the two basis vectors using coord1 and coord2. As an example, a rectangle with two of the corners given by "origin+basis1" and "origin+basis2" can be described using coord1=[1,0,-1,0] and coord2=[0,1,0,-1].</xs:documentation>
        <xs:appinfo>machine description</xs:appinfo>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

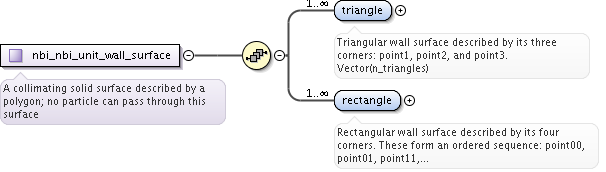

Complex Type nbi_nbi_unit_wall_surface
Namespace No namespace
Annotations

A collimating solid surface described by a polygon; no particle can pass through this surface
Diagram
Diagram nbi_xsd.tmp#NO_NAMESPACE_nbi_nbi_unit_wall_surface_triangle nbi_xsd.tmp#NO_NAMESPACE_nbi_nbi_unit_wall_surface_rectangle
Used by
Model
Children rectangle, triangle
Source

<xs:complexType name="nbi_nbi_unit_wall_surface">
  <xs:annotation>
    <xs:documentation>A collimating solid surface described by a polygon; no particle can pass through this surface</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="triangle" type="trianglexyz" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Triangular wall surface described by its three corners: point1, point2, and point3. Vector(n_triangles)</xs:documentation>
        <xs:appinfo>machine description</xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element name="rectangle" type="rectanglexyz" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Rectangular wall surface described by its four corners. These form an ordered sequence: point00, point01, point11, point10. Here the first point should be calculated from the other three as point00=point01+poin10-point11. Vector(n_rectangles)</xs:documentation>
        <xs:appinfo>machine description</xs:appinfo>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
XML Schema documentation generated by ® XML Editor.
