Included schema neoclassic.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default qualified

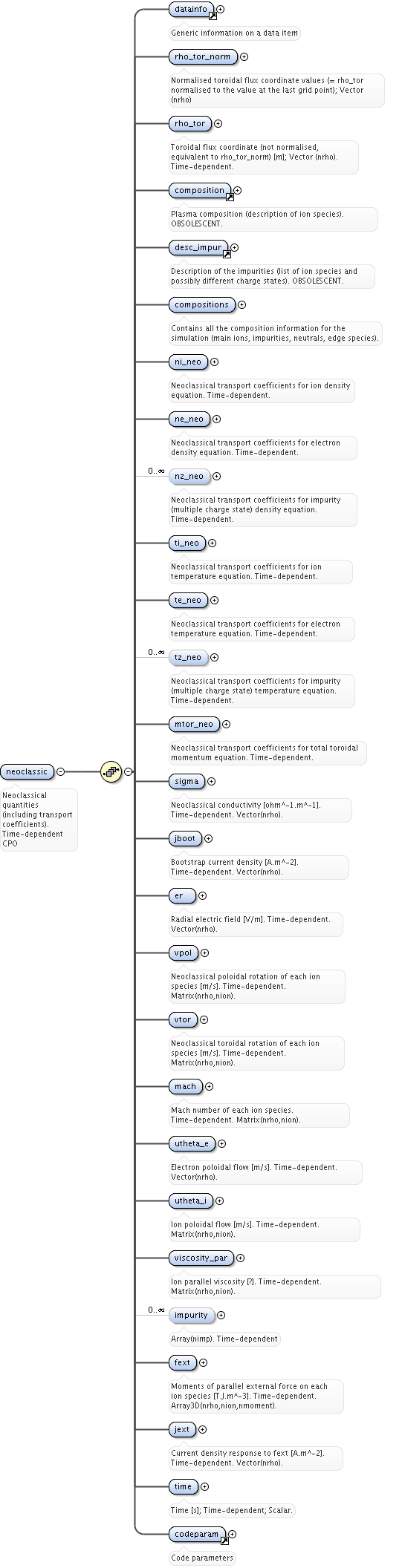

Element neoclassic
Namespace No namespace
Annotations

Neoclassical quantities (including transport coefficients). Time-dependent CPO
Diagram
Diagram utilities_xsd.tmp#datainfo neoclassic_xsd.tmp#neoclassic_rho_tor_norm neoclassic_xsd.tmp#neoclassic_rho_tor utilities_xsd.tmp#composition utilities_xsd.tmp#desc_impur neoclassic_xsd.tmp#neoclassic_compositions neoclassic_xsd.tmp#neoclassic_ni_neo neoclassic_xsd.tmp#neoclassic_ne_neo neoclassic_xsd.tmp#neoclassic_nz_neo neoclassic_xsd.tmp#neoclassic_ti_neo neoclassic_xsd.tmp#neoclassic_te_neo neoclassic_xsd.tmp#neoclassic_tz_neo neoclassic_xsd.tmp#neoclassic_mtor_neo neoclassic_xsd.tmp#neoclassic_sigma neoclassic_xsd.tmp#neoclassic_jboot neoclassic_xsd.tmp#neoclassic_er neoclassic_xsd.tmp#neoclassic_vpol neoclassic_xsd.tmp#neoclassic_vtor neoclassic_xsd.tmp#neoclassic_mach neoclassic_xsd.tmp#neoclassic_utheta_e neoclassic_xsd.tmp#neoclassic_utheta_i neoclassic_xsd.tmp#neoclassic_viscosity_par neoclassic_xsd.tmp#neoclassic_impurity neoclassic_xsd.tmp#neoclassic_fext neoclassic_xsd.tmp#neoclassic_jext neoclassic_xsd.tmp#neoclassic_time utilities_xsd.tmp#codeparam
Properties
content complex
Used by
Element top
Model
Children codeparam, composition, compositions, datainfo, desc_impur, er, fext, impurity, jboot, jext, mach, mtor_neo, ne_neo, ni_neo, nz_neo, rho_tor, rho_tor_norm, sigma, te_neo, ti_neo, time, tz_neo, utheta_e, utheta_i, viscosity_par, vpol, vtor
Instance

<neoclassic>
  <datainfo>{1,1}</datainfo>
  <rho_tor_norm>{1,1}</rho_tor_norm>
  <rho_tor>{1,1}</rho_tor>
  <composition>{1,1}</composition>
  <desc_impur>{1,1}</desc_impur>
  <compositions>{1,1}</compositions>
  <ni_neo>{1,1}</ni_neo>
  <ne_neo>{1,1}</ne_neo>
  <nz_neo>{0,unbounded}</nz_neo>
  <ti_neo>{1,1}</ti_neo>
  <te_neo>{1,1}</te_neo>
  <tz_neo>{0,unbounded}</tz_neo>
  <mtor_neo>{1,1}</mtor_neo>
  <sigma>{1,1}</sigma>
  <jboot>{1,1}</jboot>
  <er>{1,1}</er>
  <vpol>{1,1}</vpol>
  <vtor>{1,1}</vtor>
  <mach>{1,1}</mach>
  <utheta_e>{1,1}</utheta_e>
  <utheta_i>{1,1}</utheta_i>
  <viscosity_par>{1,1}</viscosity_par>
  <impurity>{0,unbounded}</impurity>
  <fext>{1,1}</fext>
  <jext>{1,1}</jext>
  <time>{1,1}</time>
  <codeparam>{1,1}</codeparam>
</neoclassic>
Source

<xs:element name="neoclassic">
  <xs:annotation>
    <xs:documentation>Neoclassical quantities (including transport coefficients). Time-dependent CPO</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="datainfo"/>
      <xs:element name="rho_tor_norm" type="vecflt_type" default="[0.0,0.0]">
        <xs:annotation>
          <xs:documentation>Normalised toroidal flux coordinate values (= rho_tor normalised to the value at the last grid point); Vector (nrho)</xs:documentation>
          <xs:appinfo>experimental</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="rho_tor" type="vecflt_type">
        <xs:annotation>
          <xs:documentation>Toroidal flux coordinate (not normalised, equivalent to rho_tor_norm) [m]; Vector (nrho). Time-dependent.</xs:documentation>
          <xs:appinfo>experimental</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element ref="composition"/>
      <xs:element ref="desc_impur"/>
      <xs:element name="compositions" type="compositions_type">
        <xs:annotation>
          <xs:documentation>Contains all the composition information for the simulation (main ions, impurities, neutrals, edge species).</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="ni_neo" type="transcoefion">
        <xs:annotation>
          <xs:documentation>Neoclassical transport coefficients for ion density equation. Time-dependent.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="ne_neo" type="transcoefel">
        <xs:annotation>
          <xs:documentation>Neoclassical transport coefficients for electron density equation. Time-dependent.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="nz_neo" type="transcoefimp" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>Neoclassical transport coefficients for impurity (multiple charge state) density equation. Time-dependent.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="ti_neo" type="transcoefion">
        <xs:annotation>
          <xs:documentation>Neoclassical transport coefficients for ion temperature equation. Time-dependent.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="te_neo" type="transcoefel">
        <xs:annotation>
          <xs:documentation>Neoclassical transport coefficients for electron temperature equation. Time-dependent.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="tz_neo" type="transcoefimp" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>Neoclassical transport coefficients for impurity (multiple charge state) temperature equation. Time-dependent.</xs:documentation>
        </xs:annotation>
      </xs:element>

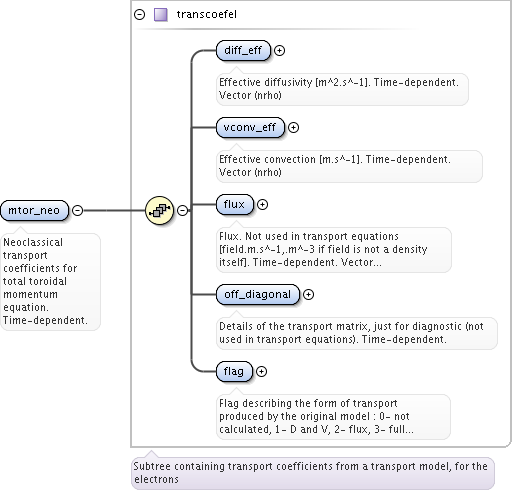

      <xs:element name="mtor_neo" type="transcoefel">
        <xs:annotation>
          <xs:documentation>Neoclassical transport coefficients for total toroidal momentum equation. Time-dependent.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="sigma" type="vecflt_type">
        <xs:annotation>
          <xs:documentation>Neoclassical conductivity [ohm^-1.m^-1]. Time-dependent. Vector(nrho).</xs:documentation>
          <xs:appinfo>experimental</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="jboot" type="vecflt_type">
        <xs:annotation>
          <xs:documentation>Bootstrap current density [A.m^-2]. Time-dependent. Vector(nrho).</xs:documentation>
          <xs:appinfo>experimental</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="er" type="vecflt_type">
        <xs:annotation>
          <xs:documentation>Radial electric field [V/m]. Time-dependent. Vector(nrho).</xs:documentation>
          <xs:appinfo>experimental</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="vpol" type="matflt_type">
        <xs:annotation>
          <xs:documentation>Neoclassical poloidal rotation of each ion species [m/s]. Time-dependent. Matrix(nrho,nion).</xs:documentation>
          <xs:appinfo>experimental</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="vtor" type="matflt_type">
        <xs:annotation>
          <xs:documentation>Neoclassical toroidal rotation of each ion species [m/s]. Time-dependent. Matrix(nrho,nion).</xs:documentation>
          <xs:appinfo>experimental</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="mach" type="matflt_type">
        <xs:annotation>
          <xs:documentation>Mach number of each ion species. Time-dependent. Matrix(nrho,nion).</xs:documentation>
          <xs:appinfo>experimental</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="utheta_e" type="vecflt_type">
        <xs:annotation>
          <xs:documentation>Electron poloidal flow [m/s]. Time-dependent. Vector(nrho).</xs:documentation>
          <xs:appinfo>experimental</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="utheta_i" type="matflt_type">
        <xs:annotation>
          <xs:documentation>Ion poloidal flow [m/s]. Time-dependent. Matrix(nrho,nion).</xs:documentation>
          <xs:appinfo>experimental</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="viscosity_par" type="matflt_type">
        <xs:annotation>
          <xs:documentation>Ion parallel viscosity [?]. Time-dependent. Matrix(nrho,nion).</xs:documentation>
          <xs:appinfo>experimental</xs:appinfo>
        </xs:annotation>
      </xs:element>

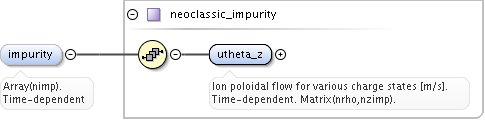

      <xs:element name="impurity" type="neoclassic_impurity" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>Array(nimp). Time-dependent</xs:documentation>
        </xs:annotation>
      </xs:element>

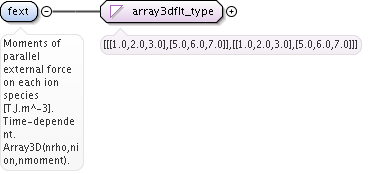

      <xs:element name="fext" type="array3dflt_type">
        <xs:annotation>
          <xs:documentation>Moments of parallel external force on each ion species [T.J.m^-3]. Time-dependent. Array3D(nrho,nion,nmoment).</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="jext" type="vecflt_type">
        <xs:annotation>
          <xs:documentation>Current density response to fext [A.m^-2]. Time-dependent. Vector(nrho).</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="time" type="xs:float" default="0.0">
        <xs:annotation>
          <xs:documentation>Time [s]; Time-dependent; Scalar.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element ref="codeparam"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element neoclassic / rho_tor_norm
Namespace No namespace
Annotations

Normalised toroidal flux coordinate values (= rho_tor normalised to the value at the last grid point); Vector (nrho)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
default [0.0,0.0]
final restriction
Source

<xs:element name="rho_tor_norm" type="vecflt_type" default="[0.0,0.0]">
  <xs:annotation>
    <xs:documentation>Normalised toroidal flux coordinate values (= rho_tor normalised to the value at the last grid point); Vector (nrho)</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element neoclassic / rho_tor
Namespace No namespace
Annotations

Toroidal flux coordinate (not normalised, equivalent to rho_tor_norm) [m]; Vector (nrho). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="rho_tor" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Toroidal flux coordinate (not normalised, equivalent to rho_tor_norm) [m]; Vector (nrho). Time-dependent.</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>

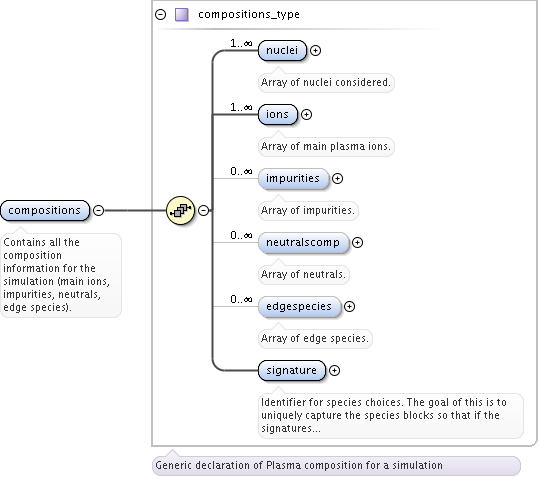

Element neoclassic / compositions
Namespace No namespace
Annotations

Contains all the composition information for the simulation (main ions, impurities, neutrals, edge species).
Diagram
Diagram utilities_xsd.tmp#compositions_type_nuclei utilities_xsd.tmp#compositions_type_ions utilities_xsd.tmp#compositions_type_impurities utilities_xsd.tmp#compositions_type_neutralscomp utilities_xsd.tmp#compositions_type_edgespecies utilities_xsd.tmp#compositions_type_signature utilities_xsd.tmp#compositions_type
Type compositions_type
Properties
content complex
Model
Children edgespecies, impurities, ions, neutralscomp, nuclei, signature
Instance

<compositions>
  <nuclei>{1,unbounded}</nuclei>
  <ions>{1,unbounded}</ions>
  <impurities>{0,unbounded}</impurities>
  <neutralscomp>{0,unbounded}</neutralscomp>
  <edgespecies>{0,unbounded}</edgespecies>
  <signature>{1,1}</signature>
</compositions>
Source

<xs:element name="compositions" type="compositions_type">
  <xs:annotation>
    <xs:documentation>Contains all the composition information for the simulation (main ions, impurities, neutrals, edge species).</xs:documentation>
  </xs:annotation>
</xs:element>

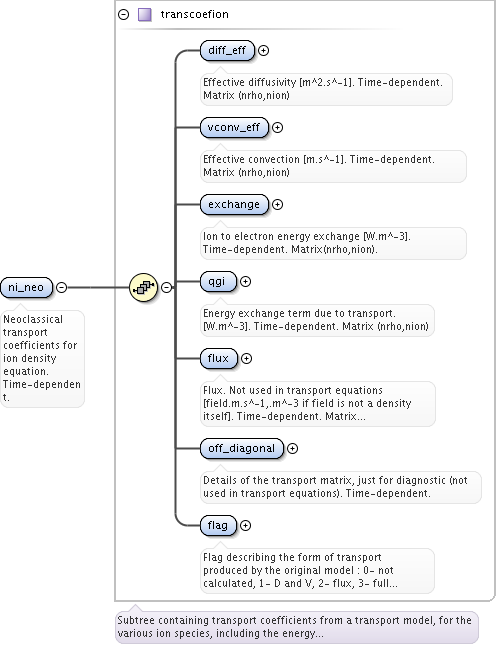

Element neoclassic / ni_neo
Namespace No namespace
Annotations

Neoclassical transport coefficients for ion density equation. Time-dependent.
Diagram
Diagram utilities_xsd.tmp#transcoefion_diff_eff utilities_xsd.tmp#transcoefion_vconv_eff utilities_xsd.tmp#transcoefion_exchange utilities_xsd.tmp#transcoefion_qgi utilities_xsd.tmp#transcoefion_flux utilities_xsd.tmp#transcoefion_off_diagonal utilities_xsd.tmp#transcoefion_flag utilities_xsd.tmp#transcoefion
Type transcoefion
Properties
content complex
Model
Children diff_eff, exchange, flag, flux, off_diagonal, qgi, vconv_eff
Instance

<ni_neo>
  <diff_eff>{1,1}</diff_eff>
  <vconv_eff>{1,1}</vconv_eff>
  <exchange>{1,1}</exchange>
  <qgi>{1,1}</qgi>
  <flux>{1,1}</flux>
  <off_diagonal>{1,1}</off_diagonal>
  <flag>{1,1}</flag>
</ni_neo>
Source

<xs:element name="ni_neo" type="transcoefion">
  <xs:annotation>
    <xs:documentation>Neoclassical transport coefficients for ion density equation. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>

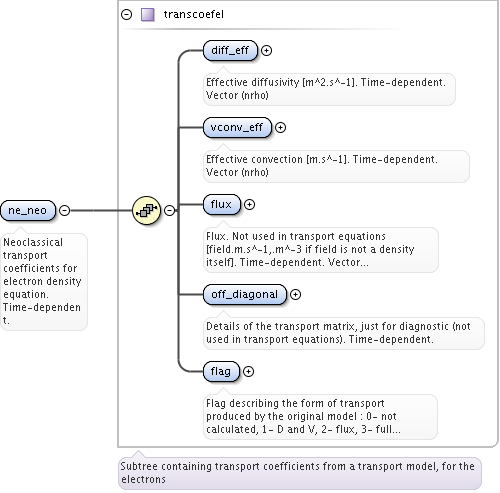

Element neoclassic / ne_neo
Namespace No namespace
Annotations

Neoclassical transport coefficients for electron density equation. Time-dependent.
Diagram
Diagram utilities_xsd.tmp#transcoefel_diff_eff utilities_xsd.tmp#transcoefel_vconv_eff utilities_xsd.tmp#transcoefel_flux utilities_xsd.tmp#transcoefel_off_diagonal utilities_xsd.tmp#transcoefel_flag utilities_xsd.tmp#transcoefel
Type transcoefel
Properties
content complex
Model
Children diff_eff, flag, flux, off_diagonal, vconv_eff
Instance

<ne_neo>
  <diff_eff>{1,1}</diff_eff>
  <vconv_eff>{1,1}</vconv_eff>
  <flux>{1,1}</flux>
  <off_diagonal>{1,1}</off_diagonal>
  <flag>{1,1}</flag>
</ne_neo>
Source

<xs:element name="ne_neo" type="transcoefel">
  <xs:annotation>
    <xs:documentation>Neoclassical transport coefficients for electron density equation. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>

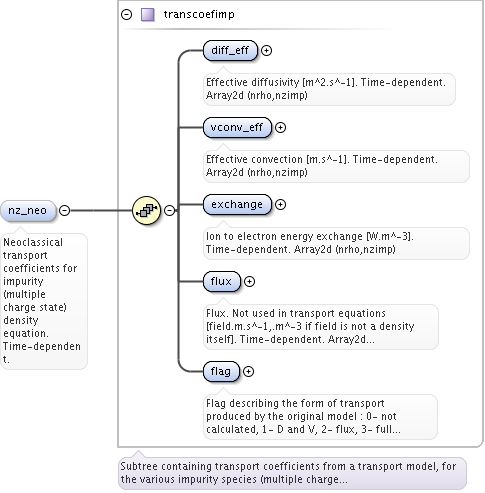

Element neoclassic / nz_neo
Namespace No namespace
Annotations

Neoclassical transport coefficients for impurity (multiple charge state) density equation. Time-dependent.
Diagram
Diagram utilities_xsd.tmp#transcoefimp_diff_eff utilities_xsd.tmp#transcoefimp_vconv_eff utilities_xsd.tmp#transcoefimp_exchange utilities_xsd.tmp#transcoefimp_flux utilities_xsd.tmp#transcoefimp_flag utilities_xsd.tmp#transcoefimp
Type transcoefimp
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diff_eff, exchange, flag, flux, vconv_eff
Instance

<nz_neo>
  <diff_eff>{1,1}</diff_eff>
  <vconv_eff>{1,1}</vconv_eff>
  <exchange>{1,1}</exchange>
  <flux>{1,1}</flux>
  <flag>{1,1}</flag>
</nz_neo>
Source

<xs:element name="nz_neo" type="transcoefimp" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Neoclassical transport coefficients for impurity (multiple charge state) density equation. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element neoclassic / ti_neo
Namespace No namespace
Annotations

Neoclassical transport coefficients for ion temperature equation. Time-dependent.
Diagram
Diagram utilities_xsd.tmp#transcoefion_diff_eff utilities_xsd.tmp#transcoefion_vconv_eff utilities_xsd.tmp#transcoefion_exchange utilities_xsd.tmp#transcoefion_qgi utilities_xsd.tmp#transcoefion_flux utilities_xsd.tmp#transcoefion_off_diagonal utilities_xsd.tmp#transcoefion_flag utilities_xsd.tmp#transcoefion
Type transcoefion
Properties
content complex
Model
Children diff_eff, exchange, flag, flux, off_diagonal, qgi, vconv_eff
Instance

<ti_neo>
  <diff_eff>{1,1}</diff_eff>
  <vconv_eff>{1,1}</vconv_eff>
  <exchange>{1,1}</exchange>
  <qgi>{1,1}</qgi>
  <flux>{1,1}</flux>
  <off_diagonal>{1,1}</off_diagonal>
  <flag>{1,1}</flag>
</ti_neo>
Source

<xs:element name="ti_neo" type="transcoefion">
  <xs:annotation>
    <xs:documentation>Neoclassical transport coefficients for ion temperature equation. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>

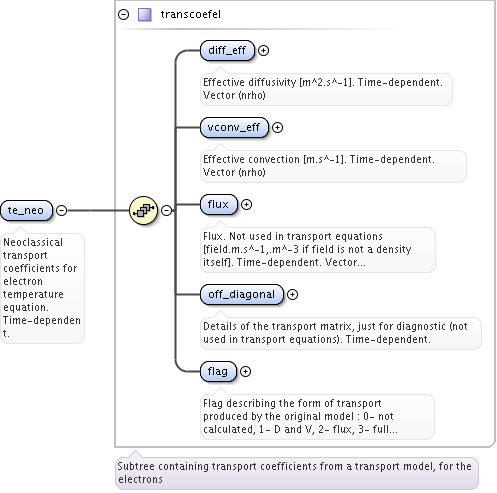

Element neoclassic / te_neo
Namespace No namespace
Annotations

Neoclassical transport coefficients for electron temperature equation. Time-dependent.
Diagram
Diagram utilities_xsd.tmp#transcoefel_diff_eff utilities_xsd.tmp#transcoefel_vconv_eff utilities_xsd.tmp#transcoefel_flux utilities_xsd.tmp#transcoefel_off_diagonal utilities_xsd.tmp#transcoefel_flag utilities_xsd.tmp#transcoefel
Type transcoefel
Properties
content complex
Model
Children diff_eff, flag, flux, off_diagonal, vconv_eff
Instance

<te_neo>
  <diff_eff>{1,1}</diff_eff>
  <vconv_eff>{1,1}</vconv_eff>
  <flux>{1,1}</flux>
  <off_diagonal>{1,1}</off_diagonal>
  <flag>{1,1}</flag>
</te_neo>
Source

<xs:element name="te_neo" type="transcoefel">
  <xs:annotation>
    <xs:documentation>Neoclassical transport coefficients for electron temperature equation. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>

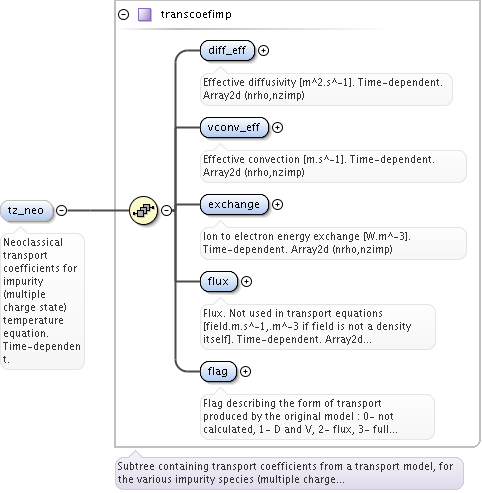

Element neoclassic / tz_neo
Namespace No namespace
Annotations

Neoclassical transport coefficients for impurity (multiple charge state) temperature equation. Time-dependent.
Diagram
Diagram utilities_xsd.tmp#transcoefimp_diff_eff utilities_xsd.tmp#transcoefimp_vconv_eff utilities_xsd.tmp#transcoefimp_exchange utilities_xsd.tmp#transcoefimp_flux utilities_xsd.tmp#transcoefimp_flag utilities_xsd.tmp#transcoefimp
Type transcoefimp
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diff_eff, exchange, flag, flux, vconv_eff
Instance

<tz_neo>
  <diff_eff>{1,1}</diff_eff>
  <vconv_eff>{1,1}</vconv_eff>
  <exchange>{1,1}</exchange>
  <flux>{1,1}</flux>
  <flag>{1,1}</flag>
</tz_neo>
Source

<xs:element name="tz_neo" type="transcoefimp" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Neoclassical transport coefficients for impurity (multiple charge state) temperature equation. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element neoclassic / mtor_neo
Namespace No namespace
Annotations

Neoclassical transport coefficients for total toroidal momentum equation. Time-dependent.
Diagram
Diagram utilities_xsd.tmp#transcoefel_diff_eff utilities_xsd.tmp#transcoefel_vconv_eff utilities_xsd.tmp#transcoefel_flux utilities_xsd.tmp#transcoefel_off_diagonal utilities_xsd.tmp#transcoefel_flag utilities_xsd.tmp#transcoefel
Type transcoefel
Properties
content complex
Model
Children diff_eff, flag, flux, off_diagonal, vconv_eff
Instance

<mtor_neo>
  <diff_eff>{1,1}</diff_eff>
  <vconv_eff>{1,1}</vconv_eff>
  <flux>{1,1}</flux>
  <off_diagonal>{1,1}</off_diagonal>
  <flag>{1,1}</flag>
</mtor_neo>
Source

<xs:element name="mtor_neo" type="transcoefel">
  <xs:annotation>
    <xs:documentation>Neoclassical transport coefficients for total toroidal momentum equation. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element neoclassic / sigma
Namespace No namespace
Annotations

Neoclassical conductivity [ohm^-1.m^-1]. Time-dependent. Vector(nrho).
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="sigma" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Neoclassical conductivity [ohm^-1.m^-1]. Time-dependent. Vector(nrho).</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element neoclassic / jboot
Namespace No namespace
Annotations

Bootstrap current density [A.m^-2]. Time-dependent. Vector(nrho).
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="jboot" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Bootstrap current density [A.m^-2]. Time-dependent. Vector(nrho).</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element neoclassic / er
Namespace No namespace
Annotations

Radial electric field [V/m]. Time-dependent. Vector(nrho).
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="er" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Radial electric field [V/m]. Time-dependent. Vector(nrho).</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element neoclassic / vpol
Namespace No namespace
Annotations

Neoclassical poloidal rotation of each ion species [m/s]. Time-dependent. Matrix(nrho,nion).
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="vpol" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Neoclassical poloidal rotation of each ion species [m/s]. Time-dependent. Matrix(nrho,nion).</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element neoclassic / vtor
Namespace No namespace
Annotations

Neoclassical toroidal rotation of each ion species [m/s]. Time-dependent. Matrix(nrho,nion).
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="vtor" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Neoclassical toroidal rotation of each ion species [m/s]. Time-dependent. Matrix(nrho,nion).</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element neoclassic / mach
Namespace No namespace
Annotations

Mach number of each ion species. Time-dependent. Matrix(nrho,nion).
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="mach" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Mach number of each ion species. Time-dependent. Matrix(nrho,nion).</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element neoclassic / utheta_e
Namespace No namespace
Annotations

Electron poloidal flow [m/s]. Time-dependent. Vector(nrho).
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="utheta_e" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Electron poloidal flow [m/s]. Time-dependent. Vector(nrho).</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element neoclassic / utheta_i
Namespace No namespace
Annotations

Ion poloidal flow [m/s].  Time-dependent. Matrix(nrho,nion).
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="utheta_i" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Ion poloidal flow [m/s]. Time-dependent. Matrix(nrho,nion).</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element neoclassic / viscosity_par
Namespace No namespace
Annotations

Ion parallel viscosity [?].  Time-dependent. Matrix(nrho,nion).
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="viscosity_par" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Ion parallel viscosity [?]. Time-dependent. Matrix(nrho,nion).</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element neoclassic / impurity
Namespace No namespace
Annotations

Array(nimp). Time-dependent
Diagram
Diagram neoclassic_xsd.tmp#NO_NAMESPACE_neoclassic_impurity_utheta_z neoclassic_xsd.tmp#NO_NAMESPACE_neoclassic_impurity
Type neoclassic_impurity
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children utheta_z
Instance

<impurity>
  <utheta_z>{1,1}</utheta_z>
</impurity>
Source

<xs:element name="impurity" type="neoclassic_impurity" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Array(nimp). Time-dependent</xs:documentation>
  </xs:annotation>
</xs:element>
Element neoclassic_impurity / utheta_z
Namespace No namespace
Annotations

Ion poloidal flow for various charge states [m/s].  Time-dependent. Matrix(nrho,nzimp).
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="utheta_z" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Ion poloidal flow for various charge states [m/s]. Time-dependent. Matrix(nrho,nzimp).</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element neoclassic / fext
Namespace No namespace
Annotations

Moments of parallel external force on each ion species [T.J.m^-3]. Time-dependent. Array3D(nrho,nion,nmoment).
Diagram
Diagram utilities_xsd.tmp#array3dflt_type
Type array3dflt_type
Properties
content simple
Source

<xs:element name="fext" type="array3dflt_type">
  <xs:annotation>
    <xs:documentation>Moments of parallel external force on each ion species [T.J.m^-3]. Time-dependent. Array3D(nrho,nion,nmoment).</xs:documentation>
  </xs:annotation>
</xs:element>
Element neoclassic / jext
Namespace No namespace
Annotations

Current density response to fext [A.m^-2]. Time-dependent. Vector(nrho).
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="jext" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Current density response to fext [A.m^-2]. Time-dependent. Vector(nrho).</xs:documentation>
  </xs:annotation>
</xs:element>
Element neoclassic / time
Namespace No namespace
Annotations

Time [s]; Time-dependent; Scalar.
Diagram
Diagram
Type xs:float
Properties
content simple
default 0.0
Source

<xs:element name="time" type="xs:float" default="0.0">
  <xs:annotation>
    <xs:documentation>Time [s]; Time-dependent; Scalar.</xs:documentation>
  </xs:annotation>
</xs:element>
Complex Type neoclassic_impurity
Namespace No namespace
Diagram
Diagram neoclassic_xsd.tmp#NO_NAMESPACE_neoclassic_impurity_utheta_z
Used by
Model
Children utheta_z
Source

<xs:complexType name="neoclassic_impurity">
  <xs:sequence>
    <xs:element name="utheta_z" type="matflt_type">
      <xs:annotation>
        <xs:documentation>Ion poloidal flow for various charge states [m/s]. Time-dependent. Matrix(nrho,nzimp).</xs:documentation>
        <xs:appinfo>experimental</xs:appinfo>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
XML Schema documentation generated by ® XML Editor.
