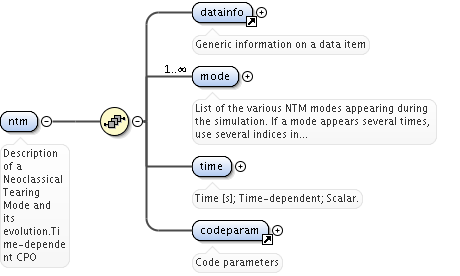

Element ntm
Namespace No namespace
Annotations

Description of a Neoclassical Tearing Mode and its evolution.Time-dependent CPO
Diagram
Diagram utilities_xsd.tmp#datainfo ntm_xsd.tmp#ntm_mode ntm_xsd.tmp#ntm_time utilities_xsd.tmp#codeparam
Properties
content complex
Used by
Element top
Model
Children codeparam, datainfo, mode, time
Instance

<ntm>
  <datainfo>{1,1}</datainfo>
  <mode>{1,unbounded}</mode>
  <time>{1,1}</time>
  <codeparam>{1,1}</codeparam>
</ntm>
Source

<xs:element name="ntm">
  <xs:annotation>
    <xs:documentation>Description of a Neoclassical Tearing Mode and its evolution.Time-dependent CPO</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="datainfo"/>
      <xs:element name="mode" type="ntm_mode" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>List of the various NTM modes appearing during the simulation. If a mode appears several times, use several indices in this arra of structure with the same m,n values. All descendant nodes are marked as Time-dependent for technical reasons, to allow the size of the mode AoS to vary.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="time" type="xs:float" default="0.0">
        <xs:annotation>
          <xs:documentation>Time [s]; Time-dependent; Scalar.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element ref="codeparam"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

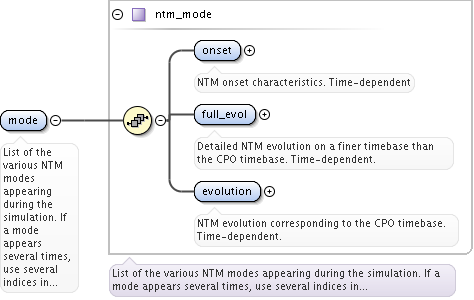

Element ntm / mode
Namespace No namespace
Annotations

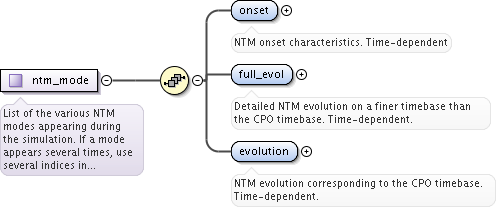

List of the various NTM modes appearing during the simulation. If a mode appears several times, use several indices in this arra of structure with the same m,n values. All descendant nodes are marked as Time-dependent for technical reasons, to allow the size of the mode AoS to vary.
Diagram
Diagram ntm_xsd.tmp#NO_NAMESPACE_ntm_mode_onset ntm_xsd.tmp#NO_NAMESPACE_ntm_mode_full_evol ntm_xsd.tmp#NO_NAMESPACE_ntm_mode_evolution ntm_xsd.tmp#NO_NAMESPACE_ntm_mode
Type ntm_mode
Properties
content complex
maxOccurs unbounded
Model
Children evolution, full_evol, onset
Instance

<mode>
  <onset>{1,1}</onset>
  <full_evol>{1,1}</full_evol>
  <evolution>{1,1}</evolution>
</mode>
Source

<xs:element name="mode" type="ntm_mode" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>List of the various NTM modes appearing during the simulation. If a mode appears several times, use several indices in this arra of structure with the same m,n values. All descendant nodes are marked as Time-dependent for technical reasons, to allow the size of the mode AoS to vary.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode / onset
Namespace No namespace
Annotations

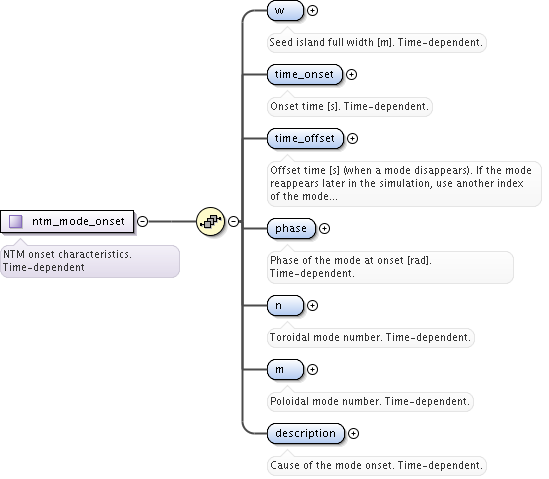

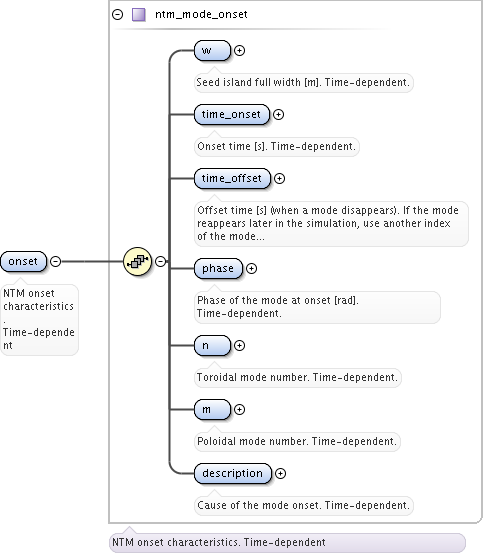

NTM onset characteristics. Time-dependent
Diagram
Diagram ntm_xsd.tmp#ntm_mode_onset_w ntm_xsd.tmp#ntm_mode_onset_time_onset ntm_xsd.tmp#ntm_mode_onset_time_offset ntm_xsd.tmp#ntm_mode_onset_phase ntm_xsd.tmp#ntm_mode_onset_n ntm_xsd.tmp#ntm_mode_onset_m ntm_xsd.tmp#ntm_mode_onset_description ntm_xsd.tmp#ntm_mode_onset
Type ntm_mode_onset
Properties
content complex
Model
Children description, m, n, phase, time_offset, time_onset, w
Instance

<onset>
  <w>{1,1}</w>
  <time_onset>{1,1}</time_onset>
  <time_offset>{1,1}</time_offset>
  <phase>{1,1}</phase>
  <n>{1,1}</n>
  <m>{1,1}</m>
  <description>{1,1}</description>
</onset>
Source

<xs:element name="onset" type="ntm_mode_onset">
  <xs:annotation>
    <xs:documentation>NTM onset characteristics. Time-dependent</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_onset / w
Namespace No namespace
Annotations

Seed island full width [m]. Time-dependent.
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="w" type="xs:float">
  <xs:annotation>
    <xs:documentation>Seed island full width [m]. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_onset / time_onset
Namespace No namespace
Annotations

Onset time [s]. Time-dependent.
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="time_onset" type="xs:float">
  <xs:annotation>
    <xs:documentation>Onset time [s]. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_onset / time_offset
Namespace No namespace
Annotations

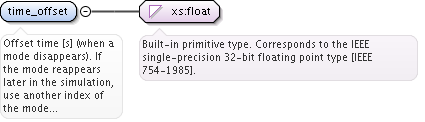

Offset time [s] (when a mode disappears). If the mode reappears later in the simulation, use another index of the mode array of structure. Time-dependent.
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="time_offset" type="xs:float">
  <xs:annotation>
    <xs:documentation>Offset time [s] (when a mode disappears). If the mode reappears later in the simulation, use another index of the mode array of structure. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_onset / phase
Namespace No namespace
Annotations

Phase of the mode at onset [rad]. Time-dependent.
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="phase" type="xs:float">
  <xs:annotation>
    <xs:documentation>Phase of the mode at onset [rad]. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_onset / n
Namespace No namespace
Annotations

Toroidal mode number. Time-dependent.
Diagram
Diagram
Type xs:integer
Properties
content simple
Source

<xs:element name="n" type="xs:integer">
  <xs:annotation>
    <xs:documentation>Toroidal mode number. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_onset / m
Namespace No namespace
Annotations

Poloidal mode number. Time-dependent.
Diagram
Diagram
Type xs:integer
Properties
content simple
Source

<xs:element name="m" type="xs:integer">
  <xs:annotation>
    <xs:documentation>Poloidal mode number. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_onset / description
Namespace No namespace
Annotations

Cause of the mode onset. Time-dependent.
Diagram
Diagram
Type xs:string
Properties
content simple
Source

<xs:element name="description" type="xs:string">
  <xs:annotation>
    <xs:documentation>Cause of the mode onset. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>

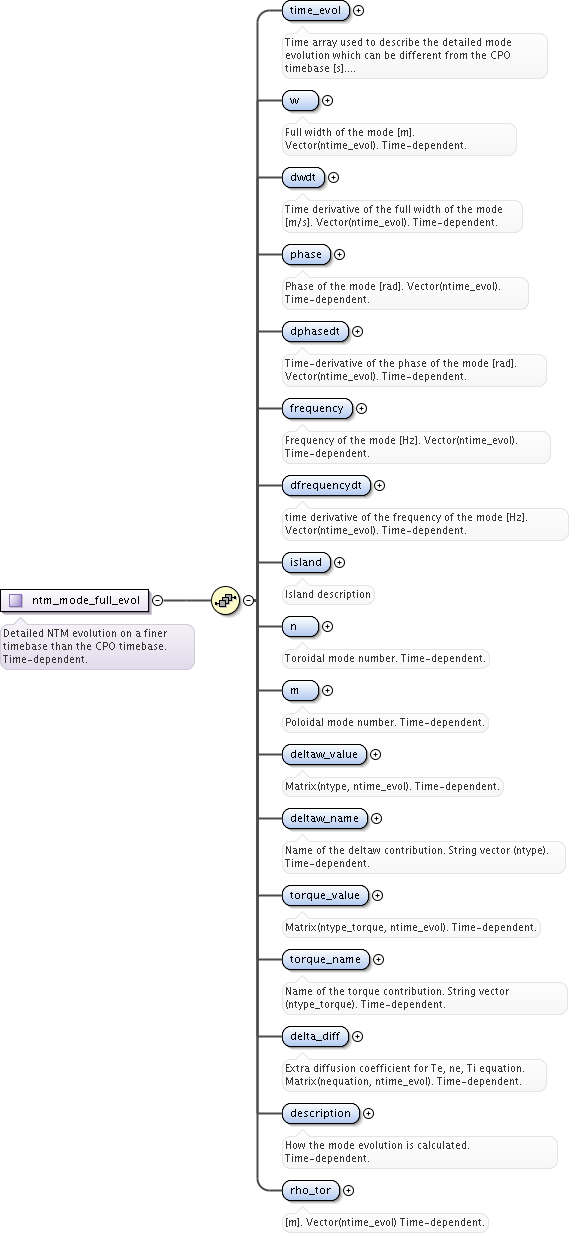

Element ntm_mode / full_evol
Namespace No namespace
Annotations

Detailed NTM evolution on a finer timebase than the CPO timebase. Time-dependent.
Diagram
Diagram ntm_xsd.tmp#ntm_mode_full_evol_time_evol ntm_xsd.tmp#ntm_mode_full_evol_w ntm_xsd.tmp#ntm_mode_full_evol_dwdt ntm_xsd.tmp#ntm_mode_full_evol_phase ntm_xsd.tmp#ntm_mode_full_evol_dphasedt ntm_xsd.tmp#ntm_mode_full_evol_frequency ntm_xsd.tmp#ntm_mode_full_evol_dfrequencydt ntm_xsd.tmp#ntm_mode_full_evol_island ntm_xsd.tmp#ntm_mode_full_evol_n ntm_xsd.tmp#ntm_mode_full_evol_m ntm_xsd.tmp#ntm_mode_full_evol_deltaw_value ntm_xsd.tmp#ntm_mode_full_evol_deltaw_name ntm_xsd.tmp#ntm_mode_full_evol_torque_value ntm_xsd.tmp#ntm_mode_full_evol_torque_name ntm_xsd.tmp#ntm_mode_full_evol_delta_diff ntm_xsd.tmp#ntm_mode_full_evol_description ntm_xsd.tmp#ntm_mode_full_evol_rho_tor ntm_xsd.tmp#ntm_mode_full_evol
Type ntm_mode_full_evol
Properties
content complex
Model
Children delta_diff, deltaw_name, deltaw_value, description, dfrequencydt, dphasedt, dwdt, frequency, island, m, n, phase, rho_tor, time_evol, torque_name, torque_value, w
Instance

<full_evol>
  <time_evol>{1,1}</time_evol>
  <w>{1,1}</w>
  <dwdt>{1,1}</dwdt>
  <phase>{1,1}</phase>
  <dphasedt>{1,1}</dphasedt>
  <frequency>{1,1}</frequency>
  <dfrequencydt>{1,1}</dfrequencydt>
  <island>{1,1}</island>
  <n>{1,1}</n>
  <m>{1,1}</m>
  <deltaw_value>{1,1}</deltaw_value>
  <deltaw_name>{1,1}</deltaw_name>
  <torque_value>{1,1}</torque_value>
  <torque_name>{1,1}</torque_name>
  <delta_diff>{1,1}</delta_diff>
  <description>{1,1}</description>
  <rho_tor>{1,1}</rho_tor>
</full_evol>
Source

<xs:element name="full_evol" type="ntm_mode_full_evol">
  <xs:annotation>
    <xs:documentation>Detailed NTM evolution on a finer timebase than the CPO timebase. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_full_evol / time_evol
Namespace No namespace
Annotations

Time array used to describe the detailed mode evolution which can be different from the CPO timebase [s]. Vector(ntime_evol). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="time_evol" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Time array used to describe the detailed mode evolution which can be different from the CPO timebase [s]. Vector(ntime_evol). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_full_evol / w
Namespace No namespace
Annotations

Full width of the mode [m]. Vector(ntime_evol). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="w" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Full width of the mode [m]. Vector(ntime_evol). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>

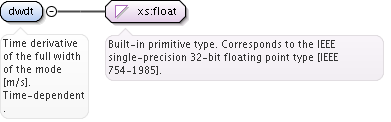

Element ntm_mode_full_evol / dwdt
Namespace No namespace
Annotations

Time derivative of the full width of the mode [m/s]. Vector(ntime_evol). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="dwdt" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Time derivative of the full width of the mode [m/s]. Vector(ntime_evol). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_full_evol / phase
Namespace No namespace
Annotations

Phase of the mode [rad]. Vector(ntime_evol). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="phase" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Phase of the mode [rad]. Vector(ntime_evol). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_full_evol / dphasedt
Namespace No namespace
Annotations

Time-derivative of the phase of the mode [rad]. Vector(ntime_evol). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="dphasedt" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Time-derivative of the phase of the mode [rad]. Vector(ntime_evol). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_full_evol / frequency
Namespace No namespace
Annotations

Frequency of the mode [Hz]. Vector(ntime_evol). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="frequency" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Frequency of the mode [Hz]. Vector(ntime_evol). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_full_evol / dfrequencydt
Namespace No namespace
Annotations

time derivative of the frequency of the mode [Hz]. Vector(ntime_evol). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="dfrequencydt" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>time derivative of the frequency of the mode [Hz]. Vector(ntime_evol). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>

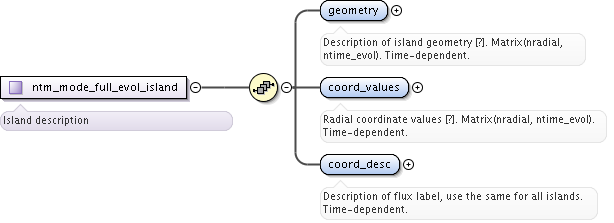

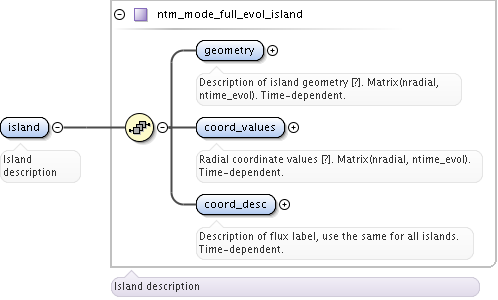

Element ntm_mode_full_evol / island
Namespace No namespace
Annotations

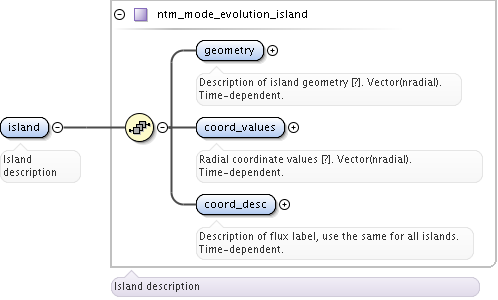

Island description
Diagram
Diagram ntm_xsd.tmp#NO_NAMESPACE_ntm_mode_full_evol_island_geometry ntm_xsd.tmp#NO_NAMESPACE_ntm_mode_full_evol_island_coord_values ntm_xsd.tmp#NO_NAMESPACE_ntm_mode_full_evol_island_coord_desc ntm_xsd.tmp#NO_NAMESPACE_ntm_mode_full_evol_island
Type ntm_mode_full_evol_island
Properties
content complex
Model
Children coord_desc, coord_values, geometry
Instance

<island>
  <geometry>{1,1}</geometry>
  <coord_values>{1,1}</coord_values>
  <coord_desc>{1,1}</coord_desc>
</island>
Source

<xs:element name="island" type="ntm_mode_full_evol_island">
  <xs:annotation>
    <xs:documentation>Island description</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_full_evol_island / geometry
Namespace No namespace
Annotations

Description of island geometry [?]. Matrix(nradial, ntime_evol). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="geometry" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Description of island geometry [?]. Matrix(nradial, ntime_evol). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_full_evol_island / coord_values
Namespace No namespace
Annotations

Radial coordinate values [?]. Matrix(nradial, ntime_evol). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="coord_values" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Radial coordinate values [?]. Matrix(nradial, ntime_evol). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_full_evol_island / coord_desc
Namespace No namespace
Annotations

Description of flux label, use the same for all islands. Time-dependent.
Diagram
Diagram
Type xs:string
Properties
content simple
Source

<xs:element name="coord_desc" type="xs:string">
  <xs:annotation>
    <xs:documentation>Description of flux label, use the same for all islands. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_full_evol / n
Namespace No namespace
Annotations

Toroidal mode number. Time-dependent.
Diagram
Diagram
Type xs:integer
Properties
content simple
Source

<xs:element name="n" type="xs:integer">
  <xs:annotation>
    <xs:documentation>Toroidal mode number. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_full_evol / m
Namespace No namespace
Annotations

Poloidal mode number. Time-dependent.
Diagram
Diagram
Type xs:integer
Properties
content simple
Source

<xs:element name="m" type="xs:integer">
  <xs:annotation>
    <xs:documentation>Poloidal mode number. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_full_evol / deltaw_value
Namespace No namespace
Annotations

Matrix(ntype, ntime_evol). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="deltaw_value" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Matrix(ntype, ntime_evol). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_full_evol / deltaw_name
Namespace No namespace
Annotations

Name of the deltaw contribution. String vector (ntype). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecstring_type
Type vecstring_type
Properties
content simple
Source

<xs:element name="deltaw_name" type="vecstring_type">
  <xs:annotation>
    <xs:documentation>Name of the deltaw contribution. String vector (ntype). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_full_evol / torque_value
Namespace No namespace
Annotations

Matrix(ntype_torque, ntime_evol). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="torque_value" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Matrix(ntype_torque, ntime_evol). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_full_evol / torque_name
Namespace No namespace
Annotations

Name of the torque contribution. String vector (ntype_torque). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecstring_type
Type vecstring_type
Properties
content simple
Source

<xs:element name="torque_name" type="vecstring_type">
  <xs:annotation>
    <xs:documentation>Name of the torque contribution. String vector (ntype_torque). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_full_evol / delta_diff
Namespace No namespace
Annotations

Extra diffusion coefficient for Te, ne, Ti equation. Matrix(nequation, ntime_evol). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="delta_diff" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Extra diffusion coefficient for Te, ne, Ti equation. Matrix(nequation, ntime_evol). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_full_evol / description
Namespace No namespace
Annotations

How the mode evolution is calculated. Time-dependent.
Diagram
Diagram
Type xs:string
Properties
content simple
Source

<xs:element name="description" type="xs:string">
  <xs:annotation>
    <xs:documentation>How the mode evolution is calculated. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_full_evol / rho_tor
Namespace No namespace
Annotations

[m]. Vector(ntime_evol) Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="rho_tor" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>[m]. Vector(ntime_evol) Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode / evolution
Namespace No namespace
Annotations

NTM evolution corresponding to the CPO timebase. Time-dependent.
Diagram
Diagram ntm_xsd.tmp#ntm_mode_evolution_w ntm_xsd.tmp#ntm_mode_evolution_dwdt ntm_xsd.tmp#ntm_mode_evolution_phase ntm_xsd.tmp#ntm_mode_evolution_dphasedt ntm_xsd.tmp#ntm_mode_evolution_frequency ntm_xsd.tmp#ntm_mode_evolution_dfrequencydt ntm_xsd.tmp#ntm_mode_evolution_island ntm_xsd.tmp#ntm_mode_evolution_n ntm_xsd.tmp#ntm_mode_evolution_m ntm_xsd.tmp#ntm_mode_evolution_deltaw_value ntm_xsd.tmp#ntm_mode_evolution_deltaw_name ntm_xsd.tmp#ntm_mode_evolution_torque_value ntm_xsd.tmp#ntm_mode_evolution_torque_name ntm_xsd.tmp#ntm_mode_evolution_delta_diff ntm_xsd.tmp#ntm_mode_evolution_description ntm_xsd.tmp#ntm_mode_evolution_rho_tor ntm_xsd.tmp#ntm_mode_evolution
Type ntm_mode_evolution
Properties
content complex
Model
Children delta_diff, deltaw_name, deltaw_value, description, dfrequencydt, dphasedt, dwdt, frequency, island, m, n, phase, rho_tor, torque_name, torque_value, w
Instance

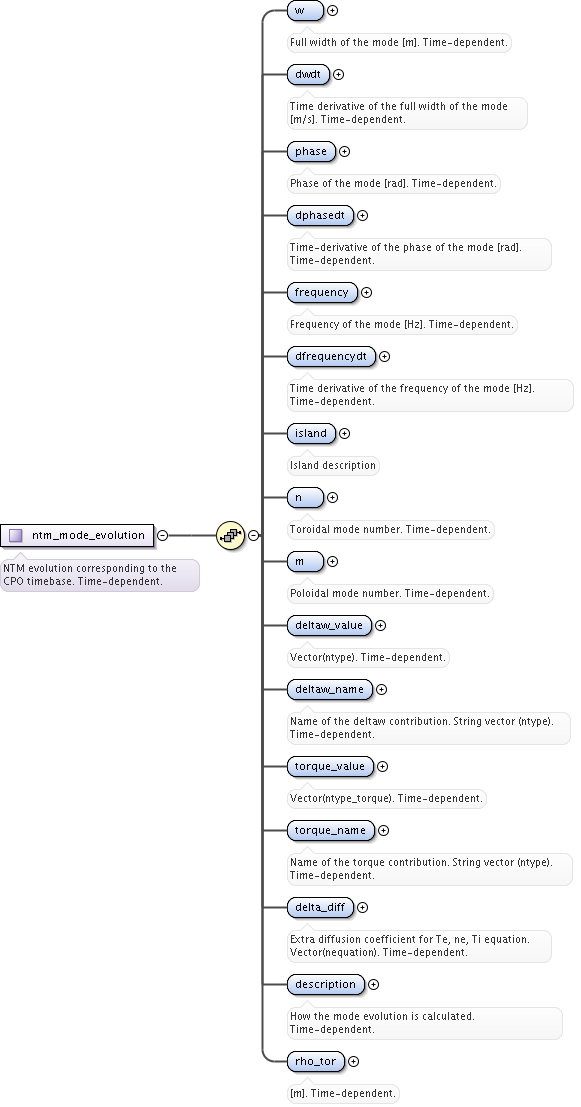

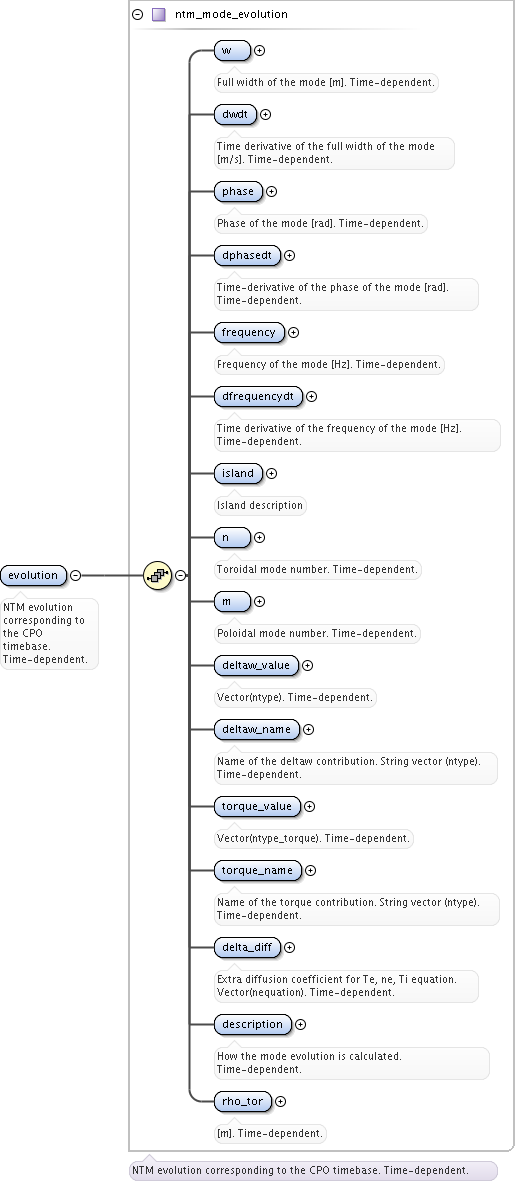

<evolution>
  <w>{1,1}</w>
  <dwdt>{1,1}</dwdt>
  <phase>{1,1}</phase>
  <dphasedt>{1,1}</dphasedt>
  <frequency>{1,1}</frequency>
  <dfrequencydt>{1,1}</dfrequencydt>
  <island>{1,1}</island>
  <n>{1,1}</n>
  <m>{1,1}</m>
  <deltaw_value>{1,1}</deltaw_value>
  <deltaw_name>{1,1}</deltaw_name>
  <torque_value>{1,1}</torque_value>
  <torque_name>{1,1}</torque_name>
  <delta_diff>{1,1}</delta_diff>
  <description>{1,1}</description>
  <rho_tor>{1,1}</rho_tor>
</evolution>
Source

<xs:element name="evolution" type="ntm_mode_evolution">
  <xs:annotation>
    <xs:documentation>NTM evolution corresponding to the CPO timebase. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_evolution / w
Namespace No namespace
Annotations

Full width of the mode [m]. Time-dependent.
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="w" type="xs:float">
  <xs:annotation>
    <xs:documentation>Full width of the mode [m]. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_evolution / dwdt
Namespace No namespace
Annotations

Time derivative of the full width of the mode [m/s].  Time-dependent.
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="dwdt" type="xs:float">
  <xs:annotation>
    <xs:documentation>Time derivative of the full width of the mode [m/s]. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_evolution / phase
Namespace No namespace
Annotations

Phase of the mode [rad].  Time-dependent.
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="phase" type="xs:float">
  <xs:annotation>
    <xs:documentation>Phase of the mode [rad]. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_evolution / dphasedt
Namespace No namespace
Annotations

Time-derivative of the phase of the mode [rad]. Time-dependent.
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="dphasedt" type="xs:float">
  <xs:annotation>
    <xs:documentation>Time-derivative of the phase of the mode [rad]. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_evolution / frequency
Namespace No namespace
Annotations

Frequency of the mode [Hz]. Time-dependent.
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="frequency" type="xs:float">
  <xs:annotation>
    <xs:documentation>Frequency of the mode [Hz]. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_evolution / dfrequencydt
Namespace No namespace
Annotations

Time derivative of the frequency of the mode [Hz].  Time-dependent.
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="dfrequencydt" type="xs:float">
  <xs:annotation>
    <xs:documentation>Time derivative of the frequency of the mode [Hz]. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_evolution / island
Namespace No namespace
Annotations

Island description
Diagram
Diagram ntm_xsd.tmp#NO_NAMESPACE_ntm_mode_evolution_island_geometry ntm_xsd.tmp#NO_NAMESPACE_ntm_mode_evolution_island_coord_values ntm_xsd.tmp#NO_NAMESPACE_ntm_mode_evolution_island_coord_desc ntm_xsd.tmp#NO_NAMESPACE_ntm_mode_evolution_island
Type ntm_mode_evolution_island
Properties
content complex
Model
Children coord_desc, coord_values, geometry
Instance

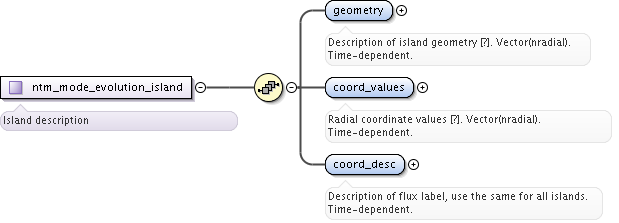

<island>
  <geometry>{1,1}</geometry>
  <coord_values>{1,1}</coord_values>
  <coord_desc>{1,1}</coord_desc>
</island>
Source

<xs:element name="island" type="ntm_mode_evolution_island">
  <xs:annotation>
    <xs:documentation>Island description</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_evolution_island / geometry
Namespace No namespace
Annotations

Description of island geometry [?]. Vector(nradial). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="geometry" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Description of island geometry [?]. Vector(nradial). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_evolution_island / coord_values
Namespace No namespace
Annotations

Radial coordinate values [?]. Vector(nradial). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="coord_values" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Radial coordinate values [?]. Vector(nradial). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_evolution_island / coord_desc
Namespace No namespace
Annotations

Description of flux label, use the same for all islands. Time-dependent.
Diagram
Diagram
Type xs:string
Properties
content simple
Source

<xs:element name="coord_desc" type="xs:string">
  <xs:annotation>
    <xs:documentation>Description of flux label, use the same for all islands. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_evolution / n
Namespace No namespace
Annotations

Toroidal mode number. Time-dependent.
Diagram
Diagram
Type xs:integer
Properties
content simple
Source

<xs:element name="n" type="xs:integer">
  <xs:annotation>
    <xs:documentation>Toroidal mode number. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_evolution / m
Namespace No namespace
Annotations

Poloidal mode number. Time-dependent.
Diagram
Diagram
Type xs:integer
Properties
content simple
Source

<xs:element name="m" type="xs:integer">
  <xs:annotation>
    <xs:documentation>Poloidal mode number. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_evolution / deltaw_value
Namespace No namespace
Annotations

Vector(ntype). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="deltaw_value" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Vector(ntype). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_evolution / deltaw_name
Namespace No namespace
Annotations

Name of the deltaw contribution. String vector (ntype). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecstring_type
Type vecstring_type
Properties
content simple
Source

<xs:element name="deltaw_name" type="vecstring_type">
  <xs:annotation>
    <xs:documentation>Name of the deltaw contribution. String vector (ntype). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_evolution / torque_value
Namespace No namespace
Annotations

Vector(ntype_torque). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="torque_value" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Vector(ntype_torque). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_evolution / torque_name
Namespace No namespace
Annotations

Name of the torque contribution. String vector (ntype). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecstring_type
Type vecstring_type
Properties
content simple
Source

<xs:element name="torque_name" type="vecstring_type">
  <xs:annotation>
    <xs:documentation>Name of the torque contribution. String vector (ntype). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_evolution / delta_diff
Namespace No namespace
Annotations

Extra diffusion coefficient for Te, ne, Ti equation. Vector(nequation). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="delta_diff" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Extra diffusion coefficient for Te, ne, Ti equation. Vector(nequation). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_evolution / description
Namespace No namespace
Annotations

How the mode evolution is calculated. Time-dependent.
Diagram
Diagram
Type xs:string
Properties
content simple
Source

<xs:element name="description" type="xs:string">
  <xs:annotation>
    <xs:documentation>How the mode evolution is calculated. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm_mode_evolution / rho_tor
Namespace No namespace
Annotations

[m]. Time-dependent.
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="rho_tor" type="xs:float">
  <xs:annotation>
    <xs:documentation>[m]. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element ntm / time
Namespace No namespace
Annotations

Time [s]; Time-dependent; Scalar.
Diagram
Diagram
Type xs:float
Properties
content simple
default 0.0
Source

<xs:element name="time" type="xs:float" default="0.0">
  <xs:annotation>
    <xs:documentation>Time [s]; Time-dependent; Scalar.</xs:documentation>
  </xs:annotation>
</xs:element>
Complex Type ntm_mode
Namespace No namespace
Annotations

List of the various NTM modes appearing during the simulation. If a mode appears several times, use several indices in this arra of structure with the same m,n values. All descendant nodes are marked as Time-dependent for technical reasons, to allow the size of the mode AoS to vary.
Diagram
Diagram ntm_xsd.tmp#NO_NAMESPACE_ntm_mode_onset ntm_xsd.tmp#NO_NAMESPACE_ntm_mode_full_evol ntm_xsd.tmp#NO_NAMESPACE_ntm_mode_evolution
Used by
Element ntm/mode
Model
Children evolution, full_evol, onset
Source

<xs:complexType name="ntm_mode">
  <xs:annotation>
    <xs:documentation>List of the various NTM modes appearing during the simulation. If a mode appears several times, use several indices in this arra of structure with the same m,n values. All descendant nodes are marked as Time-dependent for technical reasons, to allow the size of the mode AoS to vary.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="onset" type="ntm_mode_onset">
      <xs:annotation>
        <xs:documentation>NTM onset characteristics. Time-dependent</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="full_evol" type="ntm_mode_full_evol">
      <xs:annotation>
        <xs:documentation>Detailed NTM evolution on a finer timebase than the CPO timebase. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="evolution" type="ntm_mode_evolution">
      <xs:annotation>
        <xs:documentation>NTM evolution corresponding to the CPO timebase. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type ntm_mode_onset
Namespace No namespace
Annotations

NTM onset characteristics. Time-dependent
Diagram
Diagram ntm_xsd.tmp#ntm_mode_onset_w ntm_xsd.tmp#ntm_mode_onset_time_onset ntm_xsd.tmp#ntm_mode_onset_time_offset ntm_xsd.tmp#ntm_mode_onset_phase ntm_xsd.tmp#ntm_mode_onset_n ntm_xsd.tmp#ntm_mode_onset_m ntm_xsd.tmp#ntm_mode_onset_description
Used by
Element ntm_mode/onset
Model
Children description, m, n, phase, time_offset, time_onset, w
Source

<xs:complexType name="ntm_mode_onset">
  <xs:annotation>
    <xs:documentation>NTM onset characteristics. Time-dependent</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="w" type="xs:float">
      <xs:annotation>
        <xs:documentation>Seed island full width [m]. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="time_onset" type="xs:float">
      <xs:annotation>
        <xs:documentation>Onset time [s]. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="time_offset" type="xs:float">
      <xs:annotation>
        <xs:documentation>Offset time [s] (when a mode disappears). If the mode reappears later in the simulation, use another index of the mode array of structure. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="phase" type="xs:float">
      <xs:annotation>
        <xs:documentation>Phase of the mode at onset [rad]. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="n" type="xs:integer">
      <xs:annotation>
        <xs:documentation>Toroidal mode number. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="m" type="xs:integer">
      <xs:annotation>
        <xs:documentation>Poloidal mode number. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="description" type="xs:string">
      <xs:annotation>
        <xs:documentation>Cause of the mode onset. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type ntm_mode_full_evol
Namespace No namespace
Annotations

Detailed NTM evolution on a finer timebase than the CPO timebase. Time-dependent.
Diagram
Diagram ntm_xsd.tmp#ntm_mode_full_evol_time_evol ntm_xsd.tmp#ntm_mode_full_evol_w ntm_xsd.tmp#ntm_mode_full_evol_dwdt ntm_xsd.tmp#ntm_mode_full_evol_phase ntm_xsd.tmp#ntm_mode_full_evol_dphasedt ntm_xsd.tmp#ntm_mode_full_evol_frequency ntm_xsd.tmp#ntm_mode_full_evol_dfrequencydt ntm_xsd.tmp#ntm_mode_full_evol_island ntm_xsd.tmp#ntm_mode_full_evol_n ntm_xsd.tmp#ntm_mode_full_evol_m ntm_xsd.tmp#ntm_mode_full_evol_deltaw_value ntm_xsd.tmp#ntm_mode_full_evol_deltaw_name ntm_xsd.tmp#ntm_mode_full_evol_torque_value ntm_xsd.tmp#ntm_mode_full_evol_torque_name ntm_xsd.tmp#ntm_mode_full_evol_delta_diff ntm_xsd.tmp#ntm_mode_full_evol_description ntm_xsd.tmp#ntm_mode_full_evol_rho_tor
Used by
Model
Children delta_diff, deltaw_name, deltaw_value, description, dfrequencydt, dphasedt, dwdt, frequency, island, m, n, phase, rho_tor, time_evol, torque_name, torque_value, w
Source

<xs:complexType name="ntm_mode_full_evol">
  <xs:annotation>
    <xs:documentation>Detailed NTM evolution on a finer timebase than the CPO timebase. Time-dependent.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="time_evol" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Time array used to describe the detailed mode evolution which can be different from the CPO timebase [s]. Vector(ntime_evol). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="w" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Full width of the mode [m]. Vector(ntime_evol). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="dwdt" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Time derivative of the full width of the mode [m/s]. Vector(ntime_evol). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="phase" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Phase of the mode [rad]. Vector(ntime_evol). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="dphasedt" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Time-derivative of the phase of the mode [rad]. Vector(ntime_evol). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="frequency" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Frequency of the mode [Hz]. Vector(ntime_evol). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="dfrequencydt" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>time derivative of the frequency of the mode [Hz]. Vector(ntime_evol). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="island" type="ntm_mode_full_evol_island">
      <xs:annotation>
        <xs:documentation>Island description</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="n" type="xs:integer">
      <xs:annotation>
        <xs:documentation>Toroidal mode number. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="m" type="xs:integer">
      <xs:annotation>
        <xs:documentation>Poloidal mode number. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="deltaw_value" type="matflt_type">
      <xs:annotation>
        <xs:documentation>Matrix(ntype, ntime_evol). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="deltaw_name" type="vecstring_type">
      <xs:annotation>
        <xs:documentation>Name of the deltaw contribution. String vector (ntype). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="torque_value" type="matflt_type">
      <xs:annotation>
        <xs:documentation>Matrix(ntype_torque, ntime_evol). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="torque_name" type="vecstring_type">
      <xs:annotation>
        <xs:documentation>Name of the torque contribution. String vector (ntype_torque). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="delta_diff" type="matflt_type">
      <xs:annotation>
        <xs:documentation>Extra diffusion coefficient for Te, ne, Ti equation. Matrix(nequation, ntime_evol). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="description" type="xs:string">
      <xs:annotation>
        <xs:documentation>How the mode evolution is calculated. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="rho_tor" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>[m]. Vector(ntime_evol) Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type ntm_mode_full_evol_island
Namespace No namespace
Annotations

Island description
Diagram
Diagram ntm_xsd.tmp#NO_NAMESPACE_ntm_mode_full_evol_island_geometry ntm_xsd.tmp#NO_NAMESPACE_ntm_mode_full_evol_island_coord_values ntm_xsd.tmp#NO_NAMESPACE_ntm_mode_full_evol_island_coord_desc
Used by
Model
Children coord_desc, coord_values, geometry
Source

<xs:complexType name="ntm_mode_full_evol_island">
  <xs:annotation>
    <xs:documentation>Island description</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="geometry" type="matflt_type">
      <xs:annotation>
        <xs:documentation>Description of island geometry [?]. Matrix(nradial, ntime_evol). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="coord_values" type="matflt_type">
      <xs:annotation>
        <xs:documentation>Radial coordinate values [?]. Matrix(nradial, ntime_evol). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="coord_desc" type="xs:string">
      <xs:annotation>
        <xs:documentation>Description of flux label, use the same for all islands. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type ntm_mode_evolution
Namespace No namespace
Annotations

NTM evolution corresponding to the CPO timebase. Time-dependent.
Diagram
Diagram ntm_xsd.tmp#ntm_mode_evolution_w ntm_xsd.tmp#ntm_mode_evolution_dwdt ntm_xsd.tmp#ntm_mode_evolution_phase ntm_xsd.tmp#ntm_mode_evolution_dphasedt ntm_xsd.tmp#ntm_mode_evolution_frequency ntm_xsd.tmp#ntm_mode_evolution_dfrequencydt ntm_xsd.tmp#ntm_mode_evolution_island ntm_xsd.tmp#ntm_mode_evolution_n ntm_xsd.tmp#ntm_mode_evolution_m ntm_xsd.tmp#ntm_mode_evolution_deltaw_value ntm_xsd.tmp#ntm_mode_evolution_deltaw_name ntm_xsd.tmp#ntm_mode_evolution_torque_value ntm_xsd.tmp#ntm_mode_evolution_torque_name ntm_xsd.tmp#ntm_mode_evolution_delta_diff ntm_xsd.tmp#ntm_mode_evolution_description ntm_xsd.tmp#ntm_mode_evolution_rho_tor
Used by
Model
Children delta_diff, deltaw_name, deltaw_value, description, dfrequencydt, dphasedt, dwdt, frequency, island, m, n, phase, rho_tor, torque_name, torque_value, w
Source

<xs:complexType name="ntm_mode_evolution">
  <xs:annotation>
    <xs:documentation>NTM evolution corresponding to the CPO timebase. Time-dependent.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="w" type="xs:float">
      <xs:annotation>
        <xs:documentation>Full width of the mode [m]. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="dwdt" type="xs:float">
      <xs:annotation>
        <xs:documentation>Time derivative of the full width of the mode [m/s]. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="phase" type="xs:float">
      <xs:annotation>
        <xs:documentation>Phase of the mode [rad]. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="dphasedt" type="xs:float">
      <xs:annotation>
        <xs:documentation>Time-derivative of the phase of the mode [rad]. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="frequency" type="xs:float">
      <xs:annotation>
        <xs:documentation>Frequency of the mode [Hz]. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="dfrequencydt" type="xs:float">
      <xs:annotation>
        <xs:documentation>Time derivative of the frequency of the mode [Hz]. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="island" type="ntm_mode_evolution_island">
      <xs:annotation>
        <xs:documentation>Island description</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="n" type="xs:integer">
      <xs:annotation>
        <xs:documentation>Toroidal mode number. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="m" type="xs:integer">
      <xs:annotation>
        <xs:documentation>Poloidal mode number. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="deltaw_value" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Vector(ntype). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="deltaw_name" type="vecstring_type">
      <xs:annotation>
        <xs:documentation>Name of the deltaw contribution. String vector (ntype). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="torque_value" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Vector(ntype_torque). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="torque_name" type="vecstring_type">
      <xs:annotation>
        <xs:documentation>Name of the torque contribution. String vector (ntype). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="delta_diff" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Extra diffusion coefficient for Te, ne, Ti equation. Vector(nequation). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="description" type="xs:string">
      <xs:annotation>
        <xs:documentation>How the mode evolution is calculated. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="rho_tor" type="xs:float">
      <xs:annotation>
        <xs:documentation>[m]. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type ntm_mode_evolution_island
Namespace No namespace
Annotations

Island description
Diagram
Diagram ntm_xsd.tmp#NO_NAMESPACE_ntm_mode_evolution_island_geometry ntm_xsd.tmp#NO_NAMESPACE_ntm_mode_evolution_island_coord_values ntm_xsd.tmp#NO_NAMESPACE_ntm_mode_evolution_island_coord_desc
Used by
Model
Children coord_desc, coord_values, geometry
Source

<xs:complexType name="ntm_mode_evolution_island">
  <xs:annotation>
    <xs:documentation>Island description</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="geometry" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Description of island geometry [?]. Vector(nradial). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="coord_values" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Radial coordinate values [?]. Vector(nradial). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="coord_desc" type="xs:string">
      <xs:annotation>
        <xs:documentation>Description of flux label, use the same for all islands. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
XML Schema documentation generated by ® XML Editor.
