Included schema orbit.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default qualified

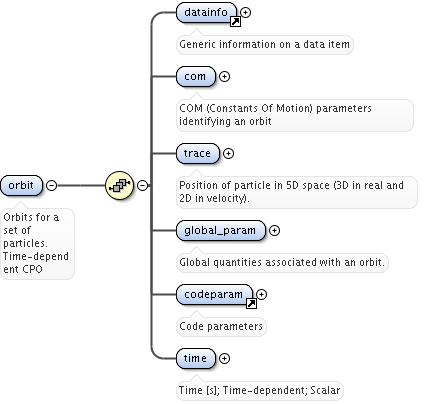

Element orbit
Namespace No namespace
Annotations

Orbits for a set of particles. Time-dependent CPO
Diagram
Diagram utilities_xsd.tmp#datainfo orbit_xsd.tmp#orbit_com orbit_xsd.tmp#orbit_trace orbit_xsd.tmp#orbit_global_param utilities_xsd.tmp#codeparam orbit_xsd.tmp#orbit_time
Properties
content complex
Used by
Element top
Model
Children codeparam, com, datainfo, global_param, time, trace
Instance

<orbit>
  <datainfo>{1,1}</datainfo>
  <com>{1,1}</com>
  <trace>{1,1}</trace>
  <global_param>{1,1}</global_param>
  <codeparam>{1,1}</codeparam>
  <time>{1,1}</time>
</orbit>
Source

<xs:element name="orbit">
  <xs:annotation>
    <xs:documentation>Orbits for a set of particles. Time-dependent CPO</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="datainfo"/>
      <xs:element name="com">
        <xs:annotation>
          <xs:documentation>COM (Constants Of Motion) parameters identifying an orbit</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="amn" type="xs:float">
              <xs:annotation>
                <xs:documentation>Atomic mass of the particle; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="zion" type="xs:float">
              <xs:annotation>
                <xs:documentation>Atomic charge of the particle; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="energy" type="vecflt_type">
              <xs:annotation>
                <xs:documentation>Energy of the particle [keV]; Time-dependent; Vector (norbits).</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="magn_mom" type="vecflt_type">
              <xs:annotation>
                <xs:documentation>Magnetic momentum [kg m^2 / s^2 / T]; Time-dependent, Vector(norbits).</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="p_phi" type="vecflt_type">
              <xs:annotation>
                <xs:documentation>toroidal angular momentum [kg m^2 / s]; Time-dependent; Vector(norbits);</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="sigma" type="vecint_type">
              <xs:annotation>
                <xs:documentation>Sign of parallel velocity at psi=psi_max along the orbit; Time-dependent; Vector(norbits)</xs:documentation>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="trace">
        <xs:annotation>
          <xs:documentation>Position of particle in 5D space (3D in real and 2D in velocity).</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="time_orb" type="matflt_type">
              <xs:annotation>
                <xs:documentation>Time along the orbit [s]; Time-dependent; Matrix (norbits, max_ntorb)</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="ntorb" type="vecint_type">
              <xs:annotation>
                <xs:documentation>Number of time slices along the orbit, for each orbit. Time-dependent; Vector (norbits)</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="r" type="matflt_type">
              <xs:annotation>
                <xs:documentation>Major radius of the guiding centre [m], Major radius; Time-dependent; Matrix (norbits, max_ntorb).</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="z" type="matflt_type">
              <xs:annotation>
                <xs:documentation>Altitude of the guiding centre [m]; Time-dependent; Matrix (norbits, max_ntorb).</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="phi" type="matflt_type">
              <xs:annotation>
                <xs:documentation>Toroidal angle of the guiding centre [rad]; Time-dependent; Matrix (norbits, max_ntorb).</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="psi" type="matflt_type">
              <xs:annotation>
                <xs:documentation>Guiding centre position in psi [normalised poloidal flux]; Time-dependent; Matrix (norbits, max_ntorb)).</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="theta_b" type="matflt_type">
              <xs:annotation>
                <xs:documentation>Position of the guiding centre in poloidal Boozer angle [rad]; Time-dependent; Matrix (norbits, max_ntorb).</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="v_parallel" type="matflt_type">
              <xs:annotation>
                <xs:documentation>Parallel velocity along the orbit [m/s]; Time-dependent; Matrix (norbits, max_ntorb).</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="v_perp" type="matflt_type">
              <xs:annotation>
                <xs:documentation>Perpendicular velocity along the orbit [m/s]; Time-dependent; Matrix (norbits, max_ntorb).</xs:documentation>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>

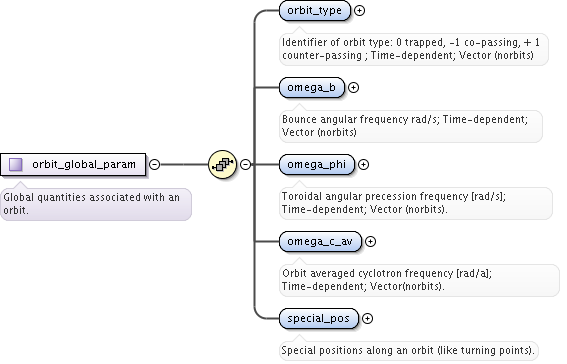

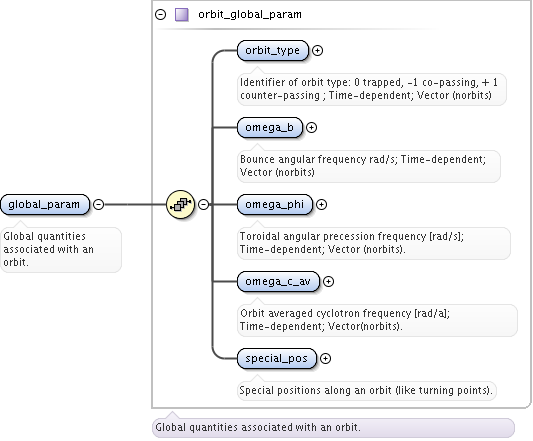

      <xs:element name="global_param" type="orbit_global_param">
        <xs:annotation>
          <xs:documentation>Global quantities associated with an orbit.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element ref="codeparam"/>
      <xs:element name="time" type="xs:float" default="0.0">
        <xs:annotation>
          <xs:documentation>Time [s]; Time-dependent; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

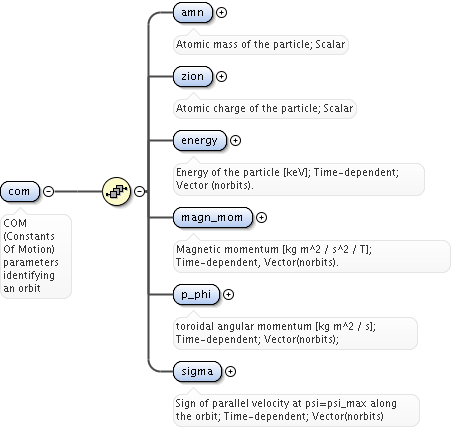

Element orbit / com
Namespace No namespace
Annotations

COM (Constants Of Motion) parameters identifying an orbit
Diagram
Diagram orbit_xsd.tmp#orbit_orbit_com_amn orbit_xsd.tmp#orbit_orbit_com_zion orbit_xsd.tmp#orbit_orbit_com_energy orbit_xsd.tmp#orbit_orbit_com_magn_mom orbit_xsd.tmp#orbit_orbit_com_p_phi orbit_xsd.tmp#orbit_orbit_com_sigma
Properties
content complex
Model
Children amn, energy, magn_mom, p_phi, sigma, zion
Instance

<com>
  <amn>{1,1}</amn>
  <zion>{1,1}</zion>
  <energy>{1,1}</energy>
  <magn_mom>{1,1}</magn_mom>
  <p_phi>{1,1}</p_phi>
  <sigma>{1,1}</sigma>
</com>
Source

<xs:element name="com">
  <xs:annotation>
    <xs:documentation>COM (Constants Of Motion) parameters identifying an orbit</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="amn" type="xs:float">
        <xs:annotation>
          <xs:documentation>Atomic mass of the particle; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="zion" type="xs:float">
        <xs:annotation>
          <xs:documentation>Atomic charge of the particle; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="energy" type="vecflt_type">
        <xs:annotation>
          <xs:documentation>Energy of the particle [keV]; Time-dependent; Vector (norbits).</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="magn_mom" type="vecflt_type">
        <xs:annotation>
          <xs:documentation>Magnetic momentum [kg m^2 / s^2 / T]; Time-dependent, Vector(norbits).</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="p_phi" type="vecflt_type">
        <xs:annotation>
          <xs:documentation>toroidal angular momentum [kg m^2 / s]; Time-dependent; Vector(norbits);</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="sigma" type="vecint_type">
        <xs:annotation>
          <xs:documentation>Sign of parallel velocity at psi=psi_max along the orbit; Time-dependent; Vector(norbits)</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element orbit / com / amn
Namespace No namespace
Annotations

Atomic mass of the particle; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="amn" type="xs:float">
  <xs:annotation>
    <xs:documentation>Atomic mass of the particle; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Element orbit / com / zion
Namespace No namespace
Annotations

Atomic charge of the particle; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="zion" type="xs:float">
  <xs:annotation>
    <xs:documentation>Atomic charge of the particle; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Element orbit / com / energy
Namespace No namespace
Annotations

Energy of the particle [keV]; Time-dependent; Vector (norbits).
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="energy" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Energy of the particle [keV]; Time-dependent; Vector (norbits).</xs:documentation>
  </xs:annotation>
</xs:element>
Element orbit / com / magn_mom
Namespace No namespace
Annotations

Magnetic momentum [kg m^2 / s^2 / T]; Time-dependent, Vector(norbits).
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="magn_mom" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Magnetic momentum [kg m^2 / s^2 / T]; Time-dependent, Vector(norbits).</xs:documentation>
  </xs:annotation>
</xs:element>
Element orbit / com / p_phi
Namespace No namespace
Annotations

toroidal angular momentum [kg m^2 / s]; Time-dependent; Vector(norbits);
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="p_phi" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>toroidal angular momentum [kg m^2 / s]; Time-dependent; Vector(norbits);</xs:documentation>
  </xs:annotation>
</xs:element>
Element orbit / com / sigma
Namespace No namespace
Annotations

Sign of parallel velocity at psi=psi_max along the orbit; Time-dependent; Vector(norbits)
Diagram
Diagram utilities_xsd.tmp#vecint_type
Type vecint_type
Properties
content simple
Source

<xs:element name="sigma" type="vecint_type">
  <xs:annotation>
    <xs:documentation>Sign of parallel velocity at psi=psi_max along the orbit; Time-dependent; Vector(norbits)</xs:documentation>
  </xs:annotation>
</xs:element>

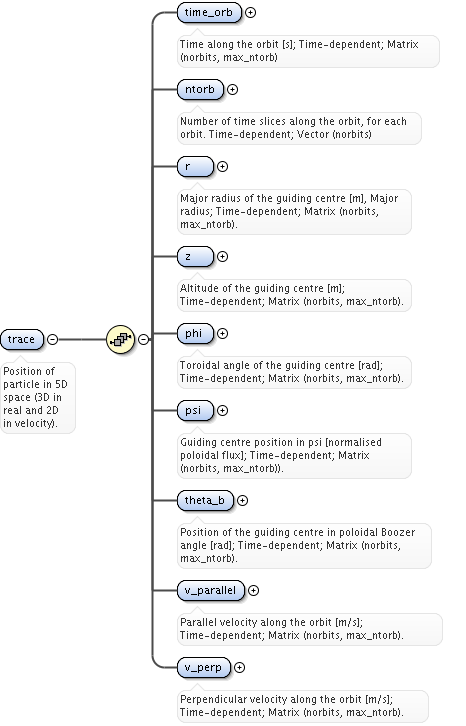

Element orbit / trace
Namespace No namespace
Annotations

Position of particle in 5D space (3D in real and 2D in velocity).
Diagram
Diagram orbit_xsd.tmp#orbit_orbit_trace_time_orb orbit_xsd.tmp#orbit_orbit_trace_ntorb orbit_xsd.tmp#orbit_orbit_trace_r orbit_xsd.tmp#orbit_orbit_trace_z orbit_xsd.tmp#orbit_orbit_trace_phi orbit_xsd.tmp#orbit_orbit_trace_psi orbit_xsd.tmp#orbit_orbit_trace_theta_b orbit_xsd.tmp#orbit_orbit_trace_v_parallel orbit_xsd.tmp#orbit_orbit_trace_v_perp
Properties
content complex
Model
Children ntorb, phi, psi, r, theta_b, time_orb, v_parallel, v_perp, z
Instance

<trace>
  <time_orb>{1,1}</time_orb>
  <ntorb>{1,1}</ntorb>
  <r>{1,1}</r>
  <z>{1,1}</z>
  <phi>{1,1}</phi>
  <psi>{1,1}</psi>
  <theta_b>{1,1}</theta_b>
  <v_parallel>{1,1}</v_parallel>
  <v_perp>{1,1}</v_perp>
</trace>
Source

<xs:element name="trace">
  <xs:annotation>
    <xs:documentation>Position of particle in 5D space (3D in real and 2D in velocity).</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="time_orb" type="matflt_type">
        <xs:annotation>
          <xs:documentation>Time along the orbit [s]; Time-dependent; Matrix (norbits, max_ntorb)</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="ntorb" type="vecint_type">
        <xs:annotation>
          <xs:documentation>Number of time slices along the orbit, for each orbit. Time-dependent; Vector (norbits)</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="r" type="matflt_type">
        <xs:annotation>
          <xs:documentation>Major radius of the guiding centre [m], Major radius; Time-dependent; Matrix (norbits, max_ntorb).</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="z" type="matflt_type">
        <xs:annotation>
          <xs:documentation>Altitude of the guiding centre [m]; Time-dependent; Matrix (norbits, max_ntorb).</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="phi" type="matflt_type">
        <xs:annotation>
          <xs:documentation>Toroidal angle of the guiding centre [rad]; Time-dependent; Matrix (norbits, max_ntorb).</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="psi" type="matflt_type">
        <xs:annotation>
          <xs:documentation>Guiding centre position in psi [normalised poloidal flux]; Time-dependent; Matrix (norbits, max_ntorb)).</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="theta_b" type="matflt_type">
        <xs:annotation>
          <xs:documentation>Position of the guiding centre in poloidal Boozer angle [rad]; Time-dependent; Matrix (norbits, max_ntorb).</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="v_parallel" type="matflt_type">
        <xs:annotation>
          <xs:documentation>Parallel velocity along the orbit [m/s]; Time-dependent; Matrix (norbits, max_ntorb).</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="v_perp" type="matflt_type">
        <xs:annotation>
          <xs:documentation>Perpendicular velocity along the orbit [m/s]; Time-dependent; Matrix (norbits, max_ntorb).</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element orbit / trace / time_orb
Namespace No namespace
Annotations

Time along the orbit  [s]; Time-dependent; Matrix (norbits, max_ntorb)
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="time_orb" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Time along the orbit [s]; Time-dependent; Matrix (norbits, max_ntorb)</xs:documentation>
  </xs:annotation>
</xs:element>
Element orbit / trace / ntorb
Namespace No namespace
Annotations

Number of time slices along the orbit, for each orbit. Time-dependent; Vector (norbits)
Diagram
Diagram utilities_xsd.tmp#vecint_type
Type vecint_type
Properties
content simple
Source

<xs:element name="ntorb" type="vecint_type">
  <xs:annotation>
    <xs:documentation>Number of time slices along the orbit, for each orbit. Time-dependent; Vector (norbits)</xs:documentation>
  </xs:annotation>
</xs:element>
Element orbit / trace / r
Namespace No namespace
Annotations

Major radius of the guiding centre [m], Major radius; Time-dependent; Matrix (norbits, max_ntorb).
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="r" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Major radius of the guiding centre [m], Major radius; Time-dependent; Matrix (norbits, max_ntorb).</xs:documentation>
  </xs:annotation>
</xs:element>
Element orbit / trace / z
Namespace No namespace
Annotations

Altitude of the guiding centre [m]; Time-dependent; Matrix (norbits, max_ntorb).
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="z" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Altitude of the guiding centre [m]; Time-dependent; Matrix (norbits, max_ntorb).</xs:documentation>
  </xs:annotation>
</xs:element>
Element orbit / trace / phi
Namespace No namespace
Annotations

Toroidal angle of the guiding centre [rad]; Time-dependent; Matrix (norbits, max_ntorb).
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="phi" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Toroidal angle of the guiding centre [rad]; Time-dependent; Matrix (norbits, max_ntorb).</xs:documentation>
  </xs:annotation>
</xs:element>
Element orbit / trace / psi
Namespace No namespace
Annotations

Guiding centre position in psi [normalised poloidal flux]; Time-dependent; Matrix (norbits, max_ntorb)).
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="psi" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Guiding centre position in psi [normalised poloidal flux]; Time-dependent; Matrix (norbits, max_ntorb)).</xs:documentation>
  </xs:annotation>
</xs:element>
Element orbit / trace / theta_b
Namespace No namespace
Annotations

Position of the guiding centre in poloidal Boozer angle [rad]; Time-dependent; Matrix (norbits, max_ntorb).
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="theta_b" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Position of the guiding centre in poloidal Boozer angle [rad]; Time-dependent; Matrix (norbits, max_ntorb).</xs:documentation>
  </xs:annotation>
</xs:element>
Element orbit / trace / v_parallel
Namespace No namespace
Annotations

Parallel velocity along the orbit [m/s]; Time-dependent; Matrix (norbits, max_ntorb).
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="v_parallel" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Parallel velocity along the orbit [m/s]; Time-dependent; Matrix (norbits, max_ntorb).</xs:documentation>
  </xs:annotation>
</xs:element>
Element orbit / trace / v_perp
Namespace No namespace
Annotations

Perpendicular velocity along the orbit [m/s]; Time-dependent; Matrix (norbits, max_ntorb).
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="v_perp" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Perpendicular velocity along the orbit [m/s]; Time-dependent; Matrix (norbits, max_ntorb).</xs:documentation>
  </xs:annotation>
</xs:element>
Element orbit / global_param
Namespace No namespace
Annotations

Global quantities associated with an orbit.
Diagram
Diagram orbit_xsd.tmp#NO_NAMESPACE_orbit_global_param_orbit_type orbit_xsd.tmp#NO_NAMESPACE_orbit_global_param_omega_b orbit_xsd.tmp#NO_NAMESPACE_orbit_global_param_omega_phi orbit_xsd.tmp#NO_NAMESPACE_orbit_global_param_omega_c_av orbit_xsd.tmp#NO_NAMESPACE_orbit_global_param_special_pos orbit_xsd.tmp#NO_NAMESPACE_orbit_global_param
Type orbit_global_param
Properties
content complex
Model
Children omega_b, omega_c_av, omega_phi, orbit_type, special_pos
Instance

<global_param>
  <orbit_type>{1,1}</orbit_type>
  <omega_b>{1,1}</omega_b>
  <omega_phi>{1,1}</omega_phi>
  <omega_c_av>{1,1}</omega_c_av>
  <special_pos>{1,1}</special_pos>
</global_param>
Source

<xs:element name="global_param" type="orbit_global_param">
  <xs:annotation>
    <xs:documentation>Global quantities associated with an orbit.</xs:documentation>
  </xs:annotation>
</xs:element>
Element orbit_global_param / orbit_type
Namespace No namespace
Annotations

Identifier of orbit type: 0 trapped, -1 co-passing, + 1 counter-passing ; Time-dependent; Vector (norbits)
Diagram
Diagram utilities_xsd.tmp#vecint_type
Type vecint_type
Properties
content simple
Source

<xs:element name="orbit_type" type="vecint_type">
  <xs:annotation>
    <xs:documentation>Identifier of orbit type: 0 trapped, -1 co-passing, + 1 counter-passing ; Time-dependent; Vector (norbits)</xs:documentation>
  </xs:annotation>
</xs:element>
Element orbit_global_param / omega_b
Namespace No namespace
Annotations

Bounce angular frequency rad/s; Time-dependent; Vector (norbits)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="omega_b" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Bounce angular frequency rad/s; Time-dependent; Vector (norbits)</xs:documentation>
  </xs:annotation>
</xs:element>
Element orbit_global_param / omega_phi
Namespace No namespace
Annotations

Toroidal angular precession frequency [rad/s]; Time-dependent; Vector (norbits).
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="omega_phi" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Toroidal angular precession frequency [rad/s]; Time-dependent; Vector (norbits).</xs:documentation>
  </xs:annotation>
</xs:element>
Element orbit_global_param / omega_c_av
Namespace No namespace
Annotations

Orbit averaged cyclotron frequency [rad/a]; Time-dependent; Vector(norbits).
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="omega_c_av" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Orbit averaged cyclotron frequency [rad/a]; Time-dependent; Vector(norbits).</xs:documentation>
  </xs:annotation>
</xs:element>

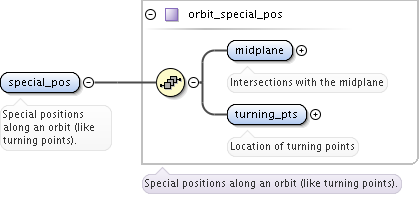

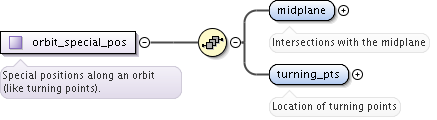

Element orbit_global_param / special_pos
Namespace No namespace
Annotations

Special positions along an orbit (like turning points).
Diagram
Diagram orbit_xsd.tmp#orbit_special_pos_midplane orbit_xsd.tmp#orbit_special_pos_turning_pts orbit_xsd.tmp#orbit_special_pos
Type orbit_special_pos
Properties
content complex
Model
Children midplane, turning_pts
Instance

<special_pos>
  <midplane>{1,1}</midplane>
  <turning_pts>{1,1}</turning_pts>
</special_pos>
Source

<xs:element name="special_pos" type="orbit_special_pos">
  <xs:annotation>
    <xs:documentation>Special positions along an orbit (like turning points).</xs:documentation>
  </xs:annotation>
</xs:element>

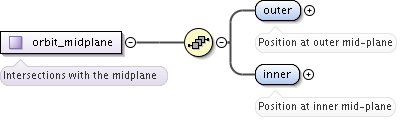

Element orbit_special_pos / midplane
Namespace No namespace
Annotations

Intersections with the midplane
Diagram
Diagram orbit_xsd.tmp#orbit_midplane_outer orbit_xsd.tmp#orbit_midplane_inner orbit_xsd.tmp#orbit_midplane
Type orbit_midplane
Properties
content complex
Model
Children inner, outer
Instance

<midplane>
  <outer>{1,1}</outer>
  <inner>{1,1}</inner>
</midplane>
Source

<xs:element name="midplane" type="orbit_midplane">
  <xs:annotation>
    <xs:documentation>Intersections with the midplane</xs:documentation>
  </xs:annotation>
</xs:element>

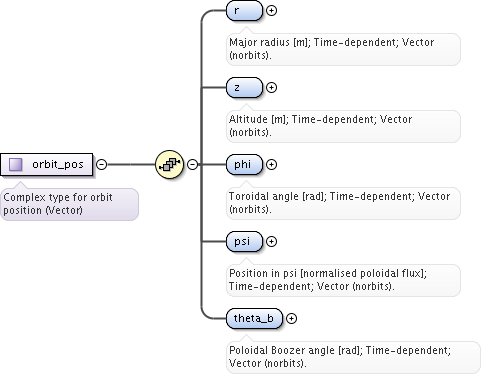

Element orbit_midplane / outer
Namespace No namespace
Annotations

Position at outer mid-plane
Diagram
Diagram orbit_xsd.tmp#orbit_pos_r orbit_xsd.tmp#orbit_pos_z orbit_xsd.tmp#orbit_pos_phi orbit_xsd.tmp#orbit_pos_psi orbit_xsd.tmp#orbit_pos_theta_b orbit_xsd.tmp#orbit_pos
Type orbit_pos
Properties
content complex
Model
r , z , phi , psi , theta_b
Children phi, psi, r, theta_b, z
Instance

<outer>
  <r>{1,1}</r>
  <z>{1,1}</z>
  <phi>{1,1}</phi>
  <psi>{1,1}</psi>
  <theta_b>{1,1}</theta_b>
</outer>
Source

<xs:element name="outer" type="orbit_pos">
  <xs:annotation>
    <xs:documentation>Position at outer mid-plane</xs:documentation>
  </xs:annotation>
</xs:element>
Element orbit_pos / r
Namespace No namespace
Annotations

Major radius [m]; Time-dependent; Vector (norbits).
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="r" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Major radius [m]; Time-dependent; Vector (norbits).</xs:documentation>
  </xs:annotation>
</xs:element>
Element orbit_pos / z
Namespace No namespace
Annotations

Altitude [m]; Time-dependent; Vector (norbits).
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="z" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Altitude [m]; Time-dependent; Vector (norbits).</xs:documentation>
  </xs:annotation>
</xs:element>
Element orbit_pos / phi
Namespace No namespace
Annotations

Toroidal angle [rad]; Time-dependent; Vector (norbits).
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="phi" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Toroidal angle [rad]; Time-dependent; Vector (norbits).</xs:documentation>
  </xs:annotation>
</xs:element>
Element orbit_pos / psi
Namespace No namespace
Annotations

Position in psi [normalised poloidal flux]; Time-dependent; Vector (norbits).
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="psi" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Position in psi [normalised poloidal flux]; Time-dependent; Vector (norbits).</xs:documentation>
  </xs:annotation>
</xs:element>
Element orbit_pos / theta_b
Namespace No namespace
Annotations

Poloidal Boozer angle [rad]; Time-dependent; Vector (norbits).
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="theta_b" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Poloidal Boozer angle [rad]; Time-dependent; Vector (norbits).</xs:documentation>
  </xs:annotation>
</xs:element>
Element orbit_midplane / inner
Namespace No namespace
Annotations

Position at inner mid-plane
Diagram
Diagram orbit_xsd.tmp#orbit_pos_r orbit_xsd.tmp#orbit_pos_z orbit_xsd.tmp#orbit_pos_phi orbit_xsd.tmp#orbit_pos_psi orbit_xsd.tmp#orbit_pos_theta_b orbit_xsd.tmp#orbit_pos
Type orbit_pos
Properties
content complex
Model
r , z , phi , psi , theta_b
Children phi, psi, r, theta_b, z
Instance

<inner>
  <r>{1,1}</r>
  <z>{1,1}</z>
  <phi>{1,1}</phi>
  <psi>{1,1}</psi>
  <theta_b>{1,1}</theta_b>
</inner>
Source

<xs:element name="inner" type="orbit_pos">
  <xs:annotation>
    <xs:documentation>Position at inner mid-plane</xs:documentation>
  </xs:annotation>
</xs:element>

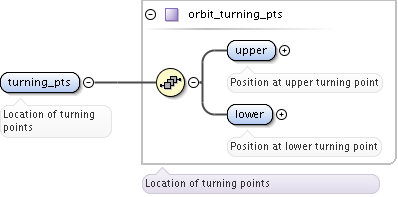

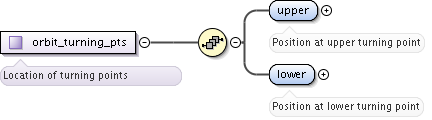

Element orbit_special_pos / turning_pts
Namespace No namespace
Annotations

Location of turning points
Diagram
Diagram orbit_xsd.tmp#orbit_turning_pts_upper orbit_xsd.tmp#orbit_turning_pts_lower orbit_xsd.tmp#orbit_turning_pts
Type orbit_turning_pts
Properties
content complex
Model
Children lower, upper
Instance

<turning_pts>
  <upper>{1,1}</upper>
  <lower>{1,1}</lower>
</turning_pts>
Source

<xs:element name="turning_pts" type="orbit_turning_pts">
  <xs:annotation>
    <xs:documentation>Location of turning points</xs:documentation>
  </xs:annotation>
</xs:element>

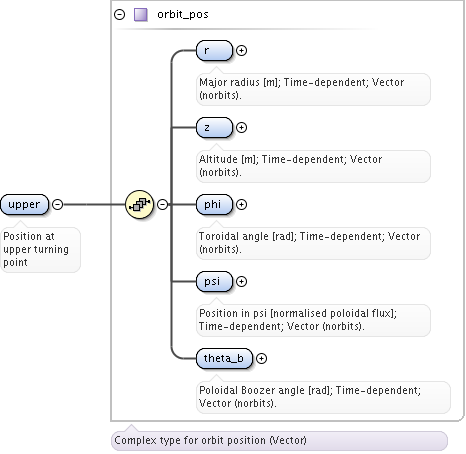

Element orbit_turning_pts / upper
Namespace No namespace
Annotations

Position at upper turning point
Diagram
Diagram orbit_xsd.tmp#orbit_pos_r orbit_xsd.tmp#orbit_pos_z orbit_xsd.tmp#orbit_pos_phi orbit_xsd.tmp#orbit_pos_psi orbit_xsd.tmp#orbit_pos_theta_b orbit_xsd.tmp#orbit_pos
Type orbit_pos
Properties
content complex
Model
r , z , phi , psi , theta_b
Children phi, psi, r, theta_b, z
Instance

<upper>
  <r>{1,1}</r>
  <z>{1,1}</z>
  <phi>{1,1}</phi>
  <psi>{1,1}</psi>
  <theta_b>{1,1}</theta_b>
</upper>
Source

<xs:element name="upper" type="orbit_pos">
  <xs:annotation>
    <xs:documentation>Position at upper turning point</xs:documentation>
  </xs:annotation>
</xs:element>
Element orbit_turning_pts / lower
Namespace No namespace
Annotations

Position at lower turning point
Diagram
Diagram orbit_xsd.tmp#orbit_pos_r orbit_xsd.tmp#orbit_pos_z orbit_xsd.tmp#orbit_pos_phi orbit_xsd.tmp#orbit_pos_psi orbit_xsd.tmp#orbit_pos_theta_b orbit_xsd.tmp#orbit_pos
Type orbit_pos
Properties
content complex
Model
r , z , phi , psi , theta_b
Children phi, psi, r, theta_b, z
Instance

<lower>
  <r>{1,1}</r>
  <z>{1,1}</z>
  <phi>{1,1}</phi>
  <psi>{1,1}</psi>
  <theta_b>{1,1}</theta_b>
</lower>
Source

<xs:element name="lower" type="orbit_pos">
  <xs:annotation>
    <xs:documentation>Position at lower turning point</xs:documentation>
  </xs:annotation>
</xs:element>
Element orbit / time
Namespace No namespace
Annotations

Time [s]; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
default 0.0
Source

<xs:element name="time" type="xs:float" default="0.0">
  <xs:annotation>
    <xs:documentation>Time [s]; Time-dependent; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Complex Type orbit_global_param
Namespace No namespace
Annotations

Global quantities associated with an orbit.
Diagram
Diagram orbit_xsd.tmp#NO_NAMESPACE_orbit_global_param_orbit_type orbit_xsd.tmp#NO_NAMESPACE_orbit_global_param_omega_b orbit_xsd.tmp#NO_NAMESPACE_orbit_global_param_omega_phi orbit_xsd.tmp#NO_NAMESPACE_orbit_global_param_omega_c_av orbit_xsd.tmp#NO_NAMESPACE_orbit_global_param_special_pos
Used by
Model
Children omega_b, omega_c_av, omega_phi, orbit_type, special_pos
Source

<xs:complexType name="orbit_global_param">
  <xs:annotation>
    <xs:documentation>Global quantities associated with an orbit.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="orbit_type" type="vecint_type">
      <xs:annotation>
        <xs:documentation>Identifier of orbit type: 0 trapped, -1 co-passing, + 1 counter-passing ; Time-dependent; Vector (norbits)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="omega_b" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Bounce angular frequency rad/s; Time-dependent; Vector (norbits)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="omega_phi" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Toroidal angular precession frequency [rad/s]; Time-dependent; Vector (norbits).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="omega_c_av" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Orbit averaged cyclotron frequency [rad/a]; Time-dependent; Vector(norbits).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="special_pos" type="orbit_special_pos">
      <xs:annotation>
        <xs:documentation>Special positions along an orbit (like turning points).</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type orbit_special_pos
Namespace No namespace
Annotations

Special positions along an orbit (like turning points).
Diagram
Diagram orbit_xsd.tmp#orbit_special_pos_midplane orbit_xsd.tmp#orbit_special_pos_turning_pts
Used by
Model
Children midplane, turning_pts
Source

<xs:complexType name="orbit_special_pos">
  <xs:annotation>
    <xs:documentation>Special positions along an orbit (like turning points).</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="midplane" type="orbit_midplane">
      <xs:annotation>
        <xs:documentation>Intersections with the midplane</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="turning_pts" type="orbit_turning_pts">
      <xs:annotation>
        <xs:documentation>Location of turning points</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type orbit_midplane
Namespace No namespace
Annotations

Intersections with the midplane
Diagram
Diagram orbit_xsd.tmp#orbit_midplane_outer orbit_xsd.tmp#orbit_midplane_inner
Used by
Model
Children inner, outer
Source

<xs:complexType name="orbit_midplane">
  <xs:annotation>
    <xs:documentation>Intersections with the midplane</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="outer" type="orbit_pos">
      <xs:annotation>
        <xs:documentation>Position at outer mid-plane</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="inner" type="orbit_pos">
      <xs:annotation>
        <xs:documentation>Position at inner mid-plane</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type orbit_pos
Namespace No namespace
Annotations

Complex type for orbit position (Vector)
Diagram
Diagram orbit_xsd.tmp#orbit_pos_r orbit_xsd.tmp#orbit_pos_z orbit_xsd.tmp#orbit_pos_phi orbit_xsd.tmp#orbit_pos_psi orbit_xsd.tmp#orbit_pos_theta_b
Used by
Model
r , z , phi , psi , theta_b
Children phi, psi, r, theta_b, z
Source

<xs:complexType name="orbit_pos">
  <xs:annotation>
    <xs:documentation>Complex type for orbit position (Vector)</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="r" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Major radius [m]; Time-dependent; Vector (norbits).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="z" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Altitude [m]; Time-dependent; Vector (norbits).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="phi" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Toroidal angle [rad]; Time-dependent; Vector (norbits).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="psi" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Position in psi [normalised poloidal flux]; Time-dependent; Vector (norbits).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="theta_b" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Poloidal Boozer angle [rad]; Time-dependent; Vector (norbits).</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type orbit_turning_pts
Namespace No namespace
Annotations

Location of turning points
Diagram
Diagram orbit_xsd.tmp#orbit_turning_pts_upper orbit_xsd.tmp#orbit_turning_pts_lower
Used by
Model
Children lower, upper
Source

<xs:complexType name="orbit_turning_pts">
  <xs:annotation>
    <xs:documentation>Location of turning points</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="upper" type="orbit_pos">
      <xs:annotation>
        <xs:documentation>Position at upper turning point</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="lower" type="orbit_pos">
      <xs:annotation>
        <xs:documentation>Position at lower turning point</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
XML Schema documentation generated by ® XML Editor.
