Element pellets
Namespace No namespace
Annotations

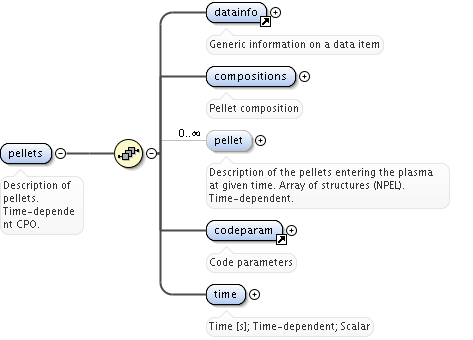

Description of pellets. Time-dependent CPO.
Diagram
Diagram utilities_xsd.tmp#datainfo pellets_xsd.tmp#pellets_compositions pellets_xsd.tmp#pellets_pellet utilities_xsd.tmp#codeparam pellets_xsd.tmp#pellets_time
Properties
content complex
Used by
Element top
Model
Children codeparam, compositions, datainfo, pellet, time
Instance

<pellets>
  <datainfo>{1,1}</datainfo>
  <compositions>{1,1}</compositions>
  <pellet>{0,unbounded}</pellet>
  <codeparam>{1,1}</codeparam>
  <time>{1,1}</time>
</pellets>
Source

<xs:element name="pellets">
  <xs:annotation>
    <xs:documentation>Description of pellets. Time-dependent CPO.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="datainfo"/>
      <xs:element name="compositions" type="compositions_type">
        <xs:annotation>
          <xs:documentation>Pellet composition</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="pellet" type="pellet" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>Description of the pellets entering the plasma at given time. Array of structures (NPEL). Time-dependent.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element ref="codeparam"/>
      <xs:element name="time" type="xs:float">
        <xs:annotation>
          <xs:documentation>Time [s]; Time-dependent; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

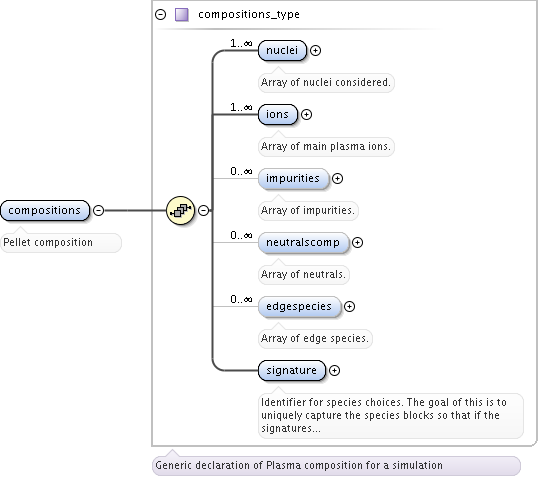

Element pellets / compositions
Namespace No namespace
Annotations

Pellet composition
Diagram
Diagram utilities_xsd.tmp#compositions_type_nuclei utilities_xsd.tmp#compositions_type_ions utilities_xsd.tmp#compositions_type_impurities utilities_xsd.tmp#compositions_type_neutralscomp utilities_xsd.tmp#compositions_type_edgespecies utilities_xsd.tmp#compositions_type_signature utilities_xsd.tmp#compositions_type
Type compositions_type
Properties
content complex
Model
Children edgespecies, impurities, ions, neutralscomp, nuclei, signature
Instance

<compositions>
  <nuclei>{1,unbounded}</nuclei>
  <ions>{1,unbounded}</ions>
  <impurities>{0,unbounded}</impurities>
  <neutralscomp>{0,unbounded}</neutralscomp>
  <edgespecies>{0,unbounded}</edgespecies>
  <signature>{1,1}</signature>
</compositions>
Source

<xs:element name="compositions" type="compositions_type">
  <xs:annotation>
    <xs:documentation>Pellet composition</xs:documentation>
  </xs:annotation>
</xs:element>

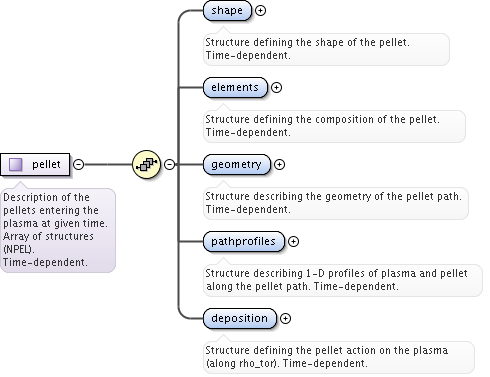

Element pellets / pellet
Namespace No namespace
Annotations

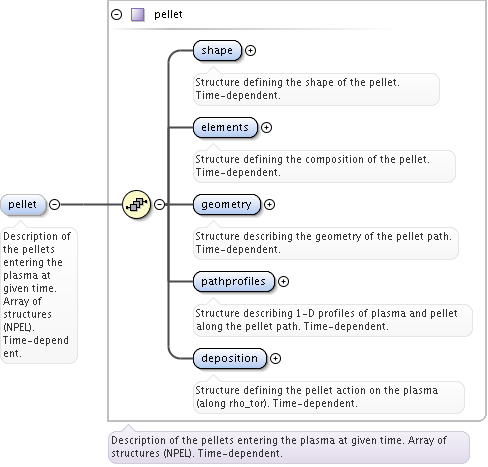

Description of the pellets entering the plasma at given time. Array of structures (NPEL). Time-dependent.
Diagram
Diagram pellets_xsd.tmp#pellet_shape pellets_xsd.tmp#pellet_elements pellets_xsd.tmp#pellet_geometry pellets_xsd.tmp#pellet_pathprofiles pellets_xsd.tmp#pellet_deposition pellets_xsd.tmp#pellet
Type pellet
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children deposition, elements, geometry, pathprofiles, shape
Instance

<pellet>
  <shape>{1,1}</shape>
  <elements>{1,1}</elements>
  <geometry>{1,1}</geometry>
  <pathprofiles>{1,1}</pathprofiles>
  <deposition>{1,1}</deposition>
</pellet>
Source

<xs:element name="pellet" type="pellet" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Description of the pellets entering the plasma at given time. Array of structures (NPEL). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>

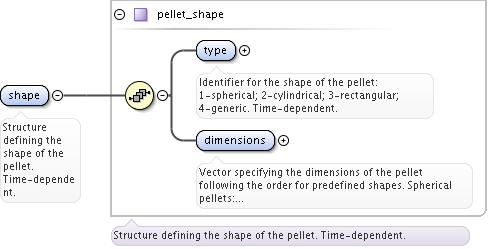

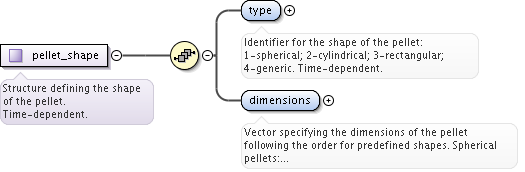

Element pellet / shape
Namespace No namespace
Annotations

Structure defining the shape of the pellet. Time-dependent.
Diagram
Diagram pellets_xsd.tmp#NO_NAMESPACE_pellet_shape_type pellets_xsd.tmp#NO_NAMESPACE_pellet_shape_dimensions pellets_xsd.tmp#NO_NAMESPACE_pellet_shape
Type pellet_shape
Properties
content complex
Model
Children dimensions, type
Instance

<shape>
  <type>{1,1}</type>
  <dimensions>{1,1}</dimensions>
</shape>
Source

<xs:element name="shape" type="pellet_shape">
  <xs:annotation>
    <xs:documentation>Structure defining the shape of the pellet. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element pellet_shape / type
Namespace No namespace
Annotations

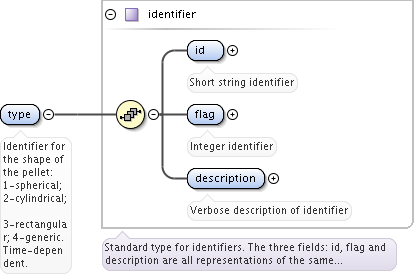

Identifier for the shape of the pellet: 1-spherical; 2-cylindrical; 3-rectangular; 4-generic.  Time-dependent.
Diagram
Diagram utilities_xsd.tmp#identifier_id utilities_xsd.tmp#identifier_flag utilities_xsd.tmp#identifier_description utilities_xsd.tmp#identifier
Type identifier
Properties
content complex
Model
Children description, flag, id
Instance

<type>
  <id>{1,1}</id>
  <flag>{1,1}</flag>
  <description>{1,1}</description>
</type>
Source

<xs:element name="type" type="identifier">
  <xs:annotation>
    <xs:documentation>Identifier for the shape of the pellet: 1-spherical; 2-cylindrical; 3-rectangular; 4-generic. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element pellet_shape / dimensions
Namespace No namespace
Annotations

Vector specifying the dimensions of the pellet following the order for predefined shapes. Spherical pellets: dimensions(1) is the radius [m] of the pellet; Cylindrical pellets: dimensions(1) is the radius [m] and dimensions(2) is the height [m] of the cylinder; Rectangular pellets: dimensions(1) is the height [m], dimensions(2) is the width [m] and dimensions(3) is the length [m];  Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="dimensions" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Vector specifying the dimensions of the pellet following the order for predefined shapes. Spherical pellets: dimensions(1) is the radius [m] of the pellet; Cylindrical pellets: dimensions(1) is the radius [m] and dimensions(2) is the height [m] of the cylinder; Rectangular pellets: dimensions(1) is the height [m], dimensions(2) is the width [m] and dimensions(3) is the length [m]; Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>

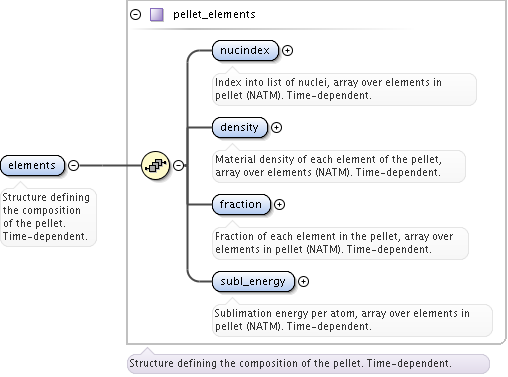

Element pellet / elements
Namespace No namespace
Annotations

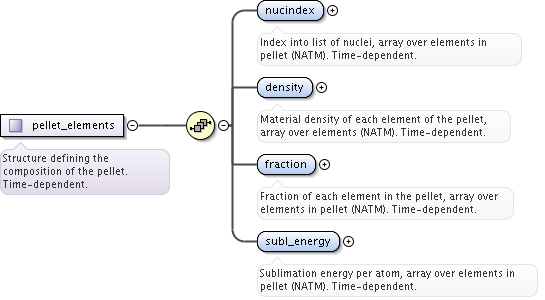

Structure defining the composition of the pellet. Time-dependent.
Diagram
Diagram pellets_xsd.tmp#NO_NAMESPACE_pellet_elements_nucindex pellets_xsd.tmp#NO_NAMESPACE_pellet_elements_density pellets_xsd.tmp#NO_NAMESPACE_pellet_elements_fraction pellets_xsd.tmp#NO_NAMESPACE_pellet_elements_subl_energy pellets_xsd.tmp#NO_NAMESPACE_pellet_elements
Type pellet_elements
Properties
content complex
Model
Children density, fraction, nucindex, subl_energy
Instance

<elements>
  <nucindex>{1,1}</nucindex>
  <density>{1,1}</density>
  <fraction>{1,1}</fraction>
  <subl_energy>{1,1}</subl_energy>
</elements>
Source

<xs:element name="elements" type="pellet_elements">
  <xs:annotation>
    <xs:documentation>Structure defining the composition of the pellet. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element pellet_elements / nucindex
Namespace No namespace
Annotations

Index into list of nuclei, array over elements in pellet (NATM). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecint_type
Type vecint_type
Properties
content simple
Source

<xs:element name="nucindex" type="vecint_type">
  <xs:annotation>
    <xs:documentation>Index into list of nuclei, array over elements in pellet (NATM). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element pellet_elements / density
Namespace No namespace
Annotations

Material density of each element of the pellet, array over elements (NATM). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="density" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Material density of each element of the pellet, array over elements (NATM). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element pellet_elements / fraction
Namespace No namespace
Annotations

Fraction of each element in the pellet, array over elements in pellet (NATM). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="fraction" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Fraction of each element in the pellet, array over elements in pellet (NATM). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element pellet_elements / subl_energy
Namespace No namespace
Annotations

Sublimation energy per atom, array over elements in pellet (NATM). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="subl_energy" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Sublimation energy per atom, array over elements in pellet (NATM). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>

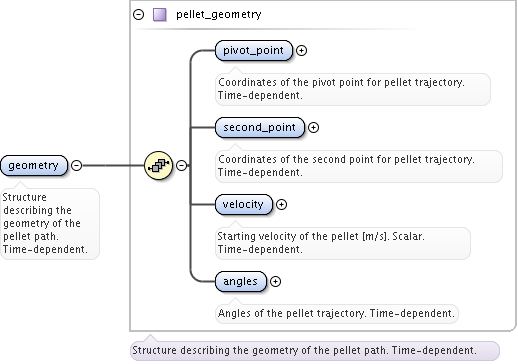

Element pellet / geometry
Namespace No namespace
Annotations

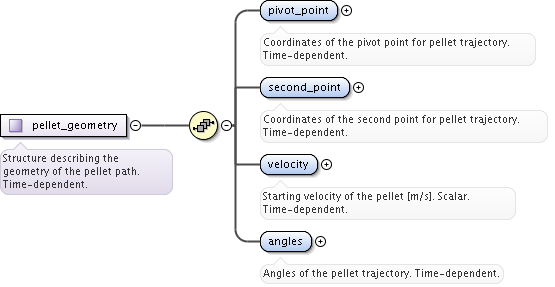

Structure describing the geometry of the pellet path. Time-dependent.
Diagram
Diagram pellets_xsd.tmp#NO_NAMESPACE_pellet_geometry_pivot_point pellets_xsd.tmp#NO_NAMESPACE_pellet_geometry_second_point pellets_xsd.tmp#NO_NAMESPACE_pellet_geometry_velocity pellets_xsd.tmp#NO_NAMESPACE_pellet_geometry_angles pellets_xsd.tmp#NO_NAMESPACE_pellet_geometry
Type pellet_geometry
Properties
content complex
Model
Children angles, pivot_point, second_point, velocity
Instance

<geometry>
  <pivot_point>{1,1}</pivot_point>
  <second_point>{1,1}</second_point>
  <velocity>{1,1}</velocity>
  <angles>{1,1}</angles>
</geometry>
Source

<xs:element name="geometry" type="pellet_geometry">
  <xs:annotation>
    <xs:documentation>Structure describing the geometry of the pellet path. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element pellet_geometry / pivot_point
Namespace No namespace
Annotations

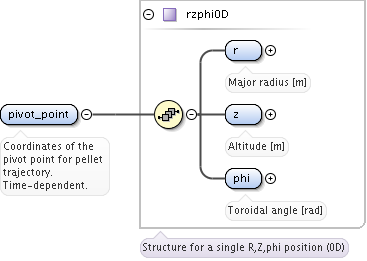

Coordinates of the pivot point for pellet trajectory. Time-dependent.
Diagram
Diagram utilities_xsd.tmp#rzphi0D_r utilities_xsd.tmp#rzphi0D_z utilities_xsd.tmp#rzphi0D_phi utilities_xsd.tmp#rzphi0D
Type rzphi0D
Properties
content complex
Model
r , z , phi
Children phi, r, z
Instance

<pivot_point>
  <r>{1,1}</r>
  <z>{1,1}</z>
  <phi>{1,1}</phi>
</pivot_point>
Source

<xs:element name="pivot_point" type="rzphi0D">
  <xs:annotation>
    <xs:documentation>Coordinates of the pivot point for pellet trajectory. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>

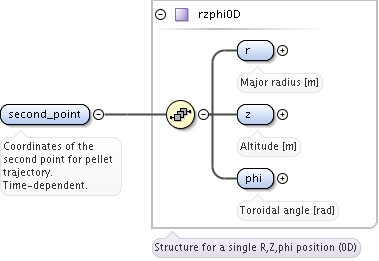

Element pellet_geometry / second_point
Namespace No namespace
Annotations

Coordinates of the second point for pellet trajectory. Time-dependent.
Diagram
Diagram utilities_xsd.tmp#rzphi0D_r utilities_xsd.tmp#rzphi0D_z utilities_xsd.tmp#rzphi0D_phi utilities_xsd.tmp#rzphi0D
Type rzphi0D
Properties
content complex
Model
r , z , phi
Children phi, r, z
Instance

<second_point>
  <r>{1,1}</r>
  <z>{1,1}</z>
  <phi>{1,1}</phi>
</second_point>
Source

<xs:element name="second_point" type="rzphi0D">
  <xs:annotation>
    <xs:documentation>Coordinates of the second point for pellet trajectory. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element pellet_geometry / velocity
Namespace No namespace
Annotations

Starting velocity of the pellet [m/s]. Scalar. Time-dependent.
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="velocity" type="xs:float">
  <xs:annotation>
    <xs:documentation>Starting velocity of the pellet [m/s]. Scalar. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>

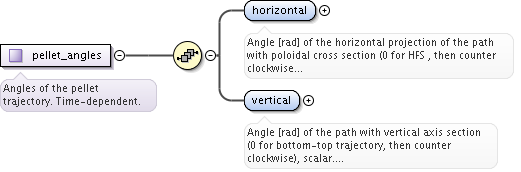

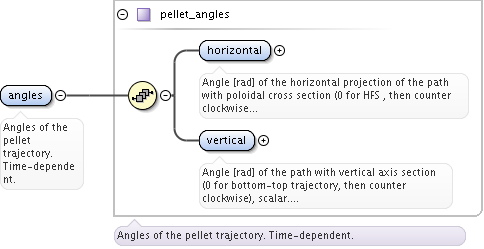

Element pellet_geometry / angles
Namespace No namespace
Annotations

Angles of the pellet trajectory. Time-dependent.
Diagram
Diagram pellets_xsd.tmp#pellet_angles_horizontal pellets_xsd.tmp#pellet_angles_vertical pellets_xsd.tmp#pellet_angles
Type pellet_angles
Properties
content complex
Model
Children horizontal, vertical
Instance

<angles>
  <horizontal>{1,1}</horizontal>
  <vertical>{1,1}</vertical>
</angles>
Source

<xs:element name="angles" type="pellet_angles">
  <xs:annotation>
    <xs:documentation>Angles of the pellet trajectory. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>

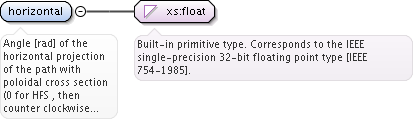

Element pellet_angles / horizontal
Namespace No namespace
Annotations

Angle [rad] of the horizontal projection of the path with poloidal cross section (0 for HFS , then counter clockwise looking from above), scalar. Time-dependent.
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="horizontal" type="xs:float">
  <xs:annotation>
    <xs:documentation>Angle [rad] of the horizontal projection of the path with poloidal cross section (0 for HFS , then counter clockwise looking from above), scalar. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>

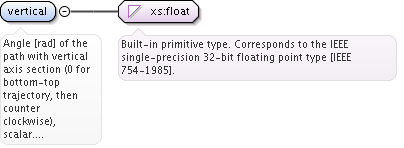

Element pellet_angles / vertical
Namespace No namespace
Annotations

Angle [rad] of the path with vertical axis section (0 for bottom-top trajectory, then counter clockwise), scalar. Time-dependent.
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="vertical" type="xs:float">
  <xs:annotation>
    <xs:documentation>Angle [rad] of the path with vertical axis section (0 for bottom-top trajectory, then counter clockwise), scalar. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>

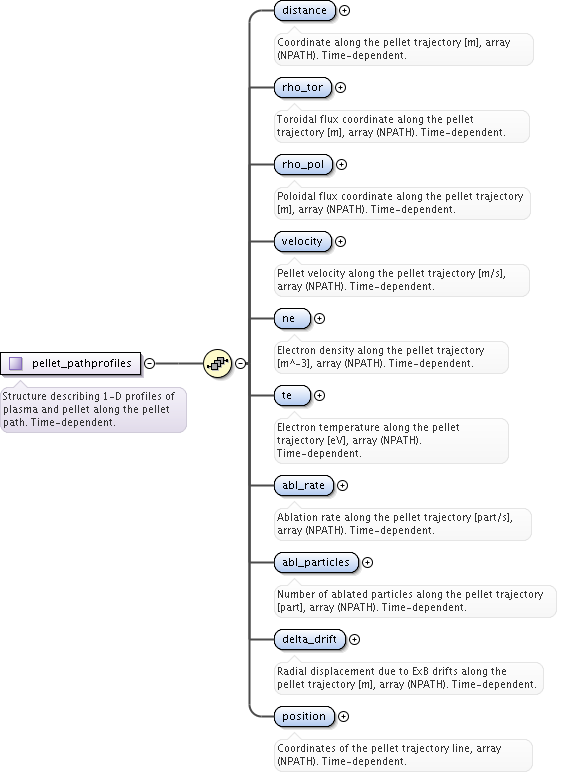

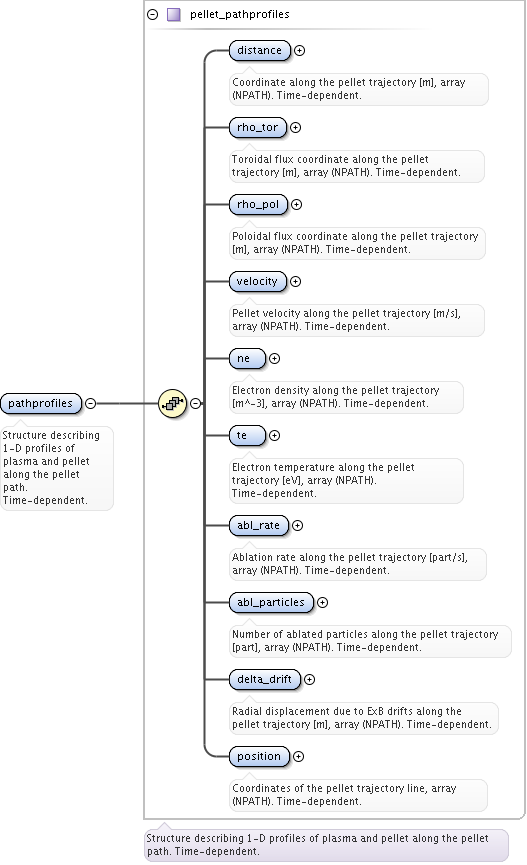

Element pellet / pathprofiles
Namespace No namespace
Annotations

Structure describing 1-D profiles of plasma and pellet along the pellet path. Time-dependent.
Diagram
Diagram pellets_xsd.tmp#NO_NAMESPACE_pellet_pathprofiles_distance pellets_xsd.tmp#NO_NAMESPACE_pellet_pathprofiles_rho_tor pellets_xsd.tmp#NO_NAMESPACE_pellet_pathprofiles_rho_pol pellets_xsd.tmp#NO_NAMESPACE_pellet_pathprofiles_velocity pellets_xsd.tmp#NO_NAMESPACE_pellet_pathprofiles_ne pellets_xsd.tmp#NO_NAMESPACE_pellet_pathprofiles_te pellets_xsd.tmp#NO_NAMESPACE_pellet_pathprofiles_abl_rate pellets_xsd.tmp#NO_NAMESPACE_pellet_pathprofiles_abl_particles pellets_xsd.tmp#NO_NAMESPACE_pellet_pathprofiles_delta_drift pellets_xsd.tmp#NO_NAMESPACE_pellet_pathprofiles_position pellets_xsd.tmp#NO_NAMESPACE_pellet_pathprofiles
Type pellet_pathprofiles
Properties
content complex
Model
Children abl_particles, abl_rate, delta_drift, distance, ne, position, rho_pol, rho_tor, te, velocity
Instance

<pathprofiles>
  <distance>{1,1}</distance>
  <rho_tor>{1,1}</rho_tor>
  <rho_pol>{1,1}</rho_pol>
  <velocity>{1,1}</velocity>
  <ne>{1,1}</ne>
  <te>{1,1}</te>
  <abl_rate>{1,1}</abl_rate>
  <abl_particles>{1,1}</abl_particles>
  <delta_drift>{1,1}</delta_drift>
  <position>{1,1}</position>
</pathprofiles>
Source

<xs:element name="pathprofiles" type="pellet_pathprofiles">
  <xs:annotation>
    <xs:documentation>Structure describing 1-D profiles of plasma and pellet along the pellet path. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element pellet_pathprofiles / distance
Namespace No namespace
Annotations

Coordinate along the pellet trajectory [m], array (NPATH). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="distance" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Coordinate along the pellet trajectory [m], array (NPATH). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element pellet_pathprofiles / rho_tor
Namespace No namespace
Annotations

Toroidal flux coordinate along the pellet trajectory [m], array (NPATH). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="rho_tor" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Toroidal flux coordinate along the pellet trajectory [m], array (NPATH). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element pellet_pathprofiles / rho_pol
Namespace No namespace
Annotations

Poloidal flux coordinate along the pellet trajectory [m], array (NPATH). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="rho_pol" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Poloidal flux coordinate along the pellet trajectory [m], array (NPATH). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element pellet_pathprofiles / velocity
Namespace No namespace
Annotations

Pellet velocity along the pellet trajectory [m/s], array (NPATH). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="velocity" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Pellet velocity along the pellet trajectory [m/s], array (NPATH). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element pellet_pathprofiles / ne
Namespace No namespace
Annotations

Electron density along the pellet trajectory [m^-3], array (NPATH). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="ne" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Electron density along the pellet trajectory [m^-3], array (NPATH). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element pellet_pathprofiles / te
Namespace No namespace
Annotations

Electron temperature along the pellet trajectory [eV], array (NPATH). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="te" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Electron temperature along the pellet trajectory [eV], array (NPATH). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element pellet_pathprofiles / abl_rate
Namespace No namespace
Annotations

Ablation rate along the pellet trajectory [part/s], array (NPATH). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="abl_rate" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Ablation rate along the pellet trajectory [part/s], array (NPATH). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element pellet_pathprofiles / abl_particles
Namespace No namespace
Annotations

Number of ablated particles along the pellet trajectory [part], array (NPATH). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="abl_particles" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Number of ablated particles along the pellet trajectory [part], array (NPATH). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element pellet_pathprofiles / delta_drift
Namespace No namespace
Annotations

Radial displacement due to ExB drifts along the pellet trajectory [m], array (NPATH). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="delta_drift" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Radial displacement due to ExB drifts along the pellet trajectory [m], array (NPATH). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>

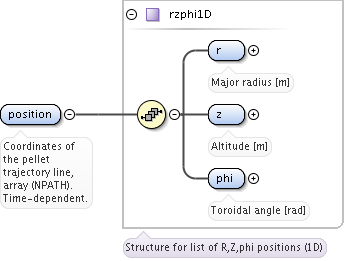

Element pellet_pathprofiles / position
Namespace No namespace
Annotations

Coordinates of the pellet trajectory line, array (NPATH). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#rzphi1D_r utilities_xsd.tmp#rzphi1D_z utilities_xsd.tmp#rzphi1D_phi utilities_xsd.tmp#rzphi1D
Type rzphi1D
Properties
content complex
Model
r , z , phi
Children phi, r, z
Instance

<position>
  <r>{1,1}</r>
  <z>{1,1}</z>
  <phi>{1,1}</phi>
</position>
Source

<xs:element name="position" type="rzphi1D">
  <xs:annotation>
    <xs:documentation>Coordinates of the pellet trajectory line, array (NPATH). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>

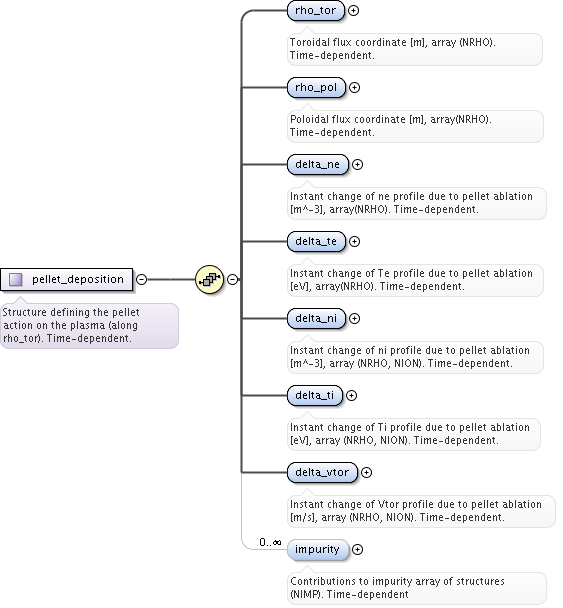

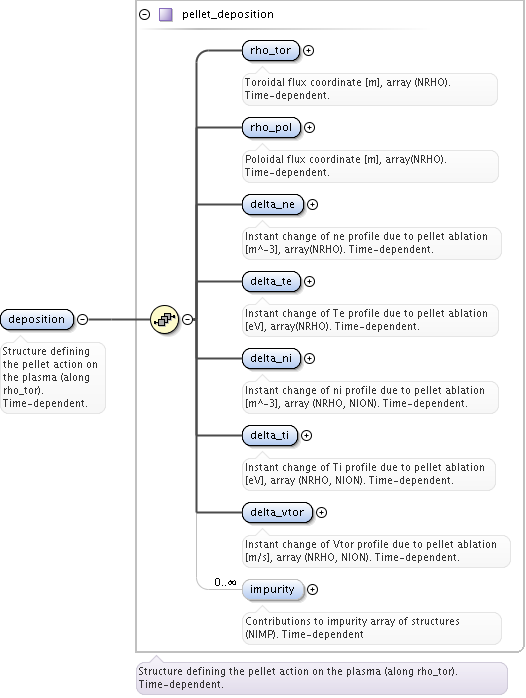

Element pellet / deposition
Namespace No namespace
Annotations

Structure defining the pellet action on the plasma (along rho_tor). Time-dependent.
Diagram
Diagram pellets_xsd.tmp#NO_NAMESPACE_pellet_deposition_rho_tor pellets_xsd.tmp#NO_NAMESPACE_pellet_deposition_rho_pol pellets_xsd.tmp#NO_NAMESPACE_pellet_deposition_delta_ne pellets_xsd.tmp#NO_NAMESPACE_pellet_deposition_delta_te pellets_xsd.tmp#NO_NAMESPACE_pellet_deposition_delta_ni pellets_xsd.tmp#NO_NAMESPACE_pellet_deposition_delta_ti pellets_xsd.tmp#NO_NAMESPACE_pellet_deposition_delta_vtor pellets_xsd.tmp#NO_NAMESPACE_pellet_deposition_impurity pellets_xsd.tmp#NO_NAMESPACE_pellet_deposition
Type pellet_deposition
Properties
content complex
Model
Children delta_ne, delta_ni, delta_te, delta_ti, delta_vtor, impurity, rho_pol, rho_tor
Instance

<deposition>
  <rho_tor>{1,1}</rho_tor>
  <rho_pol>{1,1}</rho_pol>
  <delta_ne>{1,1}</delta_ne>
  <delta_te>{1,1}</delta_te>
  <delta_ni>{1,1}</delta_ni>
  <delta_ti>{1,1}</delta_ti>
  <delta_vtor>{1,1}</delta_vtor>
  <impurity>{0,unbounded}</impurity>
</deposition>
Source

<xs:element name="deposition" type="pellet_deposition">
  <xs:annotation>
    <xs:documentation>Structure defining the pellet action on the plasma (along rho_tor). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element pellet_deposition / rho_tor
Namespace No namespace
Annotations

Toroidal flux coordinate [m], array (NRHO). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="rho_tor" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Toroidal flux coordinate [m], array (NRHO). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element pellet_deposition / rho_pol
Namespace No namespace
Annotations

Poloidal flux coordinate [m], array(NRHO). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="rho_pol" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Poloidal flux coordinate [m], array(NRHO). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element pellet_deposition / delta_ne
Namespace No namespace
Annotations

Instant change of ne profile due to pellet ablation [m^-3], array(NRHO). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="delta_ne" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Instant change of ne profile due to pellet ablation [m^-3], array(NRHO). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element pellet_deposition / delta_te
Namespace No namespace
Annotations

Instant change of Te profile  due to pellet ablation [eV], array(NRHO). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="delta_te" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Instant change of Te profile due to pellet ablation [eV], array(NRHO). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element pellet_deposition / delta_ni
Namespace No namespace
Annotations

Instant change of ni profile due to pellet ablation [m^-3], array (NRHO, NION). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="delta_ni" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Instant change of ni profile due to pellet ablation [m^-3], array (NRHO, NION). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element pellet_deposition / delta_ti
Namespace No namespace
Annotations

Instant change of Ti profile due to pellet ablation [eV], array (NRHO, NION). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="delta_ti" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Instant change of Ti profile due to pellet ablation [eV], array (NRHO, NION). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element pellet_deposition / delta_vtor
Namespace No namespace
Annotations

Instant change of Vtor profile due to pellet ablation [m/s], array (NRHO, NION). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="delta_vtor" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Instant change of Vtor profile due to pellet ablation [m/s], array (NRHO, NION). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>

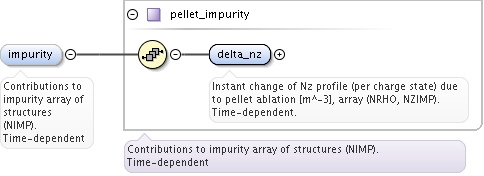

Element pellet_deposition / impurity
Namespace No namespace
Annotations

Contributions to impurity array of structures (NIMP).  Time-dependent
Diagram
Diagram pellets_xsd.tmp#pellet_impurity_delta_nz pellets_xsd.tmp#pellet_impurity
Type pellet_impurity
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children delta_nz
Instance

<impurity>
  <delta_nz>{1,1}</delta_nz>
</impurity>
Source

<xs:element name="impurity" type="pellet_impurity" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Contributions to impurity array of structures (NIMP). Time-dependent</xs:documentation>
  </xs:annotation>
</xs:element>
Element pellet_impurity / delta_nz
Namespace No namespace
Annotations

Instant change of Nz profile (per charge state) due to pellet ablation [m^-3], array (NRHO, NZIMP). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="delta_nz" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Instant change of Nz profile (per charge state) due to pellet ablation [m^-3], array (NRHO, NZIMP). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element pellets / time
Namespace No namespace
Annotations

Time [s]; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="time" type="xs:float">
  <xs:annotation>
    <xs:documentation>Time [s]; Time-dependent; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Complex Type pellet
Namespace No namespace
Annotations

Description of the pellets entering the plasma at given time. Array of structures (NPEL). Time-dependent.
Diagram
Diagram pellets_xsd.tmp#pellet_shape pellets_xsd.tmp#pellet_elements pellets_xsd.tmp#pellet_geometry pellets_xsd.tmp#pellet_pathprofiles pellets_xsd.tmp#pellet_deposition
Used by
Element pellets/pellet
Model
Children deposition, elements, geometry, pathprofiles, shape
Source

<xs:complexType name="pellet">
  <xs:annotation>
    <xs:documentation>Description of the pellets entering the plasma at given time. Array of structures (NPEL). Time-dependent.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="shape" type="pellet_shape">
      <xs:annotation>
        <xs:documentation>Structure defining the shape of the pellet. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="elements" type="pellet_elements">
      <xs:annotation>
        <xs:documentation>Structure defining the composition of the pellet. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="geometry" type="pellet_geometry">
      <xs:annotation>
        <xs:documentation>Structure describing the geometry of the pellet path. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="pathprofiles" type="pellet_pathprofiles">
      <xs:annotation>
        <xs:documentation>Structure describing 1-D profiles of plasma and pellet along the pellet path. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="deposition" type="pellet_deposition">
      <xs:annotation>
        <xs:documentation>Structure defining the pellet action on the plasma (along rho_tor). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type pellet_shape
Namespace No namespace
Annotations

Structure defining the shape of the pellet. Time-dependent.
Diagram
Diagram pellets_xsd.tmp#NO_NAMESPACE_pellet_shape_type pellets_xsd.tmp#NO_NAMESPACE_pellet_shape_dimensions
Used by
Element pellet/shape
Model
Children dimensions, type
Source

<xs:complexType name="pellet_shape">
  <xs:annotation>
    <xs:documentation>Structure defining the shape of the pellet. Time-dependent.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="type" type="identifier">
      <xs:annotation>
        <xs:documentation>Identifier for the shape of the pellet: 1-spherical; 2-cylindrical; 3-rectangular; 4-generic. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="dimensions" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Vector specifying the dimensions of the pellet following the order for predefined shapes. Spherical pellets: dimensions(1) is the radius [m] of the pellet; Cylindrical pellets: dimensions(1) is the radius [m] and dimensions(2) is the height [m] of the cylinder; Rectangular pellets: dimensions(1) is the height [m], dimensions(2) is the width [m] and dimensions(3) is the length [m]; Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type pellet_elements
Namespace No namespace
Annotations

Structure defining the composition of the pellet. Time-dependent.
Diagram
Diagram pellets_xsd.tmp#NO_NAMESPACE_pellet_elements_nucindex pellets_xsd.tmp#NO_NAMESPACE_pellet_elements_density pellets_xsd.tmp#NO_NAMESPACE_pellet_elements_fraction pellets_xsd.tmp#NO_NAMESPACE_pellet_elements_subl_energy
Used by
Element pellet/elements
Model
Children density, fraction, nucindex, subl_energy
Source

<xs:complexType name="pellet_elements">
  <xs:annotation>
    <xs:documentation>Structure defining the composition of the pellet. Time-dependent.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="nucindex" type="vecint_type">
      <xs:annotation>
        <xs:documentation>Index into list of nuclei, array over elements in pellet (NATM). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="density" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Material density of each element of the pellet, array over elements (NATM). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="fraction" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Fraction of each element in the pellet, array over elements in pellet (NATM). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="subl_energy" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Sublimation energy per atom, array over elements in pellet (NATM). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type pellet_geometry
Namespace No namespace
Annotations

Structure describing the geometry of the pellet path. Time-dependent.
Diagram
Diagram pellets_xsd.tmp#NO_NAMESPACE_pellet_geometry_pivot_point pellets_xsd.tmp#NO_NAMESPACE_pellet_geometry_second_point pellets_xsd.tmp#NO_NAMESPACE_pellet_geometry_velocity pellets_xsd.tmp#NO_NAMESPACE_pellet_geometry_angles
Used by
Element pellet/geometry
Model
Children angles, pivot_point, second_point, velocity
Source

<xs:complexType name="pellet_geometry">
  <xs:annotation>
    <xs:documentation>Structure describing the geometry of the pellet path. Time-dependent.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="pivot_point" type="rzphi0D">
      <xs:annotation>
        <xs:documentation>Coordinates of the pivot point for pellet trajectory. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="second_point" type="rzphi0D">
      <xs:annotation>
        <xs:documentation>Coordinates of the second point for pellet trajectory. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="velocity" type="xs:float">
      <xs:annotation>
        <xs:documentation>Starting velocity of the pellet [m/s]. Scalar. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="angles" type="pellet_angles">
      <xs:annotation>
        <xs:documentation>Angles of the pellet trajectory. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type pellet_angles
Namespace No namespace
Annotations

Angles of the pellet trajectory. Time-dependent.
Diagram
Diagram pellets_xsd.tmp#pellet_angles_horizontal pellets_xsd.tmp#pellet_angles_vertical
Used by
Model
Children horizontal, vertical
Source

<xs:complexType name="pellet_angles">
  <xs:annotation>
    <xs:documentation>Angles of the pellet trajectory. Time-dependent.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="horizontal" type="xs:float">
      <xs:annotation>
        <xs:documentation>Angle [rad] of the horizontal projection of the path with poloidal cross section (0 for HFS , then counter clockwise looking from above), scalar. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="vertical" type="xs:float">
      <xs:annotation>
        <xs:documentation>Angle [rad] of the path with vertical axis section (0 for bottom-top trajectory, then counter clockwise), scalar. Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type pellet_pathprofiles
Namespace No namespace
Annotations

Structure describing 1-D profiles of plasma and pellet along the pellet path. Time-dependent.
Diagram
Diagram pellets_xsd.tmp#NO_NAMESPACE_pellet_pathprofiles_distance pellets_xsd.tmp#NO_NAMESPACE_pellet_pathprofiles_rho_tor pellets_xsd.tmp#NO_NAMESPACE_pellet_pathprofiles_rho_pol pellets_xsd.tmp#NO_NAMESPACE_pellet_pathprofiles_velocity pellets_xsd.tmp#NO_NAMESPACE_pellet_pathprofiles_ne pellets_xsd.tmp#NO_NAMESPACE_pellet_pathprofiles_te pellets_xsd.tmp#NO_NAMESPACE_pellet_pathprofiles_abl_rate pellets_xsd.tmp#NO_NAMESPACE_pellet_pathprofiles_abl_particles pellets_xsd.tmp#NO_NAMESPACE_pellet_pathprofiles_delta_drift pellets_xsd.tmp#NO_NAMESPACE_pellet_pathprofiles_position
Used by
Model
Children abl_particles, abl_rate, delta_drift, distance, ne, position, rho_pol, rho_tor, te, velocity
Source

<xs:complexType name="pellet_pathprofiles">
  <xs:annotation>
    <xs:documentation>Structure describing 1-D profiles of plasma and pellet along the pellet path. Time-dependent.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="distance" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Coordinate along the pellet trajectory [m], array (NPATH). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="rho_tor" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Toroidal flux coordinate along the pellet trajectory [m], array (NPATH). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="rho_pol" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Poloidal flux coordinate along the pellet trajectory [m], array (NPATH). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="velocity" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Pellet velocity along the pellet trajectory [m/s], array (NPATH). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ne" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Electron density along the pellet trajectory [m^-3], array (NPATH). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="te" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Electron temperature along the pellet trajectory [eV], array (NPATH). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="abl_rate" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Ablation rate along the pellet trajectory [part/s], array (NPATH). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="abl_particles" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Number of ablated particles along the pellet trajectory [part], array (NPATH). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="delta_drift" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Radial displacement due to ExB drifts along the pellet trajectory [m], array (NPATH). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="position" type="rzphi1D">
      <xs:annotation>
        <xs:documentation>Coordinates of the pellet trajectory line, array (NPATH). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type pellet_deposition
Namespace No namespace
Annotations

Structure defining the pellet action on the plasma (along rho_tor). Time-dependent.
Diagram
Diagram pellets_xsd.tmp#NO_NAMESPACE_pellet_deposition_rho_tor pellets_xsd.tmp#NO_NAMESPACE_pellet_deposition_rho_pol pellets_xsd.tmp#NO_NAMESPACE_pellet_deposition_delta_ne pellets_xsd.tmp#NO_NAMESPACE_pellet_deposition_delta_te pellets_xsd.tmp#NO_NAMESPACE_pellet_deposition_delta_ni pellets_xsd.tmp#NO_NAMESPACE_pellet_deposition_delta_ti pellets_xsd.tmp#NO_NAMESPACE_pellet_deposition_delta_vtor pellets_xsd.tmp#NO_NAMESPACE_pellet_deposition_impurity
Used by
Model
Children delta_ne, delta_ni, delta_te, delta_ti, delta_vtor, impurity, rho_pol, rho_tor
Source

<xs:complexType name="pellet_deposition">
  <xs:annotation>
    <xs:documentation>Structure defining the pellet action on the plasma (along rho_tor). Time-dependent.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="rho_tor" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Toroidal flux coordinate [m], array (NRHO). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="rho_pol" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Poloidal flux coordinate [m], array(NRHO). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="delta_ne" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Instant change of ne profile due to pellet ablation [m^-3], array(NRHO). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="delta_te" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Instant change of Te profile due to pellet ablation [eV], array(NRHO). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="delta_ni" type="matflt_type">
      <xs:annotation>
        <xs:documentation>Instant change of ni profile due to pellet ablation [m^-3], array (NRHO, NION). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="delta_ti" type="matflt_type">
      <xs:annotation>
        <xs:documentation>Instant change of Ti profile due to pellet ablation [eV], array (NRHO, NION). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="delta_vtor" type="matflt_type">
      <xs:annotation>
        <xs:documentation>Instant change of Vtor profile due to pellet ablation [m/s], array (NRHO, NION). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="impurity" type="pellet_impurity" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Contributions to impurity array of structures (NIMP). Time-dependent</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type pellet_impurity
Namespace No namespace
Annotations

Contributions to impurity array of structures (NIMP).  Time-dependent
Diagram
Diagram pellets_xsd.tmp#pellet_impurity_delta_nz
Used by
Model
Children delta_nz
Source

<xs:complexType name="pellet_impurity">
  <xs:annotation>
    <xs:documentation>Contributions to impurity array of structures (NIMP). Time-dependent</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="delta_nz" type="matflt_type">
      <xs:annotation>
        <xs:documentation>Instant change of Nz profile (per charge state) due to pellet ablation [m^-3], array (NRHO, NZIMP). Time-dependent.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
XML Schema documentation generated by ® XML Editor.
