Element pfcoils
Namespace No namespace
Annotations

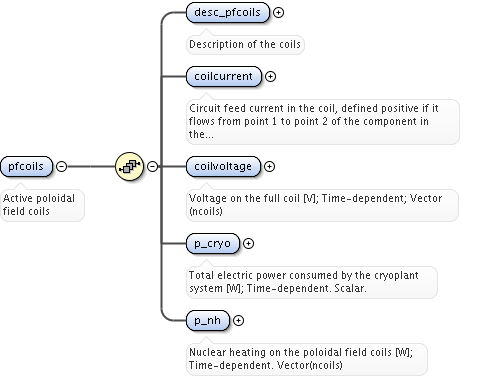

Active poloidal field coils
Diagram
Diagram pfcoils_xsd.tmp#pfcoils_desc_pfcoils pfcoils_xsd.tmp#pfcoils_coilcurrent pfcoils_xsd.tmp#pfcoils_coilvoltage pfcoils_xsd.tmp#pfcoils_p_cryo pfcoils_xsd.tmp#pfcoils_p_nh
Properties
content complex
Used by
Element pfsystems
Model
Children coilcurrent, coilvoltage, desc_pfcoils, p_cryo, p_nh
Instance

<pfcoils>
  <desc_pfcoils>{1,1}</desc_pfcoils>
  <coilcurrent>{1,1}</coilcurrent>
  <coilvoltage>{1,1}</coilvoltage>
  <p_cryo>{1,1}</p_cryo>
  <p_nh>{1,1}</p_nh>
</pfcoils>
Source

<xs:element name="pfcoils">
  <xs:annotation>
    <xs:documentation>Active poloidal field coils</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="desc_pfcoils">
        <xs:annotation>
          <xs:documentation>Description of the coils</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="name" type="vecstring_type">
              <xs:annotation>
                <xs:documentation>Name of coil. Array of strings (ncoils)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="id" type="vecstring_type">
              <xs:annotation>
                <xs:documentation>ID of coil. Array of strings (ncoils)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="res" type="vecflt_type">
              <xs:annotation>
                <xs:documentation>Coil resistance [Ohm]; Vector (ncoils)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="emax" type="vecflt_type">
              <xs:annotation>
                <xs:documentation>Maximum Energy to be dissipated in coils [J]; Vector (ncoils)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="structure_cs">
              <xs:annotation>

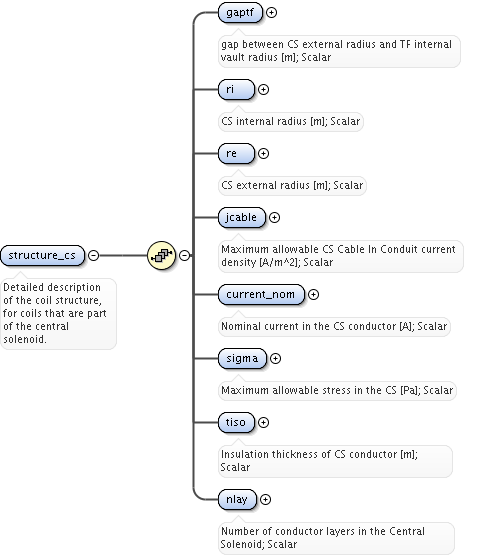

                <xs:documentation>Detailed description of the coil structure, for coils that are part of the central solenoid.</xs:documentation>
              </xs:annotation>
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="gaptf" type="xs:float">
                    <xs:annotation>

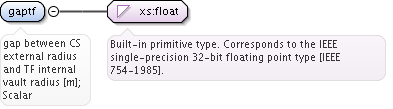

                      <xs:documentation>gap between CS external radius and TF internal vault radius [m]; Scalar</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="ri" type="xs:float">
                    <xs:annotation>
                      <xs:documentation>CS internal radius [m]; Scalar</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="re" type="xs:float">
                    <xs:annotation>
                      <xs:documentation>CS external radius [m]; Scalar</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="jcable" type="xs:float">
                    <xs:annotation>

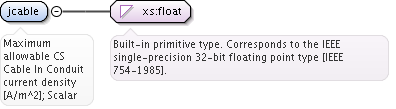

                      <xs:documentation>Maximum allowable CS Cable In Conduit current density [A/m^2]; Scalar</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="current_nom" type="xs:float">
                    <xs:annotation>
                      <xs:documentation>Nominal current in the CS conductor [A]; Scalar</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="sigma" type="xs:float">
                    <xs:annotation>
                      <xs:documentation>Maximum allowable stress in the CS [Pa]; Scalar</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="tiso" type="xs:float">
                    <xs:annotation>
                      <xs:documentation>Insulation thickness of CS conductor [m]; Scalar</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="nlay" type="xs:float">
                    <xs:annotation>

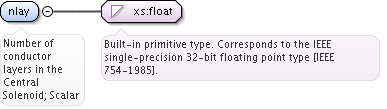

                      <xs:documentation>Number of conductor layers in the Central Solenoid; Scalar</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element name="pol_flux_cs" type="xs:float">
              <xs:annotation>
                <xs:documentation>Maximum poloidal flux available in the Central Solenoid for a plasma pulse [Wb].</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="nelement" type="vecint_type">
              <xs:annotation>
                <xs:documentation>Number of elements used to describe a coil; Vector (ncoils)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element ref="pfelement">
              <xs:annotation>
                <xs:documentation>Filament describing part of the coil as a rectangle</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="coilcurrent" type="exp1D">
        <xs:annotation>

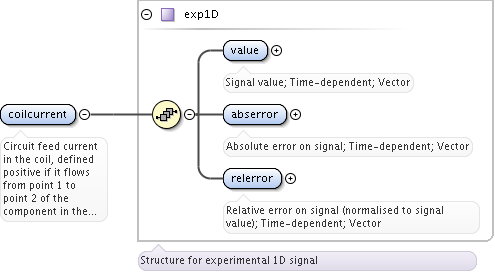

          <xs:documentation>Circuit feed current in the coil, defined positive if it flows from point 1 to point 2 of the component in the pfcircuit description [A]; Time-dependent; Vector (ncoils)</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="coilvoltage" type="exp1D">
        <xs:annotation>

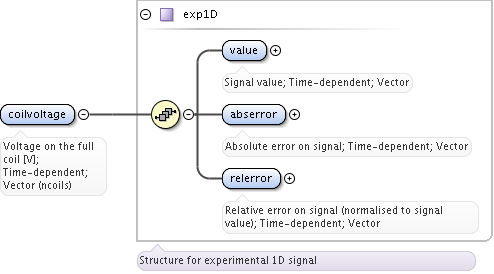

          <xs:documentation>Voltage on the full coil [V]; Time-dependent; Vector (ncoils)</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="p_cryo" type="xs:float">
        <xs:annotation>

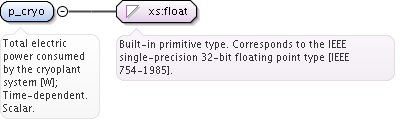

          <xs:documentation>Total electric power consumed by the cryoplant system [W]; Time-dependent. Scalar.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="p_nh" type="vecflt_type">
        <xs:annotation>
          <xs:documentation>Nuclear heating on the poloidal field coils [W]; Time-dependent. Vector(ncoils)</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

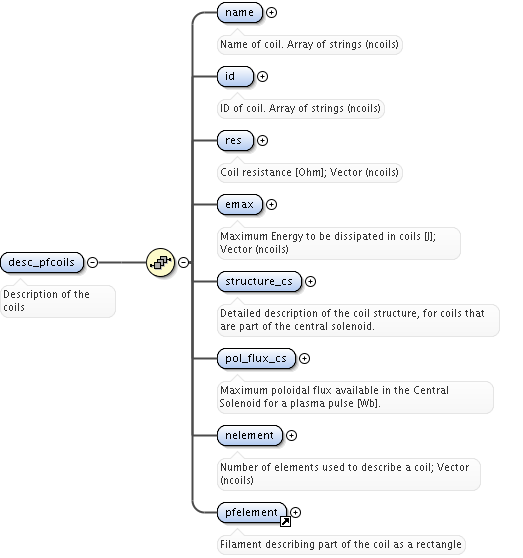

Element pfcoils / desc_pfcoils
Namespace No namespace
Annotations

Description of the coils
Diagram
Diagram pfcoils_xsd.tmp#pfcoils_pfcoils_desc_pfcoils_name pfcoils_xsd.tmp#pfcoils_pfcoils_desc_pfcoils_id pfcoils_xsd.tmp#pfcoils_pfcoils_desc_pfcoils_res pfcoils_xsd.tmp#pfcoils_pfcoils_desc_pfcoils_emax pfcoils_xsd.tmp#pfcoils_pfcoils_desc_pfcoils_structure_cs pfcoils_xsd.tmp#pfcoils_pfcoils_desc_pfcoils_pol_flux_cs pfcoils_xsd.tmp#pfcoils_pfcoils_desc_pfcoils_nelement pfelement_xsd.tmp#pfelement
Properties
content complex
Model
Children emax, id, name, nelement, pfelement, pol_flux_cs, res, structure_cs
Instance

<desc_pfcoils>
  <name>{1,1}</name>
  <id>{1,1}</id>
  <res>{1,1}</res>
  <emax>{1,1}</emax>
  <structure_cs>{1,1}</structure_cs>
  <pol_flux_cs>{1,1}</pol_flux_cs>
  <nelement>{1,1}</nelement>
  <pfelement>{1,1}</pfelement>
</desc_pfcoils>
Source

<xs:element name="desc_pfcoils">
  <xs:annotation>
    <xs:documentation>Description of the coils</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="name" type="vecstring_type">
        <xs:annotation>
          <xs:documentation>Name of coil. Array of strings (ncoils)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="id" type="vecstring_type">
        <xs:annotation>
          <xs:documentation>ID of coil. Array of strings (ncoils)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="res" type="vecflt_type">
        <xs:annotation>
          <xs:documentation>Coil resistance [Ohm]; Vector (ncoils)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="emax" type="vecflt_type">
        <xs:annotation>
          <xs:documentation>Maximum Energy to be dissipated in coils [J]; Vector (ncoils)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="structure_cs">
        <xs:annotation>
          <xs:documentation>Detailed description of the coil structure, for coils that are part of the central solenoid.</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="gaptf" type="xs:float">
              <xs:annotation>
                <xs:documentation>gap between CS external radius and TF internal vault radius [m]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="ri" type="xs:float">
              <xs:annotation>
                <xs:documentation>CS internal radius [m]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="re" type="xs:float">
              <xs:annotation>
                <xs:documentation>CS external radius [m]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="jcable" type="xs:float">
              <xs:annotation>
                <xs:documentation>Maximum allowable CS Cable In Conduit current density [A/m^2]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="current_nom" type="xs:float">
              <xs:annotation>
                <xs:documentation>Nominal current in the CS conductor [A]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="sigma" type="xs:float">
              <xs:annotation>
                <xs:documentation>Maximum allowable stress in the CS [Pa]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="tiso" type="xs:float">
              <xs:annotation>
                <xs:documentation>Insulation thickness of CS conductor [m]; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="nlay" type="xs:float">
              <xs:annotation>
                <xs:documentation>Number of conductor layers in the Central Solenoid; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="pol_flux_cs" type="xs:float">
        <xs:annotation>
          <xs:documentation>Maximum poloidal flux available in the Central Solenoid for a plasma pulse [Wb].</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="nelement" type="vecint_type">
        <xs:annotation>
          <xs:documentation>Number of elements used to describe a coil; Vector (ncoils)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element ref="pfelement">
        <xs:annotation>
          <xs:documentation>Filament describing part of the coil as a rectangle</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element pfcoils / desc_pfcoils / name
Namespace No namespace
Annotations

Name of coil. Array of strings (ncoils)
Diagram
Diagram utilities_xsd.tmp#vecstring_type
Type vecstring_type
Properties
content simple
Source

<xs:element name="name" type="vecstring_type">
  <xs:annotation>
    <xs:documentation>Name of coil. Array of strings (ncoils)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element pfcoils / desc_pfcoils / id
Namespace No namespace
Annotations

ID of coil. Array of strings (ncoils)
Diagram
Diagram utilities_xsd.tmp#vecstring_type
Type vecstring_type
Properties
content simple
Source

<xs:element name="id" type="vecstring_type">
  <xs:annotation>
    <xs:documentation>ID of coil. Array of strings (ncoils)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element pfcoils / desc_pfcoils / res
Namespace No namespace
Annotations

Coil resistance [Ohm]; Vector (ncoils)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="res" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Coil resistance [Ohm]; Vector (ncoils)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element pfcoils / desc_pfcoils / emax
Namespace No namespace
Annotations

Maximum Energy to be dissipated in coils [J]; Vector (ncoils)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="emax" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Maximum Energy to be dissipated in coils [J]; Vector (ncoils)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element pfcoils / desc_pfcoils / structure_cs
Namespace No namespace
Annotations

Detailed description of the coil structure, for coils that are part of the central solenoid.
Diagram
Diagram pfcoils_xsd.tmp#pfcoils_pfcoils_desc_pfcoils_pfcoils_pfcoils_desc_pfcoils_structure_cs_gaptf pfcoils_xsd.tmp#pfcoils_pfcoils_desc_pfcoils_pfcoils_pfcoils_desc_pfcoils_structure_cs_ri pfcoils_xsd.tmp#pfcoils_pfcoils_desc_pfcoils_pfcoils_pfcoils_desc_pfcoils_structure_cs_re pfcoils_xsd.tmp#pfcoils_pfcoils_desc_pfcoils_pfcoils_pfcoils_desc_pfcoils_structure_cs_jcable pfcoils_xsd.tmp#pfcoils_pfcoils_desc_pfcoils_pfcoils_pfcoils_desc_pfcoils_structure_cs_current_nom pfcoils_xsd.tmp#pfcoils_pfcoils_desc_pfcoils_pfcoils_pfcoils_desc_pfcoils_structure_cs_sigma pfcoils_xsd.tmp#pfcoils_pfcoils_desc_pfcoils_pfcoils_pfcoils_desc_pfcoils_structure_cs_tiso pfcoils_xsd.tmp#pfcoils_pfcoils_desc_pfcoils_pfcoils_pfcoils_desc_pfcoils_structure_cs_nlay
Properties
content complex
Model
Children current_nom, gaptf, jcable, nlay, re, ri, sigma, tiso
Instance

<structure_cs>
  <gaptf>{1,1}</gaptf>
  <ri>{1,1}</ri>
  <re>{1,1}</re>
  <jcable>{1,1}</jcable>
  <current_nom>{1,1}</current_nom>
  <sigma>{1,1}</sigma>
  <tiso>{1,1}</tiso>
  <nlay>{1,1}</nlay>
</structure_cs>
Source

<xs:element name="structure_cs">
  <xs:annotation>
    <xs:documentation>Detailed description of the coil structure, for coils that are part of the central solenoid.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="gaptf" type="xs:float">
        <xs:annotation>
          <xs:documentation>gap between CS external radius and TF internal vault radius [m]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="ri" type="xs:float">
        <xs:annotation>
          <xs:documentation>CS internal radius [m]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="re" type="xs:float">
        <xs:annotation>
          <xs:documentation>CS external radius [m]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="jcable" type="xs:float">
        <xs:annotation>
          <xs:documentation>Maximum allowable CS Cable In Conduit current density [A/m^2]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="current_nom" type="xs:float">
        <xs:annotation>
          <xs:documentation>Nominal current in the CS conductor [A]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="sigma" type="xs:float">
        <xs:annotation>
          <xs:documentation>Maximum allowable stress in the CS [Pa]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="tiso" type="xs:float">
        <xs:annotation>
          <xs:documentation>Insulation thickness of CS conductor [m]; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="nlay" type="xs:float">
        <xs:annotation>
          <xs:documentation>Number of conductor layers in the Central Solenoid; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element pfcoils / desc_pfcoils / structure_cs / gaptf
Namespace No namespace
Annotations

gap between CS external radius and TF internal vault radius [m]; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="gaptf" type="xs:float">
  <xs:annotation>
    <xs:documentation>gap between CS external radius and TF internal vault radius [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Element pfcoils / desc_pfcoils / structure_cs / ri
Namespace No namespace
Annotations

CS internal radius [m]; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="ri" type="xs:float">
  <xs:annotation>
    <xs:documentation>CS internal radius [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Element pfcoils / desc_pfcoils / structure_cs / re
Namespace No namespace
Annotations

CS external radius [m]; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="re" type="xs:float">
  <xs:annotation>
    <xs:documentation>CS external radius [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Element pfcoils / desc_pfcoils / structure_cs / jcable
Namespace No namespace
Annotations

Maximum allowable CS Cable In Conduit current density [A/m^2]; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="jcable" type="xs:float">
  <xs:annotation>
    <xs:documentation>Maximum allowable CS Cable In Conduit current density [A/m^2]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Element pfcoils / desc_pfcoils / structure_cs / current_nom
Namespace No namespace
Annotations

Nominal current in the CS conductor [A]; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="current_nom" type="xs:float">
  <xs:annotation>
    <xs:documentation>Nominal current in the CS conductor [A]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Element pfcoils / desc_pfcoils / structure_cs / sigma
Namespace No namespace
Annotations

Maximum allowable stress in the CS [Pa]; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="sigma" type="xs:float">
  <xs:annotation>
    <xs:documentation>Maximum allowable stress in the CS [Pa]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Element pfcoils / desc_pfcoils / structure_cs / tiso
Namespace No namespace
Annotations

Insulation thickness of CS conductor [m]; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="tiso" type="xs:float">
  <xs:annotation>
    <xs:documentation>Insulation thickness of CS conductor [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Element pfcoils / desc_pfcoils / structure_cs / nlay
Namespace No namespace
Annotations

Number of conductor layers in the Central Solenoid; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="nlay" type="xs:float">
  <xs:annotation>
    <xs:documentation>Number of conductor layers in the Central Solenoid; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Element pfcoils / desc_pfcoils / pol_flux_cs
Namespace No namespace
Annotations

Maximum poloidal flux available in the Central Solenoid for a plasma pulse [Wb].
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="pol_flux_cs" type="xs:float">
  <xs:annotation>
    <xs:documentation>Maximum poloidal flux available in the Central Solenoid for a plasma pulse [Wb].</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element pfcoils / desc_pfcoils / nelement
Namespace No namespace
Annotations

Number of elements used to describe a coil; Vector (ncoils)
Diagram
Diagram utilities_xsd.tmp#vecint_type
Type vecint_type
Properties
content simple
Source

<xs:element name="nelement" type="vecint_type">
  <xs:annotation>
    <xs:documentation>Number of elements used to describe a coil; Vector (ncoils)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element pfcoils / coilcurrent
Namespace No namespace
Annotations

Circuit feed current in the coil, defined positive if it flows from point 1 to point 2 of the component in the pfcircuit description [A]; Time-dependent; Vector (ncoils)
Diagram
Diagram utilities_xsd.tmp#exp1D_value utilities_xsd.tmp#exp1D_abserror utilities_xsd.tmp#exp1D_relerror utilities_xsd.tmp#exp1D
Type exp1D
Properties
content complex
Model
Children abserror, relerror, value
Instance

<coilcurrent>
  <value>{1,1}</value>
  <abserror>{1,1}</abserror>
  <relerror>{1,1}</relerror>
</coilcurrent>
Source

<xs:element name="coilcurrent" type="exp1D">
  <xs:annotation>
    <xs:documentation>Circuit feed current in the coil, defined positive if it flows from point 1 to point 2 of the component in the pfcircuit description [A]; Time-dependent; Vector (ncoils)</xs:documentation>
  </xs:annotation>
</xs:element>
Element pfcoils / coilvoltage
Namespace No namespace
Annotations

Voltage on the full coil [V]; Time-dependent; Vector (ncoils)
Diagram
Diagram utilities_xsd.tmp#exp1D_value utilities_xsd.tmp#exp1D_abserror utilities_xsd.tmp#exp1D_relerror utilities_xsd.tmp#exp1D
Type exp1D
Properties
content complex
Model
Children abserror, relerror, value
Instance

<coilvoltage>
  <value>{1,1}</value>
  <abserror>{1,1}</abserror>
  <relerror>{1,1}</relerror>
</coilvoltage>
Source

<xs:element name="coilvoltage" type="exp1D">
  <xs:annotation>
    <xs:documentation>Voltage on the full coil [V]; Time-dependent; Vector (ncoils)</xs:documentation>
  </xs:annotation>
</xs:element>
Element pfcoils / p_cryo
Namespace No namespace
Annotations

Total electric power consumed by the cryoplant system [W]; Time-dependent. Scalar.
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="p_cryo" type="xs:float">
  <xs:annotation>
    <xs:documentation>Total electric power consumed by the cryoplant system [W]; Time-dependent. Scalar.</xs:documentation>
  </xs:annotation>
</xs:element>
Element pfcoils / p_nh
Namespace No namespace
Annotations

Nuclear heating on the poloidal field coils [W]; Time-dependent. Vector(ncoils)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="p_nh" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Nuclear heating on the poloidal field coils [W]; Time-dependent. Vector(ncoils)</xs:documentation>
  </xs:annotation>
</xs:element>
XML Schema documentation generated by ® XML Editor.
