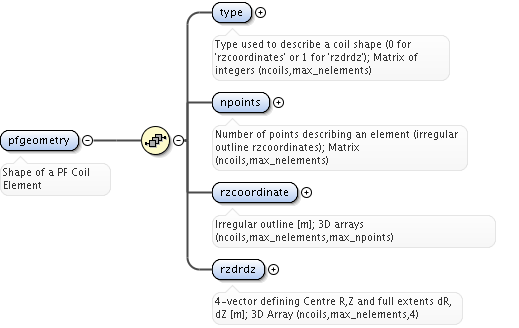

Element pfgeometry
Namespace No namespace
Annotations

Shape of a PF Coil Element
Diagram
Diagram pfgeometry_xsd.tmp#pfgeometry_type pfgeometry_xsd.tmp#pfgeometry_npoints pfgeometry_xsd.tmp#pfgeometry_rzcoordinate pfgeometry_xsd.tmp#pfgeometry_rzdrdz
Properties
content complex
Used by
Element pfelement
Model
Children npoints, rzcoordinate, rzdrdz, type
Instance

<pfgeometry>
  <type>{1,1}</type>
  <npoints>{1,1}</npoints>
  <rzcoordinate>{1,1}</rzcoordinate>
  <rzdrdz>{1,1}</rzdrdz>
</pfgeometry>
Source

<xs:element name="pfgeometry">
  <xs:annotation>
    <xs:documentation>Shape of a PF Coil Element</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="type" type="matint_type">
        <xs:annotation>
          <xs:documentation>Type used to describe a coil shape (0 for 'rzcoordinates' or 1 for 'rzdrdz'); Matrix of integers (ncoils,max_nelements)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="npoints" type="matint_type">
        <xs:annotation>
          <xs:documentation>Number of points describing an element (irregular outline rzcoordinates); Matrix (ncoils,max_nelements)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="rzcoordinate" type="rz3D">
        <xs:annotation>
          <xs:documentation>Irregular outline [m]; 3D arrays (ncoils,max_nelements,max_npoints)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="rzdrdz" type="array3dflt_type">
        <xs:annotation>
          <xs:documentation>4-vector defining Centre R,Z and full extents dR, dZ [m]; 3D Array (ncoils,max_nelements,4)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element pfgeometry / type
Namespace No namespace
Annotations

Type used to describe a coil shape (0 for 'rzcoordinates' or 1 for 'rzdrdz'); Matrix of integers (ncoils,max_nelements)
Diagram
Diagram utilities_xsd.tmp#matint_type
Type matint_type
Properties
content simple
final restriction
Source

<xs:element name="type" type="matint_type">
  <xs:annotation>
    <xs:documentation>Type used to describe a coil shape (0 for 'rzcoordinates' or 1 for 'rzdrdz'); Matrix of integers (ncoils,max_nelements)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element pfgeometry / npoints
Namespace No namespace
Annotations

Number of points describing an element (irregular outline rzcoordinates); Matrix (ncoils,max_nelements)
Diagram
Diagram utilities_xsd.tmp#matint_type
Type matint_type
Properties
content simple
final restriction
Source

<xs:element name="npoints" type="matint_type">
  <xs:annotation>
    <xs:documentation>Number of points describing an element (irregular outline rzcoordinates); Matrix (ncoils,max_nelements)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>

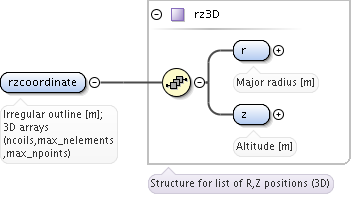

Element pfgeometry / rzcoordinate
Namespace No namespace
Annotations

Irregular outline [m]; 3D arrays (ncoils,max_nelements,max_npoints)
Diagram
Diagram utilities_xsd.tmp#rz3D_r utilities_xsd.tmp#rz3D_z utilities_xsd.tmp#rz3D
Type rz3D
Properties
content complex
Model
r , z
Children r, z
Instance

<rzcoordinate>
  <r>{1,1}</r>
  <z>{1,1}</z>
</rzcoordinate>
Source

<xs:element name="rzcoordinate" type="rz3D">
  <xs:annotation>
    <xs:documentation>Irregular outline [m]; 3D arrays (ncoils,max_nelements,max_npoints)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>

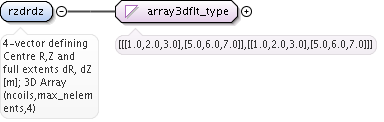

Element pfgeometry / rzdrdz
Namespace No namespace
Annotations

4-vector defining Centre R,Z and full extents dR, dZ [m]; 3D Array (ncoils,max_nelements,4)
Diagram
Diagram utilities_xsd.tmp#array3dflt_type
Type array3dflt_type
Properties
content simple
Source

<xs:element name="rzdrdz" type="array3dflt_type">
  <xs:annotation>
    <xs:documentation>4-vector defining Centre R,Z and full extents dR, dZ [m]; 3D Array (ncoils,max_nelements,4)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
