Included schema pfpassive.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default qualified
Element pfpassive
Namespace No namespace
Annotations
Passive axisymmetric conductor description

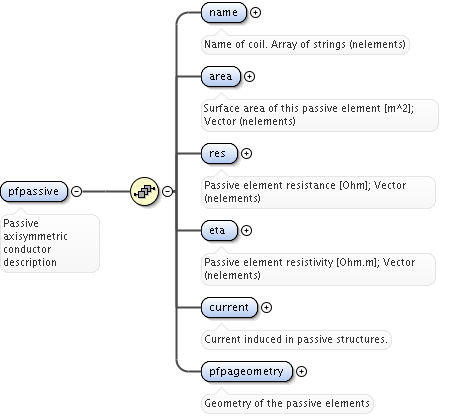

Diagram
Diagram pfpassive_xsd.tmp#pfpassive_name pfpassive_xsd.tmp#pfpassive_area pfpassive_xsd.tmp#pfpassive_res pfpassive_xsd.tmp#pfpassive_eta pfpassive_xsd.tmp#pfpassive_current pfpassive_xsd.tmp#pfpassive_pfpageometry
Properties
content complex
Used by
Element pfsystems
Model
Children area, current, eta, name, pfpageometry, res
Instance
<pfpassive>
  <name>{1,1}</name>
  <area>{1,1}</area>
  <res>{1,1}</res>
  <eta>{1,1}</eta>
  <current>{1,1}</current>
  <pfpageometry>{1,1}</pfpageometry>
</pfpassive>
Source
<xs:element name="pfpassive">
  <xs:annotation>
    <xs:documentation>Passive axisymmetric conductor description</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="name" type="vecstring_type">
        <xs:annotation>
          <xs:appinfo>machine description</xs:appinfo>
          <xs:documentation>Name of coil. Array of strings (nelements)</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="area" type="vecflt_type">
        <xs:annotation>
          <xs:documentation>Surface area of this passive element [m^2]; Vector (nelements)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="res" type="vecflt_type">
        <xs:annotation>
          <xs:documentation>Passive element resistance [Ohm]; Vector (nelements)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="eta" type="vecflt_type">
        <xs:annotation>
          <xs:appinfo>machine description</xs:appinfo>
          <xs:documentation>Passive element resistivity [Ohm.m]; Vector (nelements)</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="current" type="pfpassive_current">
        <xs:annotation>
          <xs:documentation>Current induced in passive structures.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="pfpageometry">
        <xs:annotation>
          <xs:documentation>Geometry of the passive elements</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="type" type="vecint_type">
              <xs:annotation>
                <xs:documentation>Type used to describe the shape (0 for 'rzcoordinates' or 1 for 'rzdrdz'); Vector of integers (nelements)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="npoints" type="vecint_type">
              <xs:annotation>
                <xs:documentation>Number of points describing an element (irregular outline rzcoordinates); Vector of integers (nelements)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="rzcoordinate" type="rz2D">
              <xs:annotation>
                <xs:documentation>Irregular outline [m]; Matrix (nelements,max_npoints)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="rzdrdz" type="matflt_type">
              <xs:annotation>
                <xs:documentation>4-vector defining Centre R,Z and full extents dR, dZ [m]; Matrix (nelements,4)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element pfpassive / name
Namespace No namespace
Annotations
Name of coil. Array of strings (nelements)
Diagram
Diagram utilities_xsd.tmp#vecstring_type
Type vecstring_type
Properties
content simple
Source
<xs:element name="name" type="vecstring_type">
  <xs:annotation>
    <xs:appinfo>machine description</xs:appinfo>
    <xs:documentation>Name of coil. Array of strings (nelements)</xs:documentation>
  </xs:annotation>
</xs:element>
Element pfpassive / area
Namespace No namespace
Annotations
Surface area of this passive element [m^2]; Vector (nelements)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source
<xs:element name="area" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Surface area of this passive element [m^2]; Vector (nelements)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element pfpassive / res
Namespace No namespace
Annotations
Passive element resistance [Ohm]; Vector (nelements)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source
<xs:element name="res" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Passive element resistance [Ohm]; Vector (nelements)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element pfpassive / eta
Namespace No namespace
Annotations
Passive element resistivity [Ohm.m]; Vector (nelements)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source
<xs:element name="eta" type="vecflt_type">
  <xs:annotation>
    <xs:appinfo>machine description</xs:appinfo>
    <xs:documentation>Passive element resistivity [Ohm.m]; Vector (nelements)</xs:documentation>
  </xs:annotation>
</xs:element>
Element pfpassive / current
Namespace No namespace
Annotations
Current induced in passive structures.

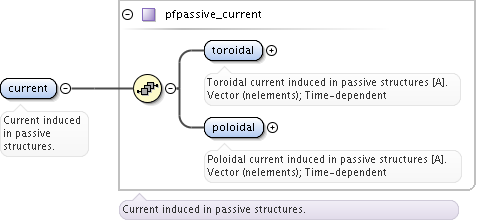

Diagram
Diagram pfpassive_xsd.tmp#NO_NAMESPACE_pfpassive_current_toroidal pfpassive_xsd.tmp#NO_NAMESPACE_pfpassive_current_poloidal pfpassive_xsd.tmp#NO_NAMESPACE_pfpassive_current
Type pfpassive_current
Properties
content complex
Model
Children poloidal, toroidal
Instance
<current>
  <toroidal>{1,1}</toroidal>
  <poloidal>{1,1}</poloidal>
</current>
Source
<xs:element name="current" type="pfpassive_current">
  <xs:annotation>
    <xs:documentation>Current induced in passive structures.</xs:documentation>
  </xs:annotation>
</xs:element>
Element pfpassive_current / toroidal
Namespace No namespace
Annotations
Toroidal current induced in passive structures [A]. Vector (nelements); Time-dependent
Diagram
Diagram utilities_xsd.tmp#exp1D_value utilities_xsd.tmp#exp1D_abserror utilities_xsd.tmp#exp1D_relerror utilities_xsd.tmp#exp1D
Type exp1D
Properties
content complex
Model
Children abserror, relerror, value
Instance
<toroidal>
  <value>{1,1}</value>
  <abserror>{1,1}</abserror>
  <relerror>{1,1}</relerror>
</toroidal>
Source
<xs:element name="toroidal" type="exp1D">
  <xs:annotation>
    <xs:documentation>Toroidal current induced in passive structures [A]. Vector (nelements); Time-dependent</xs:documentation>
  </xs:annotation>
</xs:element>
Element pfpassive_current / poloidal
Namespace No namespace
Annotations
Poloidal current induced in passive structures [A]. Vector (nelements); Time-dependent

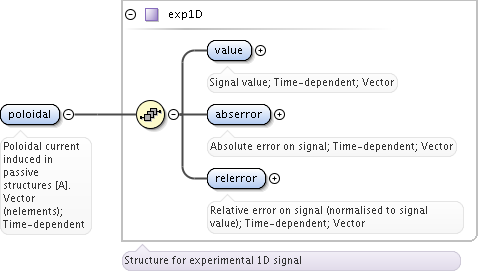

Diagram
Diagram utilities_xsd.tmp#exp1D_value utilities_xsd.tmp#exp1D_abserror utilities_xsd.tmp#exp1D_relerror utilities_xsd.tmp#exp1D
Type exp1D
Properties
content complex
Model
Children abserror, relerror, value
Instance
<poloidal>
  <value>{1,1}</value>
  <abserror>{1,1}</abserror>
  <relerror>{1,1}</relerror>
</poloidal>
Source
<xs:element name="poloidal" type="exp1D">
  <xs:annotation>
    <xs:documentation>Poloidal current induced in passive structures [A]. Vector (nelements); Time-dependent</xs:documentation>
  </xs:annotation>
</xs:element>
Element pfpassive / pfpageometry
Namespace No namespace
Annotations
Geometry of the passive elements

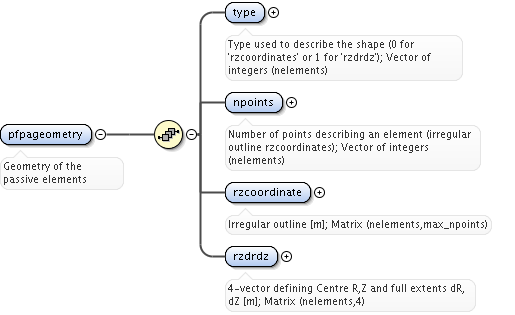

Diagram
Diagram pfpassive_xsd.tmp#pfpassive_pfpassive_pfpageometry_type pfpassive_xsd.tmp#pfpassive_pfpassive_pfpageometry_npoints pfpassive_xsd.tmp#pfpassive_pfpassive_pfpageometry_rzcoordinate pfpassive_xsd.tmp#pfpassive_pfpassive_pfpageometry_rzdrdz
Properties
content complex
Model
Children npoints, rzcoordinate, rzdrdz, type
Instance
<pfpageometry>
  <type>{1,1}</type>
  <npoints>{1,1}</npoints>
  <rzcoordinate>{1,1}</rzcoordinate>
  <rzdrdz>{1,1}</rzdrdz>
</pfpageometry>
Source
<xs:element name="pfpageometry">
  <xs:annotation>
    <xs:documentation>Geometry of the passive elements</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="type" type="vecint_type">
        <xs:annotation>
          <xs:documentation>Type used to describe the shape (0 for 'rzcoordinates' or 1 for 'rzdrdz'); Vector of integers (nelements)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="npoints" type="vecint_type">
        <xs:annotation>
          <xs:documentation>Number of points describing an element (irregular outline rzcoordinates); Vector of integers (nelements)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="rzcoordinate" type="rz2D">
        <xs:annotation>
          <xs:documentation>Irregular outline [m]; Matrix (nelements,max_npoints)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="rzdrdz" type="matflt_type">
        <xs:annotation>
          <xs:documentation>4-vector defining Centre R,Z and full extents dR, dZ [m]; Matrix (nelements,4)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element pfpassive / pfpageometry / type
Namespace No namespace
Annotations
Type used to describe the shape (0 for 'rzcoordinates' or 1 for 'rzdrdz'); Vector of integers (nelements)
Diagram
Diagram utilities_xsd.tmp#vecint_type
Type vecint_type
Properties
content simple
Source
<xs:element name="type" type="vecint_type">
  <xs:annotation>
    <xs:documentation>Type used to describe the shape (0 for 'rzcoordinates' or 1 for 'rzdrdz'); Vector of integers (nelements)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element pfpassive / pfpageometry / npoints
Namespace No namespace
Annotations
Number of points describing an element (irregular outline rzcoordinates); Vector of integers (nelements)
Diagram
Diagram utilities_xsd.tmp#vecint_type
Type vecint_type
Properties
content simple
Source
<xs:element name="npoints" type="vecint_type">
  <xs:annotation>
    <xs:documentation>Number of points describing an element (irregular outline rzcoordinates); Vector of integers (nelements)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element pfpassive / pfpageometry / rzcoordinate
Namespace No namespace
Annotations
Irregular outline [m]; Matrix (nelements,max_npoints)

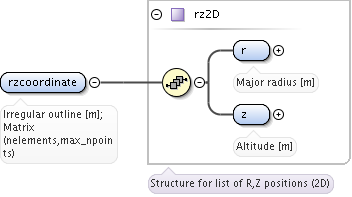

Diagram
Diagram utilities_xsd.tmp#rz2D_r utilities_xsd.tmp#rz2D_z utilities_xsd.tmp#rz2D
Type rz2D
Properties
content complex
Model
r , z
Children r, z
Instance
<rzcoordinate>
  <r>{1,1}</r>
  <z>{1,1}</z>
</rzcoordinate>
Source
<xs:element name="rzcoordinate" type="rz2D">
  <xs:annotation>
    <xs:documentation>Irregular outline [m]; Matrix (nelements,max_npoints)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element pfpassive / pfpageometry / rzdrdz
Namespace No namespace
Annotations
4-vector defining Centre R,Z and full extents dR, dZ [m]; Matrix (nelements,4)
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source
<xs:element name="rzdrdz" type="matflt_type">
  <xs:annotation>
    <xs:documentation>4-vector defining Centre R,Z and full extents dR, dZ [m]; Matrix (nelements,4)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Complex Type pfpassive_current
Namespace No namespace
Annotations
Current induced in passive structures.

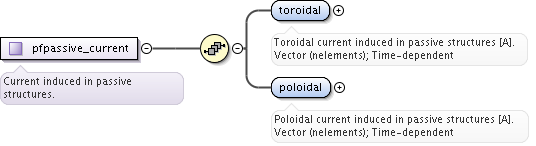

Diagram
Diagram pfpassive_xsd.tmp#NO_NAMESPACE_pfpassive_current_toroidal pfpassive_xsd.tmp#NO_NAMESPACE_pfpassive_current_poloidal
Used by
Model
Children poloidal, toroidal
Source
<xs:complexType name="pfpassive_current">
  <xs:annotation>
    <xs:documentation>Current induced in passive structures.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="toroidal" type="exp1D">
      <xs:annotation>
        <xs:documentation>Toroidal current induced in passive structures [A]. Vector (nelements); Time-dependent</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="poloidal" type="exp1D">
      <xs:annotation>
        <xs:documentation>Poloidal current induced in passive structures [A]. Vector (nelements); Time-dependent</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
