Included schema pfsupplies.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default qualified

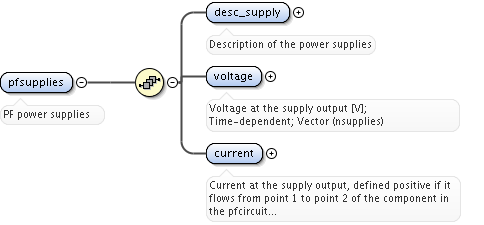

Element pfsupplies
Namespace No namespace
Annotations

PF power supplies
Diagram
Diagram pfsupplies_xsd.tmp#pfsupplies_desc_supply pfsupplies_xsd.tmp#pfsupplies_voltage pfsupplies_xsd.tmp#pfsupplies_current
Properties
content complex
Used by
Element pfsystems
Model
Children current, desc_supply, voltage
Instance

<pfsupplies>
  <desc_supply>{1,1}</desc_supply>
  <voltage>{1,1}</voltage>
  <current>{1,1}</current>
</pfsupplies>
Source

<xs:element name="pfsupplies">
  <xs:annotation>
    <xs:documentation>PF power supplies</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="desc_supply">
        <xs:annotation>
          <xs:documentation>Description of the power supplies</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="name" type="vecstring_type">
              <xs:annotation>
                <xs:documentation>Name of the supply; Array of strings (nsupplies)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="id" type="vecstring_type">
              <xs:annotation>
                <xs:documentation>ID of the supply; Array of strings (nsupplies)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="type" type="vecstring_type">
              <xs:annotation>
                <xs:documentation>Type of supply; Array of strings (nsupplies)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="delay" type="vecflt_type">
              <xs:annotation>
                <xs:documentation>Pure delay in the supply [s]; Vector (nsupplies)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="filter">
              <xs:annotation>
                <xs:documentation>Laplace proper filter</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="num" type="matflt_type">
                    <xs:annotation>
                      <xs:documentation>Coefficients of the numerator, in increasing order : a0 + a1*s + ... + an*s^n; Matrix (nsupplies,n)</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="den" type="matflt_type">
                    <xs:annotation>
                      <xs:documentation>Coefficients of the denominator, in increasing order : b0 + b1*s + ... + bm*s^m; Matrix (nsupplies,m)</xs:documentation>
                      <xs:appinfo>machine description</xs:appinfo>
                    </xs:annotation>
                  </xs:element>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element name="imin" type="vecflt_type">
              <xs:annotation>
                <xs:documentation>Minimum current [A]; Vector (nsupplies)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="imax" type="vecflt_type">
              <xs:annotation>
                <xs:documentation>Maximum current [A]; Vector (nsupplies)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="res" type="vecflt_type">
              <xs:annotation>
                <xs:documentation>Supply internal resistance [Ohm]; Vector (nsupplies)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="umin" type="vecflt_type">
              <xs:annotation>
                <xs:documentation>Minimum voltage [V]; Vector (nsupplies)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="umax" type="vecflt_type">
              <xs:annotation>
                <xs:documentation>Maximum voltage [V]; Vector (nsupplies)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="emax" type="vecflt_type">
              <xs:annotation>
                <xs:documentation>Maximum Energy to be dissipated in supply [J]; Vector (nsupplies)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>

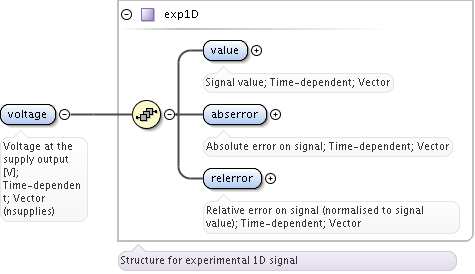

      <xs:element name="voltage" type="exp1D">
        <xs:annotation>
          <xs:documentation>Voltage at the supply output [V]; Time-dependent; Vector (nsupplies)</xs:documentation>
        </xs:annotation>
      </xs:element>

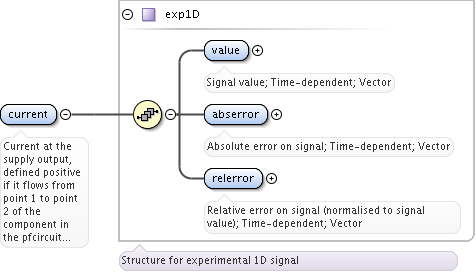

      <xs:element name="current" type="exp1D">
        <xs:annotation>
          <xs:documentation>Current at the supply output, defined positive if it flows from point 1 to point 2 of the component in the pfcircuit description [A]; Time-dependent; Vector (nsupplies)</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

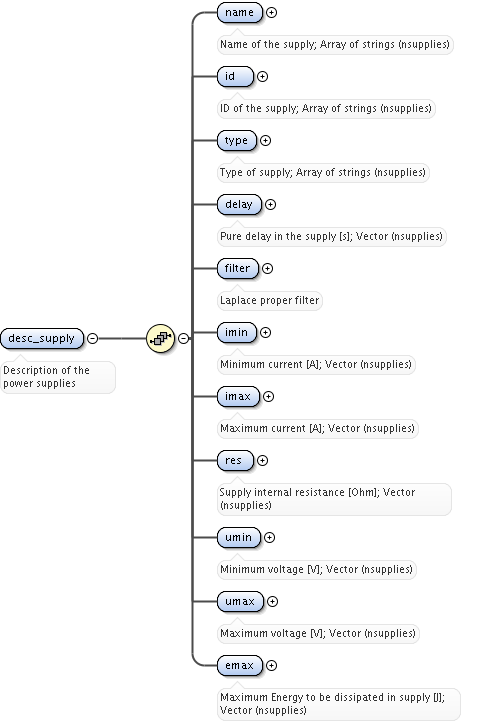

Element pfsupplies / desc_supply
Namespace No namespace
Annotations

Description of the power supplies
Diagram
Diagram pfsupplies_xsd.tmp#pfsupplies_pfsupplies_desc_supply_name pfsupplies_xsd.tmp#pfsupplies_pfsupplies_desc_supply_id pfsupplies_xsd.tmp#pfsupplies_pfsupplies_desc_supply_type pfsupplies_xsd.tmp#pfsupplies_pfsupplies_desc_supply_delay pfsupplies_xsd.tmp#pfsupplies_pfsupplies_desc_supply_filter pfsupplies_xsd.tmp#pfsupplies_pfsupplies_desc_supply_imin pfsupplies_xsd.tmp#pfsupplies_pfsupplies_desc_supply_imax pfsupplies_xsd.tmp#pfsupplies_pfsupplies_desc_supply_res pfsupplies_xsd.tmp#pfsupplies_pfsupplies_desc_supply_umin pfsupplies_xsd.tmp#pfsupplies_pfsupplies_desc_supply_umax pfsupplies_xsd.tmp#pfsupplies_pfsupplies_desc_supply_emax
Properties
content complex
Model
name , id , type , delay , filter , imin , imax , res , umin , umax , emax
Children delay, emax, filter, id, imax, imin, name, res, type, umax, umin
Instance

<desc_supply>
  <name>{1,1}</name>
  <id>{1,1}</id>
  <type>{1,1}</type>
  <delay>{1,1}</delay>
  <filter>{1,1}</filter>
  <imin>{1,1}</imin>
  <imax>{1,1}</imax>
  <res>{1,1}</res>
  <umin>{1,1}</umin>
  <umax>{1,1}</umax>
  <emax>{1,1}</emax>
</desc_supply>
Source

<xs:element name="desc_supply">
  <xs:annotation>
    <xs:documentation>Description of the power supplies</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="name" type="vecstring_type">
        <xs:annotation>
          <xs:documentation>Name of the supply; Array of strings (nsupplies)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="id" type="vecstring_type">
        <xs:annotation>
          <xs:documentation>ID of the supply; Array of strings (nsupplies)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="type" type="vecstring_type">
        <xs:annotation>
          <xs:documentation>Type of supply; Array of strings (nsupplies)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="delay" type="vecflt_type">
        <xs:annotation>
          <xs:documentation>Pure delay in the supply [s]; Vector (nsupplies)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="filter">
        <xs:annotation>
          <xs:documentation>Laplace proper filter</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="num" type="matflt_type">
              <xs:annotation>
                <xs:documentation>Coefficients of the numerator, in increasing order : a0 + a1*s + ... + an*s^n; Matrix (nsupplies,n)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
            <xs:element name="den" type="matflt_type">
              <xs:annotation>
                <xs:documentation>Coefficients of the denominator, in increasing order : b0 + b1*s + ... + bm*s^m; Matrix (nsupplies,m)</xs:documentation>
                <xs:appinfo>machine description</xs:appinfo>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="imin" type="vecflt_type">
        <xs:annotation>
          <xs:documentation>Minimum current [A]; Vector (nsupplies)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="imax" type="vecflt_type">
        <xs:annotation>
          <xs:documentation>Maximum current [A]; Vector (nsupplies)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="res" type="vecflt_type">
        <xs:annotation>
          <xs:documentation>Supply internal resistance [Ohm]; Vector (nsupplies)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="umin" type="vecflt_type">
        <xs:annotation>
          <xs:documentation>Minimum voltage [V]; Vector (nsupplies)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="umax" type="vecflt_type">
        <xs:annotation>
          <xs:documentation>Maximum voltage [V]; Vector (nsupplies)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="emax" type="vecflt_type">
        <xs:annotation>
          <xs:documentation>Maximum Energy to be dissipated in supply [J]; Vector (nsupplies)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element pfsupplies / desc_supply / name
Namespace No namespace
Annotations

Name of the supply; Array of strings (nsupplies)
Diagram
Diagram utilities_xsd.tmp#vecstring_type
Type vecstring_type
Properties
content simple
Source

<xs:element name="name" type="vecstring_type">
  <xs:annotation>
    <xs:documentation>Name of the supply; Array of strings (nsupplies)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element pfsupplies / desc_supply / id
Namespace No namespace
Annotations

ID of the supply; Array of strings (nsupplies)
Diagram
Diagram utilities_xsd.tmp#vecstring_type
Type vecstring_type
Properties
content simple
Source

<xs:element name="id" type="vecstring_type">
  <xs:annotation>
    <xs:documentation>ID of the supply; Array of strings (nsupplies)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element pfsupplies / desc_supply / type
Namespace No namespace
Annotations

Type of supply; Array of strings (nsupplies)
Diagram
Diagram utilities_xsd.tmp#vecstring_type
Type vecstring_type
Properties
content simple
Source

<xs:element name="type" type="vecstring_type">
  <xs:annotation>
    <xs:documentation>Type of supply; Array of strings (nsupplies)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element pfsupplies / desc_supply / delay
Namespace No namespace
Annotations

Pure delay in the supply [s]; Vector (nsupplies)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="delay" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Pure delay in the supply [s]; Vector (nsupplies)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element pfsupplies / desc_supply / filter
Namespace No namespace
Annotations

Laplace proper filter
Diagram
Diagram pfsupplies_xsd.tmp#pfsupplies_pfsupplies_desc_supply_pfsupplies_pfsupplies_desc_supply_filter_num pfsupplies_xsd.tmp#pfsupplies_pfsupplies_desc_supply_pfsupplies_pfsupplies_desc_supply_filter_den
Properties
content complex
Model
Children den, num
Instance

<filter>
  <num>{1,1}</num>
  <den>{1,1}</den>
</filter>
Source

<xs:element name="filter">
  <xs:annotation>
    <xs:documentation>Laplace proper filter</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="num" type="matflt_type">
        <xs:annotation>
          <xs:documentation>Coefficients of the numerator, in increasing order : a0 + a1*s + ... + an*s^n; Matrix (nsupplies,n)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="den" type="matflt_type">
        <xs:annotation>
          <xs:documentation>Coefficients of the denominator, in increasing order : b0 + b1*s + ... + bm*s^m; Matrix (nsupplies,m)</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element pfsupplies / desc_supply / filter / num
Namespace No namespace
Annotations

Coefficients of the numerator, in increasing order : a0 + a1*s + ... + an*s^n; Matrix (nsupplies,n)
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="num" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Coefficients of the numerator, in increasing order : a0 + a1*s + ... + an*s^n; Matrix (nsupplies,n)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element pfsupplies / desc_supply / filter / den
Namespace No namespace
Annotations

Coefficients of the denominator, in increasing order : b0 + b1*s + ... + bm*s^m; Matrix (nsupplies,m)
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="den" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Coefficients of the denominator, in increasing order : b0 + b1*s + ... + bm*s^m; Matrix (nsupplies,m)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element pfsupplies / desc_supply / imin
Namespace No namespace
Annotations

Minimum current [A]; Vector (nsupplies)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="imin" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Minimum current [A]; Vector (nsupplies)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element pfsupplies / desc_supply / imax
Namespace No namespace
Annotations

Maximum current [A]; Vector (nsupplies)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="imax" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Maximum current [A]; Vector (nsupplies)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element pfsupplies / desc_supply / res
Namespace No namespace
Annotations

Supply internal resistance [Ohm]; Vector (nsupplies)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="res" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Supply internal resistance [Ohm]; Vector (nsupplies)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element pfsupplies / desc_supply / umin
Namespace No namespace
Annotations

Minimum voltage [V]; Vector (nsupplies)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="umin" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Minimum voltage [V]; Vector (nsupplies)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element pfsupplies / desc_supply / umax
Namespace No namespace
Annotations

Maximum voltage [V]; Vector (nsupplies)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="umax" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Maximum voltage [V]; Vector (nsupplies)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element pfsupplies / desc_supply / emax
Namespace No namespace
Annotations

Maximum Energy to be dissipated in supply [J]; Vector (nsupplies)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="emax" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Maximum Energy to be dissipated in supply [J]; Vector (nsupplies)</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element pfsupplies / voltage
Namespace No namespace
Annotations

Voltage at the supply output [V]; Time-dependent; Vector  (nsupplies)
Diagram
Diagram utilities_xsd.tmp#exp1D_value utilities_xsd.tmp#exp1D_abserror utilities_xsd.tmp#exp1D_relerror utilities_xsd.tmp#exp1D
Type exp1D
Properties
content complex
Model
Children abserror, relerror, value
Instance

<voltage>
  <value>{1,1}</value>
  <abserror>{1,1}</abserror>
  <relerror>{1,1}</relerror>
</voltage>
Source

<xs:element name="voltage" type="exp1D">
  <xs:annotation>
    <xs:documentation>Voltage at the supply output [V]; Time-dependent; Vector (nsupplies)</xs:documentation>
  </xs:annotation>
</xs:element>
Element pfsupplies / current
Namespace No namespace
Annotations

Current at the supply output, defined positive if it flows from point 1 to point 2 of the component in the pfcircuit description [A]; Time-dependent; Vector (nsupplies)
Diagram
Diagram utilities_xsd.tmp#exp1D_value utilities_xsd.tmp#exp1D_abserror utilities_xsd.tmp#exp1D_relerror utilities_xsd.tmp#exp1D
Type exp1D
Properties
content complex
Model
Children abserror, relerror, value
Instance

<current>
  <value>{1,1}</value>
  <abserror>{1,1}</abserror>
  <relerror>{1,1}</relerror>
</current>
Source

<xs:element name="current" type="exp1D">
  <xs:annotation>
    <xs:documentation>Current at the supply output, defined positive if it flows from point 1 to point 2 of the component in the pfcircuit description [A]; Time-dependent; Vector (nsupplies)</xs:documentation>
  </xs:annotation>
</xs:element>
XML Schema documentation generated by ® XML Editor.
