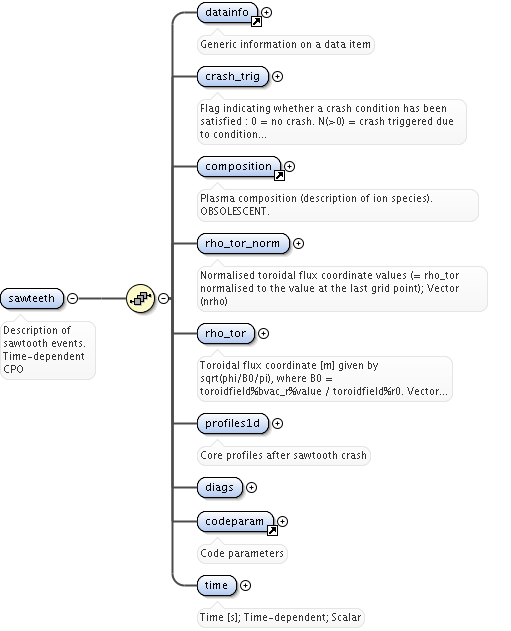

Element sawteeth
Namespace No namespace
Annotations

Description of sawtooth events. Time-dependent CPO
Diagram
Diagram utilities_xsd.tmp#datainfo sawteeth_xsd.tmp#sawteeth_crash_trig utilities_xsd.tmp#composition sawteeth_xsd.tmp#sawteeth_rho_tor_norm sawteeth_xsd.tmp#sawteeth_rho_tor sawteeth_xsd.tmp#sawteeth_profiles1d sawteeth_xsd.tmp#sawteeth_diags utilities_xsd.tmp#codeparam sawteeth_xsd.tmp#sawteeth_time
Properties
content complex
Used by
Element top
Model
Children codeparam, composition, crash_trig, datainfo, diags, profiles1d, rho_tor, rho_tor_norm, time
Instance

<sawteeth>
  <datainfo>{1,1}</datainfo>
  <crash_trig>{1,1}</crash_trig>
  <composition>{1,1}</composition>
  <rho_tor_norm>{1,1}</rho_tor_norm>
  <rho_tor>{1,1}</rho_tor>
  <profiles1d>{1,1}</profiles1d>
  <diags>{1,1}</diags>
  <codeparam>{1,1}</codeparam>
  <time>{1,1}</time>
</sawteeth>
Source

<xs:element name="sawteeth">
  <xs:annotation>
    <xs:documentation>Description of sawtooth events. Time-dependent CPO</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="datainfo"/>
      <xs:element name="crash_trig" type="xs:integer">
        <xs:annotation>
          <xs:documentation>Flag indicating whether a crash condition has been satisfied : 0 = no crash. N(>0) = crash triggered due to condition ii=N. Integer. Time-dependent.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element ref="composition"/>
      <xs:element name="rho_tor_norm" type="vecflt_type" default="[0.0,0.0]">
        <xs:annotation>
          <xs:documentation>Normalised toroidal flux coordinate values (= rho_tor normalised to the value at the last grid point); Vector (nrho)</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="rho_tor" type="vecflt_type">
        <xs:annotation>
          <xs:documentation>Toroidal flux coordinate [m] given by sqrt(phi/B0/pi), where B0 = toroidfield%bvac_r%value / toroidfield%r0. Vector (nrho). Time-dependent.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="profiles1d" type="sawteeth_profiles1d">
        <xs:annotation>
          <xs:documentation>Core profiles after sawtooth crash</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="diags" type="sawteeth_diags"/>
      <xs:element ref="codeparam"/>
      <xs:element name="time" type="xs:float" default="0.0">
        <xs:annotation>
          <xs:documentation>Time [s]; Time-dependent; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

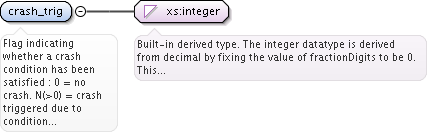

Element sawteeth / crash_trig
Namespace No namespace
Annotations

Flag indicating whether a crash condition has been satisfied : 0 = no crash. N(>0) = crash triggered due to condition ii=N. Integer. Time-dependent.
Diagram
Diagram
Type xs:integer
Properties
content simple
Source

<xs:element name="crash_trig" type="xs:integer">
  <xs:annotation>
    <xs:documentation>Flag indicating whether a crash condition has been satisfied : 0 = no crash. N(>0) = crash triggered due to condition ii=N. Integer. Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element sawteeth / rho_tor_norm
Namespace No namespace
Annotations

Normalised toroidal flux coordinate values (= rho_tor normalised to the value at the last grid point); Vector (nrho)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
default [0.0,0.0]
final restriction
Source

<xs:element name="rho_tor_norm" type="vecflt_type" default="[0.0,0.0]">
  <xs:annotation>
    <xs:documentation>Normalised toroidal flux coordinate values (= rho_tor normalised to the value at the last grid point); Vector (nrho)</xs:documentation>
  </xs:annotation>
</xs:element>
Element sawteeth / rho_tor
Namespace No namespace
Annotations

Toroidal flux coordinate [m] given by sqrt(phi/B0/pi), where B0 = toroidfield%bvac_r%value / toroidfield%r0. Vector (nrho). Time-dependent.
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="rho_tor" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Toroidal flux coordinate [m] given by sqrt(phi/B0/pi), where B0 = toroidfield%bvac_r%value / toroidfield%r0. Vector (nrho). Time-dependent.</xs:documentation>
  </xs:annotation>
</xs:element>

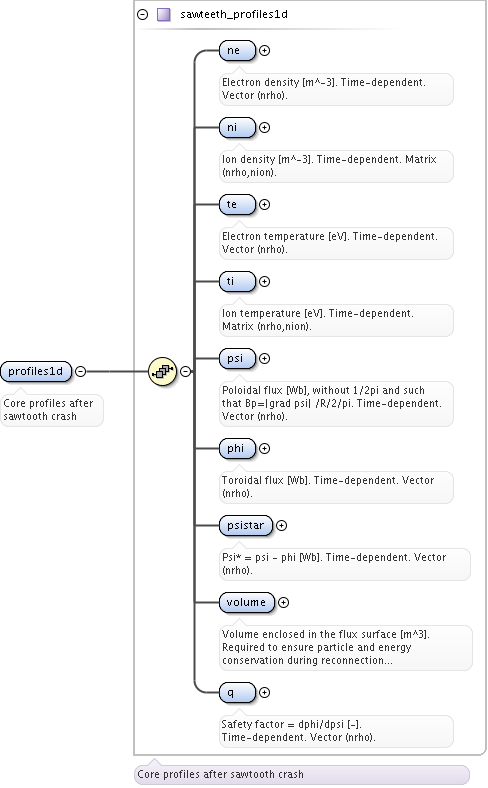

Element sawteeth / profiles1d
Namespace No namespace
Annotations

Core profiles after sawtooth crash
Diagram
Diagram sawteeth_xsd.tmp#NO_NAMESPACE_sawteeth_profiles1d_ne sawteeth_xsd.tmp#NO_NAMESPACE_sawteeth_profiles1d_ni sawteeth_xsd.tmp#NO_NAMESPACE_sawteeth_profiles1d_te sawteeth_xsd.tmp#NO_NAMESPACE_sawteeth_profiles1d_ti sawteeth_xsd.tmp#NO_NAMESPACE_sawteeth_profiles1d_psi sawteeth_xsd.tmp#NO_NAMESPACE_sawteeth_profiles1d_phi sawteeth_xsd.tmp#NO_NAMESPACE_sawteeth_profiles1d_psistar sawteeth_xsd.tmp#NO_NAMESPACE_sawteeth_profiles1d_volume sawteeth_xsd.tmp#NO_NAMESPACE_sawteeth_profiles1d_q sawteeth_xsd.tmp#NO_NAMESPACE_sawteeth_profiles1d
Type sawteeth_profiles1d
Properties
content complex
Model
ne , ni , te , ti , psi , phi , psistar , volume , q
Children ne, ni, phi, psi, psistar, q, te, ti, volume
Instance

<profiles1d>
  <ne>{1,1}</ne>
  <ni>{1,1}</ni>
  <te>{1,1}</te>
  <ti>{1,1}</ti>
  <psi>{1,1}</psi>
  <phi>{1,1}</phi>
  <psistar>{1,1}</psistar>
  <volume>{1,1}</volume>
  <q>{1,1}</q>
</profiles1d>
Source

<xs:element name="profiles1d" type="sawteeth_profiles1d">
  <xs:annotation>
    <xs:documentation>Core profiles after sawtooth crash</xs:documentation>
  </xs:annotation>
</xs:element>
Element sawteeth_profiles1d / ne
Namespace No namespace
Annotations

Electron density [m^-3]. Time-dependent. Vector (nrho).
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="ne" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Electron density [m^-3]. Time-dependent. Vector (nrho).</xs:documentation>
  </xs:annotation>
</xs:element>
Element sawteeth_profiles1d / ni
Namespace No namespace
Annotations

Ion density [m^-3]. Time-dependent. Matrix (nrho,nion).
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="ni" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Ion density [m^-3]. Time-dependent. Matrix (nrho,nion).</xs:documentation>
  </xs:annotation>
</xs:element>
Element sawteeth_profiles1d / te
Namespace No namespace
Annotations

Electron temperature [eV]. Time-dependent. Vector (nrho).
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="te" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Electron temperature [eV]. Time-dependent. Vector (nrho).</xs:documentation>
  </xs:annotation>
</xs:element>
Element sawteeth_profiles1d / ti
Namespace No namespace
Annotations

Ion temperature [eV]. Time-dependent. Matrix (nrho,nion).
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="ti" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Ion temperature [eV]. Time-dependent. Matrix (nrho,nion).</xs:documentation>
  </xs:annotation>
</xs:element>
Element sawteeth_profiles1d / psi
Namespace No namespace
Annotations

Poloidal flux [Wb], without 1/2pi and such that Bp=|grad psi| /R/2/pi. Time-dependent. Vector (nrho).
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="psi" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Poloidal flux [Wb], without 1/2pi and such that Bp=|grad psi| /R/2/pi. Time-dependent. Vector (nrho).</xs:documentation>
  </xs:annotation>
</xs:element>
Element sawteeth_profiles1d / phi
Namespace No namespace
Annotations

Toroidal flux [Wb]. Time-dependent. Vector (nrho).
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="phi" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Toroidal flux [Wb]. Time-dependent. Vector (nrho).</xs:documentation>
  </xs:annotation>
</xs:element>
Element sawteeth_profiles1d / psistar
Namespace No namespace
Annotations

Psi* = psi - phi [Wb]. Time-dependent. Vector (nrho).
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="psistar" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Psi* = psi - phi [Wb]. Time-dependent. Vector (nrho).</xs:documentation>
  </xs:annotation>
</xs:element>
Element sawteeth_profiles1d / volume
Namespace No namespace
Annotations

Volume enclosed in the flux surface [m^3]. Required to ensure particle and energy conservation during reconnection process (ndV and (nT)dV are conserved). Time-dependent. Vector (nrho).
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="volume" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Volume enclosed in the flux surface [m^3]. Required to ensure particle and energy conservation during reconnection process (ndV and (nT)dV are conserved). Time-dependent. Vector (nrho).</xs:documentation>
  </xs:annotation>
</xs:element>
Element sawteeth_profiles1d / q
Namespace No namespace
Annotations

Safety factor = dphi/dpsi [-]. Time-dependent. Vector (nrho).
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="q" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Safety factor = dphi/dpsi [-]. Time-dependent. Vector (nrho).</xs:documentation>
  </xs:annotation>
</xs:element>

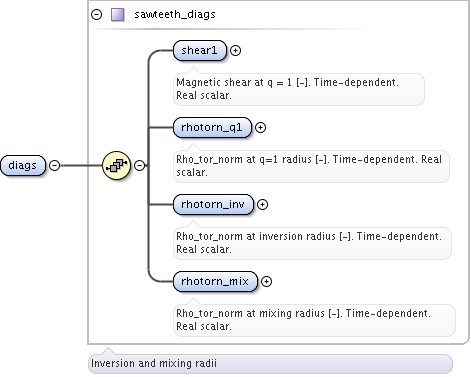

Element sawteeth / diags
Namespace No namespace
Diagram
Diagram sawteeth_xsd.tmp#NO_NAMESPACE_sawteeth_diags_shear1 sawteeth_xsd.tmp#NO_NAMESPACE_sawteeth_diags_rhotorn_q1 sawteeth_xsd.tmp#NO_NAMESPACE_sawteeth_diags_rhotorn_inv sawteeth_xsd.tmp#NO_NAMESPACE_sawteeth_diags_rhotorn_mix sawteeth_xsd.tmp#NO_NAMESPACE_sawteeth_diags
Type sawteeth_diags
Properties
content complex
Model
Children rhotorn_inv, rhotorn_mix, rhotorn_q1, shear1
Instance

<diags>
  <shear1>{1,1}</shear1>
  <rhotorn_q1>{1,1}</rhotorn_q1>
  <rhotorn_inv>{1,1}</rhotorn_inv>
  <rhotorn_mix>{1,1}</rhotorn_mix>
</diags>
Source

<xs:element name="diags" type="sawteeth_diags"/>

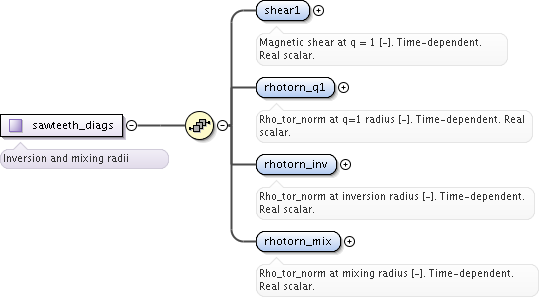

Element sawteeth_diags / shear1
Namespace No namespace
Annotations

Magnetic shear at q = 1 [-]. Time-dependent. Real scalar.
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="shear1" type="xs:float">
  <xs:annotation>
    <xs:documentation>Magnetic shear at q = 1 [-]. Time-dependent. Real scalar.</xs:documentation>
  </xs:annotation>
</xs:element>
Element sawteeth_diags / rhotorn_q1
Namespace No namespace
Annotations

Rho_tor_norm at q=1 radius [-]. Time-dependent. Real scalar.
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="rhotorn_q1" type="xs:float">
  <xs:annotation>
    <xs:documentation>Rho_tor_norm at q=1 radius [-]. Time-dependent. Real scalar.</xs:documentation>
  </xs:annotation>
</xs:element>
Element sawteeth_diags / rhotorn_inv
Namespace No namespace
Annotations

Rho_tor_norm at inversion radius [-]. Time-dependent. Real scalar.
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="rhotorn_inv" type="xs:float">
  <xs:annotation>
    <xs:documentation>Rho_tor_norm at inversion radius [-]. Time-dependent. Real scalar.</xs:documentation>
  </xs:annotation>
</xs:element>
Element sawteeth_diags / rhotorn_mix
Namespace No namespace
Annotations

Rho_tor_norm at mixing radius [-]. Time-dependent. Real scalar.
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="rhotorn_mix" type="xs:float">
  <xs:annotation>
    <xs:documentation>Rho_tor_norm at mixing radius [-]. Time-dependent. Real scalar.</xs:documentation>
  </xs:annotation>
</xs:element>
Element sawteeth / time
Namespace No namespace
Annotations

Time [s]; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
default 0.0
Source

<xs:element name="time" type="xs:float" default="0.0">
  <xs:annotation>
    <xs:documentation>Time [s]; Time-dependent; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

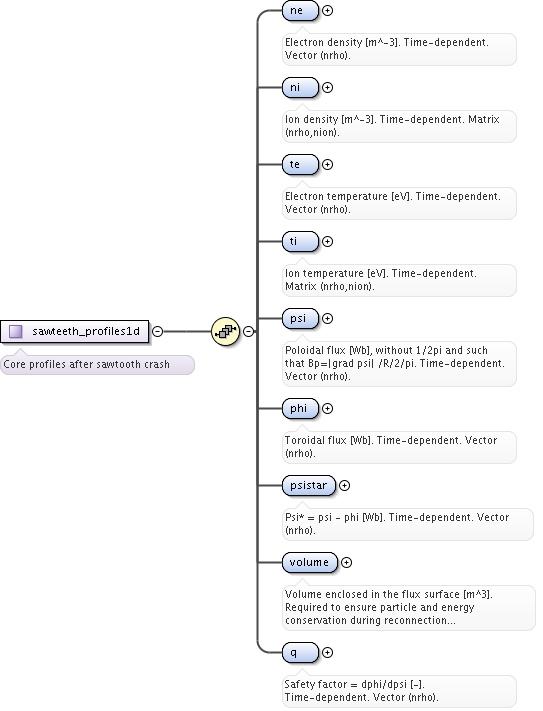

Complex Type sawteeth_profiles1d
Namespace No namespace
Annotations

Core profiles after sawtooth crash
Diagram
Diagram sawteeth_xsd.tmp#NO_NAMESPACE_sawteeth_profiles1d_ne sawteeth_xsd.tmp#NO_NAMESPACE_sawteeth_profiles1d_ni sawteeth_xsd.tmp#NO_NAMESPACE_sawteeth_profiles1d_te sawteeth_xsd.tmp#NO_NAMESPACE_sawteeth_profiles1d_ti sawteeth_xsd.tmp#NO_NAMESPACE_sawteeth_profiles1d_psi sawteeth_xsd.tmp#NO_NAMESPACE_sawteeth_profiles1d_phi sawteeth_xsd.tmp#NO_NAMESPACE_sawteeth_profiles1d_psistar sawteeth_xsd.tmp#NO_NAMESPACE_sawteeth_profiles1d_volume sawteeth_xsd.tmp#NO_NAMESPACE_sawteeth_profiles1d_q
Used by
Model
ne , ni , te , ti , psi , phi , psistar , volume , q
Children ne, ni, phi, psi, psistar, q, te, ti, volume
Source

<xs:complexType name="sawteeth_profiles1d">
  <xs:annotation>
    <xs:documentation>Core profiles after sawtooth crash</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="ne" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Electron density [m^-3]. Time-dependent. Vector (nrho).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ni" type="matflt_type">
      <xs:annotation>
        <xs:documentation>Ion density [m^-3]. Time-dependent. Matrix (nrho,nion).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="te" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Electron temperature [eV]. Time-dependent. Vector (nrho).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ti" type="matflt_type">
      <xs:annotation>
        <xs:documentation>Ion temperature [eV]. Time-dependent. Matrix (nrho,nion).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="psi" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Poloidal flux [Wb], without 1/2pi and such that Bp=|grad psi| /R/2/pi. Time-dependent. Vector (nrho).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="phi" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Toroidal flux [Wb]. Time-dependent. Vector (nrho).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="psistar" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Psi* = psi - phi [Wb]. Time-dependent. Vector (nrho).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="volume" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Volume enclosed in the flux surface [m^3]. Required to ensure particle and energy conservation during reconnection process (ndV and (nT)dV are conserved). Time-dependent. Vector (nrho).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="q" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Safety factor = dphi/dpsi [-]. Time-dependent. Vector (nrho).</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type sawteeth_diags
Namespace No namespace
Annotations

Inversion and mixing radii
Diagram
Diagram sawteeth_xsd.tmp#NO_NAMESPACE_sawteeth_diags_shear1 sawteeth_xsd.tmp#NO_NAMESPACE_sawteeth_diags_rhotorn_q1 sawteeth_xsd.tmp#NO_NAMESPACE_sawteeth_diags_rhotorn_inv sawteeth_xsd.tmp#NO_NAMESPACE_sawteeth_diags_rhotorn_mix
Used by
Element sawteeth/diags
Model
Children rhotorn_inv, rhotorn_mix, rhotorn_q1, shear1
Source

<xs:complexType name="sawteeth_diags">
  <xs:annotation>
    <xs:documentation>Inversion and mixing radii</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="shear1" type="xs:float">
      <xs:annotation>
        <xs:documentation>Magnetic shear at q = 1 [-]. Time-dependent. Real scalar.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="rhotorn_q1" type="xs:float">
      <xs:annotation>
        <xs:documentation>Rho_tor_norm at q=1 radius [-]. Time-dependent. Real scalar.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="rhotorn_inv" type="xs:float">
      <xs:annotation>
        <xs:documentation>Rho_tor_norm at inversion radius [-]. Time-dependent. Real scalar.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="rhotorn_mix" type="xs:float">
      <xs:annotation>
        <xs:documentation>Rho_tor_norm at mixing radius [-]. Time-dependent. Real scalar.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
XML Schema documentation generated by ® XML Editor.
