Included schema solcurdiag.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default qualified

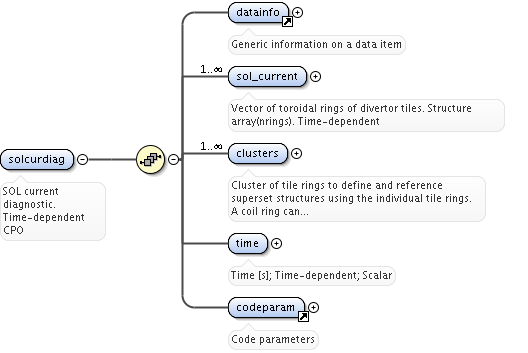

Element solcurdiag
Namespace No namespace
Annotations

SOL current diagnostic. Time-dependent CPO
Diagram
Diagram utilities_xsd.tmp#datainfo solcurdiag_xsd.tmp#solcurdiag_sol_current solcurdiag_xsd.tmp#solcurdiag_clusters solcurdiag_xsd.tmp#solcurdiag_time utilities_xsd.tmp#codeparam
Properties
content complex
Used by
Element top
Model
Children clusters, codeparam, datainfo, sol_current, time
Instance

<solcurdiag>
  <datainfo>{1,1}</datainfo>
  <sol_current>{1,unbounded}</sol_current>
  <clusters>{1,unbounded}</clusters>
  <time>{1,1}</time>
  <codeparam>{1,1}</codeparam>
</solcurdiag>
Source

<xs:element name="solcurdiag">
  <xs:annotation>
    <xs:appinfo>machine description</xs:appinfo>
    <xs:documentation>SOL current diagnostic. Time-dependent CPO</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="datainfo"/>
      <xs:element name="sol_current" type="solcurdiag_sol_current" maxOccurs="unbounded">
        <xs:annotation>
          <xs:appinfo>machine description</xs:appinfo>
          <xs:documentation>Vector of toroidal rings of divertor tiles. Structure array(nrings). Time-dependent</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="clusters" maxOccurs="unbounded">
        <xs:annotation>
          <xs:appinfo>machine description</xs:appinfo>
          <xs:documentation>Cluster of tile rings to define and reference superset structures using the individual tile rings. A coil ring can coexist on two top level structures. Structure array (ncluster).</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="name" type="xs:string">
              <xs:annotation>
                <xs:appinfo>machine description</xs:appinfo>
                <xs:documentation>Name of the toroidally distributed tile set. String.</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="start" type="xs:integer">
              <xs:annotation>
                <xs:appinfo>machine description</xs:appinfo>
                <xs:documentation>ID of the tile set as a scalar where this superset starts. Integer.</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="finish" type="xs:integer">
              <xs:annotation>
                <xs:appinfo>machine description</xs:appinfo>
                <xs:documentation>ID of the tile set as a scalar where this superset finishes. Integer.</xs:documentation>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="time" type="xs:float">
        <xs:annotation>
          <xs:documentation>Time [s]; Time-dependent; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element ref="codeparam"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

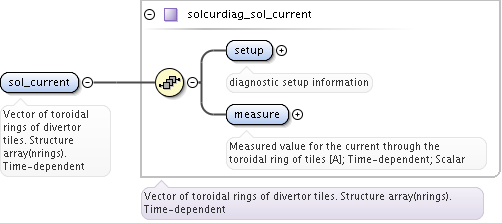

Element solcurdiag / sol_current
Namespace No namespace
Annotations

Vector of toroidal rings of divertor tiles.  Structure array(nrings). Time-dependent
Diagram
Diagram solcurdiag_xsd.tmp#NO_NAMESPACE_solcurdiag_sol_current_setup solcurdiag_xsd.tmp#NO_NAMESPACE_solcurdiag_sol_current_measure solcurdiag_xsd.tmp#NO_NAMESPACE_solcurdiag_sol_current
Type solcurdiag_sol_current
Properties
content complex
maxOccurs unbounded
Model
Children measure, setup
Instance

<sol_current>
  <setup>{1,1}</setup>
  <measure>{1,1}</measure>
</sol_current>
Source

<xs:element name="sol_current" type="solcurdiag_sol_current" maxOccurs="unbounded">
  <xs:annotation>
    <xs:appinfo>machine description</xs:appinfo>
    <xs:documentation>Vector of toroidal rings of divertor tiles. Structure array(nrings). Time-dependent</xs:documentation>
  </xs:annotation>
</xs:element>

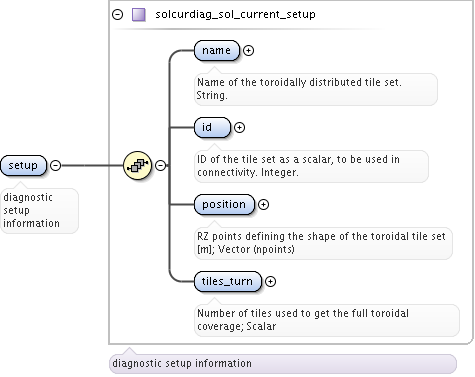

Element solcurdiag_sol_current / setup
Namespace No namespace
Annotations

diagnostic setup information
Diagram
Diagram solcurdiag_xsd.tmp#solcurdiag_sol_current_setup_name solcurdiag_xsd.tmp#solcurdiag_sol_current_setup_id solcurdiag_xsd.tmp#solcurdiag_sol_current_setup_position solcurdiag_xsd.tmp#solcurdiag_sol_current_setup_tiles_turn solcurdiag_xsd.tmp#solcurdiag_sol_current_setup
Type solcurdiag_sol_current_setup
Properties
content complex
Model
Children id, name, position, tiles_turn
Instance

<setup>
  <name>{1,1}</name>
  <id>{1,1}</id>
  <position>{1,1}</position>
  <tiles_turn>{1,1}</tiles_turn>
</setup>
Source

<xs:element name="setup" type="solcurdiag_sol_current_setup">
  <xs:annotation>
    <xs:documentation>diagnostic setup information</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element solcurdiag_sol_current_setup / name
Namespace No namespace
Annotations

Name of the toroidally distributed tile set.  String.
Diagram
Diagram
Type xs:string
Properties
content simple
Source

<xs:element name="name" type="xs:string">
  <xs:annotation>
    <xs:appinfo>machine description</xs:appinfo>
    <xs:documentation>Name of the toroidally distributed tile set. String.</xs:documentation>
  </xs:annotation>
</xs:element>

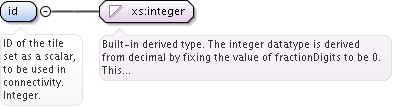

Element solcurdiag_sol_current_setup / id
Namespace No namespace
Annotations

ID of the tile set as a scalar, to be used in connectivity.  Integer.
Diagram
Diagram
Type xs:integer
Properties
content simple
Source

<xs:element name="id" type="xs:integer">
  <xs:annotation>
    <xs:appinfo>machine description</xs:appinfo>
    <xs:documentation>ID of the tile set as a scalar, to be used in connectivity. Integer.</xs:documentation>
  </xs:annotation>
</xs:element>

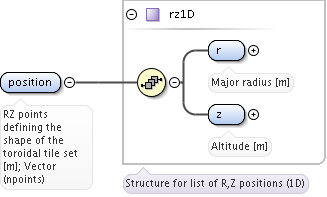

Element solcurdiag_sol_current_setup / position
Namespace No namespace
Annotations

RZ points defining the shape of the toroidal tile set [m]; Vector (npoints)
Diagram
Diagram utilities_xsd.tmp#rz1D_r utilities_xsd.tmp#rz1D_z utilities_xsd.tmp#rz1D
Type rz1D
Properties
content complex
Model
r , z
Children r, z
Instance

<position>
  <r>{1,1}</r>
  <z>{1,1}</z>
</position>
Source

<xs:element name="position" type="rz1D">
  <xs:annotation>
    <xs:appinfo>machine description</xs:appinfo>
    <xs:documentation>RZ points defining the shape of the toroidal tile set [m]; Vector (npoints)</xs:documentation>
  </xs:annotation>
</xs:element>
Element solcurdiag_sol_current_setup / tiles_turn
Namespace No namespace
Annotations

Number of tiles used to get the full toroidal coverage; Scalar
Diagram
Diagram
Type xs:integer
Properties
content simple
Source

<xs:element name="tiles_turn" type="xs:integer">
  <xs:annotation>
    <xs:appinfo>machine description</xs:appinfo>
    <xs:documentation>Number of tiles used to get the full toroidal coverage; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

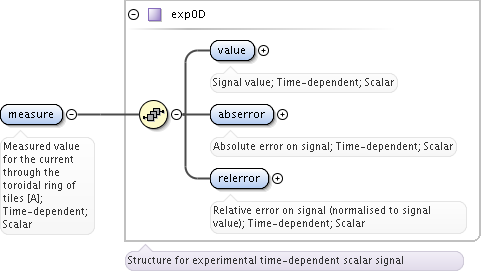

Element solcurdiag_sol_current / measure
Namespace No namespace
Annotations

Measured value for the current through the toroidal ring of tiles [A]; Time-dependent; Scalar
Diagram
Diagram utilities_xsd.tmp#exp0D_value utilities_xsd.tmp#exp0D_abserror utilities_xsd.tmp#exp0D_relerror utilities_xsd.tmp#exp0D
Type exp0D
Properties
content complex
Model
Children abserror, relerror, value
Instance

<measure>
  <value>{1,1}</value>
  <abserror>{1,1}</abserror>
  <relerror>{1,1}</relerror>
</measure>
Source

<xs:element name="measure" type="exp0D">
  <xs:annotation>
    <xs:documentation>Measured value for the current through the toroidal ring of tiles [A]; Time-dependent; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

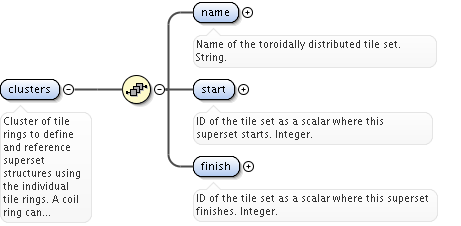

Element solcurdiag / clusters
Namespace No namespace
Annotations

Cluster of tile rings to define and reference superset structures using the individual tile rings. A coil ring can coexist on two top level structures. Structure array (ncluster).
Diagram
Diagram solcurdiag_xsd.tmp#solcurdiag_solcurdiag_clusters_name solcurdiag_xsd.tmp#solcurdiag_solcurdiag_clusters_start solcurdiag_xsd.tmp#solcurdiag_solcurdiag_clusters_finish
Properties
content complex
maxOccurs unbounded
Model
Children finish, name, start
Instance

<clusters>
  <name>{1,1}</name>
  <start>{1,1}</start>
  <finish>{1,1}</finish>
</clusters>
Source

<xs:element name="clusters" maxOccurs="unbounded">
  <xs:annotation>
    <xs:appinfo>machine description</xs:appinfo>
    <xs:documentation>Cluster of tile rings to define and reference superset structures using the individual tile rings. A coil ring can coexist on two top level structures. Structure array (ncluster).</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="name" type="xs:string">
        <xs:annotation>
          <xs:appinfo>machine description</xs:appinfo>
          <xs:documentation>Name of the toroidally distributed tile set. String.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="start" type="xs:integer">
        <xs:annotation>
          <xs:appinfo>machine description</xs:appinfo>
          <xs:documentation>ID of the tile set as a scalar where this superset starts. Integer.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="finish" type="xs:integer">
        <xs:annotation>
          <xs:appinfo>machine description</xs:appinfo>
          <xs:documentation>ID of the tile set as a scalar where this superset finishes. Integer.</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element solcurdiag / clusters / name
Namespace No namespace
Annotations

Name of the toroidally distributed tile set.  String.
Diagram
Diagram
Type xs:string
Properties
content simple
Source

<xs:element name="name" type="xs:string">
  <xs:annotation>
    <xs:appinfo>machine description</xs:appinfo>
    <xs:documentation>Name of the toroidally distributed tile set. String.</xs:documentation>
  </xs:annotation>
</xs:element>
Element solcurdiag / clusters / start
Namespace No namespace
Annotations

ID of the tile set as a scalar where this superset starts.  Integer.
Diagram
Diagram
Type xs:integer
Properties
content simple
Source

<xs:element name="start" type="xs:integer">
  <xs:annotation>
    <xs:appinfo>machine description</xs:appinfo>
    <xs:documentation>ID of the tile set as a scalar where this superset starts. Integer.</xs:documentation>
  </xs:annotation>
</xs:element>

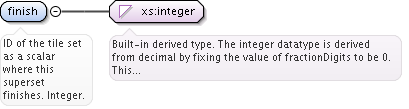

Element solcurdiag / clusters / finish
Namespace No namespace
Annotations

ID of the tile set as a scalar where this superset finishes.  Integer.
Diagram
Diagram
Type xs:integer
Properties
content simple
Source

<xs:element name="finish" type="xs:integer">
  <xs:annotation>
    <xs:appinfo>machine description</xs:appinfo>
    <xs:documentation>ID of the tile set as a scalar where this superset finishes. Integer.</xs:documentation>
  </xs:annotation>
</xs:element>
Element solcurdiag / time
Namespace No namespace
Annotations

Time [s]; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="time" type="xs:float">
  <xs:annotation>
    <xs:documentation>Time [s]; Time-dependent; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

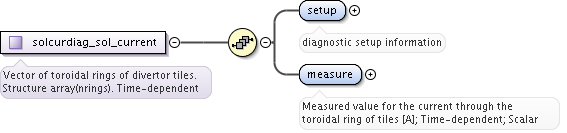

Complex Type solcurdiag_sol_current
Namespace No namespace
Annotations

Vector of toroidal rings of divertor tiles.  Structure array(nrings). Time-dependent
Diagram
Diagram solcurdiag_xsd.tmp#NO_NAMESPACE_solcurdiag_sol_current_setup solcurdiag_xsd.tmp#NO_NAMESPACE_solcurdiag_sol_current_measure
Used by
Model
Children measure, setup
Source

<xs:complexType name="solcurdiag_sol_current">
  <xs:annotation>
    <xs:appinfo>machine description</xs:appinfo>
    <xs:documentation>Vector of toroidal rings of divertor tiles. Structure array(nrings). Time-dependent</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="setup" type="solcurdiag_sol_current_setup">
      <xs:annotation>
        <xs:documentation>diagnostic setup information</xs:documentation>
        <xs:appinfo>machine description</xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element name="measure" type="exp0D">
      <xs:annotation>
        <xs:documentation>Measured value for the current through the toroidal ring of tiles [A]; Time-dependent; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

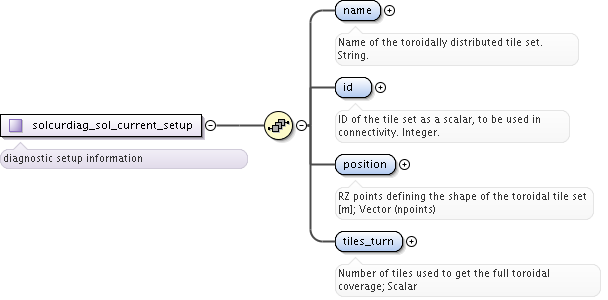

Complex Type solcurdiag_sol_current_setup
Namespace No namespace
Annotations

diagnostic setup information
Diagram
Diagram solcurdiag_xsd.tmp#solcurdiag_sol_current_setup_name solcurdiag_xsd.tmp#solcurdiag_sol_current_setup_id solcurdiag_xsd.tmp#solcurdiag_sol_current_setup_position solcurdiag_xsd.tmp#solcurdiag_sol_current_setup_tiles_turn
Used by
Model
Children id, name, position, tiles_turn
Source

<xs:complexType name="solcurdiag_sol_current_setup">
  <xs:annotation>
    <xs:documentation>diagnostic setup information</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="name" type="xs:string">
      <xs:annotation>
        <xs:appinfo>machine description</xs:appinfo>
        <xs:documentation>Name of the toroidally distributed tile set. String.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="id" type="xs:integer">
      <xs:annotation>
        <xs:appinfo>machine description</xs:appinfo>
        <xs:documentation>ID of the tile set as a scalar, to be used in connectivity. Integer.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="position" type="rz1D">
      <xs:annotation>
        <xs:appinfo>machine description</xs:appinfo>
        <xs:documentation>RZ points defining the shape of the toroidal tile set [m]; Vector (npoints)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="tiles_turn" type="xs:integer">
      <xs:annotation>
        <xs:appinfo>machine description</xs:appinfo>
        <xs:documentation>Number of tiles used to get the full toroidal coverage; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
XML Schema documentation generated by ® XML Editor.
