Included schema toroidalfield.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default qualified

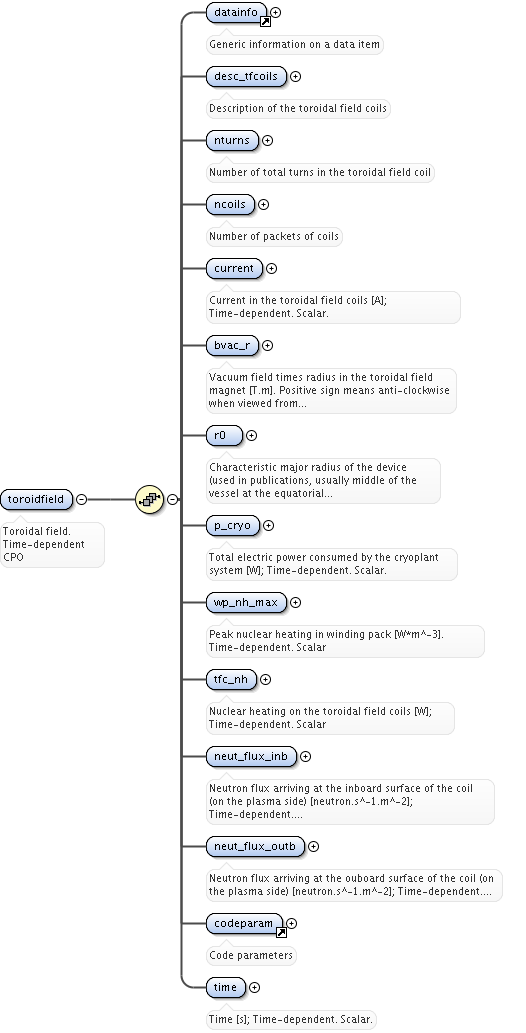

Element toroidfield
Namespace No namespace
Annotations

Toroidal field. Time-dependent CPO
Diagram
Diagram utilities_xsd.tmp#datainfo toroidalfield_xsd.tmp#toroidfield_desc_tfcoils toroidalfield_xsd.tmp#toroidfield_nturns toroidalfield_xsd.tmp#toroidfield_ncoils toroidalfield_xsd.tmp#toroidfield_current toroidalfield_xsd.tmp#toroidfield_bvac_r toroidalfield_xsd.tmp#toroidfield_r0 toroidalfield_xsd.tmp#toroidfield_p_cryo toroidalfield_xsd.tmp#toroidfield_wp_nh_max toroidalfield_xsd.tmp#toroidfield_tfc_nh toroidalfield_xsd.tmp#toroidfield_neut_flux_inb toroidalfield_xsd.tmp#toroidfield_neut_flux_outb utilities_xsd.tmp#codeparam toroidalfield_xsd.tmp#toroidfield_time
Properties
content complex
Used by
Element top
Model
Children bvac_r, codeparam, current, datainfo, desc_tfcoils, ncoils, neut_flux_inb, neut_flux_outb, nturns, p_cryo, r0, tfc_nh, time, wp_nh_max
Instance

<toroidfield>
  <datainfo>{1,1}</datainfo>
  <desc_tfcoils>{1,1}</desc_tfcoils>
  <nturns>{1,1}</nturns>
  <ncoils>{1,1}</ncoils>
  <current>{1,1}</current>
  <bvac_r>{1,1}</bvac_r>
  <r0>{1,1}</r0>
  <p_cryo>{1,1}</p_cryo>
  <wp_nh_max>{1,1}</wp_nh_max>
  <tfc_nh>{1,1}</tfc_nh>
  <neut_flux_inb>{1,1}</neut_flux_inb>
  <neut_flux_outb>{1,1}</neut_flux_outb>
  <codeparam>{1,1}</codeparam>
  <time>{1,1}</time>
</toroidfield>
Source

<xs:element name="toroidfield">
  <xs:annotation>
    <xs:documentation>Toroidal field. Time-dependent CPO</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="datainfo"/>
      <xs:element name="desc_tfcoils" type="tf_desc_tfcoils">
        <xs:annotation>
          <xs:documentation>Description of the toroidal field coils</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="nturns" type="xs:integer">
        <xs:annotation>
          <xs:documentation>Number of total turns in the toroidal field coil</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="ncoils" type="xs:integer">
        <xs:annotation>
          <xs:documentation>Number of packets of coils</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>

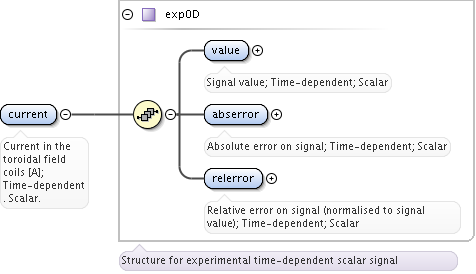

      <xs:element name="current" type="exp0D">
        <xs:annotation>
          <xs:documentation>Current in the toroidal field coils [A]; Time-dependent. Scalar.</xs:documentation>
        </xs:annotation>
      </xs:element>

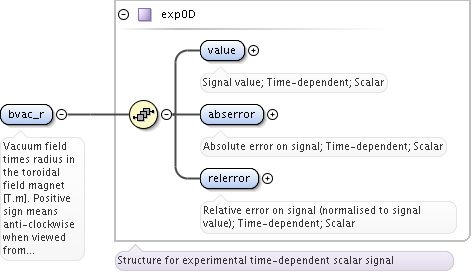

      <xs:element name="bvac_r" type="exp0D">
        <xs:annotation>
          <xs:documentation>Vacuum field times radius in the toroidal field magnet [T.m]. Positive sign means anti-clockwise when viewed from above. Time-dependent. Scalar.</xs:documentation>
        </xs:annotation>
      </xs:element>

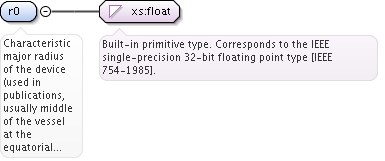

      <xs:element name="r0" type="xs:float">
        <xs:annotation>
          <xs:documentation>Characteristic major radius of the device (used in publications, usually middle of the vessel at the equatorial midplane) [m]. Scalar.</xs:documentation>
          <xs:appinfo>machine description</xs:appinfo>
        </xs:annotation>
      </xs:element>

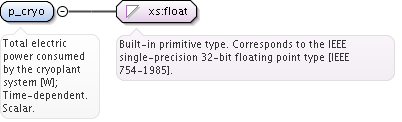

      <xs:element name="p_cryo" type="xs:float">
        <xs:annotation>
          <xs:documentation>Total electric power consumed by the cryoplant system [W]; Time-dependent. Scalar.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="wp_nh_max" type="xs:float">
        <xs:annotation>
          <xs:documentation>Peak nuclear heating in winding pack [W*m^-3]. Time-dependent. Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>

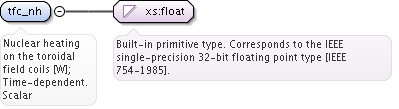

      <xs:element name="tfc_nh" type="xs:float">
        <xs:annotation>
          <xs:documentation>Nuclear heating on the toroidal field coils [W]; Time-dependent. Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>

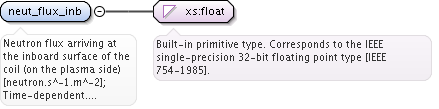

      <xs:element name="neut_flux_inb" type="xs:float">
        <xs:annotation>
          <xs:documentation>Neutron flux arriving at the inboard surface of the coil (on the plasma side) [neutron.s^-1.m^-2]; Time-dependent. Scalar.</xs:documentation>
        </xs:annotation>
      </xs:element>

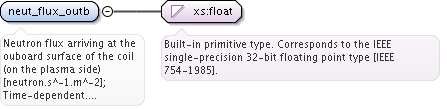

      <xs:element name="neut_flux_outb" type="xs:float">
        <xs:annotation>
          <xs:documentation>Neutron flux arriving at the ouboard surface of the coil (on the plasma side) [neutron.s^-1.m^-2]; Time-dependent. Scalar.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element ref="codeparam"/>
      <xs:element name="time" type="xs:float">
        <xs:annotation>
          <xs:documentation>Time [s]; Time-dependent. Scalar.</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

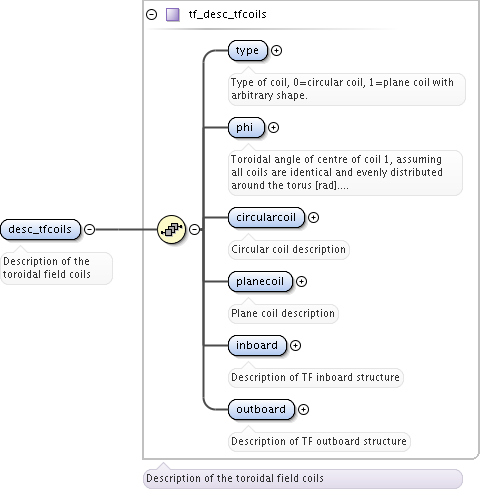

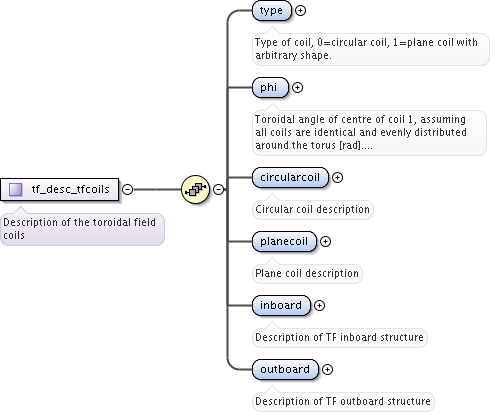

Element toroidfield / desc_tfcoils
Namespace No namespace
Annotations

Description of the toroidal field coils
Diagram
Diagram toroidalfield_xsd.tmp#tf_desc_tfcoils_type toroidalfield_xsd.tmp#tf_desc_tfcoils_phi toroidalfield_xsd.tmp#tf_desc_tfcoils_circularcoil toroidalfield_xsd.tmp#tf_desc_tfcoils_planecoil toroidalfield_xsd.tmp#tf_desc_tfcoils_inboard toroidalfield_xsd.tmp#tf_desc_tfcoils_outboard toroidalfield_xsd.tmp#tf_desc_tfcoils
Type tf_desc_tfcoils
Properties
content complex
Model
Children circularcoil, inboard, outboard, phi, planecoil, type
Instance

<desc_tfcoils>
  <type>{1,1}</type>
  <phi>{1,1}</phi>
  <circularcoil>{1,1}</circularcoil>
  <planecoil>{1,1}</planecoil>
  <inboard>{1,1}</inboard>
  <outboard>{1,1}</outboard>
</desc_tfcoils>
Source

<xs:element name="desc_tfcoils" type="tf_desc_tfcoils">
  <xs:annotation>
    <xs:documentation>Description of the toroidal field coils</xs:documentation>
  </xs:annotation>
</xs:element>

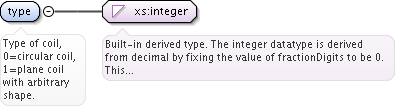

Element tf_desc_tfcoils / type
Namespace No namespace
Annotations

Type of coil, 0=circular coil, 1=plane coil with arbitrary shape.
Diagram
Diagram
Type xs:integer
Properties
content simple
Source

<xs:element name="type" type="xs:integer">
  <xs:annotation>
    <xs:documentation>Type of coil, 0=circular coil, 1=plane coil with arbitrary shape.</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>

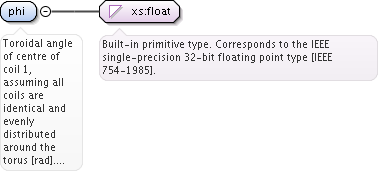

Element tf_desc_tfcoils / phi
Namespace No namespace
Annotations

Toroidal angle of centre of coil 1, assuming all coils are identical and evenly distributed around the torus [rad]. Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="phi" type="xs:float">
  <xs:annotation>
    <xs:documentation>Toroidal angle of centre of coil 1, assuming all coils are identical and evenly distributed around the torus [rad]. Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

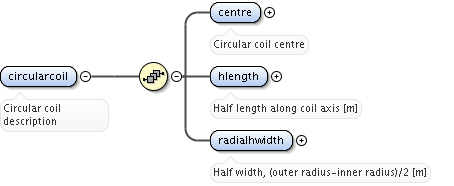

Element tf_desc_tfcoils / circularcoil
Namespace No namespace
Annotations

Circular coil description
Diagram
Diagram toroidalfield_xsd.tmp#tf_desc_tfcoils_tf_desc_tfcoils_circularcoil_centre toroidalfield_xsd.tmp#tf_desc_tfcoils_tf_desc_tfcoils_circularcoil_hlength toroidalfield_xsd.tmp#tf_desc_tfcoils_tf_desc_tfcoils_circularcoil_radialhwidth
Properties
content complex
Model
Children centre, hlength, radialhwidth
Instance

<circularcoil>
  <centre>{1,1}</centre>
  <hlength>{1,1}</hlength>
  <radialhwidth>{1,1}</radialhwidth>
</circularcoil>
Source

<xs:element name="circularcoil">
  <xs:annotation>
    <xs:documentation>Circular coil description</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="centre" type="rz0D">
        <xs:annotation>
          <xs:documentation>Circular coil centre</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="hlength" type="xs:float">
        <xs:annotation>
          <xs:documentation>Half length along coil axis [m]</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="radialhwidth" type="xs:float">
        <xs:annotation>
          <xs:documentation>Half width, (outer radius-inner radius)/2 [m]</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

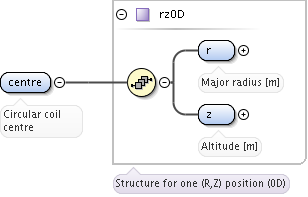

Element tf_desc_tfcoils / circularcoil / centre
Namespace No namespace
Annotations

Circular coil centre
Diagram
Diagram utilities_xsd.tmp#rz0D_r utilities_xsd.tmp#rz0D_z utilities_xsd.tmp#rz0D
Type rz0D
Properties
content complex
Model
r , z
Children r, z
Instance

<centre>
  <r>{1,1}</r>
  <z>{1,1}</z>
</centre>
Source

<xs:element name="centre" type="rz0D">
  <xs:annotation>
    <xs:documentation>Circular coil centre</xs:documentation>
  </xs:annotation>
</xs:element>
Element tf_desc_tfcoils / circularcoil / hlength
Namespace No namespace
Annotations

Half length along coil axis [m]
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="hlength" type="xs:float">
  <xs:annotation>
    <xs:documentation>Half length along coil axis [m]</xs:documentation>
  </xs:annotation>
</xs:element>
Element tf_desc_tfcoils / circularcoil / radialhwidth
Namespace No namespace
Annotations

Half width, (outer radius-inner radius)/2 [m]
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="radialhwidth" type="xs:float">
  <xs:annotation>
    <xs:documentation>Half width, (outer radius-inner radius)/2 [m]</xs:documentation>
  </xs:annotation>
</xs:element>

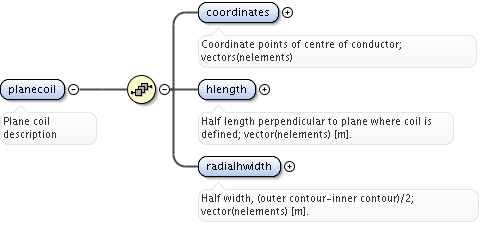

Element tf_desc_tfcoils / planecoil
Namespace No namespace
Annotations

Plane coil description
Diagram
Diagram toroidalfield_xsd.tmp#tf_desc_tfcoils_tf_desc_tfcoils_planecoil_coordinates toroidalfield_xsd.tmp#tf_desc_tfcoils_tf_desc_tfcoils_planecoil_hlength toroidalfield_xsd.tmp#tf_desc_tfcoils_tf_desc_tfcoils_planecoil_radialhwidth
Properties
content complex
Model
Children coordinates, hlength, radialhwidth
Instance

<planecoil>
  <coordinates>{1,1}</coordinates>
  <hlength>{1,1}</hlength>
  <radialhwidth>{1,1}</radialhwidth>
</planecoil>
Source

<xs:element name="planecoil">
  <xs:annotation>
    <xs:documentation>Plane coil description</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="coordinates" type="rz1D">
        <xs:annotation>
          <xs:documentation>Coordinate points of centre of conductor; vectors(nelements)</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="hlength" type="vecflt_type">
        <xs:annotation>
          <xs:documentation>Half length perpendicular to plane where coil is defined; vector(nelements) [m].</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="radialhwidth" type="vecflt_type">
        <xs:annotation>
          <xs:documentation>Half width, (outer contour-inner contour)/2; vector(nelements) [m].</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

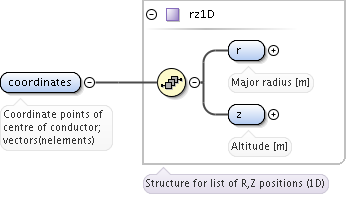

Element tf_desc_tfcoils / planecoil / coordinates
Namespace No namespace
Annotations

Coordinate points of centre of conductor; vectors(nelements)
Diagram
Diagram utilities_xsd.tmp#rz1D_r utilities_xsd.tmp#rz1D_z utilities_xsd.tmp#rz1D
Type rz1D
Properties
content complex
Model
r , z
Children r, z
Instance

<coordinates>
  <r>{1,1}</r>
  <z>{1,1}</z>
</coordinates>
Source

<xs:element name="coordinates" type="rz1D">
  <xs:annotation>
    <xs:documentation>Coordinate points of centre of conductor; vectors(nelements)</xs:documentation>
  </xs:annotation>
</xs:element>
Element tf_desc_tfcoils / planecoil / hlength
Namespace No namespace
Annotations

Half length perpendicular to plane where coil is defined; vector(nelements) [m].
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="hlength" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Half length perpendicular to plane where coil is defined; vector(nelements) [m].</xs:documentation>
  </xs:annotation>
</xs:element>
Element tf_desc_tfcoils / planecoil / radialhwidth
Namespace No namespace
Annotations

Half width, (outer contour-inner contour)/2; vector(nelements) [m].
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="radialhwidth" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Half width, (outer contour-inner contour)/2; vector(nelements) [m].</xs:documentation>
  </xs:annotation>
</xs:element>

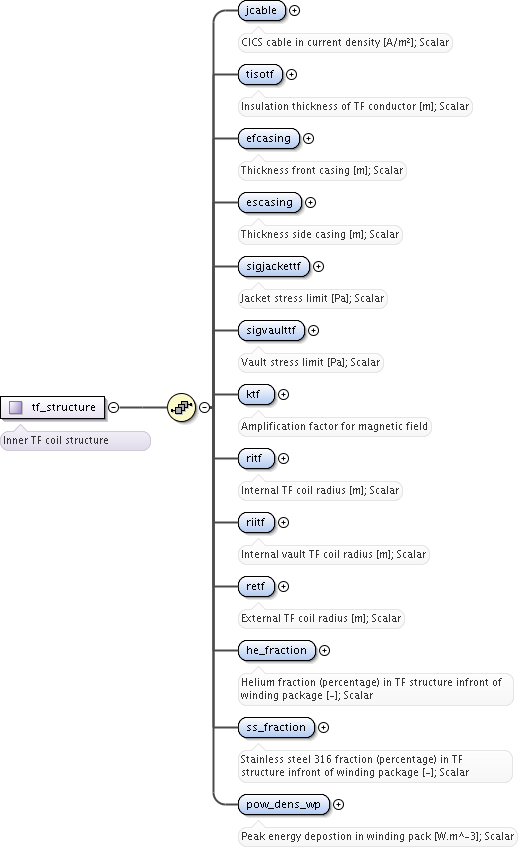

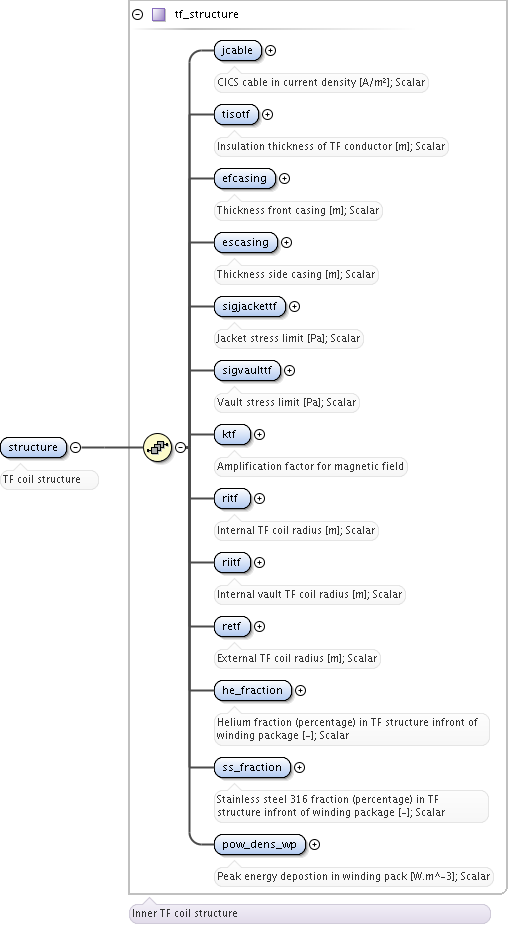

Element tf_desc_tfcoils / inboard
Namespace No namespace
Annotations

Description of TF inboard structure
Diagram
Diagram toroidalfield_xsd.tmp#tf_structure_jcable toroidalfield_xsd.tmp#tf_structure_tisotf toroidalfield_xsd.tmp#tf_structure_efcasing toroidalfield_xsd.tmp#tf_structure_escasing toroidalfield_xsd.tmp#tf_structure_sigjackettf toroidalfield_xsd.tmp#tf_structure_sigvaulttf toroidalfield_xsd.tmp#tf_structure_ktf toroidalfield_xsd.tmp#tf_structure_ritf toroidalfield_xsd.tmp#tf_structure_riitf toroidalfield_xsd.tmp#tf_structure_retf toroidalfield_xsd.tmp#tf_structure_he_fraction toroidalfield_xsd.tmp#tf_structure_ss_fraction toroidalfield_xsd.tmp#tf_structure_pow_dens_wp toroidalfield_xsd.tmp#tf_structure
Type tf_structure
Properties
content complex
Model
Children efcasing, escasing, he_fraction, jcable, ktf, pow_dens_wp, retf, riitf, ritf, sigjackettf, sigvaulttf, ss_fraction, tisotf
Instance

<inboard>
  <jcable>{1,1}</jcable>
  <tisotf>{1,1}</tisotf>
  <efcasing>{1,1}</efcasing>
  <escasing>{1,1}</escasing>
  <sigjackettf>{1,1}</sigjackettf>
  <sigvaulttf>{1,1}</sigvaulttf>
  <ktf>{1,1}</ktf>
  <ritf>{1,1}</ritf>
  <riitf>{1,1}</riitf>
  <retf>{1,1}</retf>

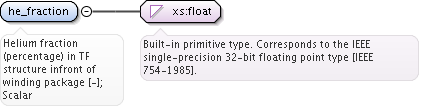

  <he_fraction>{1,1}</he_fraction>

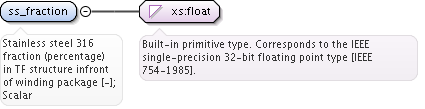

  <ss_fraction>{1,1}</ss_fraction>
  <pow_dens_wp>{1,1}</pow_dens_wp>
</inboard>
Source

<xs:element name="inboard" type="tf_structure">
  <xs:annotation>
    <xs:documentation>Description of TF inboard structure</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element tf_structure / jcable
Namespace No namespace
Annotations

CICS cable in current density [A/m²]; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="jcable" type="xs:float">
  <xs:annotation>
    <xs:documentation>CICS cable in current density [A/m²]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Element tf_structure / tisotf
Namespace No namespace
Annotations

Insulation thickness of TF conductor [m]; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="tisotf" type="xs:float">
  <xs:annotation>
    <xs:documentation>Insulation thickness of TF conductor [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Element tf_structure / efcasing
Namespace No namespace
Annotations

Thickness front casing [m]; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="efcasing" type="xs:float">
  <xs:annotation>
    <xs:documentation>Thickness front casing [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Element tf_structure / escasing
Namespace No namespace
Annotations

Thickness side casing [m]; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="escasing" type="xs:float">
  <xs:annotation>
    <xs:documentation>Thickness side casing [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Element tf_structure / sigjackettf
Namespace No namespace
Annotations

Jacket stress limit [Pa]; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="sigjackettf" type="xs:float">
  <xs:annotation>
    <xs:documentation>Jacket stress limit [Pa]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Element tf_structure / sigvaulttf
Namespace No namespace
Annotations

Vault stress limit  [Pa]; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="sigvaulttf" type="xs:float">
  <xs:annotation>
    <xs:documentation>Vault stress limit [Pa]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Element tf_structure / ktf
Namespace No namespace
Annotations

Amplification factor for magnetic field
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="ktf" type="xs:float">
  <xs:annotation>
    <xs:documentation>Amplification factor for magnetic field</xs:documentation>
  </xs:annotation>
</xs:element>
Element tf_structure / ritf
Namespace No namespace
Annotations

Internal TF coil radius [m]; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="ritf" type="xs:float">
  <xs:annotation>
    <xs:documentation>Internal TF coil radius [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Element tf_structure / riitf
Namespace No namespace
Annotations

Internal vault TF coil radius [m]; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="riitf" type="xs:float">
  <xs:annotation>
    <xs:documentation>Internal vault TF coil radius [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Element tf_structure / retf
Namespace No namespace
Annotations

External TF coil radius [m]; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="retf" type="xs:float">
  <xs:annotation>
    <xs:documentation>External TF coil radius [m]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Element tf_structure / he_fraction
Namespace No namespace
Annotations

Helium fraction (percentage) in TF structure infront of winding package  [-]; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="he_fraction" type="xs:float">
  <xs:annotation>
    <xs:documentation>Helium fraction (percentage) in TF structure infront of winding package [-]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Element tf_structure / ss_fraction
Namespace No namespace
Annotations

Stainless steel 316 fraction (percentage) in TF structure infront of winding package  [-]; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="ss_fraction" type="xs:float">
  <xs:annotation>
    <xs:documentation>Stainless steel 316 fraction (percentage) in TF structure infront of winding package [-]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Element tf_structure / pow_dens_wp
Namespace No namespace
Annotations

Peak energy depostion in winding pack [W.m^-3]; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="pow_dens_wp" type="xs:float">
  <xs:annotation>
    <xs:documentation>Peak energy depostion in winding pack [W.m^-3]; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

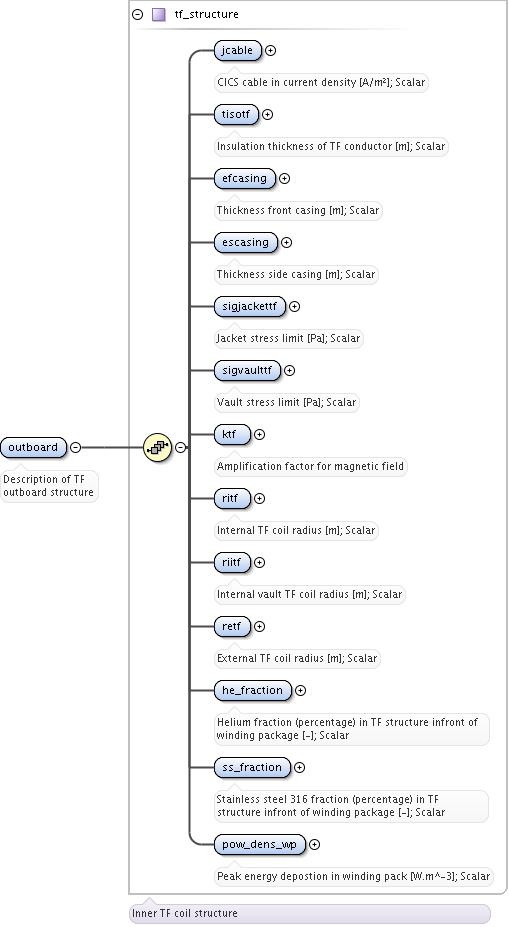

Element tf_desc_tfcoils / outboard
Namespace No namespace
Annotations

Description of TF outboard structure
Diagram
Diagram toroidalfield_xsd.tmp#tf_structure_jcable toroidalfield_xsd.tmp#tf_structure_tisotf toroidalfield_xsd.tmp#tf_structure_efcasing toroidalfield_xsd.tmp#tf_structure_escasing toroidalfield_xsd.tmp#tf_structure_sigjackettf toroidalfield_xsd.tmp#tf_structure_sigvaulttf toroidalfield_xsd.tmp#tf_structure_ktf toroidalfield_xsd.tmp#tf_structure_ritf toroidalfield_xsd.tmp#tf_structure_riitf toroidalfield_xsd.tmp#tf_structure_retf toroidalfield_xsd.tmp#tf_structure_he_fraction toroidalfield_xsd.tmp#tf_structure_ss_fraction toroidalfield_xsd.tmp#tf_structure_pow_dens_wp toroidalfield_xsd.tmp#tf_structure
Type tf_structure
Properties
content complex
Model
Children efcasing, escasing, he_fraction, jcable, ktf, pow_dens_wp, retf, riitf, ritf, sigjackettf, sigvaulttf, ss_fraction, tisotf
Instance

<outboard>
  <jcable>{1,1}</jcable>
  <tisotf>{1,1}</tisotf>
  <efcasing>{1,1}</efcasing>
  <escasing>{1,1}</escasing>
  <sigjackettf>{1,1}</sigjackettf>
  <sigvaulttf>{1,1}</sigvaulttf>
  <ktf>{1,1}</ktf>
  <ritf>{1,1}</ritf>
  <riitf>{1,1}</riitf>
  <retf>{1,1}</retf>
  <he_fraction>{1,1}</he_fraction>
  <ss_fraction>{1,1}</ss_fraction>
  <pow_dens_wp>{1,1}</pow_dens_wp>
</outboard>
Source

<xs:element name="outboard" type="tf_structure">
  <xs:annotation>
    <xs:documentation>Description of TF outboard structure</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element toroidfield / nturns
Namespace No namespace
Annotations

Number of total turns in the toroidal field coil
Diagram
Diagram
Type xs:integer
Properties
content simple
Source

<xs:element name="nturns" type="xs:integer">
  <xs:annotation>
    <xs:documentation>Number of total turns in the toroidal field coil</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element toroidfield / ncoils
Namespace No namespace
Annotations

Number of packets of coils
Diagram
Diagram
Type xs:integer
Properties
content simple
Source

<xs:element name="ncoils" type="xs:integer">
  <xs:annotation>
    <xs:documentation>Number of packets of coils</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element toroidfield / current
Namespace No namespace
Annotations

Current in the toroidal field coils [A]; Time-dependent. Scalar.
Diagram
Diagram utilities_xsd.tmp#exp0D_value utilities_xsd.tmp#exp0D_abserror utilities_xsd.tmp#exp0D_relerror utilities_xsd.tmp#exp0D
Type exp0D
Properties
content complex
Model
Children abserror, relerror, value
Instance

<current>
  <value>{1,1}</value>
  <abserror>{1,1}</abserror>
  <relerror>{1,1}</relerror>
</current>
Source

<xs:element name="current" type="exp0D">
  <xs:annotation>
    <xs:documentation>Current in the toroidal field coils [A]; Time-dependent. Scalar.</xs:documentation>
  </xs:annotation>
</xs:element>
Element toroidfield / bvac_r
Namespace No namespace
Annotations

Vacuum field times radius in the toroidal field magnet [T.m]. Positive sign means anti-clockwise when viewed from above. Time-dependent. Scalar.
Diagram
Diagram utilities_xsd.tmp#exp0D_value utilities_xsd.tmp#exp0D_abserror utilities_xsd.tmp#exp0D_relerror utilities_xsd.tmp#exp0D
Type exp0D
Properties
content complex
Model
Children abserror, relerror, value
Instance

<bvac_r>
  <value>{1,1}</value>
  <abserror>{1,1}</abserror>
  <relerror>{1,1}</relerror>
</bvac_r>
Source

<xs:element name="bvac_r" type="exp0D">
  <xs:annotation>
    <xs:documentation>Vacuum field times radius in the toroidal field magnet [T.m]. Positive sign means anti-clockwise when viewed from above. Time-dependent. Scalar.</xs:documentation>
  </xs:annotation>
</xs:element>
Element toroidfield / r0
Namespace No namespace
Annotations

Characteristic major radius of the device (used in publications, usually middle of the vessel at the equatorial midplane) [m]. Scalar.
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="r0" type="xs:float">
  <xs:annotation>
    <xs:documentation>Characteristic major radius of the device (used in publications, usually middle of the vessel at the equatorial midplane) [m]. Scalar.</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Element toroidfield / p_cryo
Namespace No namespace
Annotations

Total electric power consumed by the cryoplant system [W]; Time-dependent. Scalar.
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="p_cryo" type="xs:float">
  <xs:annotation>
    <xs:documentation>Total electric power consumed by the cryoplant system [W]; Time-dependent. Scalar.</xs:documentation>
  </xs:annotation>
</xs:element>
Element toroidfield / wp_nh_max
Namespace No namespace
Annotations

Peak nuclear heating in winding pack [W*m^-3]. Time-dependent. Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="wp_nh_max" type="xs:float">
  <xs:annotation>
    <xs:documentation>Peak nuclear heating in winding pack [W*m^-3]. Time-dependent. Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Element toroidfield / tfc_nh
Namespace No namespace
Annotations

Nuclear heating on the toroidal field coils [W]; Time-dependent. Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="tfc_nh" type="xs:float">
  <xs:annotation>
    <xs:documentation>Nuclear heating on the toroidal field coils [W]; Time-dependent. Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Element toroidfield / neut_flux_inb
Namespace No namespace
Annotations

Neutron flux arriving at the inboard surface of the coil (on the plasma side) [neutron.s^-1.m^-2]; Time-dependent. Scalar.
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="neut_flux_inb" type="xs:float">
  <xs:annotation>
    <xs:documentation>Neutron flux arriving at the inboard surface of the coil (on the plasma side) [neutron.s^-1.m^-2]; Time-dependent. Scalar.</xs:documentation>
  </xs:annotation>
</xs:element>
Element toroidfield / neut_flux_outb
Namespace No namespace
Annotations

Neutron flux arriving at the ouboard surface of the coil (on the plasma side) [neutron.s^-1.m^-2]; Time-dependent. Scalar.
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="neut_flux_outb" type="xs:float">
  <xs:annotation>
    <xs:documentation>Neutron flux arriving at the ouboard surface of the coil (on the plasma side) [neutron.s^-1.m^-2]; Time-dependent. Scalar.</xs:documentation>
  </xs:annotation>
</xs:element>
Element toroidfield / time
Namespace No namespace
Annotations

Time [s]; Time-dependent. Scalar.
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="time" type="xs:float">
  <xs:annotation>
    <xs:documentation>Time [s]; Time-dependent. Scalar.</xs:documentation>
  </xs:annotation>
</xs:element>
Element tf_desc_tfcoils_board / structure
Namespace No namespace
Annotations

TF coil structure
Diagram
Diagram toroidalfield_xsd.tmp#tf_structure_jcable toroidalfield_xsd.tmp#tf_structure_tisotf toroidalfield_xsd.tmp#tf_structure_efcasing toroidalfield_xsd.tmp#tf_structure_escasing toroidalfield_xsd.tmp#tf_structure_sigjackettf toroidalfield_xsd.tmp#tf_structure_sigvaulttf toroidalfield_xsd.tmp#tf_structure_ktf toroidalfield_xsd.tmp#tf_structure_ritf toroidalfield_xsd.tmp#tf_structure_riitf toroidalfield_xsd.tmp#tf_structure_retf toroidalfield_xsd.tmp#tf_structure_he_fraction toroidalfield_xsd.tmp#tf_structure_ss_fraction toroidalfield_xsd.tmp#tf_structure_pow_dens_wp toroidalfield_xsd.tmp#tf_structure
Type tf_structure
Properties
content complex
Model
Children efcasing, escasing, he_fraction, jcable, ktf, pow_dens_wp, retf, riitf, ritf, sigjackettf, sigvaulttf, ss_fraction, tisotf
Instance

<structure>
  <jcable>{1,1}</jcable>
  <tisotf>{1,1}</tisotf>
  <efcasing>{1,1}</efcasing>
  <escasing>{1,1}</escasing>
  <sigjackettf>{1,1}</sigjackettf>
  <sigvaulttf>{1,1}</sigvaulttf>
  <ktf>{1,1}</ktf>
  <ritf>{1,1}</ritf>
  <riitf>{1,1}</riitf>
  <retf>{1,1}</retf>
  <he_fraction>{1,1}</he_fraction>
  <ss_fraction>{1,1}</ss_fraction>
  <pow_dens_wp>{1,1}</pow_dens_wp>
</structure>
Source

<xs:element name="structure" type="tf_structure">
  <xs:annotation>
    <xs:documentation>TF coil structure</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
</xs:element>
Complex Type tf_desc_tfcoils
Namespace No namespace
Annotations

Description of the toroidal field coils
Diagram
Diagram toroidalfield_xsd.tmp#tf_desc_tfcoils_type toroidalfield_xsd.tmp#tf_desc_tfcoils_phi toroidalfield_xsd.tmp#tf_desc_tfcoils_circularcoil toroidalfield_xsd.tmp#tf_desc_tfcoils_planecoil toroidalfield_xsd.tmp#tf_desc_tfcoils_inboard toroidalfield_xsd.tmp#tf_desc_tfcoils_outboard
Used by
Model
Children circularcoil, inboard, outboard, phi, planecoil, type
Source

<xs:complexType name="tf_desc_tfcoils">
  <xs:annotation>
    <xs:documentation>Description of the toroidal field coils</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="type" type="xs:integer">
      <xs:annotation>
        <xs:documentation>Type of coil, 0=circular coil, 1=plane coil with arbitrary shape.</xs:documentation>
        <xs:appinfo>machine description</xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element name="phi" type="xs:float">
      <xs:annotation>
        <xs:documentation>Toroidal angle of centre of coil 1, assuming all coils are identical and evenly distributed around the torus [rad]. Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="circularcoil">
      <xs:annotation>
        <xs:documentation>Circular coil description</xs:documentation>
        <xs:appinfo>machine description</xs:appinfo>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="centre" type="rz0D">
            <xs:annotation>
              <xs:documentation>Circular coil centre</xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="hlength" type="xs:float">
            <xs:annotation>
              <xs:documentation>Half length along coil axis [m]</xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="radialhwidth" type="xs:float">
            <xs:annotation>
              <xs:documentation>Half width, (outer radius-inner radius)/2 [m]</xs:documentation>
            </xs:annotation>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="planecoil">
      <xs:annotation>
        <xs:documentation>Plane coil description</xs:documentation>
        <xs:appinfo>machine description</xs:appinfo>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="coordinates" type="rz1D">
            <xs:annotation>
              <xs:documentation>Coordinate points of centre of conductor; vectors(nelements)</xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="hlength" type="vecflt_type">
            <xs:annotation>
              <xs:documentation>Half length perpendicular to plane where coil is defined; vector(nelements) [m].</xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="radialhwidth" type="vecflt_type">
            <xs:annotation>
              <xs:documentation>Half width, (outer contour-inner contour)/2; vector(nelements) [m].</xs:documentation>
            </xs:annotation>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="inboard" type="tf_structure">
      <xs:annotation>
        <xs:documentation>Description of TF inboard structure</xs:documentation>
        <xs:appinfo>machine description</xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element name="outboard" type="tf_structure">
      <xs:annotation>
        <xs:documentation>Description of TF outboard structure</xs:documentation>
        <xs:appinfo>machine description</xs:appinfo>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type tf_structure
Namespace No namespace
Annotations

Inner TF coil structure
Diagram
Diagram toroidalfield_xsd.tmp#tf_structure_jcable toroidalfield_xsd.tmp#tf_structure_tisotf toroidalfield_xsd.tmp#tf_structure_efcasing toroidalfield_xsd.tmp#tf_structure_escasing toroidalfield_xsd.tmp#tf_structure_sigjackettf toroidalfield_xsd.tmp#tf_structure_sigvaulttf toroidalfield_xsd.tmp#tf_structure_ktf toroidalfield_xsd.tmp#tf_structure_ritf toroidalfield_xsd.tmp#tf_structure_riitf toroidalfield_xsd.tmp#tf_structure_retf toroidalfield_xsd.tmp#tf_structure_he_fraction toroidalfield_xsd.tmp#tf_structure_ss_fraction toroidalfield_xsd.tmp#tf_structure_pow_dens_wp
Used by
Model
Children efcasing, escasing, he_fraction, jcable, ktf, pow_dens_wp, retf, riitf, ritf, sigjackettf, sigvaulttf, ss_fraction, tisotf
Source

<xs:complexType name="tf_structure">
  <xs:annotation>
    <xs:documentation>Inner TF coil structure</xs:documentation>
    <xs:appinfo>machine description</xs:appinfo>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="jcable" type="xs:float">
      <xs:annotation>
        <xs:documentation>CICS cable in current density [A/m²]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="tisotf" type="xs:float">
      <xs:annotation>
        <xs:documentation>Insulation thickness of TF conductor [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="efcasing" type="xs:float">
      <xs:annotation>
        <xs:documentation>Thickness front casing [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="escasing" type="xs:float">
      <xs:annotation>
        <xs:documentation>Thickness side casing [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="sigjackettf" type="xs:float">
      <xs:annotation>
        <xs:documentation>Jacket stress limit [Pa]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="sigvaulttf" type="xs:float">
      <xs:annotation>
        <xs:documentation>Vault stress limit [Pa]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ktf" type="xs:float">
      <xs:annotation>
        <xs:documentation>Amplification factor for magnetic field</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ritf" type="xs:float">
      <xs:annotation>
        <xs:documentation>Internal TF coil radius [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="riitf" type="xs:float">
      <xs:annotation>
        <xs:documentation>Internal vault TF coil radius [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="retf" type="xs:float">
      <xs:annotation>
        <xs:documentation>External TF coil radius [m]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="he_fraction" type="xs:float">
      <xs:annotation>
        <xs:documentation>Helium fraction (percentage) in TF structure infront of winding package [-]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ss_fraction" type="xs:float">
      <xs:annotation>
        <xs:documentation>Stainless steel 316 fraction (percentage) in TF structure infront of winding package [-]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="pow_dens_wp" type="xs:float">
      <xs:annotation>
        <xs:documentation>Peak energy depostion in winding pack [W.m^-3]; Scalar</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type tf_desc_tfcoils_board
Namespace No namespace
Annotations

Description of TF inboard/outboard properties
Diagram
Diagram toroidalfield_xsd.tmp#tf_desc_tfcoils_board_structure
Model
Children structure
Source

<xs:complexType name="tf_desc_tfcoils_board">
  <xs:annotation>
    <xs:documentation>Description of TF inboard/outboard properties</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="structure" type="tf_structure">
      <xs:annotation>
        <xs:documentation>TF coil structure</xs:documentation>
        <xs:appinfo>machine description</xs:appinfo>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
XML Schema documentation generated by ® XML Editor.
