Element eqgeometry
Namespace No namespace
Annotations

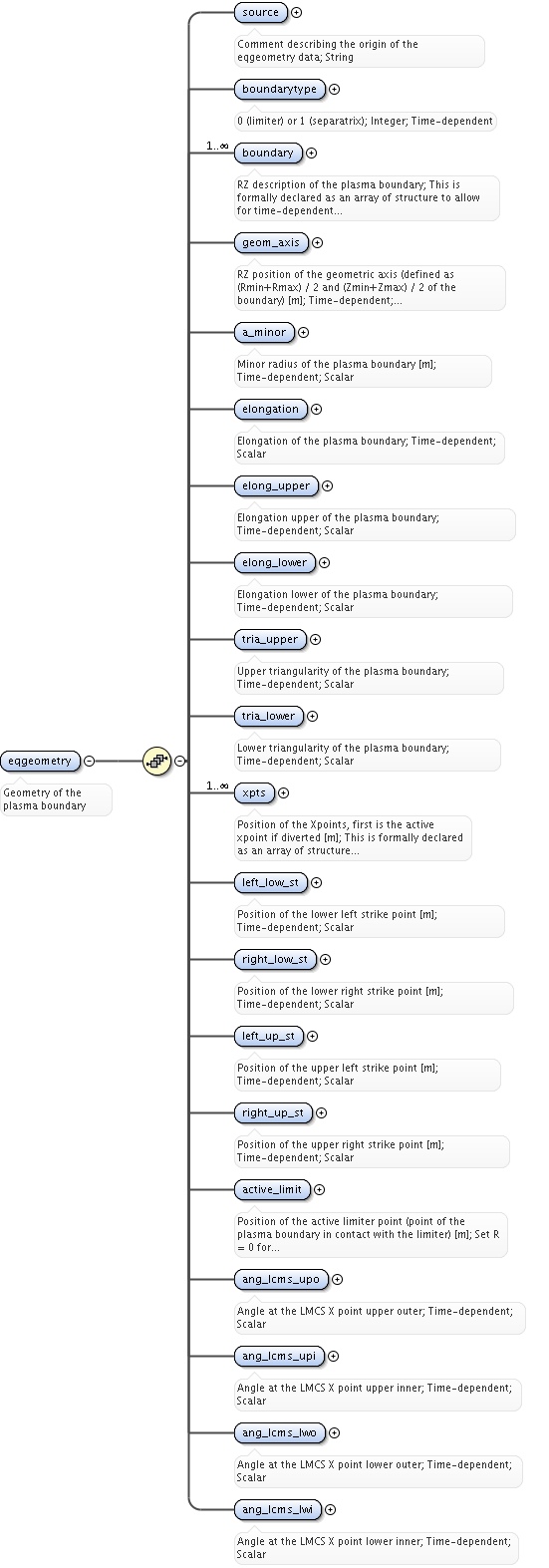

Geometry of the plasma boundary
Diagram
Diagram eqgeometry_xsd.tmp#eqgeometry_source eqgeometry_xsd.tmp#eqgeometry_boundarytype eqgeometry_xsd.tmp#eqgeometry_boundary eqgeometry_xsd.tmp#eqgeometry_geom_axis eqgeometry_xsd.tmp#eqgeometry_a_minor eqgeometry_xsd.tmp#eqgeometry_elongation eqgeometry_xsd.tmp#eqgeometry_elong_upper eqgeometry_xsd.tmp#eqgeometry_elong_lower eqgeometry_xsd.tmp#eqgeometry_tria_upper eqgeometry_xsd.tmp#eqgeometry_tria_lower eqgeometry_xsd.tmp#eqgeometry_xpts eqgeometry_xsd.tmp#eqgeometry_left_low_st eqgeometry_xsd.tmp#eqgeometry_right_low_st eqgeometry_xsd.tmp#eqgeometry_left_up_st eqgeometry_xsd.tmp#eqgeometry_right_up_st eqgeometry_xsd.tmp#eqgeometry_active_limit eqgeometry_xsd.tmp#eqgeometry_ang_lcms_upo eqgeometry_xsd.tmp#eqgeometry_ang_lcms_upi eqgeometry_xsd.tmp#eqgeometry_ang_lcms_lwo eqgeometry_xsd.tmp#eqgeometry_ang_lcms_lwi
Properties
content complex
Used by
Elements equilibrium, scenario
Model
Children a_minor, active_limit, ang_lcms_lwi, ang_lcms_lwo, ang_lcms_upi, ang_lcms_upo, boundary, boundarytype, elong_lower, elong_upper, elongation, geom_axis, left_low_st, left_up_st, right_low_st, right_up_st, source, tria_lower, tria_upper, xpts
Instance

<eqgeometry>
  <source>{1,1}</source>
  <boundarytype>{1,1}</boundarytype>
  <boundary>{1,unbounded}</boundary>
  <geom_axis>{1,1}</geom_axis>
  <a_minor>{1,1}</a_minor>
  <elongation>{1,1}</elongation>
  <elong_upper>{1,1}</elong_upper>
  <elong_lower>{1,1}</elong_lower>
  <tria_upper>{1,1}</tria_upper>
  <tria_lower>{1,1}</tria_lower>
  <xpts>{1,unbounded}</xpts>
  <left_low_st>{1,1}</left_low_st>
  <right_low_st>{1,1}</right_low_st>
  <left_up_st>{1,1}</left_up_st>
  <right_up_st>{1,1}</right_up_st>
  <active_limit>{1,1}</active_limit>
  <ang_lcms_upo>{1,1}</ang_lcms_upo>
  <ang_lcms_upi>{1,1}</ang_lcms_upi>
  <ang_lcms_lwo>{1,1}</ang_lcms_lwo>
  <ang_lcms_lwi>{1,1}</ang_lcms_lwi>
</eqgeometry>
Source

<xs:element name="eqgeometry">
  <xs:annotation>
    <xs:documentation>Geometry of the plasma boundary</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="source" type="xs:string">
        <xs:annotation>
          <xs:documentation>Comment describing the origin of the eqgeometry data; String</xs:documentation>
          <xs:appinfo>experimental</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="boundarytype" type="xs:integer">
        <xs:annotation>
          <xs:documentation>0 (limiter) or 1 (separatrix); Integer; Time-dependent</xs:documentation>
          <xs:appinfo>experimental</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="boundary" type="rz1Dexp" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>RZ description of the plasma boundary; This is formally declared as an array of structure to allow for time-dependent size of the R and Z vectors in the sub-structure below. However, boundary must be allocated to size 1. Time-dependent;</xs:documentation>
          <xs:appinfo>experimental</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="geom_axis" type="rz0D">
        <xs:annotation>
          <xs:documentation>RZ position of the geometric axis (defined as (Rmin+Rmax) / 2 and (Zmin+Zmax) / 2 of the boundary) [m]; Time-dependent; Scalar</xs:documentation>
          <xs:appinfo>experimental</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="a_minor" type="xs:float" default="0.0">
        <xs:annotation>
          <xs:documentation>Minor radius of the plasma boundary [m]; Time-dependent; Scalar</xs:documentation>
          <xs:appinfo>experimental</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="elongation" type="xs:float" default="0.0">
        <xs:annotation>
          <xs:documentation>Elongation of the plasma boundary; Time-dependent; Scalar</xs:documentation>
          <xs:appinfo>experimental</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="elong_upper" type="xs:float" default="0.0">
        <xs:annotation>
          <xs:documentation>Elongation upper of the plasma boundary; Time-dependent; Scalar</xs:documentation>
          <xs:appinfo>experimental</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="elong_lower" type="xs:float" default="0.0">
        <xs:annotation>
          <xs:documentation>Elongation lower of the plasma boundary; Time-dependent; Scalar</xs:documentation>
          <xs:appinfo>experimental</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="tria_upper" type="xs:float" default="0.0">
        <xs:annotation>
          <xs:documentation>Upper triangularity of the plasma boundary; Time-dependent; Scalar</xs:documentation>
          <xs:appinfo>experimental</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="tria_lower" type="xs:float" default="0.0">
        <xs:annotation>
          <xs:documentation>Lower triangularity of the plasma boundary; Time-dependent; Scalar</xs:documentation>
          <xs:appinfo>experimental</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="xpts" type="rz1Dexp" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>Position of the Xpoints, first is the active xpoint if diverted [m]; This is formally declared as an array of structure to allow for time-dependent size of the R and Z vectors in the sub-structure below. However, xpts must be allocated to size 1. Time-dependent;</xs:documentation>
          <xs:appinfo>experimental</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="left_low_st" type="rz0D">
        <xs:annotation>
          <xs:documentation>Position of the lower left strike point [m]; Time-dependent; Scalar</xs:documentation>
          <xs:appinfo>experimental</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="right_low_st" type="rz0D">
        <xs:annotation>
          <xs:documentation>Position of the lower right strike point [m]; Time-dependent; Scalar</xs:documentation>
          <xs:appinfo>experimental</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="left_up_st" type="rz0D">
        <xs:annotation>
          <xs:documentation>Position of the upper left strike point [m]; Time-dependent; Scalar</xs:documentation>
          <xs:appinfo>experimental</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="right_up_st" type="rz0D">
        <xs:annotation>
          <xs:documentation>Position of the upper right strike point [m]; Time-dependent; Scalar</xs:documentation>
          <xs:appinfo>experimental</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="active_limit" type="rz0D">
        <xs:annotation>
          <xs:documentation>Position of the active limiter point (point of the plasma boundary in contact with the limiter) [m]; Set R = 0 for X-point plasma; Time-dependent; Scalar</xs:documentation>
          <xs:appinfo>experimental</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="ang_lcms_upo" type="xs:float">
        <xs:annotation>
          <xs:documentation>Angle at the LMCS X point upper outer; Time-dependent; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="ang_lcms_upi" type="xs:float">
        <xs:annotation>
          <xs:documentation>Angle at the LMCS X point upper inner; Time-dependent; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="ang_lcms_lwo" type="xs:float">
        <xs:annotation>
          <xs:documentation>Angle at the LMCS X point lower outer; Time-dependent; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="ang_lcms_lwi" type="xs:float">
        <xs:annotation>
          <xs:documentation>Angle at the LMCS X point lower inner; Time-dependent; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element eqgeometry / source
Namespace No namespace
Annotations

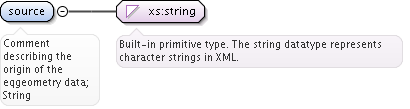

Comment describing the origin of the eqgeometry data; String
Diagram
Diagram
Type xs:string
Properties
content simple
Source

<xs:element name="source" type="xs:string">
  <xs:annotation>
    <xs:documentation>Comment describing the origin of the eqgeometry data; String</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element eqgeometry / boundarytype
Namespace No namespace
Annotations

0 (limiter) or 1 (separatrix); Integer; Time-dependent
Diagram
Diagram
Type xs:integer
Properties
content simple
Source

<xs:element name="boundarytype" type="xs:integer">
  <xs:annotation>
    <xs:documentation>0 (limiter) or 1 (separatrix); Integer; Time-dependent</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element eqgeometry / boundary
Namespace No namespace
Annotations

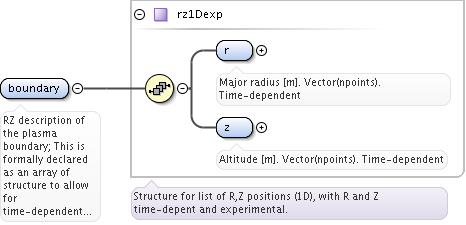

RZ description of the plasma boundary; This is formally declared as an array of structure to allow for time-dependent size of the R and Z vectors in the sub-structure below. However, boundary must be allocated to size 1. Time-dependent;
Diagram
Diagram utilities_xsd.tmp#rz1Dexp_r utilities_xsd.tmp#rz1Dexp_z utilities_xsd.tmp#rz1Dexp
Type rz1Dexp
Properties
content complex
maxOccurs unbounded
Model
r , z
Children r, z
Instance

<boundary>
  <r>{1,1}</r>
  <z>{1,1}</z>
</boundary>
Source

<xs:element name="boundary" type="rz1Dexp" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>RZ description of the plasma boundary; This is formally declared as an array of structure to allow for time-dependent size of the R and Z vectors in the sub-structure below. However, boundary must be allocated to size 1. Time-dependent;</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element eqgeometry / geom_axis
Namespace No namespace
Annotations

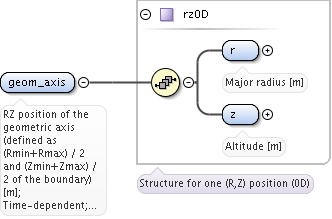

RZ position of the geometric axis (defined as (Rmin+Rmax) / 2 and (Zmin+Zmax) / 2 of the boundary) [m]; Time-dependent; Scalar
Diagram
Diagram utilities_xsd.tmp#rz0D_r utilities_xsd.tmp#rz0D_z utilities_xsd.tmp#rz0D
Type rz0D
Properties
content complex
Model
r , z
Children r, z
Instance

<geom_axis>
  <r>{1,1}</r>
  <z>{1,1}</z>
</geom_axis>
Source

<xs:element name="geom_axis" type="rz0D">
  <xs:annotation>
    <xs:documentation>RZ position of the geometric axis (defined as (Rmin+Rmax) / 2 and (Zmin+Zmax) / 2 of the boundary) [m]; Time-dependent; Scalar</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element eqgeometry / a_minor
Namespace No namespace
Annotations

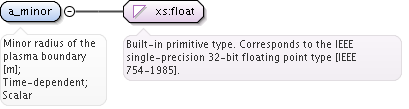

Minor radius of the plasma boundary [m]; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
default 0.0
Source

<xs:element name="a_minor" type="xs:float" default="0.0">
  <xs:annotation>
    <xs:documentation>Minor radius of the plasma boundary [m]; Time-dependent; Scalar</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element eqgeometry / elongation
Namespace No namespace
Annotations

Elongation of the plasma boundary; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
default 0.0
Source

<xs:element name="elongation" type="xs:float" default="0.0">
  <xs:annotation>
    <xs:documentation>Elongation of the plasma boundary; Time-dependent; Scalar</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element eqgeometry / elong_upper
Namespace No namespace
Annotations

Elongation upper of the plasma boundary; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
default 0.0
Source

<xs:element name="elong_upper" type="xs:float" default="0.0">
  <xs:annotation>
    <xs:documentation>Elongation upper of the plasma boundary; Time-dependent; Scalar</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element eqgeometry / elong_lower
Namespace No namespace
Annotations

Elongation lower of the plasma boundary; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
default 0.0
Source

<xs:element name="elong_lower" type="xs:float" default="0.0">
  <xs:annotation>
    <xs:documentation>Elongation lower of the plasma boundary; Time-dependent; Scalar</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element eqgeometry / tria_upper
Namespace No namespace
Annotations

Upper triangularity of the plasma boundary; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
default 0.0
Source

<xs:element name="tria_upper" type="xs:float" default="0.0">
  <xs:annotation>
    <xs:documentation>Upper triangularity of the plasma boundary; Time-dependent; Scalar</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element eqgeometry / tria_lower
Namespace No namespace
Annotations

Lower triangularity of the plasma boundary; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
default 0.0
Source

<xs:element name="tria_lower" type="xs:float" default="0.0">
  <xs:annotation>
    <xs:documentation>Lower triangularity of the plasma boundary; Time-dependent; Scalar</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element eqgeometry / xpts
Namespace No namespace
Annotations

Position of the Xpoints, first is the active xpoint if diverted [m]; This is formally declared as an array of structure to allow for time-dependent size of the R and Z vectors in the sub-structure below. However, xpts must be allocated to size 1. Time-dependent;
Diagram
Diagram utilities_xsd.tmp#rz1Dexp_r utilities_xsd.tmp#rz1Dexp_z utilities_xsd.tmp#rz1Dexp
Type rz1Dexp
Properties
content complex
maxOccurs unbounded
Model
r , z
Children r, z
Instance

<xpts>
  <r>{1,1}</r>
  <z>{1,1}</z>
</xpts>
Source

<xs:element name="xpts" type="rz1Dexp" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Position of the Xpoints, first is the active xpoint if diverted [m]; This is formally declared as an array of structure to allow for time-dependent size of the R and Z vectors in the sub-structure below. However, xpts must be allocated to size 1. Time-dependent;</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>

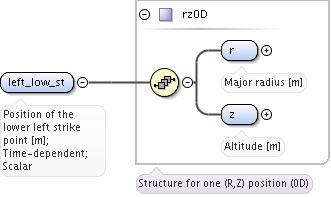

Element eqgeometry / left_low_st
Namespace No namespace
Annotations

Position of the lower left strike point [m]; Time-dependent; Scalar
Diagram
Diagram utilities_xsd.tmp#rz0D_r utilities_xsd.tmp#rz0D_z utilities_xsd.tmp#rz0D
Type rz0D
Properties
content complex
Model
r , z
Children r, z
Instance

<left_low_st>
  <r>{1,1}</r>
  <z>{1,1}</z>
</left_low_st>
Source

<xs:element name="left_low_st" type="rz0D">
  <xs:annotation>
    <xs:documentation>Position of the lower left strike point [m]; Time-dependent; Scalar</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element eqgeometry / right_low_st
Namespace No namespace
Annotations

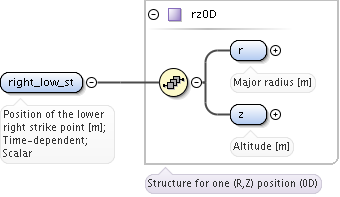

Position of the lower right strike point [m]; Time-dependent; Scalar
Diagram
Diagram utilities_xsd.tmp#rz0D_r utilities_xsd.tmp#rz0D_z utilities_xsd.tmp#rz0D
Type rz0D
Properties
content complex
Model
r , z
Children r, z
Instance

<right_low_st>
  <r>{1,1}</r>
  <z>{1,1}</z>
</right_low_st>
Source

<xs:element name="right_low_st" type="rz0D">
  <xs:annotation>
    <xs:documentation>Position of the lower right strike point [m]; Time-dependent; Scalar</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element eqgeometry / left_up_st
Namespace No namespace
Annotations

Position of the upper left strike point [m]; Time-dependent; Scalar
Diagram
Diagram utilities_xsd.tmp#rz0D_r utilities_xsd.tmp#rz0D_z utilities_xsd.tmp#rz0D
Type rz0D
Properties
content complex
Model
r , z
Children r, z
Instance

<left_up_st>
  <r>{1,1}</r>
  <z>{1,1}</z>
</left_up_st>
Source

<xs:element name="left_up_st" type="rz0D">
  <xs:annotation>
    <xs:documentation>Position of the upper left strike point [m]; Time-dependent; Scalar</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element eqgeometry / right_up_st
Namespace No namespace
Annotations

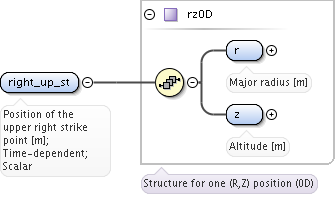

Position of the upper right strike point [m]; Time-dependent; Scalar
Diagram
Diagram utilities_xsd.tmp#rz0D_r utilities_xsd.tmp#rz0D_z utilities_xsd.tmp#rz0D
Type rz0D
Properties
content complex
Model
r , z
Children r, z
Instance

<right_up_st>
  <r>{1,1}</r>
  <z>{1,1}</z>
</right_up_st>
Source

<xs:element name="right_up_st" type="rz0D">
  <xs:annotation>
    <xs:documentation>Position of the upper right strike point [m]; Time-dependent; Scalar</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element eqgeometry / active_limit
Namespace No namespace
Annotations

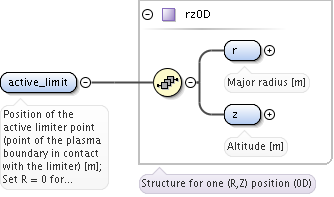

Position of the active limiter point (point of the plasma boundary in contact with the limiter) [m]; Set R = 0 for X-point plasma; Time-dependent; Scalar
Diagram
Diagram utilities_xsd.tmp#rz0D_r utilities_xsd.tmp#rz0D_z utilities_xsd.tmp#rz0D
Type rz0D
Properties
content complex
Model
r , z
Children r, z
Instance

<active_limit>
  <r>{1,1}</r>
  <z>{1,1}</z>
</active_limit>
Source

<xs:element name="active_limit" type="rz0D">
  <xs:annotation>
    <xs:documentation>Position of the active limiter point (point of the plasma boundary in contact with the limiter) [m]; Set R = 0 for X-point plasma; Time-dependent; Scalar</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element eqgeometry / ang_lcms_upo
Namespace No namespace
Annotations

Angle at the LMCS X point upper outer; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="ang_lcms_upo" type="xs:float">
  <xs:annotation>
    <xs:documentation>Angle at the LMCS X point upper outer; Time-dependent; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Element eqgeometry / ang_lcms_upi
Namespace No namespace
Annotations

Angle at the LMCS X point upper inner; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="ang_lcms_upi" type="xs:float">
  <xs:annotation>
    <xs:documentation>Angle at the LMCS X point upper inner; Time-dependent; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Element eqgeometry / ang_lcms_lwo
Namespace No namespace
Annotations

Angle at the LMCS X point lower outer; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="ang_lcms_lwo" type="xs:float">
  <xs:annotation>
    <xs:documentation>Angle at the LMCS X point lower outer; Time-dependent; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Element eqgeometry / ang_lcms_lwi
Namespace No namespace
Annotations

Angle at the LMCS X point lower inner; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="ang_lcms_lwi" type="xs:float">
  <xs:annotation>
    <xs:documentation>Angle at the LMCS X point lower inner; Time-dependent; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
XML Schema documentation generated by ® XML Editor.
