Included schema equilibrium.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default qualified

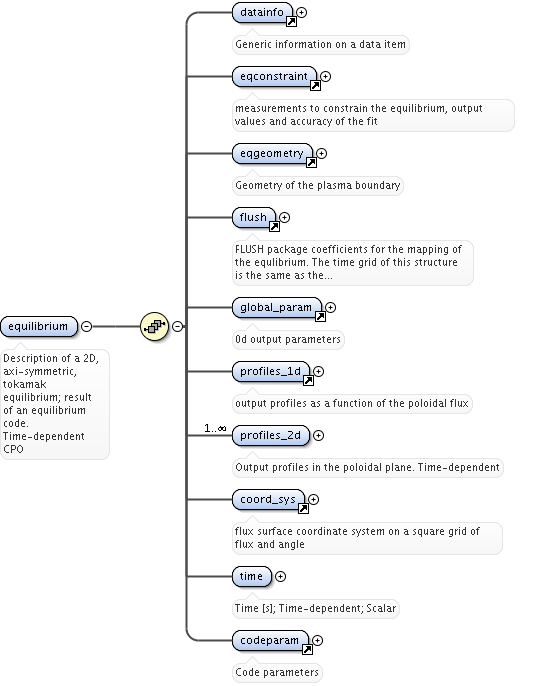

Element equilibrium
Namespace No namespace
Annotations

Description of a 2D, axi-symmetric, tokamak equilibrium; result of an equilibrium code. Time-dependent CPO
Diagram
Diagram utilities_xsd.tmp#datainfo eqconstraint_xsd.tmp#eqconstraint eqgeometry_xsd.tmp#eqgeometry flush_xsd.tmp#flush eqglobal_xsd.tmp#global_param eqprofiles_xsd.tmp#profiles_1d equilibrium_xsd.tmp#equilibrium_profiles_2d eqcoord_sys_xsd.tmp#coord_sys equilibrium_xsd.tmp#equilibrium_time utilities_xsd.tmp#codeparam
Properties
content complex
Used by
Element top
Model
Children codeparam, coord_sys, datainfo, eqconstraint, eqgeometry, flush, global_param, profiles_1d, profiles_2d, time
Instance

<equilibrium>
  <datainfo>{1,1}</datainfo>
  <eqconstraint>{1,1}</eqconstraint>
  <eqgeometry>{1,1}</eqgeometry>
  <flush>{1,1}</flush>
  <global_param>{1,1}</global_param>
  <profiles_1d>{1,1}</profiles_1d>
  <profiles_2d>{1,unbounded}</profiles_2d>
  <coord_sys>{1,1}</coord_sys>
  <time>{1,1}</time>
  <codeparam>{1,1}</codeparam>
</equilibrium>
Source

<xs:element name="equilibrium">
  <xs:annotation>
    <xs:documentation>Description of a 2D, axi-symmetric, tokamak equilibrium; result of an equilibrium code. Time-dependent CPO</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="datainfo"/>
      <xs:element ref="eqconstraint"/>
      <xs:element ref="eqgeometry"/>
      <xs:element ref="flush"/>
      <xs:element ref="global_param"/>
      <xs:element ref="profiles_1d"/>
      <xs:element name="profiles_2d" type="equilibrium_profiles_2d" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>Output profiles in the poloidal plane. Time-dependent</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element ref="coord_sys"/>
      <xs:element name="time" type="xs:float" default="0.0">
        <xs:annotation>
          <xs:documentation>Time [s]; Time-dependent; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element ref="codeparam"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

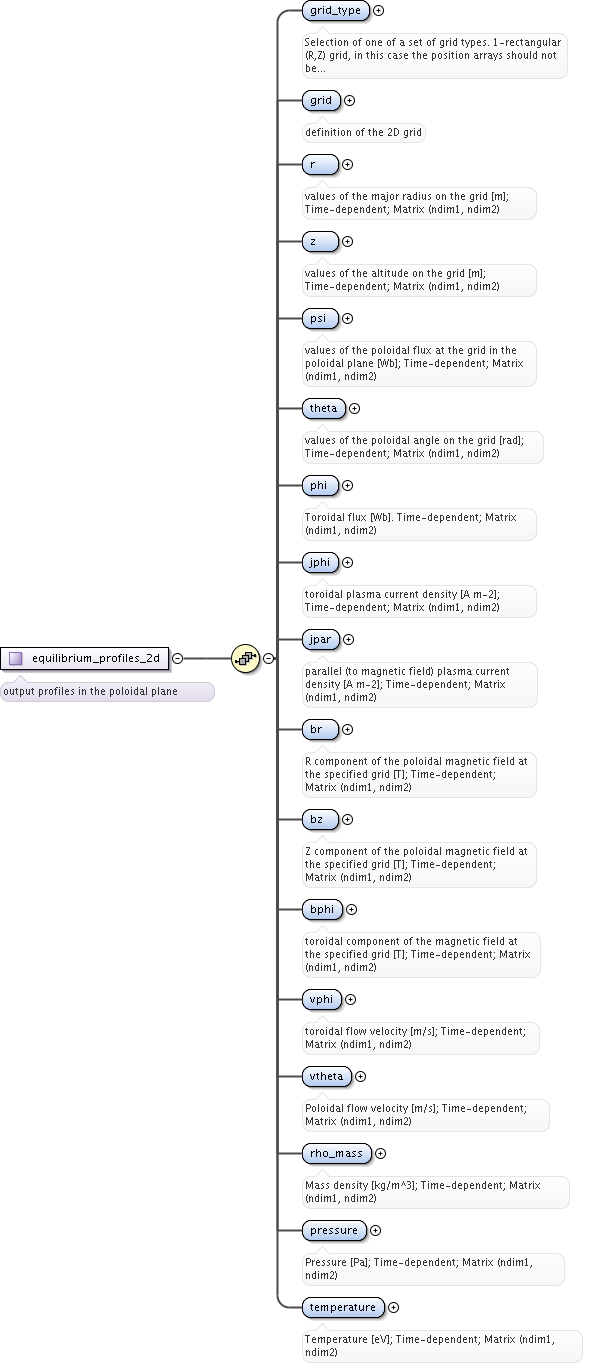

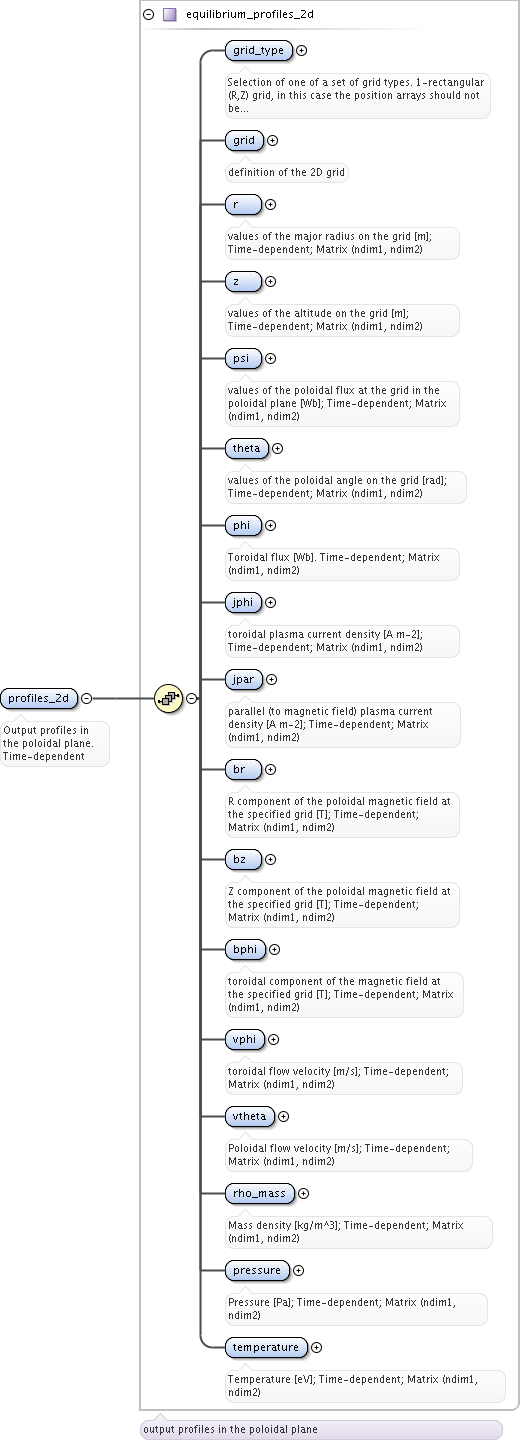

Element equilibrium / profiles_2d
Namespace No namespace
Annotations

Output profiles in the poloidal plane. Time-dependent
Diagram
Diagram equilibrium_xsd.tmp#NO_NAMESPACE_equilibrium_profiles_2d_grid_type equilibrium_xsd.tmp#NO_NAMESPACE_equilibrium_profiles_2d_grid equilibrium_xsd.tmp#NO_NAMESPACE_equilibrium_profiles_2d_r equilibrium_xsd.tmp#NO_NAMESPACE_equilibrium_profiles_2d_z equilibrium_xsd.tmp#NO_NAMESPACE_equilibrium_profiles_2d_psi equilibrium_xsd.tmp#NO_NAMESPACE_equilibrium_profiles_2d_theta equilibrium_xsd.tmp#NO_NAMESPACE_equilibrium_profiles_2d_phi equilibrium_xsd.tmp#NO_NAMESPACE_equilibrium_profiles_2d_jphi equilibrium_xsd.tmp#NO_NAMESPACE_equilibrium_profiles_2d_jpar equilibrium_xsd.tmp#NO_NAMESPACE_equilibrium_profiles_2d_br equilibrium_xsd.tmp#NO_NAMESPACE_equilibrium_profiles_2d_bz equilibrium_xsd.tmp#NO_NAMESPACE_equilibrium_profiles_2d_bphi equilibrium_xsd.tmp#NO_NAMESPACE_equilibrium_profiles_2d_vphi equilibrium_xsd.tmp#NO_NAMESPACE_equilibrium_profiles_2d_vtheta equilibrium_xsd.tmp#NO_NAMESPACE_equilibrium_profiles_2d_rho_mass equilibrium_xsd.tmp#NO_NAMESPACE_equilibrium_profiles_2d_pressure equilibrium_xsd.tmp#NO_NAMESPACE_equilibrium_profiles_2d_temperature equilibrium_xsd.tmp#NO_NAMESPACE_equilibrium_profiles_2d
Type equilibrium_profiles_2d
Properties
content complex
maxOccurs unbounded
Model
Children bphi, br, bz, grid, grid_type, jpar, jphi, phi, pressure, psi, r, rho_mass, temperature, theta, vphi, vtheta, z
Instance

<profiles_2d>
  <grid_type>{1,1}</grid_type>
  <grid>{1,1}</grid>
  <r>{1,1}</r>
  <z>{1,1}</z>
  <psi>{1,1}</psi>
  <theta>{1,1}</theta>
  <phi>{1,1}</phi>
  <jphi>{1,1}</jphi>
  <jpar>{1,1}</jpar>
  <br>{1,1}</br>
  <bz>{1,1}</bz>
  <bphi>{1,1}</bphi>
  <vphi>{1,1}</vphi>
  <vtheta>{1,1}</vtheta>
  <rho_mass>{1,1}</rho_mass>
  <pressure>{1,1}</pressure>
  <temperature>{1,1}</temperature>
</profiles_2d>
Source

<xs:element name="profiles_2d" type="equilibrium_profiles_2d" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Output profiles in the poloidal plane. Time-dependent</xs:documentation>
  </xs:annotation>
</xs:element>
Element equilibrium_profiles_2d / grid_type
Namespace No namespace
Annotations

Selection of one of a set of grid types. 1-rectangular (R,Z) grid, in this case the position arrays should not be filled since they are redundant with grid/dim1 and dim2.
Diagram
Diagram utilities_xsd.tmp#vecstring_type
Type vecstring_type
Properties
content simple
Source

<xs:element name="grid_type" type="vecstring_type">
  <xs:annotation>
    <xs:documentation>Selection of one of a set of grid types. 1-rectangular (R,Z) grid, in this case the position arrays should not be filled since they are redundant with grid/dim1 and dim2.</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>

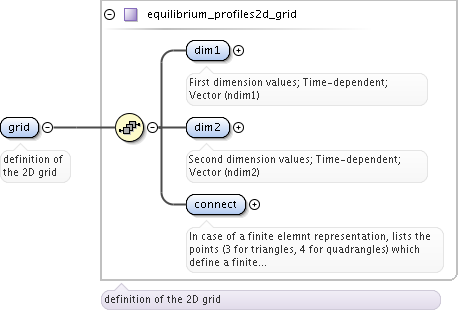

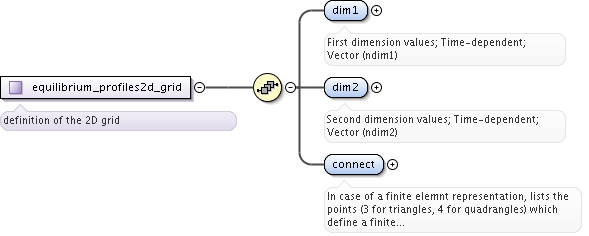

Element equilibrium_profiles_2d / grid
Namespace No namespace
Annotations

definition of the 2D grid
Diagram
Diagram equilibrium_xsd.tmp#equilibrium_profiles2d_grid_dim1 equilibrium_xsd.tmp#equilibrium_profiles2d_grid_dim2 equilibrium_xsd.tmp#equilibrium_profiles2d_grid_connect equilibrium_xsd.tmp#equilibrium_profiles2d_grid
Type equilibrium_profiles2d_grid
Properties
content complex
Model
Children connect, dim1, dim2
Instance

<grid>
  <dim1>{1,1}</dim1>
  <dim2>{1,1}</dim2>
  <connect>{1,1}</connect>
</grid>
Source

<xs:element name="grid" type="equilibrium_profiles2d_grid">
  <xs:annotation>
    <xs:documentation>definition of the 2D grid</xs:documentation>
  </xs:annotation>
</xs:element>
Element equilibrium_profiles2d_grid / dim1
Namespace No namespace
Annotations

First dimension values; Time-dependent; Vector (ndim1)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="dim1" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>First dimension values; Time-dependent; Vector (ndim1)</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element equilibrium_profiles2d_grid / dim2
Namespace No namespace
Annotations

Second dimension values; Time-dependent; Vector (ndim2)
Diagram
Diagram utilities_xsd.tmp#vecflt_type
Type vecflt_type
Properties
content simple
final restriction
Source

<xs:element name="dim2" type="vecflt_type">
  <xs:annotation>
    <xs:documentation>Second dimension values; Time-dependent; Vector (ndim2)</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element equilibrium_profiles2d_grid / connect
Namespace No namespace
Annotations

In case of a finite elemnt representation, lists the points (3 for triangles, 4 for quadrangles) which define a finite element. In this case, ndim1=ndim2 and the value of grid_connect represents the index of the points in the list 1:ndim. E.g. : grid_connect(i,1:4) is a list of four integers [k1 k2 k3 k4] meaning that finite element #i is defined by the points (dim1(k1),dim2(k1)),(dim1(k2),dim2(k2)),(dim1(k3),dim2(k3)) and (dim1(k4),dim2(k4)); Time-dependent; Matrix of integers (nelement,4)
Diagram
Diagram utilities_xsd.tmp#matint_type
Type matint_type
Properties
content simple
final restriction
Source

<xs:element name="connect" type="matint_type">
  <xs:annotation>
    <xs:documentation>In case of a finite elemnt representation, lists the points (3 for triangles, 4 for quadrangles) which define a finite element. In this case, ndim1=ndim2 and the value of grid_connect represents the index of the points in the list 1:ndim. E.g. : grid_connect(i,1:4) is a list of four integers [k1 k2 k3 k4] meaning that finite element #i is defined by the points (dim1(k1),dim2(k1)),(dim1(k2),dim2(k2)),(dim1(k3),dim2(k3)) and (dim1(k4),dim2(k4)); Time-dependent; Matrix of integers (nelement,4)</xs:documentation>
  </xs:annotation>
</xs:element>
Element equilibrium_profiles_2d / r
Namespace No namespace
Annotations

values of the major radius on the grid [m]; Time-dependent; Matrix (ndim1, ndim2)
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="r" type="matflt_type">
  <xs:annotation>
    <xs:documentation>values of the major radius on the grid [m]; Time-dependent; Matrix (ndim1, ndim2)</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element equilibrium_profiles_2d / z
Namespace No namespace
Annotations

values of the altitude on the grid [m]; Time-dependent; Matrix (ndim1, ndim2)
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="z" type="matflt_type">
  <xs:annotation>
    <xs:documentation>values of the altitude on the grid [m]; Time-dependent; Matrix (ndim1, ndim2)</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element equilibrium_profiles_2d / psi
Namespace No namespace
Annotations

values of the poloidal flux at the grid in the poloidal plane [Wb]; Time-dependent; Matrix (ndim1, ndim2)
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="psi" type="matflt_type">
  <xs:annotation>
    <xs:documentation>values of the poloidal flux at the grid in the poloidal plane [Wb]; Time-dependent; Matrix (ndim1, ndim2)</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element equilibrium_profiles_2d / theta
Namespace No namespace
Annotations

values of the poloidal angle on the grid [rad]; Time-dependent; Matrix (ndim1, ndim2)
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="theta" type="matflt_type">
  <xs:annotation>
    <xs:documentation>values of the poloidal angle on the grid [rad]; Time-dependent; Matrix (ndim1, ndim2)</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element equilibrium_profiles_2d / phi
Namespace No namespace
Annotations

Toroidal flux [Wb]. Time-dependent; Matrix (ndim1, ndim2)
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="phi" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Toroidal flux [Wb]. Time-dependent; Matrix (ndim1, ndim2)</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element equilibrium_profiles_2d / jphi
Namespace No namespace
Annotations

toroidal plasma current density [A m-2]; Time-dependent; Matrix (ndim1, ndim2)
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="jphi" type="matflt_type">
  <xs:annotation>
    <xs:documentation>toroidal plasma current density [A m-2]; Time-dependent; Matrix (ndim1, ndim2)</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element equilibrium_profiles_2d / jpar
Namespace No namespace
Annotations

parallel (to magnetic field) plasma current density [A m-2]; Time-dependent; Matrix (ndim1, ndim2)
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="jpar" type="matflt_type">
  <xs:annotation>
    <xs:documentation>parallel (to magnetic field) plasma current density [A m-2]; Time-dependent; Matrix (ndim1, ndim2)</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element equilibrium_profiles_2d / br
Namespace No namespace
Annotations

R component of the poloidal magnetic field at the specified grid [T]; Time-dependent; Matrix (ndim1, ndim2)
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="br" type="matflt_type">
  <xs:annotation>
    <xs:documentation>R component of the poloidal magnetic field at the specified grid [T]; Time-dependent; Matrix (ndim1, ndim2)</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element equilibrium_profiles_2d / bz
Namespace No namespace
Annotations

Z component of the poloidal magnetic field at the specified grid [T]; Time-dependent; Matrix (ndim1, ndim2)
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="bz" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Z component of the poloidal magnetic field at the specified grid [T]; Time-dependent; Matrix (ndim1, ndim2)</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element equilibrium_profiles_2d / bphi
Namespace No namespace
Annotations

toroidal component of the magnetic field at the specified grid [T]; Time-dependent; Matrix (ndim1, ndim2)
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="bphi" type="matflt_type">
  <xs:annotation>
    <xs:documentation>toroidal component of the magnetic field at the specified grid [T]; Time-dependent; Matrix (ndim1, ndim2)</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element equilibrium_profiles_2d / vphi
Namespace No namespace
Annotations

toroidal flow velocity [m/s]; Time-dependent; Matrix (ndim1, ndim2)
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="vphi" type="matflt_type">
  <xs:annotation>
    <xs:documentation>toroidal flow velocity [m/s]; Time-dependent; Matrix (ndim1, ndim2)</xs:documentation>
  </xs:annotation>
</xs:element>
Element equilibrium_profiles_2d / vtheta
Namespace No namespace
Annotations

Poloidal flow velocity [m/s]; Time-dependent; Matrix (ndim1, ndim2)
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="vtheta" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Poloidal flow velocity [m/s]; Time-dependent; Matrix (ndim1, ndim2)</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element equilibrium_profiles_2d / rho_mass
Namespace No namespace
Annotations

Mass density [kg/m^3]; Time-dependent; Matrix (ndim1, ndim2)
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="rho_mass" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Mass density [kg/m^3]; Time-dependent; Matrix (ndim1, ndim2)</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element equilibrium_profiles_2d / pressure
Namespace No namespace
Annotations

Pressure [Pa]; Time-dependent; Matrix (ndim1, ndim2)
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="pressure" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Pressure [Pa]; Time-dependent; Matrix (ndim1, ndim2)</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element equilibrium_profiles_2d / temperature
Namespace No namespace
Annotations

Temperature [eV]; Time-dependent; Matrix (ndim1, ndim2)
Diagram
Diagram utilities_xsd.tmp#matflt_type
Type matflt_type
Properties
content simple
Source

<xs:element name="temperature" type="matflt_type">
  <xs:annotation>
    <xs:documentation>Temperature [eV]; Time-dependent; Matrix (ndim1, ndim2)</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element equilibrium / time
Namespace No namespace
Annotations

Time [s]; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
default 0.0
Source

<xs:element name="time" type="xs:float" default="0.0">
  <xs:annotation>
    <xs:documentation>Time [s]; Time-dependent; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Complex Type equilibrium_profiles_2d
Namespace No namespace
Annotations

output profiles in the poloidal plane
Diagram
Diagram equilibrium_xsd.tmp#NO_NAMESPACE_equilibrium_profiles_2d_grid_type equilibrium_xsd.tmp#NO_NAMESPACE_equilibrium_profiles_2d_grid equilibrium_xsd.tmp#NO_NAMESPACE_equilibrium_profiles_2d_r equilibrium_xsd.tmp#NO_NAMESPACE_equilibrium_profiles_2d_z equilibrium_xsd.tmp#NO_NAMESPACE_equilibrium_profiles_2d_psi equilibrium_xsd.tmp#NO_NAMESPACE_equilibrium_profiles_2d_theta equilibrium_xsd.tmp#NO_NAMESPACE_equilibrium_profiles_2d_phi equilibrium_xsd.tmp#NO_NAMESPACE_equilibrium_profiles_2d_jphi equilibrium_xsd.tmp#NO_NAMESPACE_equilibrium_profiles_2d_jpar equilibrium_xsd.tmp#NO_NAMESPACE_equilibrium_profiles_2d_br equilibrium_xsd.tmp#NO_NAMESPACE_equilibrium_profiles_2d_bz equilibrium_xsd.tmp#NO_NAMESPACE_equilibrium_profiles_2d_bphi equilibrium_xsd.tmp#NO_NAMESPACE_equilibrium_profiles_2d_vphi equilibrium_xsd.tmp#NO_NAMESPACE_equilibrium_profiles_2d_vtheta equilibrium_xsd.tmp#NO_NAMESPACE_equilibrium_profiles_2d_rho_mass equilibrium_xsd.tmp#NO_NAMESPACE_equilibrium_profiles_2d_pressure equilibrium_xsd.tmp#NO_NAMESPACE_equilibrium_profiles_2d_temperature
Used by
Model
Children bphi, br, bz, grid, grid_type, jpar, jphi, phi, pressure, psi, r, rho_mass, temperature, theta, vphi, vtheta, z
Source

<xs:complexType name="equilibrium_profiles_2d">
  <xs:annotation>
    <xs:documentation>output profiles in the poloidal plane</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="grid_type" type="vecstring_type">
      <xs:annotation>
        <xs:documentation>Selection of one of a set of grid types. 1-rectangular (R,Z) grid, in this case the position arrays should not be filled since they are redundant with grid/dim1 and dim2.</xs:documentation>
        <xs:appinfo>experimental</xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element name="grid" type="equilibrium_profiles2d_grid">
      <xs:annotation>
        <xs:documentation>definition of the 2D grid</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="r" type="matflt_type">
      <xs:annotation>
        <xs:documentation>values of the major radius on the grid [m]; Time-dependent; Matrix (ndim1, ndim2)</xs:documentation>
        <xs:appinfo>experimental</xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element name="z" type="matflt_type">
      <xs:annotation>
        <xs:documentation>values of the altitude on the grid [m]; Time-dependent; Matrix (ndim1, ndim2)</xs:documentation>
        <xs:appinfo>experimental</xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element name="psi" type="matflt_type">
      <xs:annotation>
        <xs:documentation>values of the poloidal flux at the grid in the poloidal plane [Wb]; Time-dependent; Matrix (ndim1, ndim2)</xs:documentation>
        <xs:appinfo>experimental</xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element name="theta" type="matflt_type">
      <xs:annotation>
        <xs:documentation>values of the poloidal angle on the grid [rad]; Time-dependent; Matrix (ndim1, ndim2)</xs:documentation>
        <xs:appinfo>experimental</xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element name="phi" type="matflt_type">
      <xs:annotation>
        <xs:documentation>Toroidal flux [Wb]. Time-dependent; Matrix (ndim1, ndim2)</xs:documentation>
        <xs:appinfo>experimental</xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element name="jphi" type="matflt_type">
      <xs:annotation>
        <xs:documentation>toroidal plasma current density [A m-2]; Time-dependent; Matrix (ndim1, ndim2)</xs:documentation>
        <xs:appinfo>experimental</xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element name="jpar" type="matflt_type">
      <xs:annotation>
        <xs:documentation>parallel (to magnetic field) plasma current density [A m-2]; Time-dependent; Matrix (ndim1, ndim2)</xs:documentation>
        <xs:appinfo>experimental</xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element name="br" type="matflt_type">
      <xs:annotation>
        <xs:documentation>R component of the poloidal magnetic field at the specified grid [T]; Time-dependent; Matrix (ndim1, ndim2)</xs:documentation>
        <xs:appinfo>experimental</xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element name="bz" type="matflt_type">
      <xs:annotation>
        <xs:documentation>Z component of the poloidal magnetic field at the specified grid [T]; Time-dependent; Matrix (ndim1, ndim2)</xs:documentation>
        <xs:appinfo>experimental</xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element name="bphi" type="matflt_type">
      <xs:annotation>
        <xs:documentation>toroidal component of the magnetic field at the specified grid [T]; Time-dependent; Matrix (ndim1, ndim2)</xs:documentation>
        <xs:appinfo>experimental</xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element name="vphi" type="matflt_type">
      <xs:annotation>
        <xs:documentation>toroidal flow velocity [m/s]; Time-dependent; Matrix (ndim1, ndim2)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="vtheta" type="matflt_type">
      <xs:annotation>
        <xs:documentation>Poloidal flow velocity [m/s]; Time-dependent; Matrix (ndim1, ndim2)</xs:documentation>
        <xs:appinfo>experimental</xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element name="rho_mass" type="matflt_type">
      <xs:annotation>
        <xs:documentation>Mass density [kg/m^3]; Time-dependent; Matrix (ndim1, ndim2)</xs:documentation>
        <xs:appinfo>experimental</xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element name="pressure" type="matflt_type">
      <xs:annotation>
        <xs:documentation>Pressure [Pa]; Time-dependent; Matrix (ndim1, ndim2)</xs:documentation>
        <xs:appinfo>experimental</xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element name="temperature" type="matflt_type">
      <xs:annotation>
        <xs:documentation>Temperature [eV]; Time-dependent; Matrix (ndim1, ndim2)</xs:documentation>
        <xs:appinfo>experimental</xs:appinfo>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type equilibrium_profiles2d_grid
Namespace No namespace
Annotations

definition of the 2D grid
Diagram
Diagram equilibrium_xsd.tmp#equilibrium_profiles2d_grid_dim1 equilibrium_xsd.tmp#equilibrium_profiles2d_grid_dim2 equilibrium_xsd.tmp#equilibrium_profiles2d_grid_connect
Used by
Model
Children connect, dim1, dim2
Source

<xs:complexType name="equilibrium_profiles2d_grid">
  <xs:annotation>
    <xs:documentation>definition of the 2D grid</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="dim1" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>First dimension values; Time-dependent; Vector (ndim1)</xs:documentation>
        <xs:appinfo>experimental</xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element name="dim2" type="vecflt_type">
      <xs:annotation>
        <xs:documentation>Second dimension values; Time-dependent; Vector (ndim2)</xs:documentation>
        <xs:appinfo>experimental</xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element name="connect" type="matint_type">
      <xs:annotation>
        <xs:documentation>In case of a finite elemnt representation, lists the points (3 for triangles, 4 for quadrangles) which define a finite element. In this case, ndim1=ndim2 and the value of grid_connect represents the index of the points in the list 1:ndim. E.g. : grid_connect(i,1:4) is a list of four integers [k1 k2 k3 k4] meaning that finite element #i is defined by the points (dim1(k1),dim2(k1)),(dim1(k2),dim2(k2)),(dim1(k3),dim2(k3)) and (dim1(k4),dim2(k4)); Time-dependent; Matrix of integers (nelement,4)</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
XML Schema documentation generated by ® XML Editor.
