Included schema eqglobal.xsd
Namespace No namespace
Properties
attribute form default unqualified
element form default qualified

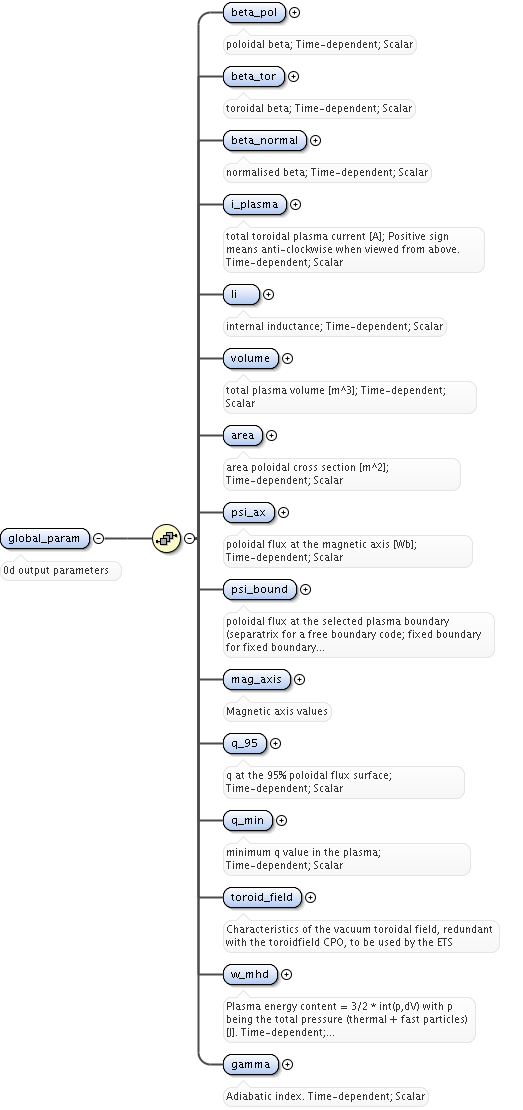

Element global_param
Namespace No namespace
Annotations

0d output parameters
Diagram
Diagram eqglobal_xsd.tmp#global_param_beta_pol eqglobal_xsd.tmp#global_param_beta_tor eqglobal_xsd.tmp#global_param_beta_normal eqglobal_xsd.tmp#global_param_i_plasma eqglobal_xsd.tmp#global_param_li eqglobal_xsd.tmp#global_param_volume eqglobal_xsd.tmp#global_param_area eqglobal_xsd.tmp#global_param_psi_ax eqglobal_xsd.tmp#global_param_psi_bound eqglobal_xsd.tmp#global_param_mag_axis eqglobal_xsd.tmp#global_param_q_95 eqglobal_xsd.tmp#global_param_q_min eqglobal_xsd.tmp#global_param_toroid_field eqglobal_xsd.tmp#global_param_w_mhd eqglobal_xsd.tmp#global_param_gamma
Properties
content complex
Used by
Element equilibrium
Model
Children area, beta_normal, beta_pol, beta_tor, gamma, i_plasma, li, mag_axis, psi_ax, psi_bound, q_95, q_min, toroid_field, volume, w_mhd
Instance

<global_param>
  <beta_pol>{1,1}</beta_pol>
  <beta_tor>{1,1}</beta_tor>
  <beta_normal>{1,1}</beta_normal>
  <i_plasma>{1,1}</i_plasma>
  <li>{1,1}</li>
  <volume>{1,1}</volume>
  <area>{1,1}</area>
  <psi_ax>{1,1}</psi_ax>
  <psi_bound>{1,1}</psi_bound>
  <mag_axis>{1,1}</mag_axis>
  <q_95>{1,1}</q_95>
  <q_min>{1,1}</q_min>
  <toroid_field>{1,1}</toroid_field>
  <w_mhd>{1,1}</w_mhd>
  <gamma>{1,1}</gamma>
</global_param>
Source

<xs:element name="global_param">
  <xs:annotation>
    <xs:documentation>0d output parameters</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="beta_pol" type="xs:float" default="0.0">
        <xs:annotation>
          <xs:documentation>poloidal beta; Time-dependent; Scalar</xs:documentation>
          <xs:appinfo>experimental</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="beta_tor" type="xs:float" default="0.0">
        <xs:annotation>
          <xs:documentation>toroidal beta; Time-dependent; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="beta_normal" type="xs:float" default="0.0">
        <xs:annotation>
          <xs:documentation>normalised beta; Time-dependent; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="i_plasma" type="xs:float">
        <xs:annotation>
          <xs:documentation>total toroidal plasma current [A]; Positive sign means anti-clockwise when viewed from above. Time-dependent; Scalar</xs:documentation>
          <xs:appinfo>experimental</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="li" type="xs:float" default="0.0">
        <xs:annotation>
          <xs:documentation>internal inductance; Time-dependent; Scalar</xs:documentation>
          <xs:appinfo>experimental</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="volume" type="xs:float" default="0.0">
        <xs:annotation>
          <xs:documentation>total plasma volume [m^3]; Time-dependent; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="area" type="xs:float" default="0.0">
        <xs:annotation>
          <xs:documentation>area poloidal cross section [m^2]; Time-dependent; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="psi_ax" type="xs:float" default="0.0">
        <xs:annotation>
          <xs:documentation>poloidal flux at the magnetic axis [Wb]; Time-dependent; Scalar</xs:documentation>
          <xs:appinfo>experimental</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="psi_bound" type="xs:float" default="0.0">
        <xs:annotation>
          <xs:documentation>poloidal flux at the selected plasma boundary (separatrix for a free boundary code; fixed boundary for fixed boundary code) [Wb]; Time-dependent; Scalar</xs:documentation>
          <xs:appinfo>experimental</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="mag_axis">
        <xs:annotation>
          <xs:documentation>Magnetic axis values</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="position" type="rz0D">
              <xs:annotation>
                <xs:documentation>Position of the magnetic axis [m]; Time-dependent; Scalar;</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="bphi" type="xs:float" default="0.0">
              <xs:annotation>
                <xs:documentation>Total toroidal magnetic field at the magnetic axis [T]; Time-dependent; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="q" type="xs:float" default="0.0">
              <xs:annotation>
                <xs:documentation>q at the magnetic axis; Time-dependent; Scalar</xs:documentation>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="q_95" type="xs:float" default="0.0">
        <xs:annotation>
          <xs:documentation>q at the 95% poloidal flux surface; Time-dependent; Scalar</xs:documentation>
          <xs:appinfo>experimental</xs:appinfo>
        </xs:annotation>
      </xs:element>
      <xs:element name="q_min" type="xs:float" default="0.0">
        <xs:annotation>
          <xs:documentation>minimum q value in the plasma; Time-dependent; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>

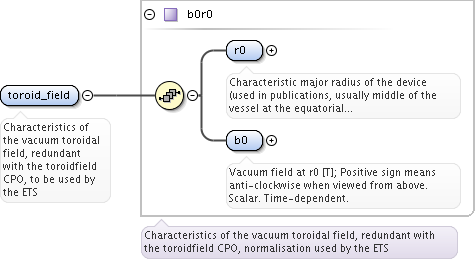

      <xs:element name="toroid_field" type="b0r0">
        <xs:annotation>
          <xs:documentation>Characteristics of the vacuum toroidal field, redundant with the toroidfield CPO, to be used by the ETS</xs:documentation>
        </xs:annotation>
      </xs:element>

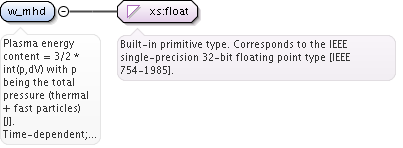

      <xs:element name="w_mhd" type="xs:float" default="0.0">
        <xs:annotation>
          <xs:documentation>Plasma energy content = 3/2 * int(p,dV) with p being the total pressure (thermal + fast particles) [J]. Time-dependent; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="gamma" type="xs:float" default="0.0">
        <xs:annotation>
          <xs:documentation>Adiabatic index. Time-dependent; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element global_param / beta_pol
Namespace No namespace
Annotations

poloidal beta; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
default 0.0
Source

<xs:element name="beta_pol" type="xs:float" default="0.0">
  <xs:annotation>
    <xs:documentation>poloidal beta; Time-dependent; Scalar</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element global_param / beta_tor
Namespace No namespace
Annotations

toroidal beta; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
default 0.0
Source

<xs:element name="beta_tor" type="xs:float" default="0.0">
  <xs:annotation>
    <xs:documentation>toroidal beta; Time-dependent; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Element global_param / beta_normal
Namespace No namespace
Annotations

normalised beta; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
default 0.0
Source

<xs:element name="beta_normal" type="xs:float" default="0.0">
  <xs:annotation>
    <xs:documentation>normalised beta; Time-dependent; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

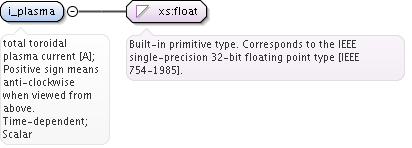

Element global_param / i_plasma
Namespace No namespace
Annotations

total toroidal plasma current [A]; Positive sign means anti-clockwise when viewed from above. Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
Source

<xs:element name="i_plasma" type="xs:float">
  <xs:annotation>
    <xs:documentation>total toroidal plasma current [A]; Positive sign means anti-clockwise when viewed from above. Time-dependent; Scalar</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element global_param / li
Namespace No namespace
Annotations

internal inductance; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
default 0.0
Source

<xs:element name="li" type="xs:float" default="0.0">
  <xs:annotation>
    <xs:documentation>internal inductance; Time-dependent; Scalar</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element global_param / volume
Namespace No namespace
Annotations

total plasma volume [m^3]; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
default 0.0
Source

<xs:element name="volume" type="xs:float" default="0.0">
  <xs:annotation>
    <xs:documentation>total plasma volume [m^3]; Time-dependent; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

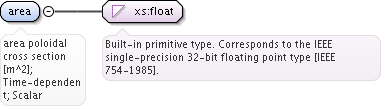

Element global_param / area
Namespace No namespace
Annotations

area poloidal cross section [m^2]; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
default 0.0
Source

<xs:element name="area" type="xs:float" default="0.0">
  <xs:annotation>
    <xs:documentation>area poloidal cross section [m^2]; Time-dependent; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

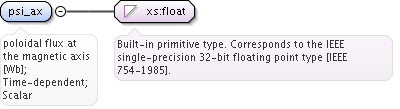

Element global_param / psi_ax
Namespace No namespace
Annotations

poloidal flux at the magnetic axis [Wb]; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
default 0.0
Source

<xs:element name="psi_ax" type="xs:float" default="0.0">
  <xs:annotation>
    <xs:documentation>poloidal flux at the magnetic axis [Wb]; Time-dependent; Scalar</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>

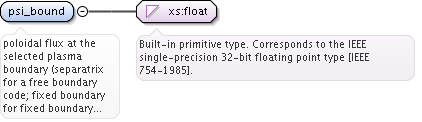

Element global_param / psi_bound
Namespace No namespace
Annotations

poloidal flux at the selected plasma boundary (separatrix for a free boundary code; fixed boundary for fixed boundary code) [Wb]; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
default 0.0
Source

<xs:element name="psi_bound" type="xs:float" default="0.0">
  <xs:annotation>
    <xs:documentation>poloidal flux at the selected plasma boundary (separatrix for a free boundary code; fixed boundary for fixed boundary code) [Wb]; Time-dependent; Scalar</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>

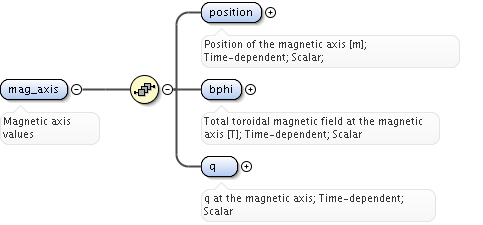

Element global_param / mag_axis
Namespace No namespace
Annotations

Magnetic axis values
Diagram
Diagram eqglobal_xsd.tmp#global_param_global_param_mag_axis_position eqglobal_xsd.tmp#global_param_global_param_mag_axis_bphi eqglobal_xsd.tmp#global_param_global_param_mag_axis_q
Properties
content complex
Model
Children bphi, position, q
Instance

<mag_axis>
  <position>{1,1}</position>
  <bphi>{1,1}</bphi>
  <q>{1,1}</q>
</mag_axis>
Source

<xs:element name="mag_axis">
  <xs:annotation>
    <xs:documentation>Magnetic axis values</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="position" type="rz0D">
        <xs:annotation>
          <xs:documentation>Position of the magnetic axis [m]; Time-dependent; Scalar;</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="bphi" type="xs:float" default="0.0">
        <xs:annotation>
          <xs:documentation>Total toroidal magnetic field at the magnetic axis [T]; Time-dependent; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="q" type="xs:float" default="0.0">
        <xs:annotation>
          <xs:documentation>q at the magnetic axis; Time-dependent; Scalar</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

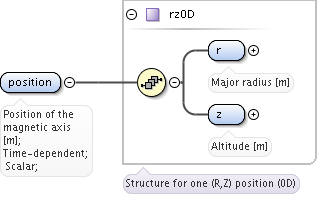

Element global_param / mag_axis / position
Namespace No namespace
Annotations

Position of the magnetic axis [m]; Time-dependent; Scalar;
Diagram
Diagram utilities_xsd.tmp#rz0D_r utilities_xsd.tmp#rz0D_z utilities_xsd.tmp#rz0D
Type rz0D
Properties
content complex
Model
r , z
Children r, z
Instance

<position>
  <r>{1,1}</r>
  <z>{1,1}</z>
</position>
Source

<xs:element name="position" type="rz0D">
  <xs:annotation>
    <xs:documentation>Position of the magnetic axis [m]; Time-dependent; Scalar;</xs:documentation>
  </xs:annotation>
</xs:element>

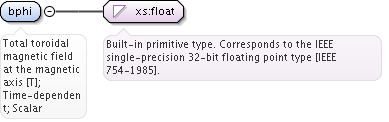

Element global_param / mag_axis / bphi
Namespace No namespace
Annotations

Total toroidal magnetic field at the magnetic axis [T]; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
default 0.0
Source

<xs:element name="bphi" type="xs:float" default="0.0">
  <xs:annotation>
    <xs:documentation>Total toroidal magnetic field at the magnetic axis [T]; Time-dependent; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Element global_param / mag_axis / q
Namespace No namespace
Annotations

q at the magnetic axis; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
default 0.0
Source

<xs:element name="q" type="xs:float" default="0.0">
  <xs:annotation>
    <xs:documentation>q at the magnetic axis; Time-dependent; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>

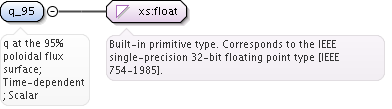

Element global_param / q_95
Namespace No namespace
Annotations

q at the 95% poloidal flux surface; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
default 0.0
Source

<xs:element name="q_95" type="xs:float" default="0.0">
  <xs:annotation>
    <xs:documentation>q at the 95% poloidal flux surface; Time-dependent; Scalar</xs:documentation>
    <xs:appinfo>experimental</xs:appinfo>
  </xs:annotation>
</xs:element>
Element global_param / q_min
Namespace No namespace
Annotations

minimum q value in the plasma; Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
default 0.0
Source

<xs:element name="q_min" type="xs:float" default="0.0">
  <xs:annotation>
    <xs:documentation>minimum q value in the plasma; Time-dependent; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Element global_param / toroid_field
Namespace No namespace
Annotations

Characteristics of the vacuum toroidal field, redundant with the toroidfield CPO, to be used by the ETS
Diagram
Diagram utilities_xsd.tmp#b0r0_r0 utilities_xsd.tmp#b0r0_b0 utilities_xsd.tmp#b0r0
Type b0r0
Properties
content complex
Model
r0 , b0
Children b0, r0
Instance

<toroid_field>
  <r0>{1,1}</r0>
  <b0>{1,1}</b0>
</toroid_field>
Source

<xs:element name="toroid_field" type="b0r0">
  <xs:annotation>
    <xs:documentation>Characteristics of the vacuum toroidal field, redundant with the toroidfield CPO, to be used by the ETS</xs:documentation>
  </xs:annotation>
</xs:element>
Element global_param / w_mhd
Namespace No namespace
Annotations

Plasma energy content = 3/2 * int(p,dV) with p being the total pressure (thermal + fast particles) [J]. Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
default 0.0
Source

<xs:element name="w_mhd" type="xs:float" default="0.0">
  <xs:annotation>
    <xs:documentation>Plasma energy content = 3/2 * int(p,dV) with p being the total pressure (thermal + fast particles) [J]. Time-dependent; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
Element global_param / gamma
Namespace No namespace
Annotations

Adiabatic index. Time-dependent; Scalar
Diagram
Diagram
Type xs:float
Properties
content simple
default 0.0
Source

<xs:element name="gamma" type="xs:float" default="0.0">
  <xs:annotation>
    <xs:documentation>Adiabatic index. Time-dependent; Scalar</xs:documentation>
  </xs:annotation>
</xs:element>
XML Schema documentation generated by ® XML Editor.
